Cooling System

• Note: Use an oil can and wrench together for an easier oil change

Note: Use an oil can and wrench together for an easier oil change

• Item Weight：4.49 pounds
• Package Dimensions：‎12.8 x 9.72 x 5.51 inches
• Choose the 10ft or 20ft fuel line kit that fits your needs best.

• [Universal]It can be applied to most cars, making sure there's enough room for Installation.
• [Size] Hose length: 31.5in / 0.8m,hose ID:3/8",hose OD:2/3".The thread of the inlet and outlet is M16*1.5.Capacity:300ML.
• [Baffled] The baffle is disassembled in a rotary manner, adding an appropriate amount of steel balls can increase the surface area of steam condensation and more effectively catch oil.
• [Note] When the temperature outside reaches the freezing point or below, the crank vent system will generate a much greater amount of moisture which can present a risk of freezing. Please clean your oil catch can on a weekly or install the original PCV hose.
• Oil Catch Can with or without Breather Filter: Install the oil catch can with breather filter for pre-PCV cars as a vent system or without breather filter in line between PCV hoses as a seal can.

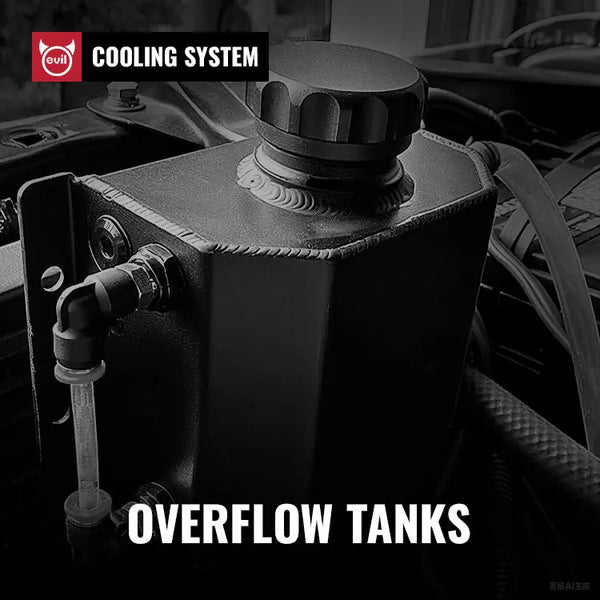

EVIL ENERGY offers car owners a high-performance, all-in-one overflow tank and oil-air separator kit, designed for high-performance vehicles and tuner cars, which perfectly solves the problems of engine cooling and oil-air recovery. The kit includes an aluminium overflow tank and oil catch can with a highly efficient spacer design that effectively reduces oil build-up and coolant spillage, improving vehicle performance and reliability. Whether you are a racing enthusiast or a tuner, the EVIL ENERGY kit is the ideal choice for you.

• Size: M14*1.5 male-to-barb fitting thread; compatible with 3/8" ID pipe; 1L storage volume.
• Fitment: Universal coolant reservoir tank, suitable for most vehicles (measure installation space before purchase).
• Note: Features tight-closed cap, fully TIG-welded construction, and O-ring gasket on threads for leak prevention; Teflon tape is recommended during installation to enhance airtightness.
• Function: When radiator coolant pressure exceeds cap setting, coolant flows into the tank via overflow tube; bottom port for radiator overflow, top port for tank overflow.
• Warranty: 1-year warranty provided by EVIL ENERGY.

• Important Notice: Equipped with an air filter element only (no internal mesh filter); recommend using with a wrench for easier oil changes; check instruction manual before installation.
• Core Specs: Brand: EVIL ENERGY; Capacity: 750ML; Material: Aluminum; Colors: Black, Silver; Fit Type: Universal (fits most vehicles).
• Dimensions & Fittings: 10AN fittings (thread: 7/8-14 UNF); Bottom pressure relief valve (thread: 3/8 NPT).
• Key Functions: Separates oil particles from PCV/CCV air to prevent intake valve gunk accumulation; minimizes oil blow-by and carbon buildup; maintains long-term engine performance.
• User-Friendly Design: Bottom drain valve for easy cleaning/reuse; includes all hardware and instructions for hassle-free installation.
• Warranty & Support: 1-year warranty; 90-day hassle-free return policy; contact support@ievilenergy.com for assistance.

• Universal Fit: Suitable for most cars (ensure enough installation space before purchase).
• Size: Length: 7.48inch; Bottom diameter: 2.95inch; Cap diameter: 1.96inch; Volume: 800ml; Hose ID: 5/16inch.
• Material: Aluminum alloy coolant overflow tank; NBR fuel hose.
• Feature: 1/16" ventilation hole on top for heat dissipation; O-ring seal to prevent coolant leakage.
• Installation: Install vertically, keep away from heat sources; installation instructions included.

The Kit Included:

• 1 x Transmission Engine oil Cooler
• 2 x 10an to 8an fittings
• 2 x 10an to 6an fittings

Oil Cooler Specifications:

• 7 Row:12.91‘× 2’×1.97‘inch.Oil capacity: 0.15L.
• 10 Row:12.91'× 3.94'×1.97'inch. Oil capacity: 0.24L.
• 16 Row:12.91'× 5.71'×1.97'inch. Oil capacity: 0.39L.
• 19 Row:12.91'× 6.67'×1.97'inch. Oil capacity: 0.45L.
• 30 Row:12.91'× 10.04'×1.97'inch. Oil capacity: 0.74L.
• Test pressure: 116psi; Burst pressure: 232psi.

Application: Oil cooler is suitable for most vehicles. Please ensure enough space for installation.

Fuction:The stacked plate oil cooler has high cooling efficiency and improves the lubrication of engine oil. Used to cool engines, transmissions, and rear differentials.

Material:aluminum alloy made,lightweight cooler mounting.

High-performance 12V radiator cooling fans available in 5 sizes (8-16 inches), featuring powerful 80W motors and efficient blade designs. Each fan kit includes a thermostat relay switch (175-185 Degree) and complete mounting hardware for universal installation.

Bracket Kit Included: 1 x Oil Cooler Mounting Bracket , 2 x Accessory Bracket, 8 x Screw , 8 x Nut

Oil Cooler Size:

• 10 Row:13.38"× 6.5"×1.97"inch. Oil capacity: 0.55L.
• 15 Row:13.38"× 9.45"×1.97"inch. Oil capacity: 0.55L.
• 16 Row:12.91"× 5.71"×1.97"inch. Oil capacity: 0.39L.

Application: Oil cooler is suitable for most vehicles. Please ensure enough space for installation.

Fuction: The stacked plate oil cooler has high cooling efficiency and improves the lubrication of engine oil. Used to cool engines, transmissions, and rear differentials.

Material: aluminum alloy made,lightweight cooler mounting.

Upgrade your ride with EVILENERGY's versatile Oil Catch Can. Universal fit, 300mL capacity. Select with or without breather filter for optimal engine performance and protection. A must-have accessory for any car enthusiast.

Universal：Suitable for most cars;Complete Kit: Everything you need for installation is included, ensuring a hassle-free setup.

Oil Cooler Specifications

• 10 Row size:13.38'× 6.5'×1.97' inches ; Oil capacity: 0.55L
• 15 Row size:13.38'× 9.45'×1.97' inches ; Oil capacity: 0.8L
• 16 Row size:12.91'× 5.71'×1.97' inches ; Oil capacity: 0.39L

Test pressure: 116psi ; Burst pressure: 232psi;

CPE Hose Line

• Material: nylon braided and CPE inner
• Length: 1 x 3.3ft & 1 x 3.9ft;
• Working pressure: 500psi
• Working temperature: -40℉ to 257℉.

• Bracket Kit Included: 1 x Oil Cooler Mounting Bracket , 2 x Accessory Bracket, 8 x Screw , 8 x Nut，1 x Oil Cooler,1 x CPE 6AN Fuel Line Kit.
• Oil Cooler Size:

10 Row:13.38"× 6.5"×1.97"inch. Oil capacity: 0.55L.

16 Row:12.91"× 5.71"×1.97"inch. Oil capacity: 0.39L.

30 Row:12.91"× 10.04"×1.97"inch. Oil capacity: 0.74L.

• Application: Oil cooler is suitable for most vehicles. Please ensure enough space for installation.
• Fuction: The stacked plate oil cooler has high cooling efficiency and improves the lubrication of engine oil. Used to cool engines, transmissions, and rear differentials.
• Material: aluminum alloy made,lightweight cooler mounting.

This comprehensive transmission oil cooler kit includes all essential components for efficient cooling and straightforward installation. It features a high-performance oil cooler, a versatile Insta-Dapt adapter, a durable 5/16" hose (5ft), four secure mounting rods, protective foam pads, reliable hose clamps, and practical mounting clips. The kit ensures easy installation, enhanced durability, and optimal transmission performance, helping to extend engine life by maintaining ideal oil temperatures.

• Note: Use an oil can and wrench together for an easier oil change

It can be applied to most cars, making sure there's enough room for Installation. You can install the oil catch can with Breather Filter for pre-PCV cars as a vent system or without breather filter in line between PCV hoses as a seal can, all for your option.

• [Fitment]:Compatible with 2014-2018 Chevy Silverado 1500 5.3L & 6.2L,2015-2020 Chevy Tahoe 5.3L& 6.2L,2015-2020 Chevy Suburban 5.3L& 6.2L,2014-2018 GMC Sierra 1500 5.3L& 6.2L,2015-2020 GMC Yukon/Yukon XL 5.3L & 6.2L,2015-2019 Cadillac Escalade 6.2L.
• [Installation Location]:In most cases you only need an air oil separator on the PCV side of the engine.
• [Note]:It is recommended to check whether the oil separator needs cleaning after driving 500 to 1000 miles.
• [Function]:The fine mesh aluminum filter captures fine oil vapor, helping to extend engine life and keep it running smoothly and cleanly.
• [Easy installation]:Equipped with the required hoses, custom brackets and fittings for direct replacement. Including installation instructions.

Fitment

• Compatible with 82-02 Chevy S10/S-10 Blazer V8 Conversion
• Compatible with 1984-1990 Chevrolet Corvette

Construction

• Made of High Quality Full T-6061 Aluminum Construction; Bolt-On Aluminum Frame Fan Shroud

Feature

• High Performance 3-Row Racing Design Radiator with 12" Pull Fans; Stronger & Higher Capacity for Coolant than Stock Units; Direct Bolt-On OEM Fitment or Replacement

High Performance

• Improves Cooling by 35 - 45% Temp, Make Heat Dissipation More Efficient to Prevent Premature Engine Failure
