EVIL ENERGY Baffled Oil Catch Can 300ml Universal Aluminum Black

SPECIFICATIONS
DESCRIPTION
SHIPPING & RETURN
VIDEOS & BLOGS
REVIEWS

Product Manual

Oil Catch Can Product Manual — Download

Brand	EVIL ENERGY
Product Type	Oil Catch Can Kits
Port Configuration	2-port (1 inlet / 1 outlet)
Single Vs Dual	Single catch can

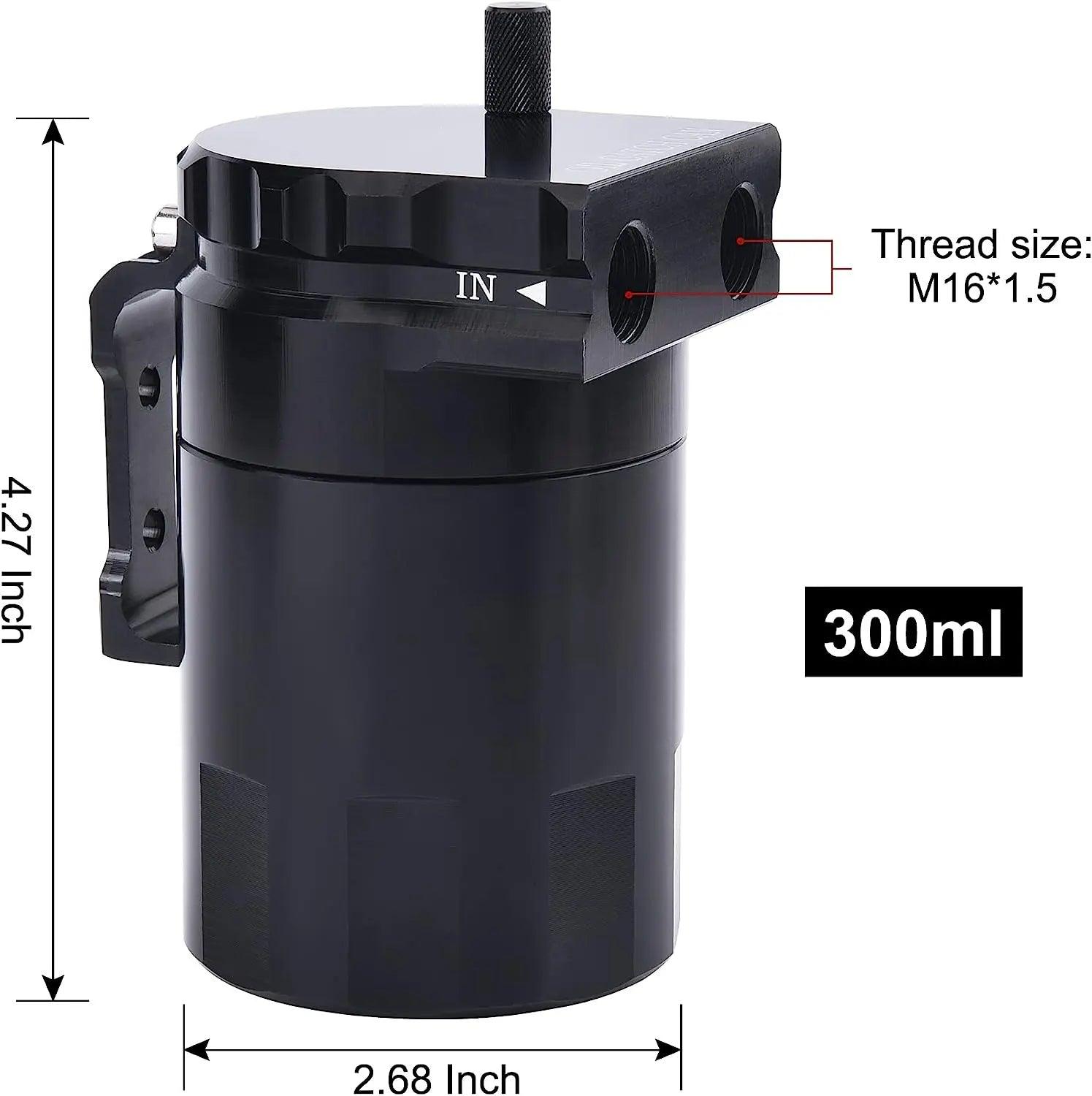

Capacity	300 ml (10.1 fl oz)

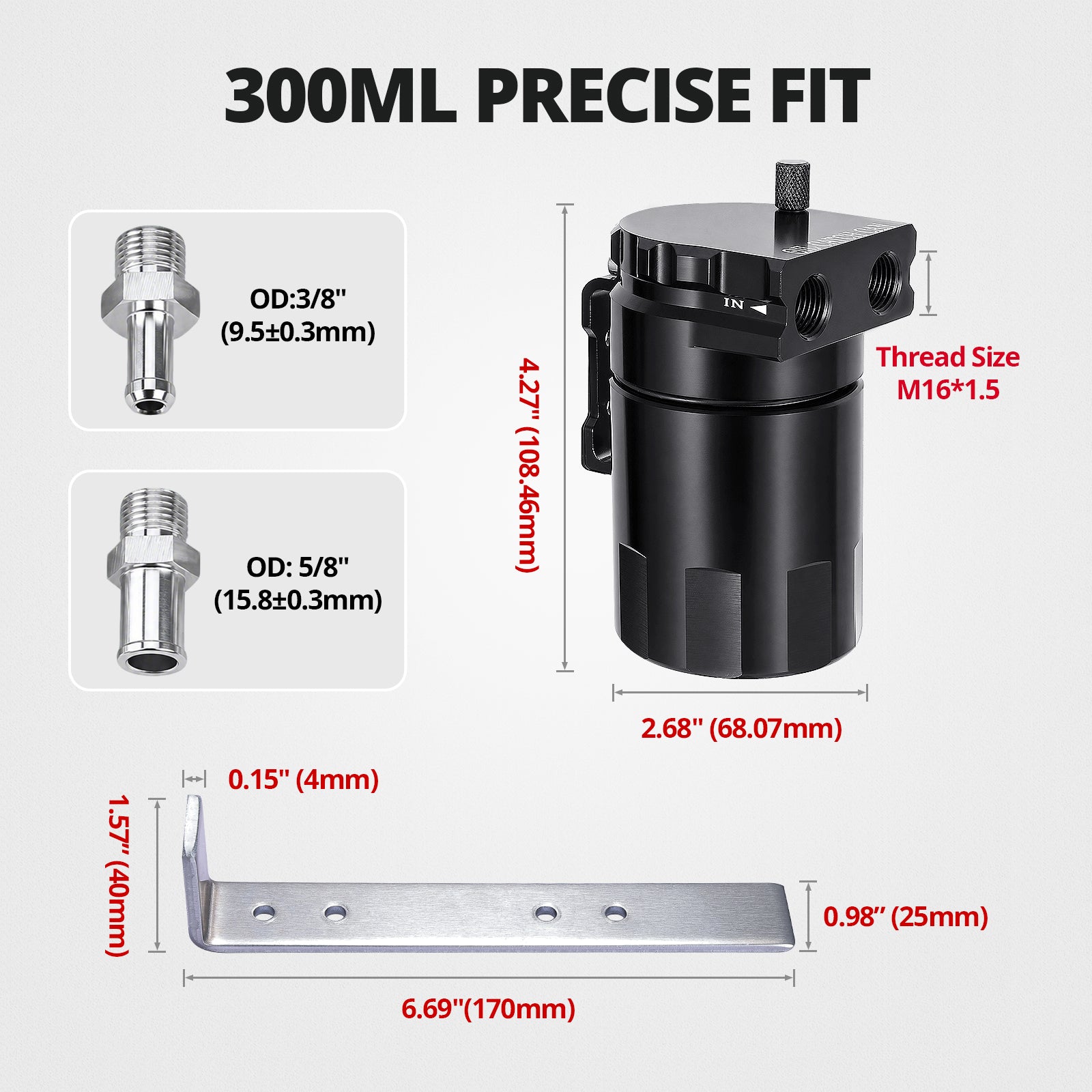

Height In	4.27 in (108.46mm) can body
Diameter In	2.68 in (68.07mm)
Port Thread	M16 × 1.5 female
Material	Aluminum can body; NBR hose
Finish	Powder-coated aluminum

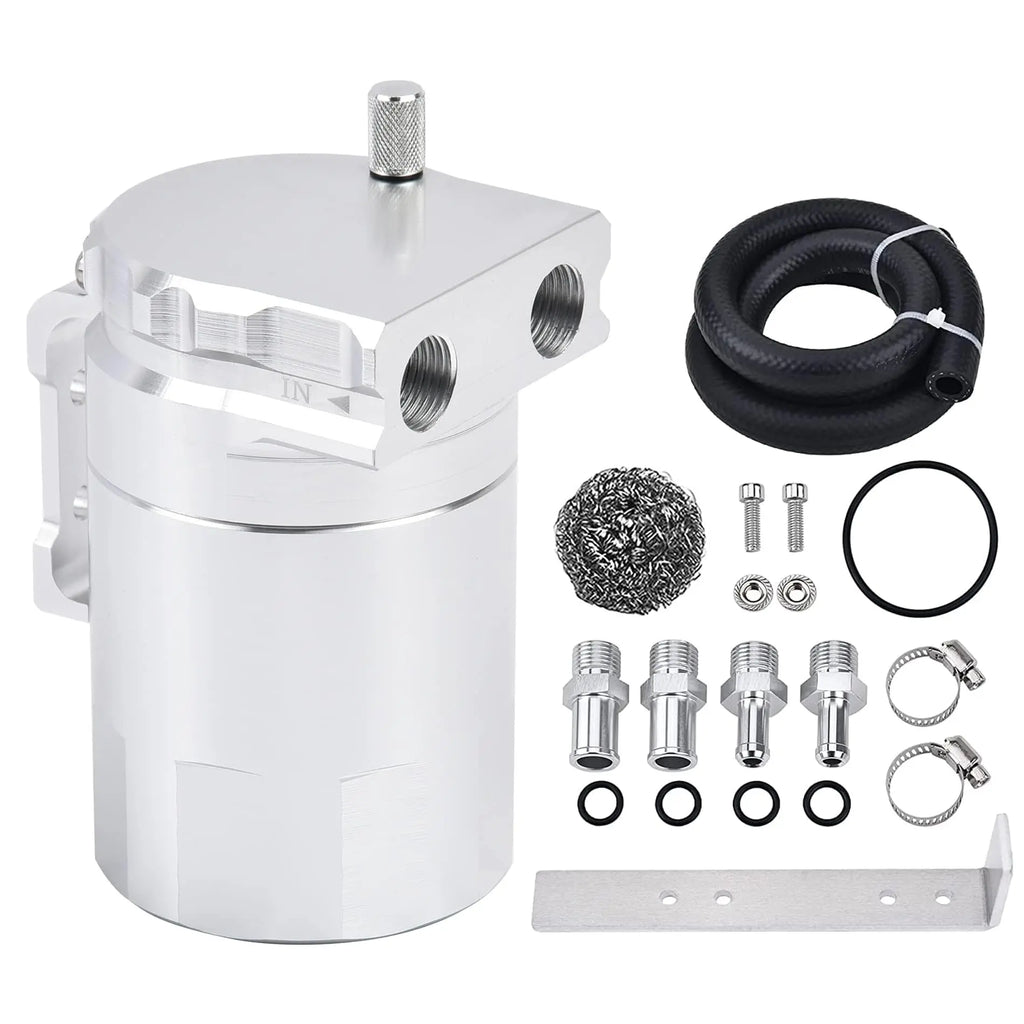

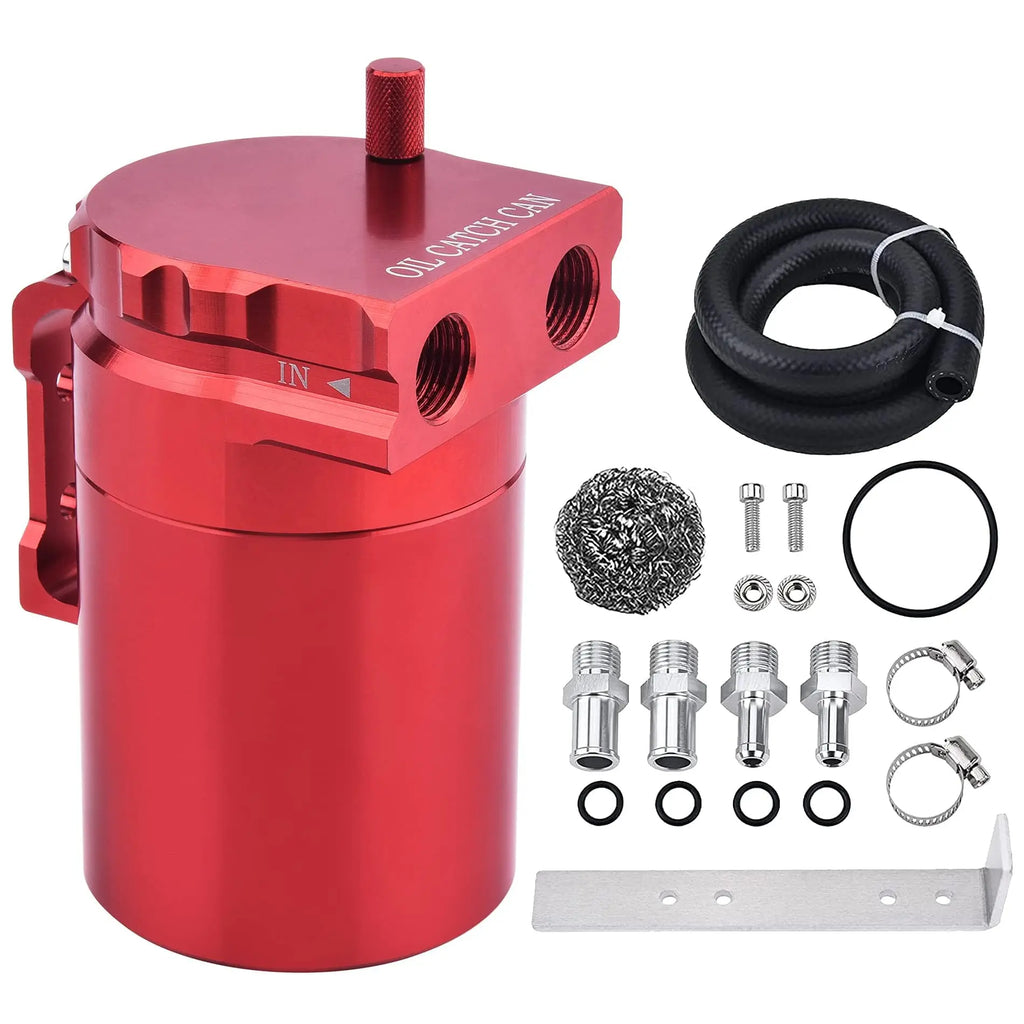

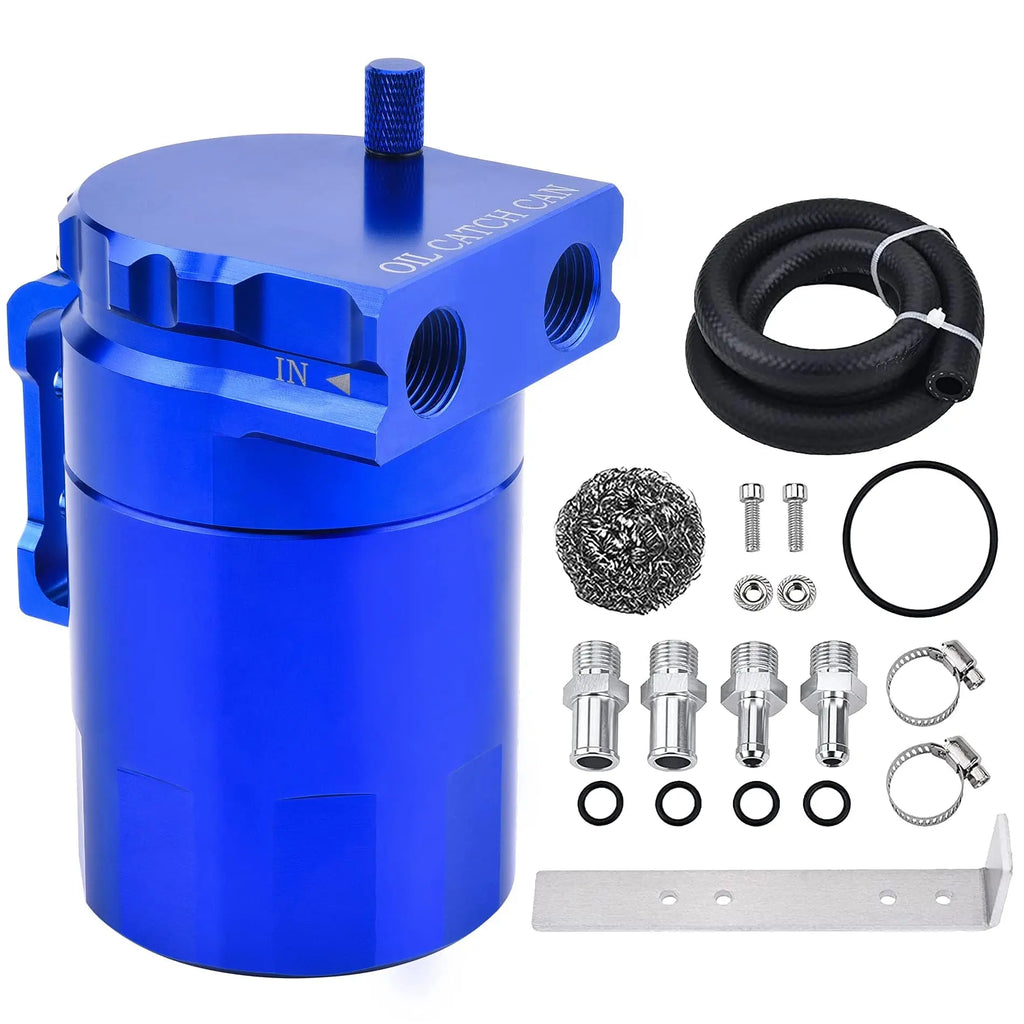

Color	Black, Silver, Red or Blue

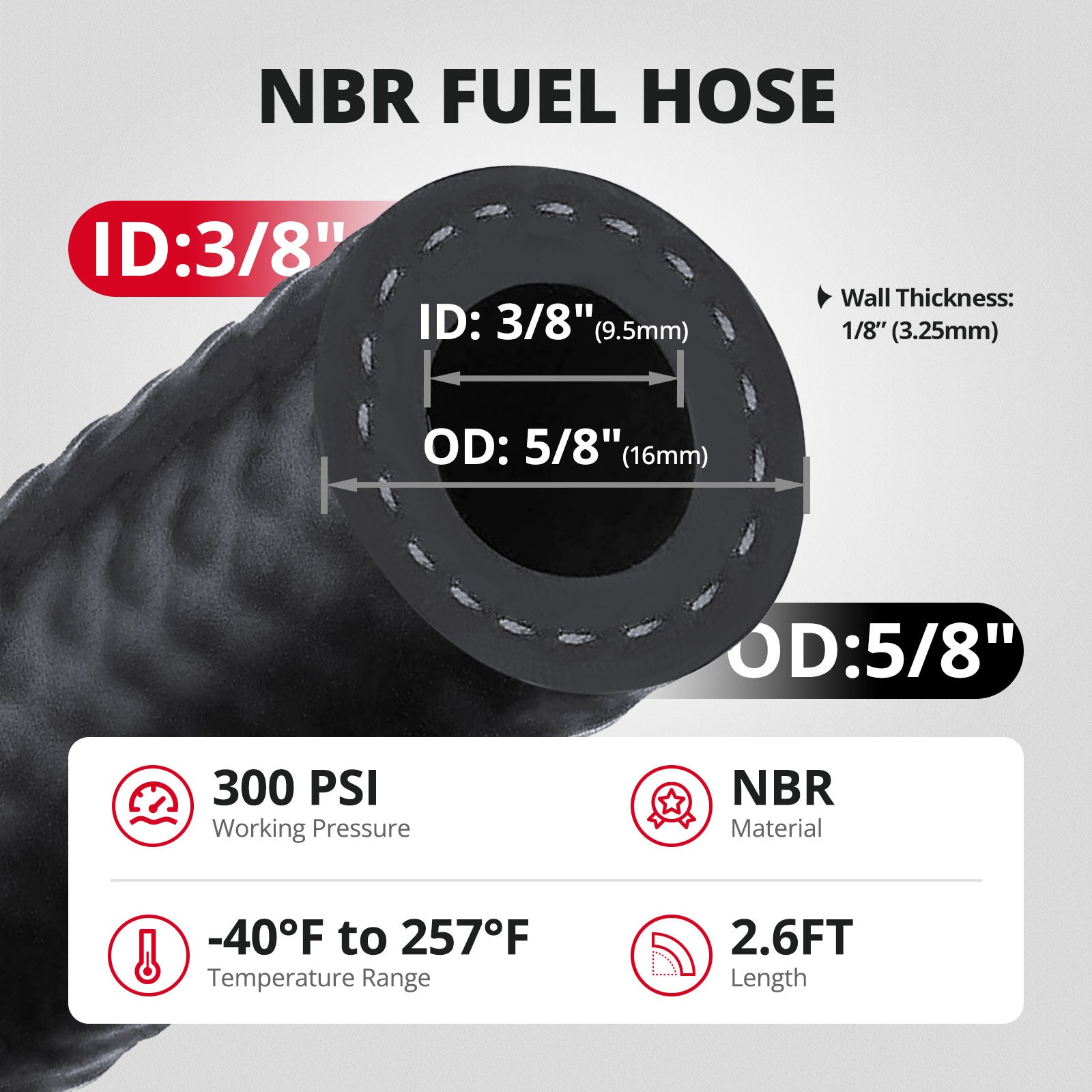

Hose Kit Included	Yes; 2.6 ft (0.8m) NBR hose, 3/8 in (9.5mm) ID, 5/8 in (16mm) OD, 1/8 in (3.25mm) wall
Hose Rating	300 psi working pressure; -40°F to 257°F (-40°C to 125°C)
Fittings Included	• 2 × M16 × 1.5 hose barb adapters, 3/8 in (9.5mm) OD, with O-rings • 2 × M16 × 1.5 hose barb adapters, 5/8 in (15.8mm) OD, with O-rings • 2 × hose clamps

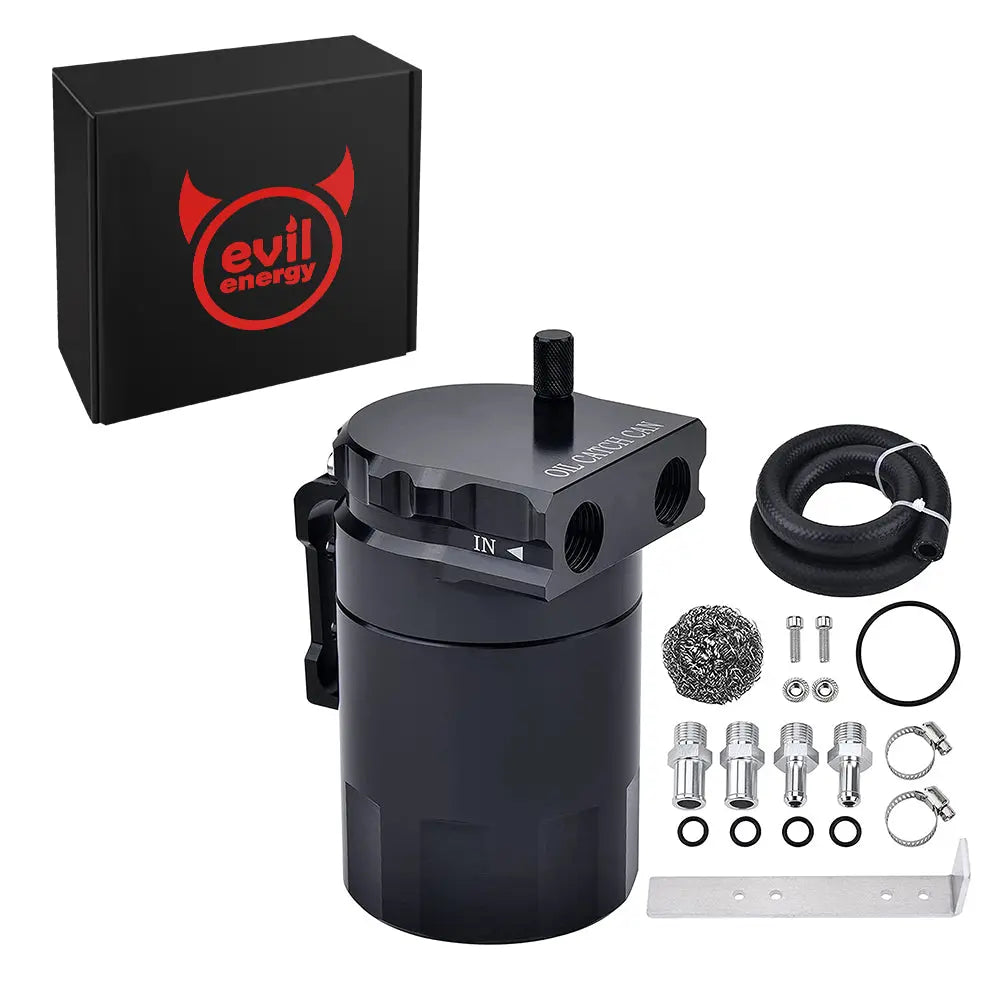

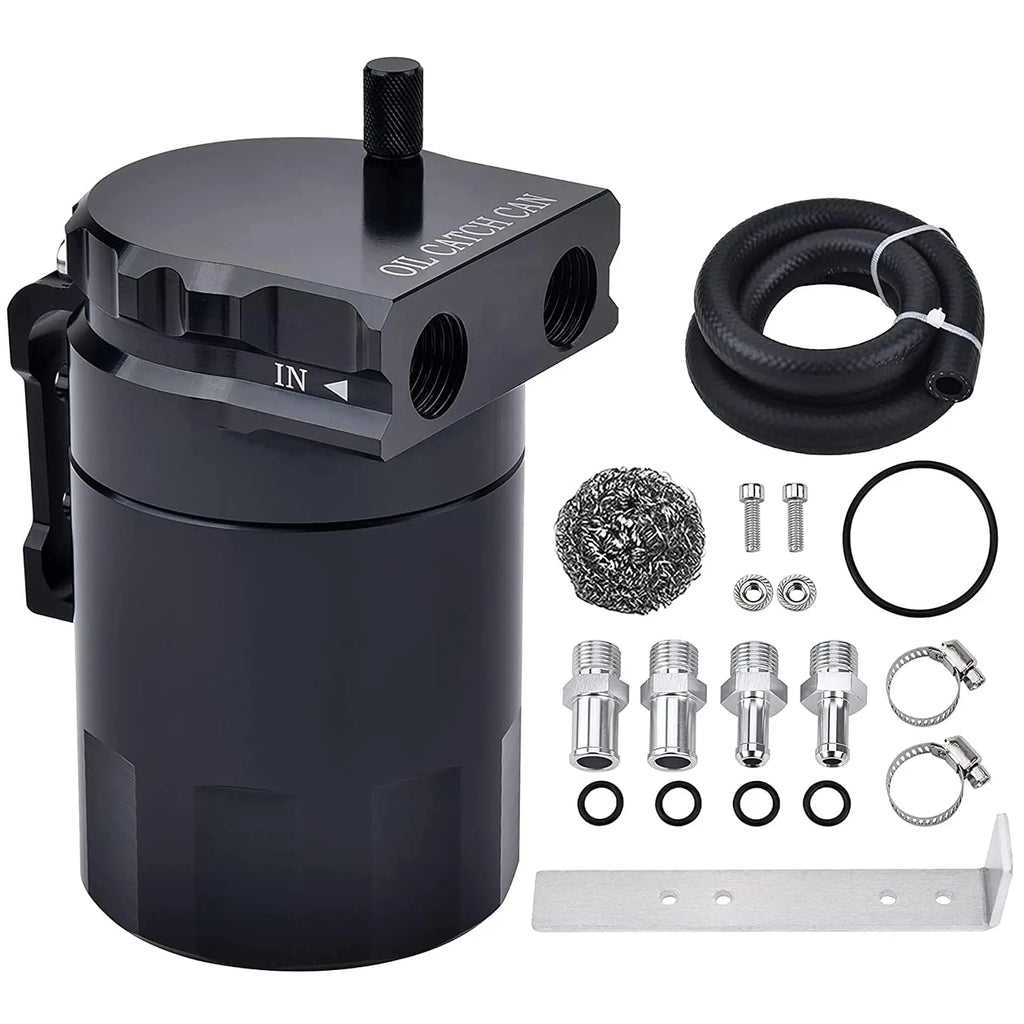

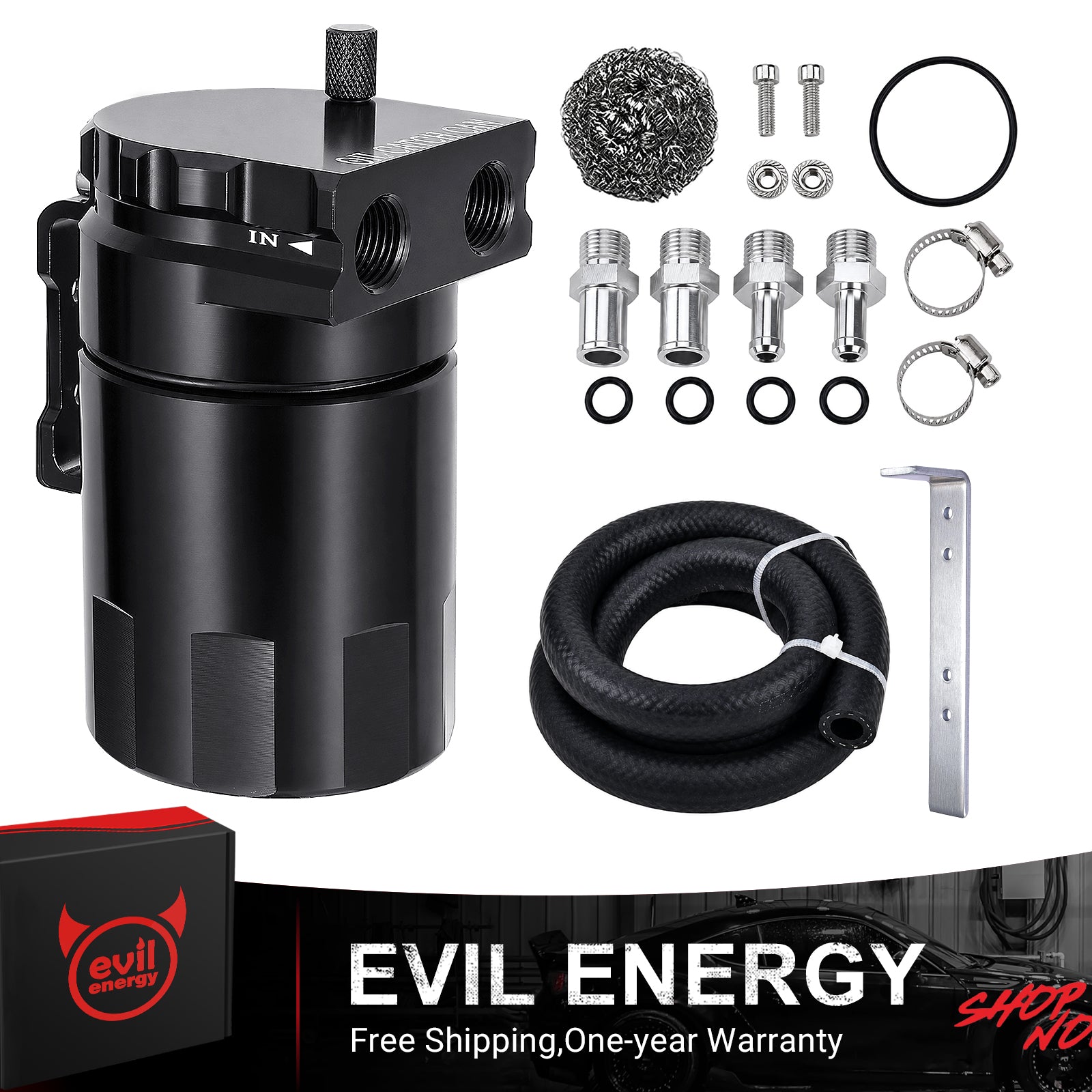

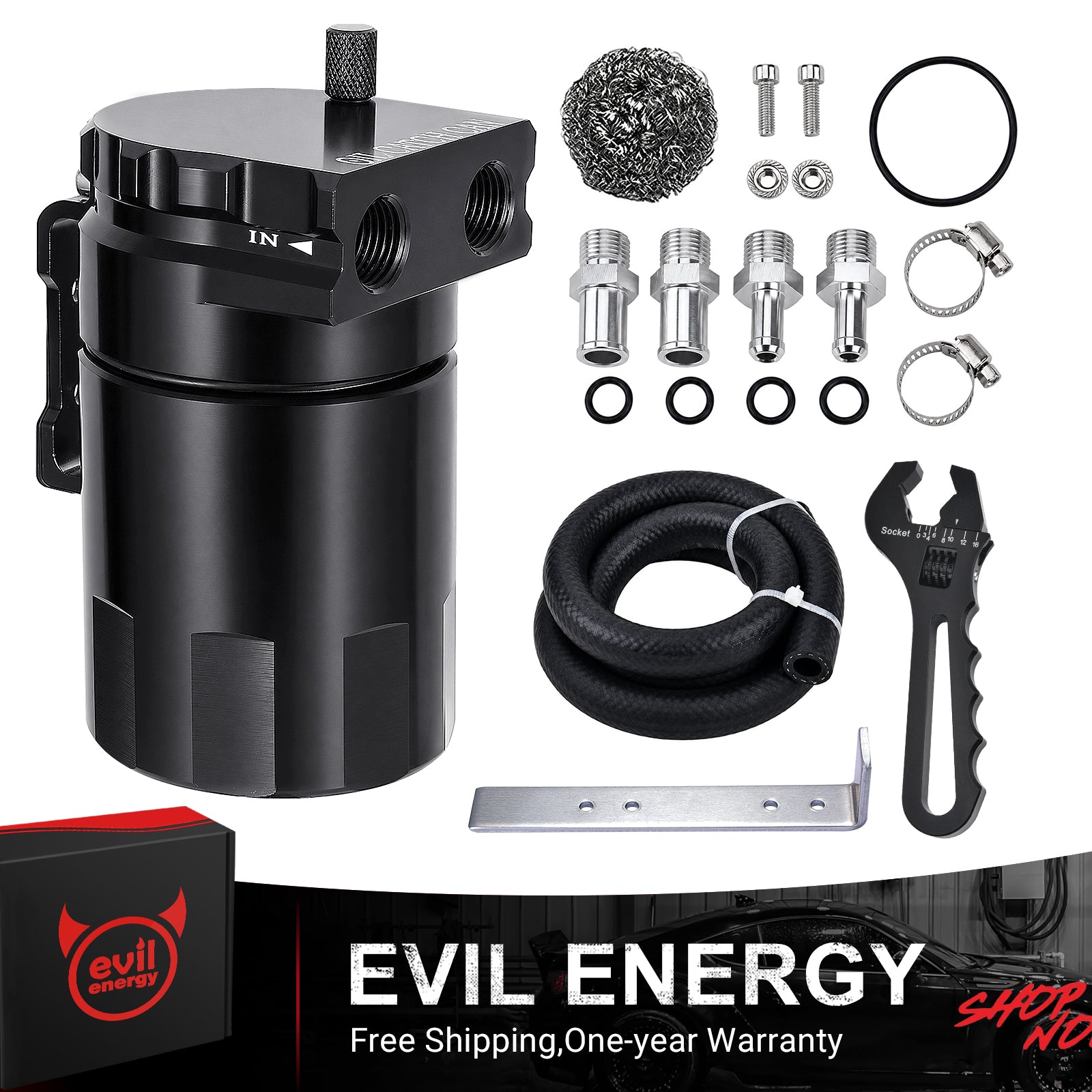

Package Includes	• 1 × 300 ml baffled oil catch can • 1 × 3/8 in ID NBR hose, 2.6 ft • 4 × M16 × 1.5 hose barb adapters with O-rings • 2 × hose clamps • 2 × M16 × 1.5 threads • 1 × O-ring • 1 × stainless steel wool • 1 × mounting bracket • 1 × AN wrench (With Spanner option)

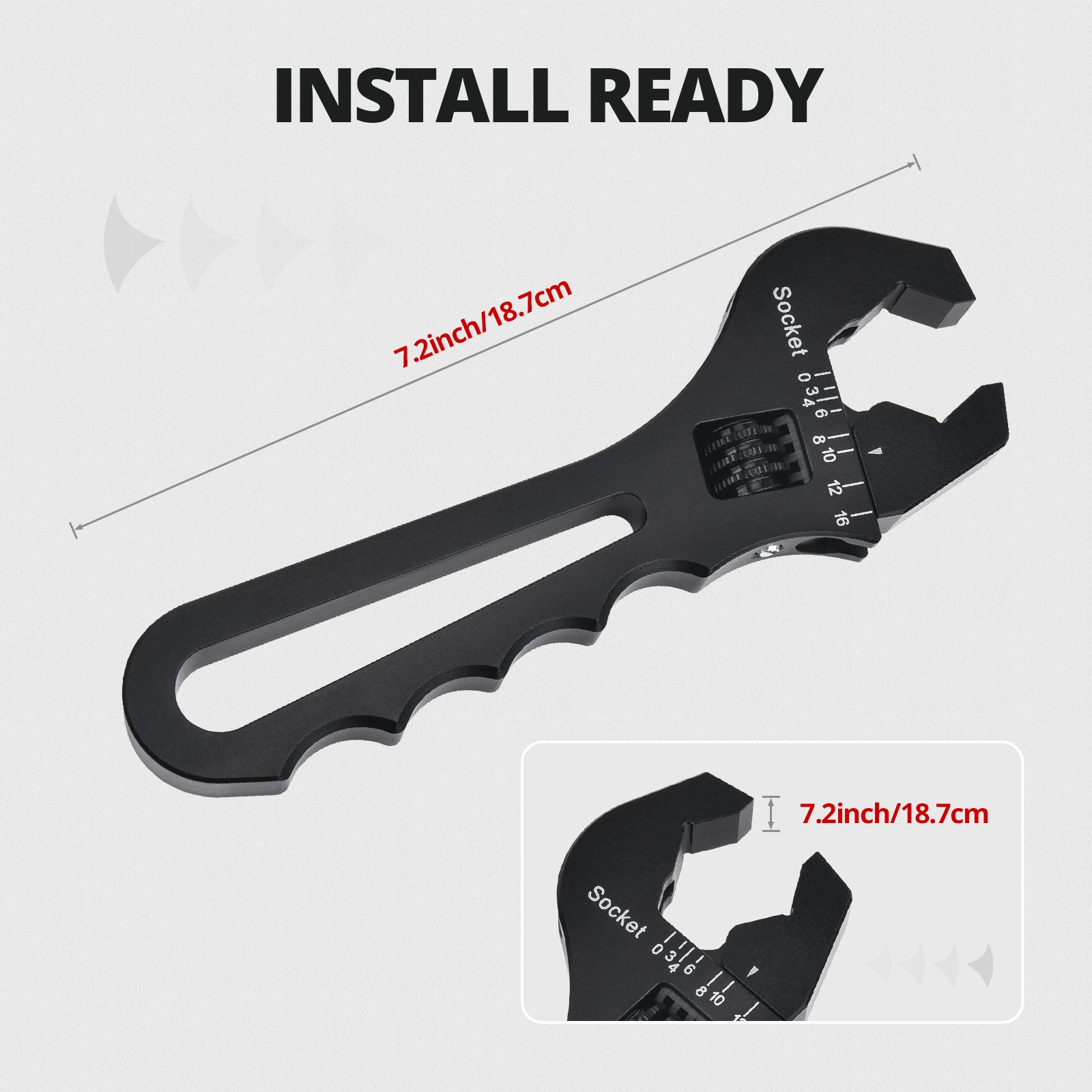

Spanner (Optional)	Aluminum AN wrench (3AN–16AN), 7.2 in (18.28cm) long, 2.7 in (6.9cm) max jaw opening, 0.53 in (1.35cm) jaw thickness, with 6 nylon jaw jackets, hex key and screws
Filter Type	Removable internal baffle with stainless steel wool media

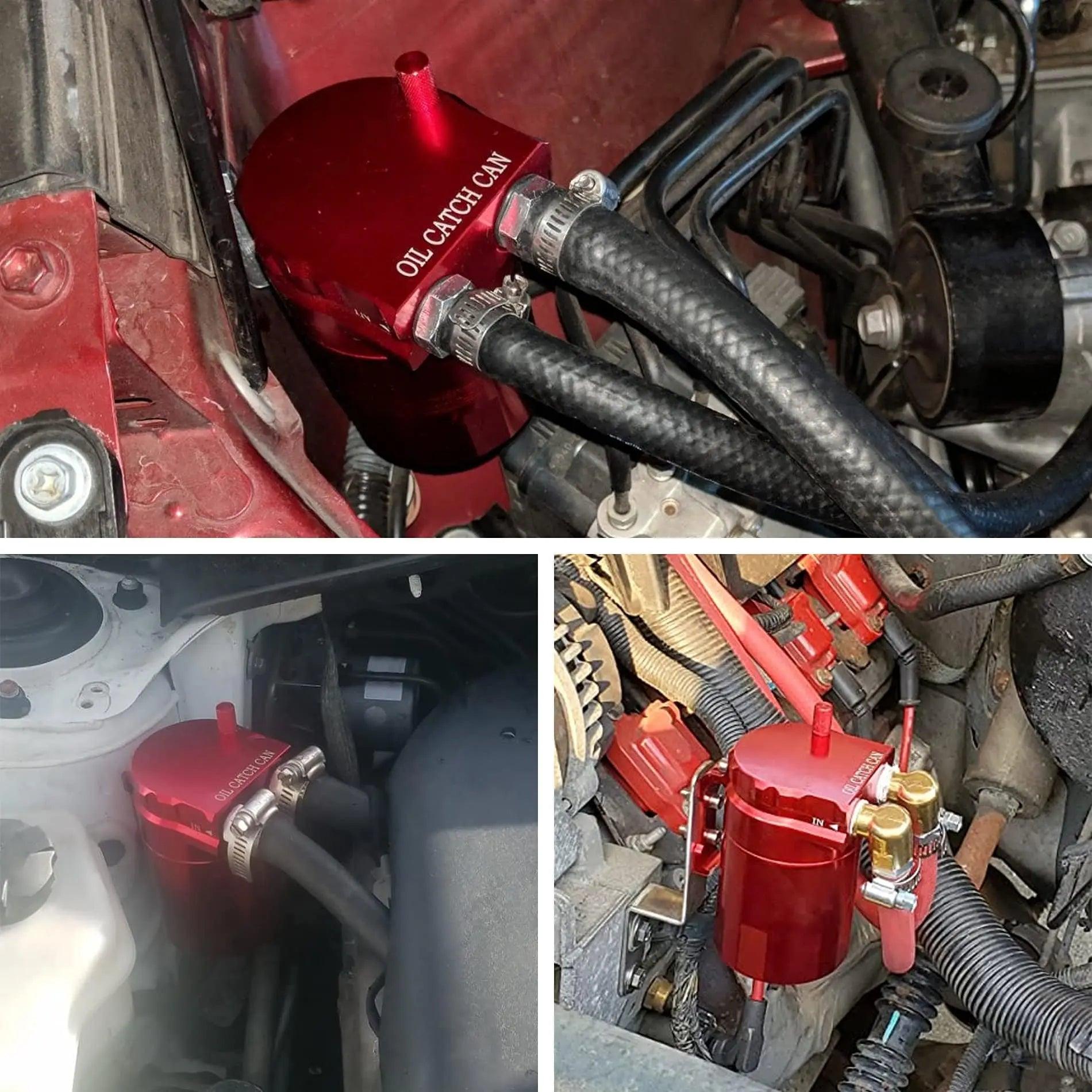

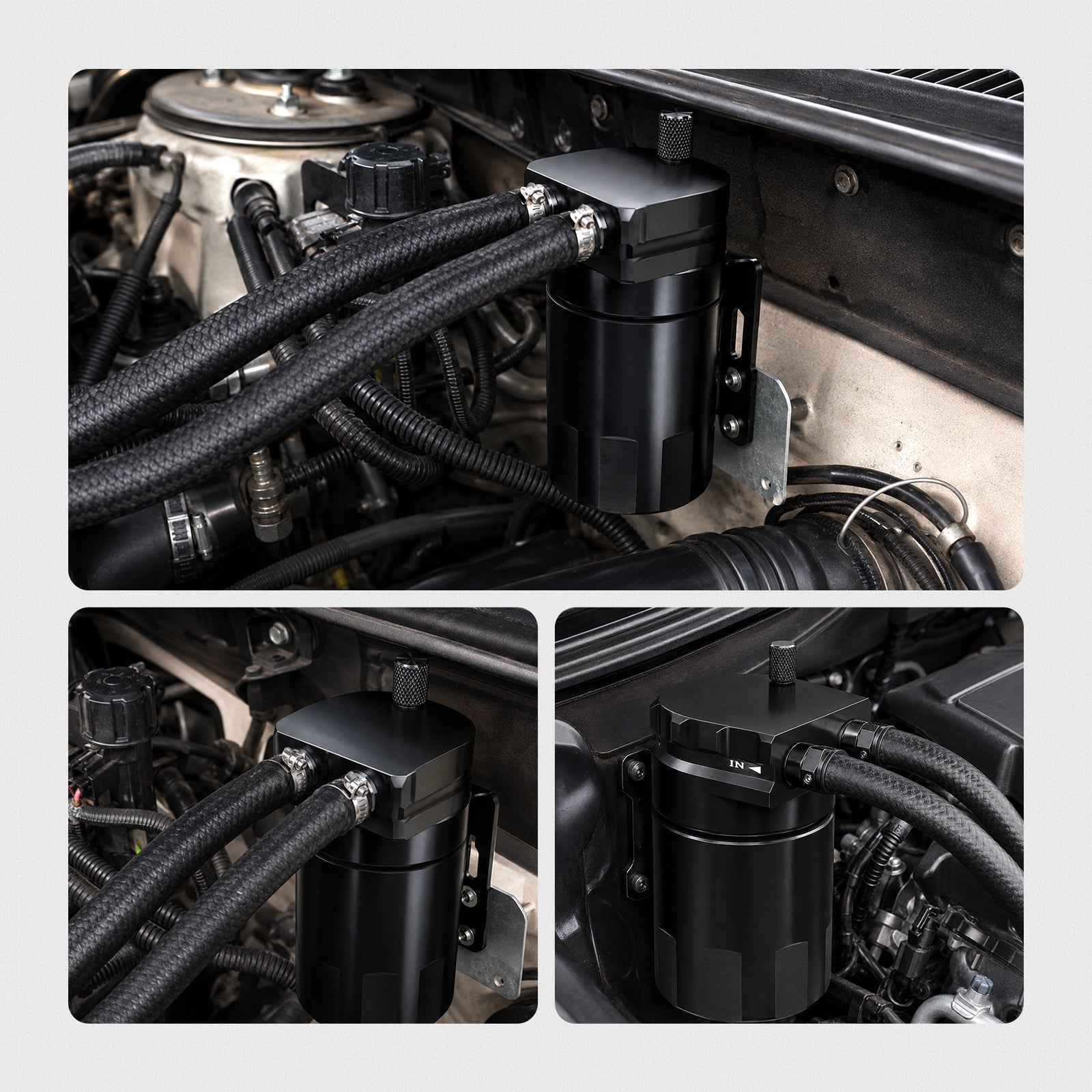

Vent Type	Closed-loop PCV, installed inline between the PCV hoses

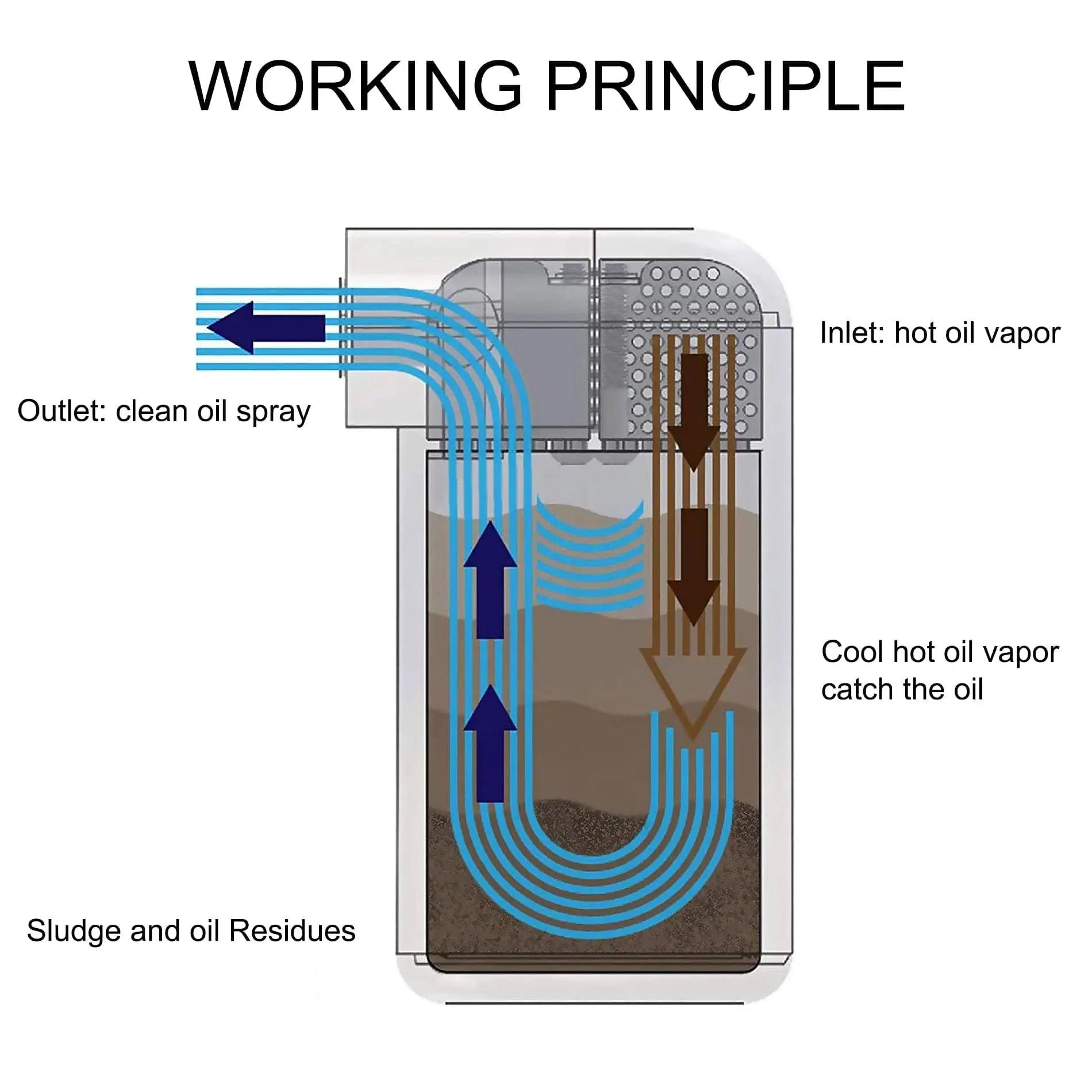

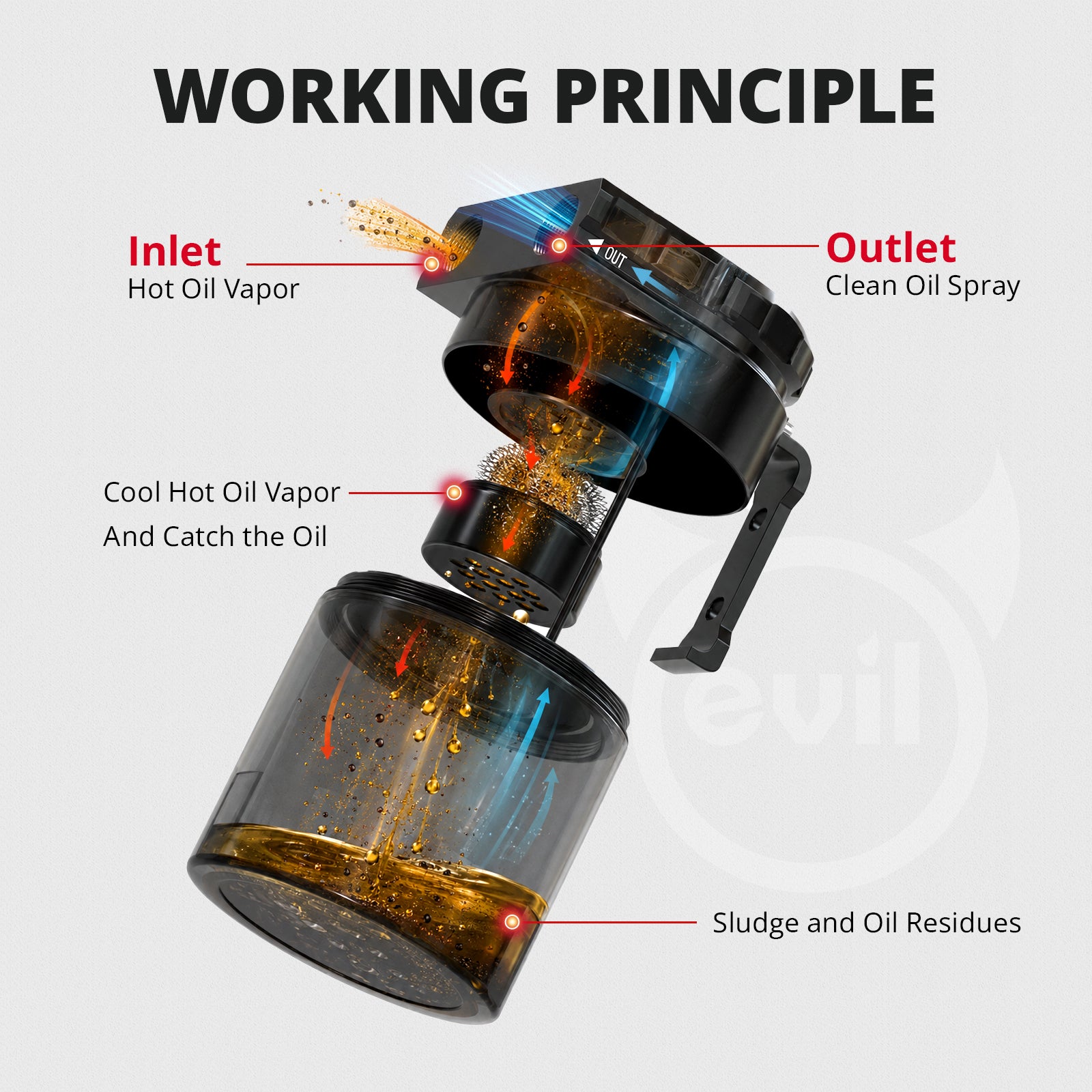

Separation Mechanism	Hot crankcase vapor cools across the removable baffle and steel wool; oil drops into the tank while cleaner air exits to the intake
Level Check	Top dipstick shows the oil level without opening the can

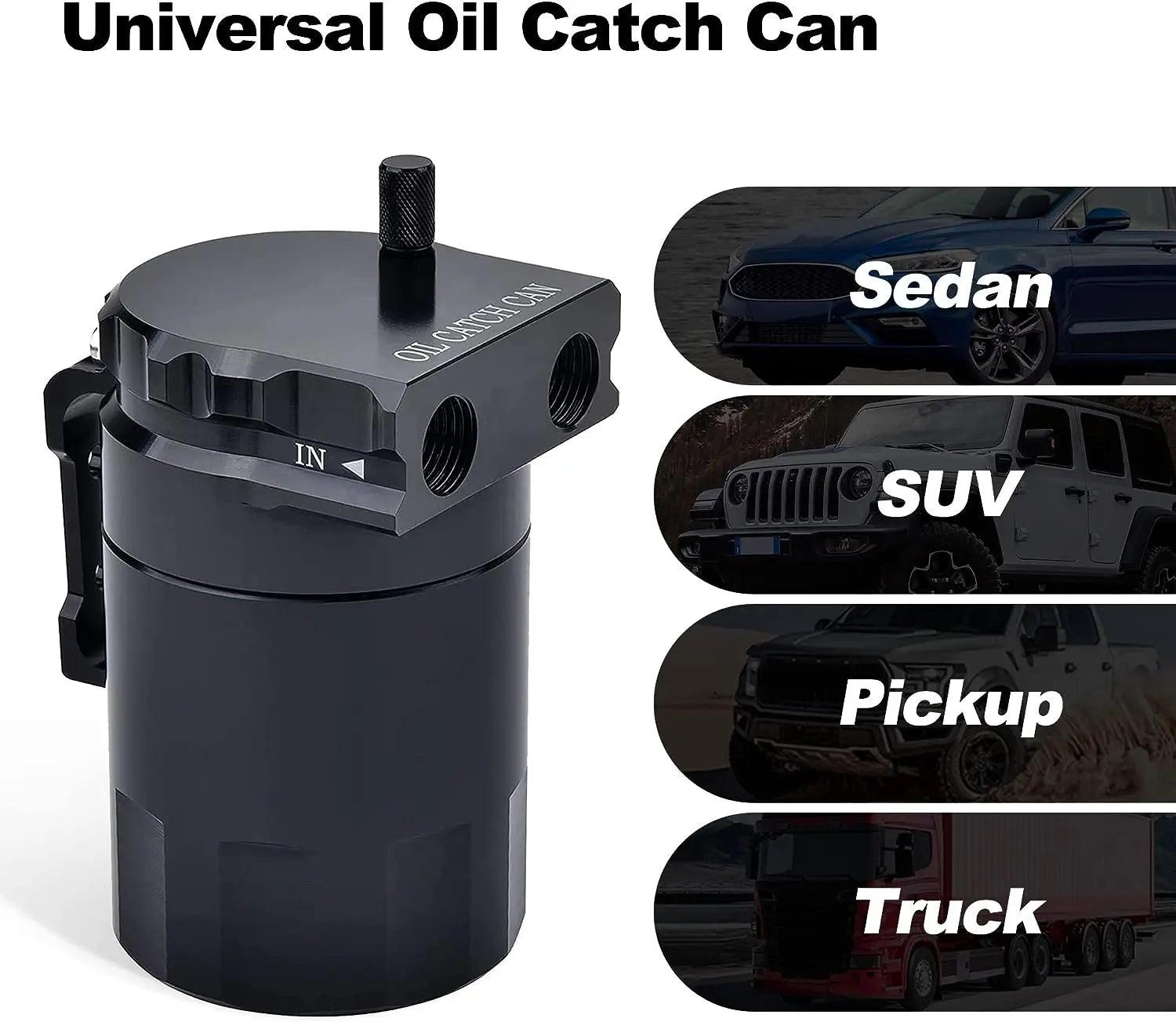

Fitment Type	Universal
Fitment Vehicle	• Sedans, SUVs, pickups and trucks with open space beside the PCV line
Mounting Bracket	L-shaped bracket, 6.69 in (170mm) long, 0.98 in (25mm) wide, 0.15 in (4mm) thick, with a 1.57 in (40mm) mounting leg
Installation Difficulty	Easy

DESCRIPTION

Maximize engine performance and durability with the Evil Energy 300ml Baffled Oil Catch Can. A must-have for car enthusiasts, this catch can effectively captures blow-by gases, separates oil particles, and ensures clean air cycles back into your intake system. With its internal baffle system and premium-grade construction, it provides superior oil separation, making it an essential addition for modified or high-performance vehicles.

Key Features:

Enhanced Oil Separation: The baffled design ensures superior separation of oil particles from blow-by gases, reducing intake system contamination.
Engine Protection: Helps prevent carbon build-up, protecting valves and extending engine life.
Durable Construction: Crafted from aircraft-grade aluminum, it’s lightweight yet built to last.
User-Friendly Maintenance: Includes an easy-to-use drain valve and a washable internal filter for hassle-free cleaning.
Universal Fit: Comes with fittings and flexible mounting brackets for a variety of engine setups.

EVIL ENERGY Universal Baffled Oil Catch Can

Why Choose Evil Energy?

Elevate your vehicle's performance with our top-tier fuel system components, including fuel lines, fittings, adapters, filters, fuel pumps, pressure regulators, and catch cans.

We prioritize quality control, ensuring each component meets rigorous standards for perfect fitment and durability, effectively addressing common fuel system challenges faced by car enthusiasts.

Enhanced Performance: Our products boost efficiency and power for your modified engine.
Professional Grade: Ideal for serious modifiers seeking reliable and high-performance upgrades.
Fast Shipping: Orders are processed within 1-2 business days for quick delivery.
Easy Returns: Enjoy a hassle-free 90-day return policy with free return shipping (Requires no use or installation, packaging intact). 90-180 days will be charged a 15% operating fee.
Warranty: EVIL ENERGY provides 1-year warranty on this kit. For questions, reach out to us via email.
