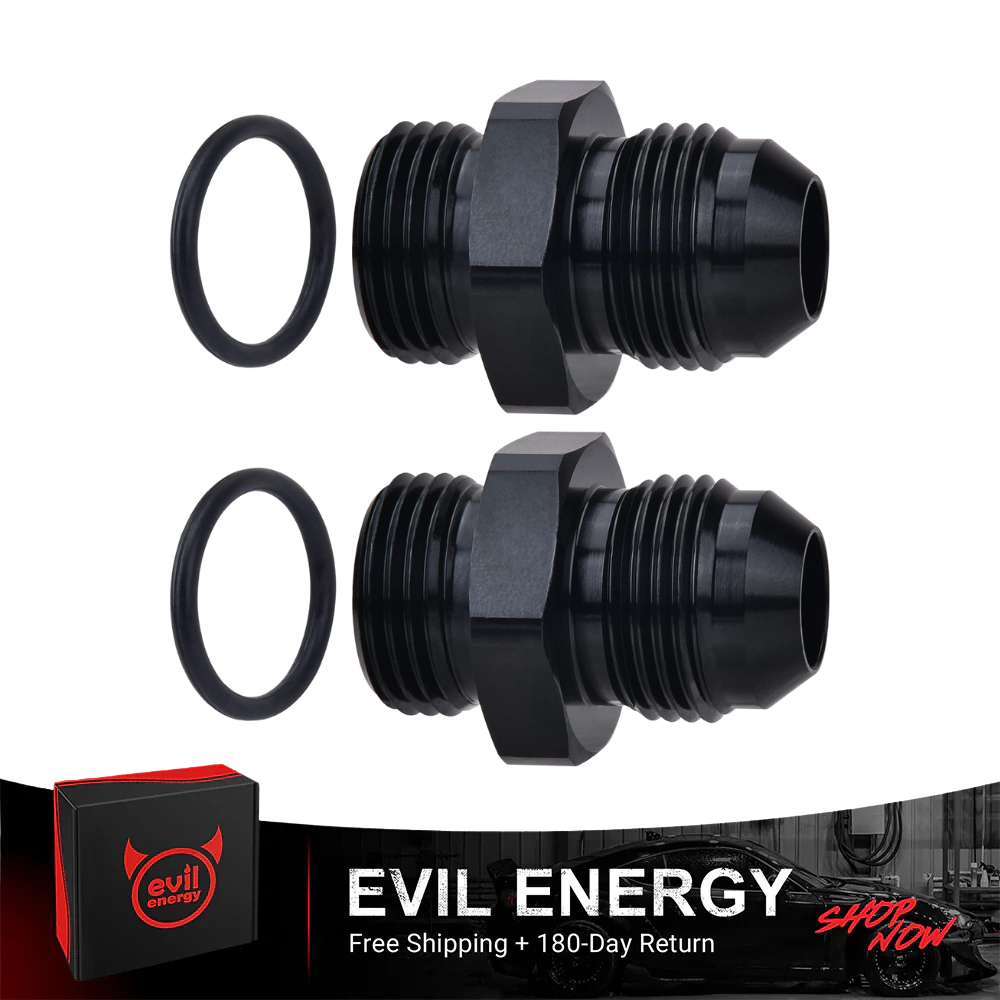

[2 PCS] EVIL ENERGY ORB fitting, two straight male flare adapters with O-rings

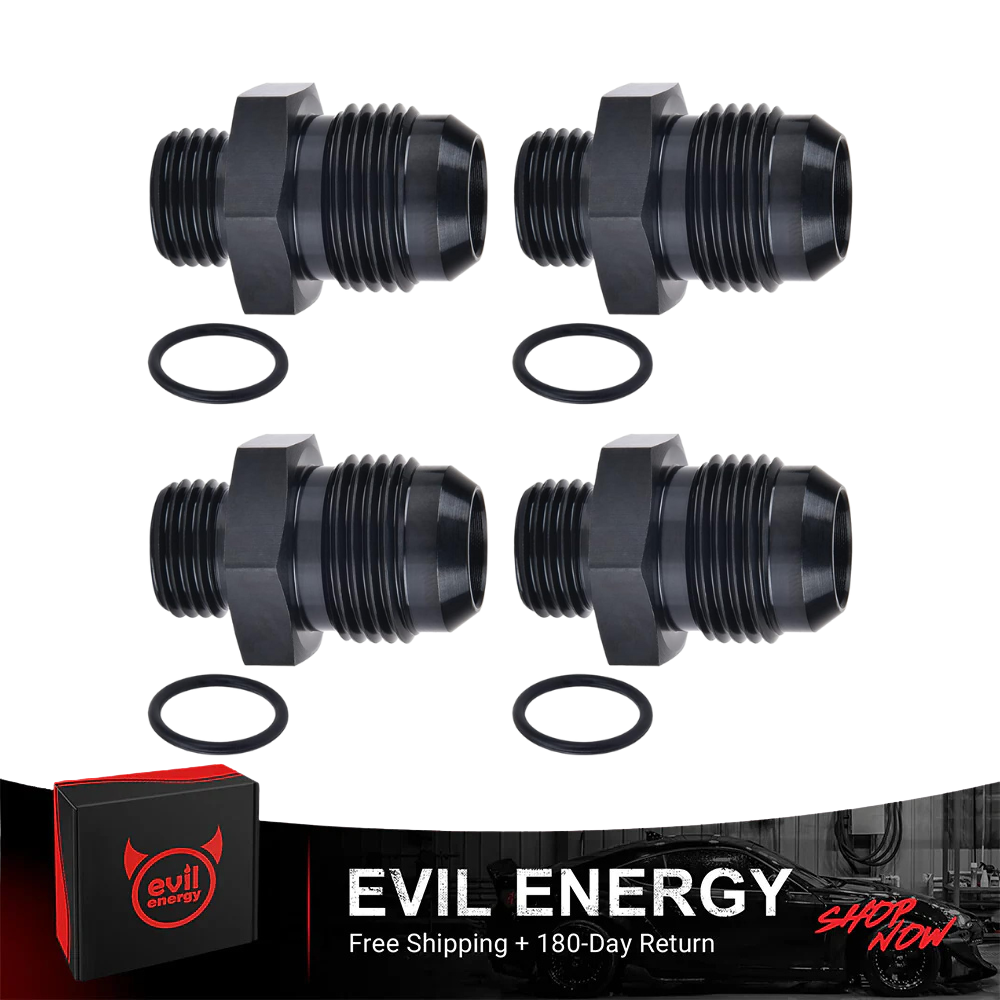

[4 PCS] EVIL ENERGY ORB fitting, four straight male flare adapters with O-rings

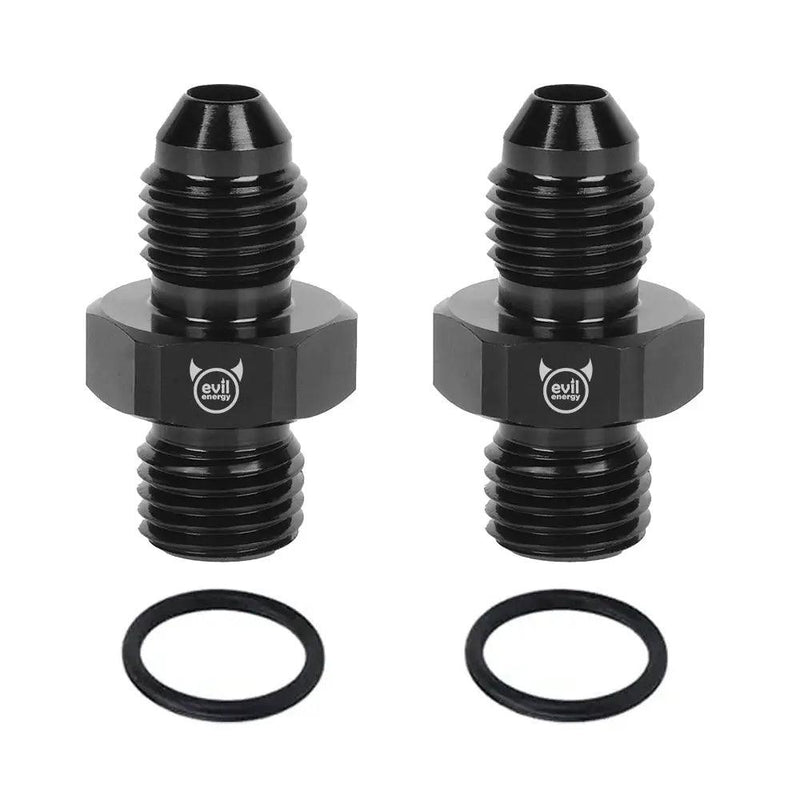

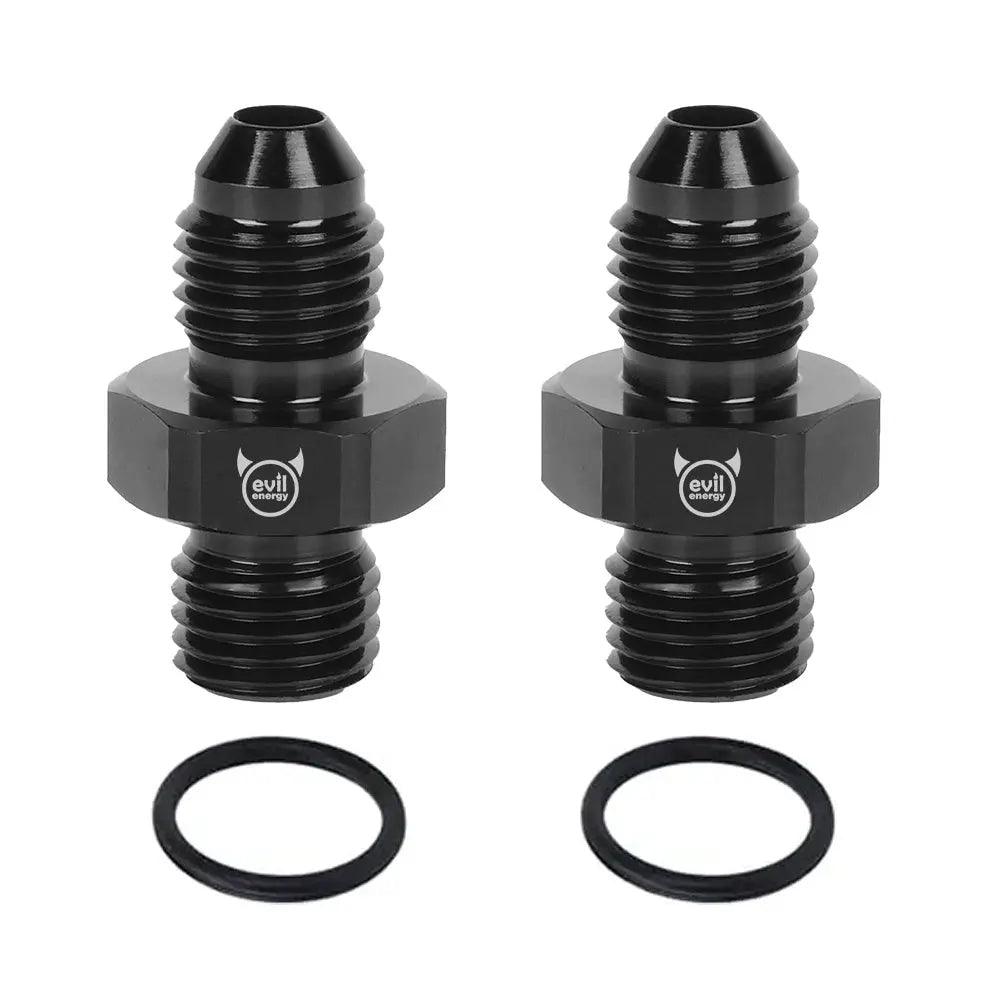

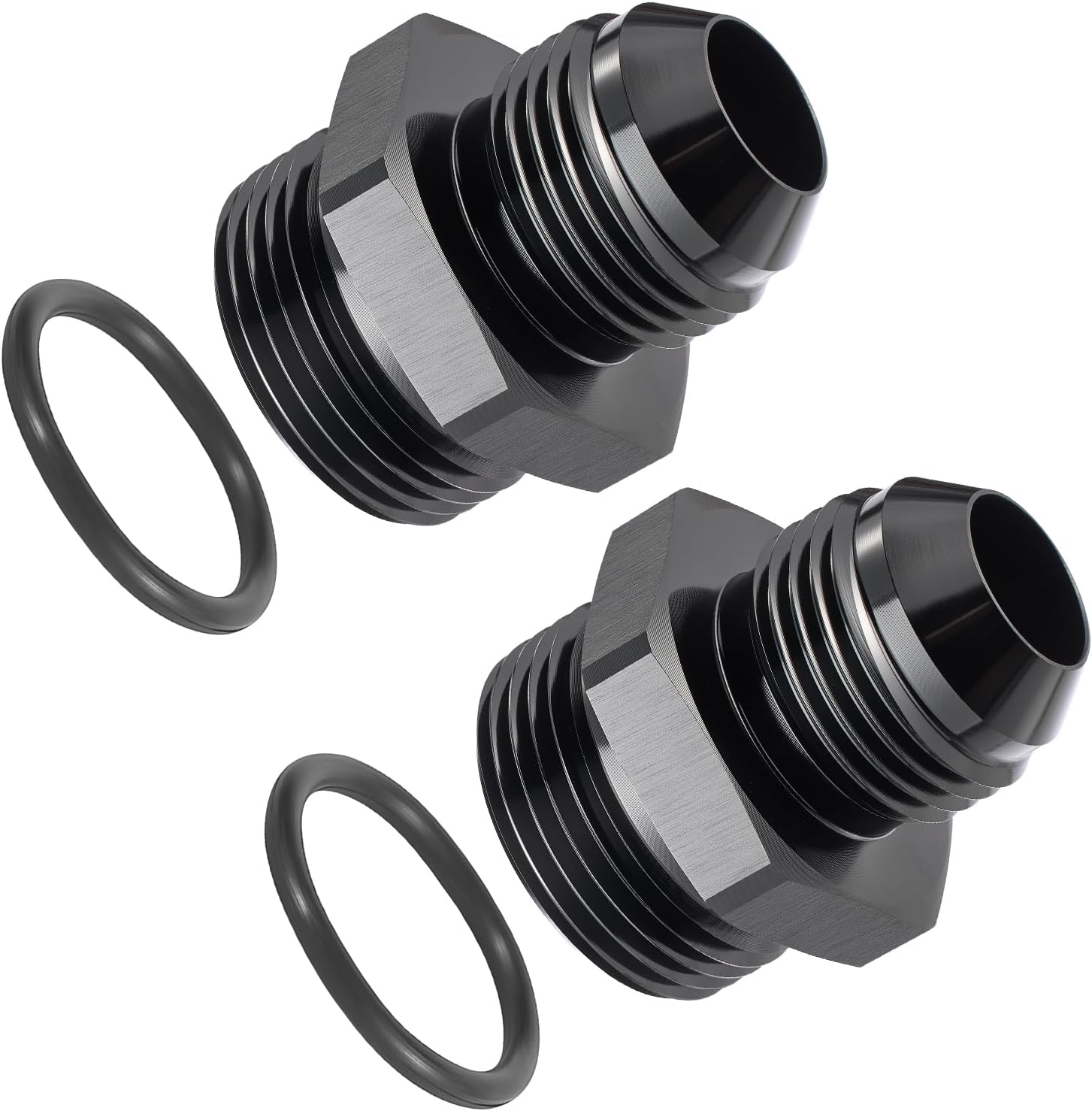

[12AN,16AN,2 PCS] EVIL ENERGY ORB fitting, pair of black male flare adapters with O-rings
EVIL ENERGY AN fittings, male flare to ORB adapter body and O-ring diagram

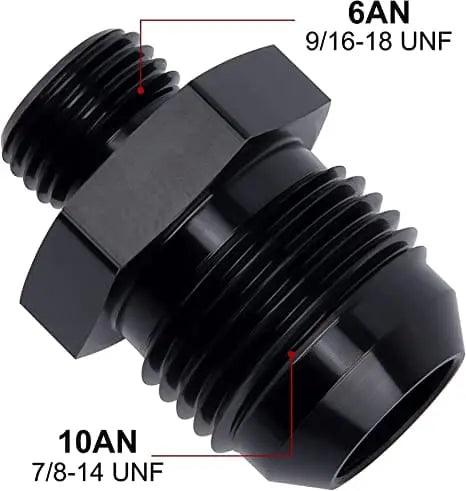

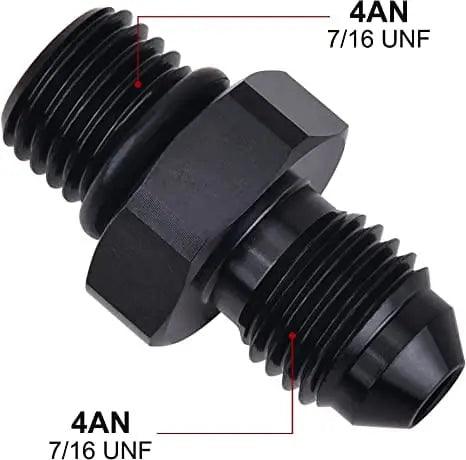

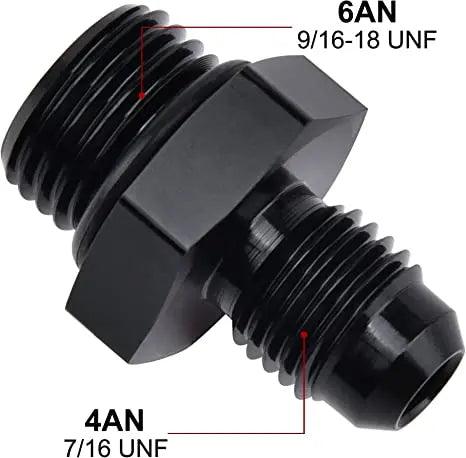

[4AN,4AN] EVIL ENERGY ORB fitting, AN male flare to ORB male adapter thread-size diagram
[4AN,6AN] EVIL ENERGY ORB fitting, AN male flare to ORB male adapter thread-size diagram
[6AN,6AN] EVIL ENERGY ORB fitting, AN male flare to ORB male adapter thread-size diagram

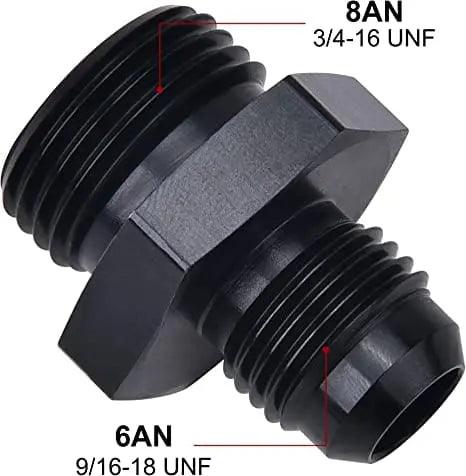

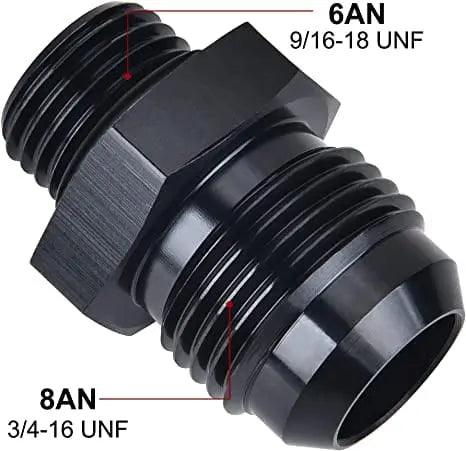

[6AN,8AN] EVIL ENERGY ORB fitting, AN male flare to ORB male adapter thread-size diagram

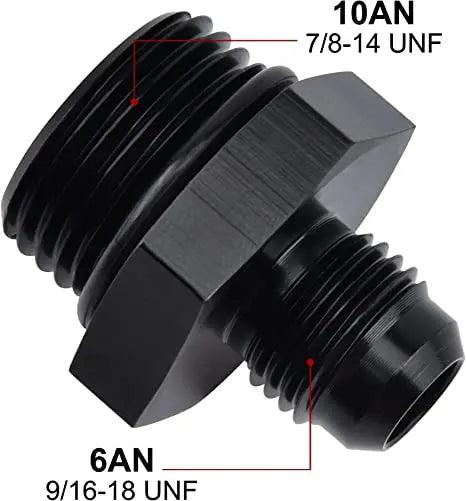

[6AN,10AN] EVIL ENERGY ORB fitting, AN male flare to ORB male adapter thread-size diagram

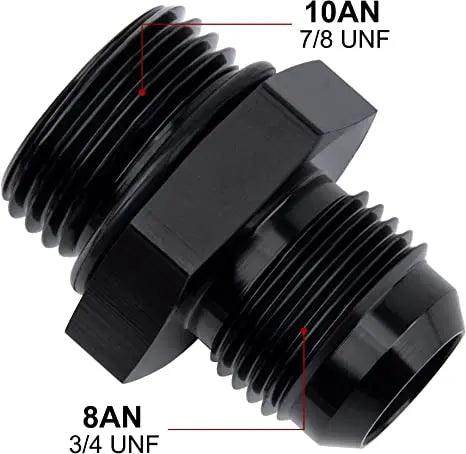

[8AN,6AN] EVIL ENERGY ORB fitting, AN male flare to ORB male adapter thread-size diagram
[8AN,10AN] EVIL ENERGY ORB fitting, AN male flare to ORB male adapter thread-size diagram
[10AN,6AN] EVIL ENERGY ORB fitting, AN male flare to ORB male adapter thread-size diagram

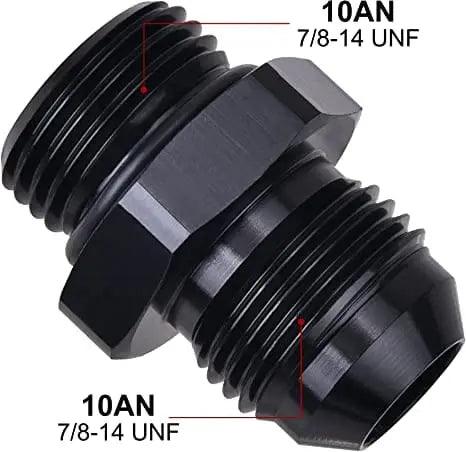

[10AN,10AN] EVIL ENERGY ORB fitting, AN male flare to ORB male adapter thread-size diagram

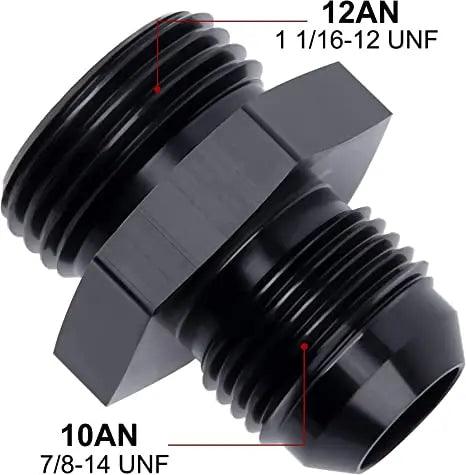

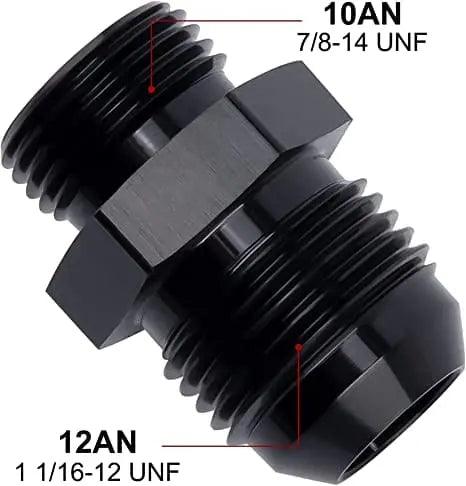

[10AN,12AN] EVIL ENERGY ORB fitting, AN male flare to ORB male adapter thread-size diagram
[12AN,10AN] EVIL ENERGY ORB fitting, AN male flare to ORB male adapter thread-size diagram

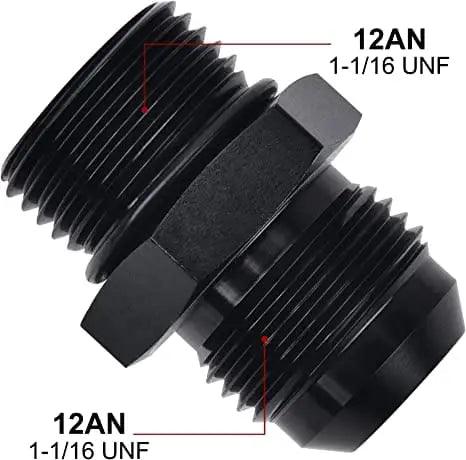

[12AN,12AN] EVIL ENERGY ORB fitting, AN male flare to ORB male adapter thread-size diagram
EVIL ENERGY AN fittings, straight adapter operating specifications diagram

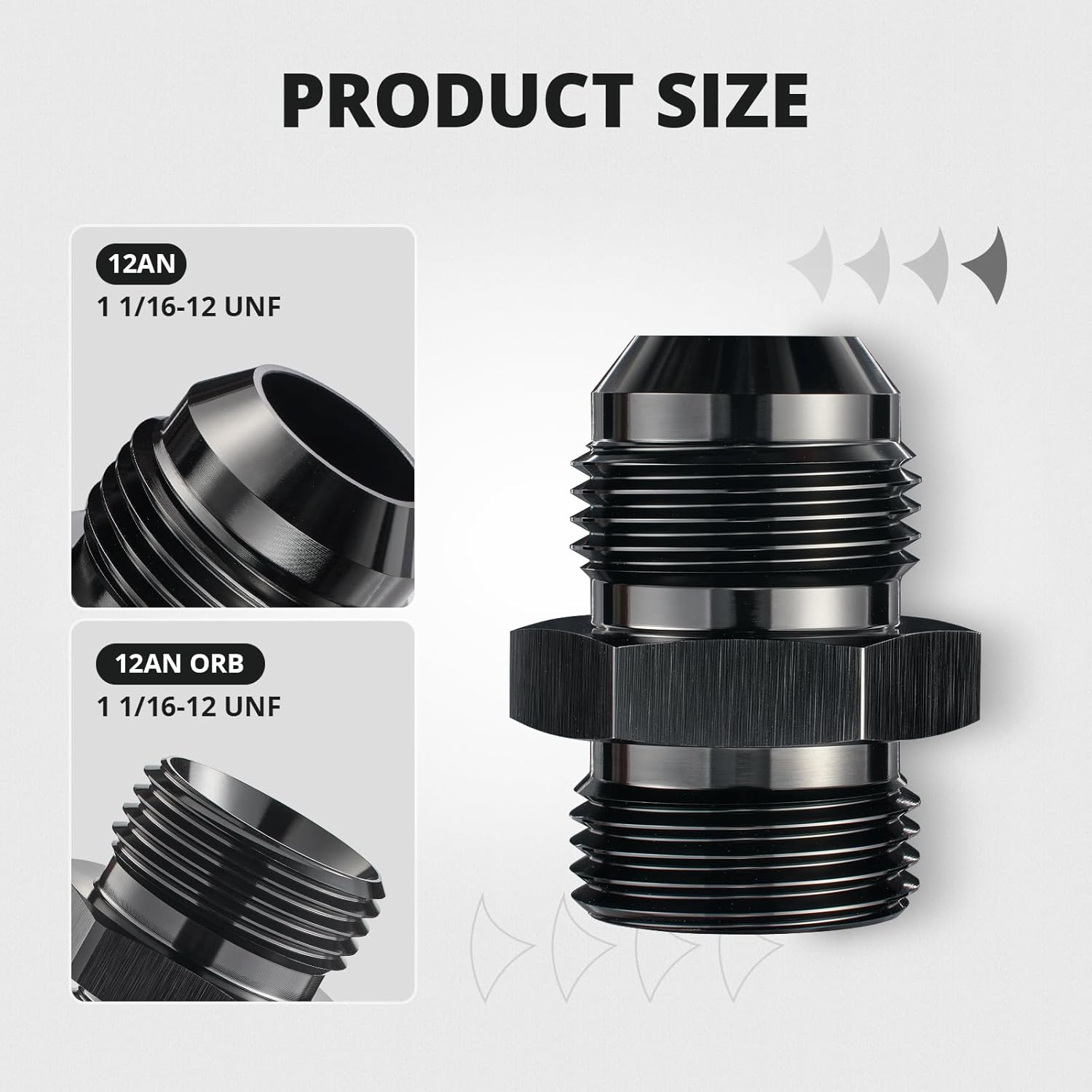

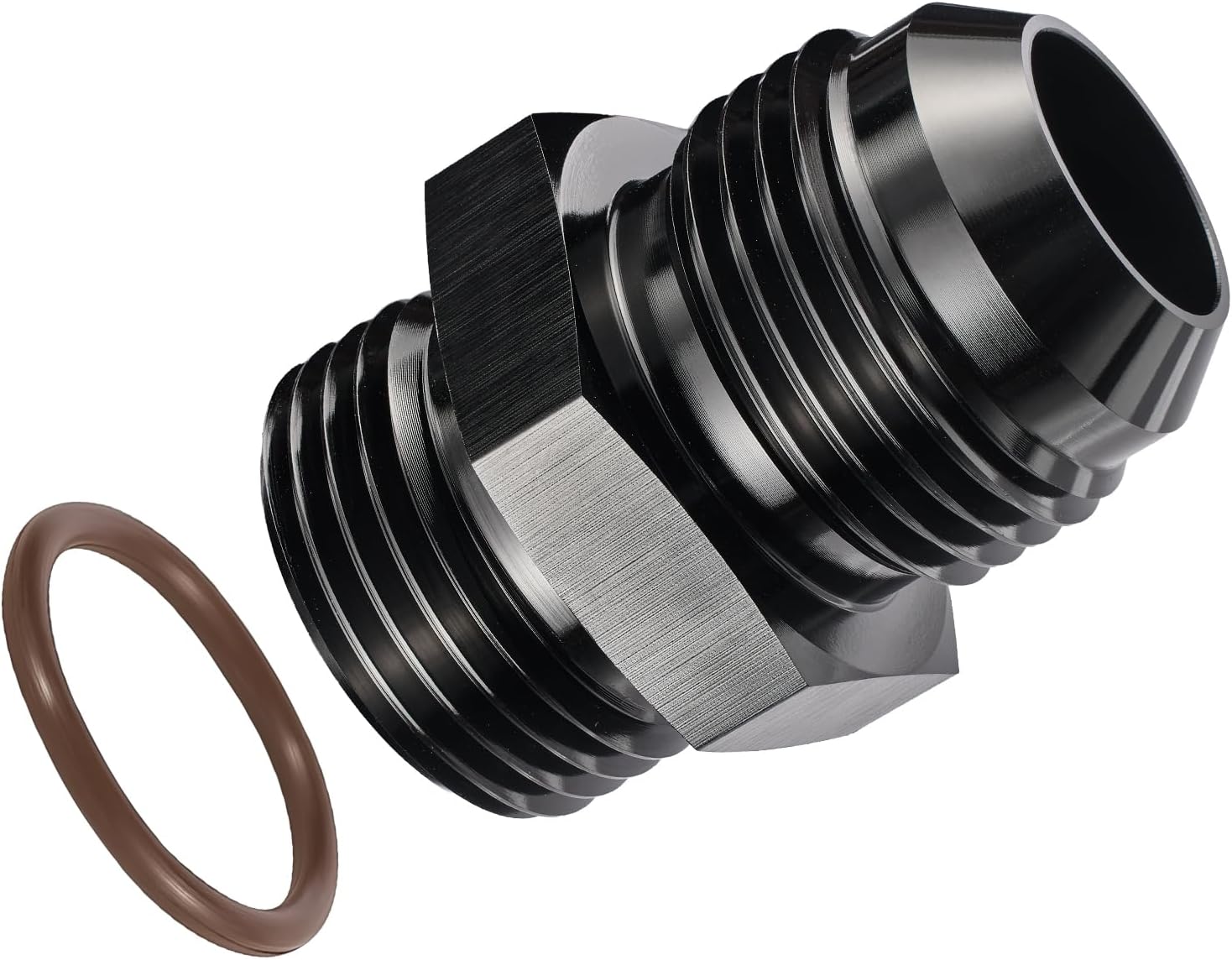

[12AN,12AN] EVIL ENERGY ORB fitting, AN male flare to ORB male adapter thread-size diagram

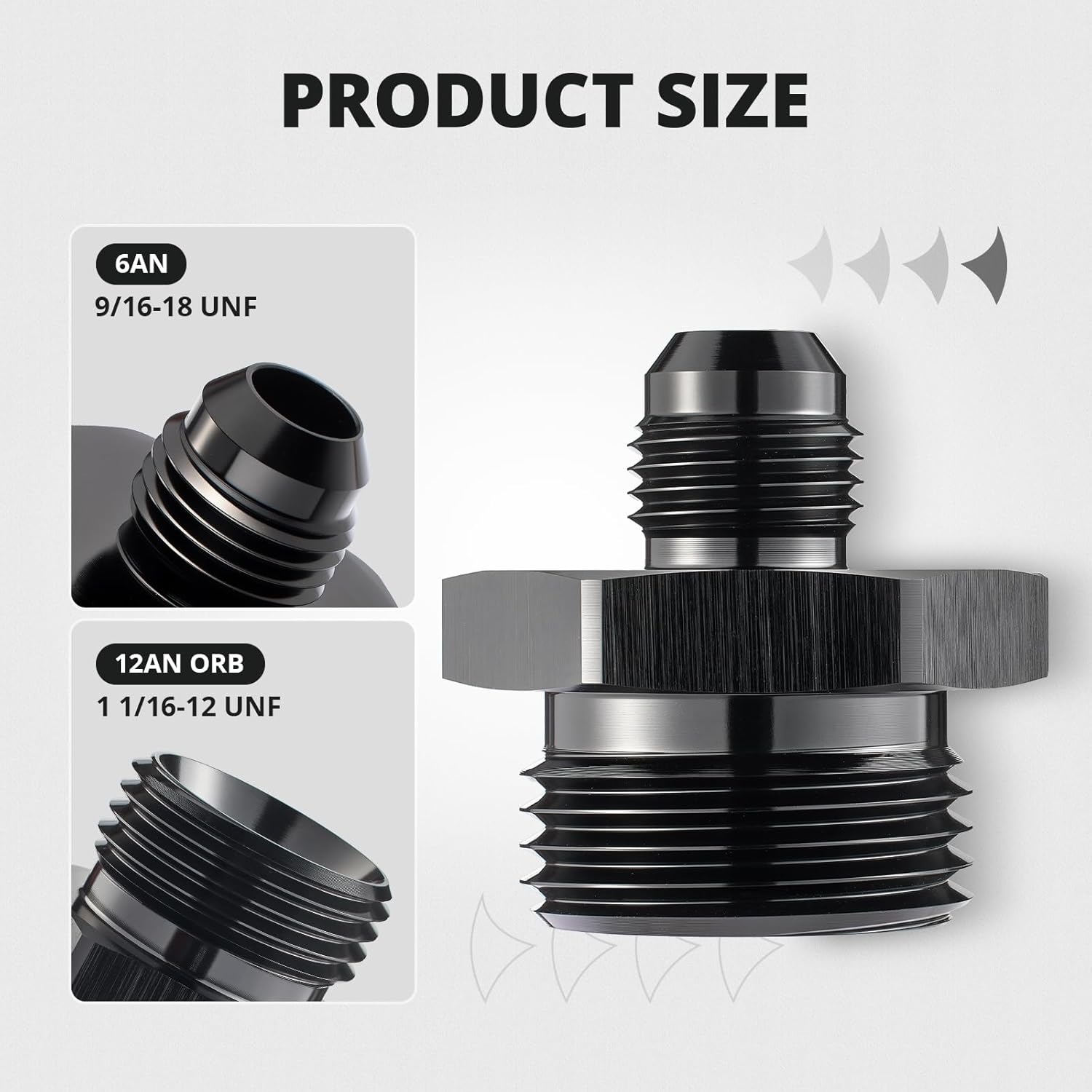

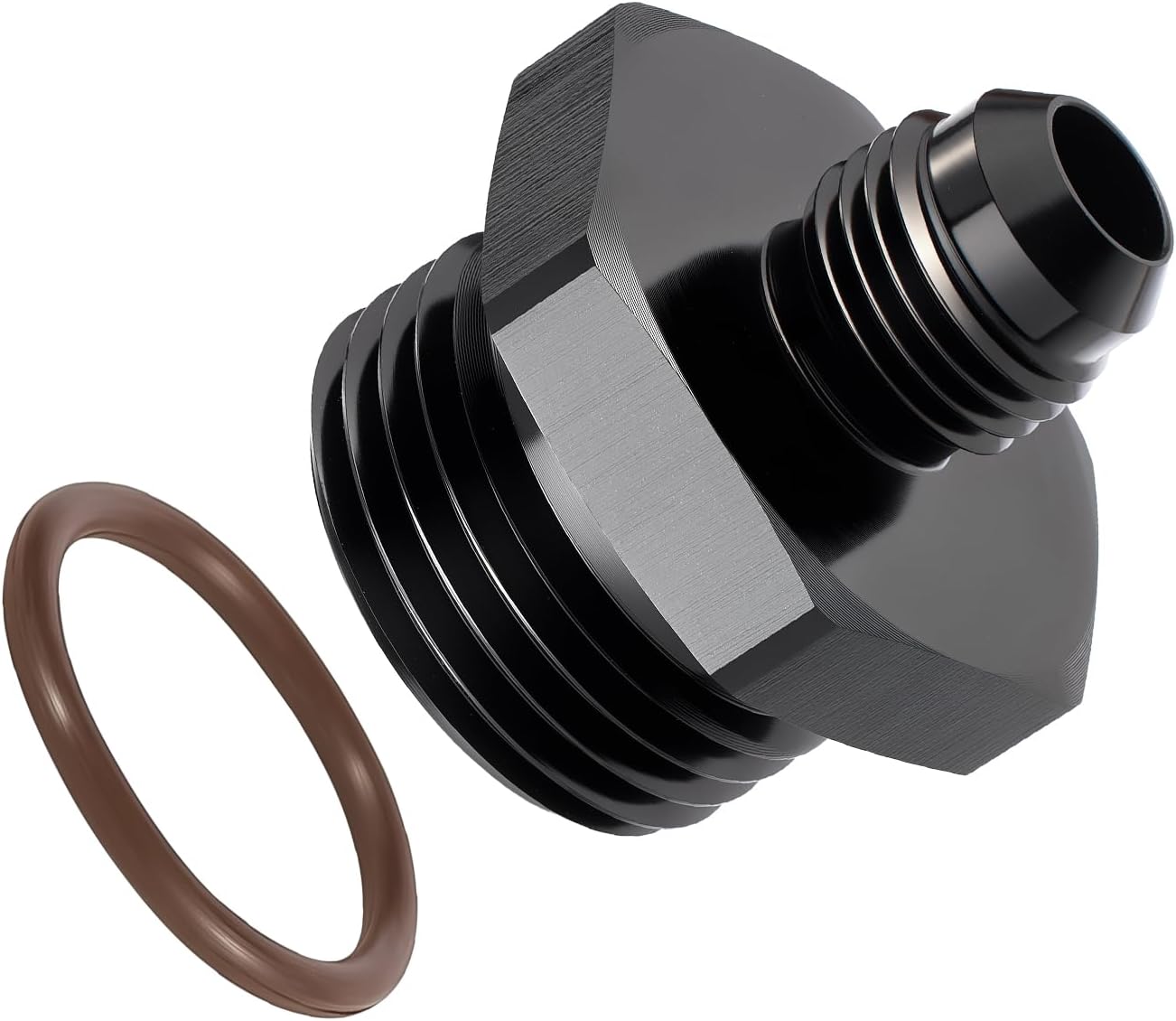

[6AN,12AN] EVIL ENERGY ORB fitting, male flare to ORB male adapter thread-size diagram

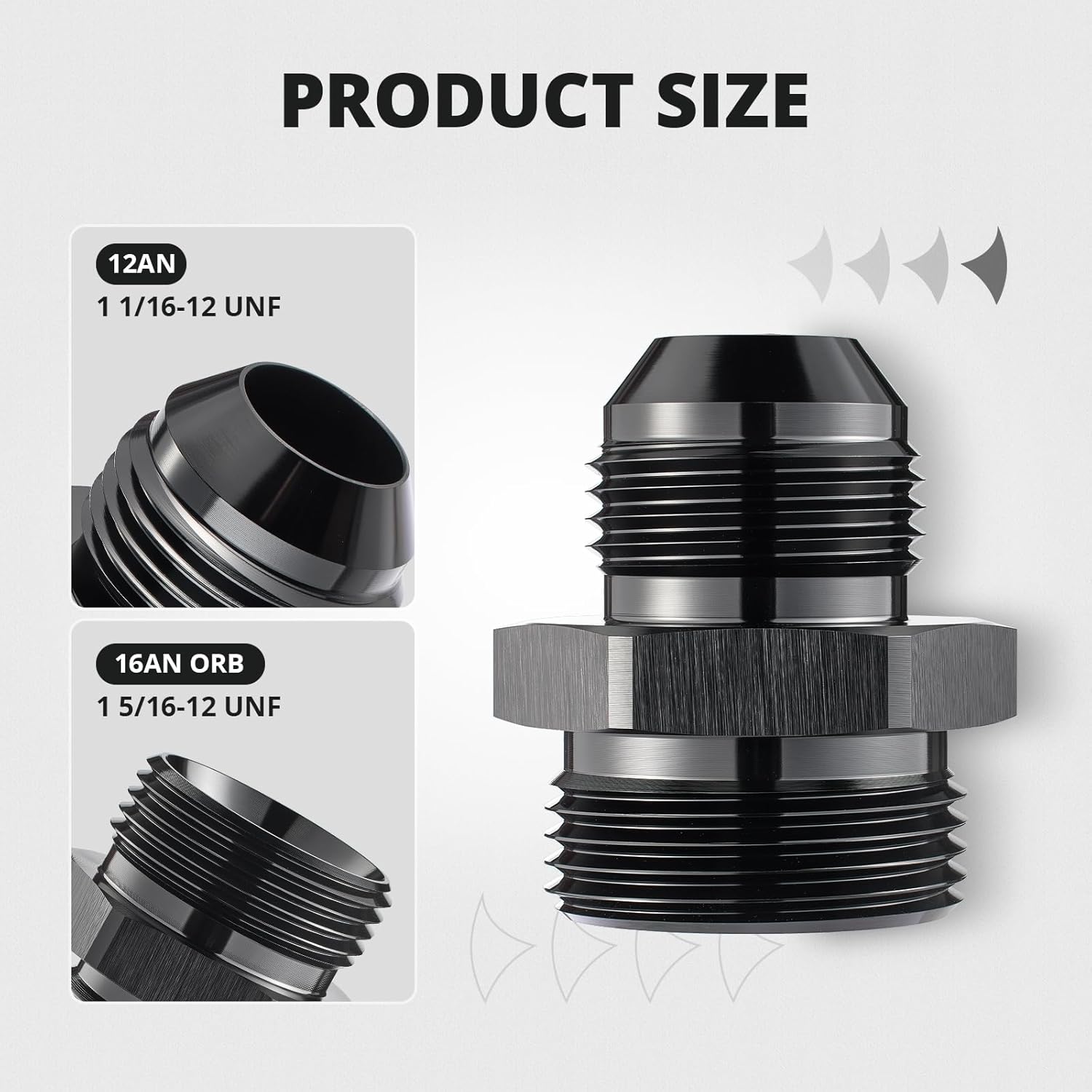

[12AN,16AN] EVIL ENERGY ORB fitting, male flare to ORB male adapter thread-size diagram
EVIL ENERGY AN Flare to AN ORB Male Fuel Rail Adapter Fitting - EVILENERGY

EVIL ENERGY AN Flare to AN ORB Male Fuel Rail Adapter Fitting

3 sold in last 10 hours
$8.99
$8.99
AN size: 3AN
ORB size: 3AN
Quantity: 1 PC
SKU: EVKT01412AN3
Product Type: AN to ORB Fittings

  • AN to ORB Conversion
    Converts AN flare fittings to ORB ports for fuel rails and aftermarket fuel components.
  • High Pressure Capability
    Rated up to 1500 PSI for reliable performance in fuel and oil systems.
  • Leak Free Sealing Design
    37 degree AN flare seal combined with ORB O ring ensures a secure, leak resistant connection.
  • CNC Machined Aluminum
    Made from 6061 T6 aluminum with black anodized finish for corrosion resistance.
  • Wide Size Availability
    Multiple AN sizes available to support custom fuel system layouts.

EVIL ENERGY checkout payment icons and shopping service

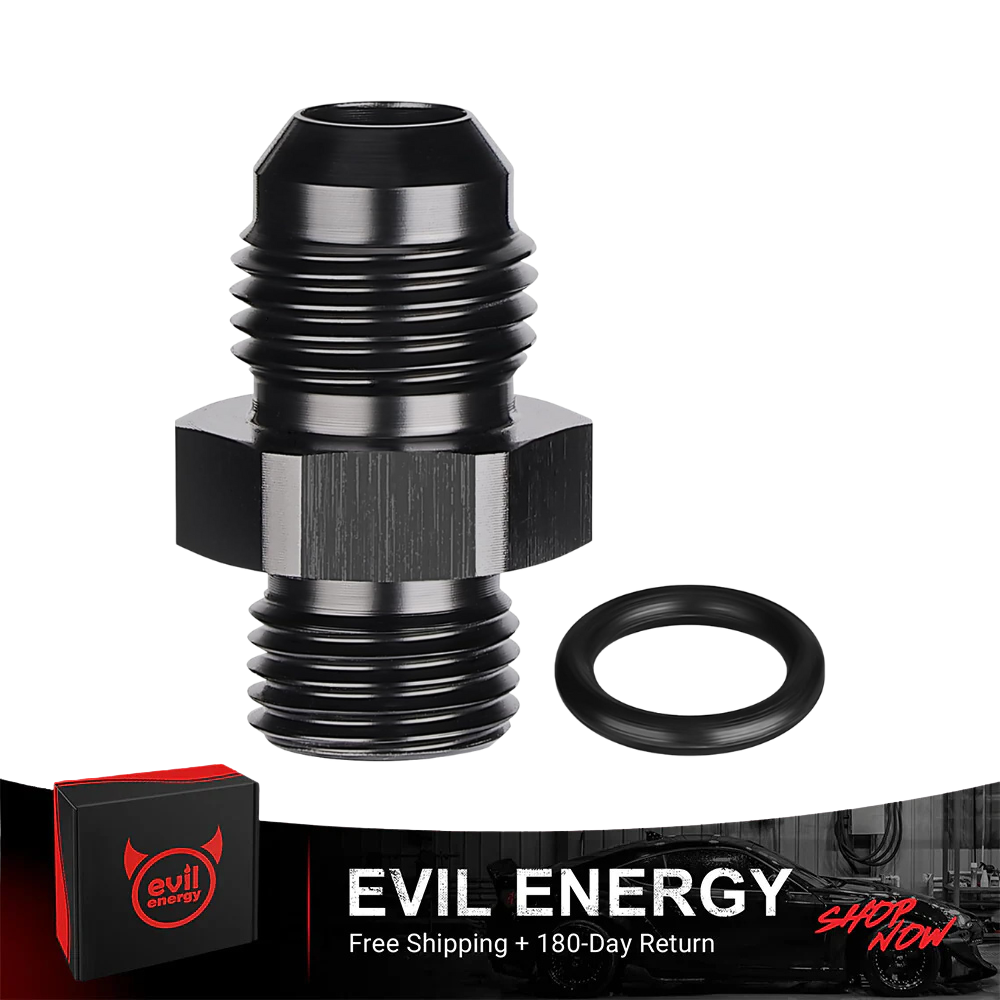

[1 PC] EVIL ENERGY ORB fitting, one straight male flare adapter with O-ring

EVIL ENERGY AN Flare to AN ORB Male Fuel Rail Adapter Fitting

$8.99
$8.99

EVIL ENERGY AN Flare to AN ORB Male Fuel Rail Adapter Fitting

$8.99
AN size: 3AN
ORB size: 3AN
Quantity: 1 PC

Straight ORB Fitting Specifications

Properties Details
Product Type AN Flare to AN ORB Male Adapter Fitting
Available Sizes 3 AN / 4AN / 6AN / 8AN / 10AN / 12AN / 16AN / 20AN
AN Thread Sizes 3AN 3/8-24 UNF
4AN 7/16-20 UNF
6AN 9/16-18 UNF
8AN 3/4-16 UNF
10AN 7/8-14 UNF
12AN 1-1/16-12 UNF
Material 6061-T6 Aluminum with Fluorine Rubber O-ring
Surface Finish Black Anodized

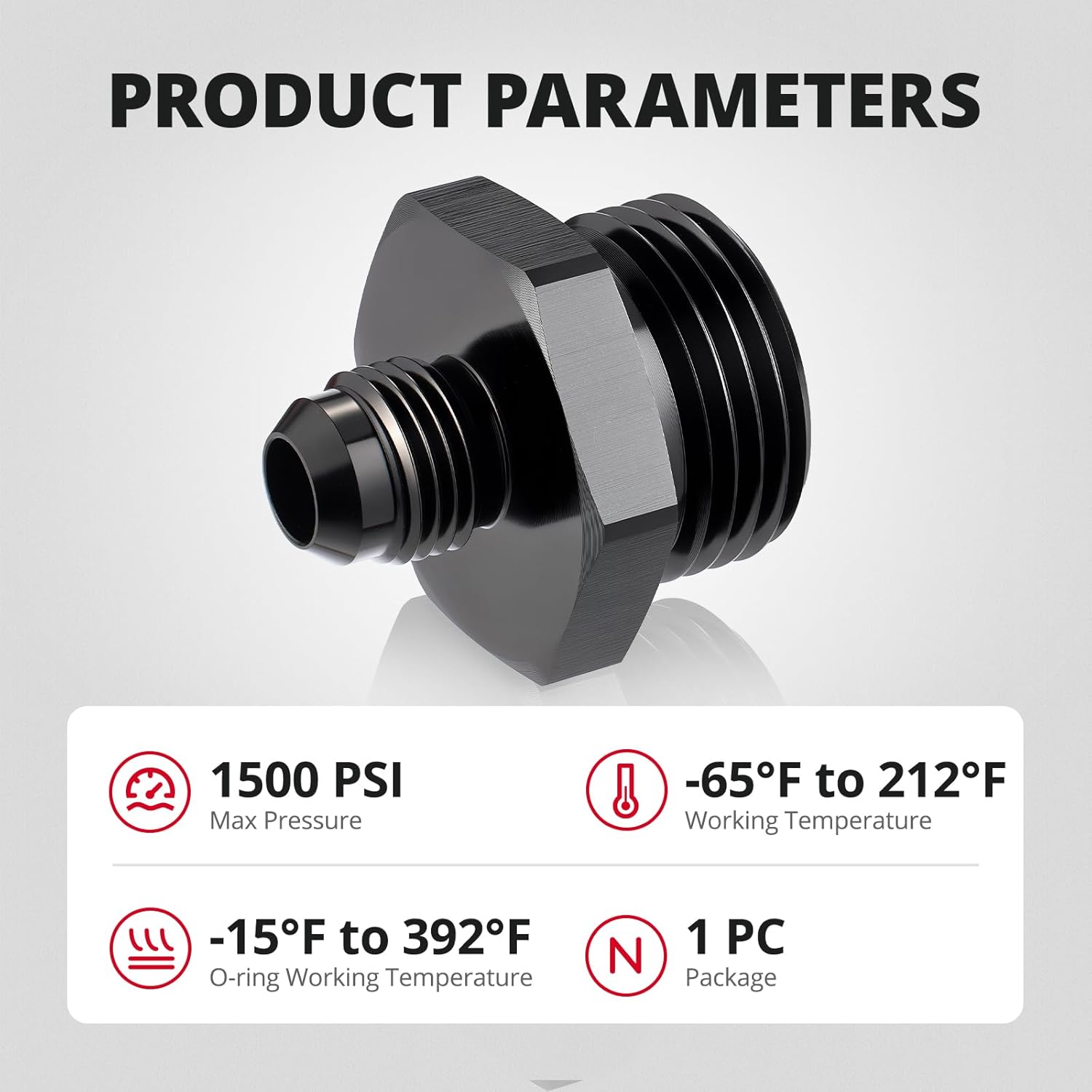

Working Pressure Up to 1500 PSI
Operating Temperature -65°F to 212°F
O-ring Temperature Range -15°F to 392°F
Package Options 1 Piece / 2 Pieces / 4 Pieces
Interface A Male AN flare for a matching female AN fitting
Interface B Male ORB for a matching female O-ring-boss port
Layout Straight; AN and ORB sizes selected separately
Actual AN size choices 3AN, 4AN, 6AN, 8AN, 10AN, 12AN, 16AN, 20AN
Actual Quantity choices 1 PC, 2 PCS, 4 PCS

AN hose ends and ORB ports use different sealing interfaces even when their size numbers look alike. This EVIL ENERGY straight male-to-male adapter joins a female AN flare fitting to a female ORB port. Choose the AN size for the hose end and the ORB size for the component, rather than assuming the two ends must have equal size numbers.

AN Flare to AN ORB male Adapter

AN Fittings: Match Hose and Port

The AN male end mates to the female AN flare hose end; the ORB male end mates to the female O-ring-boss port. Identify both sizes before choosing an offered pair. For a fuel rail, pump or regulator, use its actual port specification rather than the outside appearance of the existing plug or hose.

AN Flare to AN ORB male Adapter

O Ring Boss Fittings: Sizes and Packs

A straight ORB fitting suits a hose route that can leave the component in line with the port. Check space for the hose end and central hex. Choose one adapter for one joint; two- or four-piece packs suit multiple matching joints only when that quantity is available for the required size pair.

AN Flare to AN ORB male Adapter

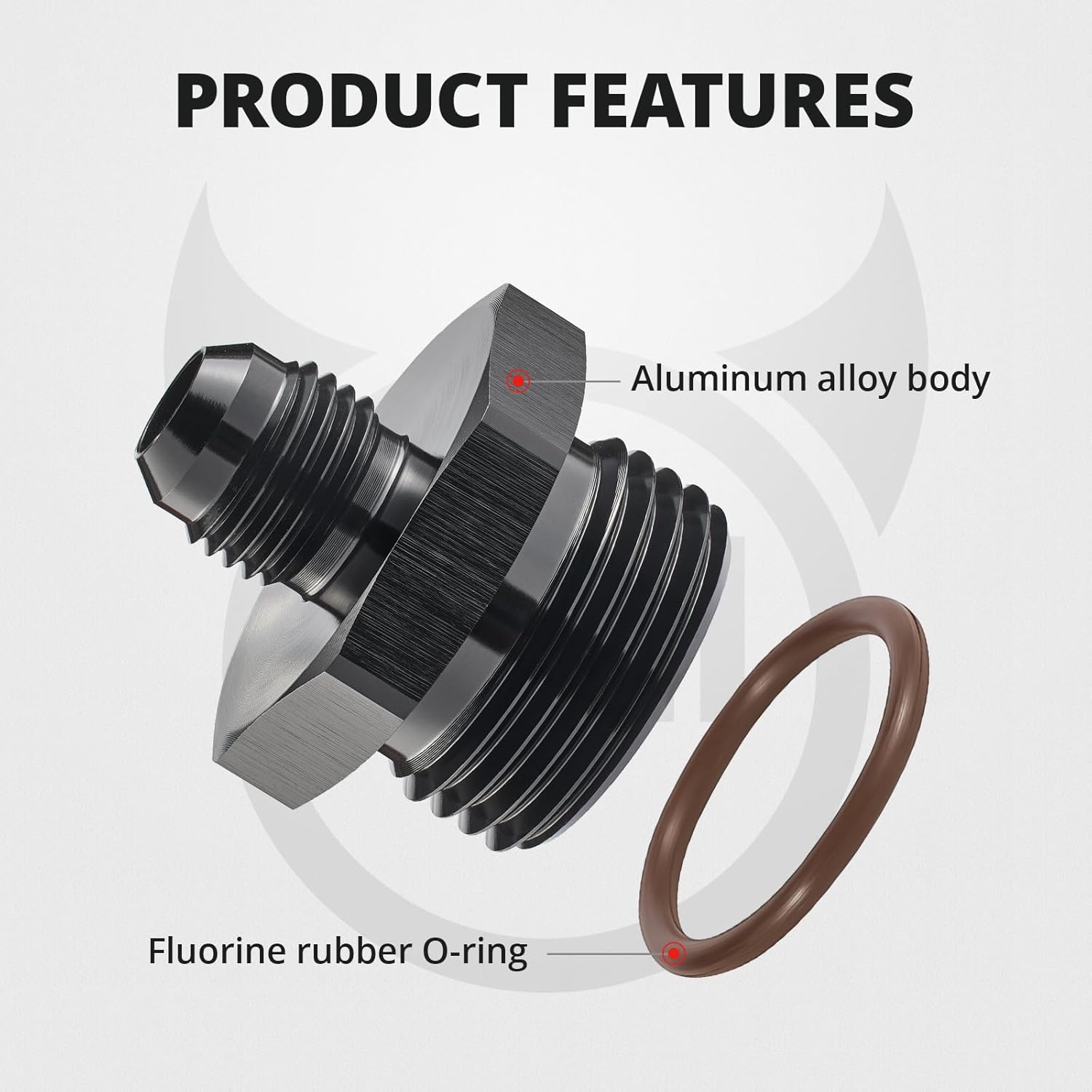

Why Choose This ORB Fitting?

  • The male flare and male ORB ends create the two different mating interfaces in one straight body.
  • A 6061-T6 aluminum body has a black anodized finish.
  • The specified fluorine-rubber O-ring seals the ORB side; the AN side seals at its flare face.
AN Flare to AN ORB male Adapter

AN Fittings and O-Ring Inspection

  1. Inspect the fluorine-rubber O-ring and the ORB seat before assembly.
  2. Keep the female AN seat clean and square to the male flare.
  3. Do not use hose tension to pull misaligned components into place.
  4. After installation, inspect the flare and O-ring joints separately if a leak appears.

EVIL ENERGY AN Flare to ORB Angled Adapter. EVIL ENERGY AN fitting guide.
