LS intake manifold compatibility starts with the cylinder heads—not the throttle-body bore size. First identify the exact cylinder-head port family, then match the intake manifold sealing interface, throttle-body flange and control type, fuel rails, injectors, sensors, vacuum connections, intake tubing, vehicle clearance, ECU, and calibration.

A cathedral-port manifold and a rectangular-port manifold are not made interchangeable simply by using the same 92 mm or 102 mm throttle body. Likewise, a throttle body advertised as 'LS compatible' still needs the correct flange, bolt pattern, plate clearance, actuation system, connector, TPS/IAC strategy, pedal or cable setup, and ECU support.

The safest LS intake planning sequence is:

Identify the heads → confirm the port family → match the manifold → verify the throttle interface → match fuel and electronics → measure clearance → plan calibration.

For a complete explanation of how the filter, intake tube, throttle body, manifold, and cylinder-head ports work as one airflow path, see the Car Air Intake System Guide.

LS Intake Compatibility at a Glance

Interface	What Must Match	Common Mistake
Cylinder-head port	Cathedral or rectangular port family	Choosing the manifold from the engine name or block alone
Manifold-to-head interface	Port shape, gasket location, bolt pattern, sealing surface	Assuming all LS manifolds share the same head interface
Throttle-body flange	Bolt pattern, opening, bore, plate clearance, orientation	Buying by 92 mm or 102 mm bore alone
Throttle control	Cable or DBW, TPS/IAC, pedal, ECU, harness	Matching only the connector appearance
Fuel rails / injectors	Injector length, O-rings, rail spacing, mounts, fittings	Assuming the previous rails transfer automatically
Sensors / vacuum	MAP, IAT where applicable, brake-booster, PCV, vacuum ports	Discovering missing provisions after installation
Packaging	Hood, cowl, accessories, fuel fittings, throttle linkage, intake tube	Checking the manifold casting without the complete installed stack
Calibration	Throttle strategy, injector data, airflow model, idle control	Planning the hardware first and the ECU strategy afterward

Compatibility Gate 1: Identify the Actual Cylinder Heads

Do not choose an LS intake manifold from the engine-block casting, vehicle badge, or engine label alone. LS swaps frequently combine parts from different engines, model years, and aftermarket systems.

A previous build may already have:

• different cylinder heads;
• an aftermarket intake manifold;
• a converted throttle-control system;
• different fuel rails or injectors;
• a mixed-generation ECU and harness.

Record the actual cylinder-head casting number or verify the exact aftermarket head specification before selecting the manifold.

Why the installed heads matter more than the block name

The cylinder-head intake port determines the manifold interface. If the heads have been changed, the original engine designation may no longer describe the intake compatibility of the assembled engine.

This is why an LS intake compatibility check should begin at the head-to-manifold interface, not at the throttle body.

Cathedral Port vs Rectangular Port: What Is the Difference?

Cathedral and rectangular refer to the general shape and architecture of the intake openings in the cylinder heads and the corresponding manifold runners.

Common LS1/LS6-style combinations use cathedral-port architecture, while LS3/L92-style combinations use rectangular-port architecture. However, engine-family names can overlap with swapped or aftermarket components, so the actual installed head remains the final reference.

Port Family	General LS Association	Primary Compatibility Check
Cathedral Port	Common on LS1 / LS6-style combinations and related applications	Use a manifold designed for the exact cathedral-port head and sealing pattern
Rectangular Port	Common on LS3 / L92-style combinations and related applications	Use a manifold designed for the exact rectangular-port head and sealing pattern

Cathedral and rectangular ports should be treated as different manifold families. A similar overall manifold shape or throttle-body opening does not make the two head interfaces interchangeable.

For more detail on runner architecture, plenum design, EFI layouts, and Hi-Ram packaging, read the Intake Manifold Guide: Plenum, Runners, Single vs Dual Plane, Hi-Ram, EFI, and Carbureted.

What Must Match Between the Cylinder Heads and Intake Manifold?

Interface	Required Check	Why It Matters
Port family	Cathedral or rectangular	The manifold runner must correspond to the installed head architecture
Gasket / sealing bead	Correct shape and sealing location	Incorrect sealing can create vacuum leaks or exposed gasket areas
Bolt pattern	Correct manifold-to-head attachment	Physical bolt alignment alone does not guarantee correct port alignment
Port alignment	No severe mismatch, exposed seal, or obstructed runner transition	Large steps or sealing mismatch can compromise the installed system
Injector position	Correct injector angle, height, and retention	The EFI hardware must locate the injector correctly
Steam / coolant / surrounding routing	Required clearance and connections remain accessible	The manifold must coexist with the complete top-end package

Scenario: LS3-style manifold on LS1 cathedral-port heads

An LS3-style rectangular-port manifold should not be treated as a normal direct-fit intake for LS1-style cathedral-port heads.

Before considering any conversion solution, confirm:

• the actual cylinder-head ports;
• the manifold port architecture;
• gasket and sealing geometry;
• bolt and fastener arrangement;
• injector and fuel-rail position;
• installed height and clearance.

An adapter or conversion component may address one physical interface, but it should not be assumed to solve every airflow, sealing, injector, packaging, or tuning requirement.

Compatibility Gate 2: Match the Intake Manifold to the Engine Combination

Port compatibility is the first requirement, but it is not the only reason to choose one manifold over another.

The manifold should also match:

• engine displacement;
• camshaft and cylinder-head combination;
• intended RPM range;
• street, drag, track, or other use;
• EFI or carbureted fuel strategy;
• available engine-bay height;
• throttle-body layout;
• fuel rails and injectors;
• ECU calibration strategy.

A larger plenum, taller manifold, or larger inlet does not automatically improve the combination. The complete engine has to be able to use the airflow and still meet the required packaging and drivability goals.

If you are still deciding whether the manifold, throttle body, filter, cold air intake, or cylinder heads should be changed first, use What Intake Upgrade Should You Do First?.

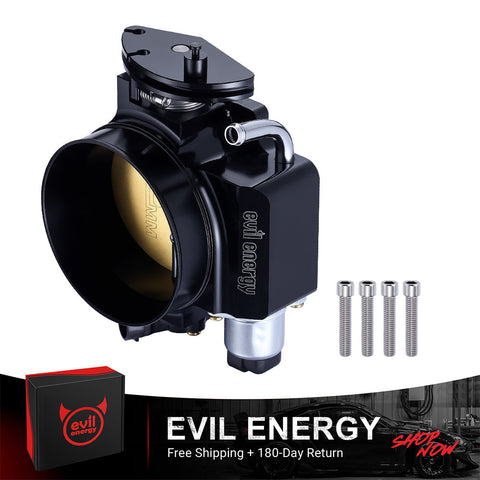

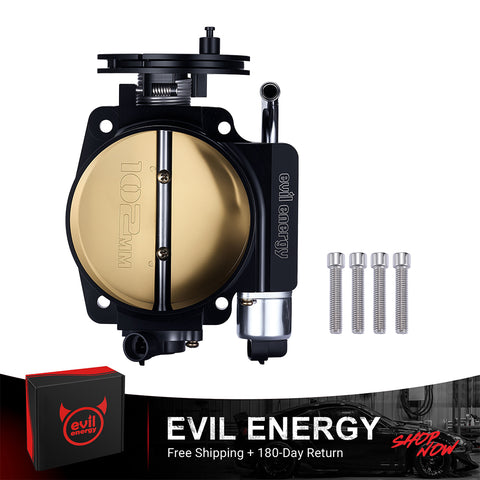

92mm vs 102mm Throttle Body: Which Is Better for an LS?

Neither 92 mm nor 102 mm is automatically better. The correct throttle-body size is the one that matches the manifold opening, flange, complete airflow demand, control system, intake tube, and calibration.

Check	92mm	102mm
Primary question	Does the manifold and engine combination use this inlet correctly?	Does the larger opening remove a real restriction?
Manifold opening	Must match or transition correctly	Must provide sufficient opening and plate clearance
Intake tube	Coupler and transition still need verification	Larger downstream bore may require larger or revised inlet tubing
Control type	Cable or DBW must match the build	Cable or DBW must match the build
Benefit	Appropriate when matched to the manifold and airflow demand	Useful only when the combination can use the additional area

A 102 mm throttle body cannot correct:

• restrictive cylinder-head ports;
• an unsuitable intake manifold;
• a smaller upstream intake path;
• incorrect camshaft selection;
• insufficient fuel delivery;
• poor ECU calibration.

Likewise, a 92 mm throttle body should not be dismissed simply because a larger option exists. If the manifold and intended operating range are designed around that size, it may be the more appropriate interface.

Bore Size Does Not Confirm LS Throttle Body Compatibility

The advertised throttle-body bore describes only one dimension. It does not confirm complete fitment.

Verify:

• mounting flange;
• bolt pattern;
• throttle-plate clearance;
• gasket shape;
• orientation;
• mechanical cable or DBW actuation;
• TPS and IAC requirements;
• electrical connector and pinout;
• pedal and ECU compatibility;
• intake-tube connection;
• hood and accessory clearance;
• calibration requirements.

For the complete throttle-body selection process, see the Throttle Body Guide: DBW vs Cable, Sizing, and LS Fitment. That guide also explains why a 92 mm or 102 mm label cannot establish flange, electronics, or ECU compatibility by itself. :contentReference[oaicite:1]{index=1}

Compatibility Gate 3: Cable vs Drive-by-Wire

A throttle body can physically bolt to the manifold and still be incompatible with the vehicle's control system.

Mechanical / Cable Throttle

A cable-controlled LS setup may require:

• correct throttle-cable travel;
• cable bracket geometry;
• return-spring operation;
• TPS compatibility;
• IAC strategy where used;
• full throttle opening without cable over-travel;
• ECU support for the selected sensors and idle-control method.

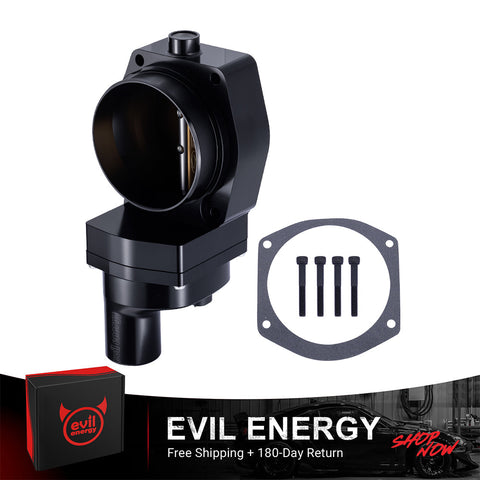

Drive-by-Wire / DBW

A DBW setup requires a compatible system rather than a throttle body alone:

• electronic throttle body;
• accelerator-pedal module;
• ECU;
• wiring harness;
• correct connector and pinout;
• compatible throttle-position and motor logic;
• calibration.

Do not connect DBW components by plug shape or bore size alone.

Scenario: Converting a cable LS swap to DBW

The conversion is not complete when the DBW throttle body bolts to the manifold.

Create a component map for:

• ECU;
• pedal;
• throttle body;
• harness;
• connector / pinout;
• airflow and idle strategy;
• calibration.

If those components do not belong to a verified compatible control strategy, stop before powering the throttle system.

Can an Adapter Make a 102mm Throttle Body Fit?

An adapter may solve a physical flange or bore-transition problem, but it does not create complete compatibility.

After adding an adapter, recheck:

• throttle-plate clearance;
• airflow transition;
• bolt engagement;
• gasket sealing;
• overall installed length;
• intake-tube alignment;
• hood, fan, radiator, and accessory clearance;
• DBW connector or cable-lever clearance;
• ECU calibration.

An adapter should be treated as one interface solution, not as proof that two complete systems are interchangeable.

Compatibility Gate 4: Match the Fuel Rails and Injectors

On a port-EFI LS intake, the manifold also becomes part of the injector and fuel-rail mounting system.

Injector checks

• injector physical length;
• upper and lower O-ring dimensions;
• injector-body clearance;
• electrical connector;
• ECU driver compatibility;
• injector characterization or calibration data where required;
• correct retention between manifold and fuel rail.

Fuel-rail checks

• rail spacing;
• rail mounting points;
• injector height;
• inlet and outlet fitting threads;
• fitting clearance;
• regulator strategy;
• return or returnless layout;
• fuel compatibility of lines, seals, and fittings.

Do not apply a generic LS fuel-pressure value to every intake and injector combination. Follow the injector, regulator, ECU, and product specifications for the actual build.

Scenario: The new manifold includes fuel rails

Included rails do not automatically mean the existing injectors, fittings, regulator, or fuel lines transfer directly.

Before installation, verify the entire chain:

Injector → O-ring → Rail → Fitting → Fuel Line → Regulator Strategy → ECU Calibration

Compatibility Gate 5: Sensors, Vacuum, and PCV Connections

LS intake swaps often fail at the smaller interfaces that are not obvious in a product photo.

Map every required connection before ordering:

• MAP sensor;
• IAT sensor where required by the selected strategy;
• brake-booster vacuum source;
• PCV routing;
• fuel-pressure regulator reference where applicable;
• EVAP or other emissions-related connections where required;
• unused vacuum ports that must be correctly sealed.

A manifold that matches the cylinder heads but lacks the required sensor or vacuum strategy is not yet a complete installation.

Compatibility Gate 6: Measure Hood and Engine-Bay Clearance

LS intake manifold fitment has two meanings:

Does it fit the engine?
and
Does the complete assembly fit the vehicle?

Measure the installed stack, not just the manifold casting.

Include:

• intake manifold;
• gaskets;
• throttle-body adapter or spacer;
• throttle body;
• DBW motor or cable lever;
• fuel rails;
• injectors;
• fuel fittings;
• MAP / vacuum fittings;
• intake coupler and tube;
• hood or cowl clearance;
• alternator and accessory-drive clearance;
• water-pump and radiator-hose routing;
• firewall and brake-booster clearance.

Hi-Ram clearance

Hi-Ram systems deserve particular attention because the taller plenum and throttle-body position can substantially change the installed package. A manifold may fit the heads correctly but still require different hood, cowl, fuel-line, intake-tube, or accessory planning.

The EVIL ENERGY Intake Manifold Guide covers Hi-Ram, single-plane, dual-plane, EFI, and carbureted manifold architecture in more detail. :contentReference[oaicite:2]{index=2}

Scenario 1: LS1 Cathedral-Port Street Swap

For an LS1-style cathedral-port street build, start by confirming the actual heads and intended RPM range.

Then map:

• cathedral-port manifold;
• throttle-body flange;
• cable or DBW control;
• injector height and rail spacing;
• MAP / PCV / vacuum provisions;
• intake-tube connection;
• hood and accessory clearance;
• ECU strategy.

Do not select a 102 mm throttle body simply because the engine is modified. Confirm that the manifold inlet and complete combination actually require and support the larger interface.

Scenario 2: LS3 / L92-Style Rectangular-Port Build

A rectangular-port build should use a manifold designed for the installed rectangular-port head family.

After the head-to-manifold interface is confirmed, verify:

• manifold design and target operating range;
• throttle flange and opening;
• 92 mm or 102 mm throttle-body suitability;
• DBW or mechanical control;
• fuel rails and injectors;
• sensor strategy;
• hood clearance;
• calibration.

Scenario 3: Mixed-Generation LS Swap

This is where written compatibility planning becomes especially important.

Do not describe the build simply as 'LS1,' 'LS2,' or 'LS3' if the installed components come from multiple generations.

Create a table before ordering:

Component	Installed / Planned Part	Compatibility Evidence
Cylinder heads	Record casting / exact product	Port family and bolt pattern verified
Intake manifold	Record exact model	Head ports, gasket, height verified
Throttle body	Record bore and control type	Flange, plate clearance, electronics verified
ECU / pedal	Record exact units	DBW or cable strategy verified
Fuel rails / injectors	Record dimensions and fittings	Rail and manifold geometry verified
Vehicle clearance	Record measurements	Hood, accessory, firewall, intake path verified

Mixed-generation LS builds should be identified by the actual components, not by one engine-family label.

Scenario 4: 102mm Throttle Body on an Otherwise Mild Combination

A larger throttle body does not automatically increase usable airflow if the existing restriction is elsewhere.

Before increasing throttle-body size, ask:

• Is the current throttle body a measured or verified restriction?
• Does the manifold opening support the larger plate?
• Can the cylinder heads and camshaft use additional airflow?
• Will the inlet tube become the next restriction?
• Will pedal response or DBW calibration need adjustment?

If another part of the intake path is the limiting interface, changing from 92 mm to 102 mm may only move the mismatch somewhere else.

Scenario 5: Hi-Ram Intake in a Street LS Swap

A Hi-Ram manifold may match the cylinder-head ports and still create a vehicle-packaging problem.

Before ordering, measure:

• total manifold and plenum height;
• throttle-body position;
• hood and cowl clearance;
• fuel-rail and fitting clearance;
• intake-tube route;
• alternator and accessory clearance;
• brake-booster / firewall area;
• sensor and vacuum connections.

Do not treat hood modification as an unexpected installation detail after the intake has already been purchased.

Scenario 6: Everything Bolts Together but the Engine Runs Poorly

Physical fitment does not guarantee electronic or airflow compatibility.

If the engine develops poor idle, hesitation, abnormal throttle response, lean/rich operation, or new diagnostic codes after an intake change, recheck:

• vacuum leaks;
• MAP / MAF / IAT strategy;
• throttle-body control;
• TPS / IAC configuration on mechanical systems;
• DBW pedal and ECU compatibility;
• injector data;
• fuel pressure and regulator strategy;
• PCV routing;
• ECU calibration.

For a wider look at intake-system leaks and restrictions, see the Car Air Intake System Guide. :contentReference[oaicite:3]{index=3}

LS Intake Compatibility Checklist

1. Record the exact cylinder heads. Use the casting number or exact product specification.
2. Identify the port family. Confirm cathedral or rectangular.
3. Match the manifold. Verify port shape, gasket, bolt pattern, injector layout, and installed height.
4. Confirm the throttle flange. Check bore, bolt pattern, plate clearance, and adapter requirements.
5. Select cable or DBW control. Match cable hardware or pedal, ECU, harness, connector, TPS, and IAC strategy.
6. Verify injectors and rails. Check physical dimensions, O-rings, spacing, fittings, and ECU compatibility.
7. Map sensors and vacuum connections. Include MAP, IAT where applicable, PCV, brake booster, and regulator reference.
8. Measure the complete installed stack. Check hood, cowl, accessories, fuel fittings, and intake-tube clearance.
9. Plan fuel and calibration requirements. Do not wait until the engine is assembled.
10. Recheck the full component map before ordering.

LS Intake Compatibility Red Flags

Observed Situation	Why to Stop	What to Verify
Manifold chosen from engine label only	Heads may have been changed	Actual cylinder-head casting and port family
Cathedral and rectangular ports are being mixed	Head-to-manifold interface is not a normal direct match	Port, gasket, bolt, sealing, and conversion strategy
Throttle body chosen only by 92 mm / 102 mm size	Bore does not confirm complete fitment	Flange, plate, actuation, electronics, intake tube
DBW throttle body plugs into the harness	Connector appearance does not prove ECU compatibility	Pedal, ECU, pinout, throttle logic, calibration
Fuel rails are included with the manifold	Existing injectors and fittings may still not match	Injector length, O-rings, rail spacing, threads
Manifold fits engine but hits hood	Engine fitment and vehicle fitment are different checks	Complete installed height and surrounding clearance
Engine runs poorly after the swap	Physical fit does not confirm calibration or sensor compatibility	Leaks, sensors, fuel, throttle control, ECU tune

Who Is This Guide For?

This guide is for LS swap builders, GM performance projects, EFI installers, engine builders, and project planners combining LS cylinder heads, intake manifolds, throttle bodies, fuel rails, injectors, and engine-management hardware.

Who Is This Guide Not For?

This guide is not an engine-casting decoder, a universal interchange chart, or a guarantee that components from different LS generations will plug together. Product revisions, aftermarket cylinder heads, adapters, wiring, fuel-system configurations, and vehicle packaging can change the final installation.

For broader top-end planning, also review the EVIL ENERGY intake-system content covering intake manifold architecture, throttle-body sizing and LS fitment, intake upgrade priority, and cold air intake fitment and installation. These existing EVIL ENERGY guides cover adjacent interfaces without requiring this article to repeat every topic in full. :contentReference[oaicite:4]{index=4}

Frequently Asked Questions

Q: Will an LS3 intake manifold fit LS1 cathedral-port heads?

A: Not as a normal direct-match combination. LS3/L92-style rectangular-port manifolds and LS1-style cathedral-port heads use different intake interfaces. Any conversion approach still requires verification of the port transition, sealing, bolt arrangement, injectors, fuel rails, installed height, and tuning.

Q: Is every LS2 intake manifold cathedral port?

A: Do not use the engine label alone to confirm intake compatibility. Verify the actual installed cylinder heads and manifold specification, especially on swapped or previously modified engines.

Q: Is a 102mm throttle body better than a 92mm throttle body?

A: Not automatically. A 102 mm throttle body is useful only when the manifold and complete engine combination can use the additional opening. A 92 mm unit may be the correct match for another manifold, operating range, or control system.

Q: Will a 102mm throttle body fit a 92mm intake manifold opening?

A: Do not assume it will. Check the manifold opening, flange, bolt pattern, gasket, throttle-plate clearance, and transition. An adapter may solve one physical interface but can introduce additional length and clearance requirements.

Q: Can an adapter make any LS throttle body fit?

A: No. An adapter can address flange or bore geometry, but it cannot make the TPS, IAC, DBW motor, connector, pedal, ECU, wiring, or calibration compatible.

Q: Can I use a DBW throttle body on a cable-throttle LS swap?

A: Only as part of a properly planned DBW conversion using a compatible throttle body, accelerator pedal, ECU, wiring harness, connector strategy, and calibration.

Q: Can I use a cable throttle body on a DBW LS engine?

A: A conversion may be possible in some builds, but it requires a compatible ECU strategy, TPS/IAC setup, cable and bracket geometry, and appropriate calibration. It is not simply a mechanical bolt-on change.

Q: Does cathedral vs rectangular port affect throttle-body fitment?

A: Indirectly. The cylinder-head port family determines the intake-manifold family, and that manifold then determines the throttle flange, inlet opening, height, and related packaging.

Q: Do I need new fuel rails with a new LS intake manifold?

A: Possibly. Verify rail spacing, mounting points, injector height, fitting threads, and regulator strategy. Do not assume the previous rails transfer to a different manifold.

Q: Can I reuse my existing LS injectors?

A: Only if their physical length, O-rings, electrical connector, flow requirements, rail retention, and ECU calibration are compatible with the new manifold and fuel system.

Q: Does an LS intake manifold determine fuel pressure?

A: No. Required fuel pressure depends on the injector, regulator, ECU strategy, and complete fuel system. Do not apply a generic pressure value solely because the engine is LS-based.

Q: Will a Hi-Ram LS intake fit under a stock hood?

A: Do not assume it will. Measure the complete installed stack including the manifold, plenum, throttle body, adapters, rails, fittings, sensors, and intake connection against the actual vehicle clearance.

Q: Why does my LS run poorly after an intake manifold or throttle-body swap?

A: Check for vacuum leaks, sensor configuration, throttle-control compatibility, injector data, fuel pressure strategy, PCV routing, connector issues, and calibration before assuming the new manifold itself is defective.

Q: What should I check before ordering an LS intake manifold?

A: Confirm the exact cylinder heads and port family first, then verify the manifold sealing pattern, throttle flange, fuel rails, injectors, sensors, vacuum provisions, installed height, vehicle clearance, and ECU strategy.

Q: What is the safest way to plan a mixed-generation LS intake?

A: Build a written component map using the exact cylinder heads, manifold, throttle body, ECU, pedal or cable system, injectors, fuel rails, sensors, wiring, and vehicle-clearance measurements. Verify every interface before ordering.
