Cylinder Head Guide: LS vs SBC vs BBC, Runner Size, Chamber Volume, Plug Style, and Assembly

Choosing a cylinder head starts with the exact engine architecture—not runner size, chamber volume, or advertised airflow alone. LS, Small Block Chevy (SBC), and Big Block Chevy (BBC) cylinder heads belong to different component families with different block interfaces, intake ports, bolt patterns, valvetrain layouts, headers, and supporting parts.

The correct selection process is:

Identify the engine family → confirm the block and bore → verify port and bolt architecture → calculate chamber and compression requirements → match runner and valve package → check spark-plug orientation → verify bare or assembled configuration → match the intake, camshaft, valvetrain, headers, and vehicle clearance.

A cylinder head that physically resembles another Chevrolet V8 head should not be treated as interchangeable without verifying the complete engine combination.

For a broader view of how the cylinder heads interact with the manifold, throttle body, camshaft, and intake system, see How to Match Cylinder Heads, Intake Manifold, Throttle Body, Camshaft, and Air Intake.

Cylinder Head Selection at a Glance

Selection Gate	What to Verify	Common Mistake
Engine architecture	LS, SBC, BBC, exact generation and block configuration	Ordering by displacement alone
Intake-port family	Cathedral, rectangular, Vortec, oval, rectangular BBC, or exact product-specific design	Assuming the intake manifold will transfer
Runner size	Runner volume, cross-section, port shape, valve size, displacement, RPM range	Choosing the largest runner because it appears more performance-oriented
Combustion chamber	Chamber volume as part of the complete compression calculation	Assuming a smaller chamber automatically means more usable power
Spark-plug style	Plug angle, header clearance, boot and socket access	Changing plug orientation without checking the exhaust system
Assembly level	Bare casting, assembled head, single head, or pair	Assuming every listing is ready to install
Valvetrain	Valves, springs, retainers, locks, seals, rocker system, pushrod geometry	Assuming an assembled head supports any camshaft
Supporting components	Intake, headers, gaskets, fasteners, fuel system, ECU and vehicle clearance	Budgeting only for the cylinder heads

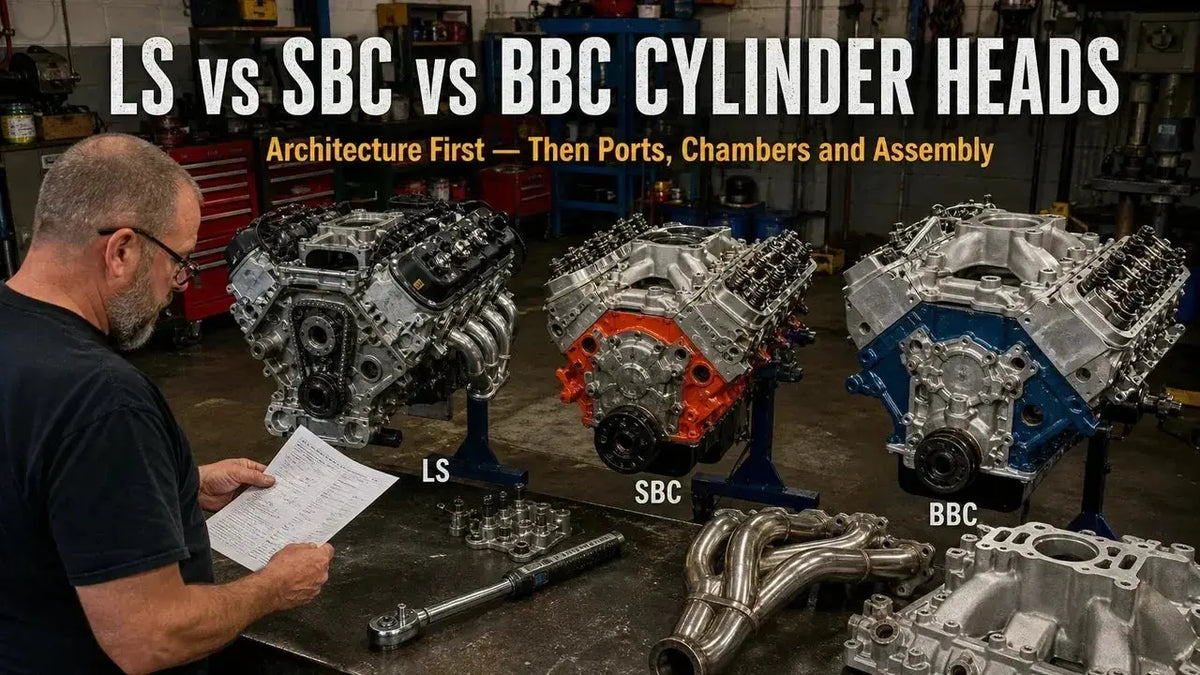

Compatibility Gate 1: LS, SBC, and BBC Are Different Cylinder-Head Families

LS, SBC, and BBC are not simply different sizes of the same Chevrolet cylinder head. They use different engine architecture and should be treated as separate product families.

Engine Family	Typical Identification Focus	Intake Compatibility Focus	Common Build Type
LS	Generation, exact casting, bore, cathedral or rectangular port	Matching LS manifold port family, injector layout, sensors and throttle system	LS swap, EFI street build, track or boosted combination
SBC	Block generation, traditional or Vortec-style interface, chamber, runner and plug angle	Correct SBC manifold bolt pattern and intake-port style	Classic small-block street, restoration or stroker build
BBC	Big-block family, bore, port type, chamber, plug orientation	Correct BBC oval- or rectangular-port manifold and header package	Large-displacement street, drag, marine or performance build

Scenario: The engine is described only as a “350”

Do not order cylinder heads from the displacement alone. A 350-based combination may use different block generations, intake bolt patterns, combustion-chamber requirements, plug orientations, and valvetrain packages.

Before selecting the head, record:

• block casting or verified engine family;
• bore size;
• deck configuration;
• existing intake-manifold style;
• header configuration;
• current valvetrain;
• piston and compression information where available.

Scenario: LS block with swapped cylinder heads

An LS engine label does not identify the current intake-port family once the heads have been changed. Verify the actual cylinder-head casting or product specification before selecting the intake manifold.

For LS-specific port matching, use the LS Intake Compatibility Guide: Cathedral vs Rectangular Ports when that page is published.

What Does a Cylinder Head Control?

The cylinder head forms the upper part of the combustion system and contains or supports the intake and exhaust ports, combustion chamber, valve seats, guides, spark-plug location, and valvetrain hardware.

Changing the cylinder head can affect:

• airflow into and out of the cylinder;
• compression ratio;
• combustion-chamber geometry;
• valve and piston clearance;
• intake-manifold compatibility;
• header and spark-plug clearance;
• pushrod and rocker geometry;
• spring requirements;
• cooling and gasket interfaces;
• engine calibration.

This is why cylinder-head replacement is usually a top-end system decision, not an isolated bolt-on upgrade.

The Car Air Intake System Guide explains how the cylinder-head ports form the final airflow interface after the filter, intake tube, throttle body, and intake manifold.

Compatibility Gate 2: Match the Cylinder Head to the Intake-Manifold Port Family

Correct block fitment does not automatically confirm intake-manifold compatibility.

The head and manifold must also match at the intake interface.

LS

LS-based engines can use different intake-port families, including cathedral and rectangular designs. The actual head port must match the corresponding manifold family.

SBC

Small Block Chevy combinations may use different intake-manifold bolt and port arrangements depending on the head family and generation. Traditional SBC and Vortec-style applications should not be assumed to share the same intake interface.

BBC

Big Block Chevy applications require particular attention to oval-port versus rectangular-port intake geometry.

A BBC cylinder head and BBC intake manifold are not automatically compatible simply because both are labeled “Big Block Chevy.”

For a deeper explanation of intake-port matching, runner design, and installed-height considerations, read the Intake Manifold Guide.

What Does Cylinder Head Runner Size Mean?

Intake runner volume, usually listed in cubic centimeters (cc), describes internal port volume. It is not an independent airflow rating.

Runner performance also depends on:

• port cross-sectional area;
• port shape;
• short-turn geometry;
• valve diameter;
• valve-seat and valve-job geometry;
• port finish and casting consistency;
• test conditions when airflow data is published.

Larger runner vs smaller runner

Runner Characteristic	Potential Direction	What Must Also Be Considered
Smaller / moderate cross-section	May support higher air velocity in a smaller or lower-RPM combination	Displacement, port efficiency, valve size and RPM target
Larger cross-section	May support greater airflow demand at higher displacement or RPM	Camshaft, compression, manifold, gearing and operating range

A larger runner is not automatically a better cylinder head. If the port is unnecessarily large for the engine's displacement and operating range, the combination may not use that cross-sectional area effectively.

Scenario: 200cc vs 210cc runner

Do not conclude that the 210cc head must outperform the 200cc head.

First compare:

• engine family;
• displacement;
• port architecture;
• valve size;
• actual airflow data under comparable test conditions where available;
• camshaft;
• intake manifold;
• RPM target.

Runner cc is a useful geometry clue, but it should not be treated as a standalone performance score.

Compatibility Gate 3: Combustion-Chamber Size Must Match the Compression Plan

Combustion-chamber volume is one input in the engine's compression ratio. It does not determine compression by itself.

Compression also depends on:

• bore;
• stroke;
• piston crown, dome or dish volume;
• deck clearance;
• head-gasket bore;
• compressed gasket thickness;
• combustion-chamber volume.

Changing from a larger chamber to a smaller chamber can increase static compression, but the result must be calculated for the actual short block.

Why smaller chambers are not automatically better

A smaller chamber can also change:

• piston-to-head clearance;
• piston-to-valve clearance;
• fuel-octane requirement;
• detonation margin;
• ignition and calibration requirements.

Do not choose chamber volume from a desired compression number without measuring or verifying the rest of the engine geometry.

Scenario: 64cc vs 66.5cc chamber

The smaller number does not mean the head is automatically better or more powerful. The effect depends on the actual bore, stroke, piston, deck, gasket, camshaft, fuel and calibration.

Compatibility Gate 4: Valve Size Is Only One Part of the Airflow Package

Larger valves can support greater airflow when the port, bore, valve seat, chamber and lift range are designed around them. However, valve diameter should not be selected independently.

Verify:

• cylinder bore clearance;
• valve-to-valve clearance;
• piston-to-valve clearance;
• seat dimensions;
• guide condition;
• camshaft lift;
• spring package;
• retainer and seal clearance.

A large valve installed in an unsuitable bore or chamber does not automatically improve the combination.

Angled Plug vs Straight Plug Cylinder Heads

Spark-plug angle describes the orientation of the spark plug relative to the chamber and exhaust side of the cylinder head.

The practical difference is often installation and exhaust-system clearance rather than a universal performance advantage.

Check	Straight Plug	Angled Plug
Header clearance	Depends on tube routing	Different plug location may improve or reduce clearance depending on header design
Spark-plug socket access	Verify with installed header	Verify with installed header
Plug-wire routing	Check distance from exhaust heat	Check altered boot and wire path
Existing headers	May already be designed around this orientation	May require different header geometry

Scenario: Switching from straight-plug to angled-plug SBC heads

Do not assume the existing headers will clear simply because the heads fit the block.

Dry-fit or verify:

• spark-plug body clearance;
• socket access;
• plug boot clearance;
• wire routing;
• distance from primary tubes.

Block compatibility does not guarantee header compatibility.

Bare vs Assembled Cylinder Heads

This is one of the most important listing details to verify before purchasing a performance cylinder head.

Listing Type	Commonly Included	What Still Must Be Verified
Bare casting	The cylinder-head casting and machining specifically stated by the product listing	Valves, guides, seals, springs, retainers, locks, machining, cleaning and complete assembly
Assembled head	Listed valves, springs, retainers and related hardware	Cam compatibility, installed height, spring pressure, lift, coil-bind and retainer clearance
Single head	One cylinder head	Whether one or two are required and whether side-specific details exist
Pair	Two cylinder heads where explicitly listed	Exact components and matching assembly specifications

A bare cylinder head is not a complete valvetrain package

A bare casting may still require:

• valves;
• valve springs;
• retainers;
• locks;
• valve seals;
• guides or guide preparation;
• spring seats or locators;
• rocker hardware;
• pushrod selection;
• machine-shop inspection and preparation.

Do not treat a bare head as ready to bolt onto the engine.

An Assembled Head Does Not Automatically Match Your Camshaft

“Assembled” means the listed components are installed. It does not mean the spring package is compatible with every camshaft.

Before assembly, verify:

• spring installed height;
• seat pressure;
• open pressure;
• maximum recommended lift;
• coil-bind clearance;
• retainer-to-seal clearance;
• valve-stem diameter;
• rocker ratio;
• camshaft lobe requirements.

Scenario: New assembled heads + higher-lift camshaft

Do not install the camshaft simply because its advertised lift appears below a generic spring number.

The actual valvetrain should be checked as an assembly, including:

• lobe lift;
• rocker ratio;
• net valve lift;
• installed height;
• coil bind;
• retainer clearance;
• piston-to-valve clearance.

For complete top-end planning, see How to Match Cylinder Heads, Intake Manifold, Throttle Body, Camshaft, and Air Intake.

Cylinder-Head Bolt Pattern Does Not Confirm Port Compatibility

Two components can appear to bolt together and still have an incorrect port or sealing interface.

Check:

• port height;
• port width;
• port shape;
• gasket sealing bead;
• bolt location;
• runner transition;
• coolant or adjacent passages where applicable.

This is particularly important when mixing aftermarket heads and manifolds or combining parts from different engine generations.

Current EVIL ENERGY Cylinder Head Examples

The following are product-specific reference examples, not universal specifications for every LS, SBC or BBC cylinder head.

Product Example	Listed Application	Listed Intake Runner	Listed Chamber
EVIL ENERGY LS1 Cathedral-Port Cylinder Head	1997–2003 Chevrolet LS1 reference application	210 cc	66.5 cc
EVIL ENERGY SBC Angled-Plug Cylinder Head	Selected 1960–1986 SBC 302 / 327 / 350 / 383 / 400 applications	200 cc	64 cc
EVIL ENERGY SBC Straight-Plug Cylinder Head	Selected 1960–1986 SBC 302 / 327 / 350 / 383 / 400 applications	200 cc	64 cc
EVIL ENERGY BBC Angled-Plug Cylinder Head	Selected 1965–2000 BBC 396 / 427 / 454 / 496 / 502 / 7.4L applications	325 cc	121 cc

Recheck the current product page before ordering. Product revisions, included components, quantity, port design, and application notes may change.

For additional LS, SBC, and BBC options, browse the EVIL ENERGY Cylinder Head Collection .

Scenario: BBC Head and Intake Manifold Use Different Port Families

BBC intake compatibility requires more than matching the words “Big Block Chevy.”

If the cylinder head uses a rectangular intake port while the manifold is designed for an oval-port application, do not assume the combination is acceptable simply because the bolt pattern appears similar.

Verify:

• head intake-port type;
• manifold port type;
• gasket sealing area;
• runner alignment;
• installed manifold height;
• carburetor or EFI configuration.

Scenario: LS Cylinder Heads and Intake Manifold

For LS combinations, the intake manifold should follow the cylinder-head port family.

Cathedral-port and rectangular-port combinations require different intake interfaces, and mixed-generation LS builds should be verified from the actual installed parts rather than the engine name alone.

For more detail, review the Intake Manifold Guide and the LS-specific compatibility guide when selecting the manifold.

Scenario: Cylinder Heads for a Street Stroker Build

Do not select a cylinder head from runner volume alone on a stroker combination.

Build the decision around:

• final displacement;
• compression target;
• camshaft duration and lift;
• intended RPM range;
• intake-manifold design;
• header package;
• vehicle weight;
• gearing and converter or clutch strategy;
• fuel and calibration.

A cylinder head should support the operating range of the complete engine—not simply offer the largest published runner volume.

What Must Be Measured Before Cylinder-Head Assembly?

New does not mean verified.

Before final engine assembly, inspect or measure as appropriate:

• deck and gasket surfaces;
• valve-guide clearance;
• valve-seat condition and sealing;
• spring installed height;
• spring pressure;
• maximum valve lift;
• coil-bind margin;
• retainer-to-seal clearance;
• piston-to-valve clearance;
• piston-to-head clearance;
• pushrod length;
• rocker geometry;
• intake-port alignment;
• exhaust-port and header alignment;
• spark-plug and plug-wire clearance.

Professional machine-shop inspection is recommended when the required measurements, machining capability, or engine-build specifications are not available.

What Supporting Parts Can Change With New Cylinder Heads?

A cylinder-head purchase can trigger changes elsewhere in the engine package.

System	Potentially Affected Components
Intake	Intake manifold, gaskets, throttle body or carburetor, fuel rails, injectors
Valvetrain	Camshaft, springs, retainers, rockers, pushrods, lifters
Exhaust	Headers, spark-plug boots, wires and heat protection
Short block	Pistons, compression ratio, valve clearance, gasket selection
Fasteners	Head bolts or studs, intake hardware, rocker hardware
Engine management	Fueling, ignition timing, injector data and calibration

This is why the Intake Upgrade Priority Guide treats cylinder heads as a higher-complexity change than a filter or intake tube. A head swap can affect the entire top-end combination.

Cylinder Head Pre-Purchase Checklist

1. Identify the exact engine family. LS, SBC and BBC are separate architectures.
2. Confirm the block and bore. Do not select from displacement alone.
3. Verify the intake-port family. Match the future or existing intake manifold.
4. Record runner size and port architecture. Do not use runner cc as a standalone airflow score.
5. Calculate the compression combination. Include chamber, piston, deck and gasket dimensions.
6. Check valve and bore compatibility.
7. Confirm spark-plug orientation. Verify header, boot and tool clearance.
8. Determine bare or assembled.
9. Confirm single head or pair.
10. Verify spring and camshaft compatibility.
11. Check intake-manifold compatibility.
12. Check header compatibility.
13. Plan gaskets, fasteners and valvetrain parts.
14. Measure critical clearances before final assembly.

Cylinder Head Selection Red Flags

Situation	Why to Stop	What to Verify
Head chosen only by engine displacement	Multiple architectures may share similar displacement labels	Exact block and head family
Largest runner is automatically selected	Runner volume alone does not define airflow or operating range	Port geometry, displacement, camshaft and RPM target
Smallest chamber is automatically selected	Compression and clearance have not been calculated	Complete short-block geometry
Angled-plug head replaces straight-plug head	Existing headers may interfere	Header, socket, boot and wire clearance
Assembled head is assumed to fit any camshaft	Spring and clearance limits may not match	Installed height, pressure, lift and coil bind
Bare head is treated as ready to install	Valvetrain and preparation are incomplete	Machine work and complete component package
Intake bolts line up	Bolt alignment does not confirm port alignment	Port, gasket and sealing interface
Listing price appears unusually low	Product may be a single bare casting rather than an assembled pair	Package contents and quantity

Who Is This Cylinder Head Guide For?

This guide is intended for LS, Small Block Chevy, and Big Block Chevy engine builders, machine-shop customers, LS swap projects, street-performance builds, restoration projects, and anyone comparing replacement or performance cylinder heads as part of a planned engine combination.

Who Is This Guide Not For?

This guide is not a universal interchange chart, compression calculator, machining specification, torque sheet, spring-pressure specification, or approval to assemble unmeasured valvetrain components.

Exact measurements, clearances, fastener procedures, spring requirements, and machining decisions should come from the selected cylinder head, camshaft, valvetrain, engine block, gasket, piston, and applicable service or manufacturer specifications.

Frequently Asked Questions

Q: Are LS and SBC cylinder heads interchangeable?

A: No. LS and Small Block Chevy engines use different cylinder-head architecture, bolt patterns, ports, valvetrain systems, intake manifolds, and supporting components.

Q: Are SBC and BBC heads interchangeable?

A: No. Small Block Chevy and Big Block Chevy are separate engine families with different block, cylinder-head, intake, exhaust, and valvetrain architecture.

Q: Is a larger cylinder head intake runner always better?

A: No. Runner volume and cross-section should match displacement, port architecture, camshaft, RPM range, intake manifold, and intended engine use.

Q: What does cylinder head runner cc mean?

A: Runner cc describes internal port volume. It does not independently measure airflow and should be evaluated with port shape, cross-section, valve size, displacement, and RPM range.

Q: Does a smaller combustion chamber increase compression?

A: It can increase compression when the rest of the engine remains unchanged, but actual compression depends on bore, stroke, piston volume, deck clearance, gasket dimensions, and chamber volume together.

Q: Does a smaller combustion chamber always make more power?

A: No. Compression, fuel, ignition, camshaft timing, clearance, detonation margin, and the complete engine combination determine the result.

Q: What is the difference between angled-plug and straight-plug cylinder heads?

A: The spark plug enters the chamber at a different orientation. This can change header, plug-boot, wire, and service-tool clearance.

Q: Do angled-plug heads require different headers?

A: They may. Verify the exact header tube routing, spark-plug body clearance, boot location, wire path, and socket access before installation.

Q: What is a bare cylinder head?

A: A bare head is primarily the casting and the machining specifically listed with the product. It typically requires additional valves, springs, retainers, locks, seals, and professional inspection or assembly work according to the exact listing.

Q: Can I install a bare cylinder head directly out of the box?

A: No. A bare casting requires the correct valvetrain components, preparation, inspection, cleaning, measurements, and assembly before use.

Q: Does an assembled cylinder head work with any camshaft?

A: No. Verify spring installed height, seat and open pressure, maximum lift, coil-bind margin, retainer clearance, rocker ratio, and the requirements of the selected camshaft.

Q: Do I need to check piston-to-valve clearance with new heads?

A: Yes when the combination changes in a way that can affect valve-to-piston relationship. Chamber, valve size, camshaft, rocker ratio, piston design, gasket, deck height, and timing can all influence clearance.

Q: Can I reuse my existing intake manifold with new cylinder heads?

A: Only if the manifold matches the new head's engine family, port shape, bolt pattern, gasket interface, installed height, and induction system.

Q: Does matching the intake-manifold bolt pattern guarantee fitment?

A: No. Port shape, port location, sealing-bead position, runner transition, and gasket support must also be compatible.

Q: Can a BBC oval-port intake manifold be used with rectangular-port heads?

A: Do not assume compatibility. Verify the exact head, manifold, gasket, runner, and sealing interface. BBC port family is a primary intake-manifold selection variable.

Q: How do I choose cylinder heads for a stroker engine?

A: Start with final displacement, compression target, piston and bore dimensions, camshaft, RPM range, intake manifold, exhaust system, vehicle use, and valvetrain requirements rather than runner volume alone.

Q: Should new cylinder heads be inspected before installation?

A: Yes. Critical surfaces, guides, seats, springs, installed height, clearances, valvetrain geometry, and related assembly dimensions should be verified as appropriate before final assembly.

Q: How do I know whether a cylinder head listing is for one head or a pair?

A: Check the current package contents and quantity on the exact product page. Do not infer quantity from the product photos or engine layout.

Q: Should I upgrade the cylinder heads before the intake manifold?

A: It depends on where the current combination is restricted and what the complete engine plan requires. Cylinder heads affect substantially more systems than an isolated intake component, so the change should be planned with compression, camshaft, valvetrain, intake, exhaust, and calibration in mind.

Q: What should I verify before ordering a performance cylinder head?

A: Verify engine family, bore, port architecture, chamber size, runner geometry, valve package, plug angle, assembly level, quantity, intake and header compatibility, camshaft and spring requirements, and the critical clearances required by the complete build.
