How to Match Cylinder Heads, Intake Manifold, Throttle Body, Camshaft, and Air Intake

How to Match Cylinder Heads, Camshaft, Intake Manifold, Throttle Body, and Air Intake as One System

A complete intake and top-end combination should be planned from the engine outward rather than by choosing the largest individual components. Start with the actual displacement, compression ratio, intended RPM range, vehicle use, and induction type. Then match the cylinder heads and camshaft, select an intake manifold that fits the head architecture and operating range, and size the throttle body, intake tube, and air filter around the airflow the complete engine can realistically use.

The final combination must also support the required fuel delivery, sensors, ECU strategy, valvetrain geometry, exhaust capability, and physical clearance.

Direct answer: The best intake combination is not the collection of parts with the largest advertised airflow numbers. It is the combination in which the engine, cylinder heads, camshaft, manifold, throttle body, intake tract, fuel system, and calibration operate in compatible ranges without creating a mechanical, airflow, electronic, or packaging bottleneck.

Think in an Airflow Chain, Not Individual Parts

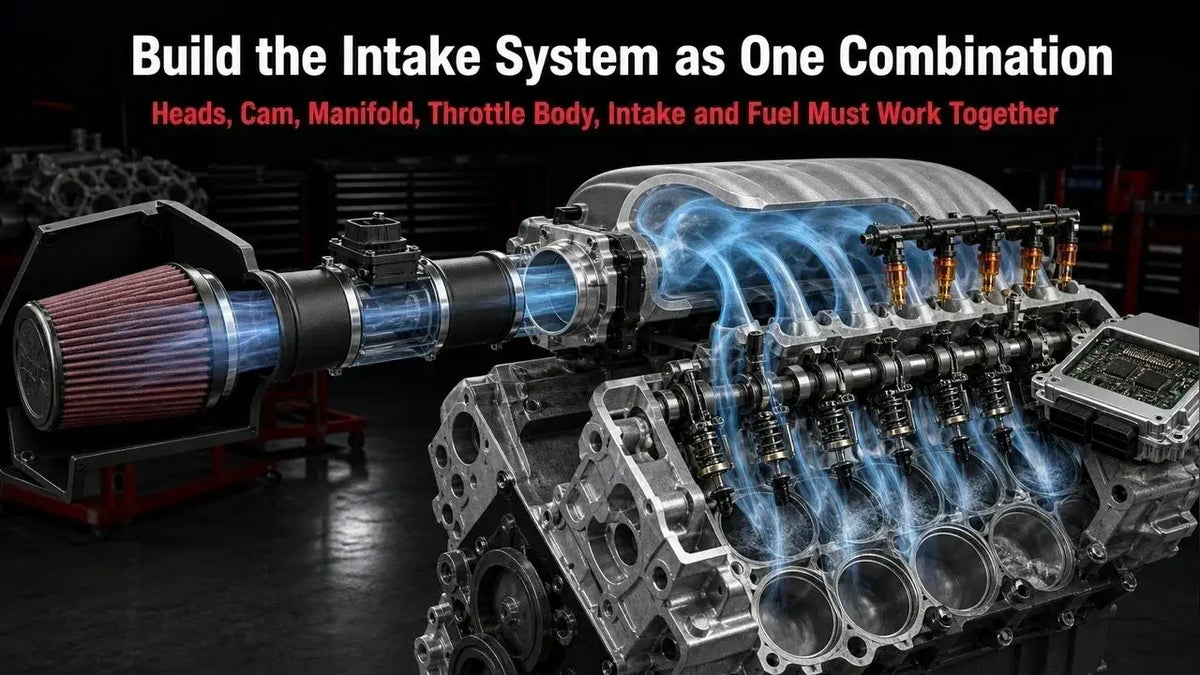

Air entering the engine passes through a connected system:

1. Air filter
2. Intake tube
3. MAF or other airflow measurement components where equipped
4. Throttle body
5. Intake manifold plenum
6. Manifold runners
7. Cylinder-head intake ports
8. Intake valves
9. Cylinder

Each part affects the next. A large throttle body cannot correct a restrictive head, and a high-RPM manifold cannot make a mismatched camshaft or compression strategy appropriate for low-speed street use.

For a detailed explanation of the airflow path itself, review the car air intake system components guide.

Four compatibility limits should be checked before airflow size

• Mechanical compatibility: bolt pattern, port shape, flange, shaft, linkage, injector, rail, and mounting interfaces
• Operating-range compatibility: displacement, RPM range, cam timing, runner dimensions, and vehicle use
• Electronic compatibility: DBW or cable control, TPS, IAC, pedal, ECU, MAF, and sensor strategy
• Packaging compatibility: hood height, firewall clearance, accessories, fuel fittings, belts, radiator, and intake routing

A combination should not be ordered while one of these hard-interface categories remains uncertain.

Build Card: Define the Engine Before Selecting Parts

Before comparing cylinder heads, manifolds, or throttle bodies, record the actual engine and vehicle configuration.

Build Input	Record Before Part Selection	Why It Matters
Engine family	Platform, generation, block architecture	Defines major mechanical interfaces
Displacement	Actual bore and stroke combination	Changes airflow demand and usable runner size
Compression	Piston, chamber, gasket, and deck data	Must complement cam timing and fuel
Induction	Naturally aspirated, supercharged, or turbocharged	Changes airflow, fuel, heat, and packaging requirements
Vehicle use	Street, towing, off-road, autocross, drag, track	Defines where usable torque and RPM matter
Transmission	Manual/automatic, converter where applicable	Affects usable engine operating range
Final drive	Axle ratio and tire diameter	Changes how quickly the engine reaches its power band
Fuel	Fuel type and pressure strategy	Affects compression, injectors, pump, hoses, and calibration
Emissions requirements	Applicable vehicle and local requirements	May limit component and calibration choices

Do not use 'street build' as the only goal

Two street vehicles can require very different combinations. A heavy truck that spends most of its time below the upper RPM range does not have the same airflow priorities as a light vehicle intended for sustained high-RPM use.

Define the useful operating window rather than selecting components around peak horsepower alone.

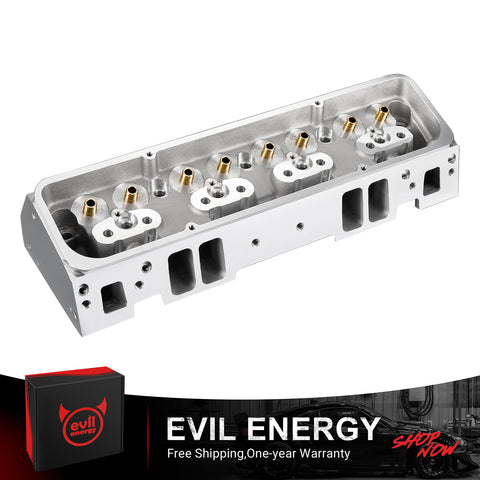

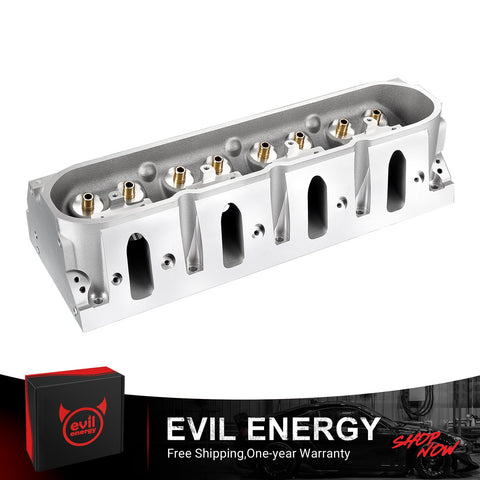

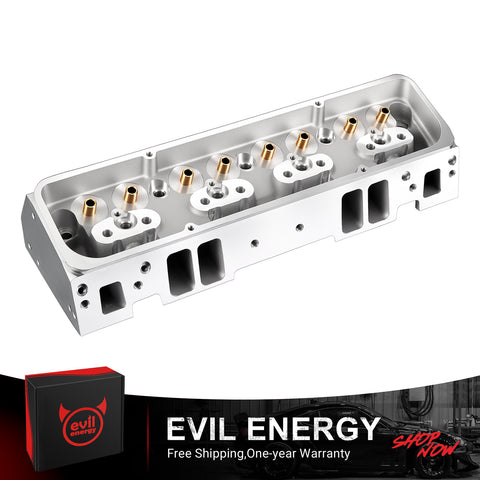

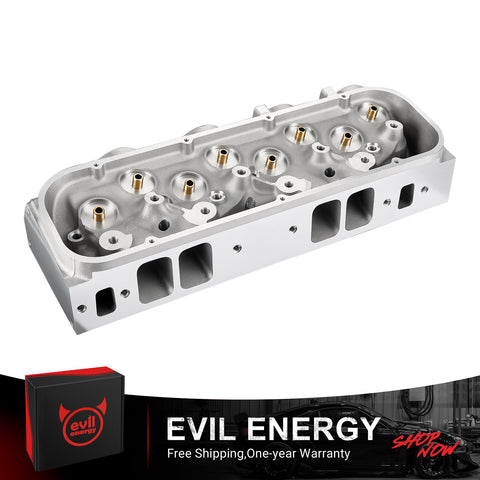

Compatibility Gate 1: Cylinder Heads Establish the Intake Port Architecture

The cylinder head is one of the first hard interfaces in the top-end combination because its intake-port architecture affects manifold selection, airflow capability, valve requirements, compression, header clearance, and valvetrain setup.

When selecting a cylinder head, verify more than advertised flow.

Head-to-block compatibility

Confirm:

• Engine family and generation
• Bore compatibility
• Head-bolt pattern
• Coolant-passage compatibility
• Head-gasket relationship
• Combustion-chamber size
• Valve-to-bore clearance

Head-to-manifold compatibility

Confirm:

• Intake-port family
• Port shape
• Port location
• Intake bolt pattern
• Gasket alignment

A manifold that can physically be bolted to a head is not automatically a correct airflow match. Significant port misalignment can create an abrupt transition even when the fastener pattern appears compatible.

Compression should be calculated from the actual parts

Compression planning should use the measured or verified:

• Combustion-chamber volume
• Piston configuration
• Piston-to-deck position
• Head-gasket bore and thickness
• Actual bore and stroke

Do not select a chamber size simply because another engine with the same family used it successfully. Piston and deck combinations can change the result significantly.

Compatibility Gate 2: Match the Camshaft to the Complete Engine

The camshaft affects when and how the cylinder can use the airflow available from the head and intake system. Cam selection should therefore follow the intended engine operating range rather than sound alone.

Camshaft decisions affect:

• Idle quality
• Low-speed response
• Usable RPM range
• Dynamic cylinder filling
• Valve-to-piston clearance
• Spring requirements
• Pushrod and rocker geometry
• Calibration requirements

The valvetrain must support the actual cam motion

Verify the complete valvetrain rather than checking cam lift alone:

• Installed spring height
• Spring pressure
• Coil-bind margin
• Retainer-to-seal clearance
• Pushrod length
• Pushrod clearance
• Rocker geometry
• Valve-to-piston clearance

For combinations outside a proven package, component-manufacturer data, physical measurement, and qualified engine-building procedures should take priority over generic online combinations.

Compatibility Gate 3: Match the Intake Manifold to Heads, Cam, and RPM Range

The intake manifold connects the throttle or carburetor to the cylinder-head ports, but its runner and plenum design also influences where the engine develops useful airflow and torque.

For a deeper explanation of runner and plenum behavior, see intake manifold runners, plenum design, EFI, and carbureted configurations.

Build Direction	Manifold Planning Priority	What to Verify
Street response	Broad usable operating range	Runner characteristics, head match, throttle response, packaging
Heavy vehicle or towing	Useful airflow in the actual loaded RPM range	Runner sizing, cam overlap, gearing, converter, throttle response
Higher-RPM naturally aspirated build	Adequate runner and plenum capacity	Head flow capability, cam range, compression, exhaust system
EFI conversion	Complete fuel and sensor architecture	Injectors, rails, regulator, MAP/MAF strategy, ECU, tune
Carbureted combination	Correct flange and fuel-metering signal	Carburetor compatibility, linkage, fuel pressure, vacuum provisions
Hi-Ram or tall manifold	High airflow plus packaging	Hood height, throttle placement, rails, fittings, firewall clearance

Runner size should not be selected independently

A larger runner can support more airflow capacity, but a larger cross-section does not automatically improve the operating range required by every engine.

Evaluate runner design together with:

• Displacement
• Head port dimensions
• Camshaft timing
• Compression
• Target RPM range
• Vehicle mass and gearing

Compatibility Gate 4: Throttle Body Size Is Not a Standalone Horsepower Upgrade

A throttle body should support the airflow required by the engine and match the manifold inlet, control system, sensors, and upstream intake tract.

Before choosing throttle-body diameter, review throttle body size, DBW vs cable control, and LS fitment.

Mechanical checks

• Bore and flange dimensions
• Bolt pattern
• Throttle-blade clearance
• Manifold inlet diameter
• Adapter geometry
• Intake coupler diameter

Electronic checks for DBW applications

• Throttle-body connector
• Electronic throttle actuator strategy
• Pedal compatibility
• ECU compatibility
• Calibration support

Cable-operated checks

• Cable attachment
• Throttle bracket
• TPS compatibility
• IAC provision where applicable
• Full-open and full-close travel

Avoid abrupt airflow transitions

A large throttle body feeding a substantially smaller manifold inlet may create an unnecessary transition. An adapter can solve a bolt-pattern problem without necessarily creating a smooth airflow path.

The goal is a compatible transition through:

Throttle Body → Manifold Inlet → Plenum → Runners → Cylinder-Head Ports

Compatibility Gate 5: Intake Tube and Filter Must Support the Same Combination

The upstream intake system should provide sufficient filter area, stable airflow measurement, secure connections, reasonable bends, and safe packaging.

For filter selection, review engine air filter types, fitment, and replacement. For complete routing and installation considerations, see the cold air intake kit fitment and installation guide.

Air filter checks

When selecting an air filter, verify:

• Filter flange diameter
• Available filter area
• Physical clearance
• Filter service access
• Heat exposure
• Water exposure
• Intended operating environment

Intake tube checks

• Throttle-body inlet diameter
• Coupler compatibility
• Tube diameter
• Bend radius
• Transition quality
• MAF housing where applicable
• PCV connection
• Breather connection
• Vacuum connections

MAF placement matters

Where a mass-airflow sensor is used, sensor housing, orientation, surrounding tube geometry, and calibration strategy should be treated as part of the airflow system rather than simply as a mounting location.

Cold air routing still requires water-risk planning

A lower or more isolated air inlet may reduce exposure to engine-compartment heat, but the filter should not be positioned where normal road conditions create unacceptable water or debris exposure.

For builders deciding which intake component should be changed first, review what intake upgrade should be done first.

The Bottleneck Test: Find the Limiting Interface Before Buying the Next Part

Instead of asking which component is 'largest,' identify the first meaningful restriction or incompatibility in the airflow chain.

Observed Combination	Possible Bottleneck	Better Diagnostic Question
Large throttle body, stock manifold inlet	Manifold inlet or adapter transition	Does the manifold accept and use the additional inlet area?
Large manifold, small head ports	Port transition	Are the port families and gasket openings compatible?
High-flow heads, mild cam	Valve-event strategy	Can the engine use the available head airflow in the target RPM range?
Large tube, restrictive filter	Filter area or inlet path	Does the complete upstream system support the required airflow?
Improved airflow, stock fuel system	Fuel delivery	Can injectors, pump, regulator, and calibration support the new load?
Compatible parts, poor engine-bay fit	Packaging	Can the complete assembly operate without interference or heat problems?

Build Scenario 1: Street LS Swap With Broad Torque

A street-focused LS swap generally benefits from planning around the RPM range the vehicle will actually use rather than the highest theoretical airflow capacity.

Priorities may include:

• Stable idle and low-speed control
• Useful midrange torque
• Compatible head and manifold port architecture
• Throttle-body control that matches the ECU and pedal strategy
• Reliable PCV and vacuum routing
• Air-filter access
• Hood and accessory clearance

A large throttle body or high-RPM manifold should not be selected solely because it fits an LS platform.

Build Scenario 2: LS Swap With Limited Hood Clearance

Packaging becomes a hard compatibility limit when the engine is installed in a chassis that was not designed around the selected manifold.

Measure the complete stack:

• Engine mounting height
• Intake manifold
• Throttle body
• Fuel rails and fittings
• Vacuum fittings
• Intake coupler and tube
• Hood structure

Do not confirm clearance from manifold height alone. The throttle body, fittings, sensor connectors, and couplers can become the actual interference point.

Build Scenario 3: Higher-RPM Naturally Aspirated Combination

A higher-RPM naturally aspirated engine requires the heads, camshaft, compression, manifold, throttle body, exhaust system, and valvetrain to support the same operating direction.

Before increasing manifold or throttle-body capacity, verify:

• Head flow and port architecture
• Valve size and bore compatibility
• Camshaft operating range
• Spring capability
• Piston-to-valve clearance
• Compression strategy
• Exhaust capability
• Fuel delivery
• Calibration

An isolated airflow upgrade may move the restriction elsewhere rather than improving the complete combination.

Build Scenario 4: Heavy Street Vehicle or Towing-Oriented Build

A heavy vehicle frequently operates under load at lower engine speeds than a high-RPM performance build.

Planning should prioritize:

• Broad torque delivery
• Throttle response
• Runner velocity in the useful operating range
• Cam timing compatible with vehicle use
• Transmission and converter behavior
• Final-drive ratio
• Cooling capacity

Choosing the largest manifold, runner, or throttle-body option can move the combination away from the RPM range where the vehicle spends most of its time.

Build Scenario 5: EFI Conversion From a Carbureted Intake

An EFI conversion involves more than replacing the carburetor with a throttle body.

Verify:

• EFI-compatible manifold or adapter strategy
• Injector placement
• Fuel rails
• Injector sizing
• Fuel pressure
• Fuel pump capability
• Return or returnless configuration
• Regulator placement
• MAP and/or MAF strategy
• Throttle control
• ECU capability
• Calibration

Fuel hose, fittings, pump, filter, regulator, and rails must be rated for the selected fuel and pressure.

Build Scenario 6: Carbureted Engine With a New Intake Manifold

A carbureted manifold change should account for more than bolt pattern.

Check:

• Carburetor flange pattern
• Carburetor sizing and signal
• Throttle linkage
• Kickdown or transmission linkage where applicable
• Fuel pressure requirements
• Vacuum ports
• Distributor clearance where applicable
• Air-cleaner height
• Hood clearance

The manifold and carburetor should be considered together with the heads, camshaft, displacement, compression, and operating range.

Build Scenario 7: Hi-Ram Intake on a Street Vehicle

A tall high-volume manifold can introduce packaging constraints before airflow becomes the limiting issue.

Check the complete installed system for:

• Hood clearance
• Firewall clearance
• Throttle-body orientation
• Fuel-rail access
• Fuel-fitting clearance
• Injector access
• Vacuum routing
• PCV routing
• Intake-tube routing

Measure before ordering supporting components because a change in throttle-body orientation can change the entire intake-tube route.

Build Scenario 8: Large Throttle Body on an Otherwise Stock Engine

A larger throttle body may physically fit without creating a meaningful improvement if the manifold inlet, runners, heads, camshaft, and engine airflow demand remain unchanged.

Before changing throttle-body size, ask:

• Is the existing throttle body actually restricting the combination?
• Does the manifold inlet support the new bore?
• Will an adapter create an abrupt transition?
• Will DBW electronics remain compatible?
• Does calibration need to change?

This is a good example of why component size should follow the complete airflow requirement rather than be used as the starting point.

Build Scenario 9: Cold Air Intake Added After Heads, Cam, and Manifold

After downstream airflow capability increases, the existing air filter and intake tube should be rechecked rather than automatically replaced.

Inspect:

• Filter area
• Filter restriction
• Tube transitions
• Coupler sizes
• MAF housing
• Sensor placement
• PCV routing
• Heat exposure

If an upgraded upstream system is required, the Cold Air Intake Kit collection provides a starting point for comparing available intake configurations.

Build Scenario 10: Engine Runs Worse After Multiple Intake Upgrades

When several parts are changed at once and the engine develops poor idle, hesitation, lean or rich behavior, reduced response, or drivability problems, do not assume the largest new component is automatically the cause.

Audit the complete system:

• Vacuum leaks
• Intake-gasket sealing
• Throttle-body control
• TPS and IAC operation where applicable
• DBW pedal and ECU compatibility
• MAF housing and orientation
• MAP sensor connection
• Injector calibration
• Fuel pressure
• PCV routing
• ECU calibration

Changing multiple airflow components without updating calibration or verifying sensors can make root-cause diagnosis much more difficult.

Fuel Delivery Must Follow the Airflow Plan

Increasing usable engine airflow can increase fuel demand. Fuel delivery should therefore be verified against the complete engine combination rather than treated as an unrelated system.

Check the complete fuel path

• Fuel tank pickup
• Fuel pump
• Fuel filter
• Feed line
• Fuel rails
• Injectors
• Pressure regulator
• Return line where applicable
• Hoses and fittings

Confirm the fuel-system architecture

Determine whether the vehicle uses:

• Return fuel system
• Returnless fuel system
• Mechanical regulation
• Electronic pressure-control strategy

The pump, injectors, regulator, lines, and ECU strategy must support the intended fuel, pressure, and engine load using verified component data.

Calibration Is Part of the Hardware Combination

Mechanical compatibility does not guarantee correct engine operation after airflow changes.

Depending on the combination, calibration may need to account for:

• Injector data
• MAF calibration
• MAP strategy
• Throttle-body characteristics
• Idle control
• Camshaft behavior
• Fuel type
• Target air-fuel strategy
• DBW operation

A mechanically complete engine should not be considered finished until the ECU and fuel system can support the new airflow safely and predictably.

Packaging Audit: Build the Engine Bay on Paper Before Ordering

Many combinations fail at the packaging stage rather than at the airflow stage.

Vertical clearance

Measure the complete intake stack:

• Engine position
• Head and manifold height
• Throttle body or carburetor
• Spacer or adapter
• Air cleaner or intake coupler
• Hood reinforcement structure

Front clearance

Check:

• Throttle body
• Intake coupler
• Radiator
• Cooling fans
• Accessory belt drive
• Water pump

Side and rear clearance

Check:

• Fuel rails
• AN fittings
• Injector connectors
• Brake booster
• Firewall
• PCV fittings
• Vacuum fittings
• Harness routing

Do not assume that a manifold fitting the engine means the complete induction system fits the vehicle.

Pre-Order Combination Checklist

Before ordering parts, verify each major interface in the complete intake and top-end combination.

• Engine: Confirm engine family, generation, displacement, bore, and stroke.
• Compression: Verify piston configuration, deck height, chamber volume, and head-gasket specifications.
• Cylinder heads: Confirm block compatibility, intake-port architecture, bolt pattern, and valve clearance.
• Camshaft: Match the camshaft to displacement, compression, heads, intended RPM range, and vehicle use.
• Valvetrain: Verify spring requirements, pushrod length, rocker geometry, and mechanical clearance.
• Intake manifold: Confirm port family, bolt pattern, runner design, RPM range, and installed height.
• Throttle body or carburetor: Verify flange, bore size, control method, linkage, sensors, and manifold inlet compatibility.
• Intake tract: Check tube diameter, couplers, MAF housing, filter size, and available routing space.
• Fuel system: Verify injectors, pump, filter, regulator, fuel pressure, hoses, and fittings.
• ECU and calibration: Confirm sensor strategy, injector data, throttle control, and calibration support.
• Packaging: Check hood, firewall, radiator, accessory-drive, fuel-rail, fitting, and intake-tube clearance.
• Exhaust: Confirm header and exhaust compatibility with the selected heads and chassis.

Do not order the combination while a critical mechanical, electronic, fuel, or packaging interface remains unverified.

Do not order the combination while a critical mechanical, electronic, fuel, or packaging interface remains unverified.

Pre-Startup Mechanical Verification

Before first startup, inspect the completed engine systematically rather than assuming that correctly installed individual parts create a complete system.

Air system

• Air filter secure
• Intake couplers secure
• Throttle operates through the intended range
• MAF / MAP sensors connected correctly
• PCV and breather routing complete
• No obvious intake leaks

Fuel system

• Correct fuel pressure strategy
• Fuel fittings fully secured
• Injectors correctly seated
• Fuel rails secure
• Hoses routed away from heat and abrasion
• Complete leak check performed before operation

Mechanical system

• Valvetrain geometry verified
• Valve-to-piston clearance verified where required
• Pushrod clearance verified
• Fasteners tightened according to component procedures
• No throttle, belt, fan, fuel-line, or wiring interference

Electronic system

• ECU configuration verified
• Throttle control verified
• Injector data verified
• Required sensors connected
• Calibration prepared for the combination

Common Complete Intake Build Mistakes

Mistake	Why It Creates a Problem	Better Planning Method
Choosing every component by maximum airflow	Operating ranges may not match	Design around displacement, RPM, and vehicle use
Choosing the cam for sound	Valve events may not suit compression, heads, or vehicle	Match cam timing to the complete combination
Matching manifold by bolt pattern only	Port architecture and gasket alignment may differ	Verify port family, shape, and operating range
Installing the largest throttle body available	Manifold inlet or engine demand may remain the restriction	Size from airflow requirement and manifold design
Ignoring MAF housing changes	Sensor behavior and calibration may change	Treat sensor housing as part of the intake system
Upgrading airflow without checking fuel delivery	Fuel system may not support increased load	Verify pump, injectors, regulator, lines, and tune
Checking hood clearance after purchase	Complete assembly may not fit the chassis	Measure the full intake stack before ordering
Changing multiple parts without a calibration plan	Root-cause diagnosis becomes difficult	Plan hardware and ECU changes together

Who Is This Intake Combination Guide For?

This guide is intended for:

• LS swap planners
• Experienced DIY engine builders
• EFI conversion projects
• Naturally aspirated performance builds
• Street and track intake-system planning
• Builders comparing cylinder heads, manifolds, throttle bodies, filters, and supporting fuel components

What This Guide Does Not Replace

This planning framework does not replace:

• Engine simulation
• Machine-shop measurement
• Valve-to-piston clearance measurement
• Professional engine assembly procedures
• Component-specific instructions
• Dyno or road calibration
• Applicable emissions requirements

Frequently Asked Questions

Q1: Should I choose cylinder heads or the intake manifold first?

A1: Start with the engine architecture, displacement, compression strategy, and operating goal. The cylinder head establishes the intake-port family, then the manifold should match that port architecture and the intended RPM range.

Q2: Should the camshaft match the intake manifold?

A2: Yes. The camshaft, cylinder heads, compression, intake manifold, exhaust, and intended RPM range should operate as a compatible combination.

Q3: Does a bigger intake manifold make more power?

A3: Not automatically. Runner area, runner length, plenum volume, head capability, displacement, camshaft, and operating RPM all affect whether a larger manifold is useful.

Q4: How do I know if my throttle body is too large?

A4: Compare expected engine airflow, manifold inlet size, response requirements, control strategy, and data from comparable combinations. Diameter alone does not determine whether a throttle body is appropriate.

Q5: Can I put a large throttle body on a stock intake manifold?

A5: It may physically fit with the correct flange or adapter, but the manifold inlet and airflow transition should be checked before assuming the larger bore provides a useful improvement.

Q6: Does an intake manifold need to match the cylinder-head ports?

A6: Yes. Verify the intake-port family, shape, position, bolt pattern, gasket alignment, and transition between the manifold and head.

Q7: How do I choose intake manifold runner size?

A7: Runner selection should consider displacement, cylinder-head port dimensions, camshaft timing, compression, target RPM range, and vehicle use rather than runner size alone.

Q8: Is a Hi-Ram intake good for a street car?

A8: It depends on the complete engine combination and packaging. Check the intended operating range as well as hood clearance, throttle-body position, fuel rails, fittings, and intake routing.

Q9: Should I upgrade the throttle body or intake manifold first?

A9: Identify the actual restriction first. A larger throttle body offers limited value when the manifold inlet or downstream engine combination remains the primary airflow constraint.

Q10: Does intake tube diameter need to match the throttle body?

A10: The connection should provide a secure fit and reasonable airflow transition. Coupler size, tube diameter, MAF housing, bend geometry, and available space should all be considered.

Q11: Does a larger air filter increase horsepower?

A11: A filter should provide adequate airflow capacity without becoming a restriction, but filter size alone does not guarantee an engine-output increase.

Q12: Can a cold air intake be used with an aftermarket throttle body?

A12: Yes when the inlet diameters, couplers, sensor strategy, tube routing, and available clearance are compatible.

Q13: Do heads and cam require a tune?

A13: Many significant airflow and camshaft changes require calibration adjustments. The exact requirements depend on the ECU, sensors, injectors, fuel system, and combination.

Q14: Can the stock fuel system support heads, cam, and intake upgrades?

A14: Sometimes, but it should not be assumed. Verify injector capability, pump delivery, fuel pressure control, lines, regulator, and calibration against the planned engine load.

Q15: What should be checked on a DBW throttle-body swap?

A15: Verify throttle-body connector, electronic actuator strategy, pedal, ECU compatibility, mechanical flange, blade clearance, inlet size, and calibration support.

Q16: Why does my engine run worse after an intake upgrade?

A16: Possible causes include vacuum leaks, MAF changes, throttle-body incompatibility, incorrect sensor placement, fuel-pressure problems, injector calibration, PCV routing, or an ECU calibration that no longer matches the hardware.

Q17: How do I check hood clearance for an intake manifold?

A17: Measure the complete installed stack, including engine position, manifold, throttle body or carburetor, spacers, rails, fittings, couplers, and hood structure.

Q18: What should be checked before first startup after heads, cam, and intake work?

A18: Verify fluids, fuel pressure, leaks, wiring, sensors, throttle operation, intake sealing, vacuum routing, valvetrain geometry, mechanical clearances, fasteners, and ECU calibration before normal operation.

Final Build Takeaway

A successful intake and top-end combination begins with the engine and its intended operating range, not with the largest cylinder head, intake manifold, or throttle body available. The heads establish the port architecture, the camshaft controls when the cylinders use that airflow, the manifold shapes its delivery, and the throttle body, intake tube, and filter must support the same system without creating abrupt transitions or control conflicts.

Fuel delivery, ECU calibration, valvetrain geometry, exhaust capability, and physical packaging complete the combination. Verify every hard mechanical and electronic interface before ordering parts, then validate the assembled system before first startup.
