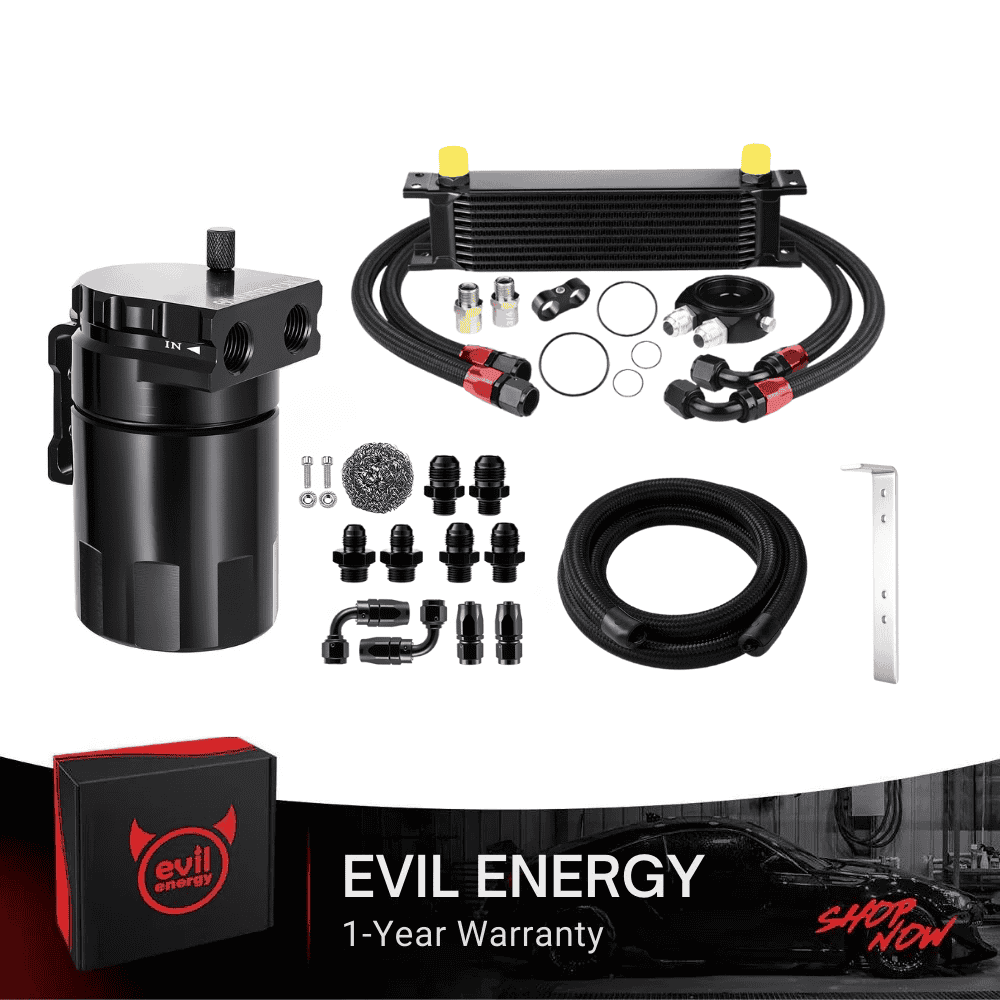

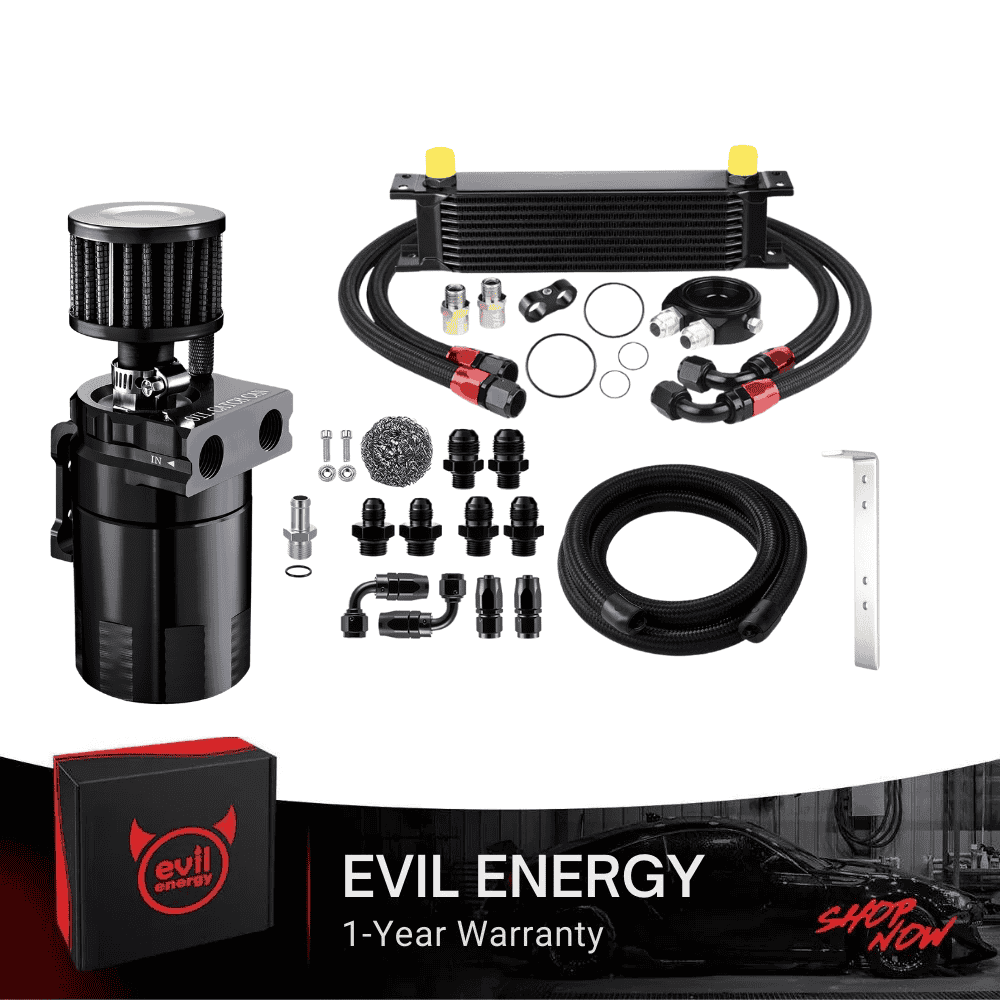

[330mm,With Breather Filter]
[330mm,Without Breather Filter]
[340mm,With Breather Filter]
[340mm,Without Breather Filter]
[330mm]
[340mm]
[330mm]
[340mm]
[Without Breather Filter]
[With Breather Filter]
EVIL ENERGY Fuel Cell Gas Tank - Over 500,000 Raving Fans & User Testimonials

10 ROW Oil Cooler Universal Engine Transmission & 300ml AN10 Oil Catch Can Kits

SKU: EVYHYL002
Product Type: Oil Catch Can Kits
$159.99
$159.99
Style: With Breather Filter
Cooler Style: 330mm

Core Dual-Protection Performance

  • 300ML baffled oil catch can: Removable baffle + steel ball filter media traps oil vapor/moisture, preventing carbon buildup.
  • 10ROW stacked-plate oil cooler: 0.24L capacity, 116PSI test pressure, rapidly lowers oil temp (engine/transmission/differential) to avoid thermal breakdown.
  • Combined advantage: One kit delivers both vapor filtration and oil cooling—dual engine protection in a single package.

Durable Premium Construction

  • Oil catch can: Black anodized aluminum (corrosion-resistant, heat-tolerant); oil cooler: lightweight aluminum alloy (high heat dissipation).
  • Hoses: Nylon-braided CPE (500PSI working pressure, -40℉~257℉ temp range) + steel-reinforced fuel line (abrasion/wear-resistant).
  • Sealed/vent-compatible design (varies by variant) adapts to extreme driving/weather conditions.

Universal Compatibility & Easy Installation

  • Universal fit: Works with most cars/trucks/performance vehicles; includes M16×1.5 to AN6/8/10 adapters for PCV systems.
  • Complete kit: All necessary hoses, fittings, mounting bracket, and instructions included—DIY-friendly, no extra purchases needed.
  • Flexible routing: 2-port oil catch can + 3.3FT/3.9FT cooler hoses adapt to different engine bay layouts.

Value & Application

  • Cost-effective: Combines two essential engine protections (vapor filtration + oil cooling) at better value than separate purchases.
  • Ideal for: Daily drivers, performance builds, high-RPM racing, heavy towing, and hot-climate use.
  • Key advantage: Balances compact size, durability, and versatility—protects engine lifespan and maintains consistent performance.

Secure online checkout with free 1-year warranty, 180-day money-back guarantee, free shipping over $50, and expert customer support from EVIL ENERGY.
[330mm,With Breather Filter]

10 ROW Oil Cooler Universal Engine Transmission & 300ml AN10 Oil Catch Can Kits

$159.99
[330mm,With Breather Filter]
[330mm,Without Breather Filter]
[340mm,With Breather Filter]
[340mm,Without Breather Filter]
[330mm]
[340mm]
[330mm]
[340mm]
10 ROW Oil Cooler Universal Engine Transmission & 300ml AN10 Oil Catch Can Kits
10 ROW Oil Cooler Universal Engine Transmission & 300ml AN10 Oil Catch Can Kits
10 ROW Oil Cooler Universal Engine Transmission & 300ml AN10 Oil Catch Can Kits
10 ROW Oil Cooler Universal Engine Transmission & 300ml AN10 Oil Catch Can Kits
10 ROW Oil Cooler Universal Engine Transmission & 300ml AN10 Oil Catch Can Kits
10 ROW Oil Cooler Universal Engine Transmission & 300ml AN10 Oil Catch Can Kits
[Without Breather Filter]
10 ROW Oil Cooler Universal Engine Transmission & 300ml AN10 Oil Catch Can Kits
[With Breather Filter]
EVIL ENERGY Fuel Cell Gas Tank - Over 500,000 Raving Fans & User Testimonials

10 ROW Oil Cooler Universal Engine Transmission & 300ml AN10 Oil Catch Can Kits

$159.99
Style: With Breather Filter
Cooler Style: 330mm
Specifications

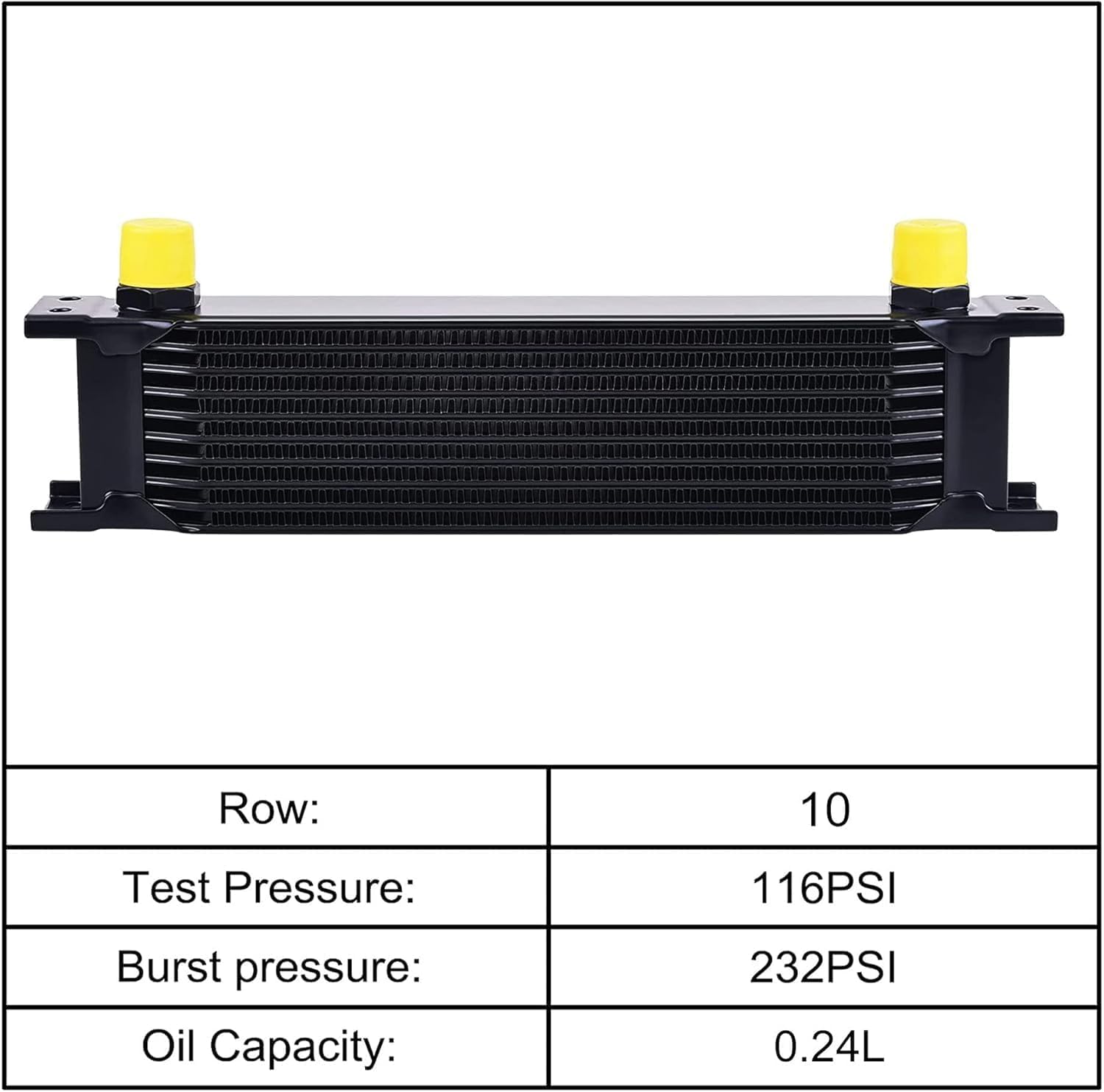

10ROW  Oil Cooler

Brand EVIL ENERGY

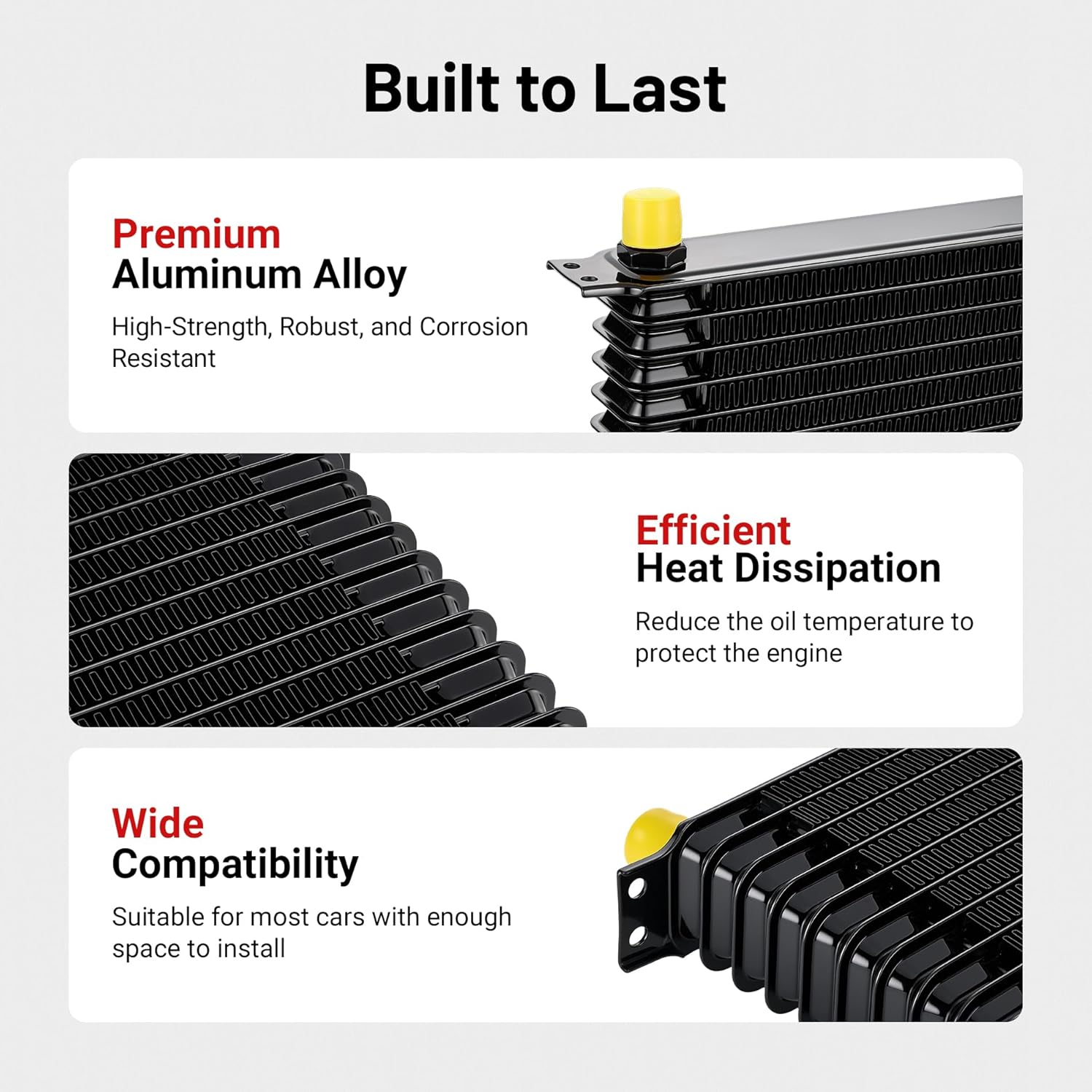

Material Aluminum alloy (lightweight, corrosion-resistant, high heat dissipation)
Oil Capacity 330mm:0.24 L

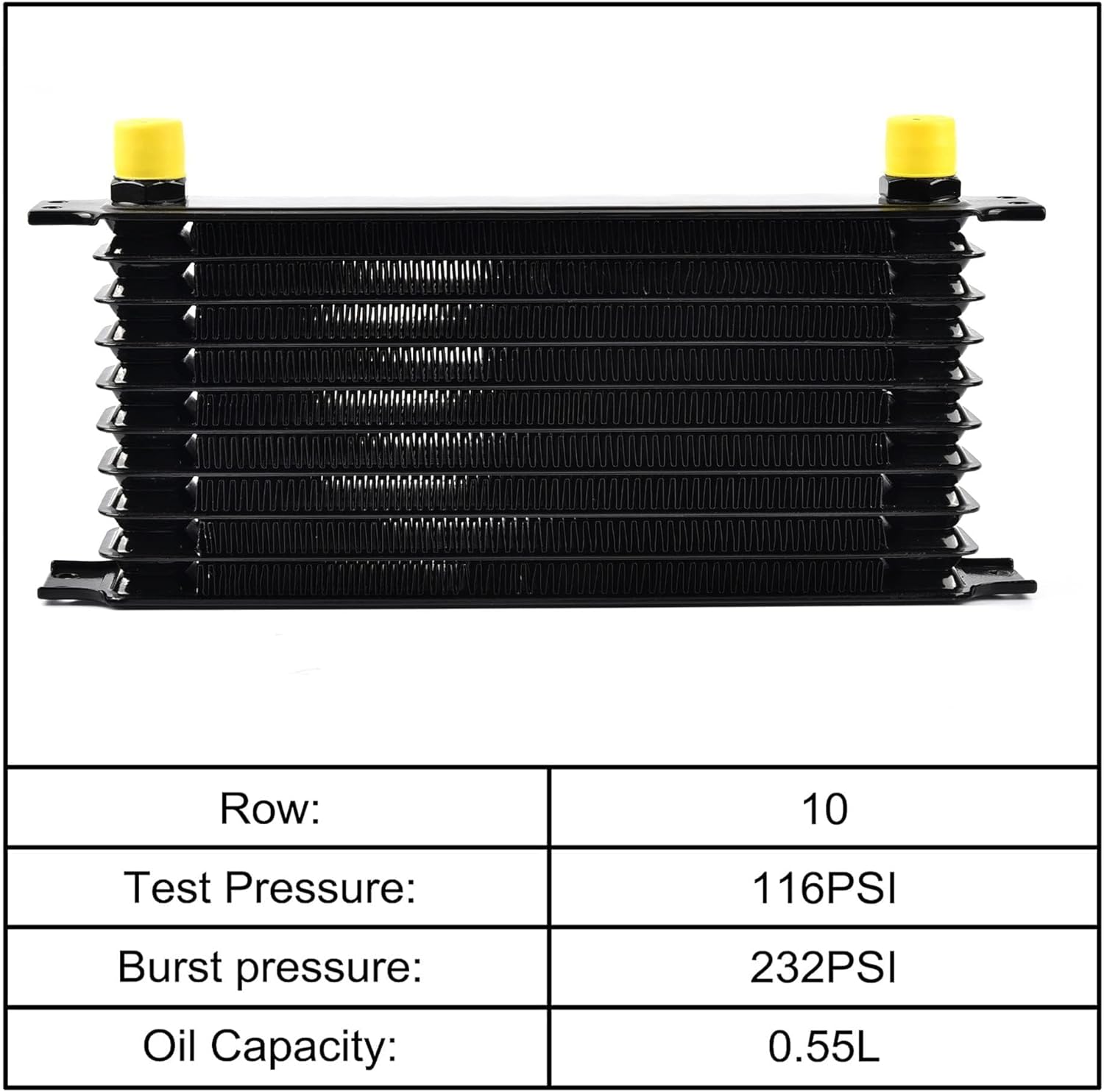

340mm:0.55L

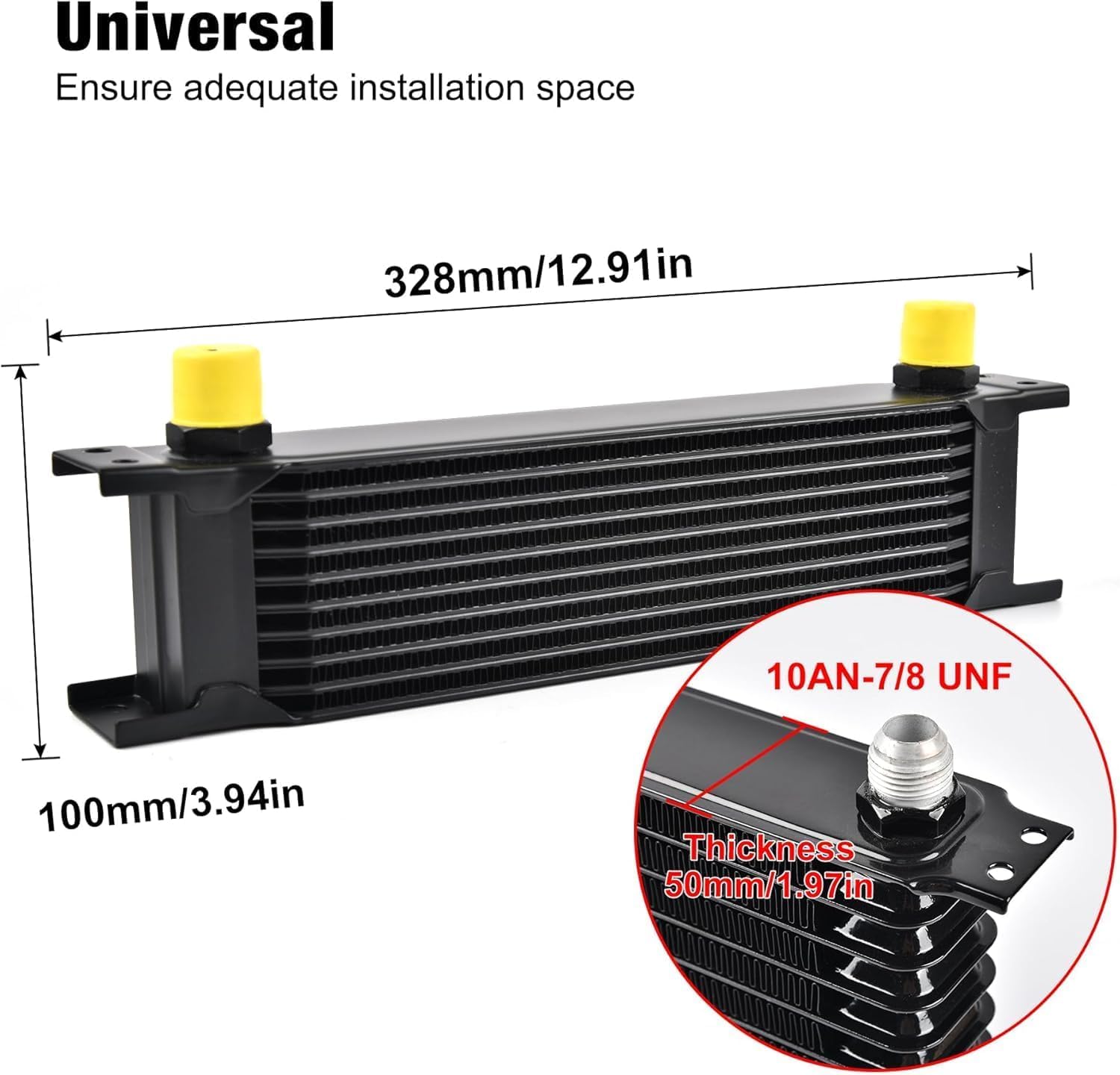

Size (L×W×H) 330mm：12.91" × 3.94" × 1.97"

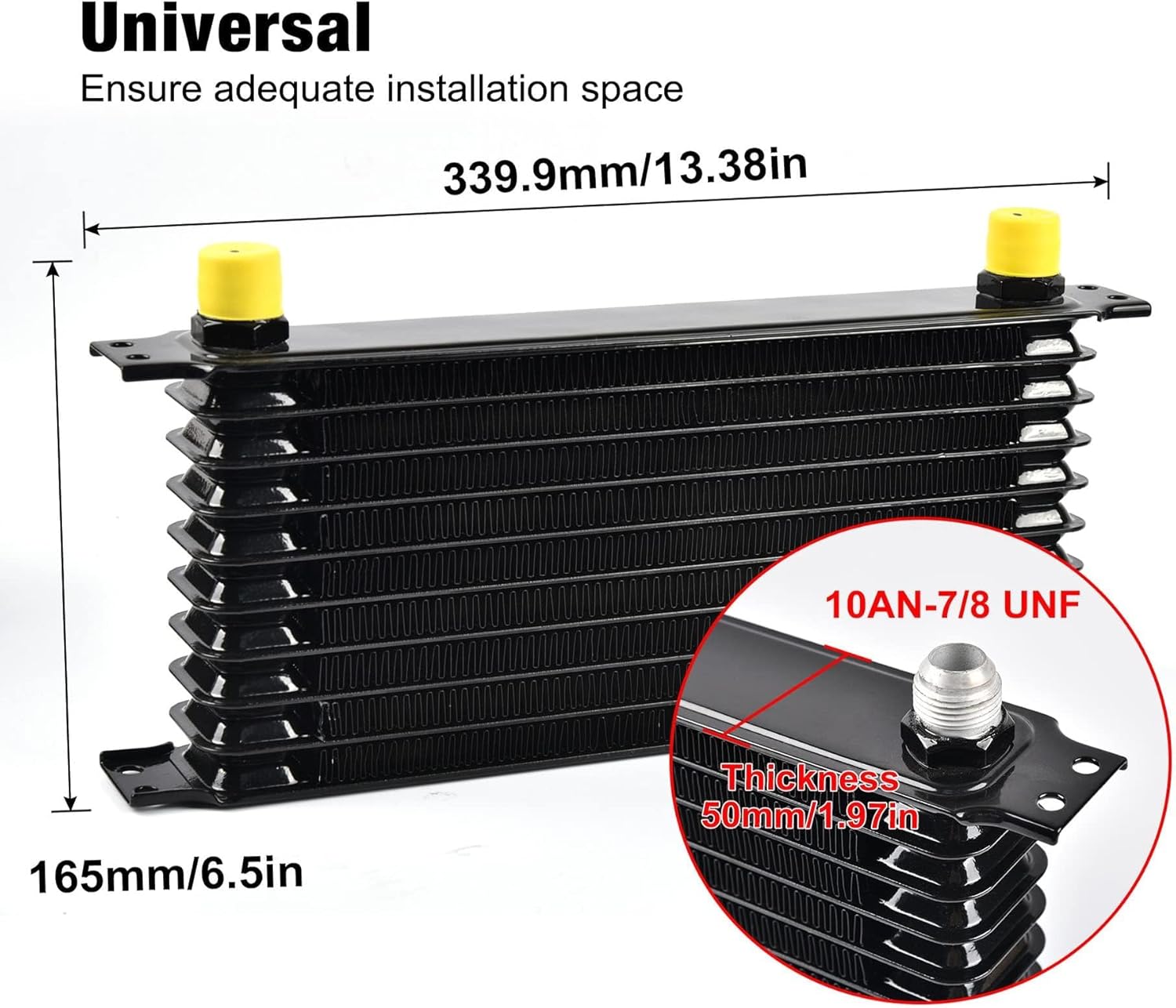

340mm：13.3"× 6.5"×1.97"
Test Pressure 116 PSI (stable under normal working conditions)
Burst Pressure 232 PSI (high safety margin, anti-leakage)

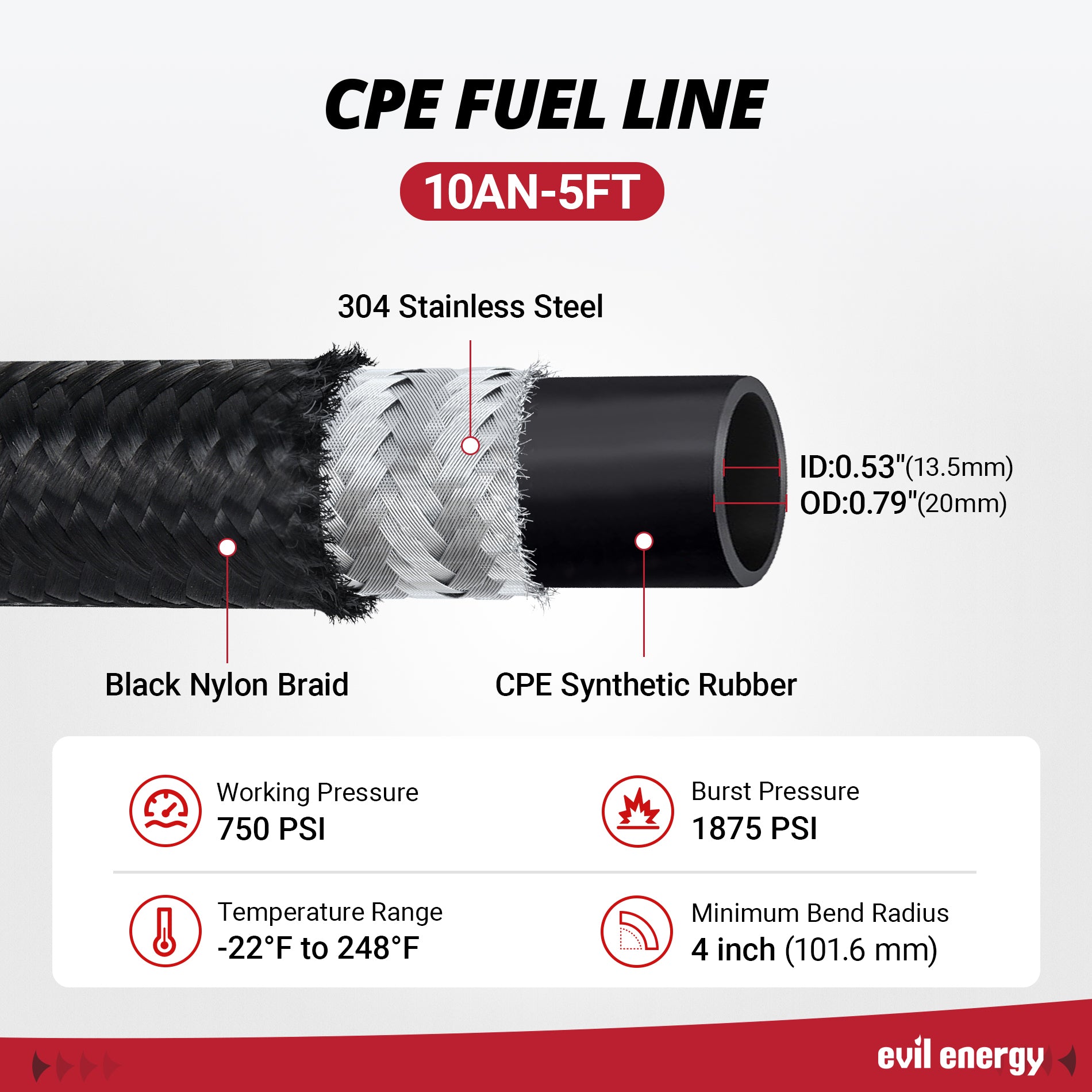

Hose Material Nylon braid with CPE inner layer (wear-resistant, high-pressure tolerant)
Hose Length 1 × 3.3 FT + 1 × 3.9 FT (flexible for different installations)
Hose Working Pressure 500 PSI (supports high-intensity oil circulation)
Hose Temperature Range -40℉ to 257℉ (adapts to extreme weather/conditions)

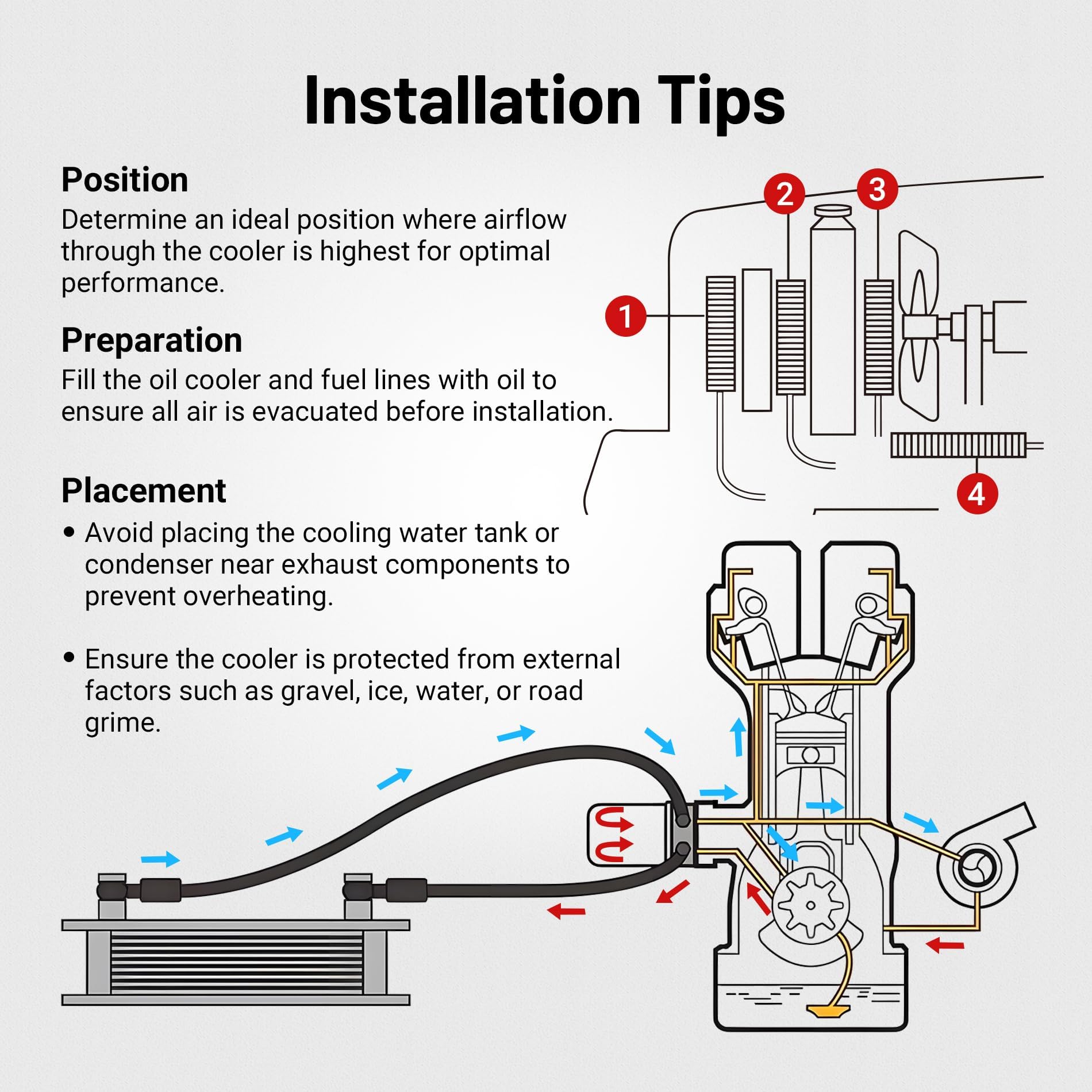

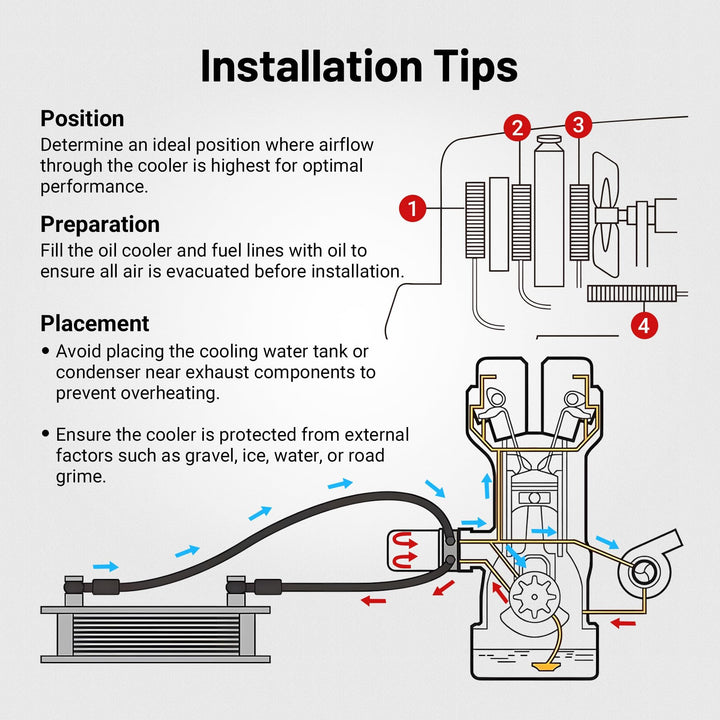

Installation Easy to install; mount in well-ventilated location; instructions included
Condition New (100% brand-new components)

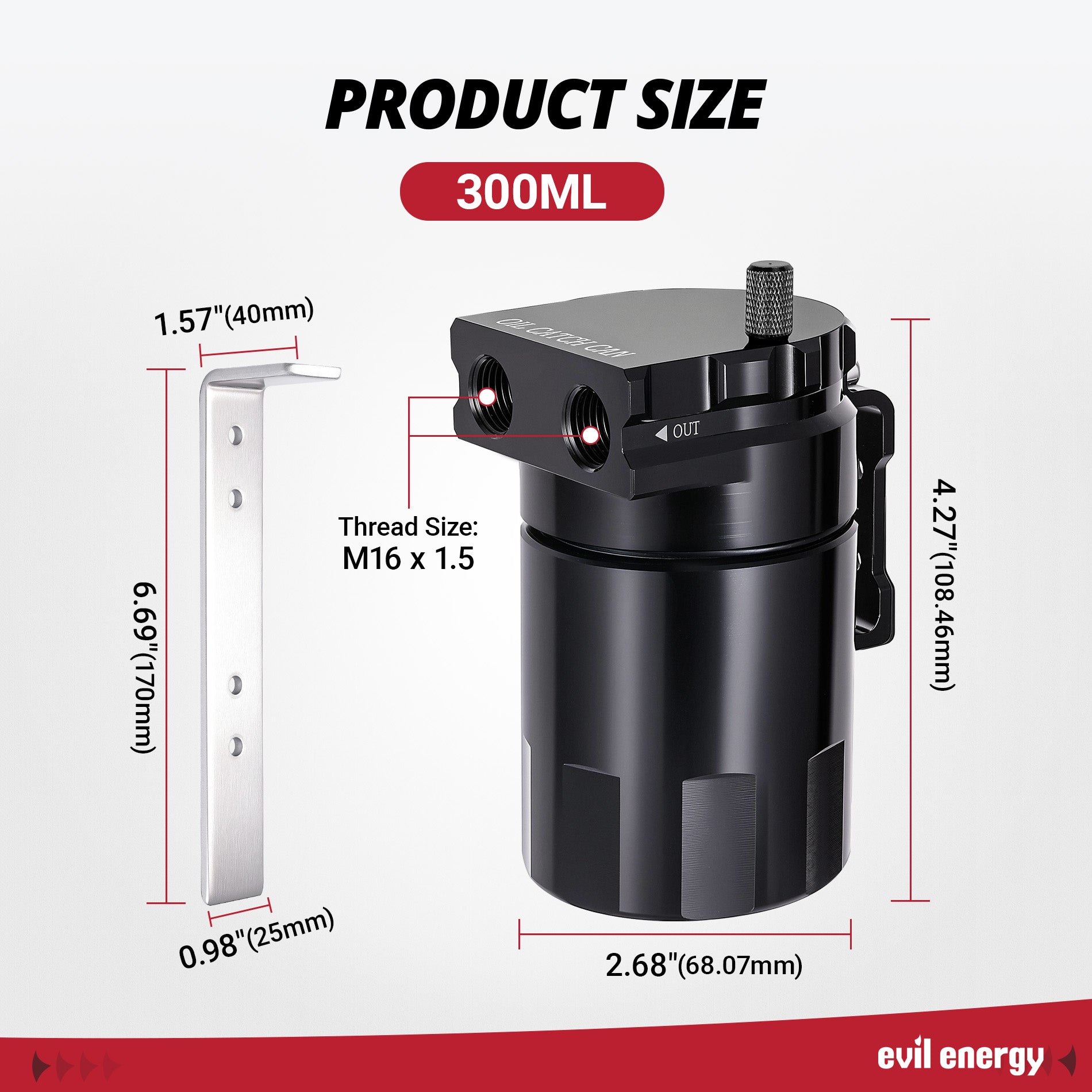

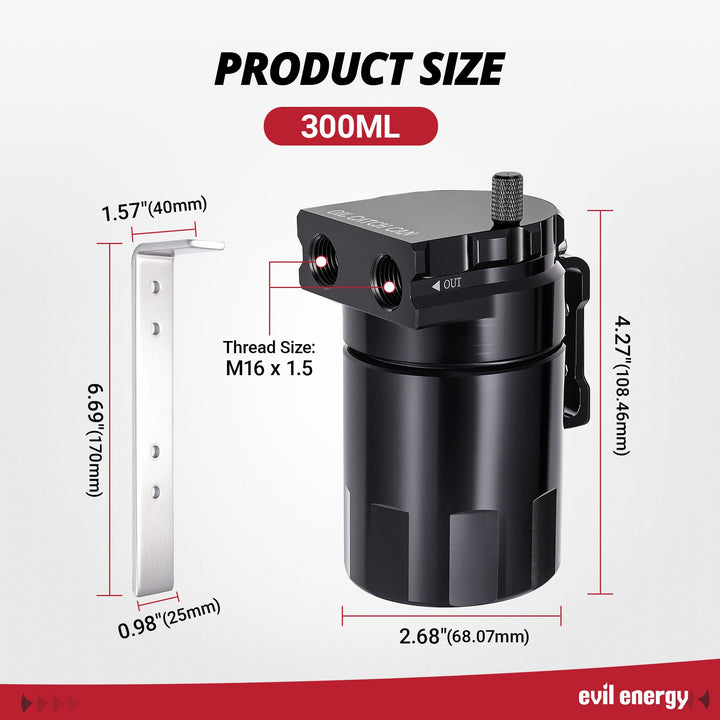

300ML Baffled Oil Catch Can

Parameter Common Details (Both Variants)
Brand EVIL ENERGY
Material Aluminum (black anodized, corrosion-resistant)
Capacity 300ml
Filtration System Removable baffle + steel ball filter media + steel wool (traps oil vapor/moisture)
Port Design 2 ports (dual-inlet/outlet for flexible routing)

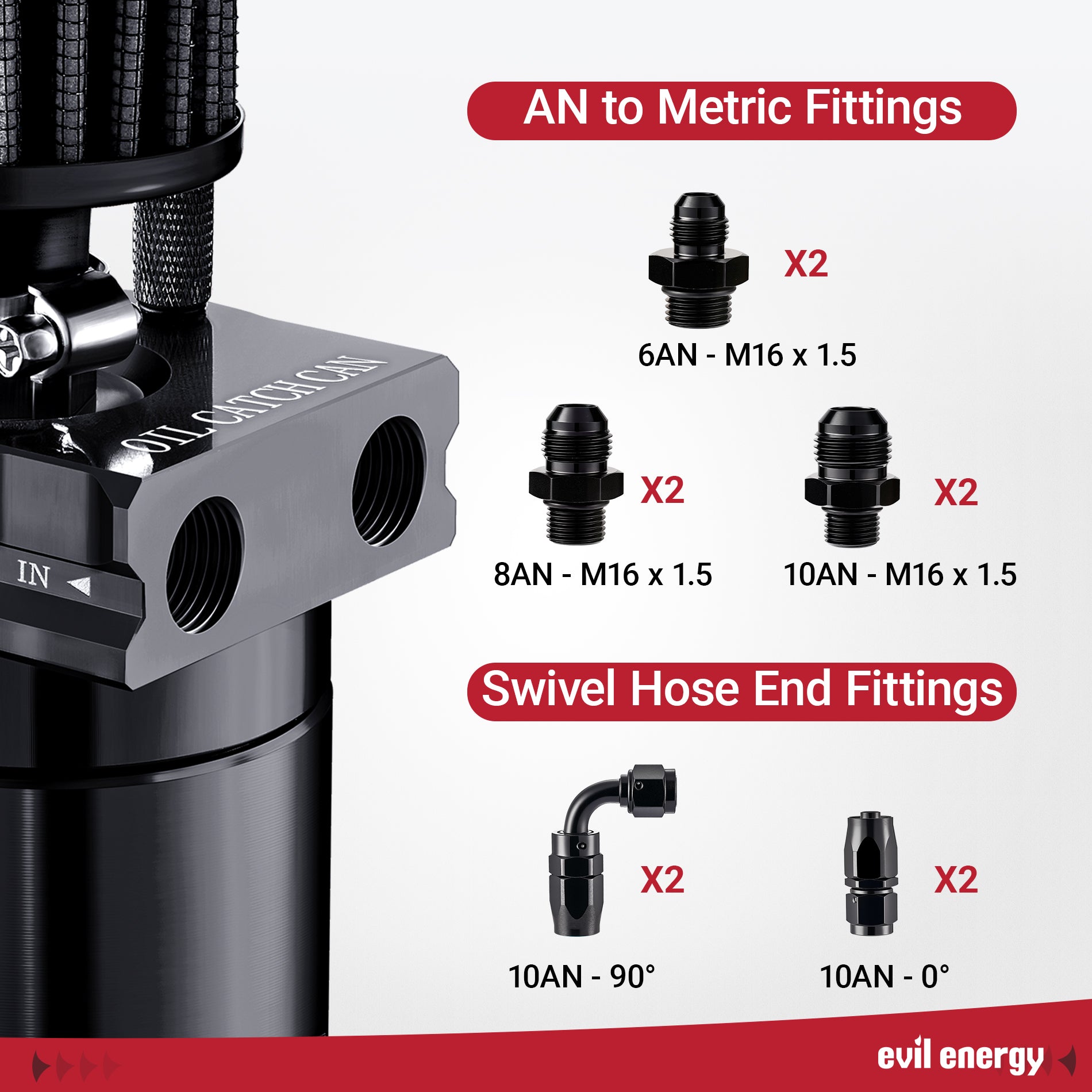

Adapters Included M16×1.5 to AN6/8/10 adapters (universal fit for most PCV systems)
Installation Position Inline between PCV hoses (sealed system); vent system (with filter, if included)

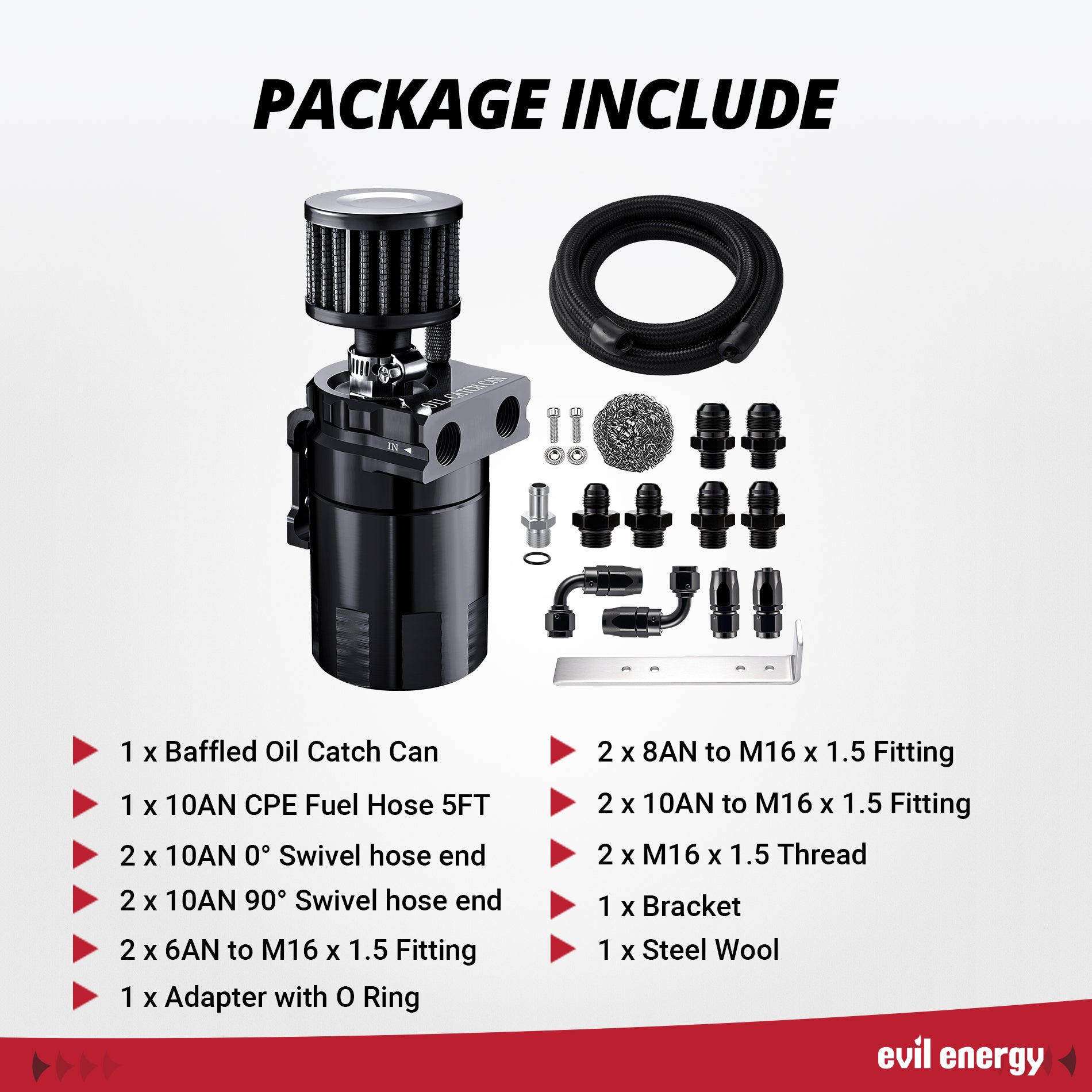

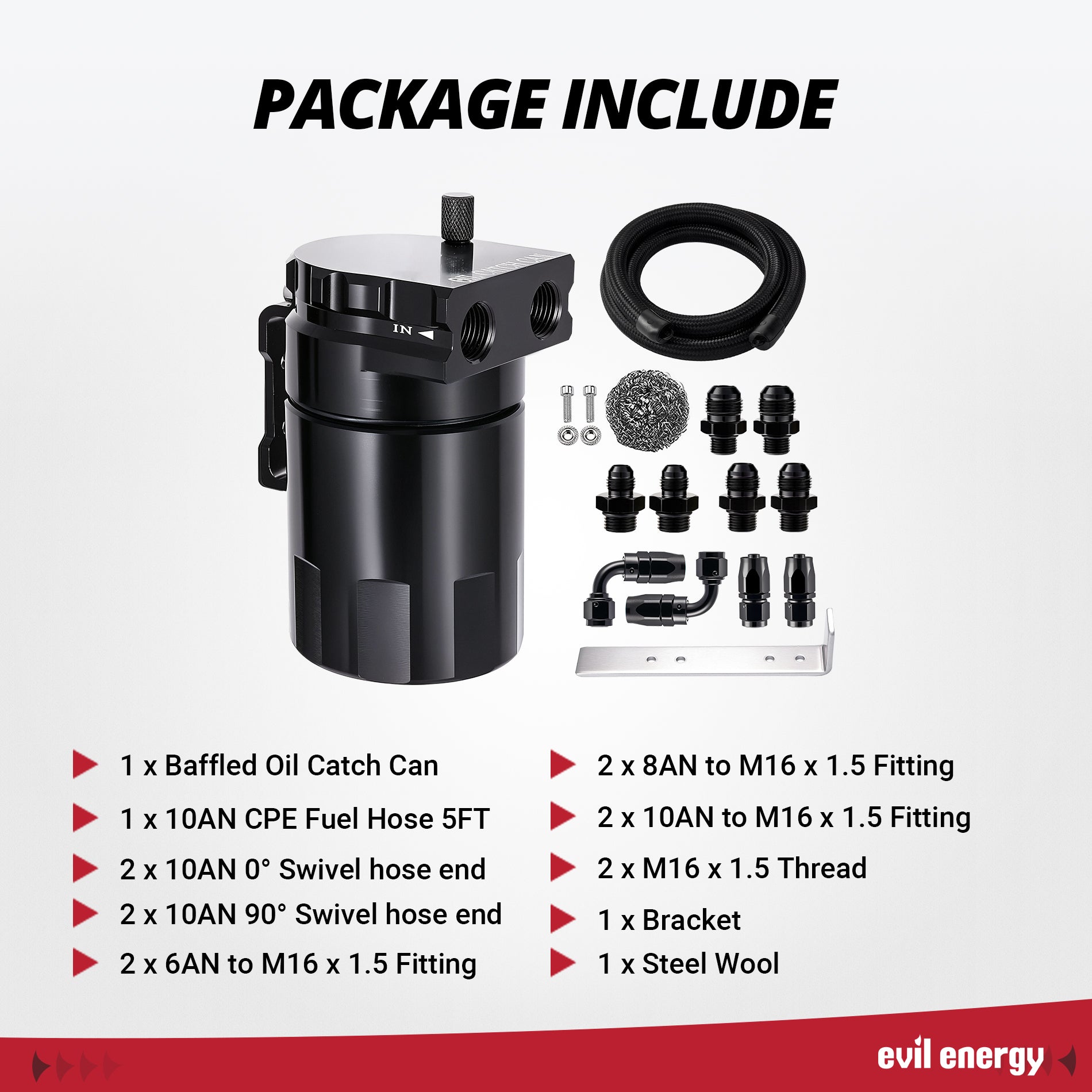

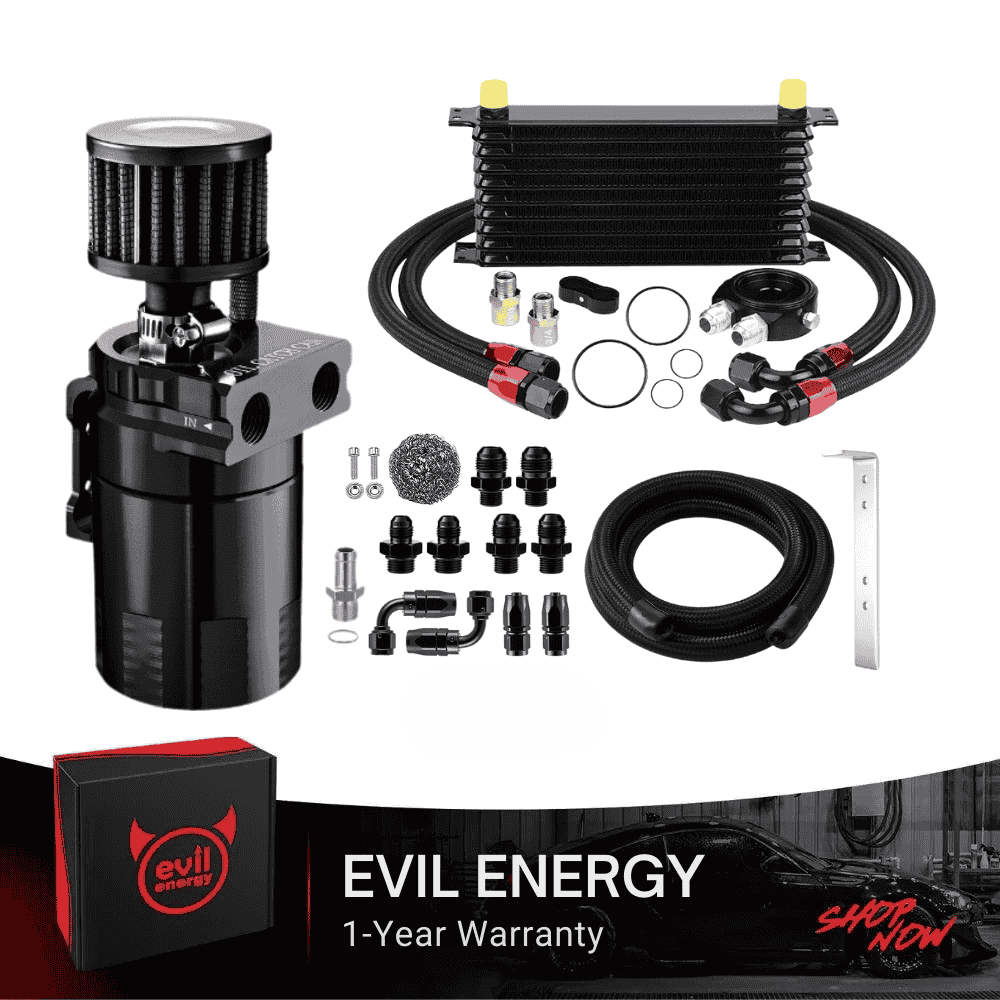

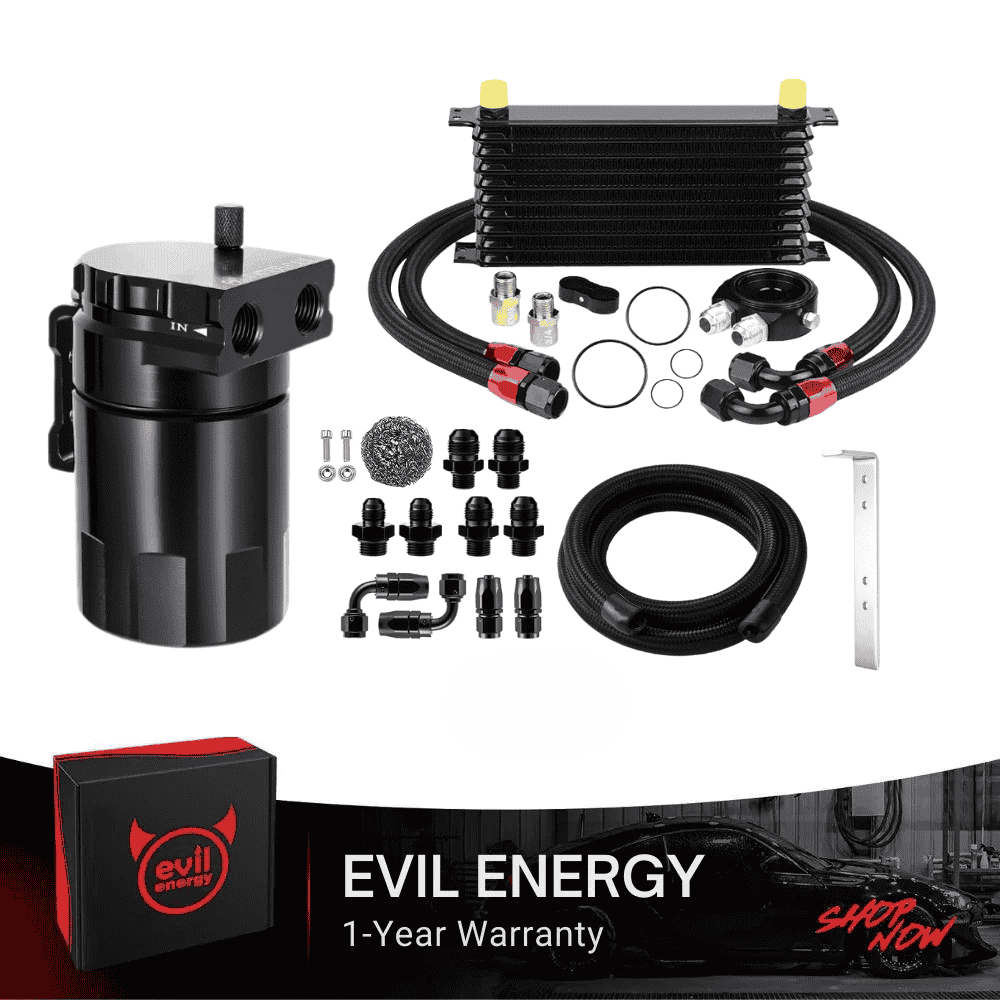

Package Includes  1*300ml Baffled Oil Catch Can
1*5FT AN6/8/10 CPE Fuel Hose
2*AN6/8/10 Swivel Fittings (0°)
2*AN6/8/10 Swivel Fittings (90°)
6*Metric M16x1.5mm to AN6/8/10 Male Flare Adapters
2*M16x1.5Thread
1*Bracket
1*SteelWool
1× Breather Filter(Optional)
Universal Fitment Fits most cars/trucks/performance vehicles (confirm installation space first)
Working Pressure (Hose) 750 PSI
Condition New (100% brand-new components)

If you need an additional mounting bracket for the oil cooler:
330mm Bracket
340mm Bracket
Recommend Non Marring Wrench :
 Adjustable AN Fitting Wrench

Product Description

The EVIL ENERGY Oil Catch Can kit delivers complete engine protection, now bundled with a 10ROW Engine Oil Cooler. This all-in-one solution features a 300ML Baffled Oil Catch Can to stop carbon buildup, plus a high-performance oil cooler to maintain optimal oil temperatures. It's the ideal dual-protection package for daily drivers, performance builds, and vehicles used in extreme conditions (high-RPM racing, heavy towing, hot climates).

300ML Baffled Oil Catch Can

Complete 300ML Baffled Oil Catch Can Kit

This universal oil catch can kit is engineered to trap oil vapor and moisture from crankcase gases—eliminating carbon buildup on intake tracts, valves, and pistons. Its black anodized aluminum body resists corrosion and engine bay heat, while the removable baffle + steel ball filter media delivers superior filtration compared to basic catch cans. This oil catch can kit includes two variants: one for sealed PCV systems (modern vehicles) and one with an air filter for vent systems (pre-PCV vehicles)—adapting to your specific setup.

10ROW Oil Cooler

Includes High-Performance 10ROW Engine Oil Cooler

Complementing the oil catch can, this kit includes a 10-row engine oil cooler. This transmission oil cooler features a precision-machined aluminum core with a stacked-plate design, maximizing heat transfer to rapidly lower engine/transmission/rear differential oil temperatures. This prevents oil degradation, reduces internal component wear, and enhances lubrication efficiency—even under intense load. Equipped with heavy-duty CPE hoses (500 PSI working pressure, -40℉ to 257℉ temperature range), it ensures leak-free reliability and resistance to abrasion.

Combo Kit Installation

Universal Fitment & Easy Installation

Both components feature universal compatibility and hassle-free installation. The complete oil catch can kit includes all necessary adapters, hoses, and mounting hardware—no extra purchases needed for most vehicles. Whether you're upgrading a daily commuter or a modified performance car, this oil catch can kit package offers unbeatable value, combining two essential engine protections.

Oil Catch Can Filtration

Why Choose EVIL ENERGY Combo Kit?

  • More Than Just an Oil Catch Can Kit: Get dual protection in one package. This kit not only stops carbon buildup (like a standard oil catch can kit) but also prevents oil thermal breakdown with the included 10ROW engine oil cooler.
  • Premium Durability: Aluminum alloy cooler + black anodized oil catch can (corrosion-resistant); CPE hoses (high-pressure/extreme-temperature tolerance) for long-term reliability.
  • Universal Oil Catch Can Kit & Cooler: Fits most cars/trucks/performance vehicles; includes multi-size adapters for PCV systems and flexible cooler hose routing.
  • Two Variant Options: Choose with/without an air filter to match your vehicle's PCV system (modern sealed vs. pre-PCV vent setups).
  • Cost-Effective Value: Saves money vs. buying an oil cooler and oil catch can separately; professional-grade performance at an affordable price.
Shipping & Return

Brand Summary

Policy Details
Cancellation Policy Orders can be canceled within 48 hours of placement. Refund processed in 3-5 business days.
Returns Policy Returns accepted within 180 days. Full refund within 90 days; 15% fee for 90-180 days.
Non-Returnable Items Only regular-priced items are eligible for refunds; sale items are non-refundable.
Refund Processing If no refund received, check your bank/credit card. For ongoing issues, contact support@ievilenergy.com.

Return Reasons

  1. Quality Issues: Provide photos/videos; we cover return shipping.
  2. Wrong Item Ordered: Buyer covers return shipping; email within 30 days.
  3. Change of Mind: Buyer covers return shipping; email within 30 days.
  4. Shipping Damage: Inspect packages; do not sign for damaged items.
  5. Incorrect Item Shipped: Contact within 7 days.

Price Protection Policy

Effective from August 25, 2024. Price drops within 7 days of purchase can be claimed.

Disclaimer

EVIL ENERGY reserves the right to interpret, modify, or terminate this policy in accordance with applicable laws and regulations.

If you need further information or assistance, feel free to ask!

FAQs

FAQ – EVIL ENERGY Oil Catch Can Kit & Engine Oil Cooler

Q1: Will this combo oil catch can kit fit my vehicle?
A1: It's a universal oil catch can kit suitable for most cars, trucks, and performance vehicles. Ensure your engine bay has sufficient space for both components (refer to size specs above). Additional adapters may be needed for rare or specialized models.

Q2: What's the difference between the two variants?
A2: Variant 1 (No Air Filter) is for modern vehicles with sealed PCV systems (install inline between PCV hoses). Variant 2 (With Air Filter) adds versatility—use as a vent system for pre-PCV vehicles or as a sealed setup for modern cars.

Q3: How often should I maintain the components?
A3: For the oil catch can: Empty every 1,000–1,500 miles (more frequently for high-RPM use); clean weekly in freezing temperatures to prevent moisture freezing. For the engine oil cooler: Inspect hoses/fittings quarterly for leaks; ensure airflow isn't blocked by debris.

Q4: Can the oil cooler be used for transmission fluid or differential oil?
A4: Yes! The 10ROW engine oil cooler is multi-purpose—compatible with engine oil, transmission fluid, and rear differential oil to cool various vehicle systems.

Q5: Is this oil catch can kit effective for turbocharged engines?
A5: Absolutely. The baffled filtration design in this oil catch can kit is highly effective at handling the increased oil vapor from turbo setups, preventing carbon buildup on turbo components and intake valves.

Q6: Do I need to buy additional parts to install this oil catch can kit?
A6: No—all necessary parts for both the oil catch can and the engine oil cooler (hoses, adapters, mounting bracket, hardware) are included in this complete kit. If you need an extra oil cooler bracket, use the provided link to purchase.

Q7: What's the benefit of the stacked-plate engine oil cooler design?
A7: Stacked-plate design maximizes heat dissipation surface area, cooling oil faster than traditional tube-and-fin coolers—maintaining optimal lubrication properties even under extreme conditions.
