Hose Barb Fitting

Q: What size hose barb fitting do I need for my hose?

Match the listed barb size to the compatible hose inside diameter , not the hose outside diameter. For example, begin with a 3/8 inch barb only when the hose manufacturer identifies the hose as 3/8 inch ID and approves a barb connection. Confirm the actual barb dimensions, hose material, and installation method on both product pages. If the hose requires extreme force to install or must be crushed by the clamp to stop seepage, recheck the size instead of tightening further.

Hose Barb Fitting

Build a cleaner connection between compatible flexible hose and an NPT, metric, or ORB port with Evil Energy hose barb fittings. This collection includes straight, 45 degree, 90 degree, gauge port, and weld on hose barb adapter options for fuel, oil, coolant, and transmission plumbing where the selected hose, clamp, fitting, fluid, and system ratings agree. Before ordering, verify the hose inside diameter, mating thread, route, and sealing method.

Choose Hose Barb Fittings by Hose ID and Port Thread

Start by matching the listed barb size to the compatible hose inside diameter, not the hose outside diameter. Then identify the mating port as NPT, metric, or ORB. NPT tapered threads seal at the threads and require compatible thread sealant; selected metric and ORB designs use the washer or O ring specified on the product page. Never treat AN, NPT, ORB, and metric threads as interchangeable. For other connection systems, compare our hose fittings and AN fitting adapters.

Select the Right Barb Connector for Your Route

Straight barb connector: Best when the port and hose can follow a direct route without a tight bend.

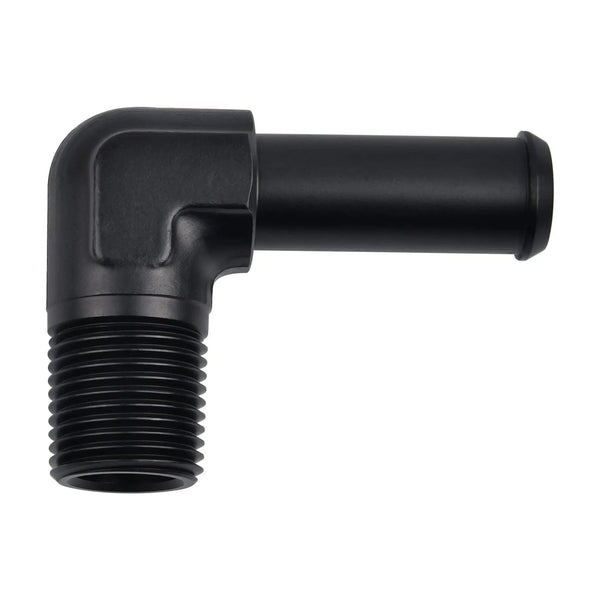

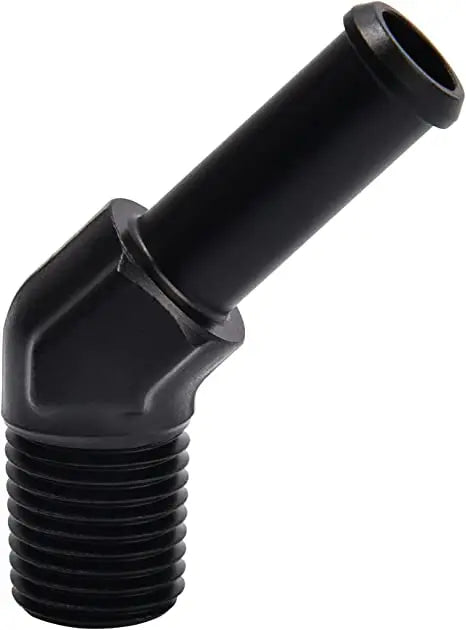

45 or 90 degree hose barb adapter: Changes direction at the port and can reduce the need to force the hose into a sharp bend.
Gauge port fuel hose fitting: Adds a 1/8 NPT gauge or sensor port to a compatible 5/16 or 3/8 inch hose connection.
Metric or ORB hose barb adapter: Connects compatible flexible hose to matching pump, regulator, cooler, or fluid system ports.
Weld on barb connector: Intended for qualified fabrication on compatible weldable aluminum components.
Building a complete hose path? Compare matching fuel line kits before selecting every adapter separately.

+ Read more

FAQs about Hose Barb Fitting

What size hose barb fitting do I need for my hose?

Match the listed barb size to the compatible hose inside diameter, not the hose outside diameter. For example, begin with a 3/8 inch barb only when the hose manufacturer identifies the hose as 3/8 inch ID and approves a barb connection. Confirm the actual barb dimensions, hose material, and installation method on both product pages. If the hose requires extreme force to install or must be crushed by the clamp to stop seepage, recheck the size instead of tightening further.

Do hose barb fittings need hose clamps?

Use a clamp whenever the fitting and hose instructions require one. The Evil Energy threaded and gauge port barb products in this collection recommend securing the hose at the barb. Choose a clamp that is approved for the hose material, fluid, pressure, temperature, and vibration conditions. Position it over the barb retention area according to the hose and clamp instructions. A clamp cannot correct a barb that is too small, an aged hose, or an incompatible hose material.

How do I choose an NPT, metric, or ORB hose barb adapter?

Identify the component port before selecting the barb end. NPT is a tapered pipe thread and seals at the threads with compatible sealant. A metric port is identified by its thread diameter and pitch, such as M12 × 1.5. ORB uses a straight thread and an O ring sealing surface. Do not substitute one thread family for another or apply thread tape to an O ring or flare sealing surface. The Evil Energy hose and fitting guide explains the common connection families in more detail.

Can a fuel hose fitting with a barb connector be used on a high pressure fuel line?

Only when the complete assembly is approved for the system. The rating of the aluminum adapter body does not establish the rating of the hose, clamp, connection, or installed assembly. For an EFI or other high pressure fuel system, verify the fuel hose, barb, retention method, fuel compatibility, temperature range, and required operating pressure together. If the hose manufacturer does not approve a barb and clamp connection for that application, use a matched AN, PTFE, crimp, or other system specified for the pressure and fuel.

Should I choose a straight, angled, gauge port, or weld on hose barb adapter?

Choose by the mating port and hose route. A straight adapter suits a direct run. A 45 or 90 degree adapter changes direction close to the component and can help avoid a sharp hose bend. A gauge port adapter is appropriate when a compatible pressure gauge or temperature sensor must be added. Metric and ORB styles serve matching component ports. A weld on barb is for planned fabrication on compatible weldable aluminum components. Check heat exposure, engine movement, clamp access, and service clearance before choosing the angle.

.
