Evilenergy | SKU: EVKT01859S1-AMZ1

EVIL ENERGY NPT Male to Barb Fitting Adapter Straight Aluminum Black

$10.09 USD

Shipping calculated at checkout.

SKU:	Size	Price	Stock
EVKT01859S1-AMZ1	1/4 Barb to 1/8 NPT	$10.09	✔
EVKT01859S2-AMZ1	3/8 Barb to 1/4 NPT	$10.09	✔
EVKT01859S3-AMZ1	1/2 Barb to 3/8 NPT	$10.09	✔
EVKT01859S4-AMZ1	5/8 Barb to 1/2 NPT	$10.09	✔

More payment options

Description

Product details

Size	1/2 Barb to 3/8 NPT 1/4 Barb to 1/8 NPT 3/8 Barb to 1/4 NPT 5/8 Barb to 1/2 NPT
Material	Aluminum
Brand	EVIL ENERGY
Angle	Straight
Connector Type	Barb
Exterior	Aluminum
Thread Type	NPT
Number of Pieces	1

About this item

[Size]

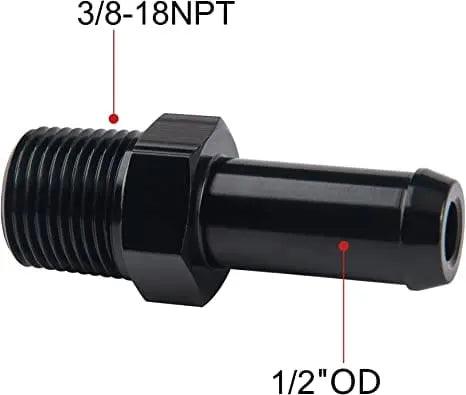

Thread size of NPT: 3/8-18 NPT; OD of barb: 1/2 inch.

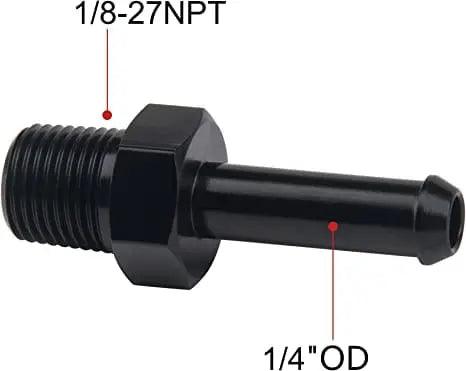

Thread size of NPT: 1/8-27 NPT; OD of barb: 1/4 inch.

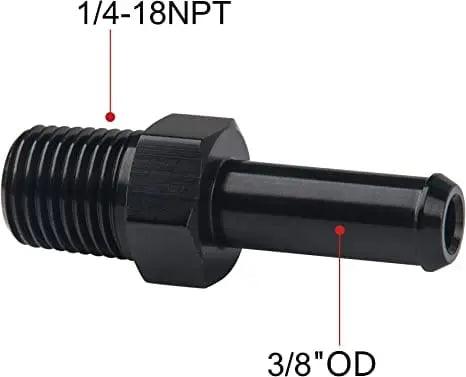

Thread size of NPT: 1/4-18 NPT; OD of barb: 3/8 inch.

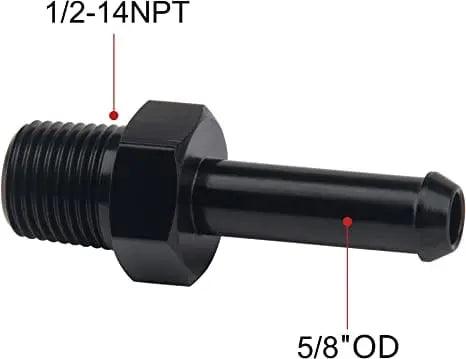

Thread size of NPT: 1/2-14 NPT; OD of barb: 5/8 inch.

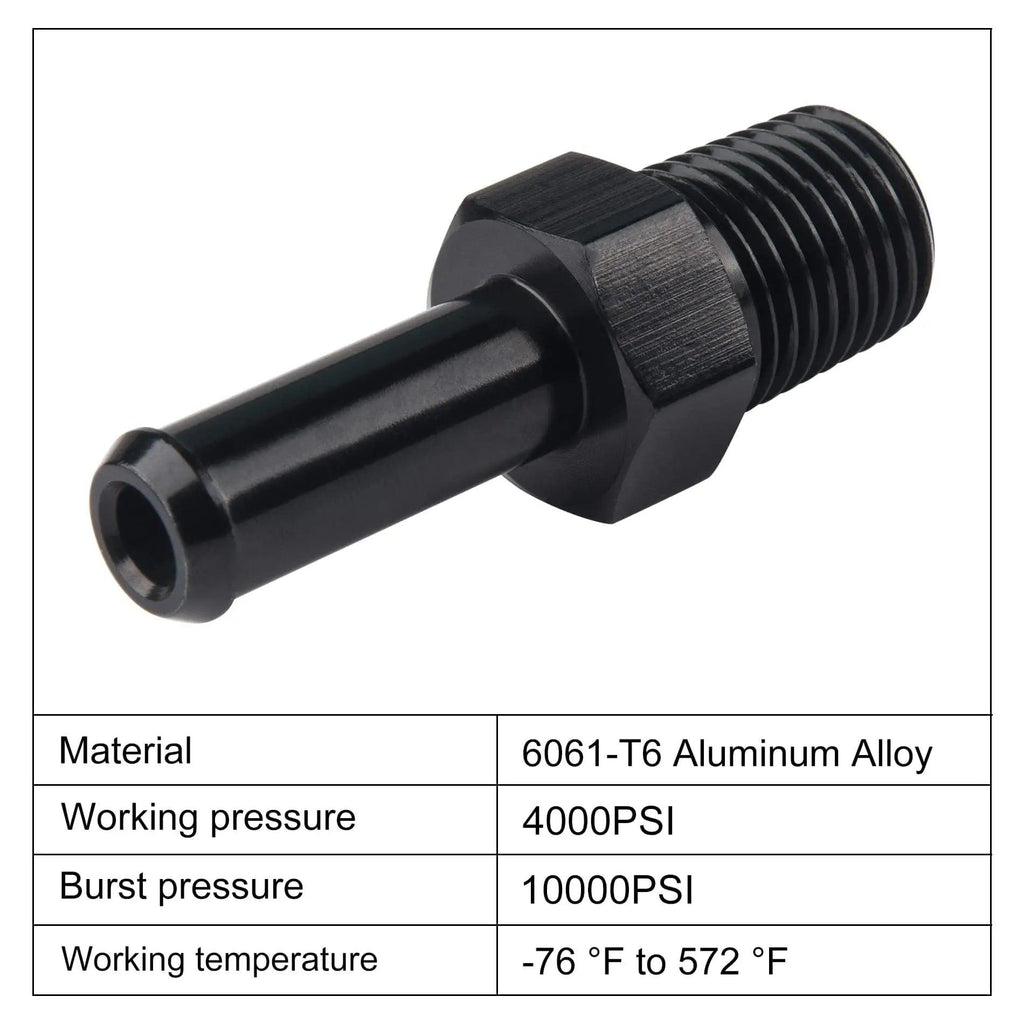

[Material] Made of aluminum alloy 6061-T3, anodized black surface.
[Parameter] Working pressure: 4000 PSI. Burst pressure: 10000 PSI. Working temperature range: -76°F to 572°F.
[Seal] The NPT side is sealed with tapered threads,please use sealant or PTFE tape to ensure a better seal.
[Installation] When installing barb fittings, it is recommended to use clamps to ensure sealing.
