Q: How do I choose the right 5.3 fuel rail for my LS engine?

The correct 5.3 fuel rail depends on your LS engine generation, intake manifold, and fuel injector configuration—not displacement alone. Two 5.3L LS engines may require different rails if they use different intake manifolds, injector heights, or mounting patterns. Before ordering, confirm the following: Engine code and generation: Identify whether your engine is a Gen III, Gen IV, or another LS variant. Intake manifold: Make sure the rail mounting points match the manifold. Fuel injector size: Check injector height, O-ring diameter, and connector clearance. Fuel system layout: Determine whether your vehicle uses a return-style or returnless system. Rail port size: Confirm the required AN, ORB, NPT, or adapter connection. Always compare these specifications with the individual product listing before selecting a fuel rail.

Q: Will an EFI fuel rail fit my existing fuel injectors and intake manifold?

Only when the EFI fuel rail , injectors, and intake manifold are designed to work together. Check the injector length, upper and lower O-ring diameter, connector clearance, mounting-tab position, and spacing between the rail and intake manifold. Some EVIL ENERGY LS1, LS2, and LS6 rail configurations are designed for stock LS1/LS2/LS6 fuel injectors, but this compatibility should not be assumed for every LS engine or aftermarket injector.

Q: What is the difference between a fuel rail kit and a complete LS swap fuel system?

A fuel rail kit is intended for users who already have most of the fuel delivery system installed. A complete LS swap fuel system includes more of the components needed to route, filter, regulate, and deliver fuel from the tank to the engine. A fuel rail kit may include: Left and right fuel rails Rail mounting brackets Crossover fuel line Port plugs and adapters Installation hardware A complete LS swap fuel system may also include: Fuel pump Pre-pump and post-pump fuel filters Adjustable fuel pressure regulator PTFE fuel hose AN hose ends and adapters Pump, filter, and regulator mounting brackets Choose a fuel rail kit when your pump, filters, regulator, and fuel lines are already compatible. Choose one of our LS swap fuel system kits when building or replacing most of the fuel path from the tank to the engine.

Q: Can these fuel rails connect to AN fuel fittings?

Yes, selected EVIL ENERGY fuel rails can connect to AN fuel fittings , but the rail port thread and AN line size must be verified before ordering. For example, a fuel rail may use a -8 fitting or an ORB port, while the rest of the vehicle uses 6AN PTFE fuel line. In that case, the system requires the correct adapter between the rail and fuel hose. Before choosing a fitting, confirm: The fuel rail port size The port thread standard, such as AN, ORB, or NPT The fuel hose size, such as 6AN or 8AN The required sealing method Whether a straight, 45-degree, or 90-degree connection provides the best routing Do not force a fitting into the rail because similar-looking threads may use different dimensions or sealing surfaces. Compare compatible PTFE and AN fuel fittings after confirming the rail port, hose type, and required line size.

LS Fuel Rails and EFI Fuel Rail Systems

Build a reliable EFI fuel delivery system with EVIL ENERGY fuel rails, matching intake manifold bundles, and complete LS swap fuel system kits. Designed for selected GM LS engine applications, these products help distribute fuel evenly across the injectors while providing the secure connections required by high-pressure EFI systems.

These fuel system components are suitable for LS swaps, EFI conversions, performance upgrades, and custom engine builds where the original fuel rail, injector configuration, or fuel line routing may no longer meet the requirements of the new setup.

Available Fuel System Configurations

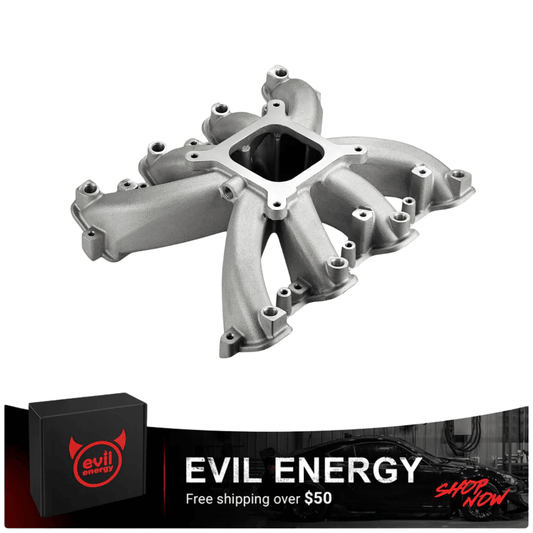

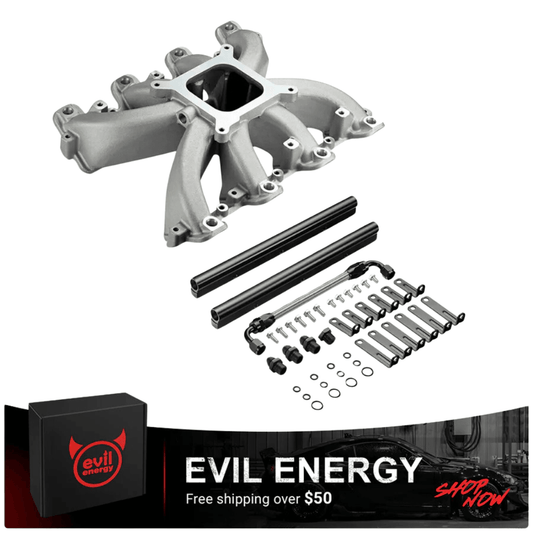

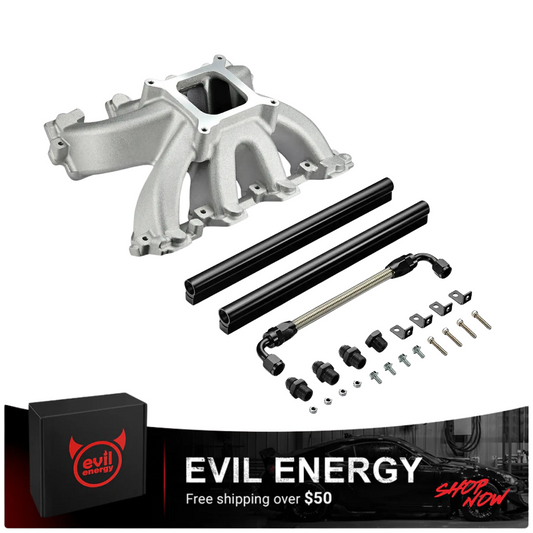

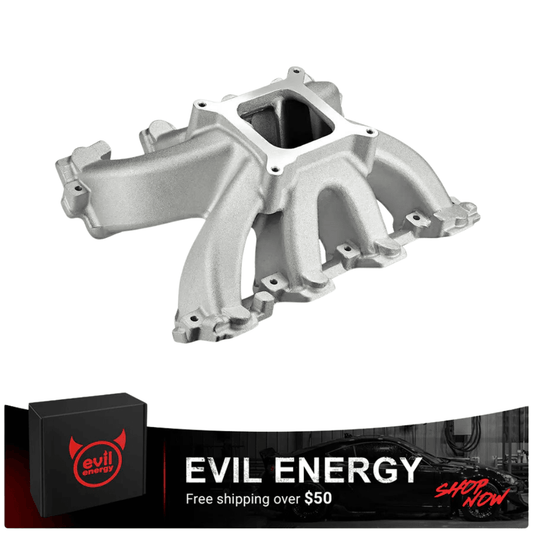

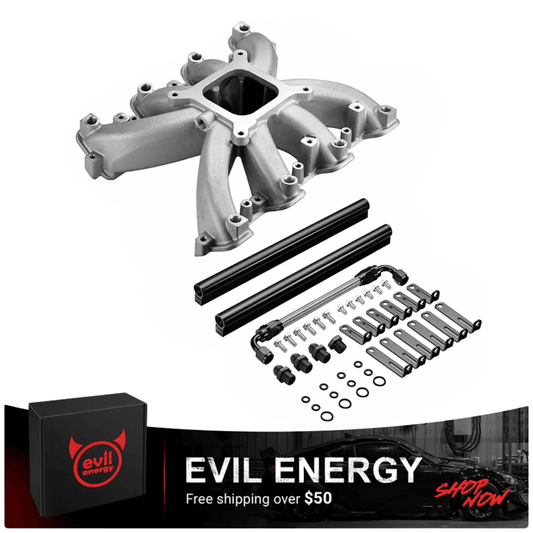

Choose from standalone EFI fuel rail kits, intake manifolds with matching fuel rails, or complete fuel delivery packages. Available configurations cover selected LS1, LS2, LS6, Gen III LS1/LS2, LS3, and L92 engine applications.

Choosing matched components can simplify fuel system planning and reduce compatibility problems between separately purchased rails, injectors, hoses, regulators, and fittings.

Engine and Injector Compatibility

Before selecting a fuel injector rail, confirm that the rail is compatible with your engine, intake manifold, injectors, and fuel system layout. Engine displacement alone—such as 5.3L or 6.2L—is not enough to guarantee correct fitment.

Check the following specifications before ordering:

Engine code and generation: Identify the exact LS engine family and generation.
Intake manifold design: Confirm the cylinder-head port shape and fuel rail mounting pattern.
Injector compatibility: Check injector style, height, O-ring size, and connector clearance.
Fuel pressure requirements: Match the rail, injectors, pump, and regulator to the required EFI pressure.
Feed and return layout: Determine whether the build uses a return-style or returnless fuel system.
Rail port size: Verify the port thread and any adapters required to connect the rail to the existing AN fuel system.

Always compare the specifications on the individual product page with your engine, intake manifold, injector, and fuel line setup before installation.

+ Read more

FAQs about Fuel Rail

How do I choose the right 5.3 fuel rail for my LS engine?

The correct 5.3 fuel rail depends on your LS engine generation, intake manifold, and fuel injector configuration—not displacement alone. Two 5.3L LS engines may require different rails if they use different intake manifolds, injector heights, or mounting patterns.

Before ordering, confirm the following:

Engine code and generation: Identify whether your engine is a Gen III, Gen IV, or another LS variant.
Intake manifold: Make sure the rail mounting points match the manifold.
Fuel injector size: Check injector height, O-ring diameter, and connector clearance.
Fuel system layout: Determine whether your vehicle uses a return-style or returnless system.
Rail port size: Confirm the required AN, ORB, NPT, or adapter connection.

Always compare these specifications with the individual product listing before selecting a fuel rail.

Will an EFI fuel rail fit my existing fuel injectors and intake manifold?

Only when theEFI fuel rail, injectors, and intake manifold are designed to work together. Check the injector length, upper and lower O-ring diameter, connector clearance, mounting-tab position, and spacing between the rail and intake manifold. Some EVIL ENERGY LS1, LS2, and LS6 rail configurations are designed for stock LS1/LS2/LS6 fuel injectors, but this compatibility should not be assumed for every LS engine or aftermarket injector.

What is the difference between a fuel rail kit and a complete LS swap fuel system?

A fuel rail kit is intended for users who already have most of the fuel delivery system installed. A complete LS swap fuel system includes more of the components needed to route, filter, regulate, and deliver fuel from the tank to the engine.

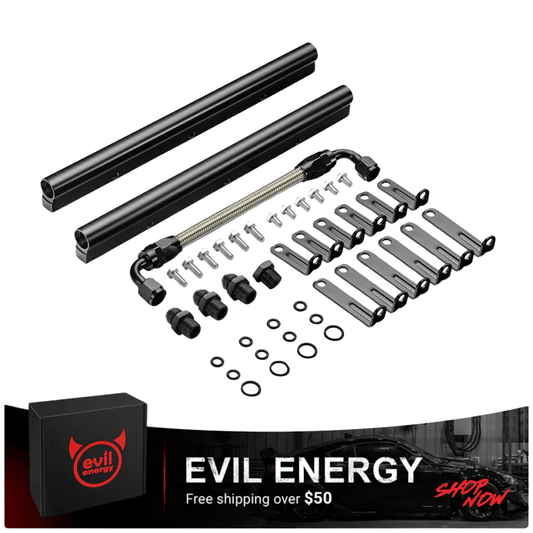

A fuel rail kit may include:

Left and right fuel rails
Rail mounting brackets
Crossover fuel line
Port plugs and adapters
Installation hardware

A complete LS swap fuel system may also include:

Fuel pump
Pre-pump and post-pump fuel filters
Adjustable fuel pressure regulator
PTFE fuel hose
AN hose ends and adapters
Pump, filter, and regulator mounting brackets

Choose a fuel rail kit when your pump, filters, regulator, and fuel lines are already compatible. Choose one of our LS swap fuel system kits when building or replacing most of the fuel path from the tank to the engine.

Can these fuel rails connect to AN fuel fittings?

Yes, selected EVIL ENERGY fuel rails can connect to AN fuel fittings, but the rail port thread and AN line size must be verified before ordering.

For example, a fuel rail may use a -8 fitting or an ORB port, while the rest of the vehicle uses 6AN PTFE fuel line. In that case, the system requires the correct adapter between the rail and fuel hose.

Before choosing a fitting, confirm:

The fuel rail port size
The port thread standard, such as AN, ORB, or NPT
The fuel hose size, such as 6AN or 8AN
The required sealing method
Whether a straight, 45-degree, or 90-degree connection provides the best routing

Do not force a fitting into the rail because similar-looking threads may use different dimensions or sealing surfaces. Compare compatible PTFE and AN fuel fittings after confirming the rail port, hose type, and required line size.

How do I disconnect or remove a fuel line from the fuel rail?

To remove a fuel line safely, first relieve the fuel system pressure and identify whether the connection uses a factory quick-connect fitting or an AN hose end.

Turn off the engine and allow it to cool.
Relieve the fuel pressure according to the vehicle service procedure.
Disconnect the battery if required by the service manual.
Clean dirt from around the fuel injector rail connection.
Place an approved container or absorbent material below the connection to catch residual fuel.

For a factory quick-connect line:

Remove the retaining clip if fitted.
Use the correct fuel-line disconnect tool.
Release the internal locking tabs before pulling the line away from the rail.

For an AN fuel line:

Use one wrench to hold the rail adapter.
Use a second wrench to loosen the hose end.
Avoid twisting or placing side pressure on the fuel rail.

Inspect the O-ring, flare, or other sealing surface before reconnecting the line. Replace any damaged seal and check carefully for leaks after restoring fuel pressure.

.
