EVIL ENERGY DSP5 SOTF Switch for EFI Live Tuning | Duramax 6.6L LB7 LBZ LMM LML (2001–2016)

What Does a DSP5 Switch Do on a Duramax?

Unlock the full potential of the Duramax 6.6L diesel engine with the EVIL ENERGY DSP5 SOTF Switch, designed for seamless integration with EFI Live DSP5 tuning and with EZ LYNK on the LML. The EFI Live tuner 5 position switch for the Duramax toggles between five custom driving modes in real time, with no reflash through the OBD2 port. A knurled aluminum knob and heat-resistant wiring bring durability, smooth transitions and reliable performance under demanding conditions.

Easily installed inside the cabin on the dashboard, a switch panel or the center console, the DSP5 switch puts complete tuning control at the driver's fingertips for fuel economy, towing, daily driving or racing.

Fitment:
2001–2004 LB7 Duramax
2006–2010 LBZ/LMM Duramax
2011–2016 LML Duramax

Note: The Duramax must be preloaded with an EFI Live DSP5 tune (or an EZ LYNK tune on the LML) supporting multiple maps.

Which DSP5 Switch Version Fits the Duramax?

Every Duramax generation reads the switch on different ECM pins, so the DSP5 switch ships in three versions with different lead colors. The 8th digit of the VIN identifies the engine code in seconds.

Pin-Terminated Leads Made for the Duramax ECM

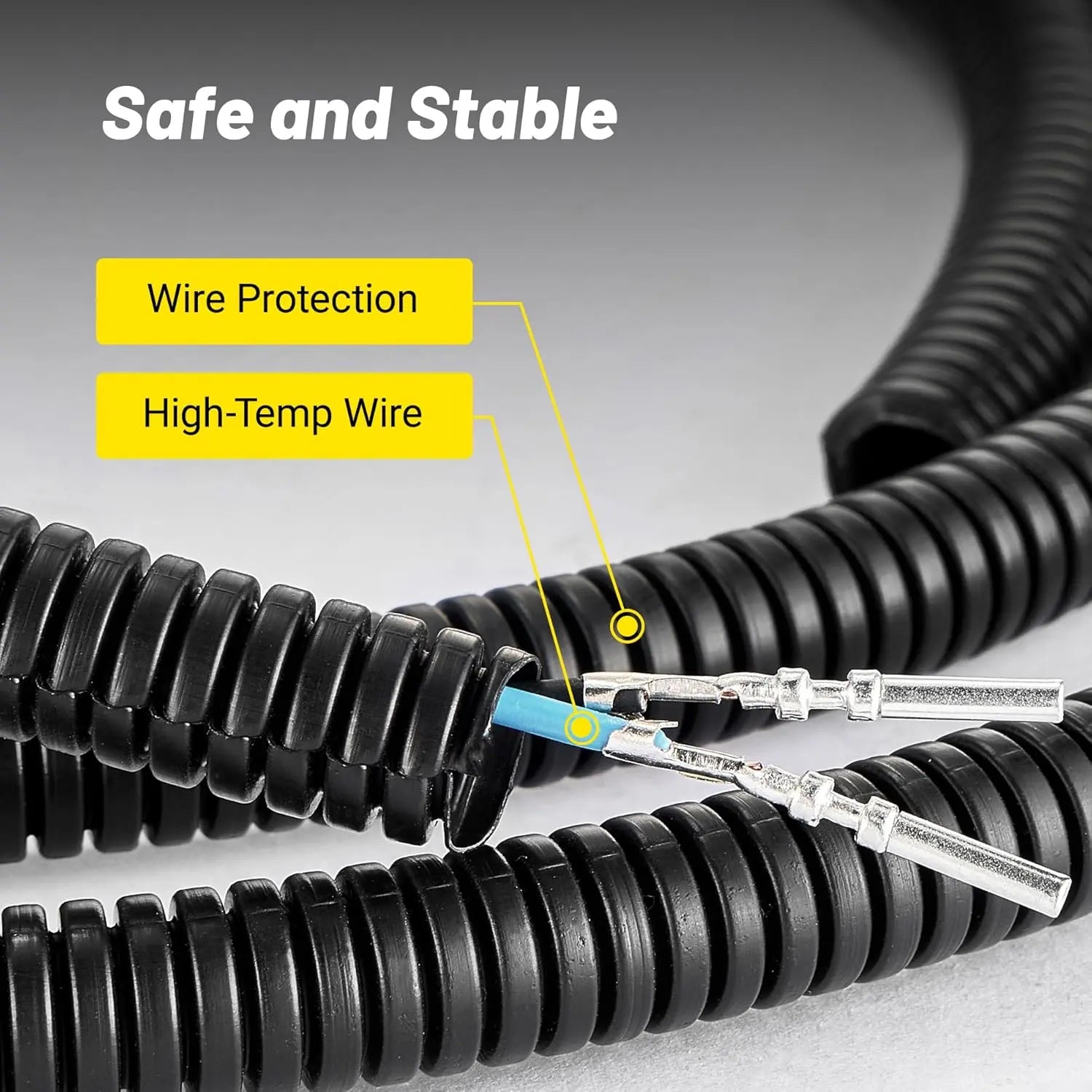

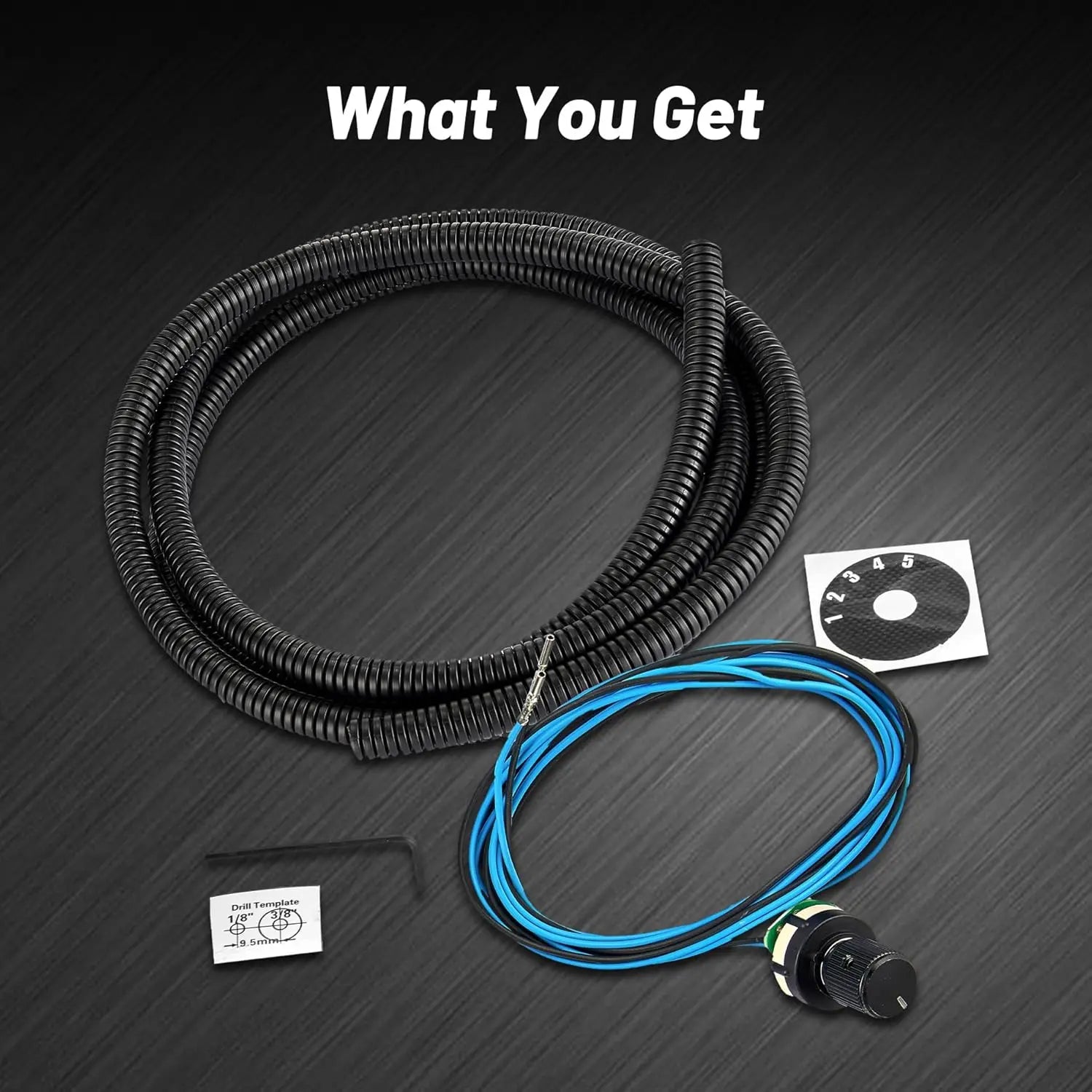

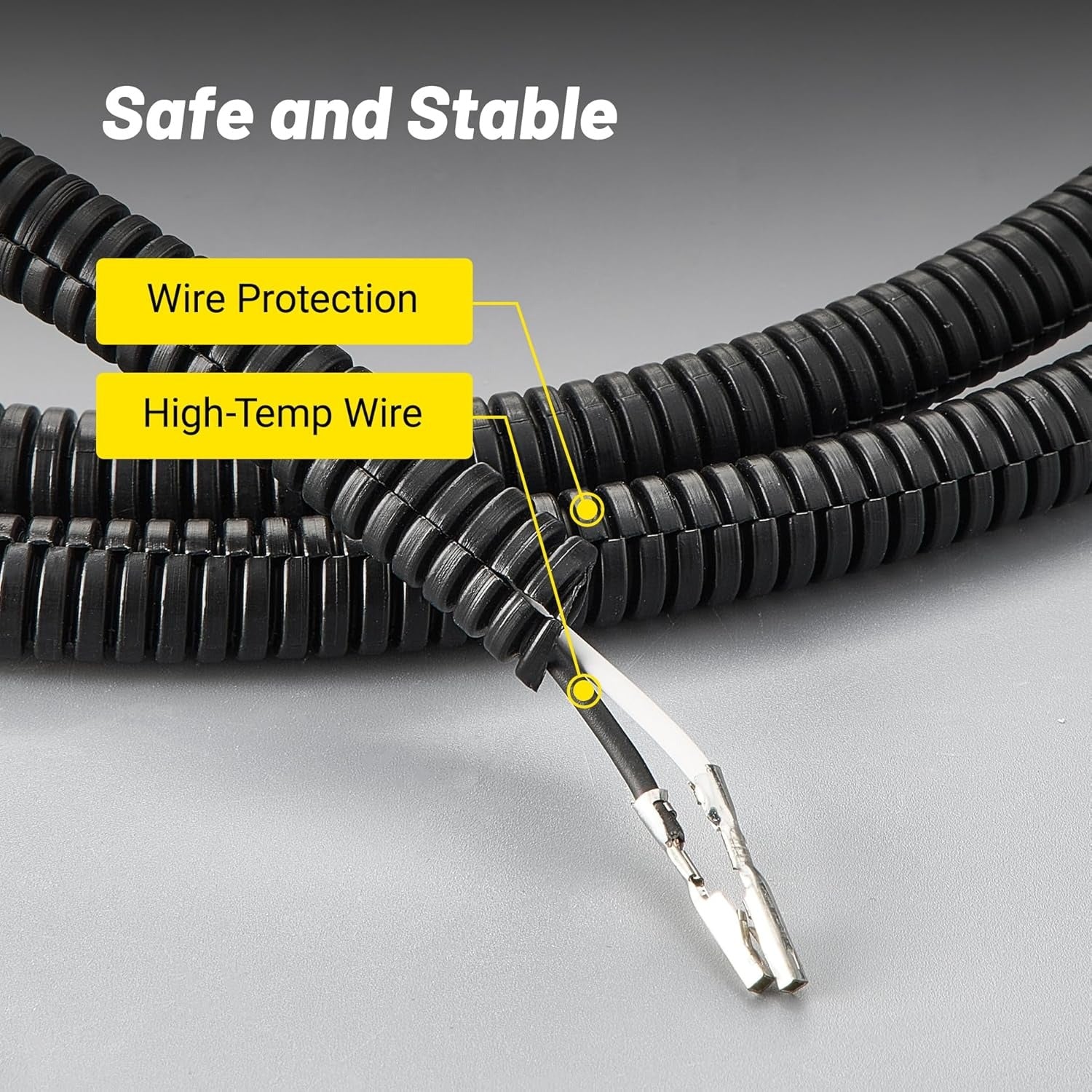

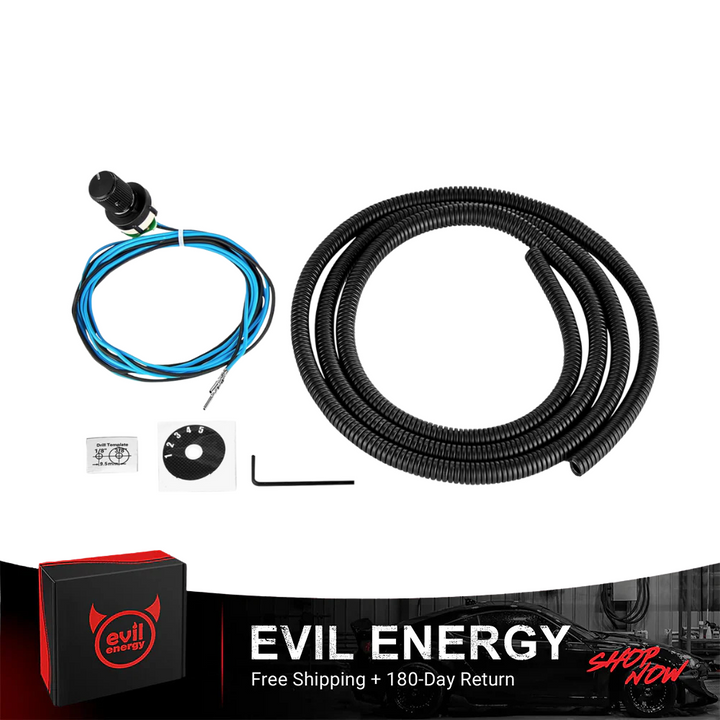

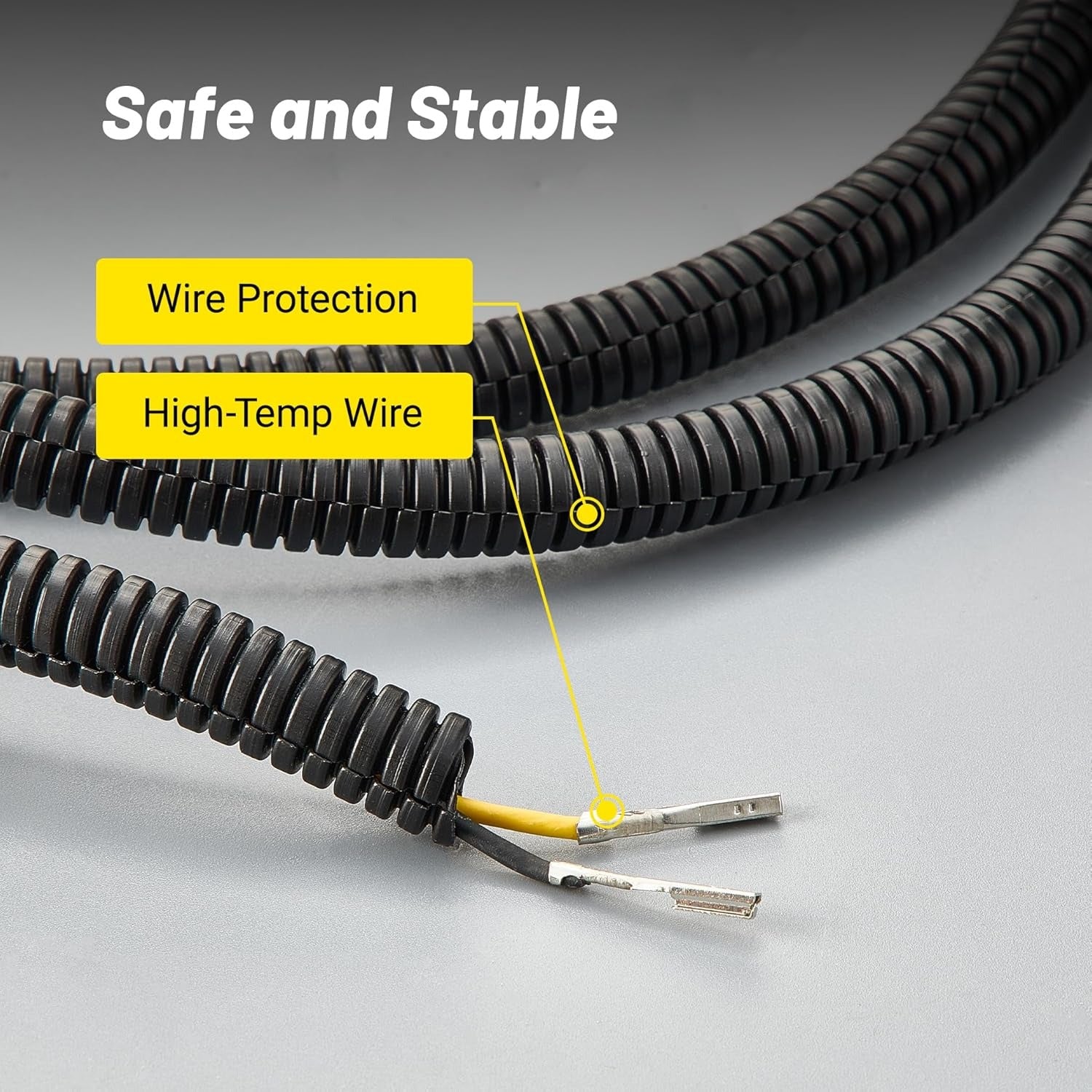

Two long leads leave the back of the SOTF switch for the Duramax and end in bare ECM terminals, ready to slide straight into open cavities of the factory ECM connector with no splice, tap or relay. The LB7 version shown here uses blue and black leads; the LBZ/LMM version uses white and black, and the LML version uses yellow and black, so the right lead lands in the right pin every time.

Knob Positions Matched to EFI Live DSP5 Maps

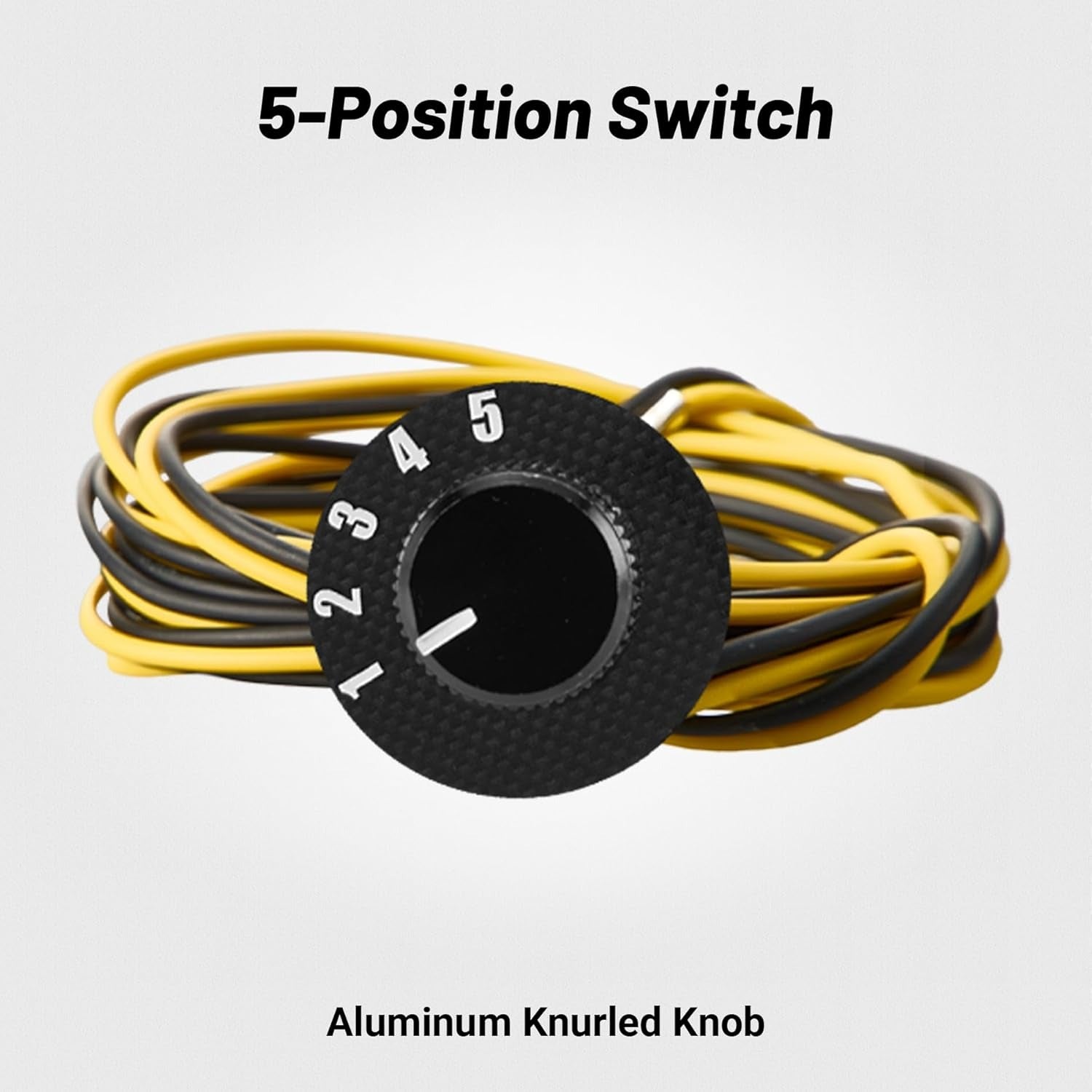

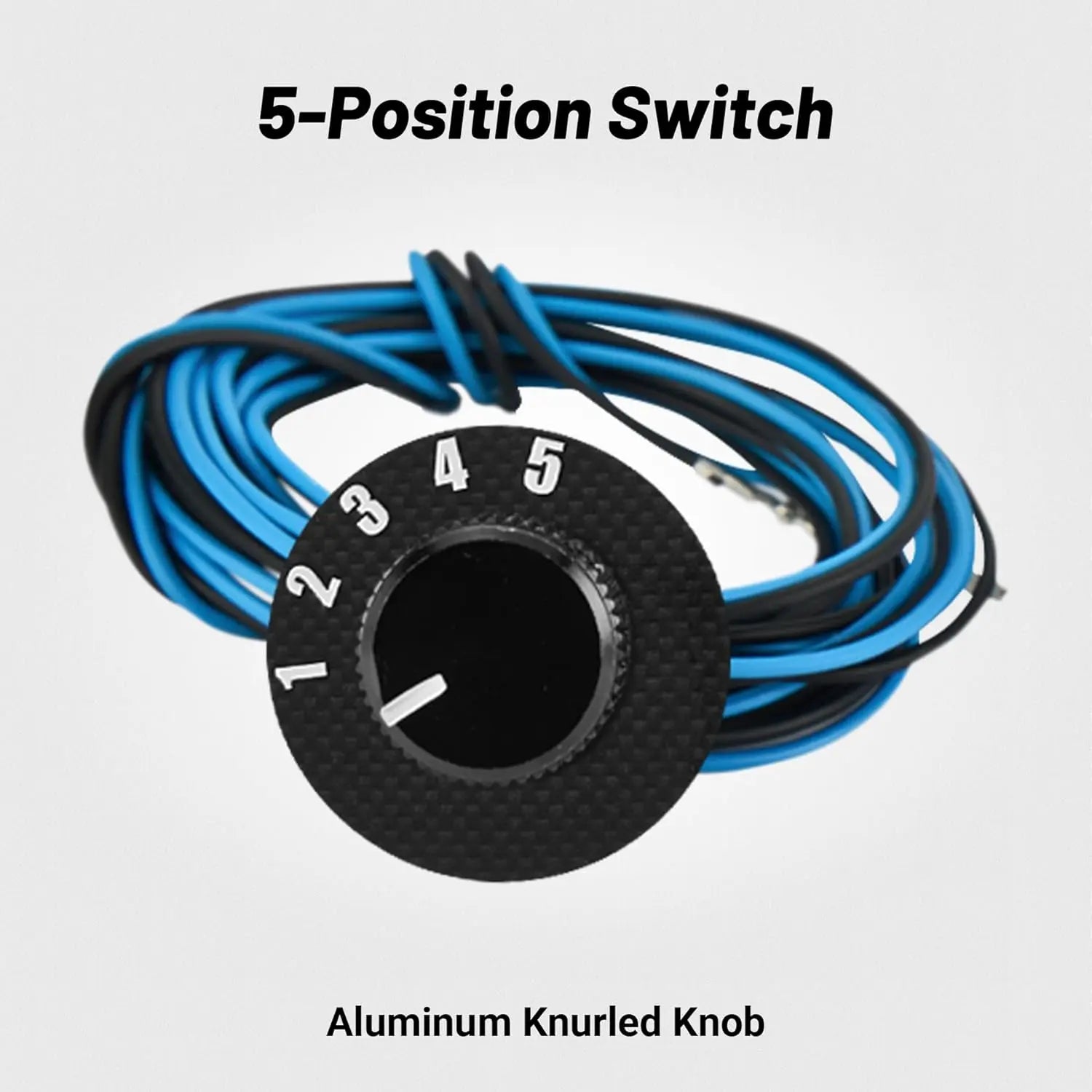

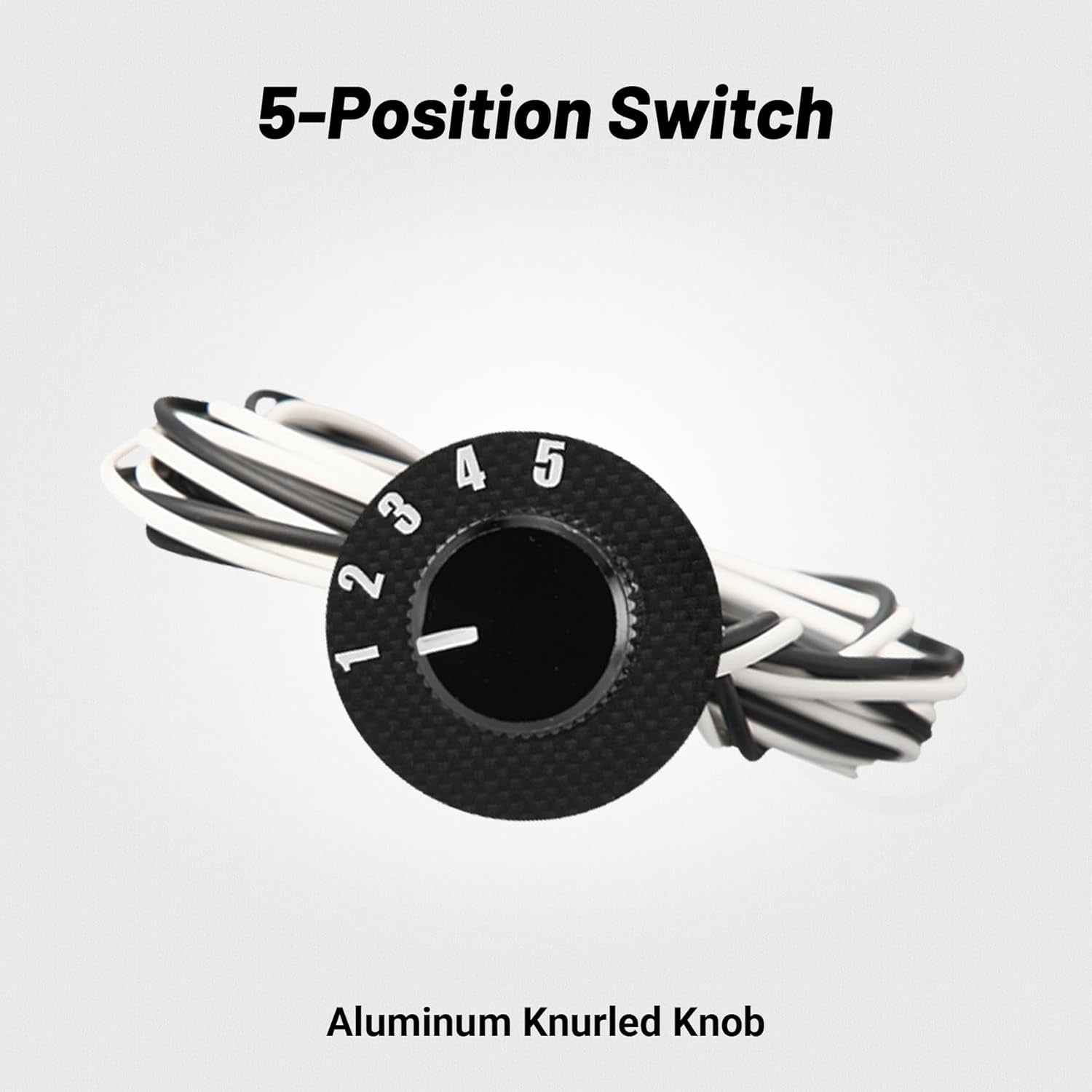

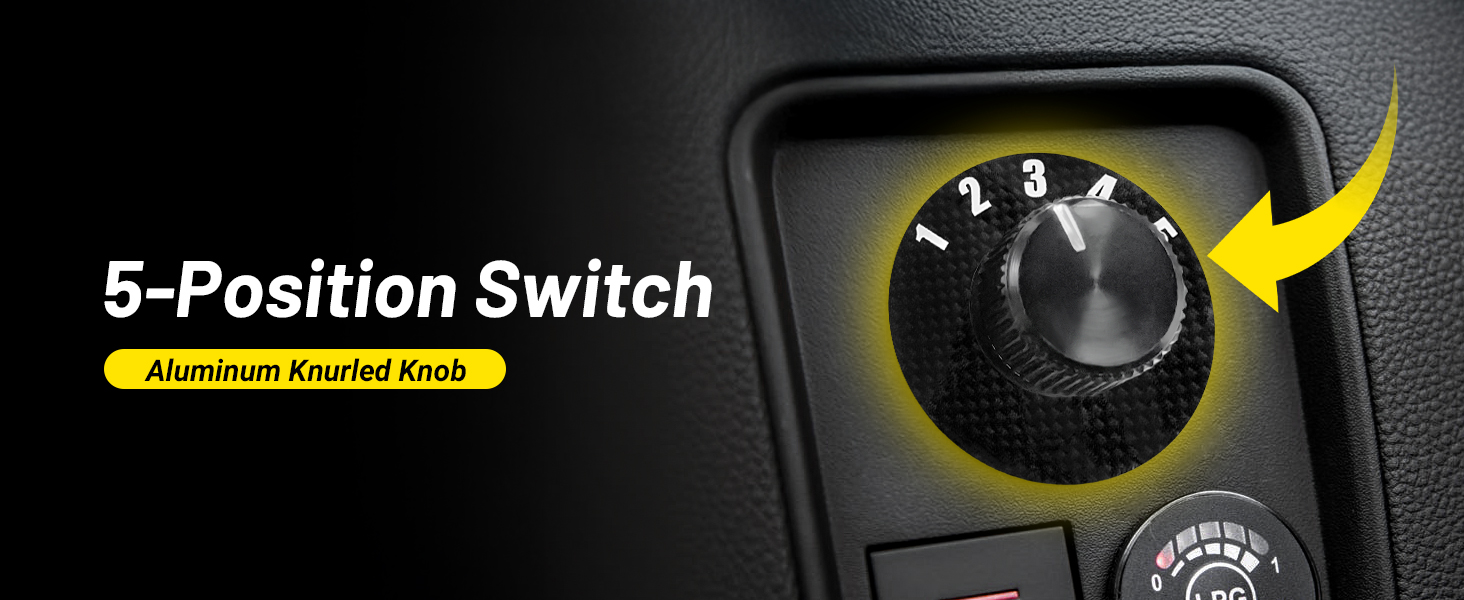

Numbers on the carbon-look decal line up one-to-one with the five maps stored in the EFI Live DSP5 tune: Position 1 runs map 1, Position 5 runs map 5. The aluminum knurled knob clicks firmly into each detent, so a Duramax driver always knows which map is active, and a passenger or second driver can see the selected mode from across the cab.

DSP5 Switch for the 2001–2004 LB7 Duramax

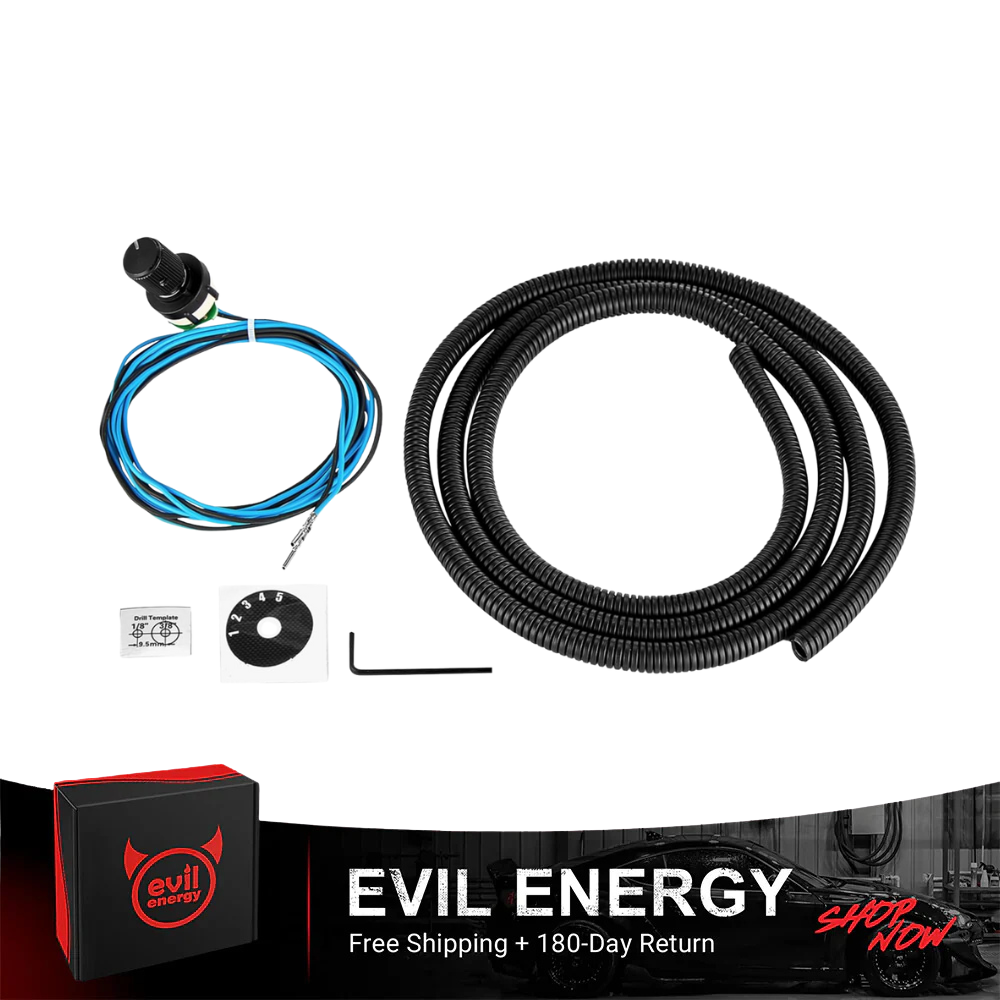

The LB7 version fits 2001–2004 Chevy Silverado 2500HD/3500HD and GMC Sierra 2500HD/3500HD trucks with the first-generation Duramax. The blue lead goes into ECM pin 69 and the black lead into pin 49. Flash the EFI Live DSP5 operating system before relying on the switch; a standard LB7 tune ignores the knob.

DSP5 Switch for the 2006–2010 LBZ and LMM Duramax

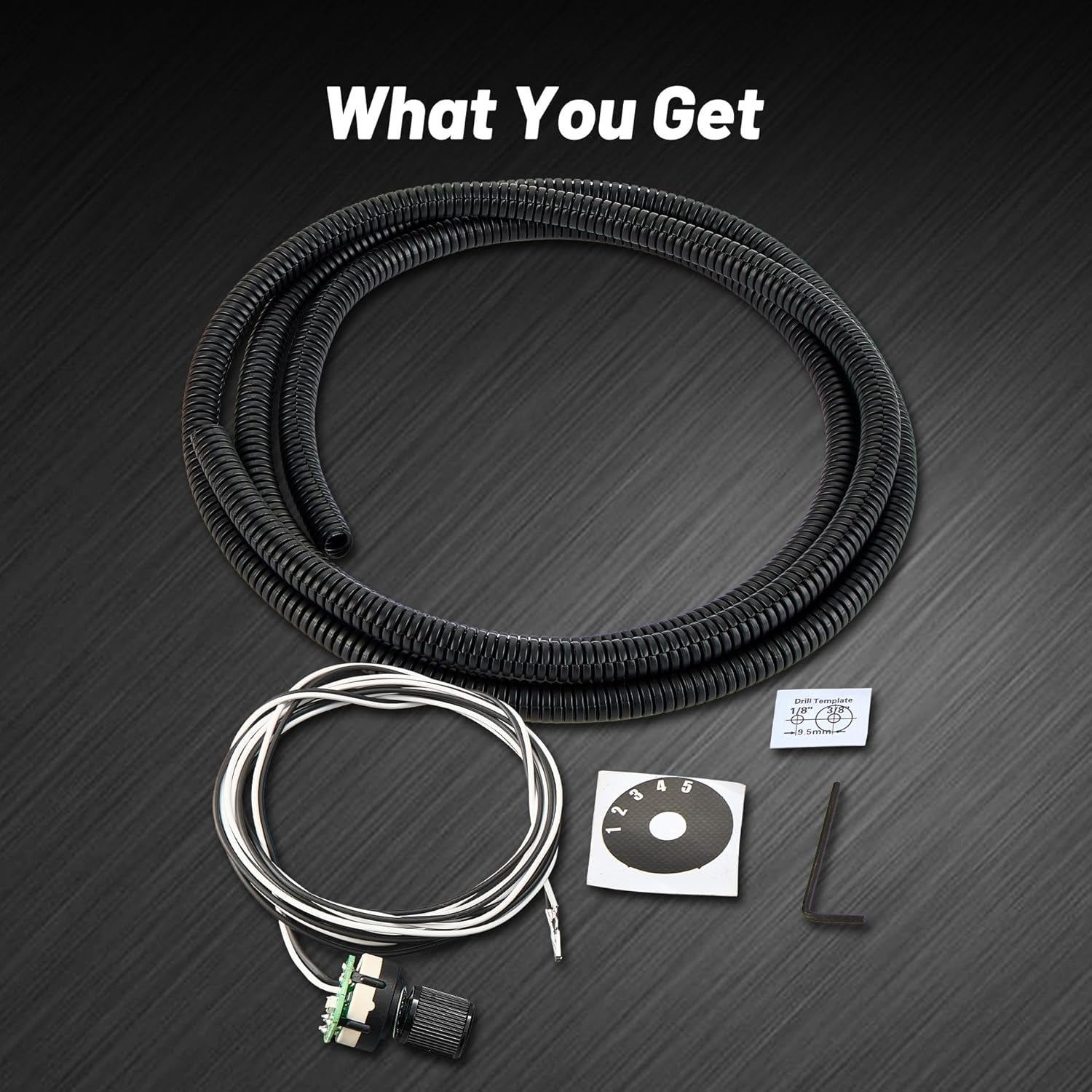

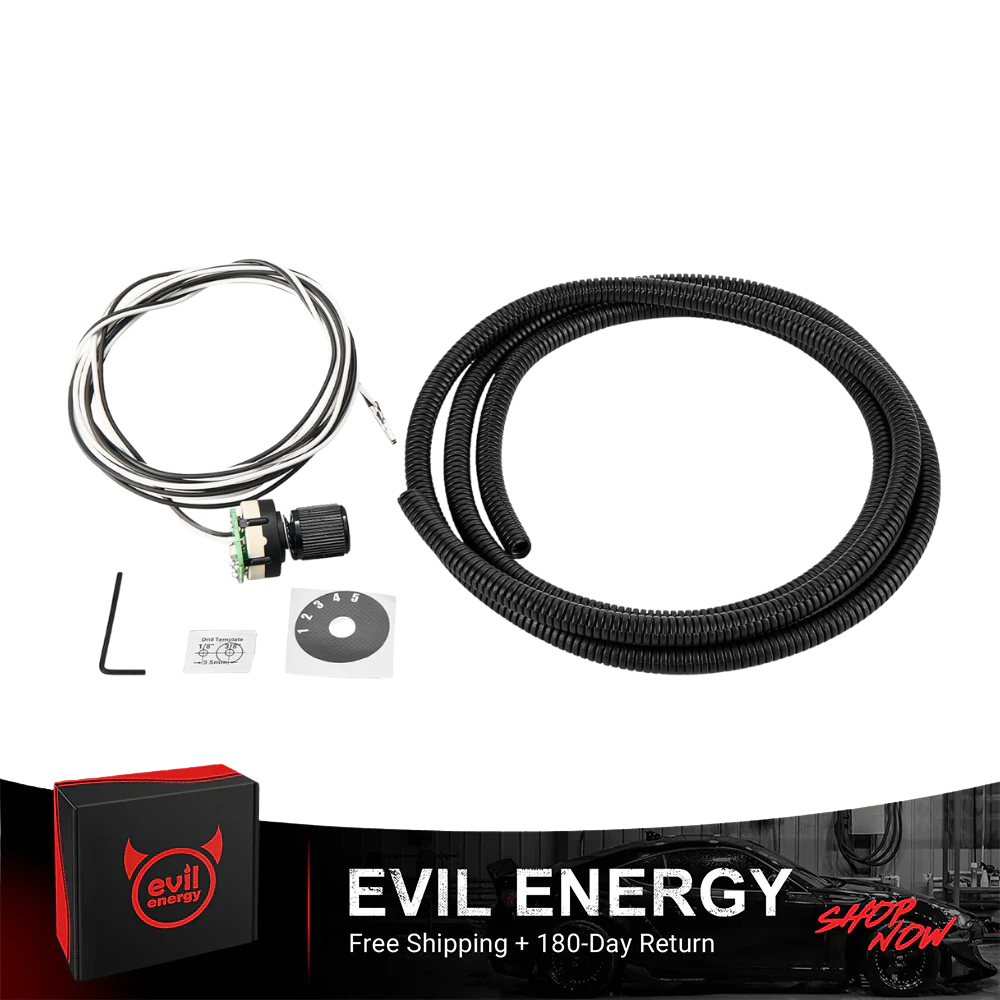

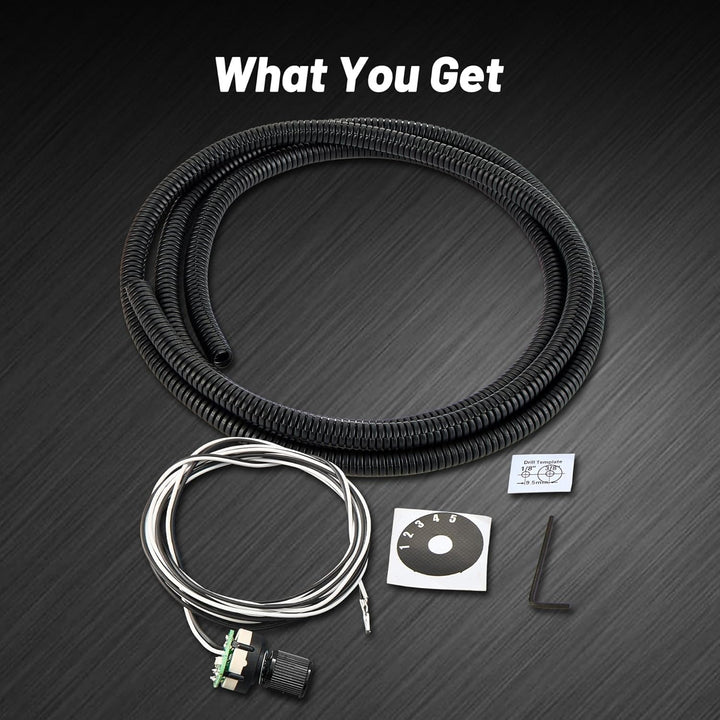

One version covers both the 2006–2007 LBZ and the 2007.5–2010 LMM. The white lead goes into ECM pin 46 and the black lead into pin 54. LMM owners searching for a DSP5 switch for the LMM get a straight plug-in to the ECM connector; the LMM DSP5 operating system already contains the switch logic, so the five maps respond as soon as the switch is wired and the DSP5 tune is flashed.

LML SOTF Switch for 2011–2016 Duramax: EFI Live or EZ LYNK

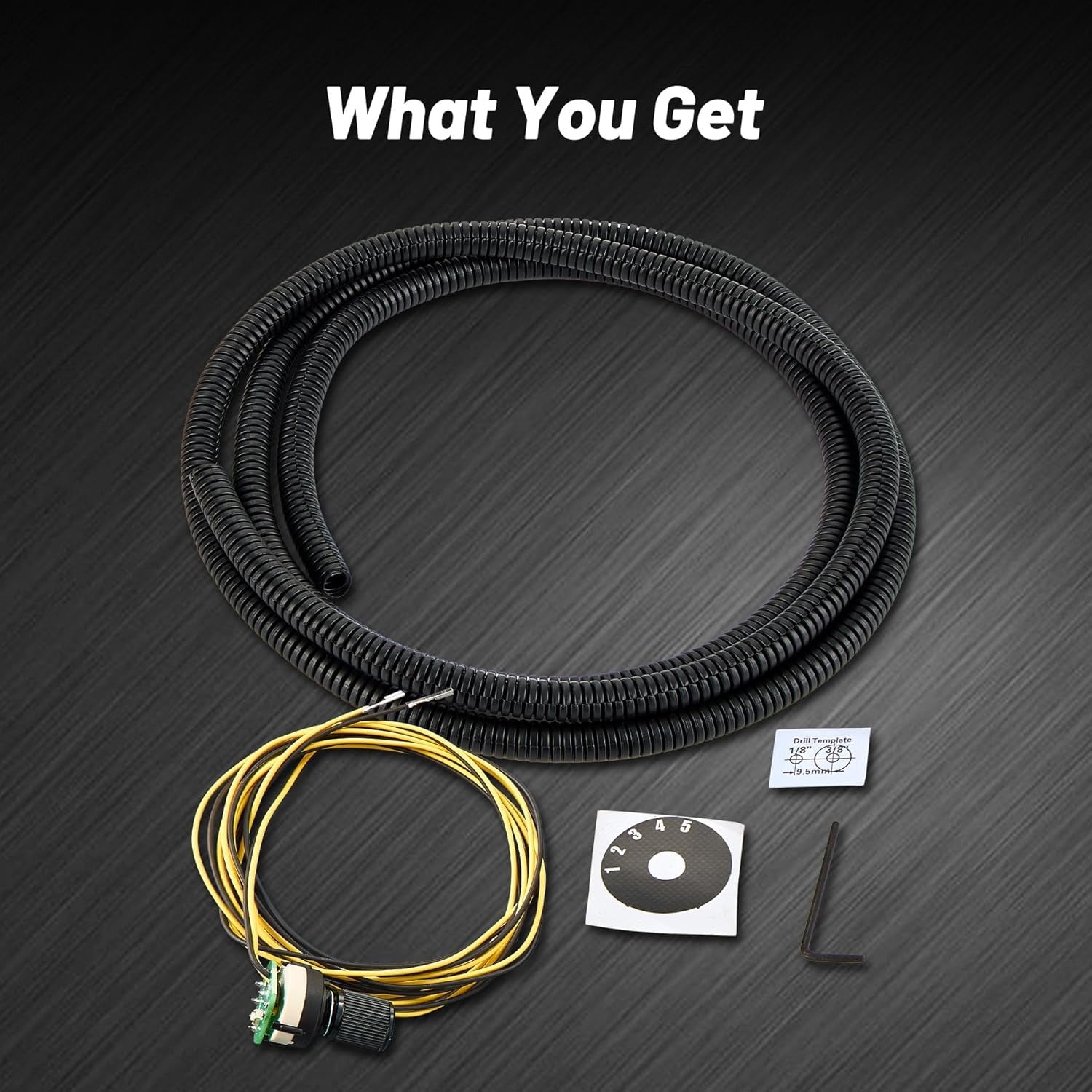

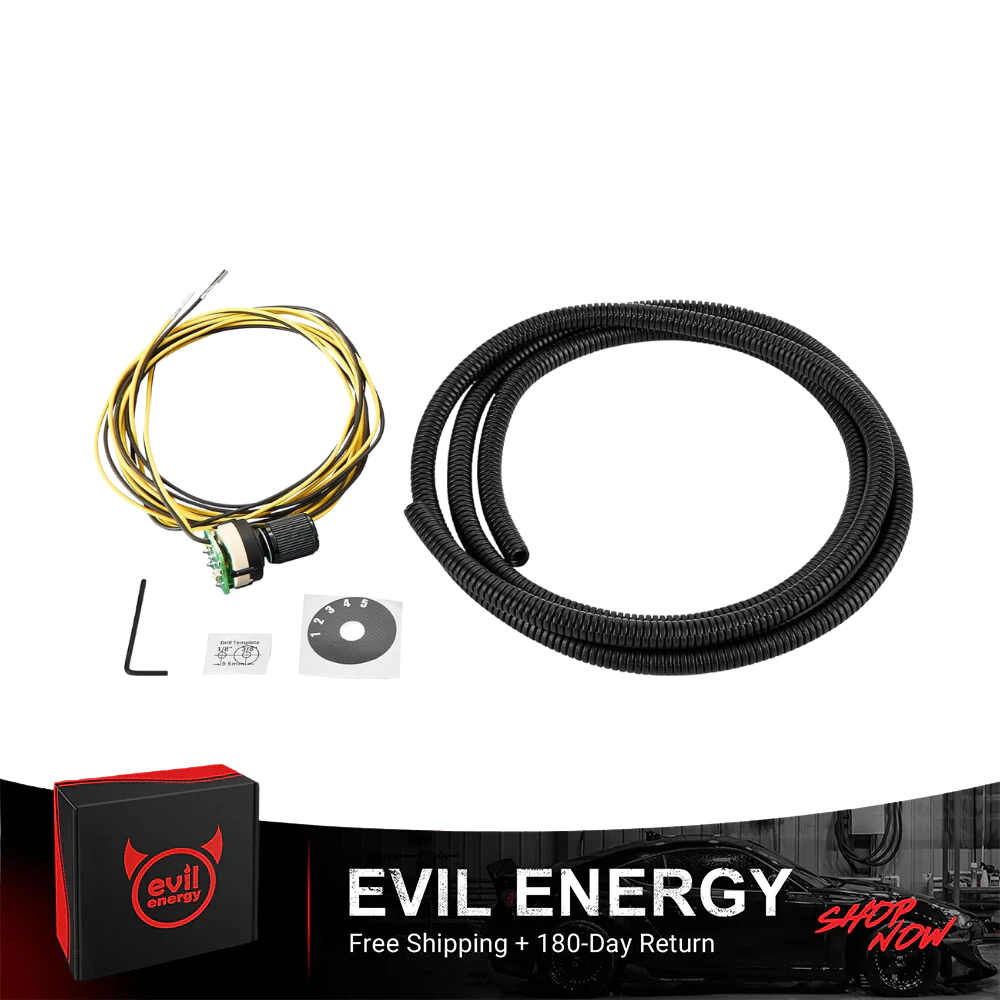

The LML version is the only EVIL ENERGY DSP5 switch to work with both EFI Live DSP5 and EZ LYNK switchable tunes. The yellow lead goes into ECM pin 11 and the black lead into pin 35 on the gray J3 connector. Step-by-step instructions follow below.

LML SOTF Switch Install Guide

An LML SOTF switch install takes place at the ECM on the driver side, between the power steering reservoir and the battery. Pin preparation differs between 2011 and 2012–2016 trucks.

Tools for an LML SOTF Switch Install

Flashlight, flathead screwdriver, side cutters, about 5 ft of stiff wire for fishing through the firewall, zip ties, electrical tape, 10 mm and deep 13 mm 3/8 in drive sockets, 1/16 in and 1/8 in drill bits, and a step bit or 3/8 in drill bit for the switch hole.

Step-by-Step LML SOTF Switch Install

1. Let the engine cool and disconnect both negative battery cables.
2. Remove the ECM protective cover and unplug all three harness connectors.
3. Fish the leads through the firewall at the hood release cable grommet; removing the fender support bracket gives more room.
4. Slide the split-loom sleeve over the leads, leaving 8–10 in of wire exposed at the ECM end, and check the pin ends for damage.
5. Open the gray J3 connector (closest to the firewall): remove the top cap, then gently pry off the bottom cover.
6. Clear cavities 11 and 35. On 2011 trucks, release and remove the factory yellow wire from pin 11. On 2012–2016 trucks, push the plastic filler pins out with a 1/16 in drill bit.
7. Insert the yellow lead into pin 11 and the black lead into pin 35, seated flush and locked against a light pull.
8. Refit the bottom cover and top cap without pushing the pins back out, secure the harness with a new zip tie and reconnect the J3 plug.
9. Mount the switch, reconnect the batteries and flash the EFI Live DSP5 or EZ LYNK switchable tune, then test Positions 1–5.

DSP5 Switch Not Changing Tunes? Check the Voltage

The ECM sends about 5 volts through the DSP5 circuit, and each knob position adds a different resistance. Readings reported by Duramax owners on the switch signal wire fall roughly in the bands below:

• Same voltage in every position: confirm both pins sit flush and locked in the ECM connector and the leads have continuity end to end.
• Voltage on the black ground lead: a poor ground; recheck the ground pin seating.
• Voltage changes but the tune does not: confirm the ECM runs a DSP5 operating system (or an EZ LYNK switchable tune on the LML) rather than a single tune.

Shopping for the same truck? Browse Chevy Silverado assembly parts, or compare the 5 position switch for the 6.7 Cummins for a Ram in the same fleet.
