EVIL ENERGY 5 Position SOTF Switch for 2010–2020 Dodge Ram 6.7L Cummins Diesel

What Does a 5 Position Switch Do on a 6.7 Cummins?

Take full control of the 2010–2020 Dodge Ram 6.7L Cummins Diesel with the EVIL ENERGY 5 Position Shift-On-The-Fly (SOTF) Switch. Built for drivers who demand more from a Cummins, the five position switch toggles between five custom tunes in real time, from fuel-saving Economy to race-ready maximum power, without reflashing the ECU.

Engineered with a CNC-machined aluminum knob, heat-resistant wiring and OEM-style connectors, the Cummins SOTF switch holds up under extreme engine bay conditions. Color-coded wiring in red, white and black keeps installation simple, secure and completely non-invasive, with no wire cutting required.

Towing heavy loads, daily commuting or pushing the Cummins to the limit, the EVIL ENERGY 5 Position SOTF Switch delivers the performance flexibility every 6.7 Cummins deserves.

EZ Lynk SOTF or EFI Live CSP5: Which Tuning Works with the Cummins 5 Pos Switch?

Switch on the fly tuning on the 6.7 Cummins comes from two common platforms. Both store five calibrations in the factory ECM, and both read the knob position through the crankcase pressure sensor circuit, so one EVIL ENERGY 5 pos switch serves either tuner. A single-tune file ignores switch position on both platforms.

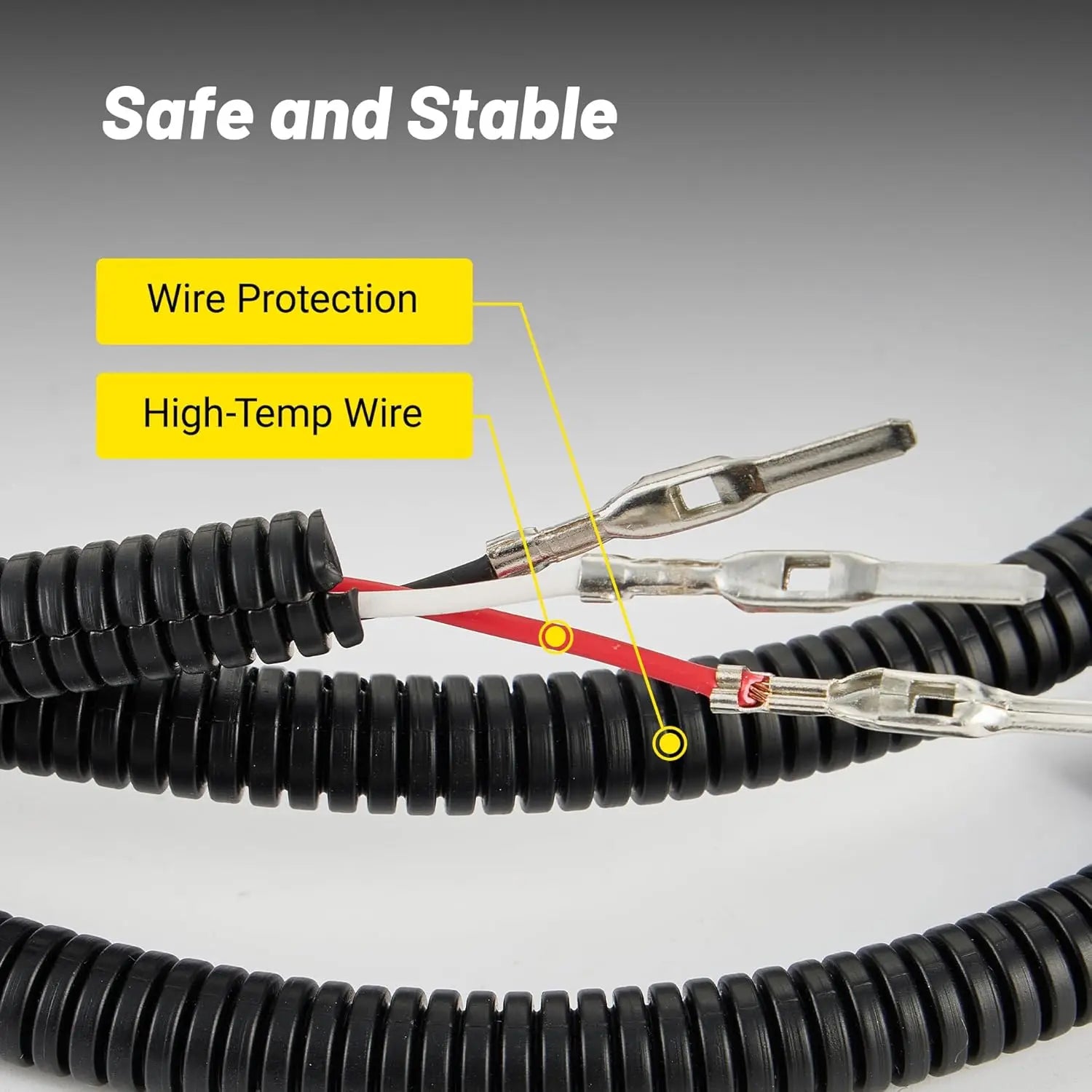

Color-Coded Three-Wire Harness on the CSP5 Switch

Three long leads in red, white and black run from the back of the CSP5 switch to the engine bay and end in crimped terminals made for the included 3-pin connector. Distinct colors make pin placement easy to double-check before the connector locks, and the numbered 1–5 dial with a white pointer shows the active Cummins tune at a glance.

6.7 Cummins SOTF Switch Install Guide

A 6.7 Cummins SOTF switch install plugs into the factory crankcase pressure sensor harness at the driver-side rear of the valve cover, so no factory wire gets cut, spliced or tapped. Same steps apply to an EZ LYNK or an EFI Live CSP5 setup.

Tools for a Cummins EZ Lynk SOTF Switch Install

Drill with a step bit (for a panel mount), small flat-blade screwdriver, utility knife for the firewall grommet, zip ties, electrical tape and a multimeter.

Step-by-Step Cummins SOTF Switch Install

1. Disconnect both negative battery cables on the dual-battery Ram.
2. Find the firewall grommet under the driver-side dash, then pull the grommet or cut a small slit to pass the red, white and black leads into the engine bay.
3. Route the leads along the firewall to the crankcase pressure sensor on the driver-side rear of the valve cover, away from the turbo, exhaust and steering shaft.
4. Unplug the crankcase pressure sensor from the factory harness.
5. Push each terminal into the included 3-pin connector in the pin order shown in the EVIL ENERGY instructions until each terminal clicks, then press the red locking wedge into place.
6. Plug the switch connector into the crankcase pressure sensor harness unplugged in step 4.
7. Slide the leads into the split-loom sleeve and wrap electrical tape over both sleeve ends so the loom cannot creep off the wires.
8. Flash the SOTF or CSP5 tune, reconnect the batteries, mount the switch in the cab, then rotate through Positions 1–5 with the key on to confirm each tune change.

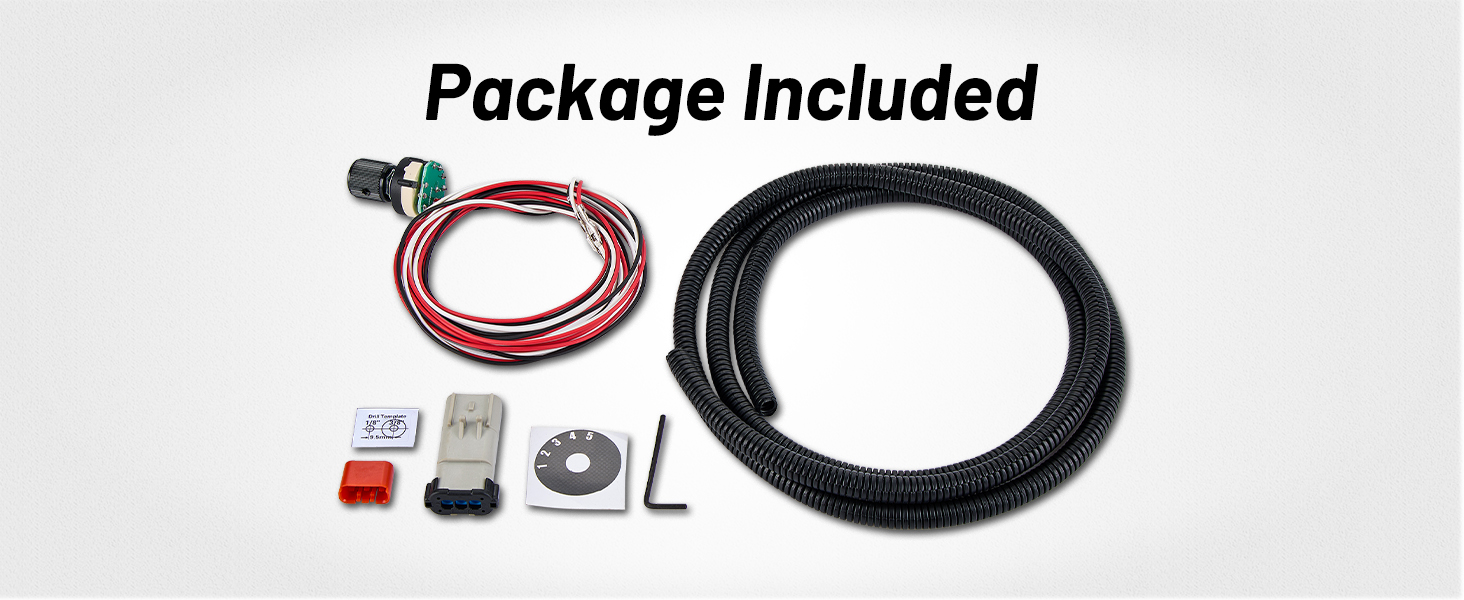

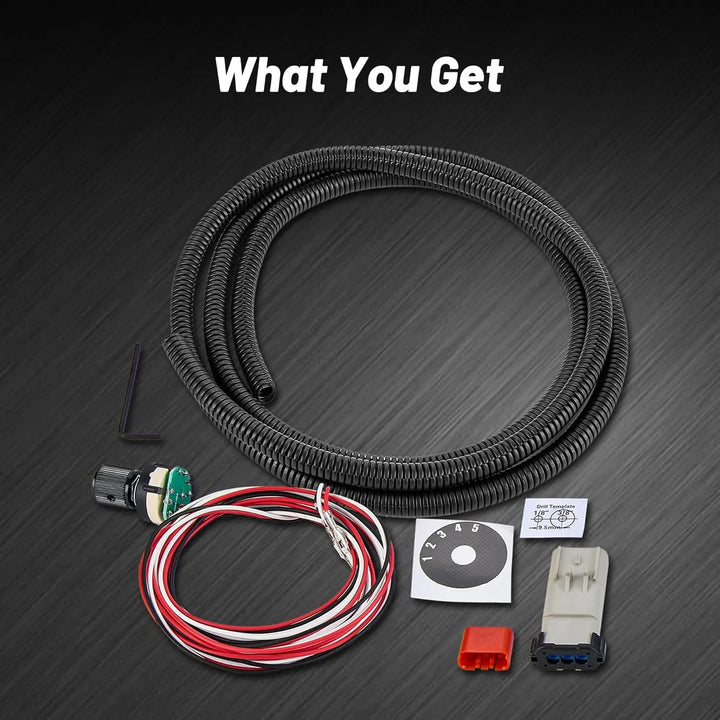

Everything in the Cummins EZ Lynk SOTF Switch Kit

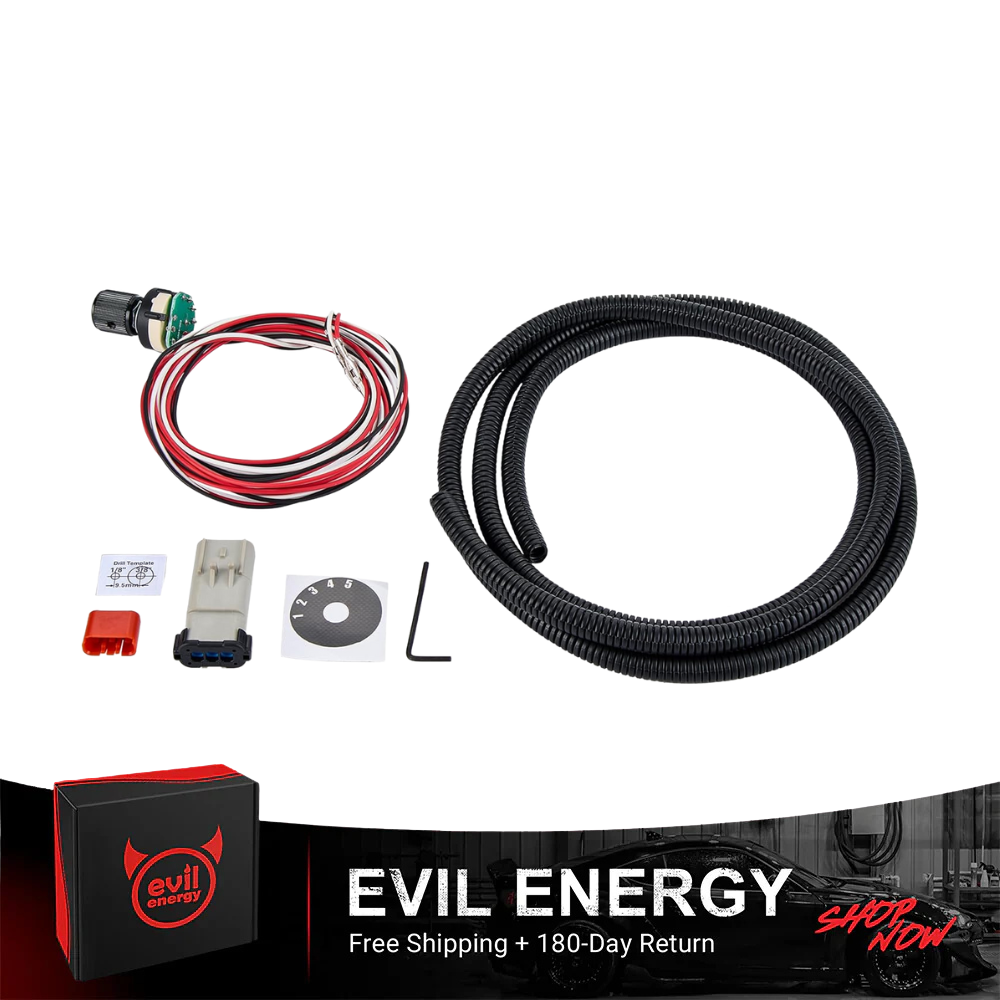

Every Cummins EZ Lynk SOTF switch kit ships with the 5 position switch and pre-terminated red, white and black leads, a 3-pin connector set with a red locking wedge for the crankcase pressure sensor plug, a long black split-loom sleeve, a 1–5 position decal and a hex key. No crimper, solder or extra terminals are needed for a standard install.

Is a 5 Position Switch a Smoke Switch on the 6.7 Cummins?

Plenty of Cummins owners search for a smoke switch for the 6.7 Cummins. The 5 position switch only selects which calibration the ECM runs; smoke comes from the fueling inside each calibration and from the exhaust hardware. Every 2010–2020 6.7L Cummins Ram left the factory with a diesel particulate filter (DPF), and 2013 and newer Ram 2500/3500 trucks add SCR with DEF. The DPF traps soot, so an emissions-intact SOTF tune produces no visible black smoke in any position. Tunes built to blow smoke require removing or bypassing the DPF, a modification prohibited on road vehicles by the federal Clean Air Act. Pair the EVIL ENERGY switch with an emissions-intact EZ LYNK SOTF or EFI Live CSP5 calibration.

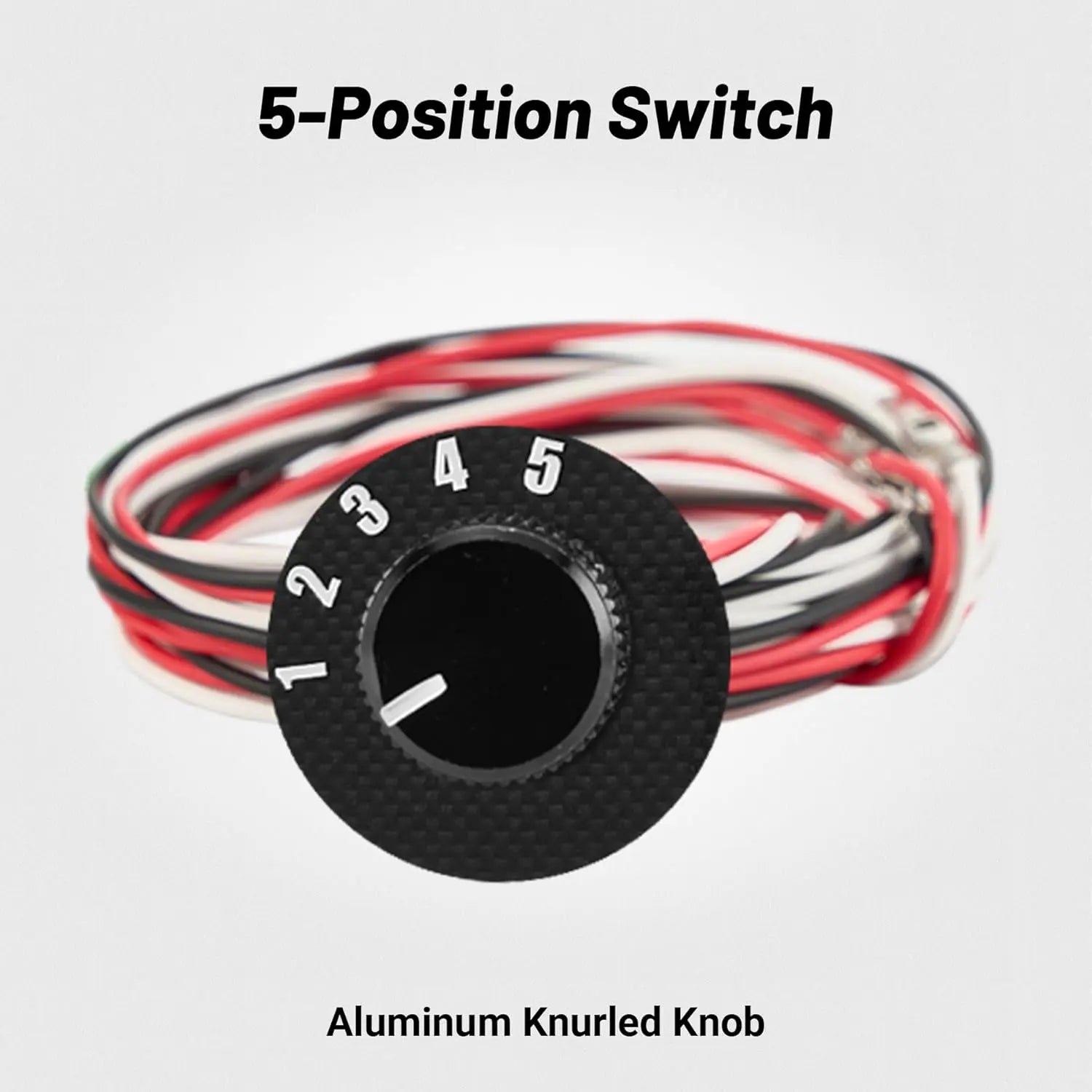

Knurled Aluminum Knob Within Reach While Towing

Set into a dash panel, the aluminum knurled knob turns in five distinct clicks over a carbon-look 1–5 decal, so a Ram driver can drop from Heavy Tow to Economy at the top of a grade by feel. Mounting the 5 position switch within the driver's natural reach, on a lower dash panel or the side of the center console, keeps tune changes quick without hunting for the knob on a dark highway.

Cummins SOTF Switch Fitment for Ram Heavy Duty Trucks

The EVIL ENERGY Cummins SOTF switch fits 2010–2020 Ram 2500, 3500, 4500 and 5500 trucks with the 6.7L Cummins, covering pickups and chassis cabs. The 5 position switch does not fit 2007.5–2009 6.7L Cummins trucks, 5.9L Cummins trucks or 2021 and newer Ram heavy duty models.

Why the Cummins SOTF Switch Does Not Change Tunes

• Wrong tune file: a standard single tune ignores the switch. Confirm the ECM runs an EZ LYNK SOTF-enabled tune or an EFI Live CSP5 tune.
• Loose terminal: a terminal pushed in without a click backs out of the 3-pin connector. Give each wire a light pull test before pressing in the red locking wedge.
• Connector not seated: the switch plug must click fully onto the crankcase pressure sensor harness.
• 2019–2020 ECM access: a locked ECM on later trucks blocks the SOTF flash until the EZ LYNK bypass/unlock cable is installed.
• Signal check: with the key on, a multimeter on the switch signal wire should show a different voltage at each of the five detents.

Running a Ford or Chevy diesel too? See the Ford 6.7 Powerstroke SOTF switch and the EFI Live DSP5 switch for the Duramax, or browse EFI wiring harness kits for other cab wiring projects.
