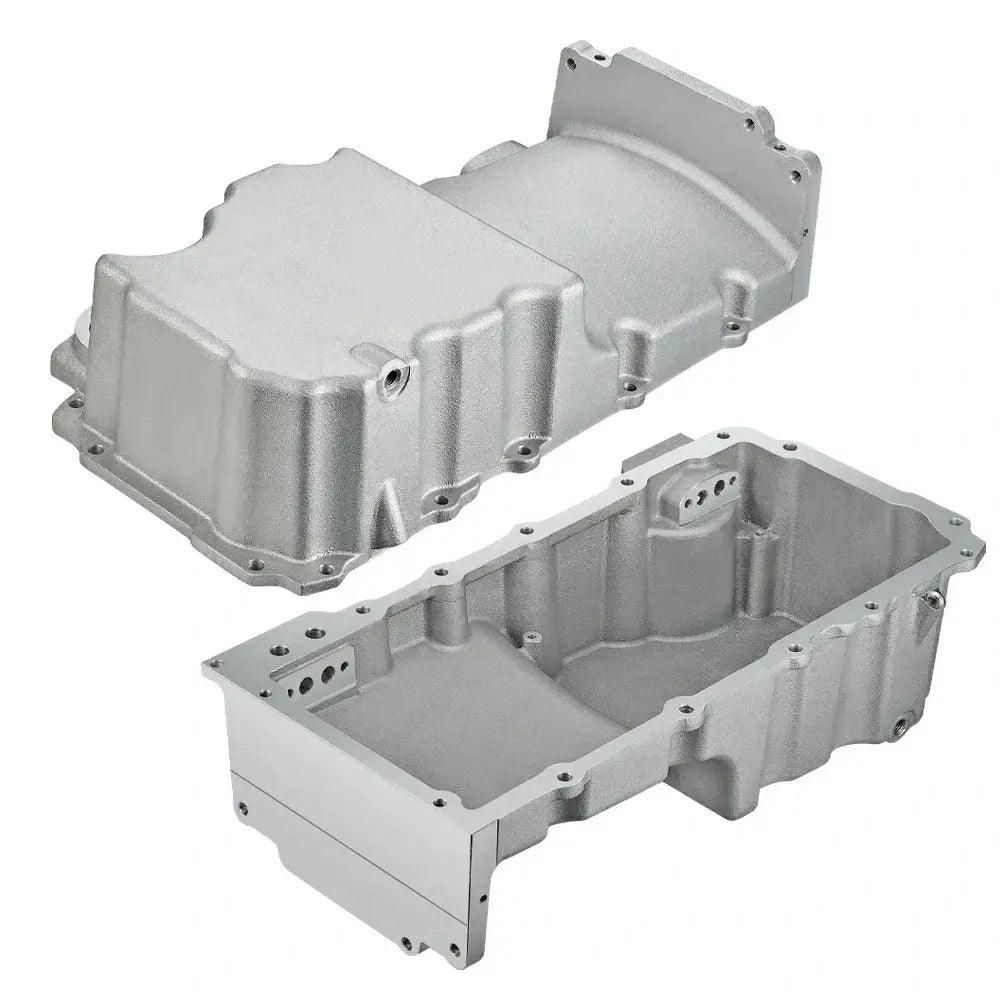

EVIL ENERGY LS Wet Sump Low Profile Retro Fit Front Sump Pan,Fit For Chevy LS1 LS2 LS3 LSX

Q：Will this LS front sump oil pan fit LS1, LS2, LS3 and LSX engines?

A: It is designed for most Gen III/IV LS-based wet-sump engines, including common 4.8L, 5.3L, 5.7L, 6.0L and 6.2L applications. Before ordering, confirm that the engine uses a wet-sump system, the crankshaft stroke does not exceed 4.25 inches and the chassis requires a front sump.

Q：Does this oil pan fit LS7 or LS9 engines?

A: No. LS7 and LS9 dry-sump applications are excluded. This is a wet-sump oil pan and is not a replacement for a factory dry-sump pan, external oil tank or associated dry-sump components.

Q：Will the oil pan bolt directly into my Camaro, Firebird, Impala or other classic vehicle?

A: Not necessarily. Engine compatibility and vehicle clearance are separate issues. Most classic applications are LS swaps, so the crossmember, steering linkage, suspension, engine mounts and ground clearance must be measured before purchase.

Q：How do I choose between a front sump and rear sump LS oil pan?

A: Choose the sump location according to the chassis geometry. A front-sump pan is appropriate when there is room ahead of the engine crossmember and a rear sump would interfere; select a rear-sump pan when the available space is behind the crossmember.

Q：How low profile is this LS oil pan?

A: The listed sump depth is 5.625 inches. Compare that measurement with the installed position of the crossmember, steering components and lowest chassis point rather than assuming that “low profile” guarantees sufficient ground clearance.

Q：What is the oil capacity of this front sump pan?

A: The sump capacity is listed as 6.0 quarts, with a total capacity of 6.2 quarts when using a stock-style oil filter. Fill carefully and verify the final level with a correctly calibrated dipstick.

Q：What parts are included with the LS front sump oil pan kit?

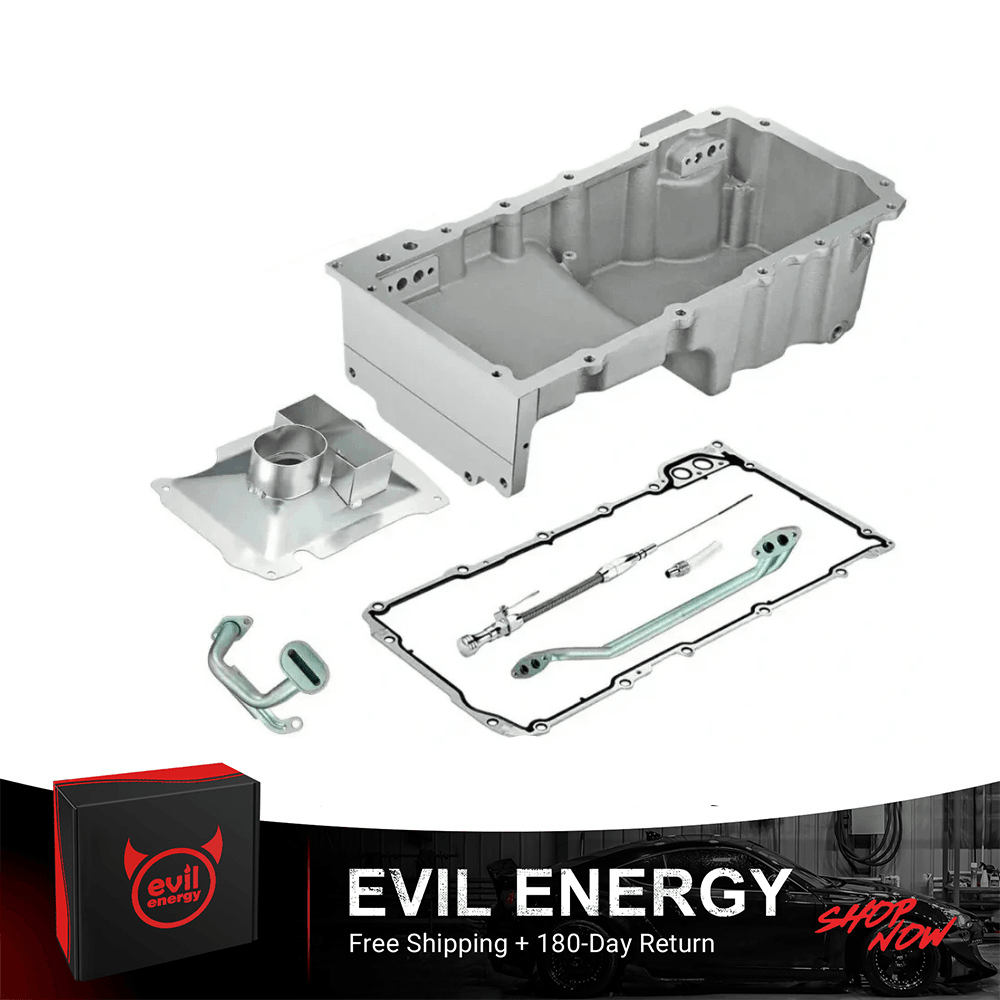

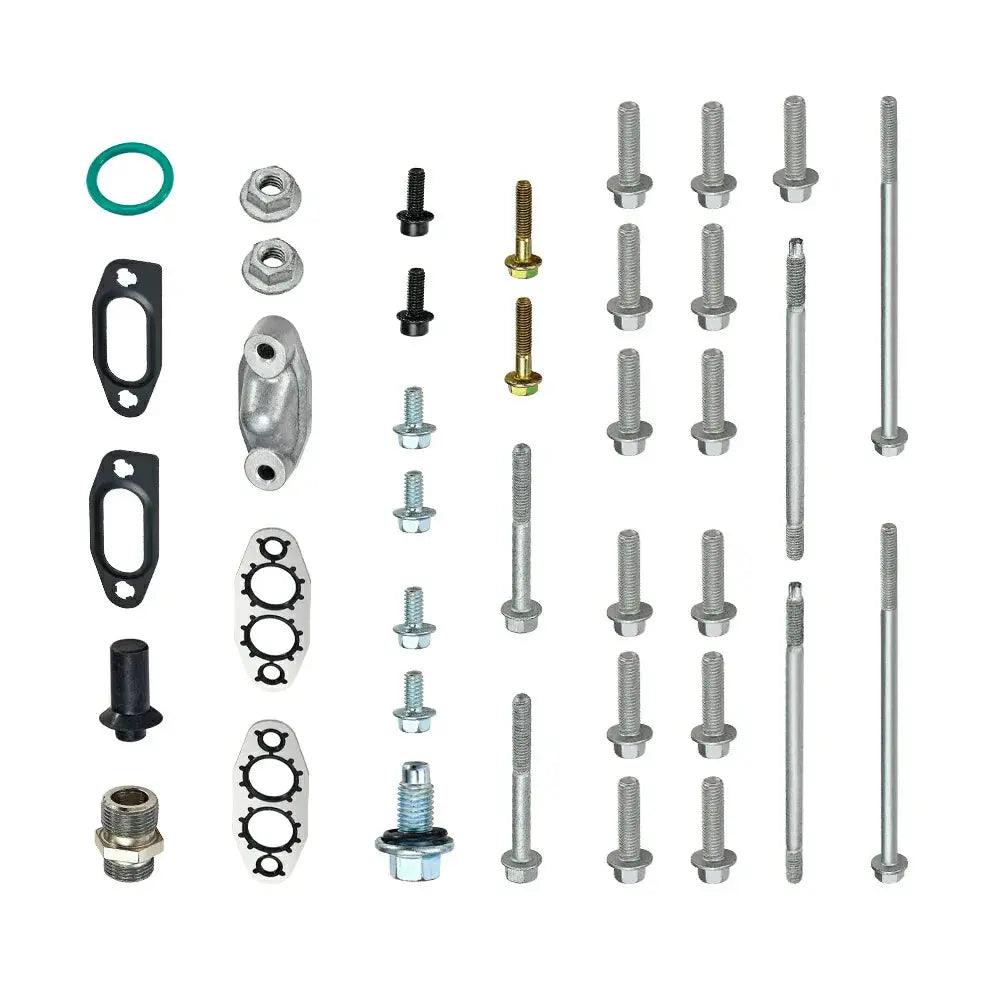

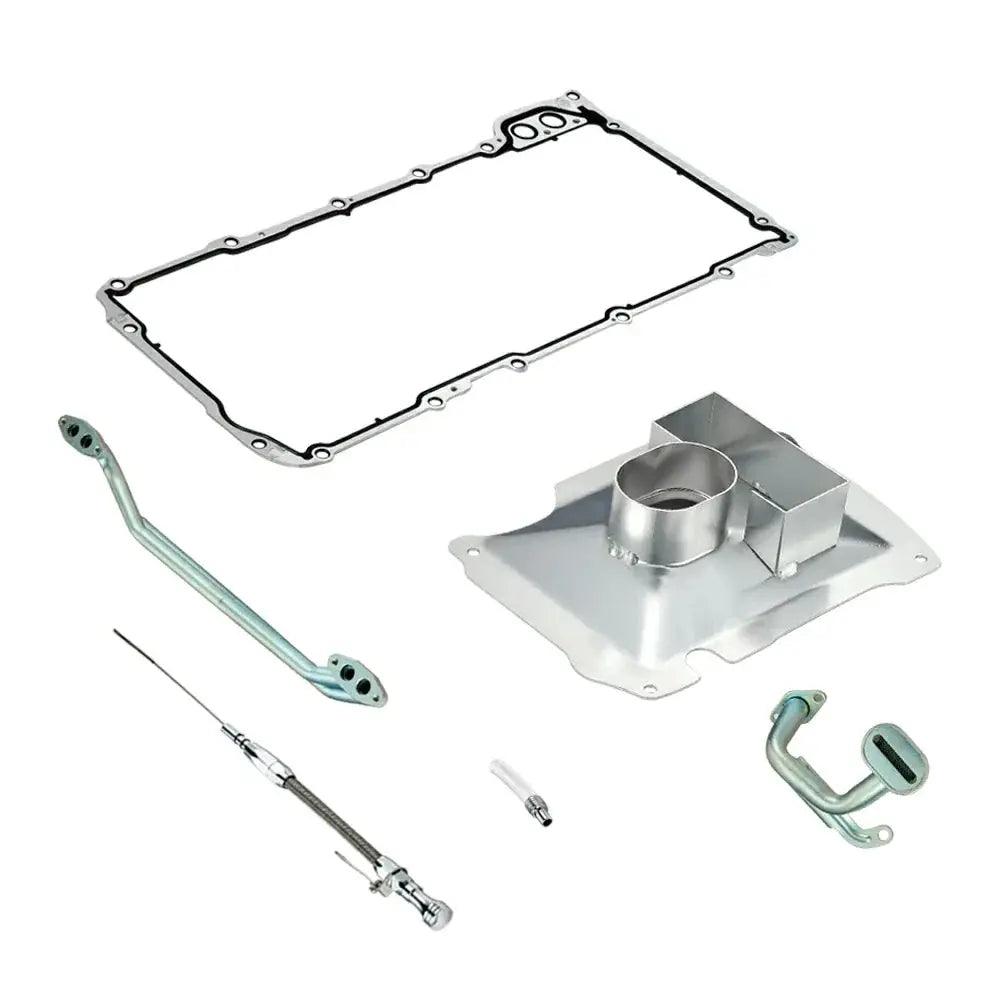

A: The kit includes the oil pan, gasket, sump baffle, oil pickup tube, drain plug, oil filter stud, oil passage cover and mounting hardware. The windage tray, front-sump dipstick, oil filter, engine oil and installation sealant are not listed as included.

Q：Can I use the factory LS dipstick and oil filter?

A: The original stock-style dipstick will not work with this front-sump pan, so a front-sump-compatible or flexible LS dipstick is required. Compatible filter choices include AC Delco PF48/PF48E, K&N HP‑1017 or an equivalent filter with the correct specifications.

Q：How do I change or replace the LS oil pan gasket?

A: Drain the oil, remove the old pan and gasket, clean the mating surfaces and inspect the pickup-tube O-ring and oil passages. Install the supplied new gasket, align the pan flush with the rear of the block and follow the engine-specific tightening sequence and torque specifications.

Q：How much does it cost to replace an oil pan gasket?

A: The gasket is included with this kit, but total replacement cost depends mainly on labor access. Crossmember interference, steering components and whether the engine must be lifted or removed can change the labor time substantially, so obtain a vehicle-specific quote from the installer.
