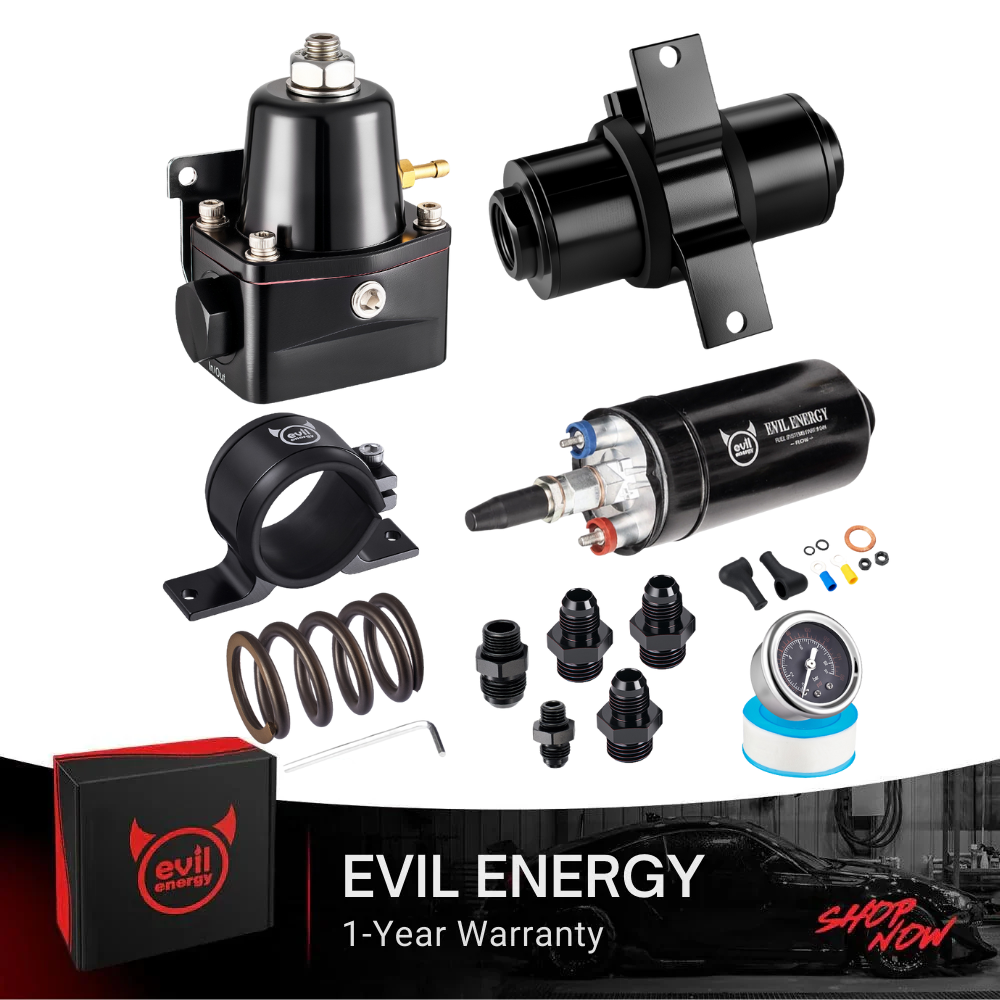

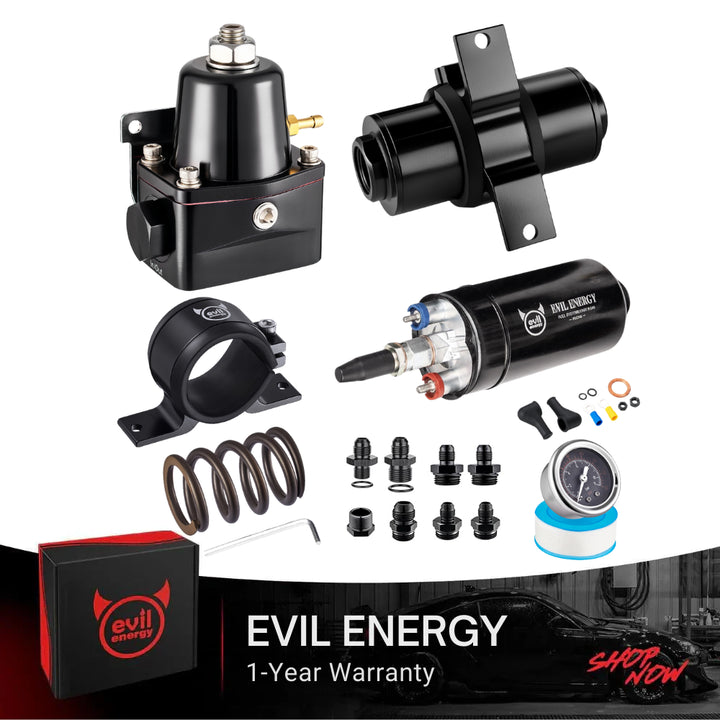

EVIL ENERGY 20-120PSI EFI Fuel System Kit with 300LPH Inline Fuel Pump & 10 Micron Fuel Filter

Q: What is EFI in a car engine?

A: EFI stands for Electronic Fuel Injection. In a car engine, it is a sophisticated system that uses an electronic control unit (ECU) to precisely deliver fuel to the engine's cylinders. Unlike older mechanical carburetors, an EFI system calculates the exact amount of fuel needed based on real-time data like engine load and speed, ensuring better fuel efficiency and smoother performance for daily-driven EFI vehicles.

Q: What exactly is an EFI system?

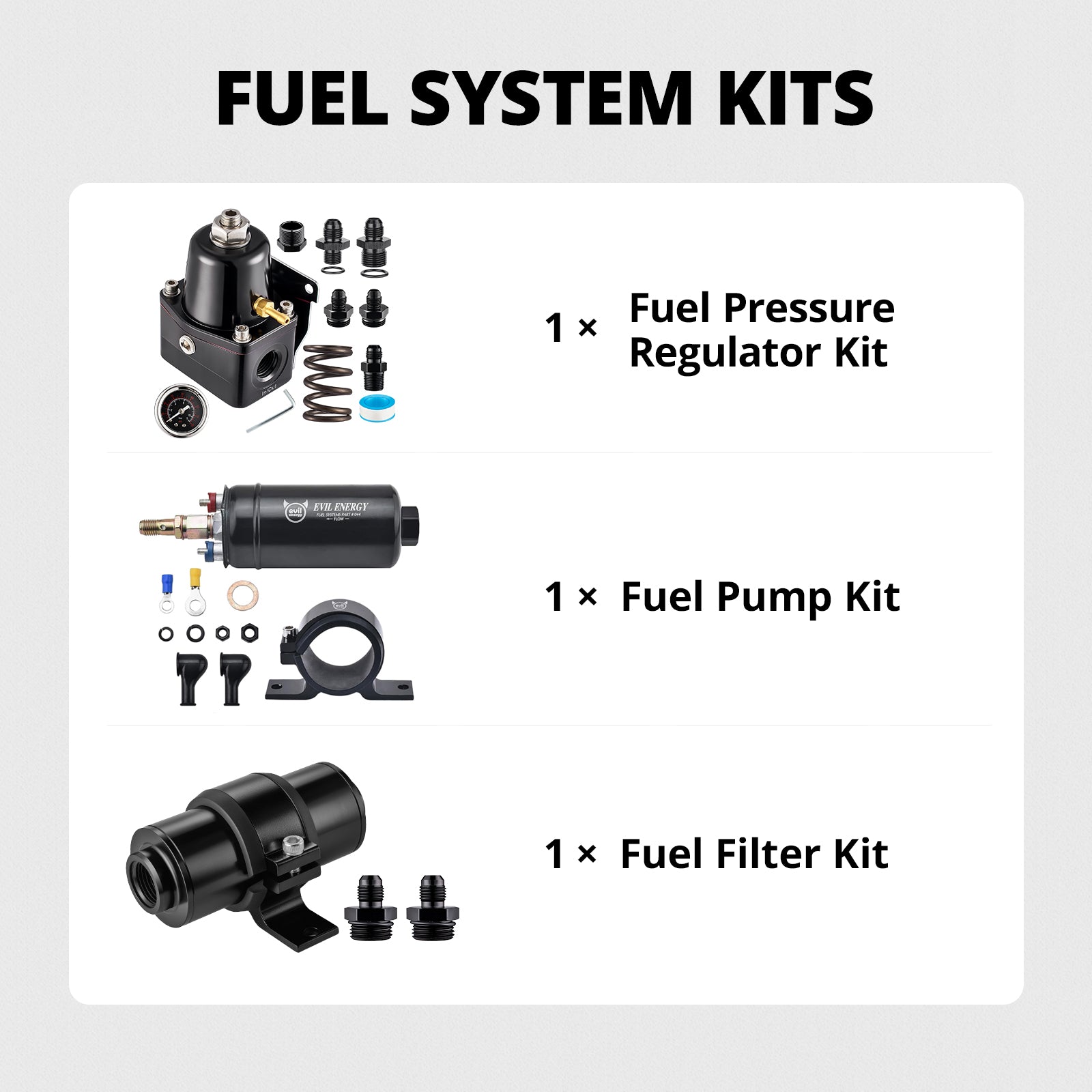

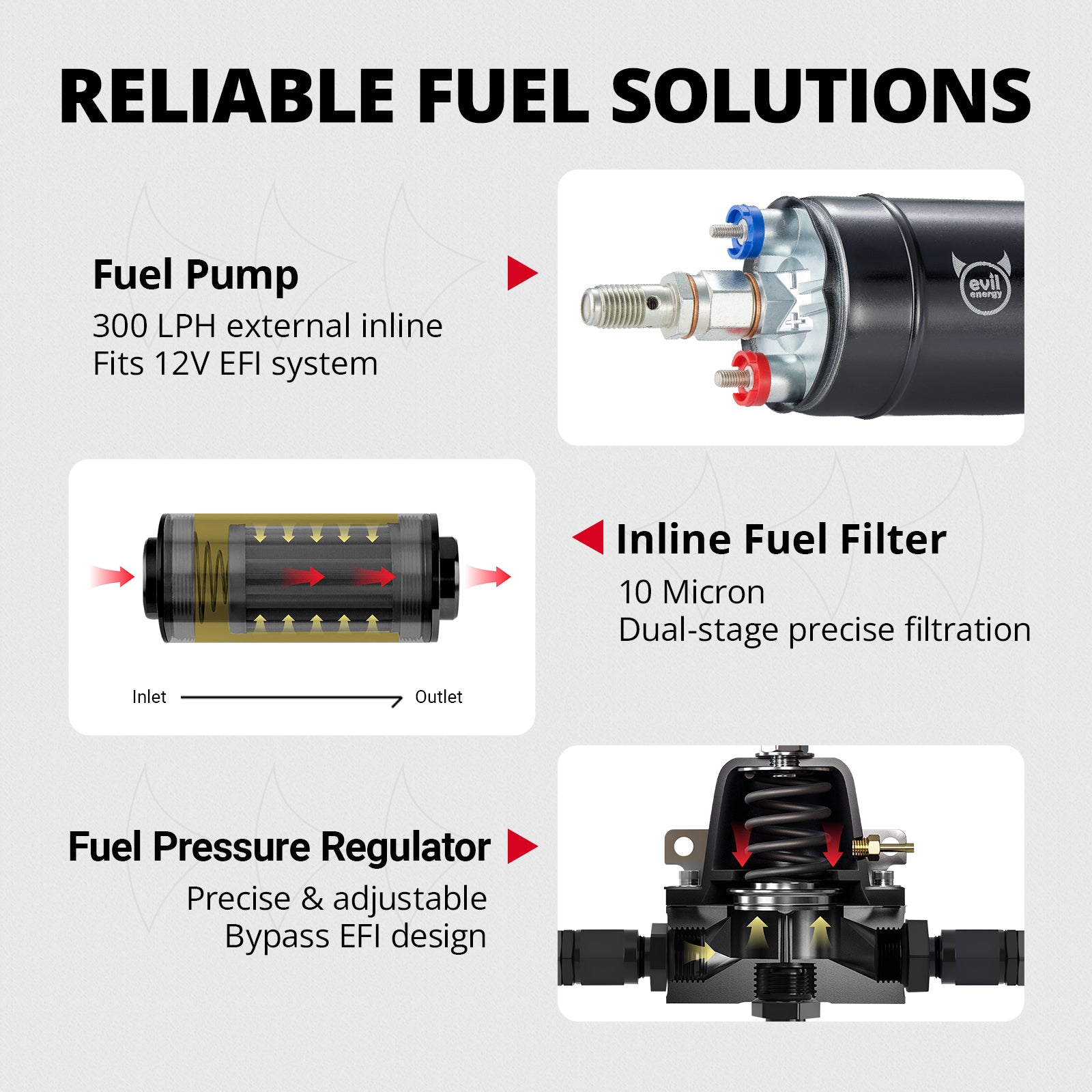

A: An EFI system is a network of components engineered to transport and spray fuel into the engine under pressure. A Complete Fuel Kit for an EFI setup must include:

• A Fuel Pump: An External Inline Fuel Pump provides the necessary pressure to move fuel through the lines.
• A Fuel Pressure Regulator: This Fuel Pressure Regulator Kit maintains consistent pressure (like 30-70PSI) to ensure proper injector spray patterns.
• A Fuel Filter: An Inline Fuel Filter captures contaminants to protect sensitive injectors.
• Fittings & Lines: Components like AN6 and AN10 fittings create a secure, leak-free path for fuel delivery.

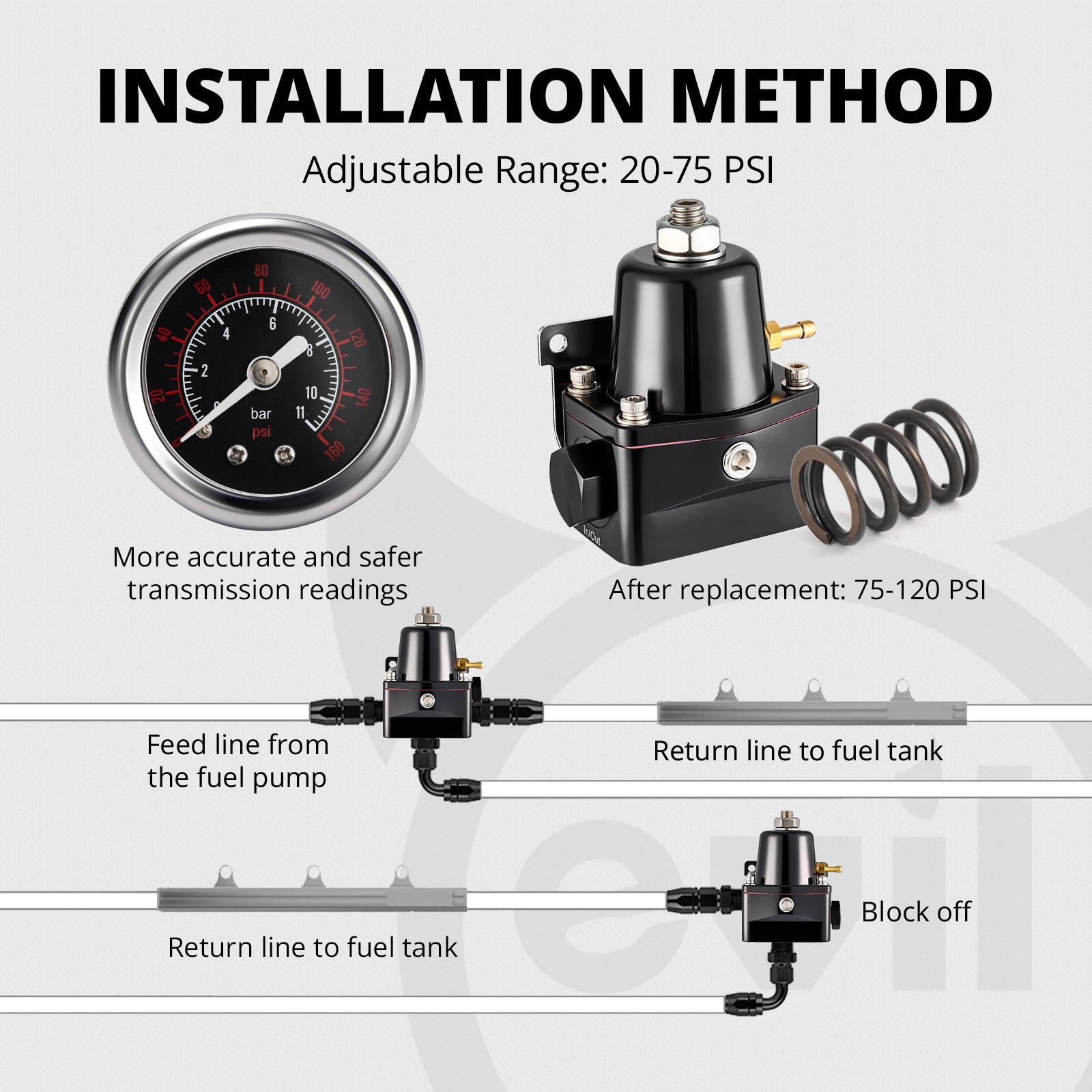

Q: Is the 20-120PSI range too high for my stock EFI vehicle?

A: Not at all. While this Fuel Pressure Regulator Kit supports up to 120PSI, it utilizes a dual-spring system for maximum versatility. For Daily-Driven EFI Systems, we pre-install a 20-75 PSI spring that provides incredibly stable control for factory settings. If you later decide on a high-performance build, you can simply swap in the included high-pressure spring to reach 75-120 PSI, making this a future-proof EFI Fuel System Upgrade Kit.

Q: What does a bypass fuel regulator do?

A: A bypass fuel regulator is a pressure control valve that maintains a constant fuel pressure in the fuel rail by 'bleeding off' excess fuel and sending it back to the fuel tank.

• Pressure Management: It ensures the High Flow Fuel Pump doesn't over-pressurize the system.
• Precision Spray: It ensures that fuel injectors have a consistent pressure differential, allowing them to spray the exact amount of fuel the ECU commands.
• Cooling: Because fuel is constantly circulating from the tank to the rail and back, it helps keep the fuel cooler and prevents 'vapor lock.'

Q: Will the gauge remain accurate with engine vibration?

A: Yes. The included 0-160 PSI gauge features a compressive, shockproof, and protective design. It is specifically engineered to provide more accurate and safer transmission readings than standard gauges, even in high-vibration environments, allowing you to monitor your High Flow Fuel Pump with total confidence.

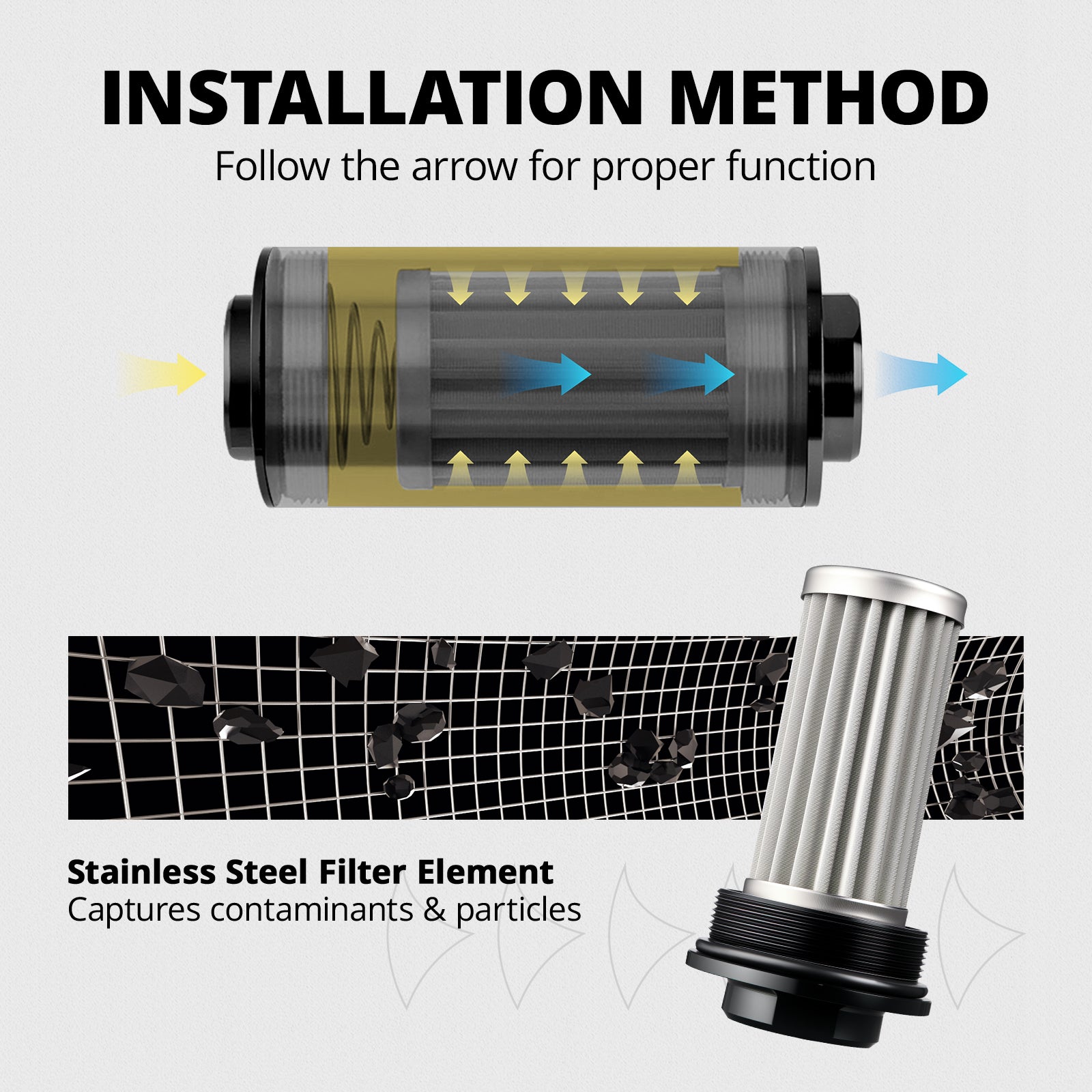

Q: Does a 10-micron filter restrict fuel flow?

A: On the contrary, this 10 Micron Fuel Filter is designed for high-flow efficiency. While it provides microscopic protection to keep your fuel injectors from clogging, its internal element ensures minimal pressure drop even at maximum flow. This balance of protection and performance is a hallmark of a professional-grade Complete Fuel Kit.

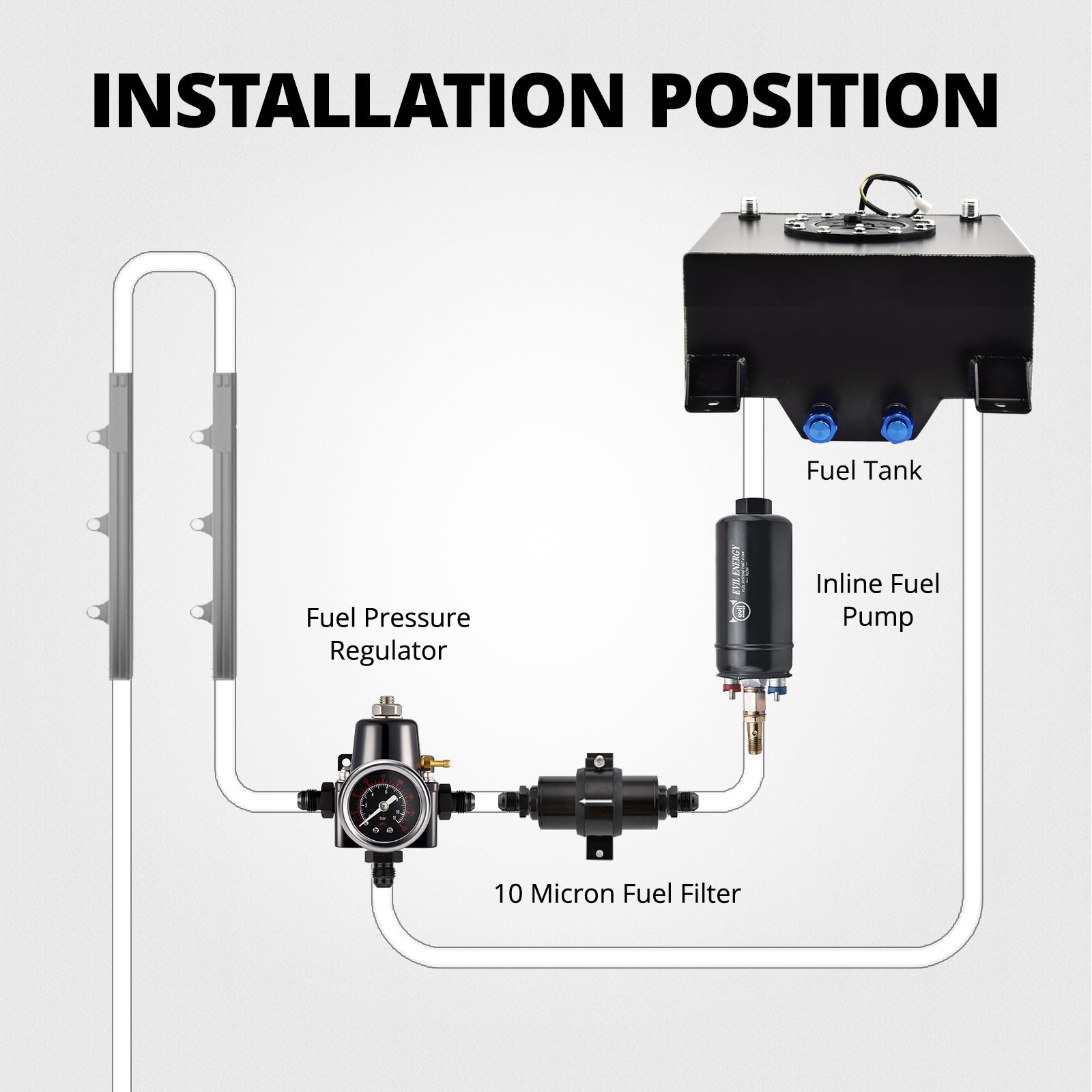

Q: Why must I install the external pump below the fuel tank?

A: For optimal performance, the 300LPH Inline Fuel Pump should be mounted below the tank to utilize gravity-fed delivery. This ensures the pump remains primed with fuel, preventing cavitation (air bubbles) and overheating, which significantly extends the life of your High Flow Fuel Pump.

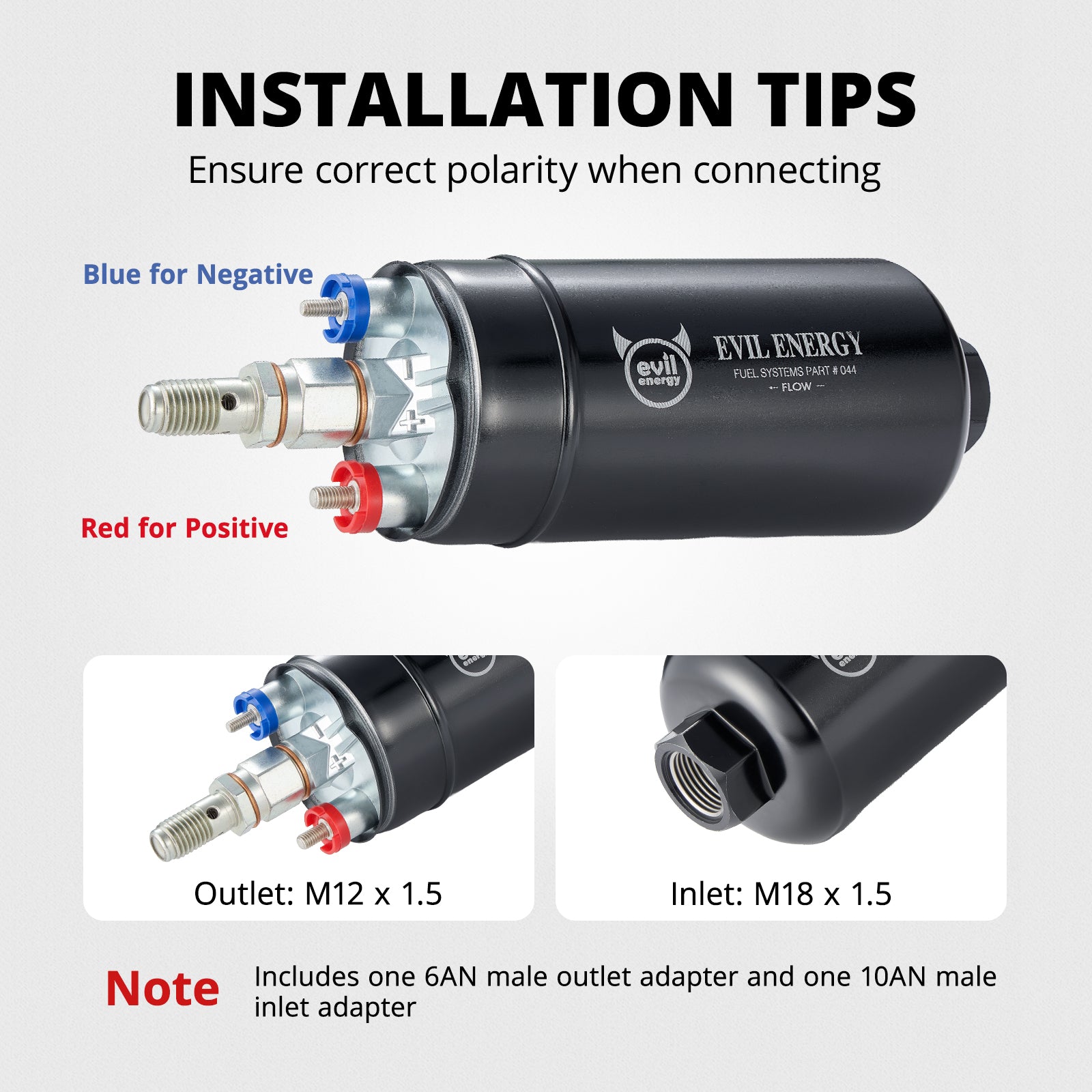

Q: Are there enough fittings included for a full setup?

A: Yes, this is a truly Complete Fuel Kit. We provide a comprehensive set of AN6 and AN10 fittings, including M12 and M18 to AN6 adapters specifically for the pump, as well as ORB plugs. Unless you have a highly custom fuel rail, you should have everything needed for a leak-free EFI Fuel System Upgrade Kit installation right out of the box.

Q: How to Adjust Your Bypass Fuel Regulator?

A: To adjust your Bypass Fuel Regulator, loosen the jam nut and turn the adjustment screw clockwise to increase or counter-clockwise to decrease pressure while the fuel pump is running. Crucially, you must disconnect and plug the vacuum line to set an accurate 'Base Pressure' before reconnecting it for normal operation.

If your pressure stays high despite adjustments, check for kinks or restrictions in the return line back to the tank. For higher performance needs (75-120 PSI), swap to the included heavy-duty spring, ensuring the internal diaphragm is perfectly seated. Always finish by tightening the jam nut and performing a leak test on all AN6 and AN10 fittings under pressure.

Q: What happens if I have trouble adjusting the pressure after installation?

A: EVIL ENERGY stands by its products with a 1-year warranty. We also offer a 90-day hassle-free return policy for unused items. If you encounter any technical hurdles while setting up your Universal EFI Fuel Kit, our support team is available at support@ievilenergy.com to guide you through the tuning process.
