EVIL ENERGY Fuel System Filtration & Delivery Bundle - 300LPH Inline Fuel Pump + Inline Fuel Filter 10/30/40/100 Micron)

EVIL ENERGY 300LPH Fuel Pump and Filter Kit

Fuel starvation, unstable pressure, pump noise, and repeated fitting changes can occur when an EFI pump and filter are selected separately. This EVIL ENERGY fuel pump and filter kit combines a 300LPH external inline pump with a selectable 10, 30, 40, or 100-micron fuel filter. It is designed for experienced DIY builders and professional installers working on compatible 12V EFI conversions, engine swaps, custom fuel cells, modified street cars, and performance fuel-system projects.

The package helps simplify pump and filter selection, but it is not a complete vehicle-specific fuel system. Confirm pump flow at operating pressure, filter position, fitting size, fuel compatibility, wiring capacity, and mounting space before ordering.

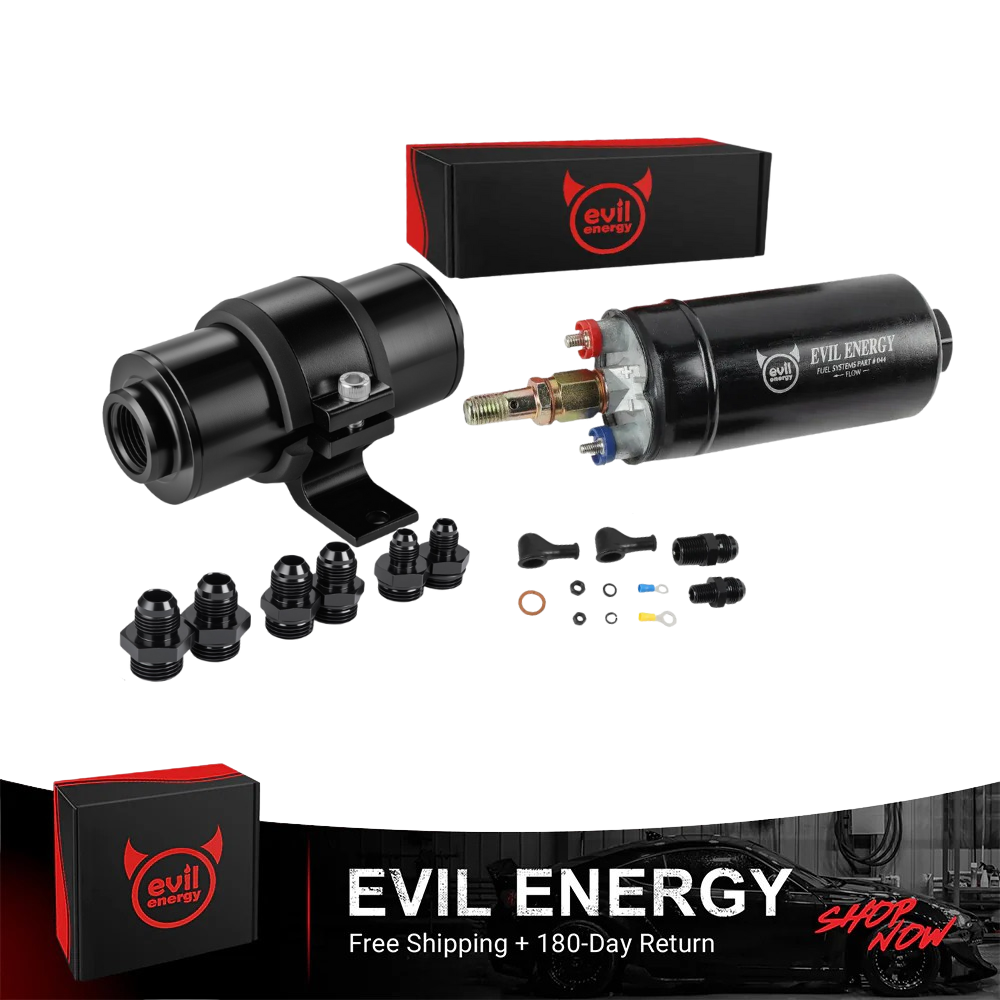

What Is Included?

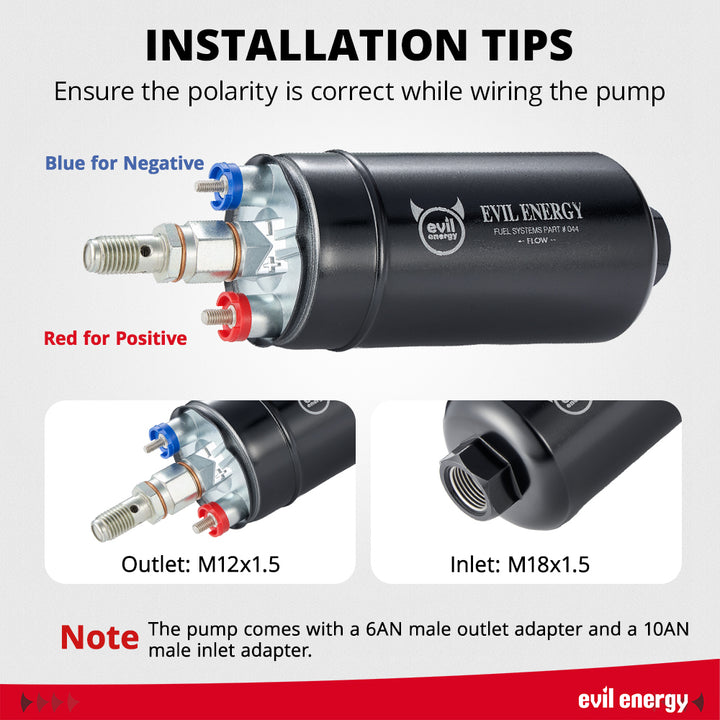

• EVIL ENERGY 300LPH Fuel Pump: One external inline EFI fuel pump with the pump fittings listed in the Specifications section.

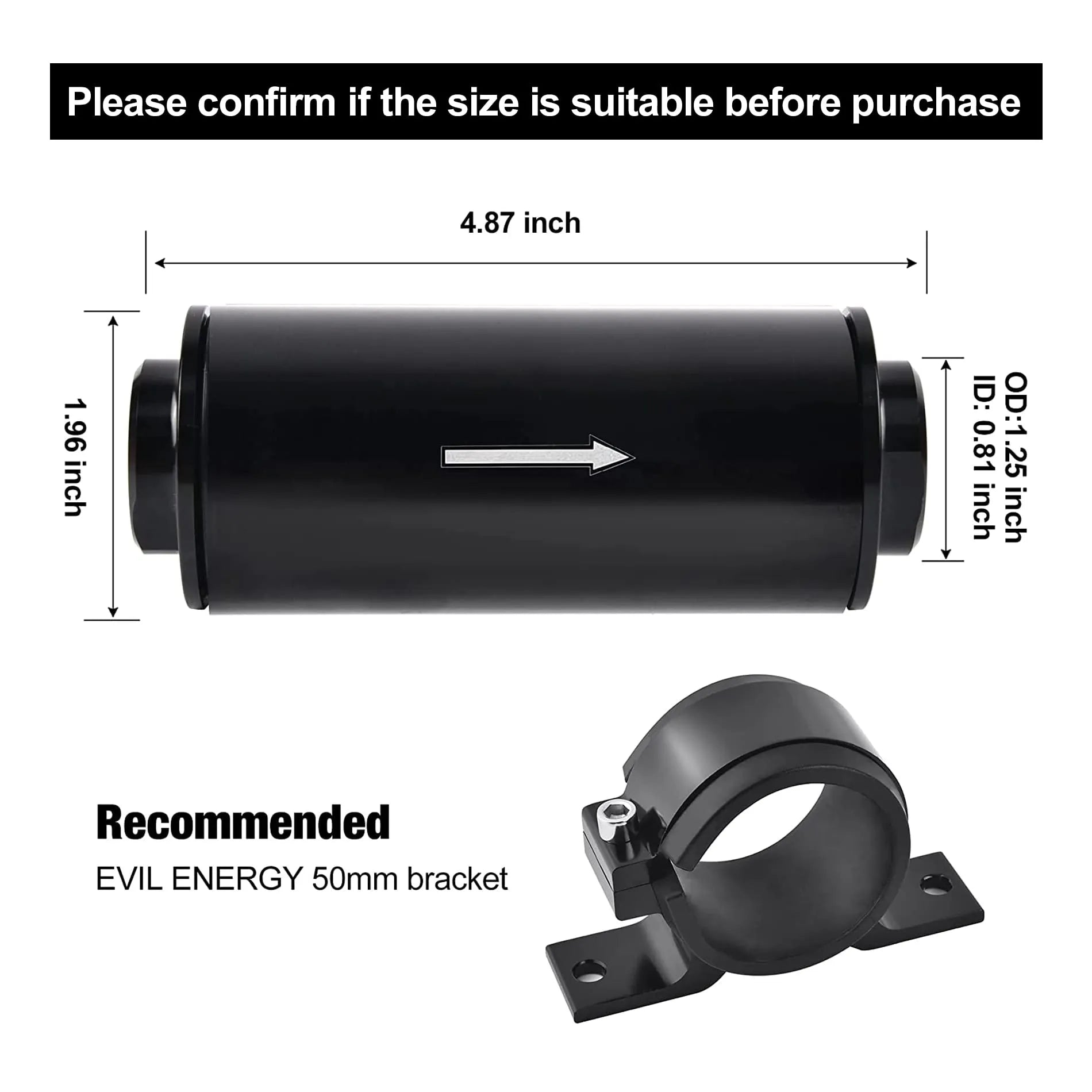

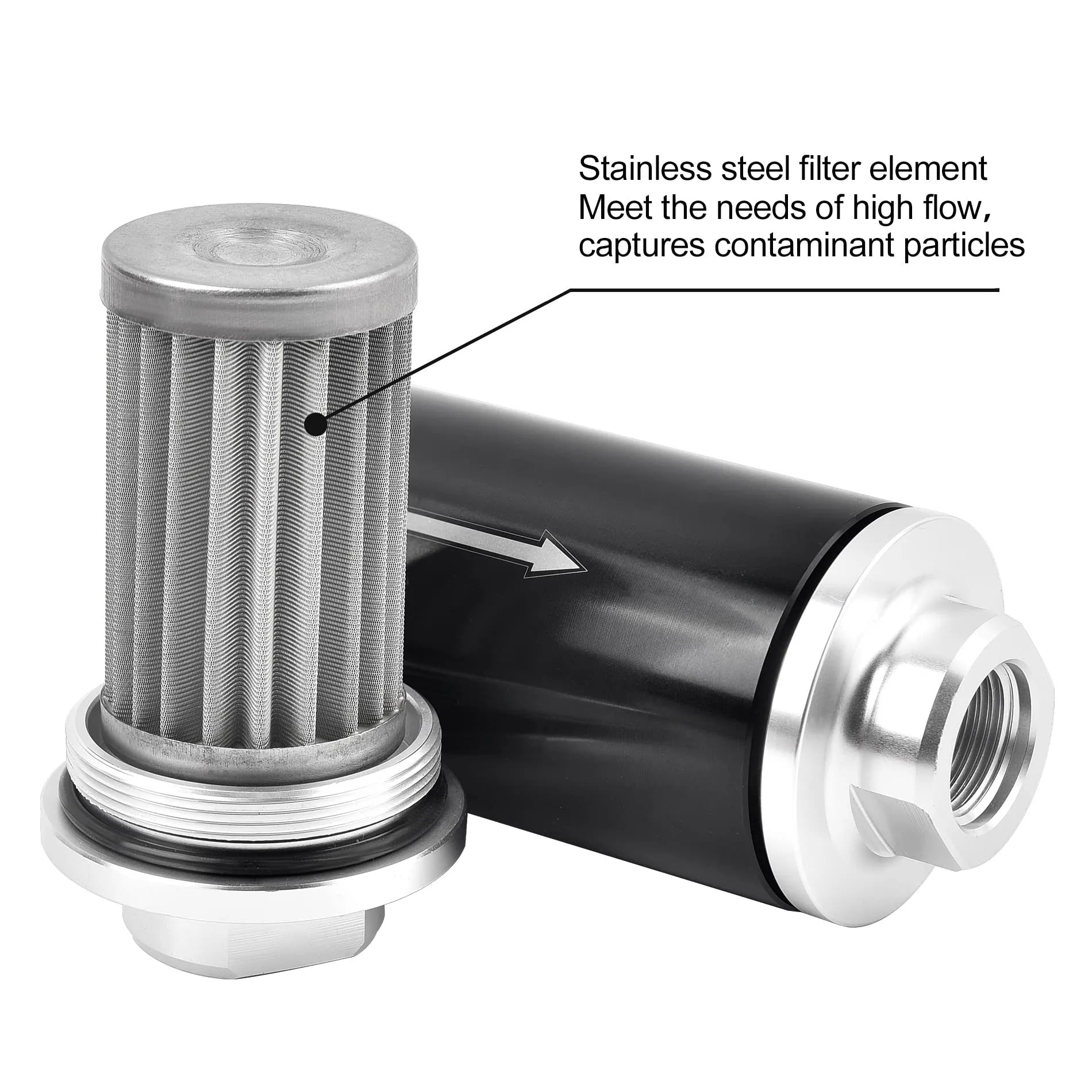

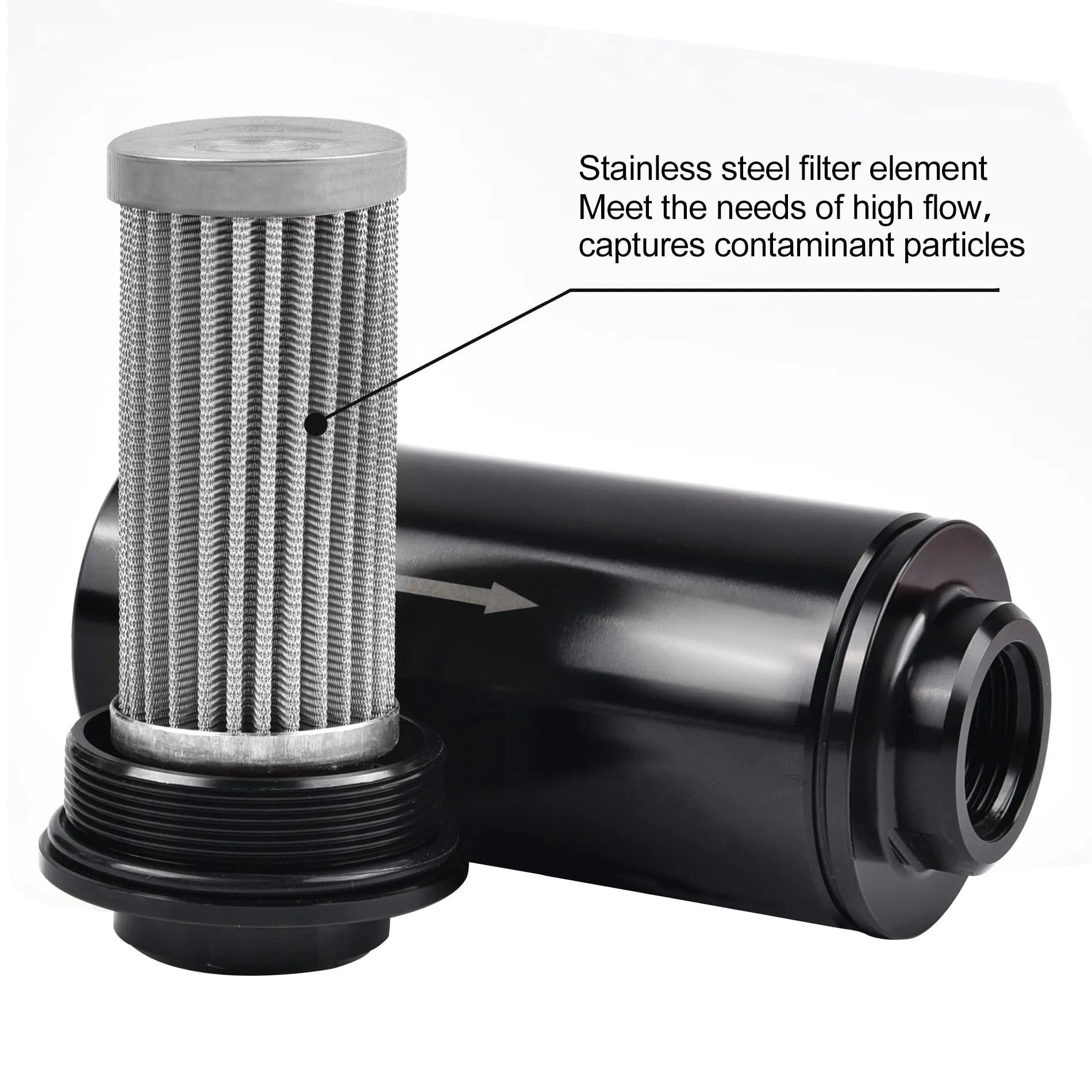

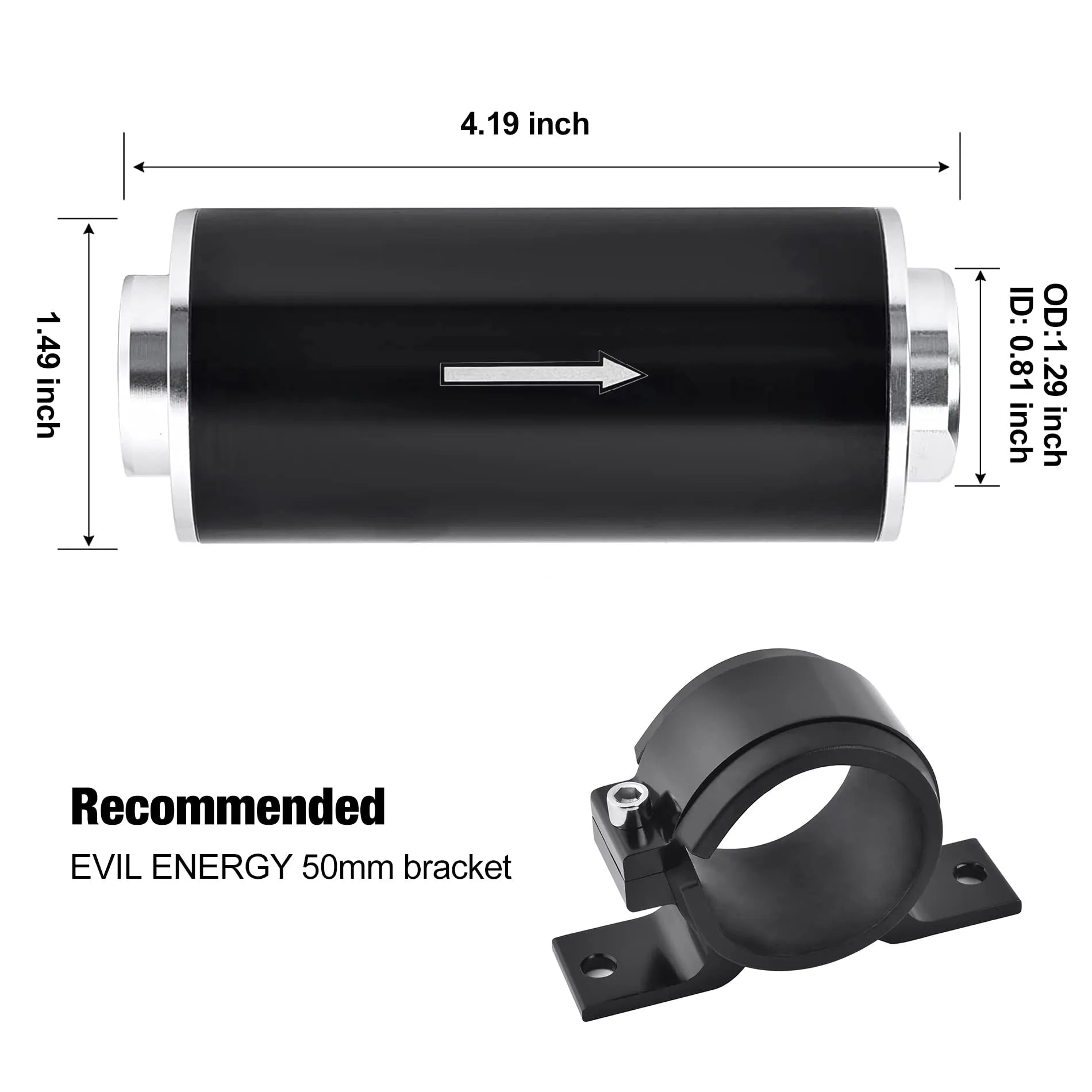

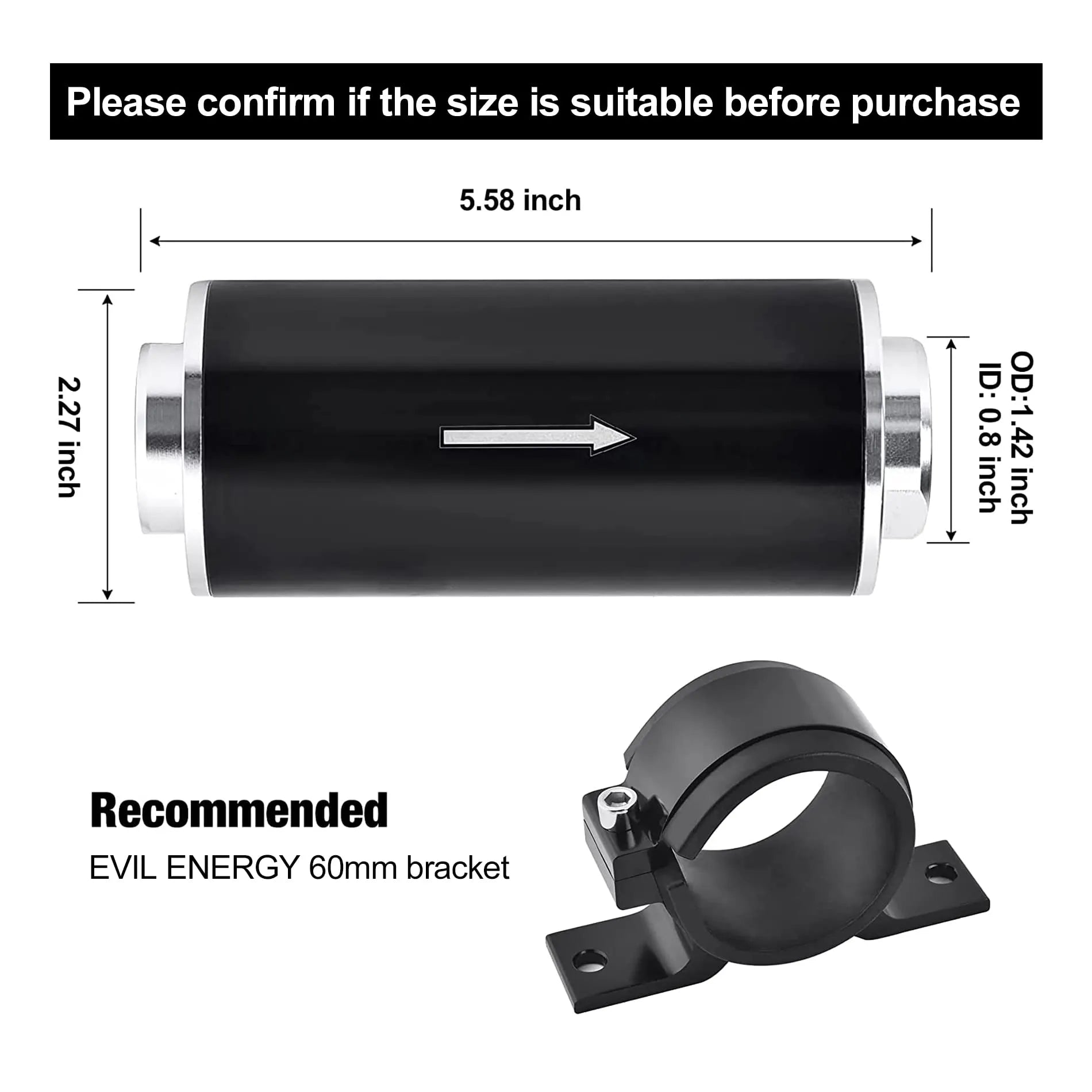

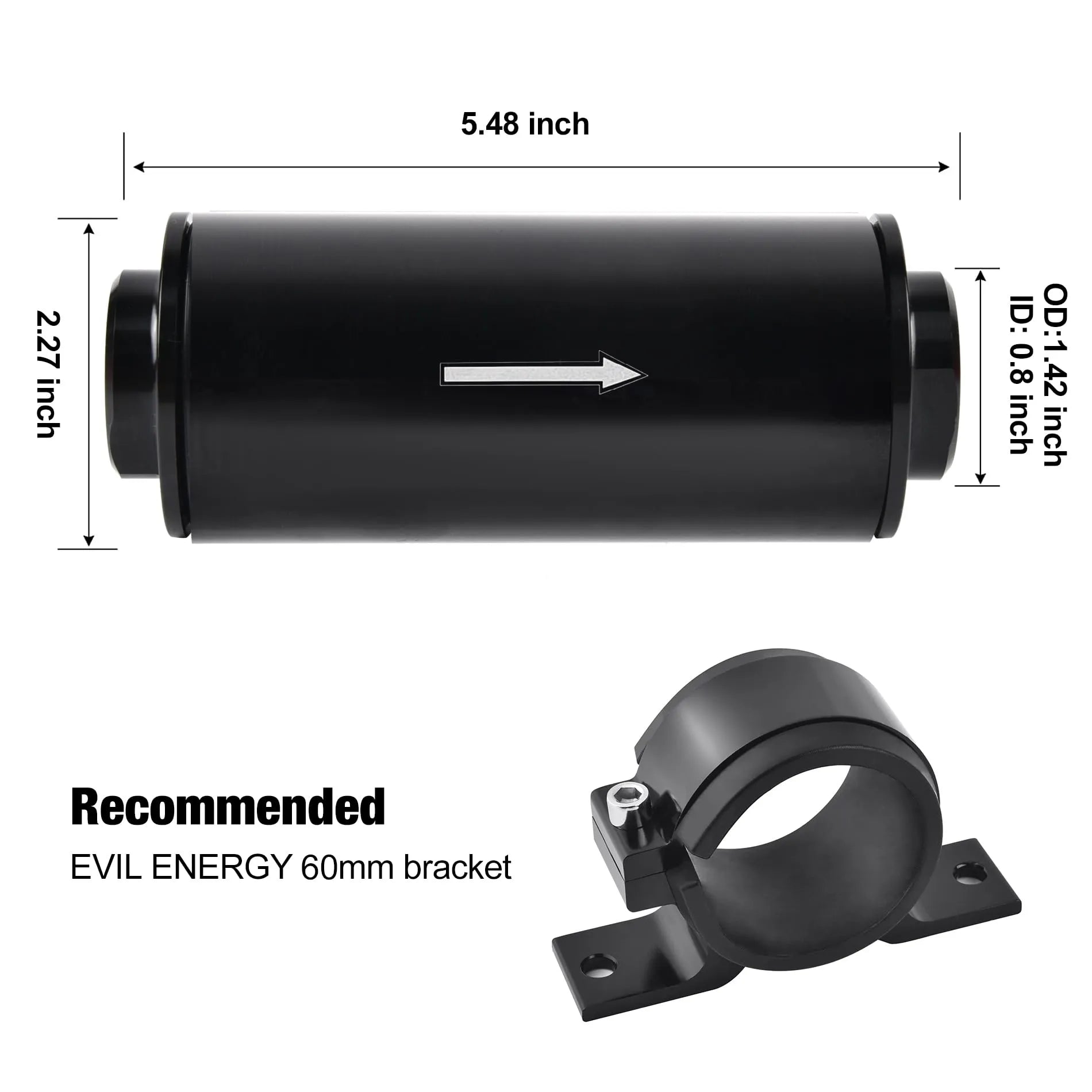

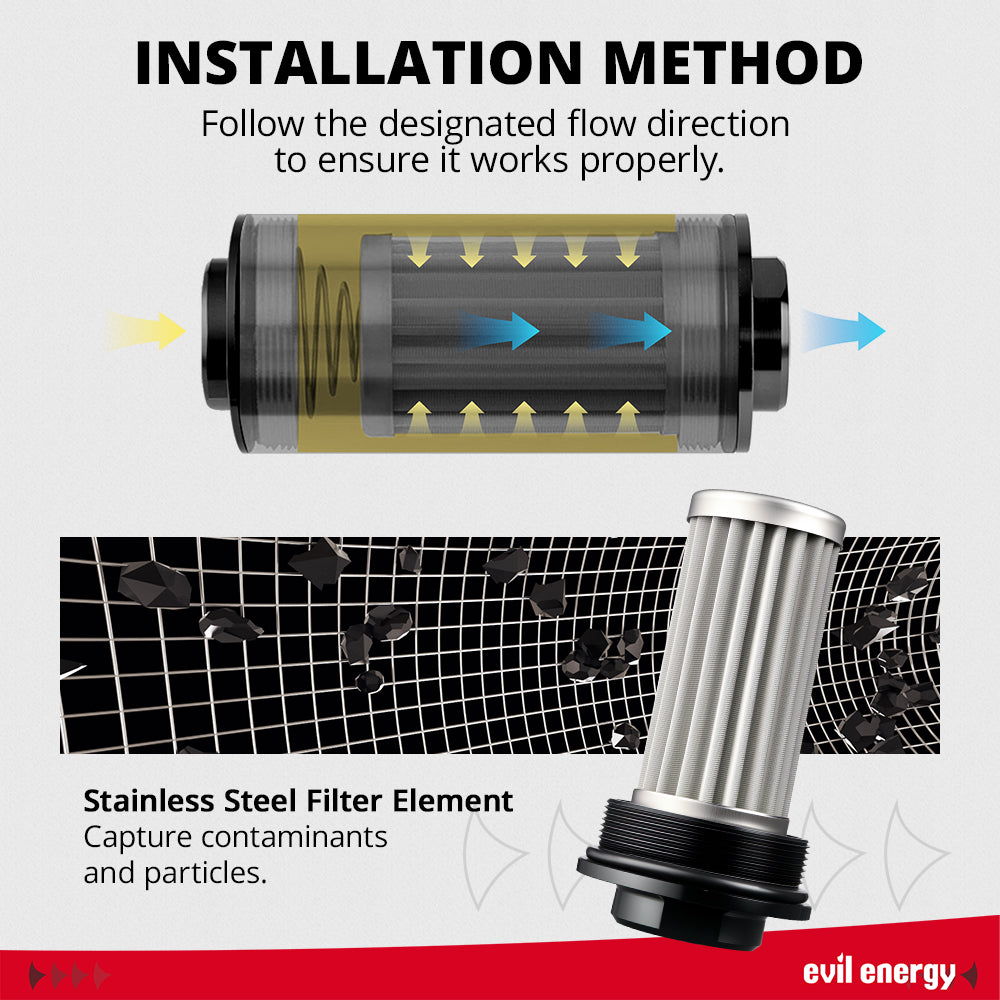

• Selectable Inline Fuel Filter: Choose a 10, 30, 40, or 100-micron stainless steel element inside a serviceable aluminum housing.

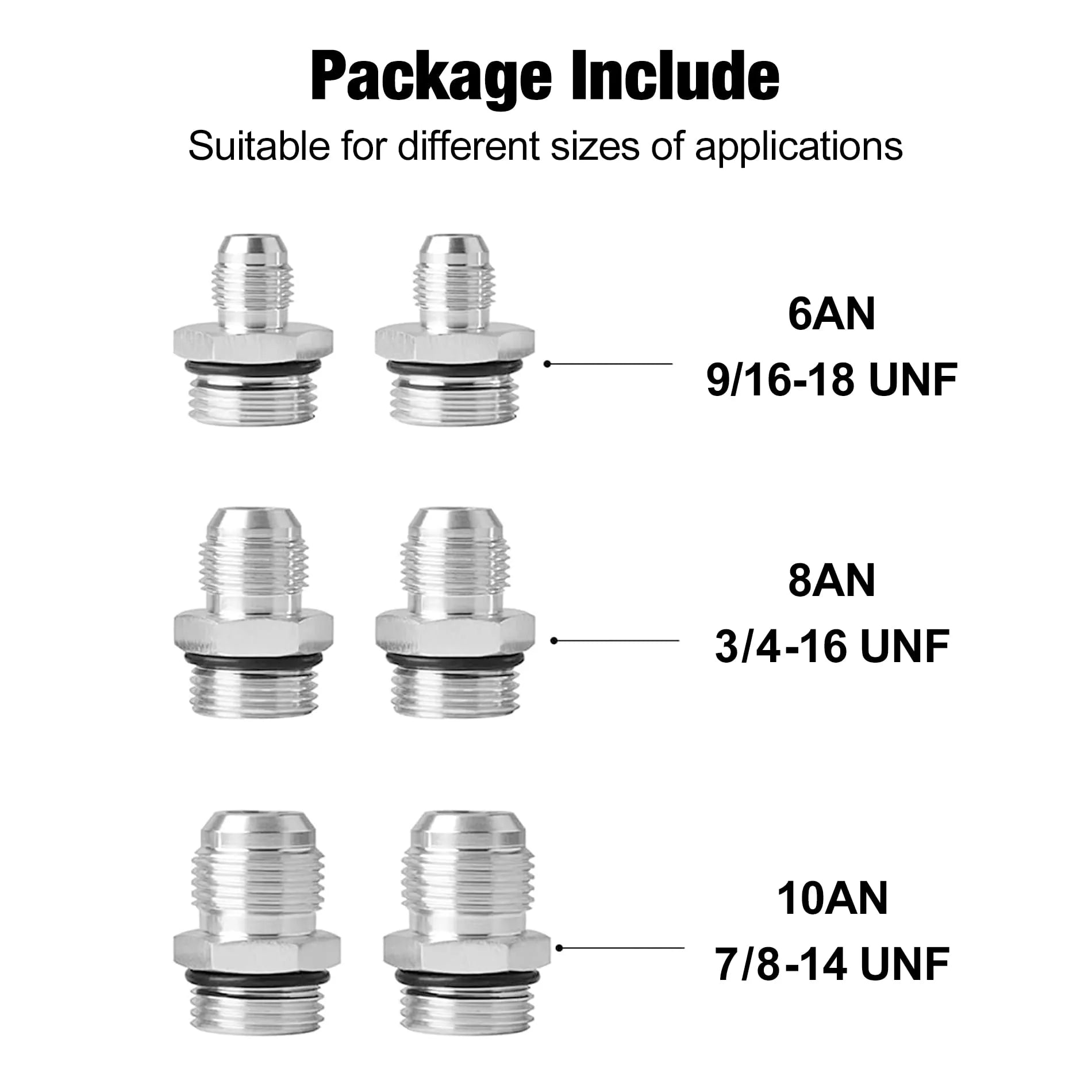

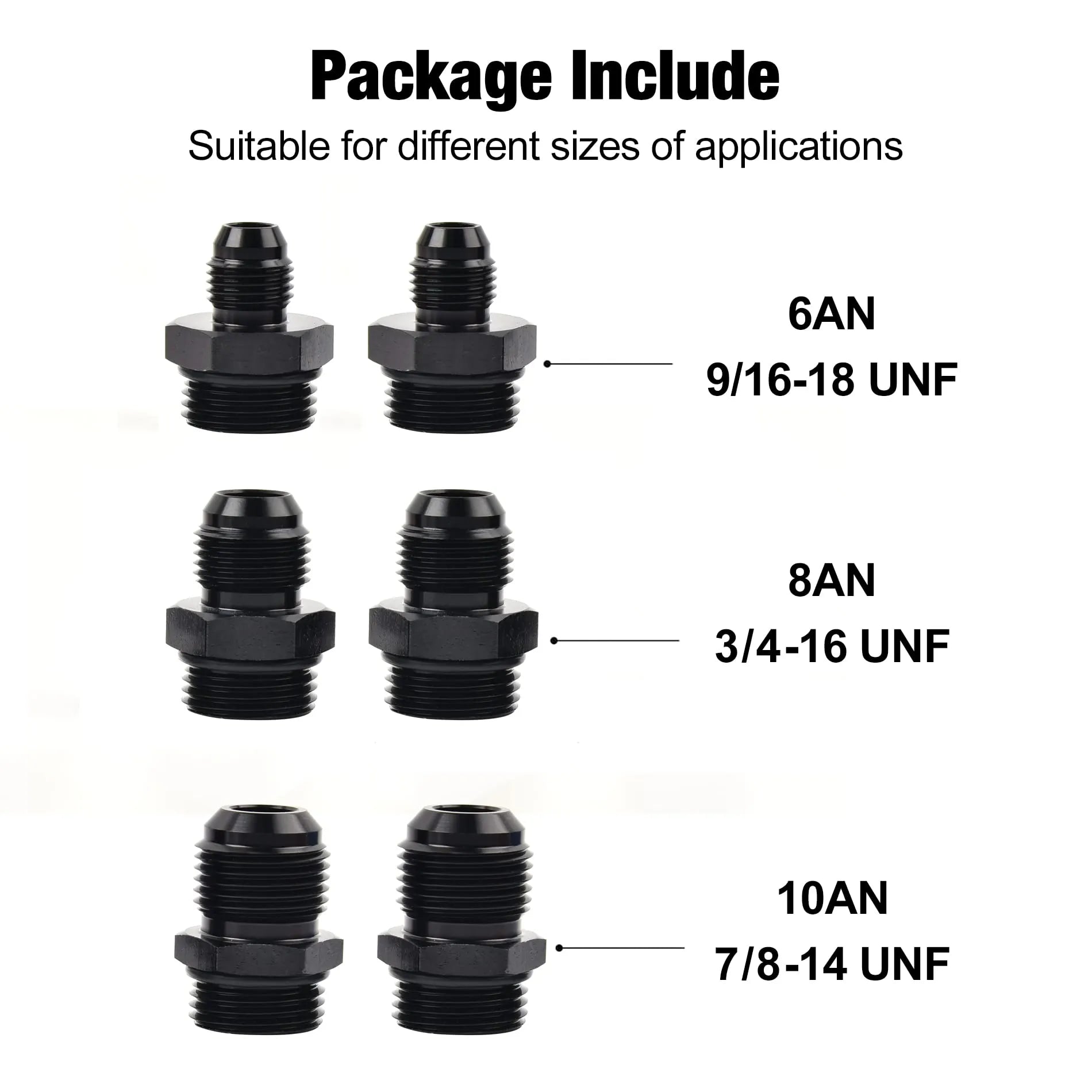

• Filter Adapters: The selected filter includes the applicable adapter configuration shown for that variant.

Product images may show multiple filter or fitting options together. Review the selected variant and Specifications section before checkout.

300LPH External Fuel Pump for EFI Systems

The EVIL ENERGY 300LPH fuel pump is an external fuel pump for fuel injection in compatible 12V EFI systems. It is suitable for externally mounted fuel-system layouts, including engine swaps, EFI conversions, custom fuel cells, and modified vehicles.

• 300 LPH at 43 PSI and 13.5V
• 255 LPH at 43 PSI and 12V
• 200 LPH at 75 PSI and 12V

The 300LPH rating does not represent flow at every pressure. Actual fuel delivery changes with operating pressure, voltage, wiring, line size, fittings, regulator design, and filter restriction.

Need the pump only? View the EVIL ENERGY 300LPH external inline fuel pump .

Which Fuel Filter Should You Choose?

The included fuel filter for electric fuel pump applications should be selected according to its position in the fuel system, expected flow, and acceptable pressure drop.

• 100 Micron: Commonly considered for coarse filtration before an external pump.
• 10 Micron: Commonly considered for fine filtration after the pump in compatible EFI systems.
• 30 or 40 Micron: Intermediate filtration options for compatible custom fuel systems.

A smaller micron number is not automatically better. A restrictive fine filter installed before the pump may reduce inlet fuel supply and contribute to pump noise, cavitation, pressure loss, or reduced flow.

Need the filter only? View the EVIL ENERGY inline fuel filter .

Recommended Fuel-System Layout

A commonly used layout for an external EFI fuel pump is:

Fuel tank or fuel cell → coarse pre-pump filter → 300LPH fuel pump → fine post-pump filter → regulator or fuel rail

A 100-micron filter is commonly considered for coarse pre-pump filtration, while a 10-micron filter is commonly considered for fine post-pump EFI filtration. A complete two-stage system requires two separate filters.

Check Before Ordering

• Confirm that the vehicle uses a compatible 12V EFI system.
• Check required pump flow at the intended operating pressure.
• Confirm pump fittings, fuel-line size, and regulator layout.
• Select the filter according to its intended installation position.
• Confirm fuel compatibility for the pump, filter, hose, seals, and fittings.
• Check available mounting space near the fuel tank.

Parts You May Still Need

• Fuel pressure regulator
• Supply and return fuel lines
• Fuel-pump relay, fuse, wiring, and terminals
• Additional hose ends or adapters
• A second filter for complete coarse and fine filtration
• Vehicle-specific mounting hardware

This fuel pump kit is a suitable option for users building a compatible external EFI fuel system and selecting their own filtration grade. It may not be suitable for vehicles requiring a direct-fit in-tank pump module or a complete bolt-on fuel system.
