EVIL ENERGY Intank Electric Fuel Pump Kit E2157 Compatible with Ford Explorer Escape Lincoln Continental

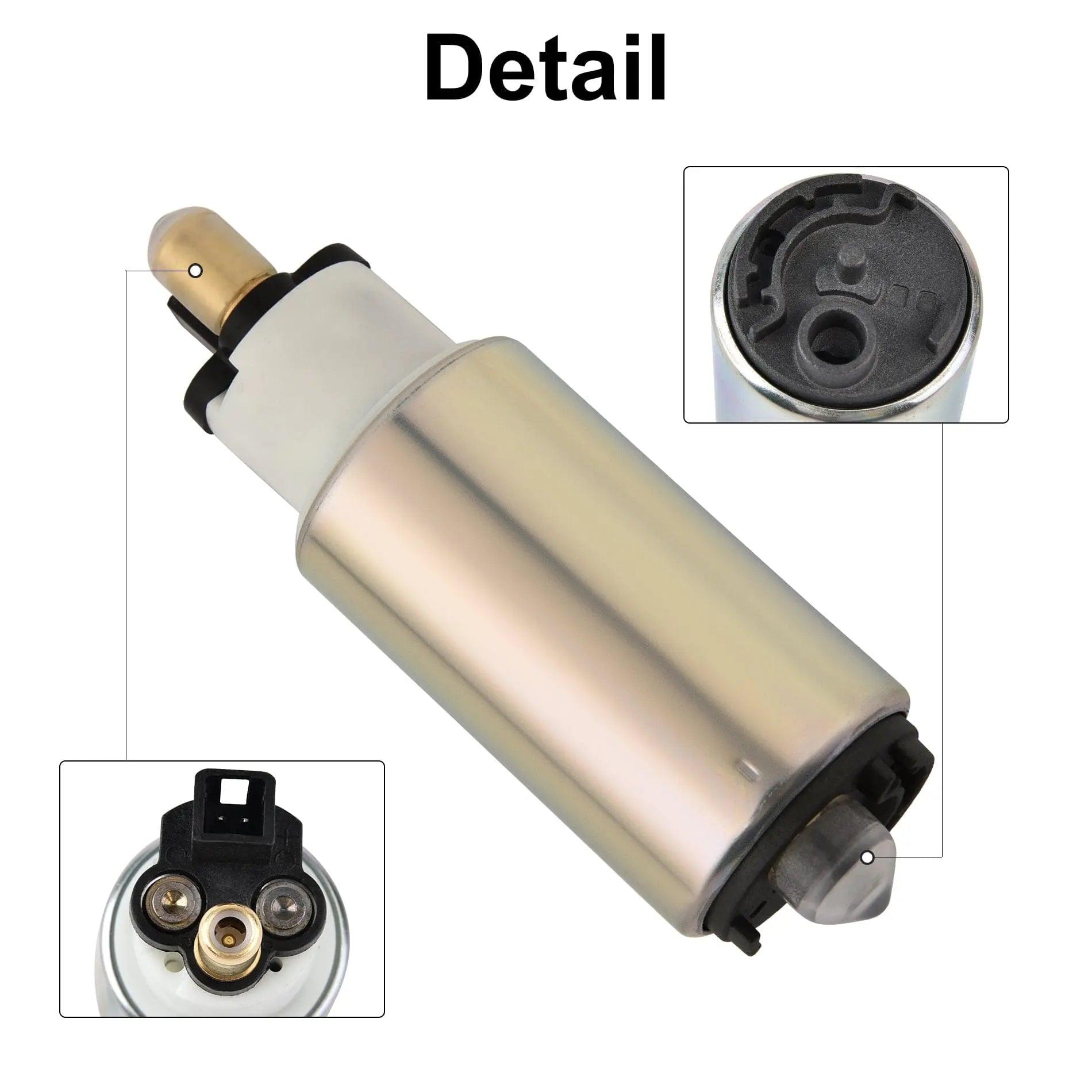

EVIL ENERGY E2157 110LPH In-Tank Fuel Pump

Long cranking, hesitation under load, random stalling, or low fuel pressure may indicate a worn pump, although wiring faults, a restricted strainer, and tank contamination can cause similar symptoms. This EVIL ENERGY E2157 110LPH in tank fuel pump is intended for compatible gasoline EFI repairs in selected Ford and Lincoln vehicles. It is designed for vehicle owners, experienced DIY users, and technicians replacing the pump motor inside an existing hanger or module after confirming the original configuration.

Confirm the Vehicle, Engine, and Pump Module

When comparing a Ford Explorer fuel pump or Ford Escape fuel pump, do not order by vehicle name or model year alone. Different engines, tanks, connectors, and pump modules may be used within the same production range.

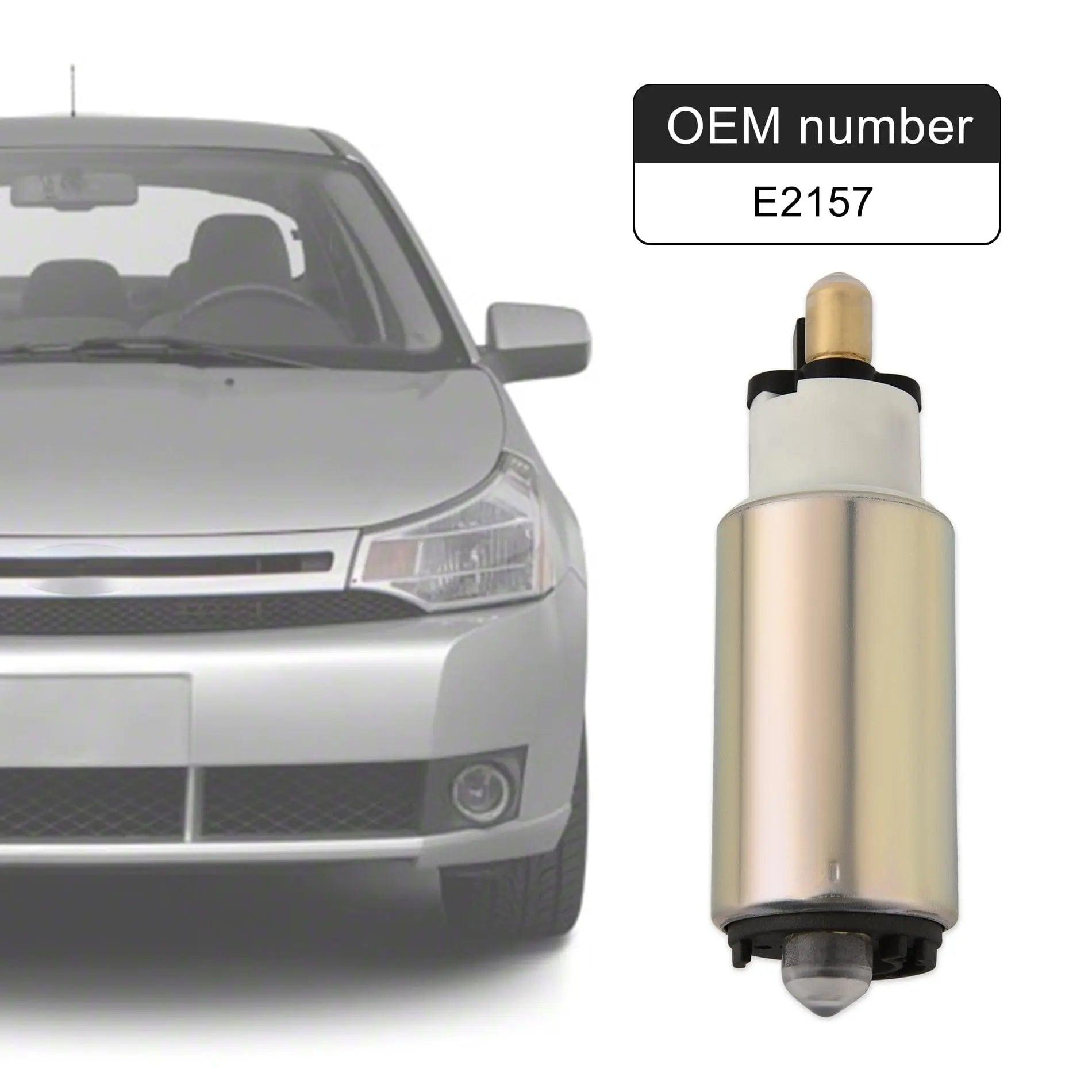

• Confirm that the original pump cross-references to E2157.

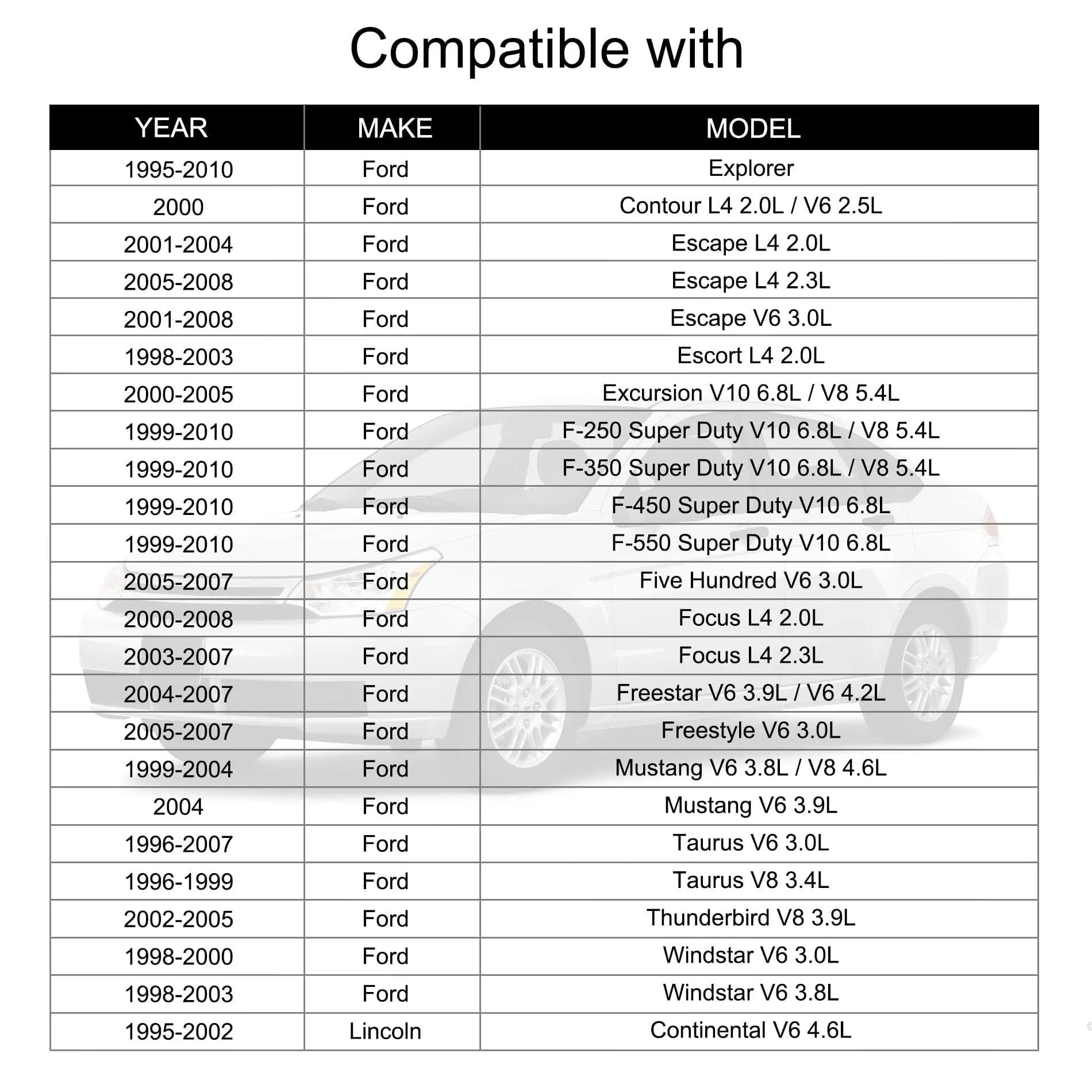

• Match the vehicle year and engine shown in the compatibility table.

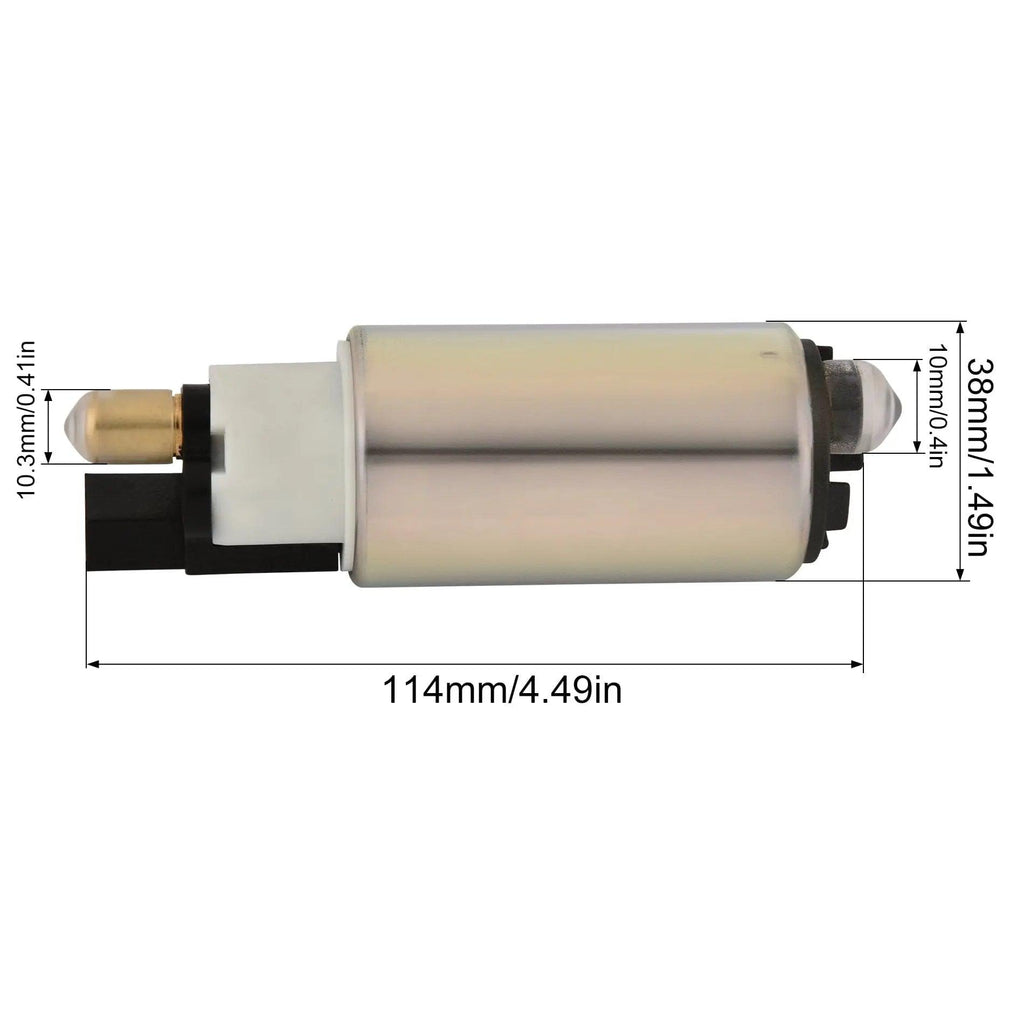

• Compare the replacement pump body and total installation depth.
• Check the outlet connection and supplied short hose.
• Verify the electrical connector and wiring polarity.
• Confirm the hanger sleeve and anti-vibration supports.
• Match the strainer shape, angle, and fuel-pickup position.

110LPH Fuel Delivery at the Published Pressure

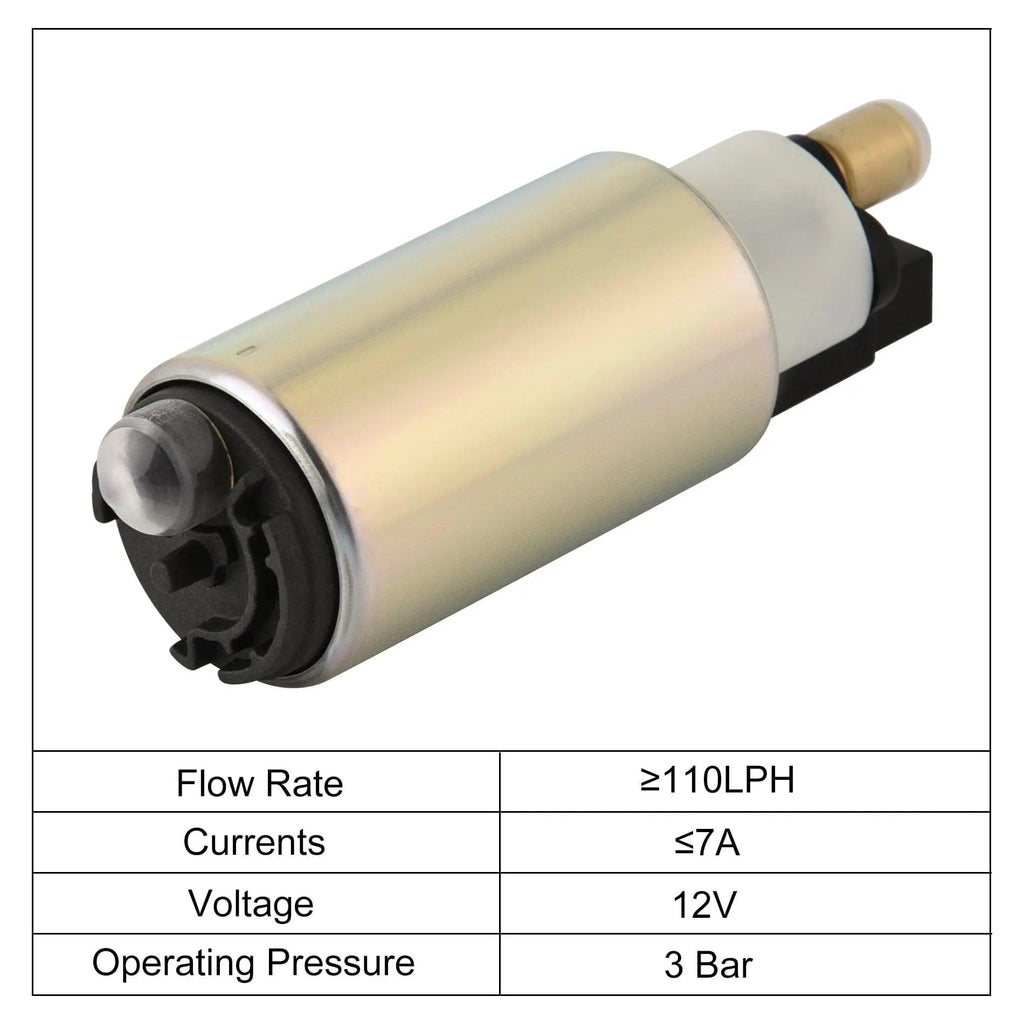

The electric in tank fuel pump is rated for at least 110 LPH at approximately 43.5 PSI and 12V, with a published current draw of 7.0A or less. This automotive fuel pump is intended for compatible replacement applications that match the original system pressure and fuel demand.

The 110LPH rating does not guarantee fitment or increase engine output. Actual delivery may be affected by voltage at the pump, wiring resistance, connector condition, a restricted strainer or filter, regulator operation, tank contamination, and fuel-line condition.

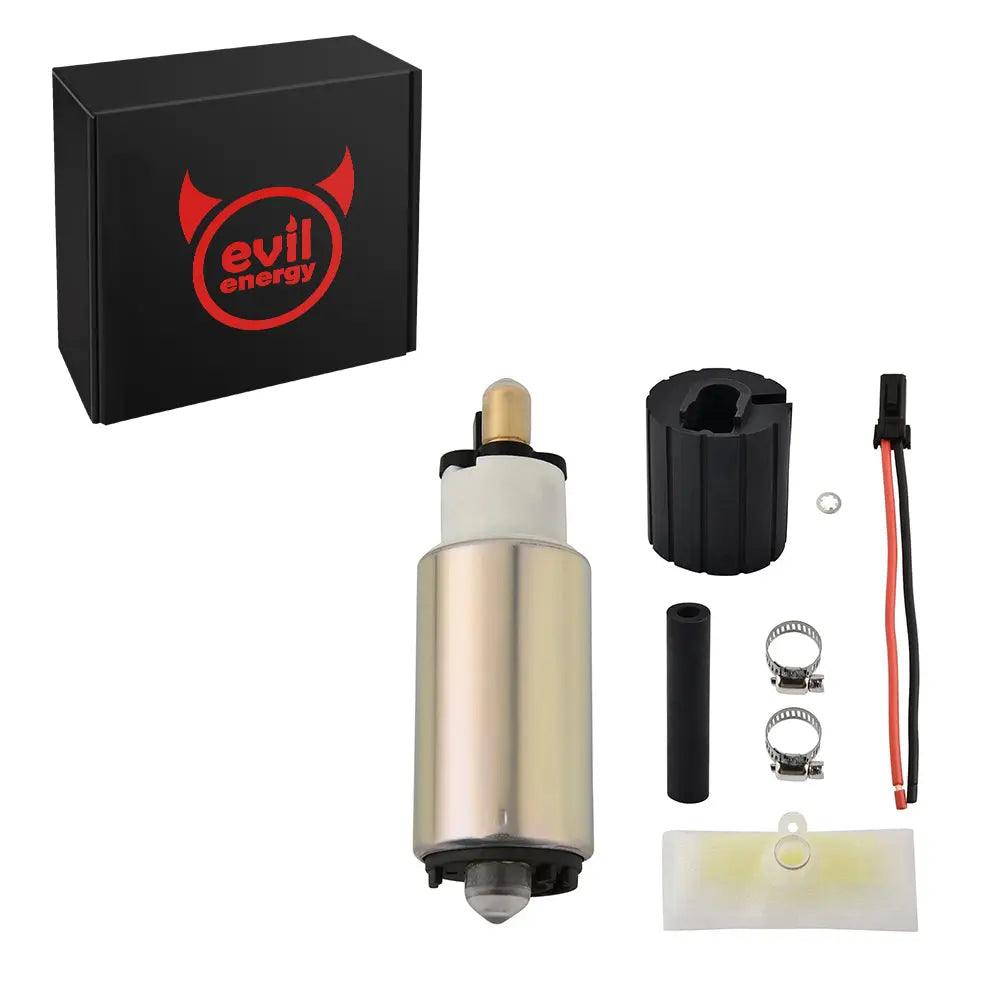

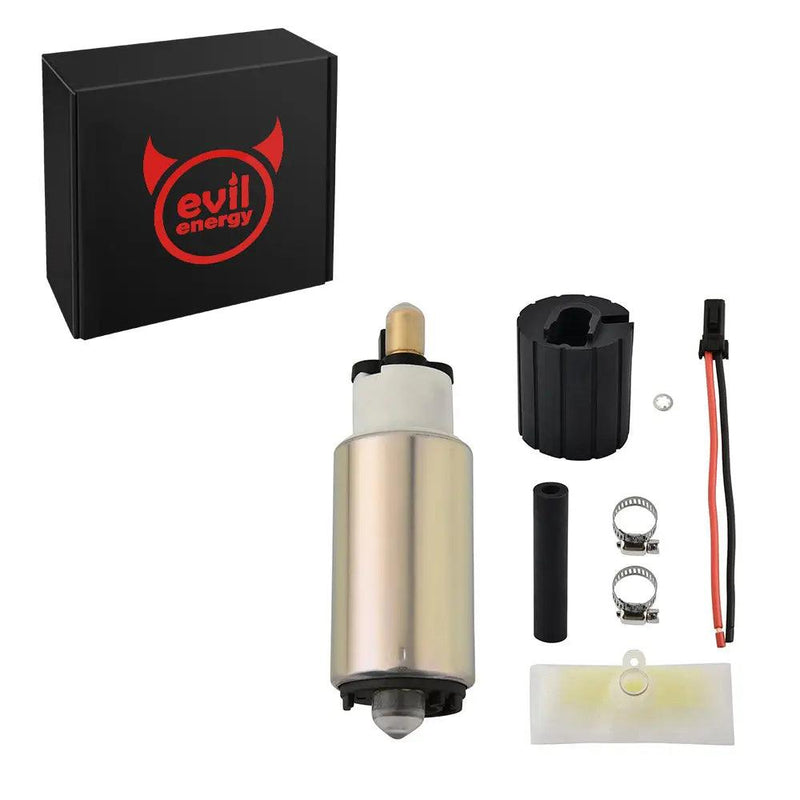

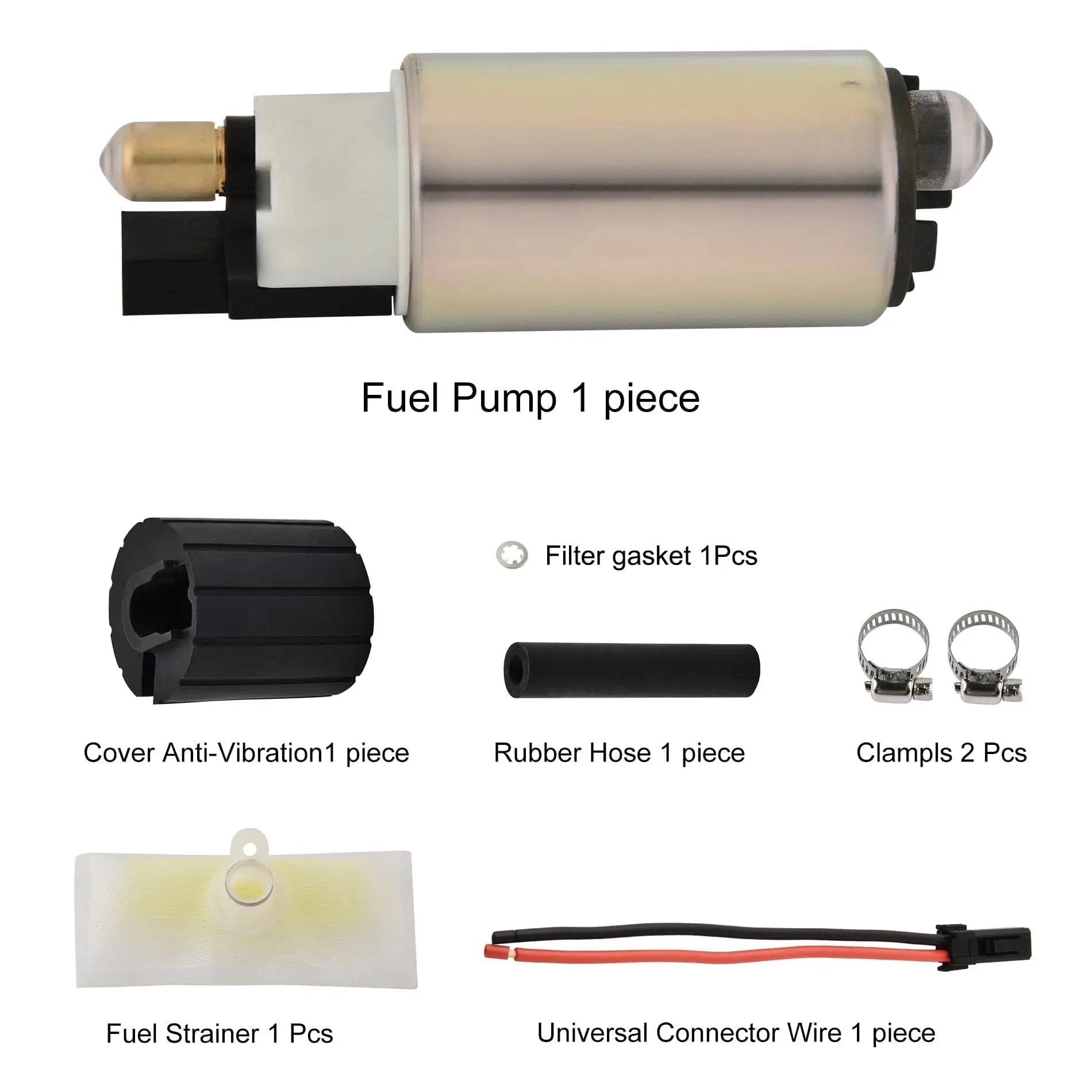

Fuel Pump and Strainer Installation Package

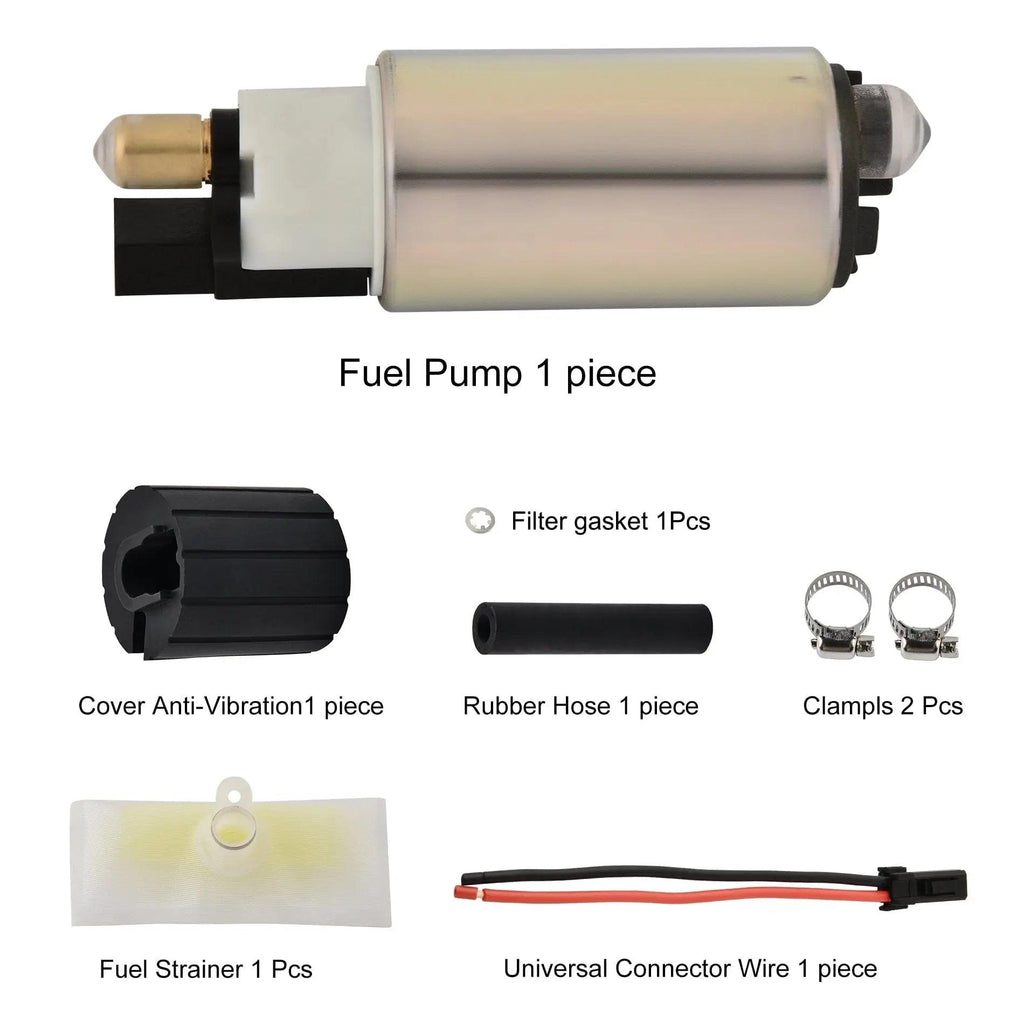

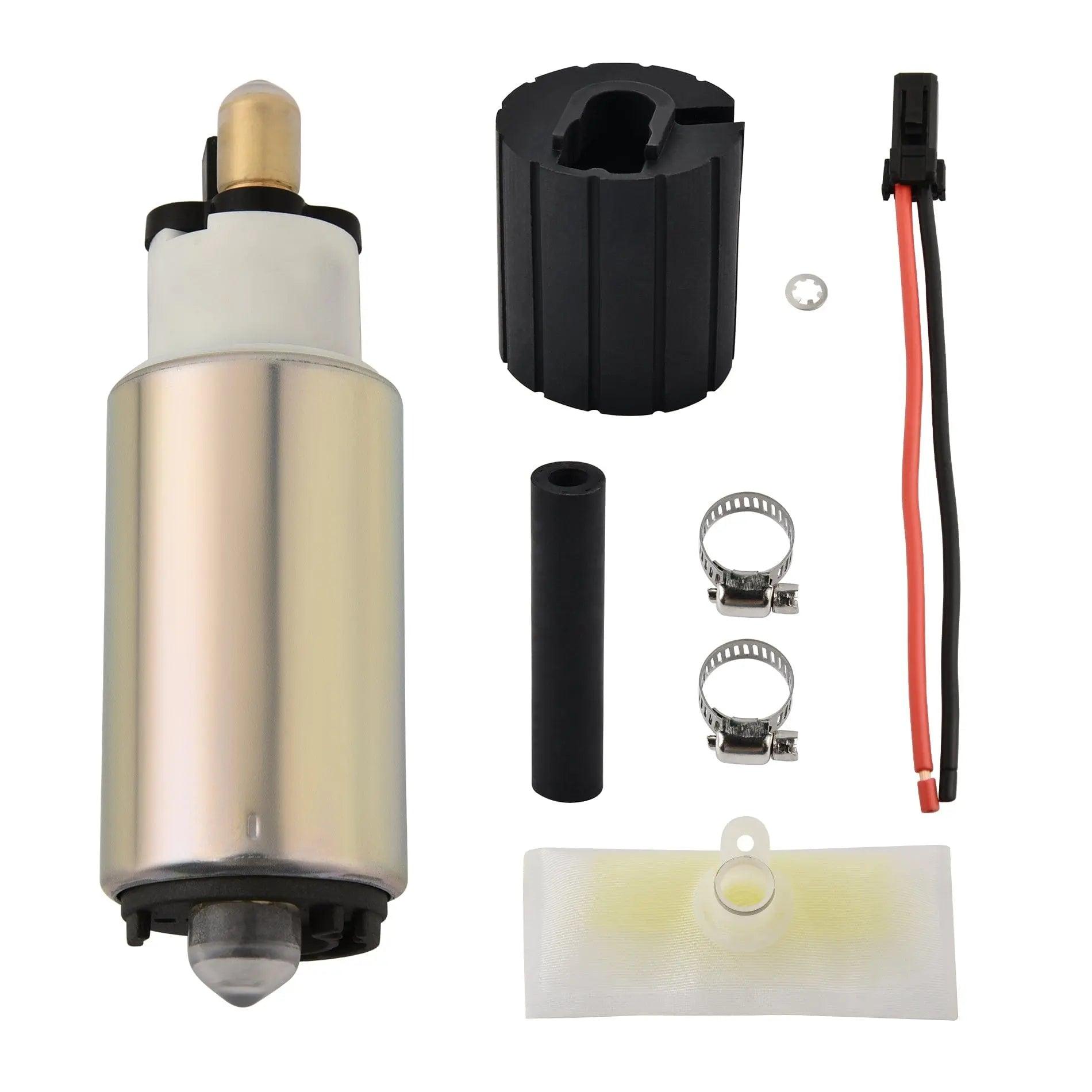

The fuel pump and strainer package includes the pump, multiple strainer styles, connector pigtail, short hose, clamps, anti-vibration components, and retaining hardware. Select the strainer and support pieces that match the original hanger and pickup orientation rather than installing every supplied part.

Check the Fuel Tank and Electrical System

• Test the relay, fuse, connector, wiring, ground, fuel pressure, and flow before confirming that the original pump has failed.
• Disconnect the battery and relieve fuel-system pressure before opening the tank or fuel line.
• Inspect the tank for rust, dirt, water, or other contamination.
• Clean the tank before installation when contamination is found.
• Replace damaged connection hoses, clamps, seals, connectors, or hanger components.
• Confirm wiring polarity before energizing the replacement pump.
• Avoid repeatedly operating the vehicle with the fuel level extremely low, because fuel around an in-tank pump assists with cooling and stable pickup.
• When the fuel tank must be lowered, support the vehicle with correctly rated jack stands and use suitable fuel-tank support equipment.

Is This Fuel Pump Replacement Kit Right for Your Repair?

This fuel pump replacement kit may be suitable when:

• The original pump cross-references to E2157.
• The vehicle and engine match the published compatibility information.
• The vehicle uses a compatible 12V gasoline EFI system.
• The original system operates near the published 3-bar pressure.
• The pump, outlet, connector, hanger, and strainer position match.
• You need a pump-motor kit rather than a complete module assembly.

Choose another product when:

• You need a complete module with housing and fuel-level sender.
• The original pump does not cross-reference to E2157.
• The vehicle uses a different pressure, connector, outlet, or pump size.
• The intended fuel contains methanol or has not been verified as compatible.
• You cannot confirm the original pump and module configuration.
