EVIL ENERGY 500 CFM 2-Barrel Carburetor Fuel System Upgrade Bundle

About this item

Hard starts, flooding after hot soaks, and throttle response that changes with RPM — these aren't carburetor problems, they're fuel system problems. The EVIL ENERGY 500 CFM 2-barrel carburetor fuel system upgrade bundle replaces the entire fuel delivery chain: a street-proven carburetor, a steady-flow 12V electric fuel pump, and a precision adjustable pressure regulator — all matched to work together in one box.

Key Features of the Carburetor Fuel System Upgrade Bundle

• Complete Fuel System, One Box: No compatibility guesswork. The fuel pump, regulator, and carburetor are matched for flow rate and pressure range — included adapters cover the most common fuel line sizes. See all EVIL ENERGY carburetor options.
• Electric Fuel Pump — Steady Flow at Any RPM: Unlike mechanical pumps that vary pressure with engine speed, the 12V gear pump delivers consistent 345–370 LPH from idle to wide-open throttle. External mounting means no dropping the fuel tank.
• Pressure Regulator — Carburetor Protection: Electric pumps can output up to 14 PSI — far above what a carburetor float valve can handle. The adjustable regulator steps pressure down to a precise 4.5–9 PSI with an included gauge for real-time monitoring.

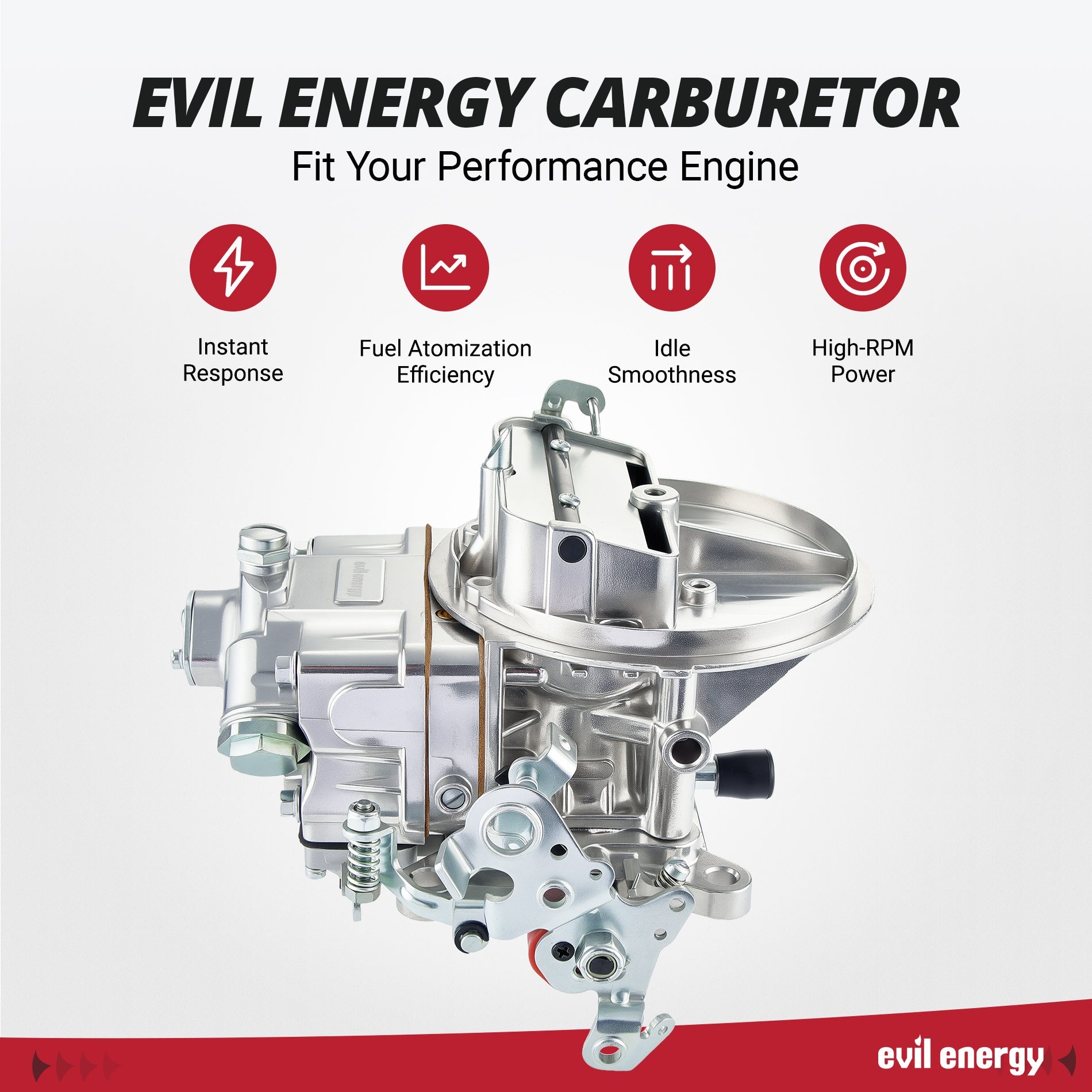

• 500 CFM Carburetor — Street-Proven Performance: Modeled after the Holley Street Avenger fuel metering system, this 2-barrel carburetor delivers improved low-end torque and crisp throttle response. Electric choke for reliable cold starts, 100% wet-flow tested and ready to run. View standalone carburetor.
• Carbureted Systems Only — Not for EFI: This bundle is designed exclusively for low-pressure carbureted fuel systems. Every component — pump pressure, regulator range, carburetor fuel inlet — is calibrated for carburetor operation, not EFI.

Why Upgrade the Entire Fuel System at Once?

A carburetor can only meter the fuel it receives. If the fuel pump is weak, pressure is unregulated, or lines are contaminated — the carburetor can't compensate. Upgrading all three components together eliminates the variables: steady volume from the pump, locked-in pressure from the regulator, and precise metering from the carburetor. The result is an engine that starts reliably, idles smoothly, and accelerates without hesitation.

500 CFM — The Right Size for Street Builds

A 500 CFM 2-barrel carburetor is the sweet spot for street-driven performance. It delivers quicker low-end torque (where you actually drive on the street), simpler tuning with fewer circuits to adjust, and better fuel economy than larger 4-barrel options. It's the right choice for small-block V8s, inline-6 performance builds, and anyone who drives their car more than they trailer it.

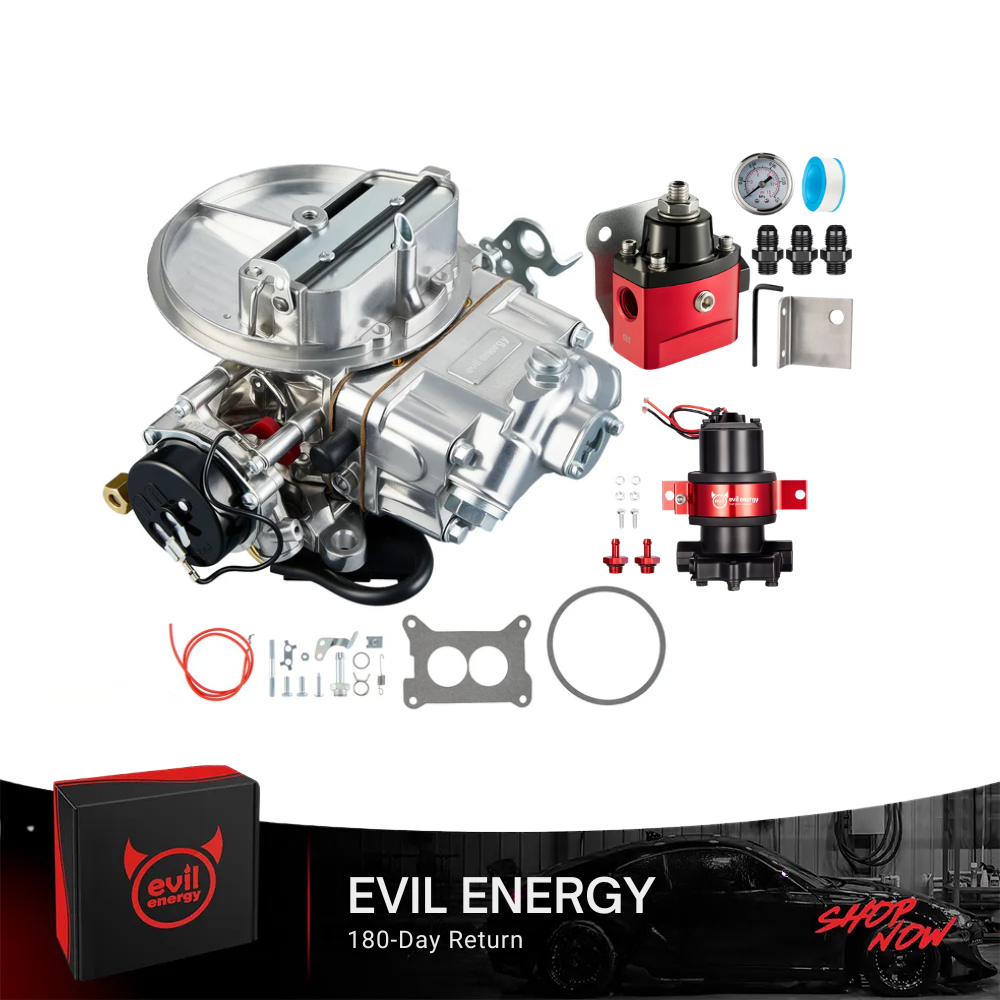

Package Contents

From the 500 CFM 2-Barrel Street Carburetor box:

• 1 × EVIL ENERGY 500 CFM 2-Barrel Street Carburetor (Electric Choke, Polished Aluminum)

Carburetor Emissions Note: This carburetor is intended for use on uncontrolled (non-emissions controlled) vehicles: 1965 and older U.S. manufactured California certified vehicles; 1967 and older U.S. manufactured federally certified vehicles; 1967 and older foreign manufactured vehicles. Not for use on boats or speed changers.

From the 12V Electric Fuel Pump box:

• 1 × 12V External Electric Fuel Pump (Aluminum, Gear-Type)
• 2 × 3/8 NPSF to 5/16" Barb Adapters (Red)
• 2 × Insulated Terminals
• 2 × Mounting Nuts
• 2 × Mounting Washer

Fuel Pump Note: This is a low-pressure fuel pump for carbureted systems ONLY. It is NOT suitable for high-pressure EFI systems. A fuel pressure regulator is strongly recommended to prevent carburetor flooding.

From the Adjustable Fuel Pressure Regulator (5–12 PSI) box:

• 1x Fuel Pressure Regulator
• 1x Pressure Gauge (5-12 PSI)
• 1x Mounting Bracket

• 3x 6AN to 6AN ORB Fittings
• 1x Allen Key + Sealant Tape
• All Required Screws (Self-tapping & Cheese Head)

Regulator Note: This regulator is designed exclusively for low-pressure carburetor applications. It is NOT a bypass return-style regulator for EFI systems. CPE/nylon braided fuel lines are NOT compatible with E85 fuel — use PTFE-lined hose for E85 applications.

Why Choose the EVIL ENERGY Carburetor Fuel System Upgrade Bundle?

• Matched as a System, Not Just Sold as a Bundle: Each component is selected to work with the others — the fuel pump's flow rate matches the regulator's pressure range, and the carburetor's fuel inlet is compatible with the regulator's outlet size. No compatibility guesswork.

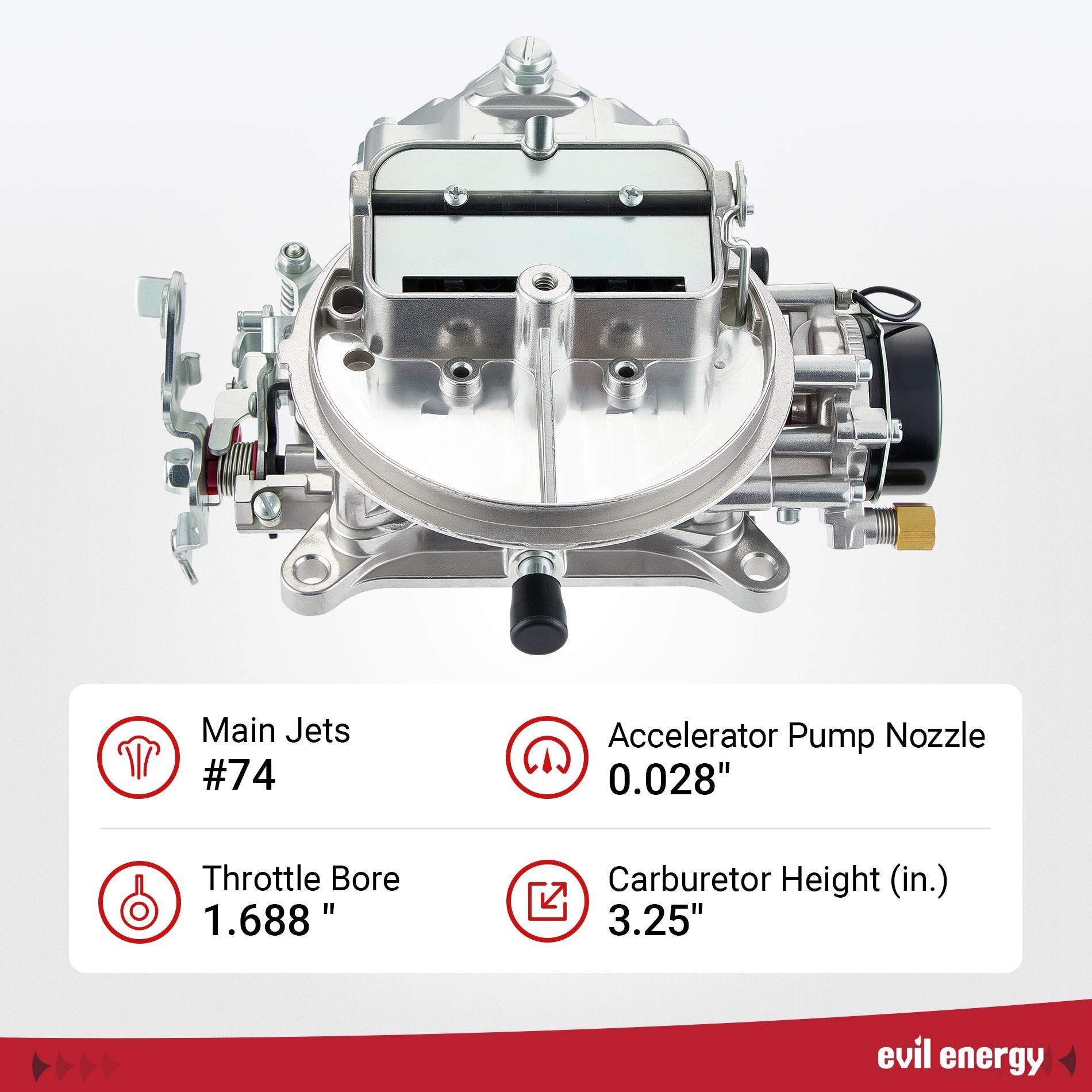

• Carburetor — Proven Performance at Half the Price: Modeled after the Holley Street Avenger metering system. 100% wet-flow tested. Ready to run out of the box. Electric choke, #74 main jets, 50cc accelerator pump. $299.99 vs. Holley's $599.95.
• Fuel Pump — RPM-Independent Flow: Gear-type 12V electric pump delivers 345–370 LPH whether you're idling or at wide-open throttle. External mounting = no tank dropping. Aluminum body for -68°F to 194°F reliability.
• Regulator — 6061-T6 Aluminum, Precisely Adjustable: 4.5–9 PSI adjustment range with included gauge. Anodized corrosion-resistant finish stands up to ethanol blends and road salt. Protects your carburetor from over-pressurization and flooding.
• Street-Tuned, Not Race-Only: This bundle is built for engines that see real street duty — crisp throttle response, smooth idle, easy cold starts, and fuel efficiency that doesn't sacrifice performance.
• 1-Year Warranty & Free Technical Support: EVIL ENERGY stands behind every product. Questions about fuel line routing, pressure settings, or throttle linkage? Our technical support team is here to help.
