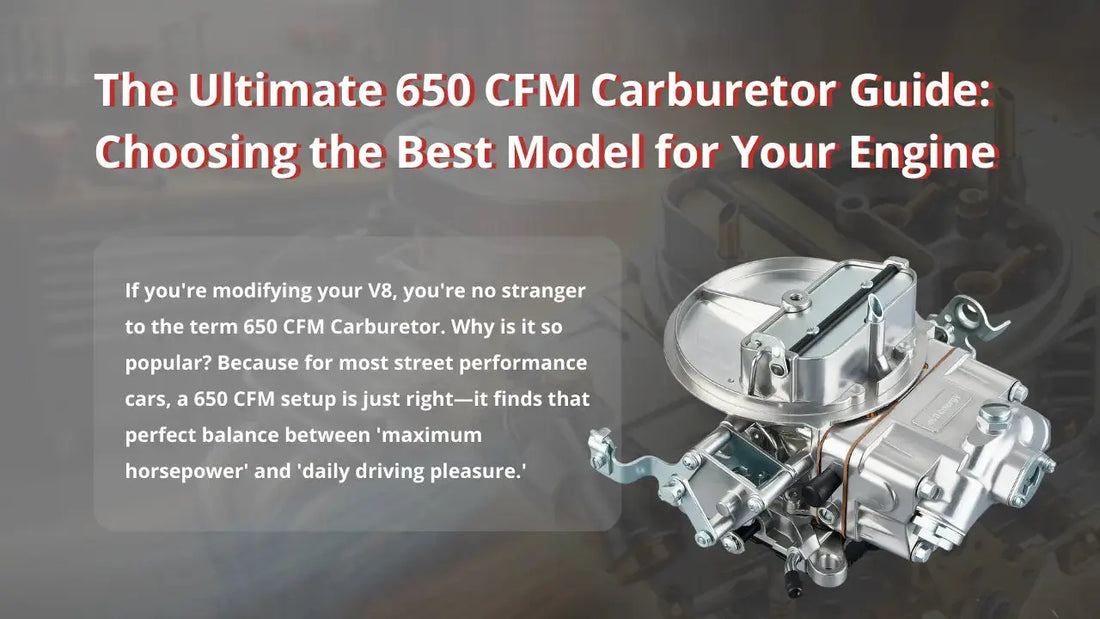

The Ultimate 650 CFM Carburetor Guide: Choosing the Best Model for Your Engine

Why is 650 CFM the 'Golden Size'?

Hey, friend! Welcome to EVIL ENERGY's experience-sharing post. If you're modifying your V8, you're no stranger to the term 650 CFM Carburetor. Why is it so popular? Because for most street performance cars, a 650 CFM setup is just right—it finds that perfect balance between 'maximum horsepower' and 'daily driving pleasure.'

What Exactly is CFM?

Simply put, CFM (Cubic Feet per Minute) is how much air a carburetor can pull in per minute. You can think of it as your engine's 'lung capacity.' Want to know exactly how it works? Feel free to jump over to our How Does a Carburetor Work? guide.

A 650 CFM rating is a key performance benchmark because it can feed a modified V8 without being so 'big' that it makes low-speed driving a pain.

This guide is our official experience summary, here to walk you through: Do you really need a 650 CFM carburetor? And how do you choose the best one for you?

Does Your Engine Really Need 650 CFM?

Before you pull out your wallet, we have to confirm one thing: Is a 650 CFM carburetor suitable for your engine? This is a specific question. If you're still pretty lost, we recommend reading How to Choose the Best Carburetor for Your Engine? to build a foundation.

Who is 650 CFM for?

1. Displacement and Horsepower: In our experience, a 650 CFM carburetor is the ideal choice for most V8 engines with displacements between 302 and 383 c.i. (cubic inches). This is especially true for those with mild to moderate modifications (like a new camshaft, intake manifold, or heads).
2. A Simple Calculation: We often use an internal formula to estimate: CFM = (Engine Displacement c.i. * Max RPM) / 3456

• For example: A 350 c.i. engine that you want to rev to 6000 RPM: (350 * 6000) / 3456 ≈ 608 CFM.
• This shows that 600 CFM is the baseline, and a 650 CFM model gives this 350 engine healthier performance headroom.

The Chevy 350 is one of the most common V8s, so we've prepared a dedicated guide for it: How to Choose the Right Carburetor for a Chevy 350 (SBC) Engine?.

How to Know if You Chose the Wrong Size?

• Choose Too Small (e.g., 500-550 CFM): Your car might feel fine driving around town, but once you hit the highway and go wide-open throttle, you'll feel the engine 'gasping for air.' A carb that's too small gets 'choked up' at high RPMs and can't deliver its maximum horsepower.

If your engine displacement is indeed smaller, or you only care about low-speed response, this 500 CFM vs 650 CFM Carburetor comparison might be more suitable for you.

• Choose Too Large (e.g., 750 CFM): This is the most common 'rookie trap.' A carburetor that is too large, like a 750 CFM on a mild 350, causes the air velocity to be too slow, leading to poor fuel atomization. The car feels 'mushy,' the throttle response is 'soft,' and it might even 'Bog' (hesitate or stumble) off the line.

Don't fall into this trap. Read our 650 CFM Carburetor vs 750 CFM comparison, and you'll understand why a bigger carburetor isn't always better.

Choosing a 650 CFM? Focus on These 2 Key Points!

Okay, so you've decided on 650 CFM. Congratulations, you've completed step one. But what comes next is even more critical:

Vacuum Secondaries (VS) vs. Mechanical Secondaries (Double Pumper)

• Vacuum Secondaries (VS): This is our top recommendation for the vast majority of street cars and automatic transmission vehicles. Its secondary barrels are opened smoothly by the engine's 'suction' (vacuum). This makes for a smoother driving experience and better fuel economy.
• Mechanical Secondaries (MS / Double Pumper): This is for track junkies and high-RPM manual transmission cars. Its secondaries are 'hard-linked' to your gas pedal. The response is incredibly aggressive, but it's very easy to 'bog' if tuned improperly.

Electric Choke vs. Manual Choke

• Electric Choke: This is a must-have for a modern street car (especially a daily driver). It uses a 12V power source to automatically sense the engine's temperature and adjust the choke. It's truly 'set it and forget it' and super convenient.
• Manual Choke: This is the old-school way. You need to install a cable in your dash. While it has its nostalgic charm, it's definitely a hassle for a daily driver.

Summary

For the vast majority (90%+) of street rod and muscle car owners who want both performance and convenience, the 'Vacuum Secondary + Electric Choke' 650 CFM carburetor is the golden combination.

In 2025, Which 650 CFM is the Best Buy?

Based on the 'golden combination' standard we just discussed, our top recommendation is the EVIL ENERGY 650 CFM Carburetor.

Why do we recommend it?

1. The Perfect Street Config: It precisely combines the smooth Vacuum Secondaries with the convenient Electric Choke—the ideal setup for a street-driven 650 CFM carburetor.
2. High-Quality Craftsmanship: It's precision-cast from high-quality aluminum with a beautiful finish (often a shiny coating). The key is that it's durable and corrosion-resistant.
3. Extremely Easy Installation: It's designed to replace Holley 650 CFM carbs. As long as you have a Square Bore intake manifold, it's basically a direct swap.
4. Incredible Value: This is EVIL ENERGY's core advantage. We put the money into the product itself. You get all the key features of a top-tier 650 CFM carburetor without having to pay the 'brand tax' for an old logo.

Click here to see the detailed specs and current price on the evil energy 650 CFM Carburetor

Other Options: Classic Brands & Pro-Models

• Classic Brands: Holley and Edelbrock are still classic, reliable choices for a 650 CFM carburetor. But their prices are often higher, and convenient features like an 'electric choke' might cost extra. Want a direct brand-to-brand comparison? You can read our Holley VS EVIL ENERGY: Which is the Best Carb for a 350 Chevy? guide.
• Pro-Race: If you only run on the track, you might need a more aggressive model, like a Quick Fuel 650 Brawler (Mechanical Secondary).

Installing & Tuning Your 650 CFM

Here are a few key experience tips. If you need a full step-by-step guide with pictures, please start with our How to Install a Carburetor? guide.

Installation Basics

Swapping a 650 CFM carburetor is one of the fastest DIY ways to boost performance.

1. Safe Removal: Disconnect the battery, remove the air cleaner, and old carb. We recommend taking a photo or labeling your vacuum lines.
2. Clean the Flange: This is a critical step! Thoroughly scrape all old gasket residue off the intake manifold.
3. Install New Gasket: (Internal Link) Make sure you're using the correct [4-barrel carburetor gasket].
4. Connect: Reconnect the fuel line, throttle linkage, and vacuum lines.

[Official Tip] 'A carburetor like the ievilenergy 650 is very simple to install. The most critical step is connecting the electric choke's 12V wire correctly. We recommend connecting it to a 'switched' power source (one that only has power when the key is on).'

Basic Tuning Primer

After you install your new 650 CFM carburetor, you'll need a basic tune.

• Set Idle Speed: After installation, first adjust the Idle Speed Screw to get the engine running smoothly (usually 700-800 RPM).
• Adjust Mixture: After that, fine-tune the two Idle Mixture Screws on the sides. We recommend using a vacuum gauge to find the point with the highest vacuum (or highest RPM). This will give you the smoothest, healthiest idle.

Frequently Asked Questions (FAQs)

Q: Can the evil energy 650 CFM carburetor replace my Edelbrock/Holley? A: Absolutely! As long as your intake manifold has a standard 'Square Bore' 4150/4160-style flange, the ievilenergy 650 CFM carburetor is a direct replacement.

Q: What's the difference between a 650 CFM 4-barrel carburetor and a 2-barrel carburetor? A: A 4-barrel (like this 650 CFM) has two sets of bores: a small primary set for normal cruising (saves fuel) and a secondary set that opens when you floor it (power!). A 2-barrel carburetor only has two bores working all the time.

Q: Is 650 CFM too big/small for my 350 Small Block? A: For a bone-stock 350, 600 CFM is enough. But for the vast majority of 350s with headers, an intake, or a cam, a 650 CFM carburetor is the ideal size to unlock its full performance.

Q: What's the difference between Square-Bore and Spread-Bore? A: A square-bore (like the one evil energy uses) has four holes that are roughly the same size. A spread-bore (like on a Q-Jet) has two small holes and two massive holes. They are not interchangeable without an adapter.

Q: Do I need a new fuel pump when I install a 650 CFM carb? A: Not necessarily. Most street carbs (including the ievilenergy 650 CFM model) are designed to run on 5-7 PSI of fuel pressure. Your stock mechanical pump is usually fine. BUT, if you are using a high-volume electric pump, you MUST use a fuel pressure regulator set to 7 PSI or less, or you will 'flood' the carb (causing leaks and a rich condition).

Conclusion: It's Time to Upgrade Your Ride

Friends, let's summarize our experience: choosing a 650 CFM Carburetor to upgrade your V8 is a smart move. But the real key is choosing the right type of 650 CFM (which, as we've pushed, is the 'Electric Choke + Vacuum Secondaries' combo). Stop putting up with those terrible cold starts, sluggish throttles, and old carbs that only work when the weather is perfect! The EVIL ENERGY 650 CFM Carburetor gives you modern reliability and classic V8 performance. That's what this hobby is all about.

Browse our entire 650CFM Carburetor Collection and find the perfect one for your build
