EVIL ENERGY CPE/PTFE LS Swap fuel kit ,Fuel Filter, 6AN Fuel Line & Fittings | 20-120PSI Fuel Pressure Regulator | Fuel Pump

SKU: EVKT1091204-1
Product Type: Fuel Pump Kits
$299.99
$299.99
$399.99
Material: PTFE
Fuel Pump Option: 300 LPH

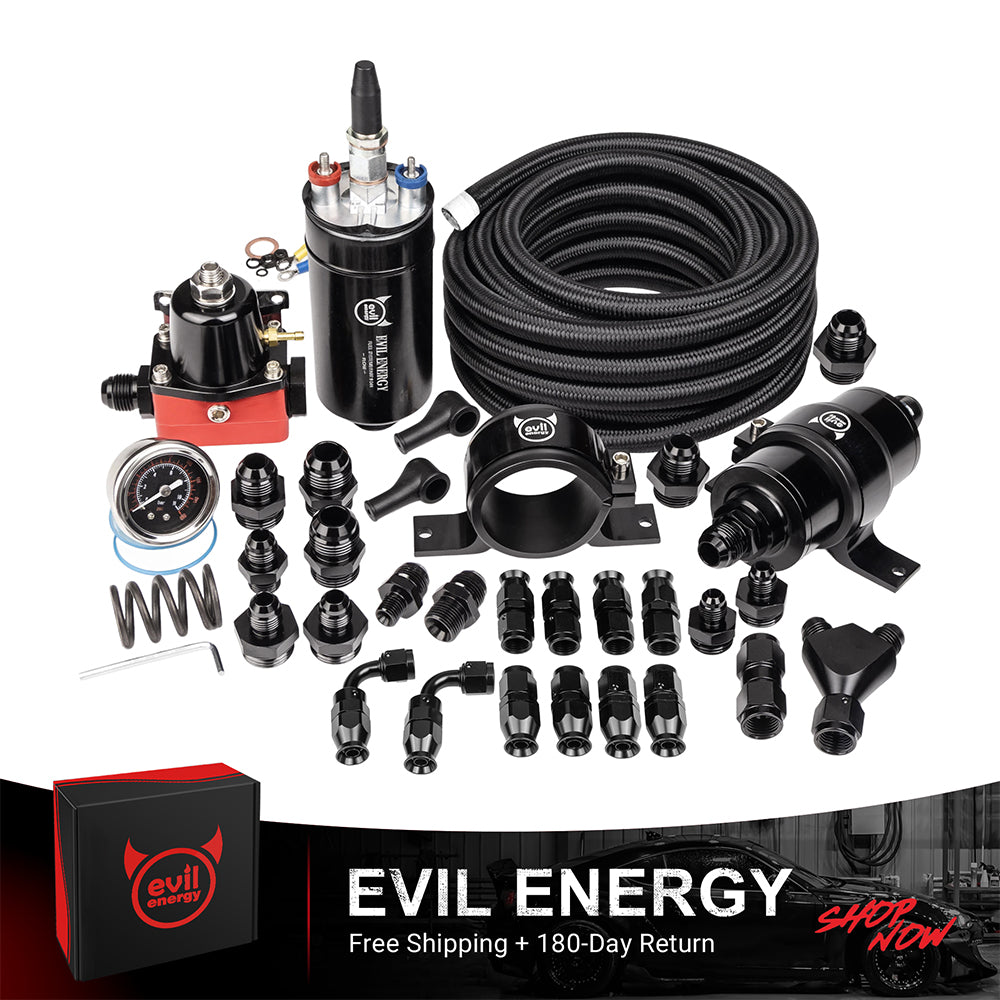

EVIL ENERGY LS-Swap Fuel Kit

  1. Pro-Conductive PTFE
    Anti-static 6AN conductive PTFE hose rated -76 °F to 446 °F, zero permeation for race-day safety.
  2. Standard PTFE
    6AN PTFE hose, chemical-proof and street-/track-ready for life.
  3. CPE Sport
    6AN CPE rubber hose, cost-effective solution for daily-driven muscle.

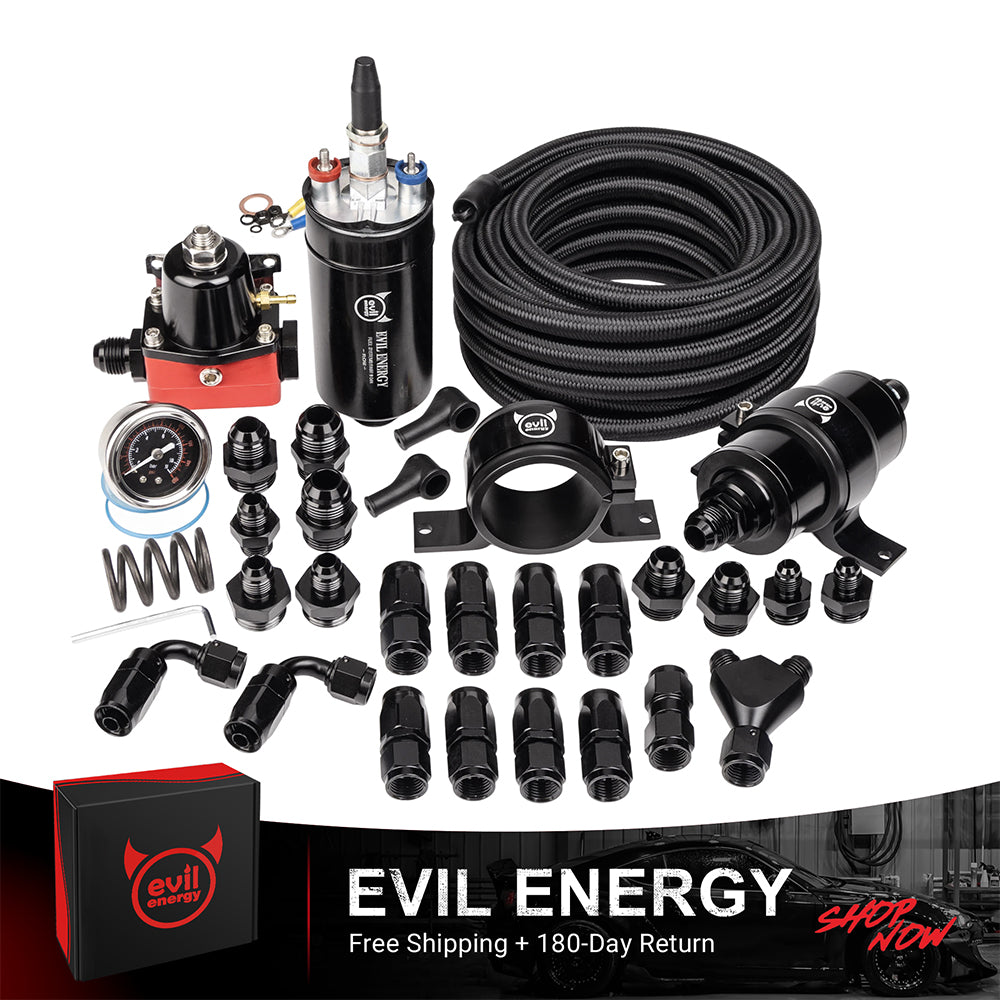

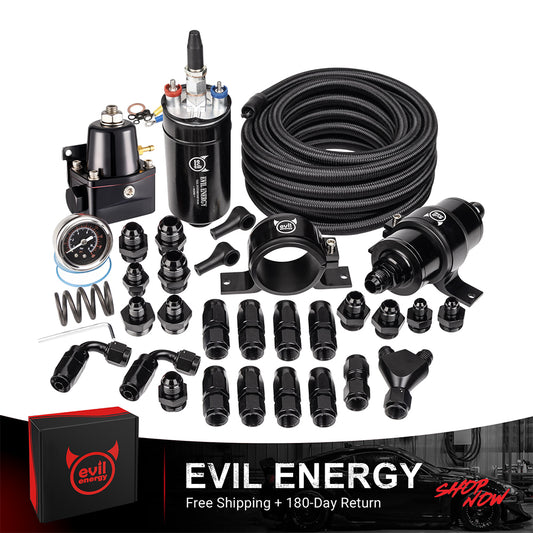

Common Hardware (every kit):External inline high-flow pump | 40 μm inline filter | adjustable fuel pressure regulator | filter bracket90° & straight hose ends | 6AN-6AN union | 6AN Y-block splitterM12 × 1.5 & M18 × 1.5 adapter fittings for factory LS ports

Pick conductive, PTFE or CPE, bolt it on and fire the LS up.

Secure online checkout with free 1-year warranty, 180-day money-back guarantee, free shipping over $50, and expert customer support from
EVIL ENERGY.
[PTFE]

EVIL ENERGY CPE/PTFE LS Swap fuel kit ,Fuel Filter, 6AN Fuel Line & Fittings | 20-120PSI Fuel Pressure Regulator | Fuel Pump

$299.99 $399.99

EVIL ENERGY CPE/PTFE LS Swap fuel kit ,Fuel Filter, 6AN Fuel Line & Fittings | 20-120PSI Fuel Pressure Regulator | Fuel Pump

$299.99 $399.99
Material: PTFE
Fuel Pump Option: 300 LPH
$390.99 $279.99
Choose Options
Material: PTFE
Fuel Pump Option: 300 LPH
$23.67
Choose Options
Color: Blue
$41.39
Choose Options
Size: 6AN
Length: 20FT
Price Total:$0.00

Brand EVIL ENERGY
6AN Fuel Hose

CPE Hose ID:0.34"
CPE Hose OD:0.54"
CPE Maximum working pressure:500psi
CPE Bursting pressure:2000psi
CPE Temperature Range:-40℉ to 257℉
CPE Min Bending Radius:63.5mm

PTFE Hose ID:5/16"
PTFE Hose OD:0.465inch.
PTFE Maximum working pressure:3000psi
PTFE Maximum Pressure:10000 Pound per Square Inch
PTFE Temperature Range: -76℉ to 446℉ (-60℃ to 230℃)
PTFE Min Bending Radius:63.5mm
Size:20FT

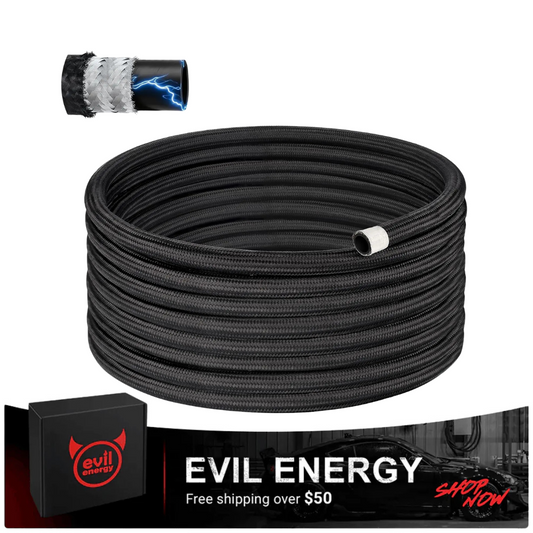

Antistatic PTFE Hose ID:0.3 inch
Antistatic PTFE Hose OD:0.47 inch
Antistatic PTFE Maximum working pressure:1500 psi
Antistatic PTFE Bursting pressure:4500 psi
Antistatic PTFE Temperature Range: -76℉ to 446℉ (-60℃ to 230℃)
Antistatic PTFE Min Bending Radius:88.9mm(3.5inch)
Size:20FT

External Inline Fuel Pump

Fit Type:Universal Fit
Material:Alloy Steel
Lift Type:Electric
Test Flow:300 LPH (43 PSI&13.5V)
Operating Pressure:75PSI
Operating Temperature Range:-68 °F - 194 °F.

Fuel Filter Mounting Bracket Quality:2
ID:60mm (with the insert)

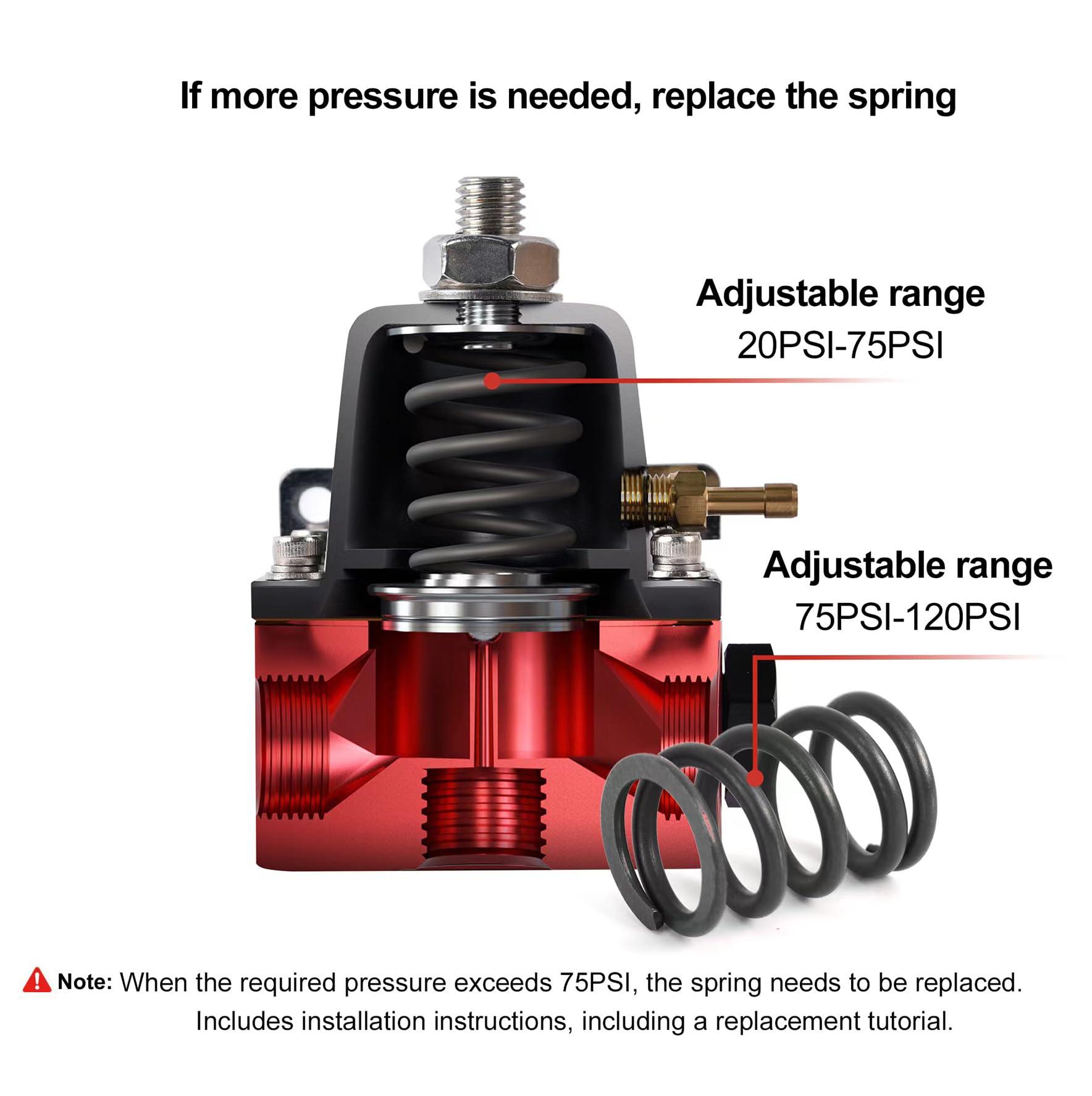

Fuel Pressure Regulator Adjustable Range:20-120PSI
M12*1.5 Fitting Adapter(Only PTFE kits contain) Thread size: 9/16-18 UNF
metric side: M12 x 1.5mm.
Working pressure: 1500PSI
Working temperature: -4°F-212°F (-20°-100°)
M18*1.5 Fitting Adapter(Only PTFE kits contain) Thread size: 9/16-18 UNF
metric side:M18*1.5mm.
Working pressure: 1500PSI
Working temperature: -4°F-212°F (-20°-100°)

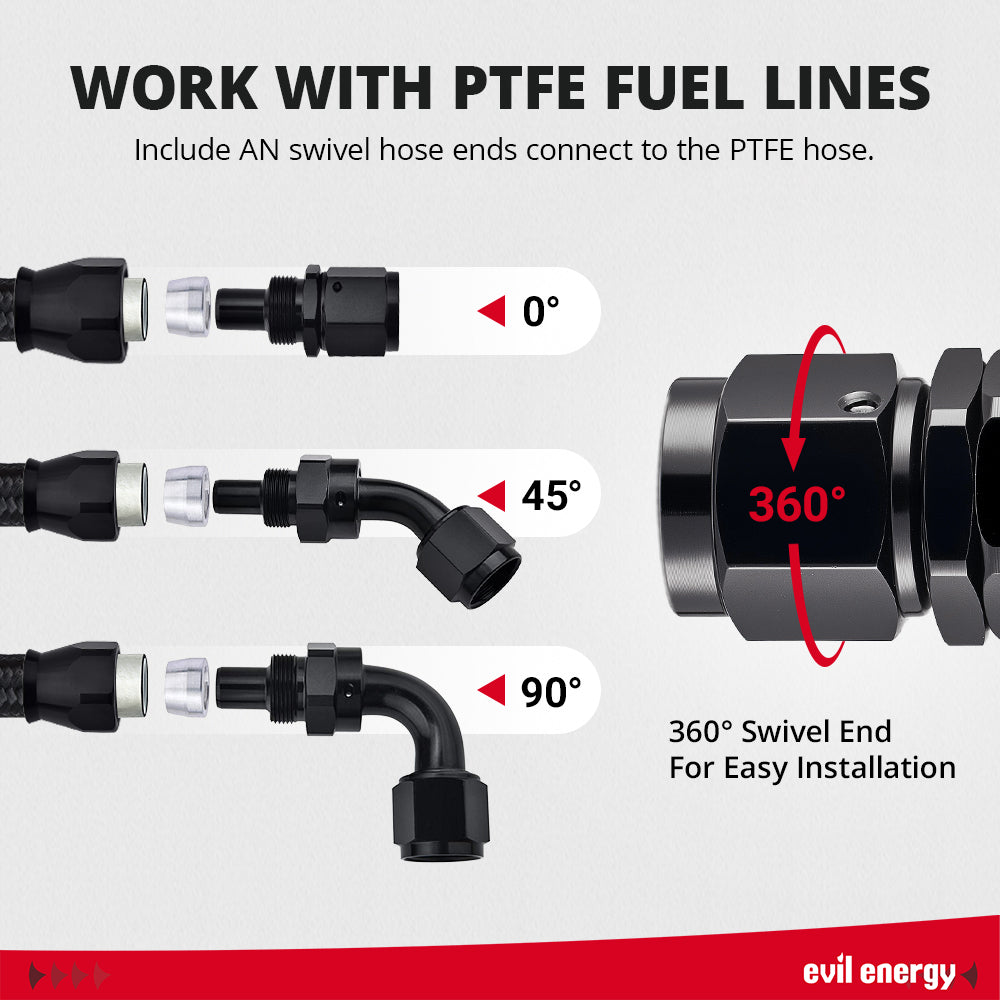

Hose End Fitting 90 Degree Size:6AN - 90 Degree
Quality:2
Hose End Fitting Straight Size:6AN - 0 Degree
Quality:2
40 Micron Inline Fuel Filter Outer Material:Aluminum Alloy,Stainless Steel
6AN to6AN Union Fitting

Fitting Size:6AN
Thread size: 9/16-18 UNF
Material:Aluminum

Y Block Union Splitter Swivel

Size:3×6AN
Thread Size: 9/16-18 UNF

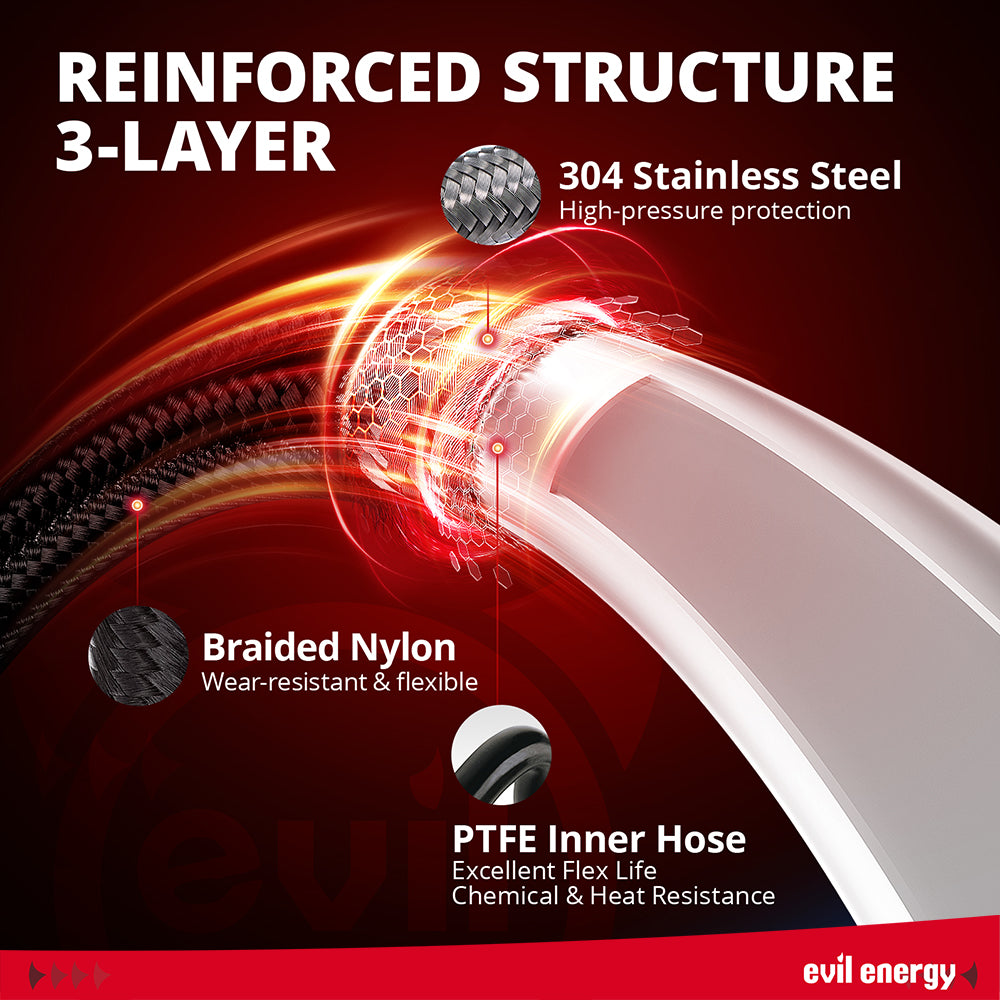

High-Quality Fuel Lines

  • CPE Fuel Hose: Perfect for a variety of applications including transmission oil cooler lines, fuel return lines, and coolant hoses.
  • PTFE Fuel Hose: Ideal for fuel injection, boost lines, and LS swaps. Compatible with all automotive fuels and coolants.
  • Antistatic PTFE Fuel Hose: Anti-static, corrosion-resistant, compatible with gasoline, alcohol, E85 and other fuels, flexible and durable.

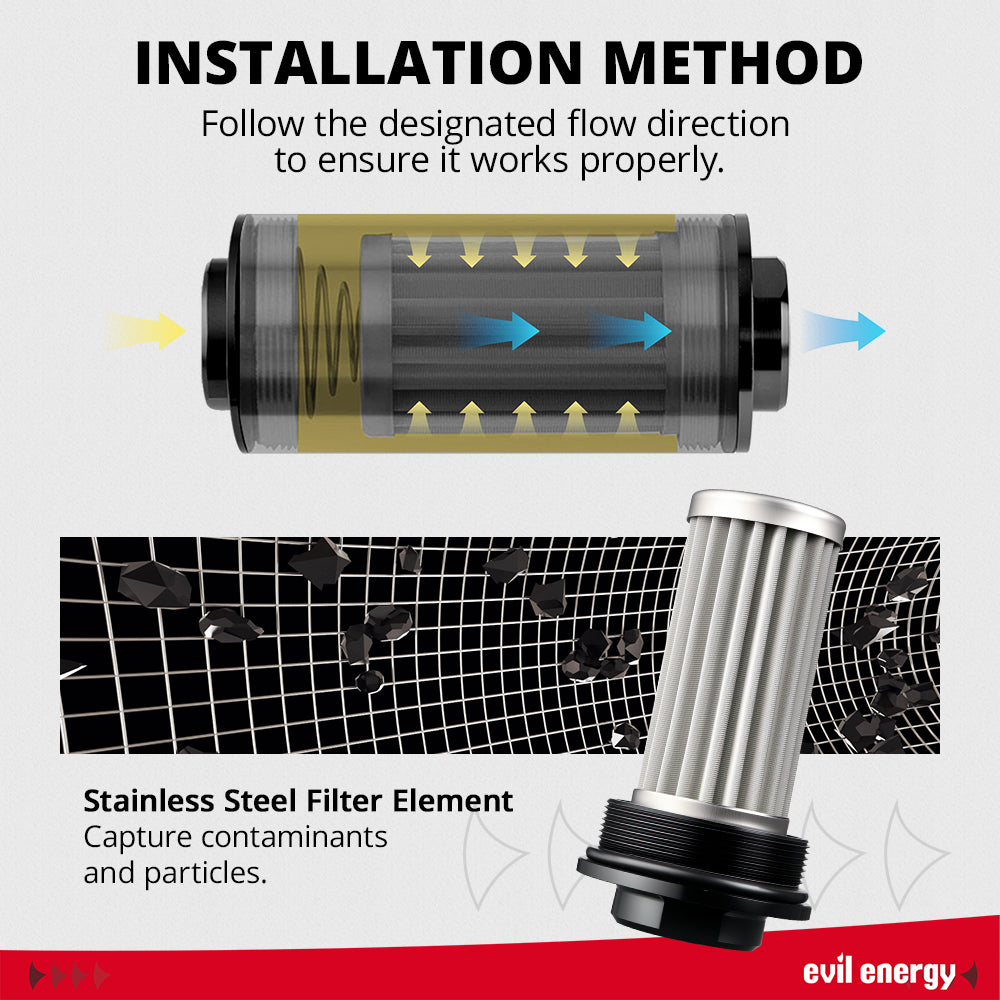

Inline Fuel Filter

  • A universal filter that includes adapters for AN6, AN8, and AN10. It captures contaminants of 40 microns and above, ensuring your fuel system stays protected. The removable design makes cleaning or replacing the filter easy.

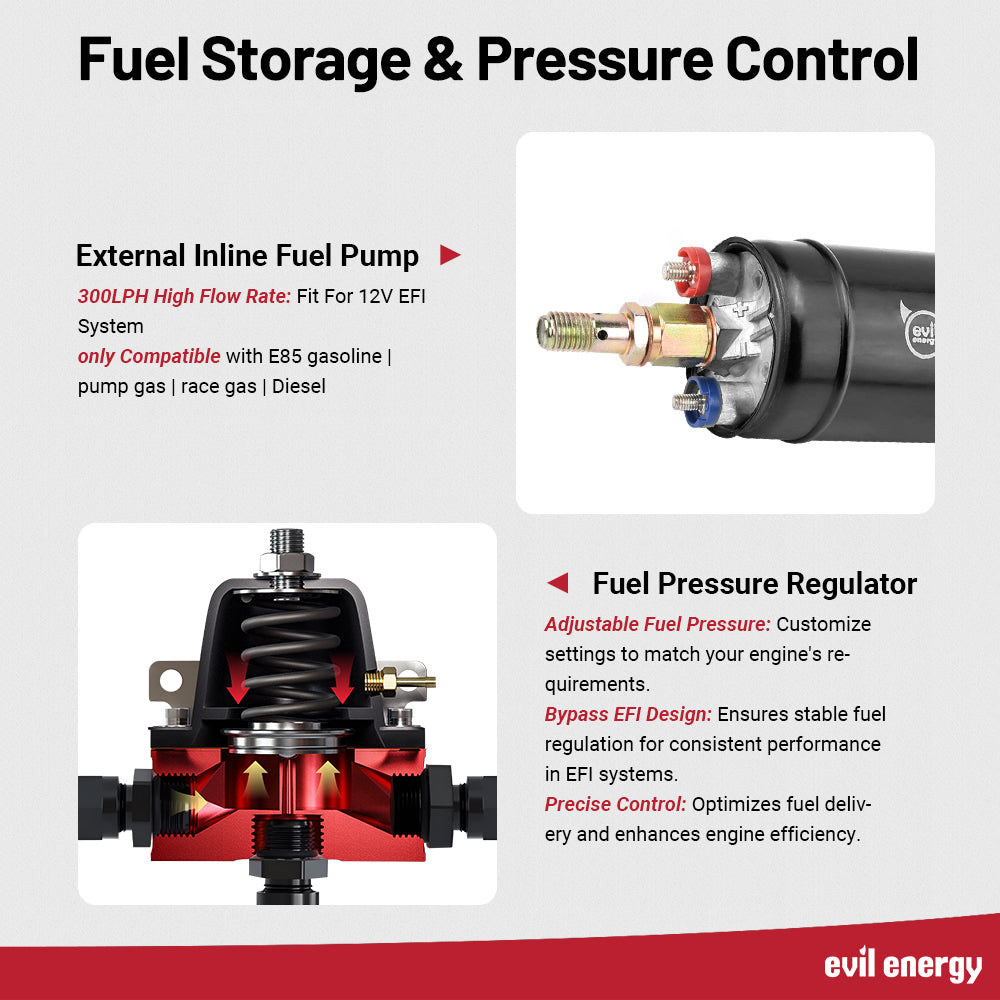

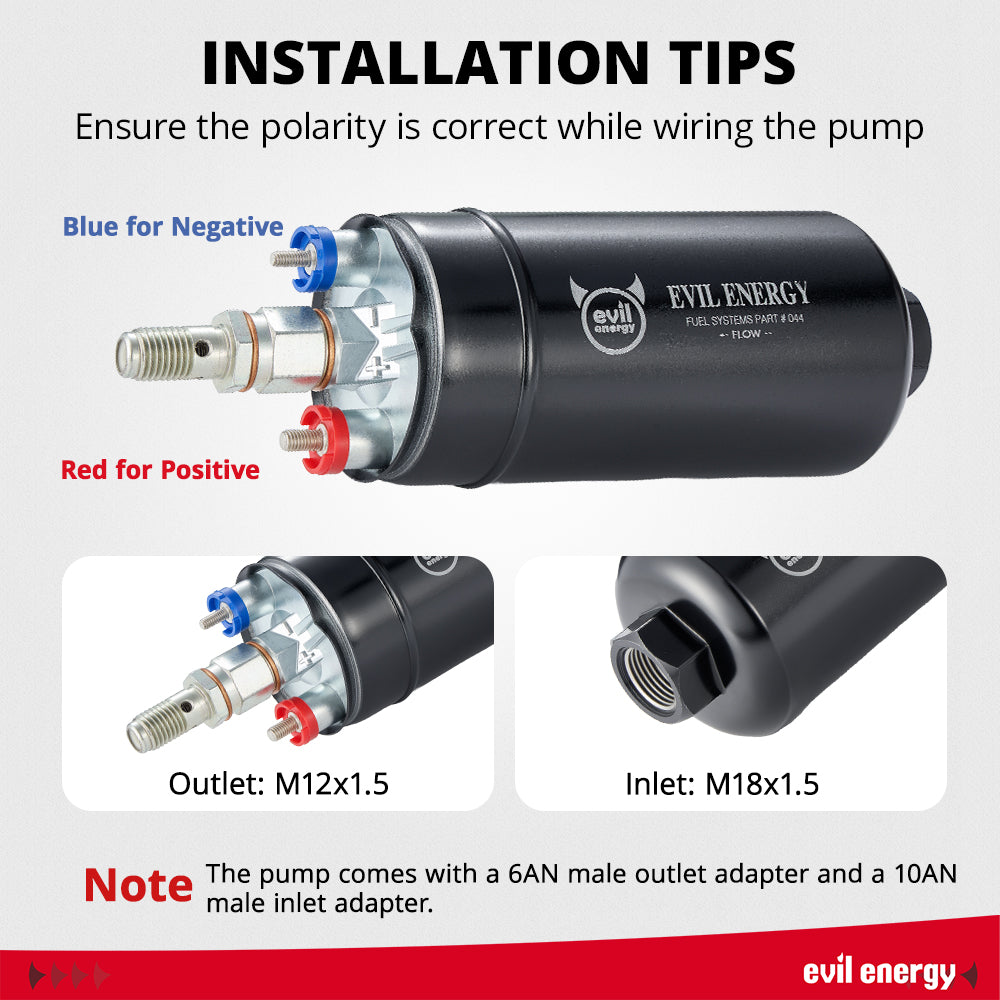

External Inline Fuel Pump

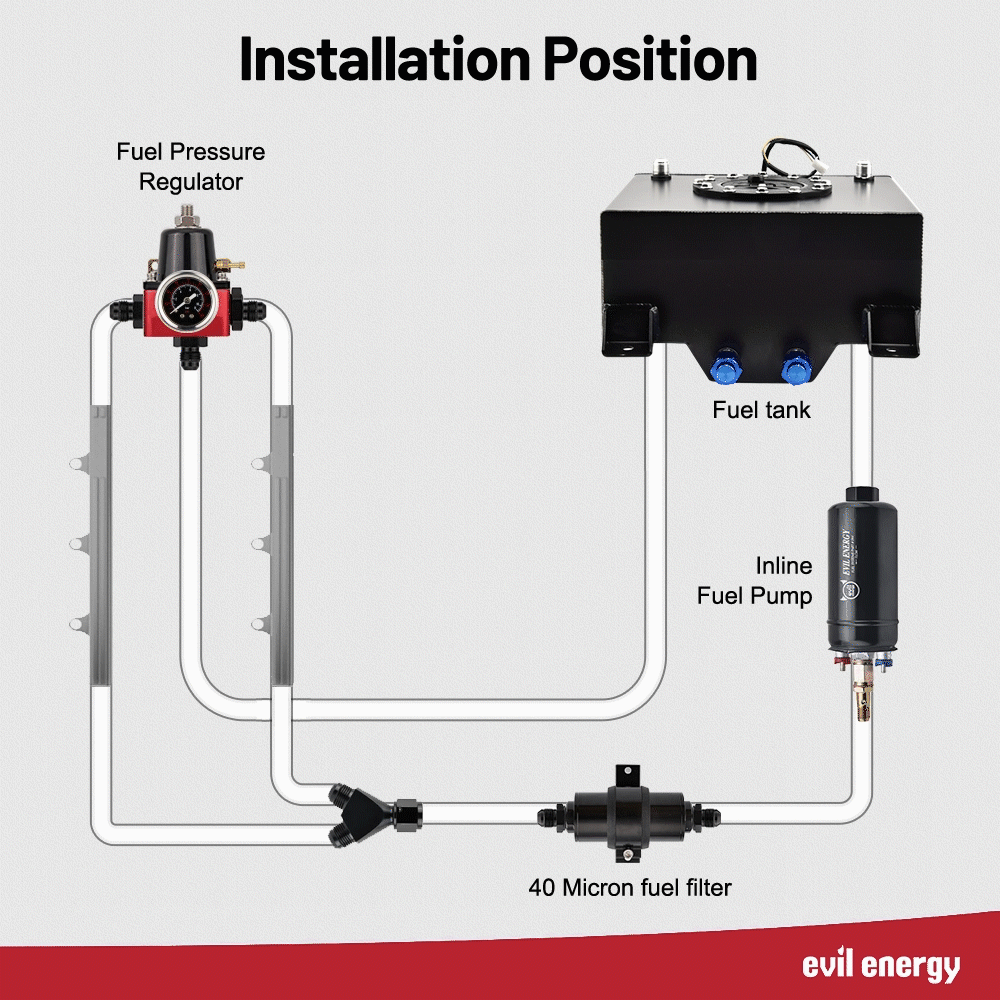

  • Designed for 12V DC EFI systems, this pump is compatible with gasoline, diesel, E85, and more. Installing it below the tank ensures gravity-fed fuel delivery. Installation instructions included.

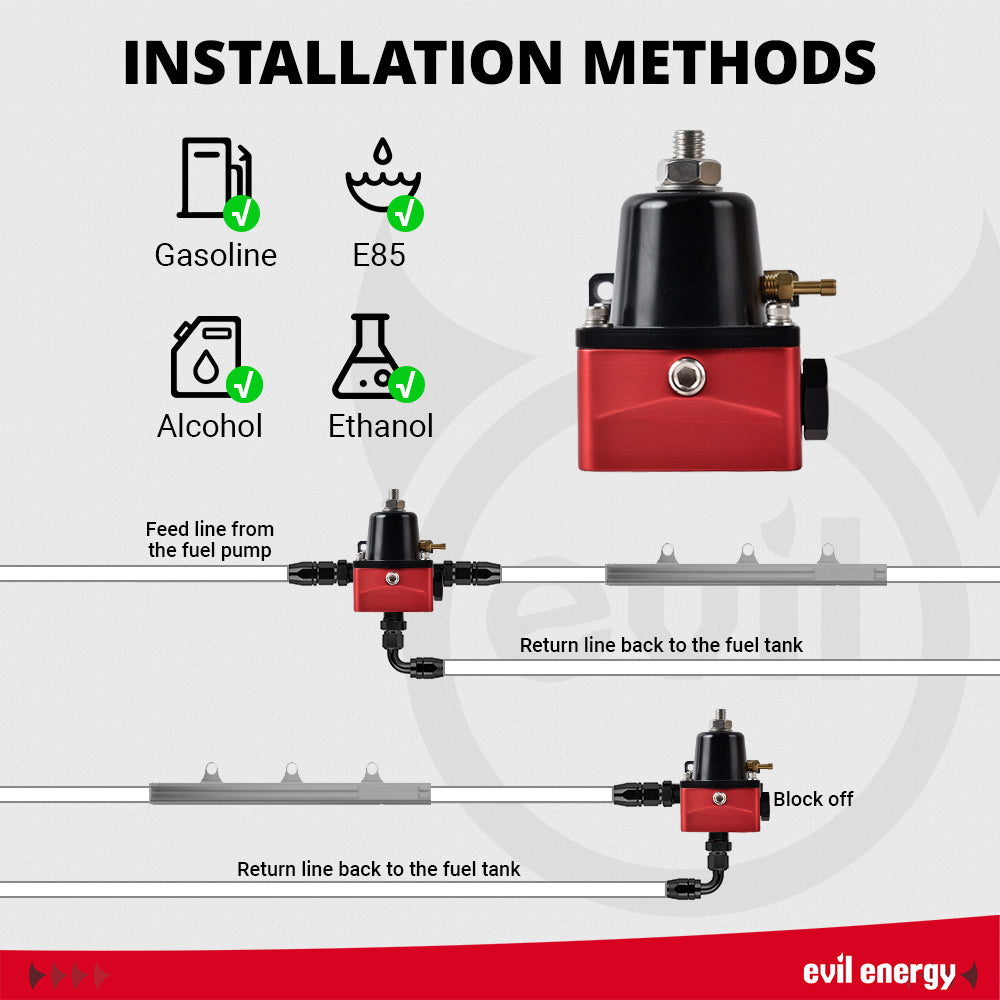

Fuel Pressure Regulator

  • This adjustable regulator fits most EFI systems and works with gasoline and E85. When installing, use thread sealant tape on the NPT pressure gauge port for a secure fit.


Complete 6AN Fittings and Hose Ends

  • All necessary 6AN fittings are included for a straightforward installation process.

Why Choose Evil Energy?

Elevate your vehicle's performance with our top-tier fuel system components, including fuel lines, fittings, adapters, filters, fuel pumps, pressure regulators, and catch cans.

Specifically engineered for Cadillac, Chevrolet, GMC, Hummer, and Pontiac LS V8 engines (2007-2015), our products ensure seamless integration and hassle-free installation.

We prioritize quality control, ensuring each component meets rigorous standards for perfect fitment and durability, effectively addressing common fuel system challenges faced by car enthusiasts.

  • Enhanced Performance: Our products boost efficiency and power for your modified engine.
  • Professional Grade: Ideal for serious modifiers seeking reliable and high-performance upgrades.
  • Fast Shipping: Orders are processed within 1-2 business days for quick delivery.
  • Easy Returns: Enjoy a hassle-free 90-day return policy with free return shipping (Requires no use or installation, packaging intact). 90-180 days will be charged a 15% operating fee.
  • Warranty: EVIL ENERGY provides 1-year warranty on this kit. For questions, reach out to us via email.
