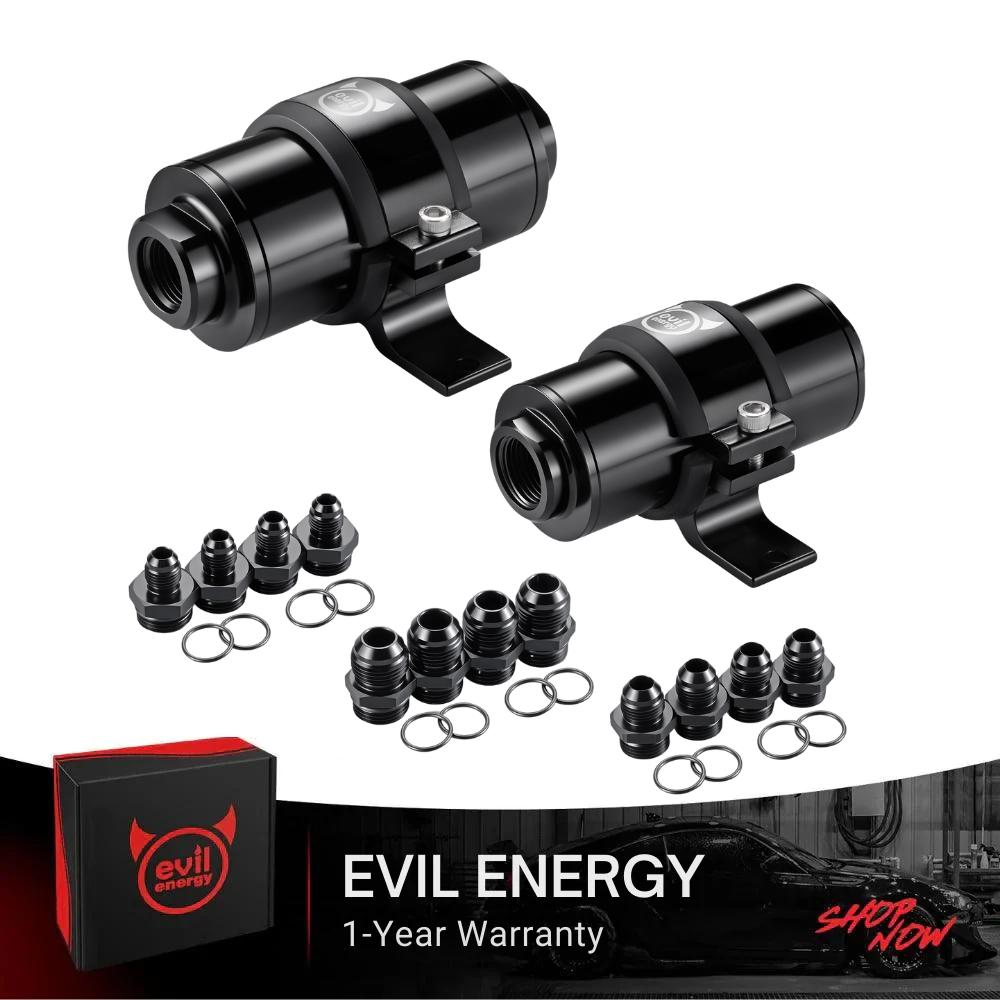

EVIL ENERGY Inline Fuel Filter with 6AN 8AN 10AN Adapter&Bracket Clamp 60,50MM Universal Kit - EVILENERGY
EVIL ENERGY Inline Fuel Filter with 6AN 8AN 10AN Adapter&Bracket Clamp 60,50MM Universal Kit - EVILENERGY

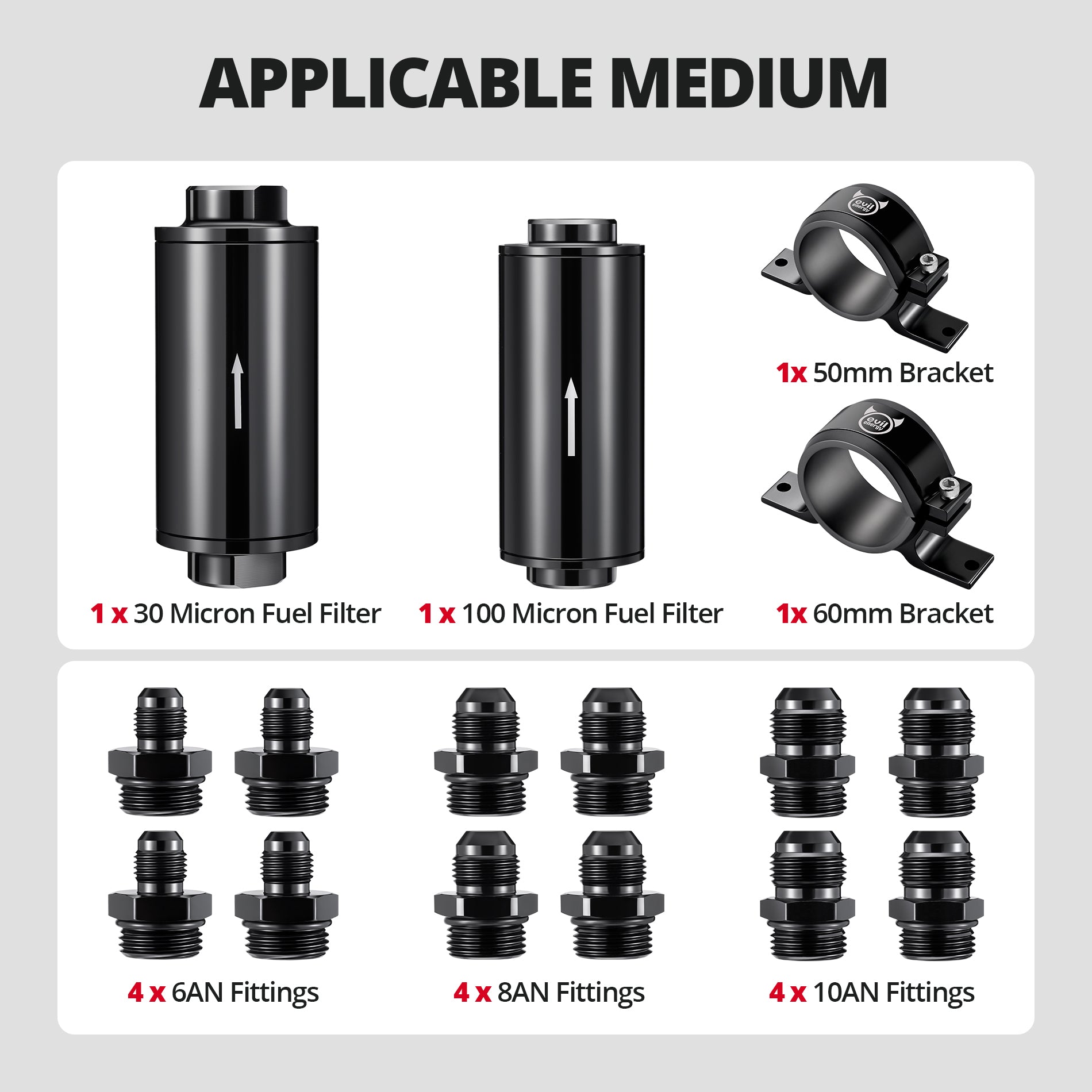

[30 Micron+100 Micron]

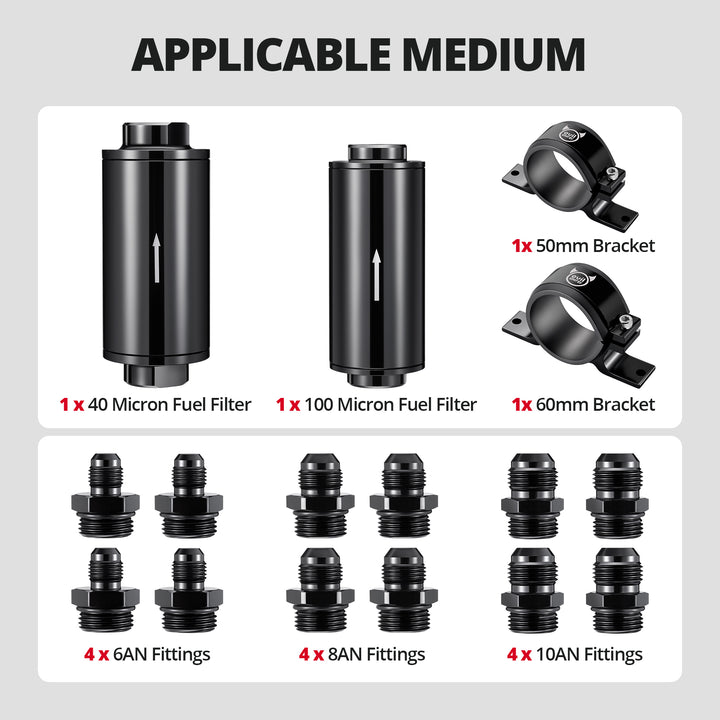

[40 Micron+100 Micron]
[10 Micron+100 Micron]
[30 Micron+100 Micron]
[40 Micron+100 Micron]
Evil Energy Fuel System Installation Diagram showing fuel tank, dual pumps, 10 and 100 micron filters, and mounting brackets
EVIL ENERGY Inline Fuel Filter with 6AN 8AN 10AN Adapter&Bracket Clamp 60,50MM Universal Kit - EVILENERGY
EVIL ENERGY Inline Fuel Filter with 6AN 8AN 10AN Adapter&Bracket Clamp 60,50MM Universal Kit - EVILENERGY
[40 Micron+100 Micron]
[30 Micron+100 Micron]
[10 Micron+100 Micron]

EVIL ENERGY Inline Fuel Filter with 6AN 8AN 10AN Adapter&Bracket Clamp 60,50MM Universal Kit

3 sold in last 10 hours
$67.99
$67.99
$19.99
Size: 30 Micron+100 Micron
SKU: EVAHW0001005
Product Type: Fuel Filters
EVIL ENERGY checkout payment icons and shopping service
EVIL ENERGY Inline Fuel Filter with 6AN 8AN 10AN Adapter&Bracket Clamp 60,50MM Universal Kit - EVILENERGY

EVIL ENERGY Inline Fuel Filter with 6AN 8AN 10AN Adapter&Bracket Clamp 60,50MM Universal Kit

$67.99 $19.99
$67.99 $19.99

EVIL ENERGY Inline Fuel Filter with 6AN 8AN 10AN Adapter&Bracket Clamp 60,50MM Universal Kit

$67.99 $19.99
Size: 30 Micron+100 Micron

Specification Details
Brand EVIL ENERGY
Product Type Fuel Filter
Kit Type Two-Stage Inline Fuel Filter Kit
Filter Options • 10 Micron + 100 Micron
• 30 Micron + 100 Micron
• 40 Micron + 100 Micron
Filter Location • 100 Micron: Between the Fuel Tank and Fuel Pump
• 10, 30 or 40 Micron: After the Fuel Pump
Material Filter Element: Stainless Steel, Fuel Filter Can: Aluminum, Adapters: 6061-T6 Aluminum

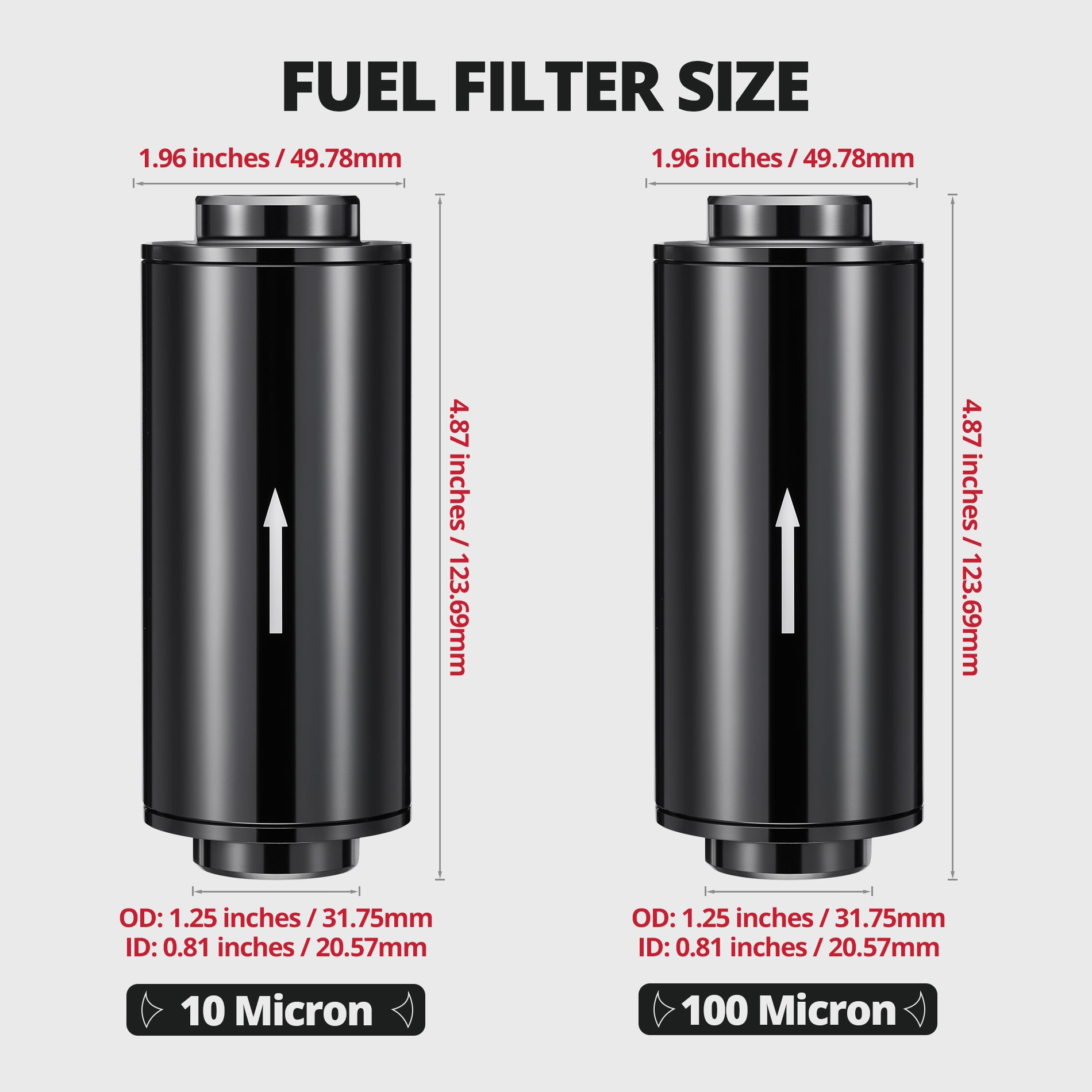

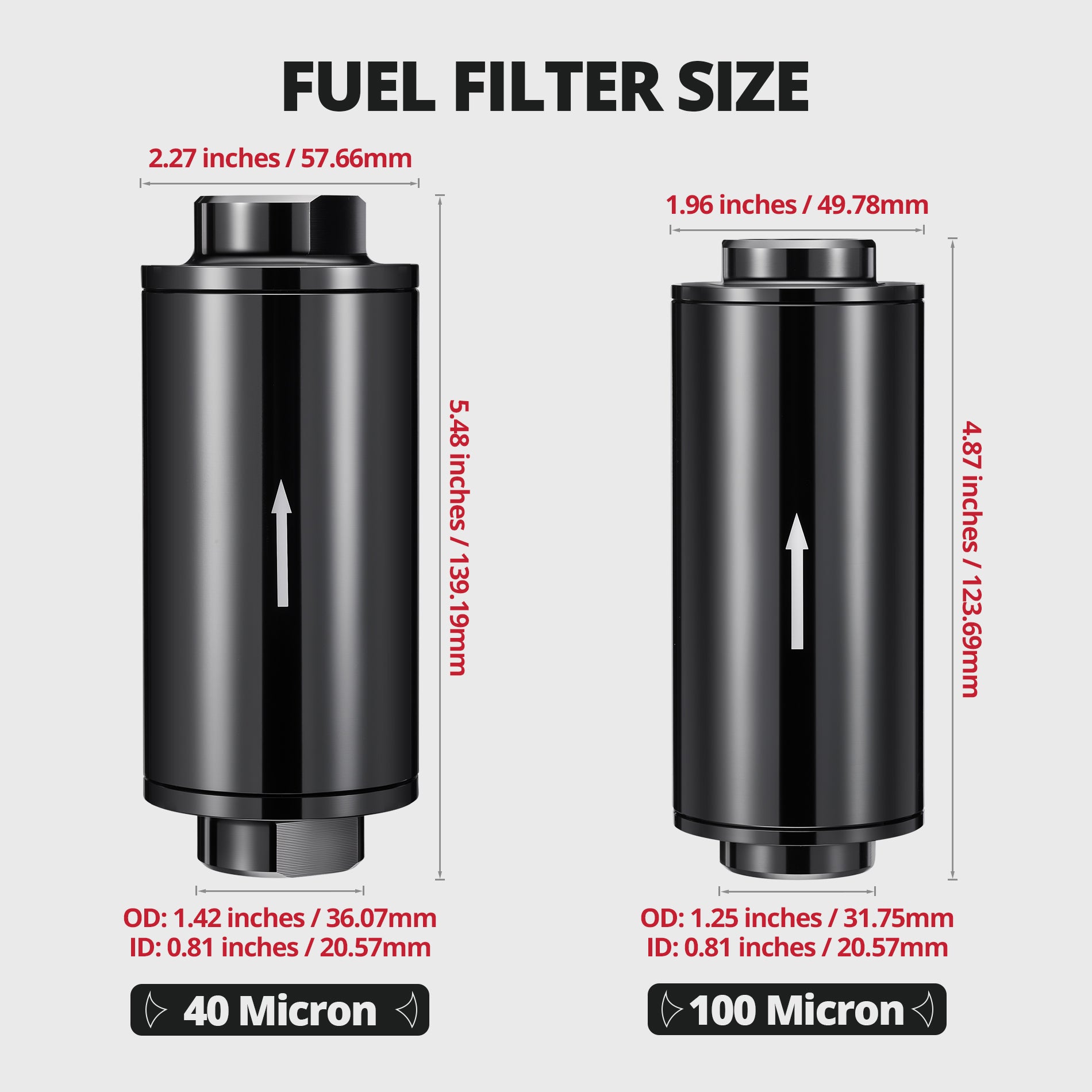

Housing Length • 10 Micron: 4.87 in
• 30 Micron: 5.58 in
• 40 Micron: 5.48 in
• 100 Micron: 4.87 in
Housing Diameter • 10 Micron: 1.96 in
• 30 Micron: 2.27 in
• 40 Micron: 2.27 in
• 100 Micron: 1.96 in
Port End OD • 10 Micron: 1.25 in
• 30 Micron: 1.42 in
• 40 Micron: 1.42 in
• 100 Micron: 1.25 in
ID 0.81 in on All Filters

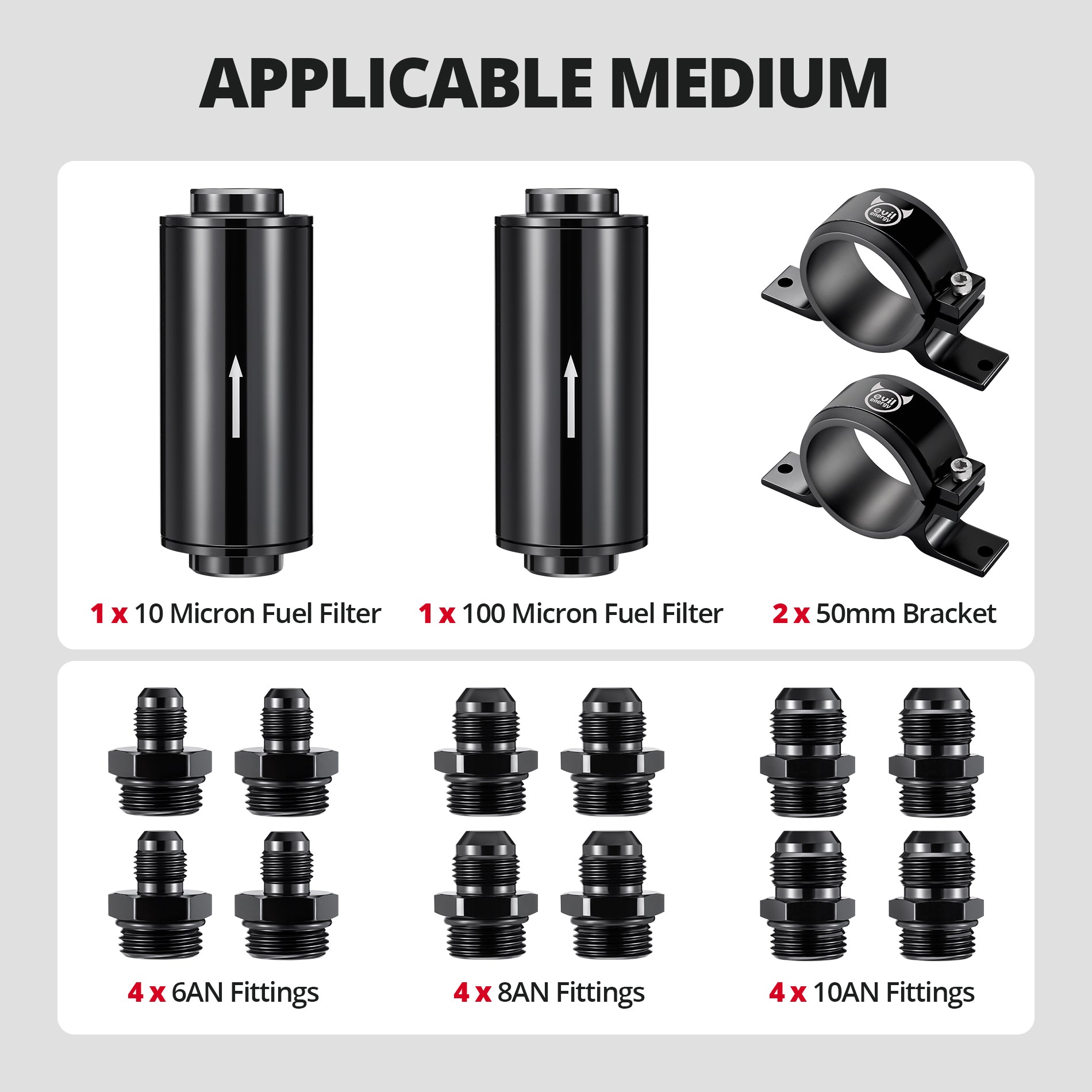

AN Adapters Included • 4 × 6AN (9/16-18 UNF)
• 4 × 8AN (3/4-16 UNF)
• 4 × 10AN (7/8-14 UNF)
Mounting Brackets • 50 mm Bracket for 10 and 100 Micron Filters
• 60 mm Bracket for 30 and 40 Micron Filters

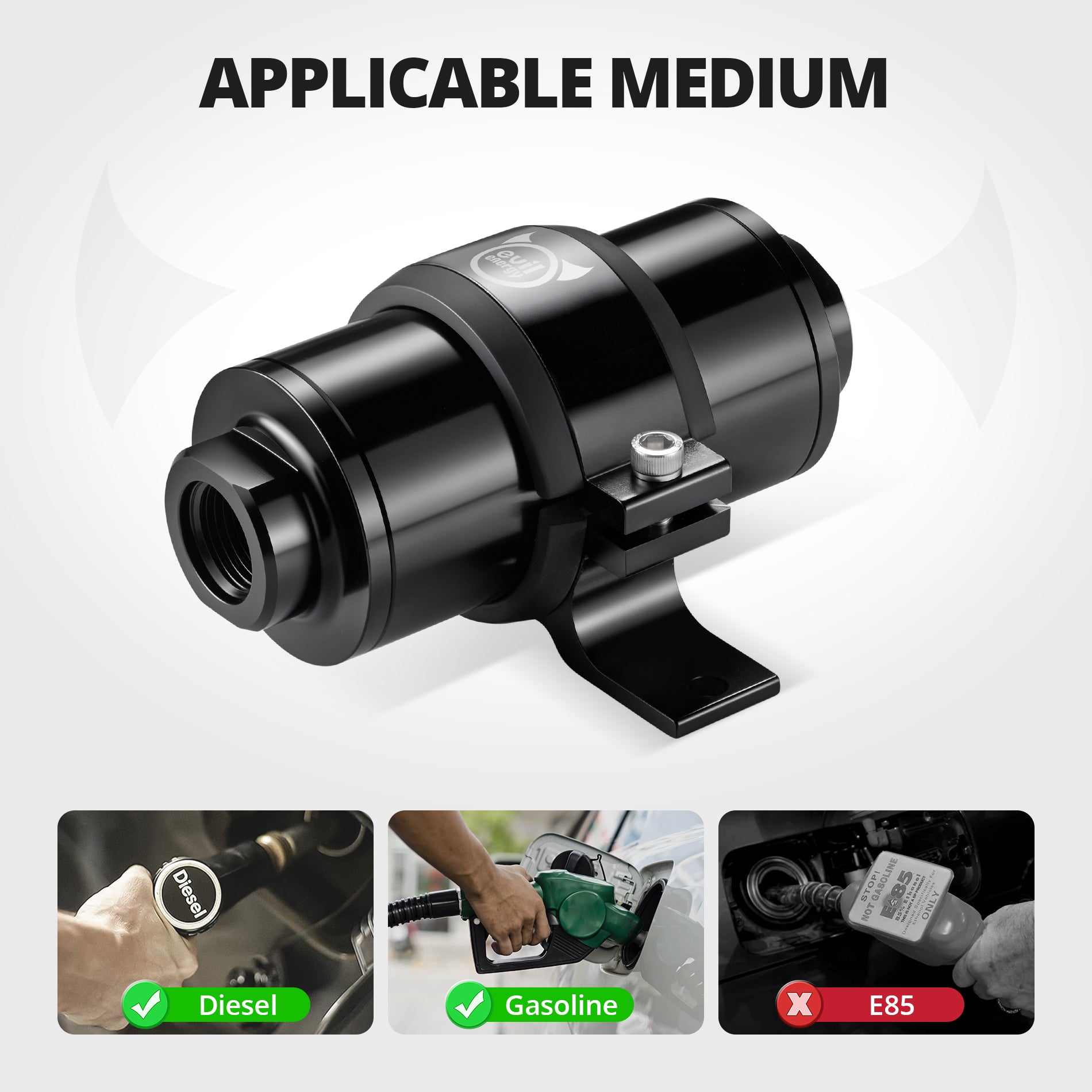

Fuel Compatibility Gasoline, Diesel – NOT FOR E85
Fuel System Compatibility Fuel-Injected (EFI) and Carbureted Systems
Service Interval Clean or Replace Elements Every 2,500 Miles, Sooner with Dirty Fuel
Not Included • Fuel Line
• AN Hose Ends
• Chassis Mounting Fasteners

Compare Inline Fuel Filters

Find the fuel filter that matches your fuel line, filter stage and available space.

Two-stage inline gas filter kit with brackets and AN adaptersTwo-Stage Inline Filter Kit 6AN, 8AN and 10AN billet inline fuel filter, 30 micronAN Billet Fuel Filter Barb billet inline fuel filter, 30 micronBarb Billet Fuel Filter 3.5 inch inline fuel filter, 100 micron3.5 Inch Fuel Filter 6AN, 8AN and 10AN single inline fuel filterAN Inline Fuel Filter Barb single inline fuel filterBarb Inline Fuel Filter
Price From $67.99 From $19.99 From $19.99 From $45.99 From $23.99 From $35.99
Best For Filtering before and after the pump Compact AN fuel lines Compact rubber hose lines Pre-pump filtering in tight spaces One-filter AN fuel lines One-filter rubber hose lines
Connection 6AN, 8AN and 10AN 6AN, 8AN or 10AN 5/16", 3/8" or 1/2" Barb 6AN, 8AN and 10AN 6AN, 8AN and 10AN 5/16", 3/8" and 1/2" Barb
Micron Rating 100 + 10, 30 or 40 Micron 30 Micron 30 Micron 100 Micron 10, 30, 40 or 100 Micron 10, 30, 40 or 100 Micron
Filter Element Stainless Steel Sintered Bronze Sintered Bronze Stainless Steel Stainless Steel Stainless Steel
Housing Length 4.87–5.58 in 2.07 in 2.07 in 3.5 in 4.87–5.58 in 4.87–5.58 in
Housing Diameter 1.96–2.27 in 1.22 in 1.22 in 1.97 in 1.96–2.27 in 1.96–2.27 in
Adapter Kit Included One size per filter One size per filter Included Included Included
Viewing now Shop › Shop › Shop › Shop › Shop ›

The EVIL ENERGY Two-Stage Inline Gas Filter Kit pairs a 100 micron pre-filter with a 10, 30 or 40 micron filter for the fuel line after the pump. Both inline gasoline filter housings use CNC-machined aluminum, reusable stainless steel elements and AN adapters, for carbureted and fuel injection builds. NOT compatible with E85 fuel.

What Does a Two-Stage Inline Gasoline Filter Kit Do?

EVIL ENERGY performance inline fuel filter kit with CNC-machined black aluminum housing for capturing particles of contaminants in automotive fuel systems.

Fuel system protection works best in stages. The coarse inline gas filter catches rust and larger debris before the pump, and the finer filter cleans fuel after the pump before it reaches injectors or a carburetor. A single kit means both stages, adapters and brackets arrive together for a custom fuel line.

Which Inline Gas Filters Fit Your Fuel System?

10 + 100 Micron EFI and Fuel InjectionThe efi fuel filter 10 micron stage goes after the pump to protect injectors, and the 100 micron stage goes before the pump.
30 + 100 Micron Carbureted with Electric PumpUse the 30 micron filter between the pump and carburetor or regulator, with the 100 micron pre-filter ahead of the pump.
40 + 100 Micron Carbureted with Electric PumpChoose the 40 micron filter for a coarser post-pump stage on a carbureted fuel line, with the 100 micron pre-filter ahead of the pump.

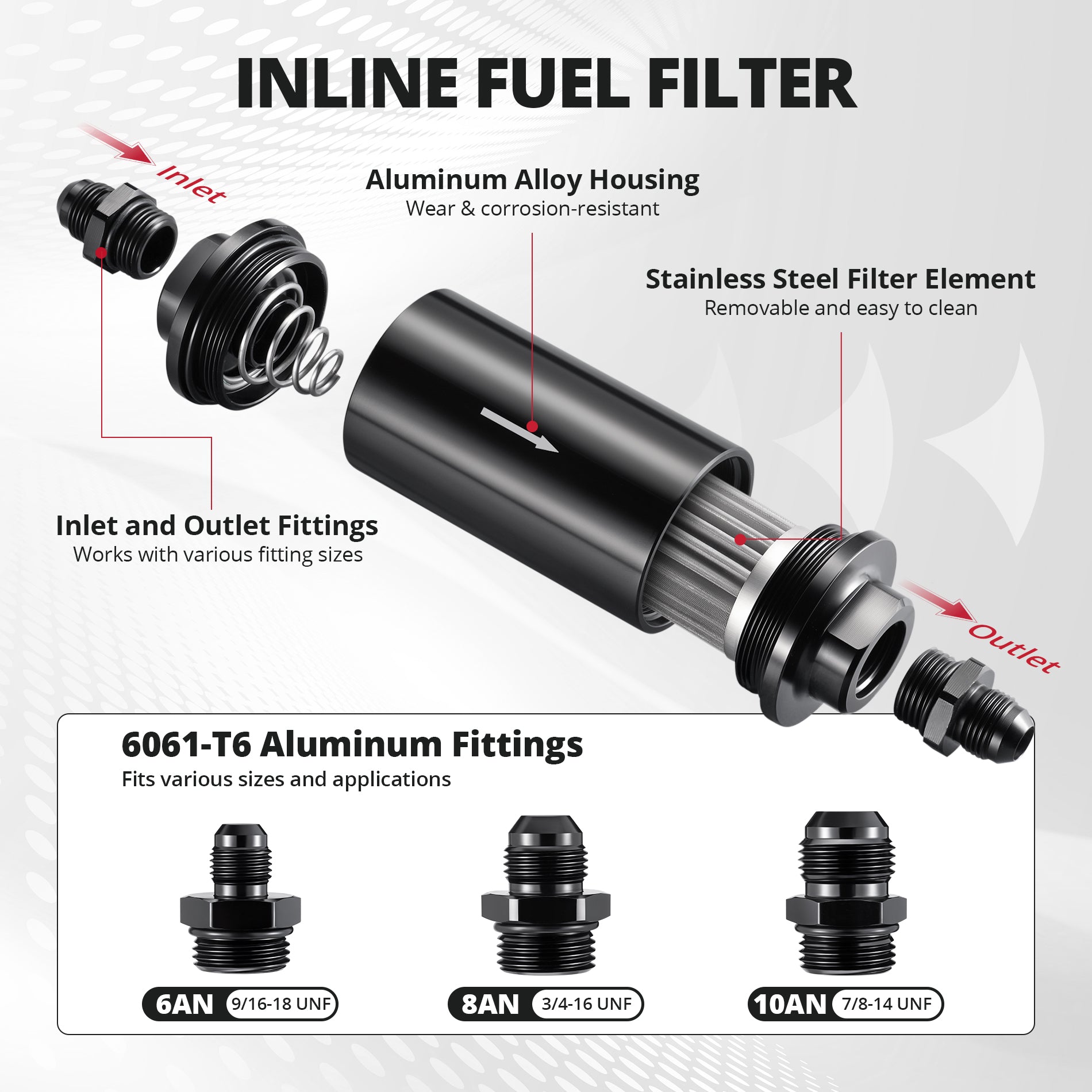

Inline fuel filter with aluminum alloy housing, stainless element, AN fittings and thread sizes

Key Features of the Inline Fuel Filter Kit

Premium stainless steel element: Removes impurities and particles for consistent fuel delivery.

Durable aluminum housing: The CNC-machined can uses a corrosion-resistant anodized finish instead of plastic.

6061-T6 AN adapters: Each stage can use 6AN, 8AN or 10AN to match the fuel line.

How to Install and Service This Inline Gas Filter

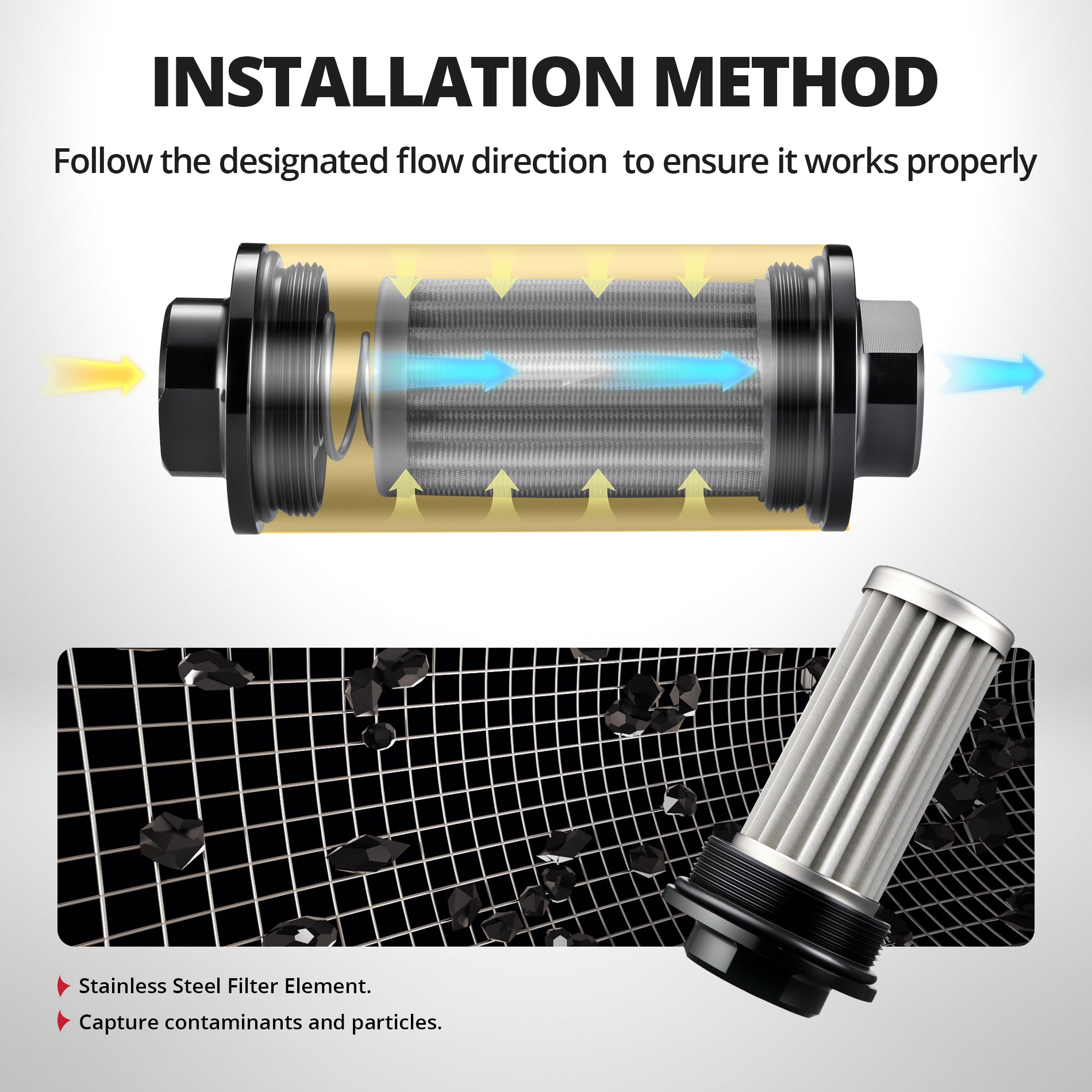

Clearly Marked Flow Direction

The housing arrow shows the correct direction from inlet to outlet. Keep each filter in its own stage: the 100 micron filter before the pump and the finer filter after it.

Translucent view of an inline fuel filter housing with a clearly marked white arrow indicating correct fuel flow direction from inlet to outlet for hassle-free installation.
Close-up of the fuel filter O-ring seal and AN fitting interface for leak-free performance.

Leak-Free O-Ring Seal

Each adapter uses a precision O-ring seal for a secure connection. Keep the seats clean, do not use thread sealant or PTFE tape on AN or ORB connections, and check for leaks before starting the engine.

Removable Design for Reusable Value

The unit disassembles easily for thorough cleaning and reuse of the stainless steel element. A reusable element reduces long-term cost compared with disposable auto fuel filters.

Disassembled view of a reusable fuel filter showing the washable stainless steel filter element, internal spring, and threaded end caps for easy maintenance.
Technical diagram showing the correct alignment of the filter element closed end with the internal spring for proper fuel filter assembly.

Installation Tip: Closed End to Spring

For proper assembly, always align the closed end of the filter element with the internal spring, with the open end toward the outlet.

Where Does a Fuel Filter for an Electric Fuel Pump Go?

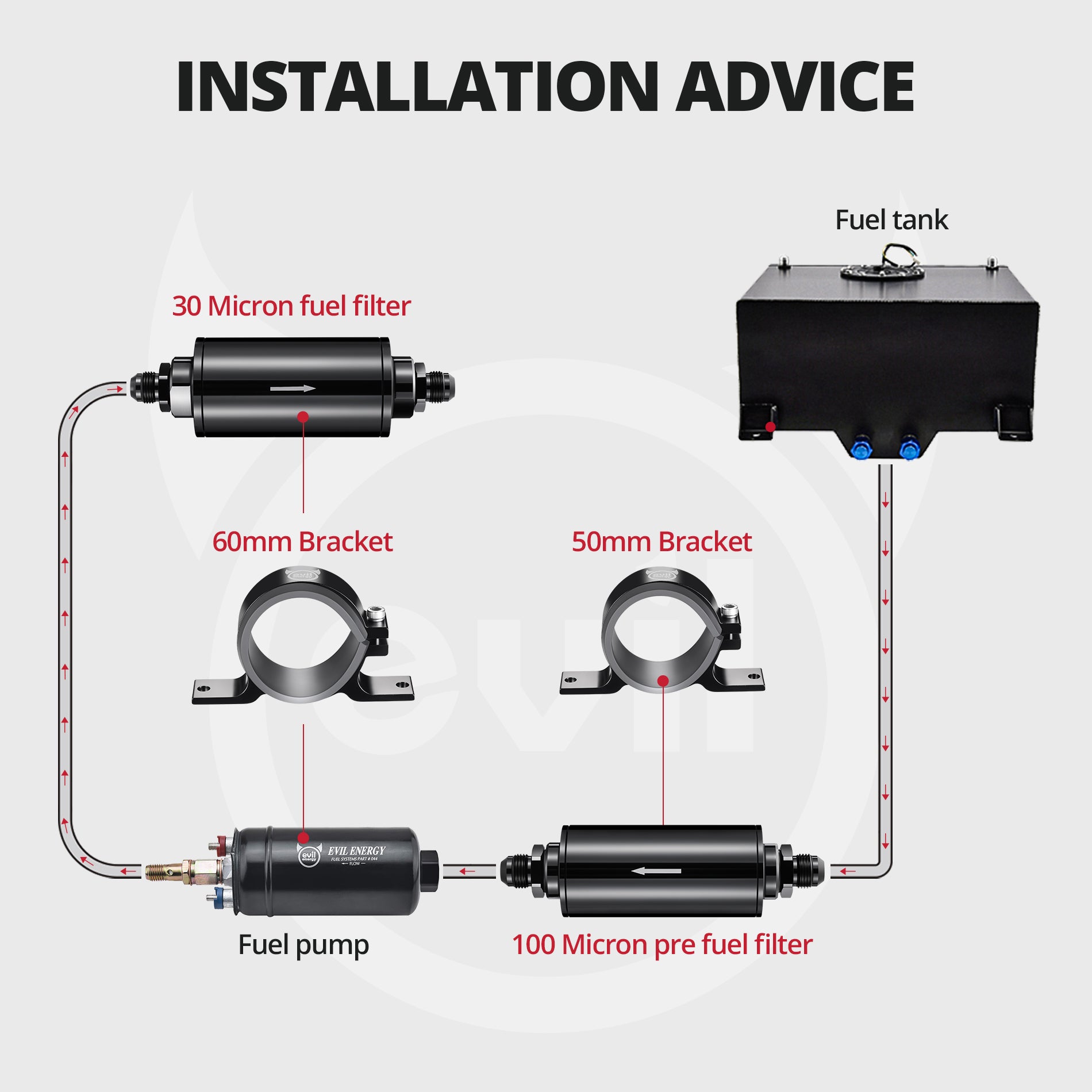

Installation advice showing fuel tank, 100 micron pre fuel filter with 50 mm bracket, fuel pump and 30 micron fuel filter with 60 mm bracket

Fuel Tank, Pre-Filter, Pump, Then Fine Filter

A fuel filter for electric fuel pump systems usually needs two positions. Install the 100 micron electric fuel pump filter on the pump inlet side, then the 10, 30 or 40 micron filter on the outlet side.

The 10 micron option is the fuel injection fuel filter stage in this kit. A complete efi fuel filter setup keeps both stages in order and follows the injector manufacturer requirement.

Running an E85 build? Use the E85 fuel filter and PTFE line kit.

Who Is This In Line Gas Filter Kit For?

Universal inline fuel filter installed in various automotive engine bays and chassis, compatible with both carbureted and EFI systems.

Performance Enthusiasts

Upgraded Fuel Systems

A two-stage setup supports stable fuel delivery when an upgraded external pump feeds a higher-output engine.

DIY Car Owners

Serviceable Filters

Removable, washable elements and clear flow arrows keep installation and cleaning manageable at home.

Cost-Conscious Drivers

Reusable Elements

Repeated cleaning reduces long-term maintenance expense compared with disposable inline gas filters.

Racing and Off-Road

Rough-Use Builds

The anodized aluminum shell and stainless steel mesh suit dirt, vibration and hard use in race and off-road builds.

This kit also suits classic carburetor setups, modern EFI projects, hot rods, show cars and custom builds across passenger cars, trucks and pickups. A universal AN fuel line setup may need extra plumbing on a stock vehicle.

Why Choose EVIL ENERGY In Line Gas Filters?

Choosing the right gas filter is critical for engine longevity. This kit brings in line gas filter protection before and after the pump, with a modern finish and durable hardware.

  • Two Filter Stages: The right 100 micron and finer filter come together.
  • Dual-System Support: Choose the filter pair for carbureted or EFI fuel systems.
  • Reusable Elements: Stainless steel elements can be cleaned and reinstalled.
  • Complete Mounting: Brackets and AN adapters are included for a clean, secure installation.
Moderate Estimated Time: 0.5-1 hour

Tools Required

  • Combination wrench set
  • AN wrench set
  • Drain pan
  • Marker
  • Drill and drill bits (if required)
  • Safety glasses
  • Fuel-resistant gloves

Pre-Installation Checklist

  • Relieve fuel system pressure and disconnect the negative battery cable.
  • Confirm the correct 10-micron or 100-micron filter and required AN6, AN8, or AN10 fittings are available.
  • Identify the flow-direction arrow on the filter body.
  • Place an approved drain container under the old filter and choose a mounting position away from exhaust heat and moving parts.

Installation Steps

  1. Disconnect the old filter fittings or clamps and remove the filter.
  2. Install the selected AN6, AN8, or AN10 fittings as required; do not apply thread sealant or PTFE tape to AN/ORB connections.
  3. Orient the new filter with its arrow pointing in the direction of fuel flow.
  4. Secure the filter with the supplied mounting bracket and appropriate hardware.
  5. Connect and tighten the fuel lines without overtightening AN fittings.
  6. Prime the fuel system and inspect the filter, fittings, and hoses for leaks before starting the engine.

Post-Installation Verification

  • Verify the filter arrow points in the correct fuel-flow direction.
  • Confirm the filter bracket, fittings, and hoses are secure and clear of heat, sharp edges, and moving parts.
  • Prime the system and check for leaks before starting the engine.
  • Reinspect the filter after the road test and periodically thereafter.

Troubleshooting

  • Low fuel pressure: verify filter orientation and inspect for clogging or restrictions.
  • Fuel leak: turn the ignition OFF, clean spilled fuel, and tighten or replace the affected fitting or hose.
  • Pump noise or inlet restriction: inspect the upstream 100-micron filter and supply-line routing.

Maintenance

  • Inspect the filter and connections periodically and replace a clogged or damaged filter.
  • Recheck all fittings after the initial road test and after 50-100 km.

Brand Summary

Policy Details
Cancellation Policy Orders can be canceled within 48 hours of placement. Refund processed in 3-5 business days.
Returns Policy Returns accepted within 180 days. Full refund within 90 days; 15% fee for 90-180 days.
Non-Returnable Items Only regular-priced items are eligible for refunds; sale items are non-refundable.
Refund Processing If no refund received, check your bank/credit card. For ongoing issues, contact support@ievilenergy.com.

Return Reasons

  1. Quality Issues: Provide photos/videos; we cover return shipping.
  2. Wrong Item Ordered: Buyer covers return shipping; email within 30 days.
  3. Change of Mind: Buyer covers return shipping; email within 30 days.
  4. Shipping Damage: Inspect packages; do not sign for damaged items.
  5. Incorrect Item Shipped: Contact within 7 days.

Price Protection Policy

Effective from August 25, 2024. Price drops within 7 days of purchase can be claimed.

Disclaimer

EVIL ENERGY reserves the right to interpret, modify, or terminate this policy in accordance with applicable laws and regulations.

If you need further information or assistance, feel free to ask!

Q: Should I put the fuel filter before or after the mechanical fuel pump?

A: After it, between the mechanical pump and the carburetor. A mechanical pump pulls poorly through restriction, so many classic-car owners keep only the factory pickup screen on the suction side. This two-stage kit is designed around an electric pump layout. On a mechanical-pump engine, the 30 or 40 micron filter is usually the useful stage.

Q: Which filter in this kit goes before the electric fuel pump, and which goes after?

A: The 100 micron filter goes before the pump, and the 10, 30, or 40 micron filter goes after it. Swapping them can starve the pump, because a fine filter on the inlet side adds restriction where the pump is pulling fuel. If a new install brings a louder pump or falling fuel pressure, check this order first.

Q: How many micron filter is needed for fuel injection?

A: A common fuel injection filter setup uses about 100 microns before the pump and 10 microns after the pump, which is what the 10 + 100 Micron option provides. Some injector manufacturers call for finer filtration, down to 5 or 6 microns, so check the injector specifications on high-end or motorsport injectors.

Q: Which option should I choose for a carbureted engine, 30 + 100 or 40 + 100 micron?

A: Both work with an electric pump. The 30 micron option filters finer, which suits an older tank or a build where you want more carburetor protection. The 40 micron option leaves more margin against restriction. A carburetor that also needs pressure control can use a carburetor fuel system kit with an adjustable 4.5-9 PSI regulator and gauge.

Q: What are the best fuel filters for electric fuel pumps?

A: The best setup depends on position. An external electric pump generally benefits from a coarse pre-filter around 100 microns on its inlet and a finer filter on its outlet, sized for the pump's flow. Check the pump maker's instructions too, since many specify inlet filtration and may tie warranty coverage to it. An in-tank pump usually already draws through its own sock.

Q: I have an in-tank fuel pump. Do I still need both filters in this kit?

A: Usually not. An in-tank pump with a healthy sock normally needs only the post-pump filter. The 100 micron stage makes more sense on an external pump, a fuel cell, or a custom tank with no pickup screen. For an in-tank setup, a single-stage filter is often the simpler buy.

Q: Can this kit be used as a high pressure fuel filter on EFI?

A: The 10 micron stage is the filter for the pressurized side of an EFI system, between the pump and fuel rail. Confirm the maximum pressure of your complete fuel system, including hose, fittings, and regulator, before installation, and check for leaks at operating pressure with the engine off and again with it running.

Q: Does this inline gas filter kit fit rubber hose or factory quick-connect lines?

A: Not directly. The kit uses 6AN, 8AN, and 10AN adapters, so it connects through AN hose ends. Rubber hose needs a barb fitting, and factory quick-connect lines need the correct quick-connect adapter. Stock vehicles with an in-tank filter or fuel module may not have a clear place to add this kit without plumbing changes.

Q: Why does the kit include different bracket sizes?

A: Filter size changes by micron rating. The 10 and 100 micron filters measure 1.96 in across and use a 50 mm bracket, while the 30 and 40 micron filters measure 2.27 in and use a 60 mm bracket. Plan mounting space around the longer 5.58 in housing when you choose the 30 micron option.

Q: How often should each filter in the two-stage kit be cleaned?

A: Start at 2,500 miles, then adjust by what you find. On an old tank or a freshly built fuel system, inspect sooner, because debris often loads the 100 micron stage first. Falling fuel pressure, hesitation under load, or a louder pump are good reasons to open both housings. 10 and 100 micron replacement fuel filter elements are available when a cleaned element no longer restores flow.

Q: Can this inline gasoline filter kit run on E85 or E15 pump gas?

A: This kit is for gasoline and diesel, and it is not for E85. For an ethanol build, use the EVIL ENERGY E85 Compatible Fuel Filtration & Fuel Line Kit. At US pumps, E15 is often sold as Unleaded 88, and the EPA does not approve it for conventional vehicles older than model year 2001, which matters on many classic carbureted builds.
