EVIL ENERGY Dual Electric Exhaust Cutout Valve for Single Exhaust (2.0/2.25/2.5/3 Inch )

Q: What Is an Exhaust Switch Valve, and How Does It Change Exhaust Sound?

A: An exhaust switch valve is an electrically operated valve that controls whether exhaust gas follows the vehicle’s normal muffled route or an added bypass route. After a bypass branch has been installed, the driver can open or close the valve with a switch inside the vehicle.

Opening the exhaust switch valve allows exhaust gas to use a shorter and less restricted path, which normally produces a louder and more direct exhaust note. Closing the valve directs exhaust gas back through the existing muffler and exhaust system.

The final sound depends on the engine, catalytic converters, resonators, mufflers, pipe diameter and bypass outlet position. An exhaust switch valve controls the exhaust path but cannot guarantee a specific sound level or exhaust tone on every vehicle.

Q: How Does an Electric Exhaust Cutout Valve Work With the Factory Exhaust System?

A: An electric exhaust cutout valve works with the factory exhaust system by controlling a separate bypass branch installed in the exhaust pipe. The original muffler and tailpipe remain available as the normal exhaust route.

When the electric exhaust cutout valve is closed, exhaust gas continues through the factory exhaust path. When the valve is opened, part or all of the exhaust flow can leave through the shorter bypass outlet, depending on the Y-pipe design and valve location.

A professional installer should select a position with sufficient ground clearance, heat protection and wiring access. The installation should not interfere with oxygen sensors, catalytic converters or legally required emissions equipment. Local noise and emissions regulations must also be checked before road use.

Q: What Is Included With the EVIL ENERGY Exhaust Cutout Valve?

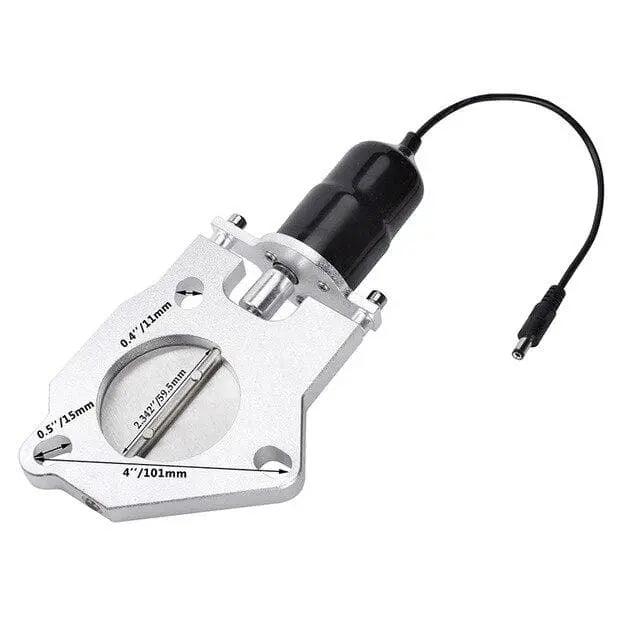

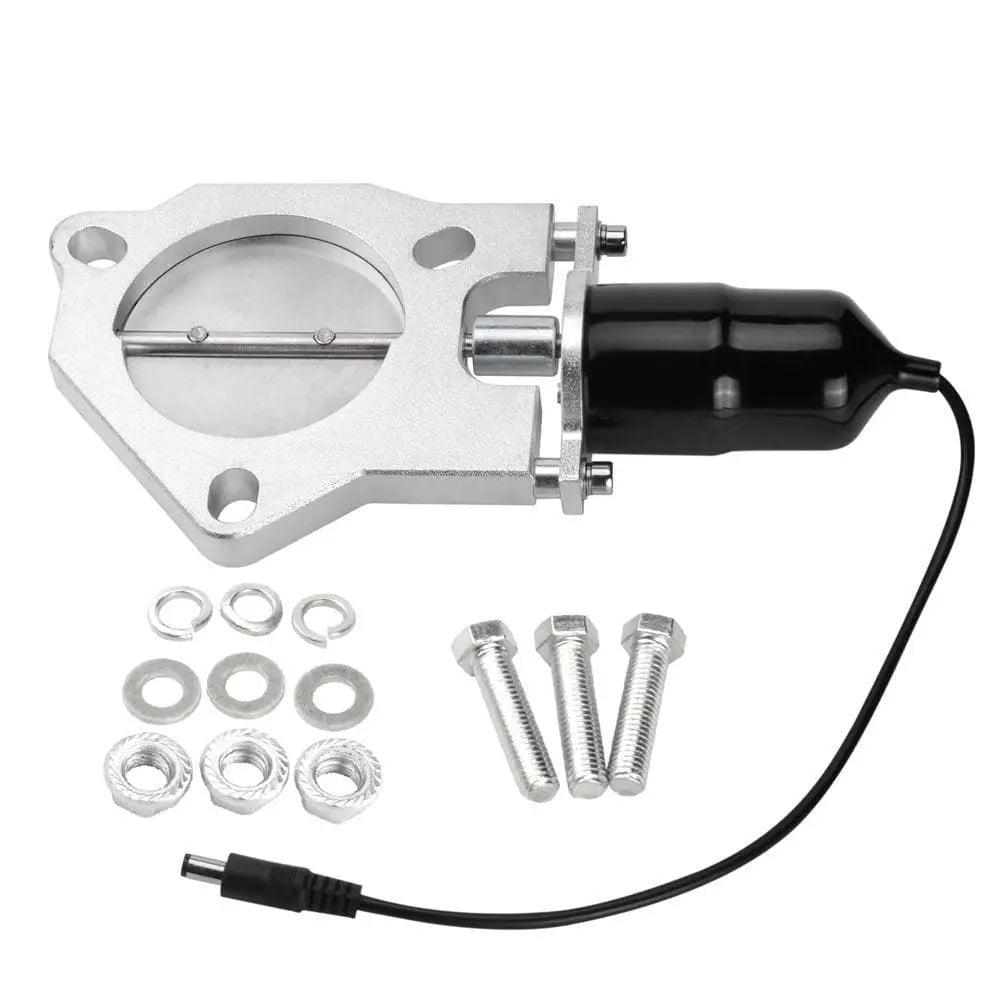

A: The EVIL ENERGY exhaust cutout valve is built around an electric valve assembly and a wired rocker-switch control system. Available valve sizes include 2.0, 2.25, 2.5 and 3.0 inches.

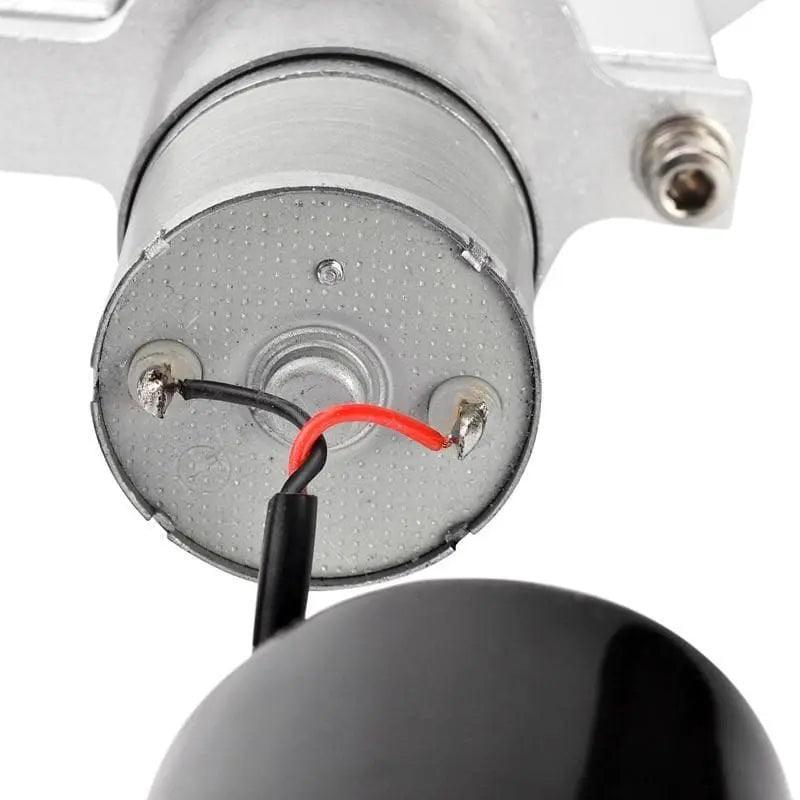

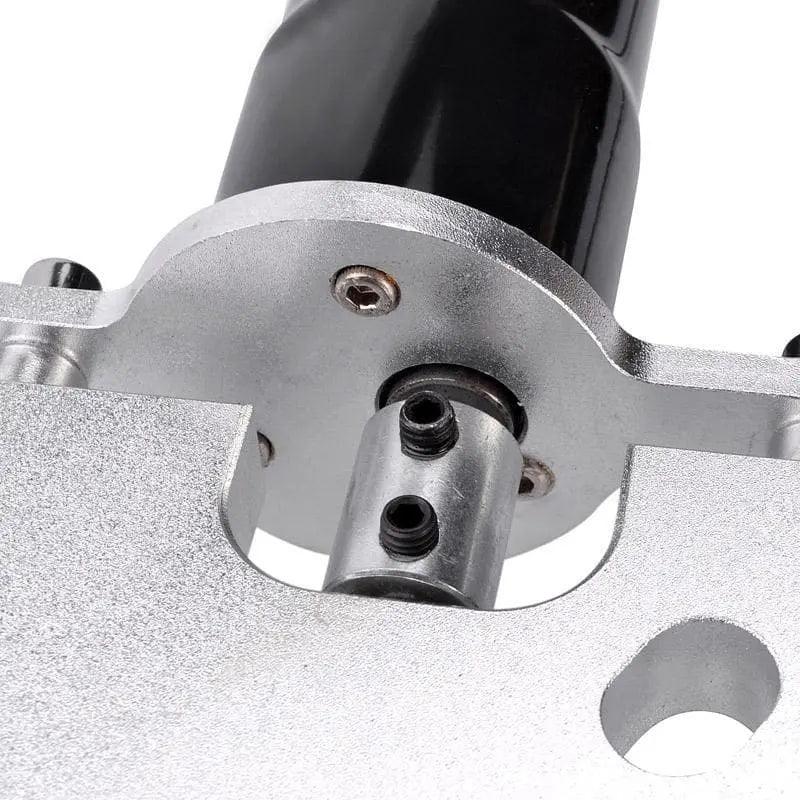

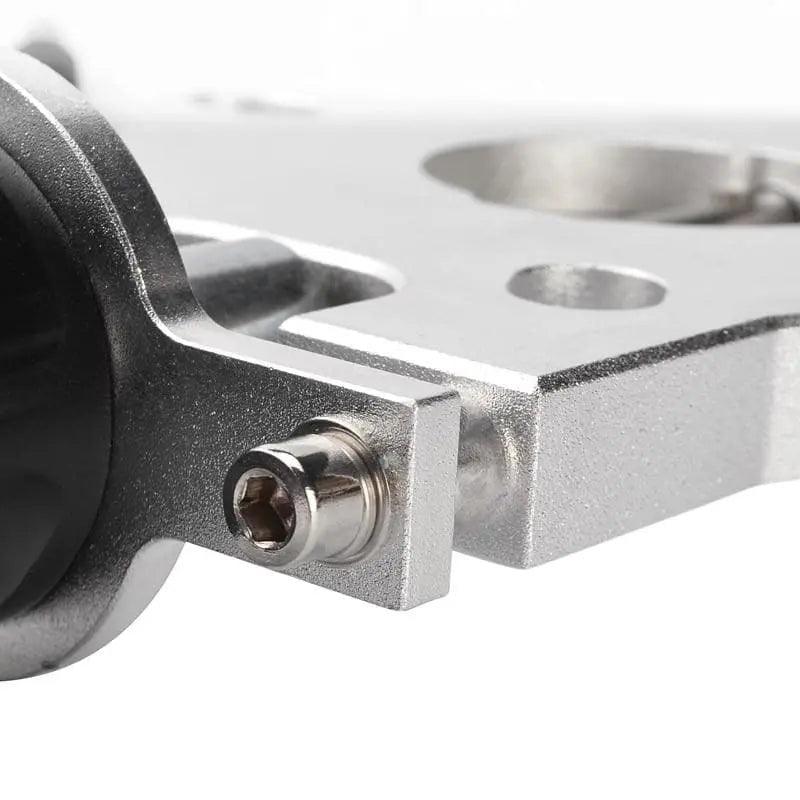

The valve design includes a CNC-machined, anodized T-6061 aluminum housing, an enclosed gear-reduction motor and slotted mounting holes for easier flange alignment. The wired switch allows the driver to control the valve without a wireless remote or remote-control battery.

The valve-only product should not be treated as a complete vehicle-specific exhaust kit. A custom Y-pipe, bypass outlet, exhaust tubing, clamps, welding work or model-specific mounting components may be required. Buyers should confirm the selected variant, product images and complete package list before ordering installation hardware.

Q: Does the EVIL ENERGY Exhaust Cutout Valve Include a Splitter or Y-Pipe?

A: The EVIL ENERGY valve-only listing should not be treated as a complete exhaust cutout valve splitter or Y-pipe kit. The electric valve controls an existing or custom-fabricated bypass opening, but a bypass branch must already exist or be fabricated before the valve can redirect exhaust flow.

A new installation normally requires a Y-pipe or fabricated branch, an outlet pipe and a suitable connection method. The installation may require welding, a matching flange or exhaust clamps, depending on the vehicle and exhaust design.

Buyers who do not already have a bypass branch should include the cost of tubing, fabrication and electrical installation in the project budget. A professional exhaust shop can determine the required parts from the pipe diameter and available underbody space.

Q: Is a Muffler Switch Valve the Same as an Electric Exhaust Cutout Valve?

A: A muffler switch valve and an electric exhaust cutout valve can describe similar functions, but the two terms do not always identify the same component.

An electric exhaust cutout valve normally opens or closes a separate bypass path before part of the muffling system. A valve installed inside a factory-style valved muffler may change internal exhaust routing without releasing exhaust through a separate outlet.

The EVIL ENERGY product is intended for a custom exhaust cutout or bypass arrangement. The EVIL ENERGY valve does not automatically replace a factory valved muffler actuator because factory systems may use different flanges, motors, sensors, control signals and ECU communication.

Buyers replacing an original valve should compare the pipe diameter, flange shape, bolt spacing, valve orientation and electrical control method before ordering.

Q: Does a Switch Exhaust System Replace the Muffler or Keep the Original Exhaust Path?

A: A properly designed switch exhaust system normally keeps the original muffler and adds a separate bypass route. Closing the electric valve sends exhaust gas through the normal muffler and tailpipe. Opening the electric valve allows exhaust gas to use the bypass outlet.

The original exhaust system remains useful for daily driving, residential areas and situations where lower exhaust volume is preferred. The bypass route provides a louder and more direct sound when local conditions and regulations allow its use.

A switch exhaust system does not require removal of the muffler unless the installer intentionally redesigns the entire exhaust. Retaining the normal exhaust route also provides a fallback exhaust path if the electric valve, switch or wiring requires service.

Q: How Many Electric Exhaust Valves Are Required for a Dual Exhaust System?

A: A true dual exhaust system with two independent exhaust pipes normally requires one electric exhaust valve for each pipe. Two valves allow both sides of the exhaust system to open and close together.

A single-pipe exhaust system that divides into two tailpipes farther downstream may require only one valve before the split. The number of tailpipes does not determine the required valve quantity. The number of independent exhaust paths at the planned installation point determines the valve quantity.

Both valves in a dual exhaust installation should use matching diameters and compatible control wiring. The installer should also confirm that both valves receive consistent power and reach fully open and fully closed positions at the same time.

Q: Should I Choose a Wired Exhaust Cutout Valve or an Exhaust Cutout With Remote Control?

A: A wired exhaust cutout valve is usually the better choice for drivers who prioritize direct control and straightforward troubleshooting. A wired rocker switch does not require remote pairing, a handheld transmitter battery or a separate wireless command signal.

An exhaust cutout with remote control provides more flexible operation because the driver does not need to install a switch in the dashboard or center console. A remote system adds a receiver module, transmitter and additional electrical connections that must remain operational.

The EVIL ENERGY valve on this product page uses a wired rocker-switch control. Installation requires routing the switch wiring into the cabin, protecting the wiring from exhaust heat and moving components, and providing a properly fused electrical connection. Buyers who require wireless operation should select a product that explicitly includes a compatible remote receiver.

Q: What Is the Difference Between an Exhaust Diverter Valve and an Exhaust Cutout Valve?

A: An exhaust diverter valve is a general category of valve that redirects exhaust gas between two possible paths. An exhaust cutout valve is a specific type of diverter valve that usually opens a shorter bypass route around part of the muffling system.

Some exhaust diverter valves switch between two complete tailpipe routes. An exhaust cutout normally controls an added outlet that produces a louder and less muffled exhaust note when opened.

The EVIL ENERGY electric exhaust cutout valve is designed for a fabricated cutout or bypass arrangement. Product compatibility depends on pipe diameter, flange dimensions, bolt locations, valve clearance and the electrical control system. Similar product names do not guarantee interchangeable dimensions or wiring.

Q: Can an Exhaust Shut-Off Valve Completely Block Exhaust Flow?

A: An exhaust shut-off valve should never block the vehicle’s only exhaust path. A correctly installed electric cutout valve closes the bypass opening and redirects exhaust gas through the normal muffler and tailpipe.

Installing a valve as a complete blockage in the main exhaust pipe can create excessive backpressure and heat. Excessive exhaust restriction may cause poor engine performance, component damage or unsafe exhaust leakage.

The EVIL ENERGY valve should be used as part of a properly designed bypass system with an unobstructed normal exhaust route. After installation, the installer should verify that the valve opens and closes fully, the flange does not leak and the main exhaust path remains unrestricted when the bypass valve is closed.

Q: Are Electric Exhaust Cutout Valves Street Legal in the United States?

A: Electric exhaust cutout valves are not automatically street legal in the United States. Legality depends on federal emissions requirements, state exhaust-equipment laws and local noise ordinances.

The federal EPA Tampering Policy prohibits removing, bypassing or disabling required emissions-control equipment. An electric exhaust cutout must not route exhaust around a catalytic converter, oxygen sensor, diesel particulate filter, SCR system or another required emissions-control component. Installing the valve downstream from emissions equipment may reduce the emissions-tampering risk, but downstream installation does not override state noise or cutout restrictions.

Regional requirements include:

• Western United States: California Vehicle Code §27150 prohibits registered internal-combustion vehicles from being equipped with a muffler cutout, bypass or similar device. California provides a limited exception for qualifying off-highway organized racing or competitive events. Washington RCW §46.37.390 prohibits using a muffler cutout or bypass on a highway.
• Northeastern United States: New York Vehicle and Traffic Law §375(31) requires the muffler and exhaust system to remain in constant operation and prohibits cutouts, bypasses and similar noise-increasing devices. New York also restricts the sale and installation of exhaust devices that increase noise above the original system.
• Midwestern United States: Illinois 625 ILCS 5/12-602 prohibits highway vehicles from being equipped with a cutout, bypass or similar device and prohibits exhaust modifications that increase noise above the original muffler. Ohio Revised Code §4513.22 also prohibits the use of a muffler cutout or bypass on a highway.
• Southern United States: Texas Transportation Code §547.604 prohibits using a muffler cutout, bypass or similar device on a motor vehicle. Florida Statutes §316.272 prohibits using a muffler cutout or bypass on a vehicle operated on a highway.

An open exhaust cutout is generally unsuitable for public-road use in states that expressly prohibit cutouts or require the muffler to remain in continuous operation. A closed valve does not guarantee compliance because some state laws prohibit the installed cutout device itself, while other laws prohibit only highway use.

Electric exhaust cutout valves should be used only on private property, off-road vehicles or closed competition courses where permitted. Vehicle owners should check the applicable state statute, vehicle inspection requirements and city or county noise ordinances before installation or public-road use.
