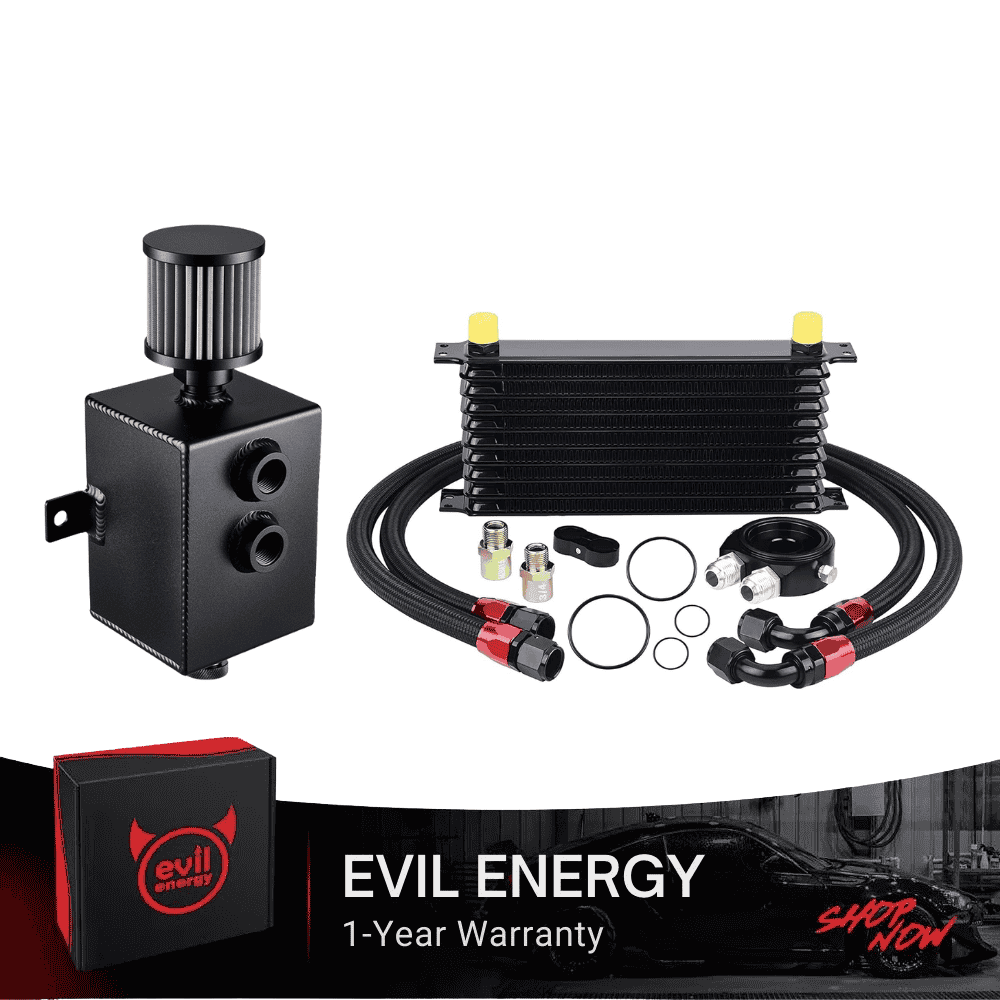

[10 Row,2L]
[10 Row,3L]

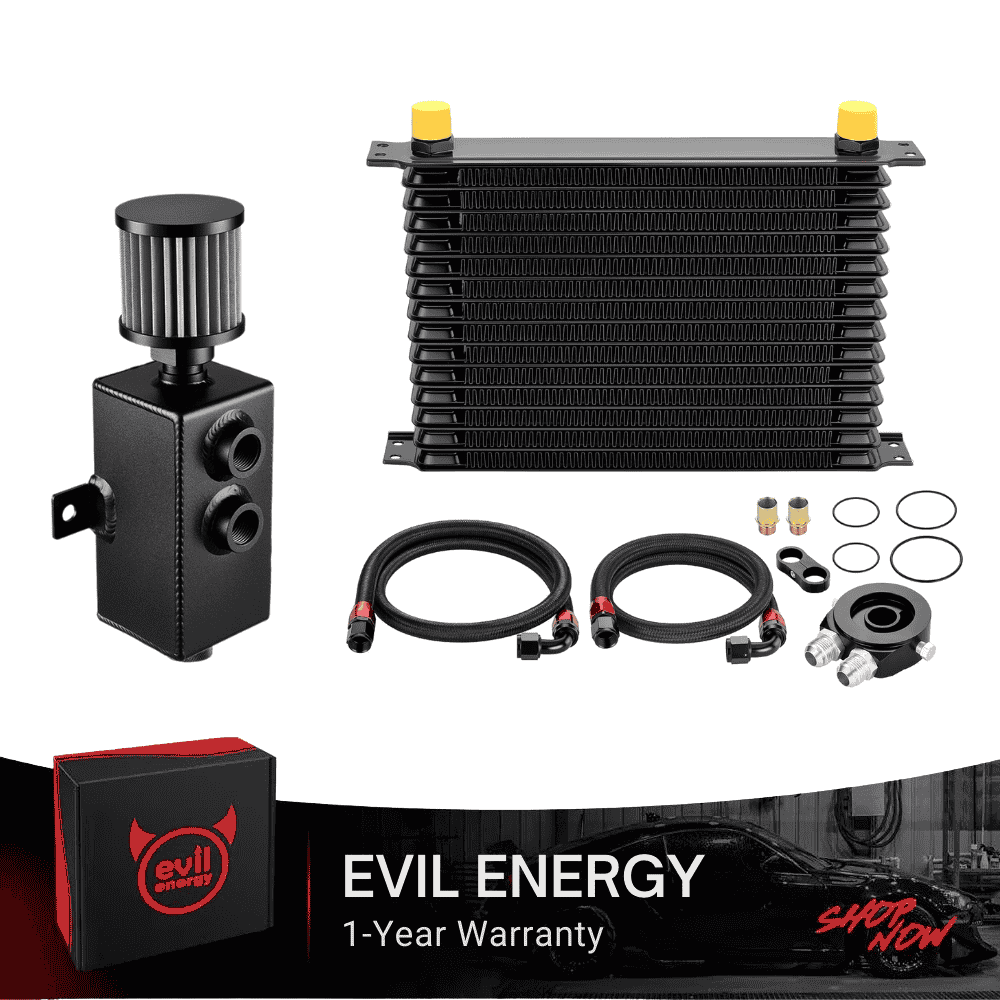

[15 Row,1L]

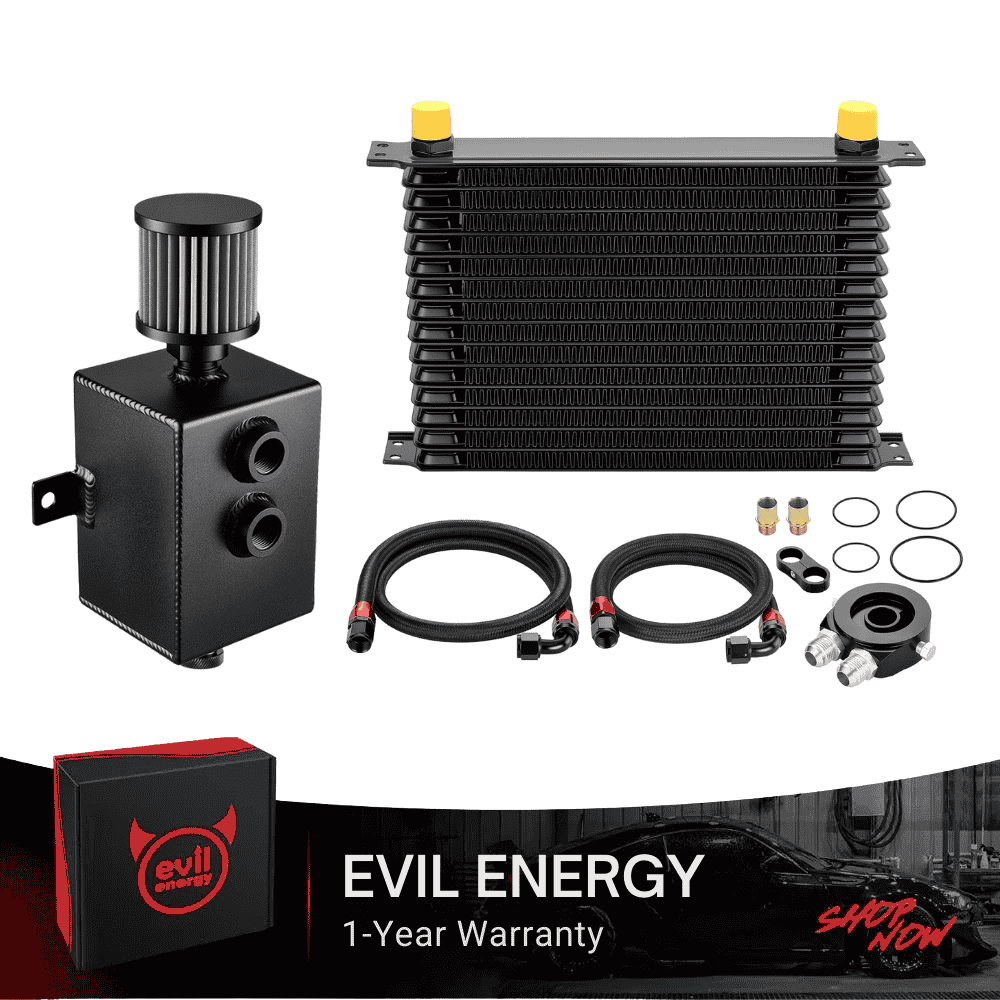

[15 Row,2L]

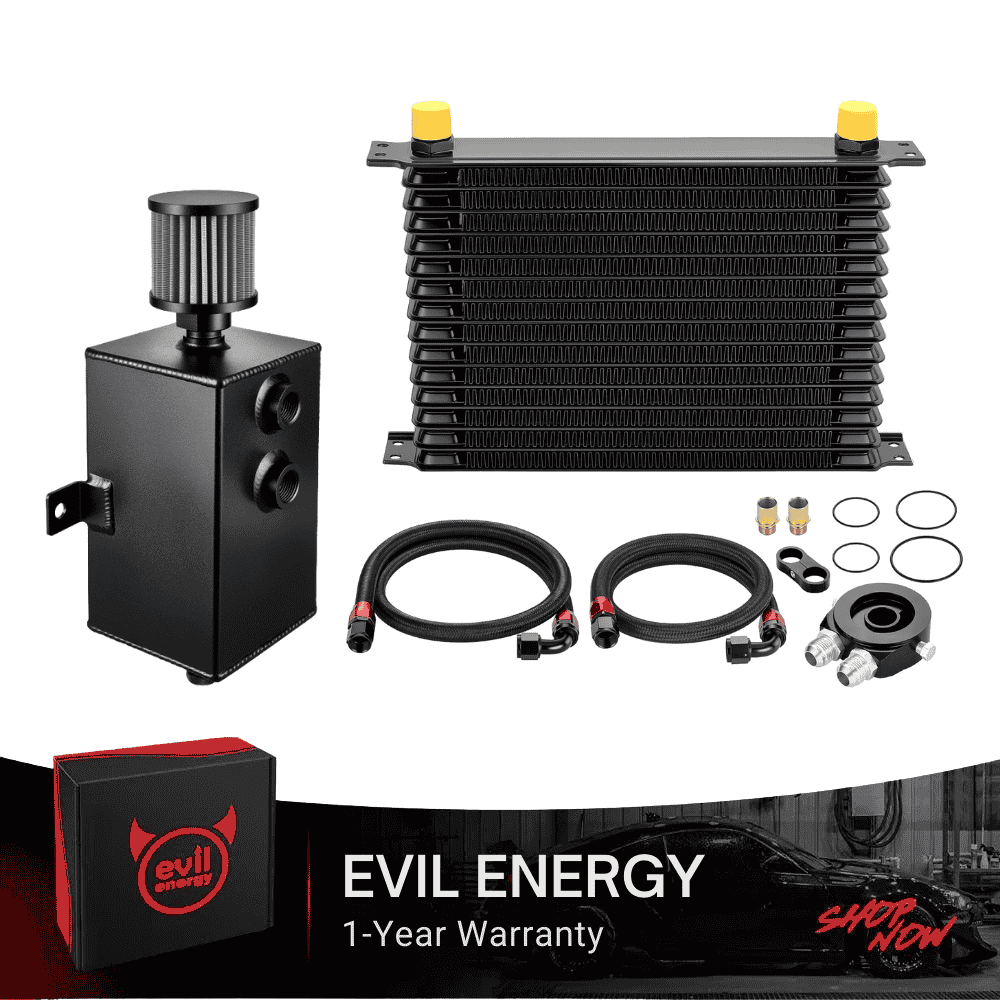

[15 Row,3L]
[10 Row]
[15 Row]
[1L]
[2L]
[3L]
[1L]
[2L]
[3L]
[10 Row]
[15 Row]
EVIL ENERGY Fuel Cell Gas Tank - Over 500,000 Raving Fans & User Testimonials

EVIL ENERGY AN10 Oil Catch Can & Transmission Universal 340mm Engine Oil Cooler Kit 10/15 Row

Product Type: Oil Catch Can Kits
$127.49
$127.49
Style: 10 Row
Capacity: 1L

Core Dual-Protection Performance

  • Oil catch can (1L/2L/3L): Traps oil vapor/impurities via particle separation + breather filter, preventing carbon buildup on intake parts.

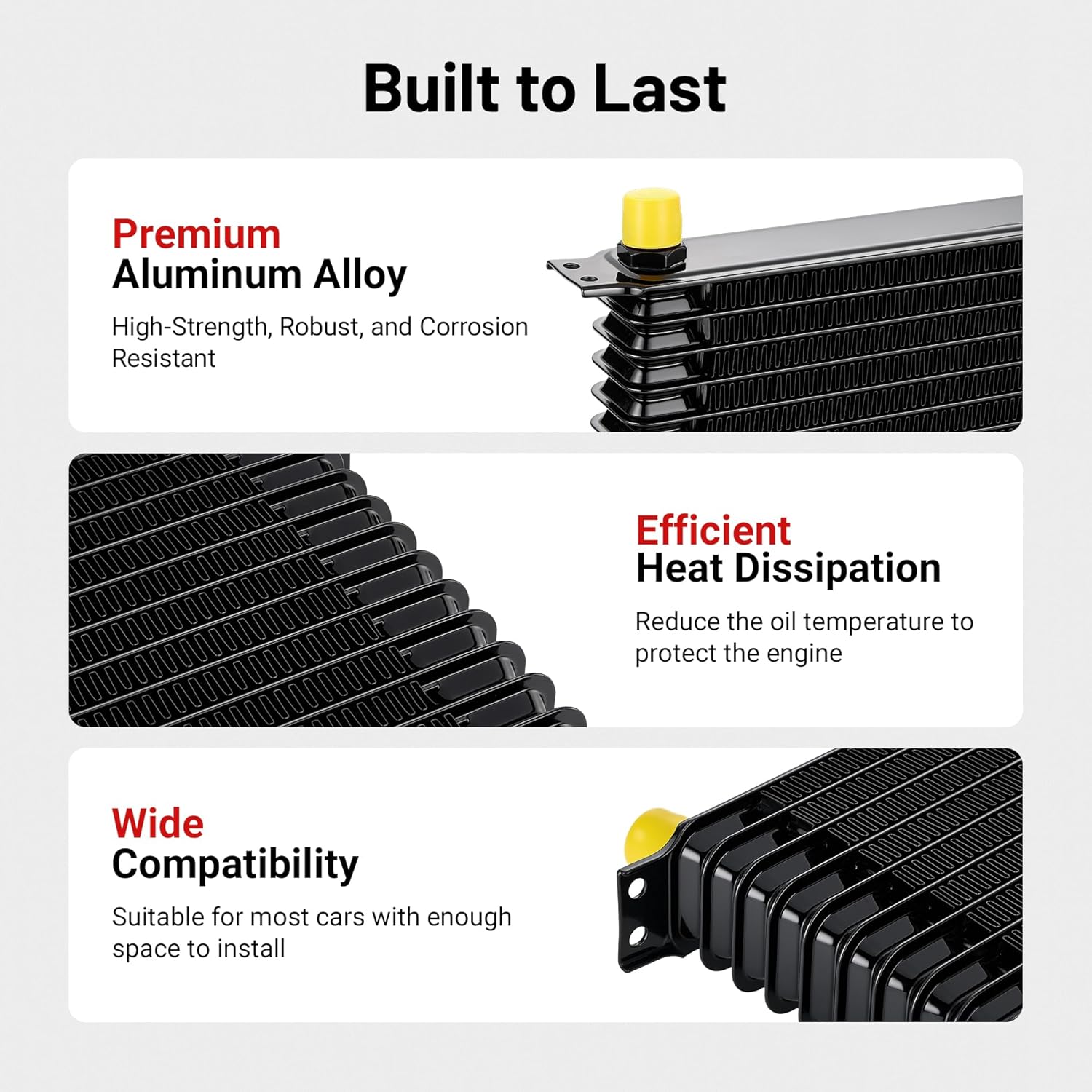

  • 340mm oil cooler (10/15ROW): Stacked-plate aluminum core (0.55L/0.8L capacity) lowers oil temp (engine/transmission/differential) to avoid thermal breakdown.
  • Synergistic safeguard: One kit solves two key engine issues, extending powertrain lifespan and maintaining consistent performance.

Durable Premium Construction

  • Catch can: T-6061 aluminum, TIG welding, black anodization—heat/pressure/corrosion-resistant for high-demand use.
  • Oil cooler: Aluminum alloy core + 10AN CPE hoses (500PSI, -40℉~257℉) + 7/8-14 UNF fittings—leak-free, wear-resistant, reliable.
  • Stable mounting: Catch can's dual-hole bracket + cooler's flexible hoses adapt to diverse engine bays, ensuring secure fit in aggressive driving.

Universal & User-Friendly Design

  • Fit versatility: Optimized for LS V8 engines (2007-2015); universal for most cars/trucks—multiple capacity/row options for customized needs.
  • Easy upkeep: Catch can's bottom drain valve enables no-disassembly draining; both components include full installation instructions (DIY-friendly).
  • Complete kit: All necessary fittings included—no extra part sourcing required for standard installations.

Value & Application

  • Cost-effective: Combines two essential upgrades at better value than separate purchases; backed by 1-year warranty and fast shipping.
  • Ideal for: Daily drivers, performance builds, racing/off-road vehicles, heavy towing, hot climates, and LS V8 engine setups.
  • Key advantage: Balances targeted fit, durability, and convenience—delivering professional-grade engine protection without premium pricing.

Secure online checkout with free 1-year warranty, 180-day money-back guarantee, free shipping over $50, and expert customer support from EVIL ENERGY.
[10 Row,1L]

EVIL ENERGY AN10 Oil Catch Can & Transmission Universal 340mm Engine Oil Cooler Kit 10/15 Row

$127.49
[10 Row,1L]
[10 Row,2L]
[10 Row,3L]
[15 Row,1L]
[15 Row,2L]
[15 Row,3L]
[10 Row]
[15 Row]
[1L]
[2L]
[3L]
[1L]
[2L]
[3L]
EVIL ENERGY AN10 Oil Catch Can & Transmission Universal 340mm Engine Oil Cooler Kit 10/15 Row
[10 Row]
[15 Row]
EVIL ENERGY AN10 Oil Catch Can & Transmission Universal 340mm Engine Oil Cooler Kit 10/15 Row
EVIL ENERGY AN10 Oil Catch Can & Transmission Universal 340mm Engine Oil Cooler Kit 10/15 Row
EVIL ENERGY AN10 Oil Catch Can & Transmission Universal 340mm Engine Oil Cooler Kit 10/15 Row
EVIL ENERGY AN10 Oil Catch Can & Transmission Universal 340mm Engine Oil Cooler Kit 10/15 Row
EVIL ENERGY Fuel Cell Gas Tank - Over 500,000 Raving Fans & User Testimonials

EVIL ENERGY AN10 Oil Catch Can & Transmission Universal 340mm Engine Oil Cooler Kit 10/15 Row

$127.49
Style: 10 Row
Capacity: 1L
Specifications

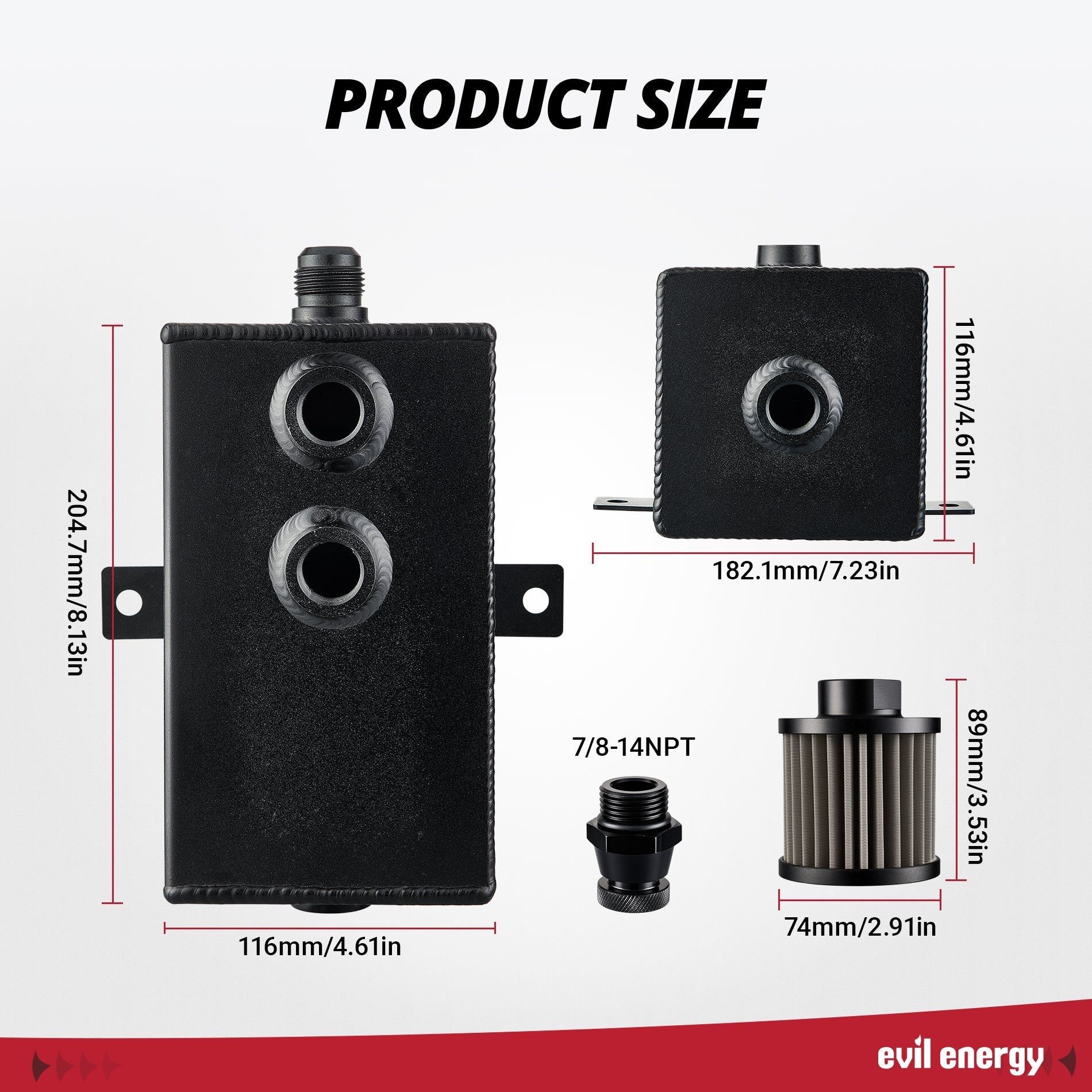

Oil Catch Can Kit Detail：

Brand EVIL ENERGY
Installation Position Between PCV and Intake Manifold
Fit Type Universal (check installation space for specific vehicles)
Exterior Finish Black anodized aluminum (corrosion-resistant, premium appearance)

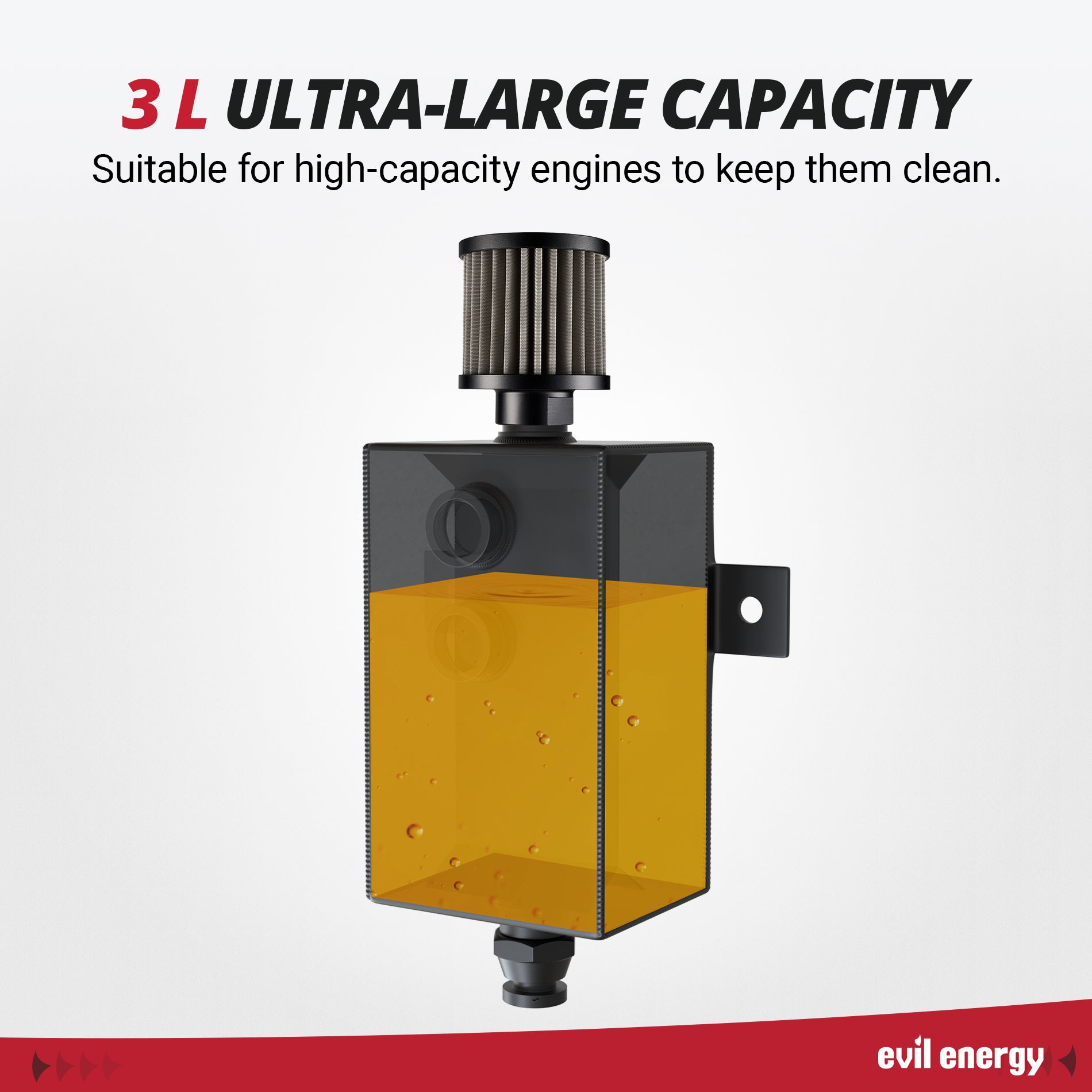

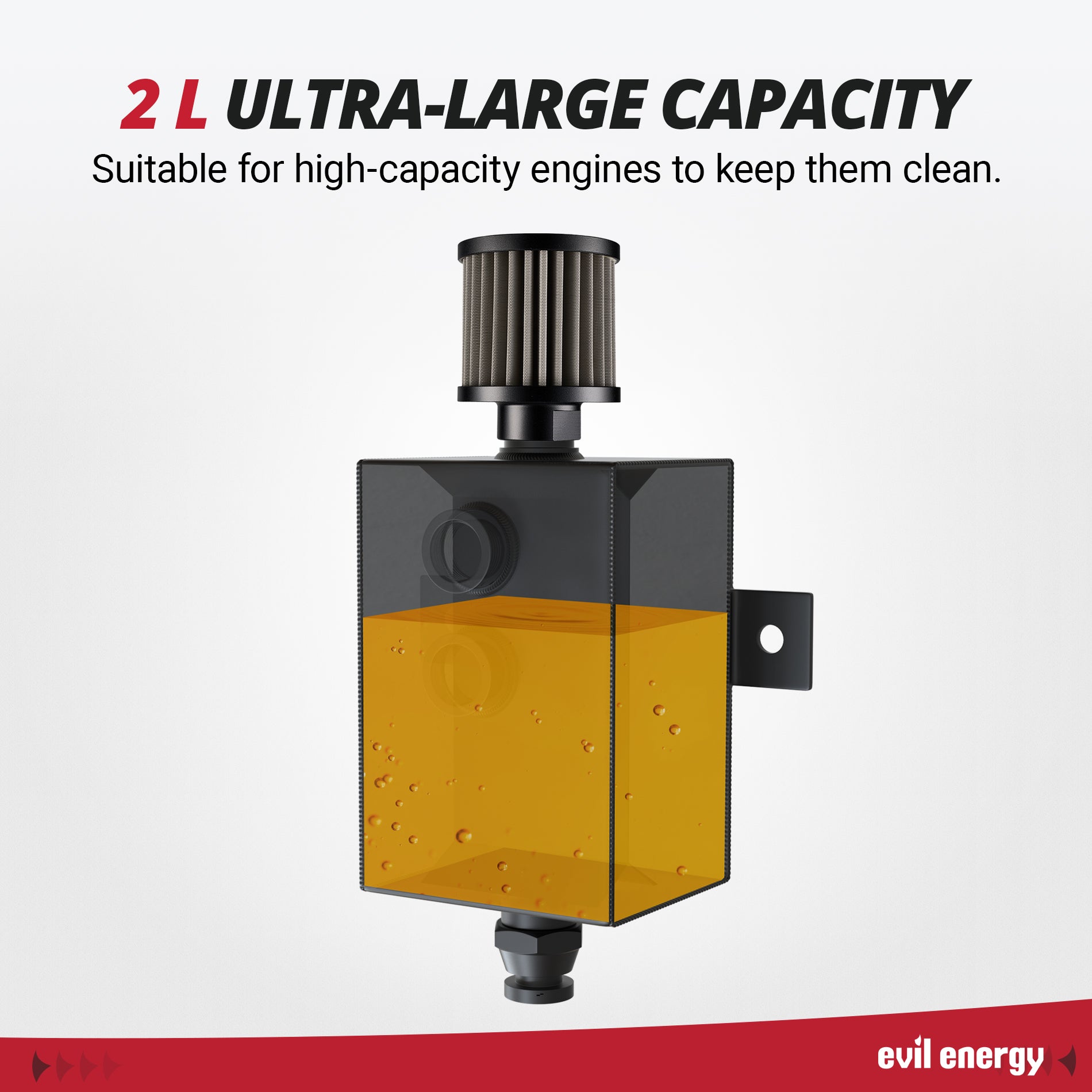

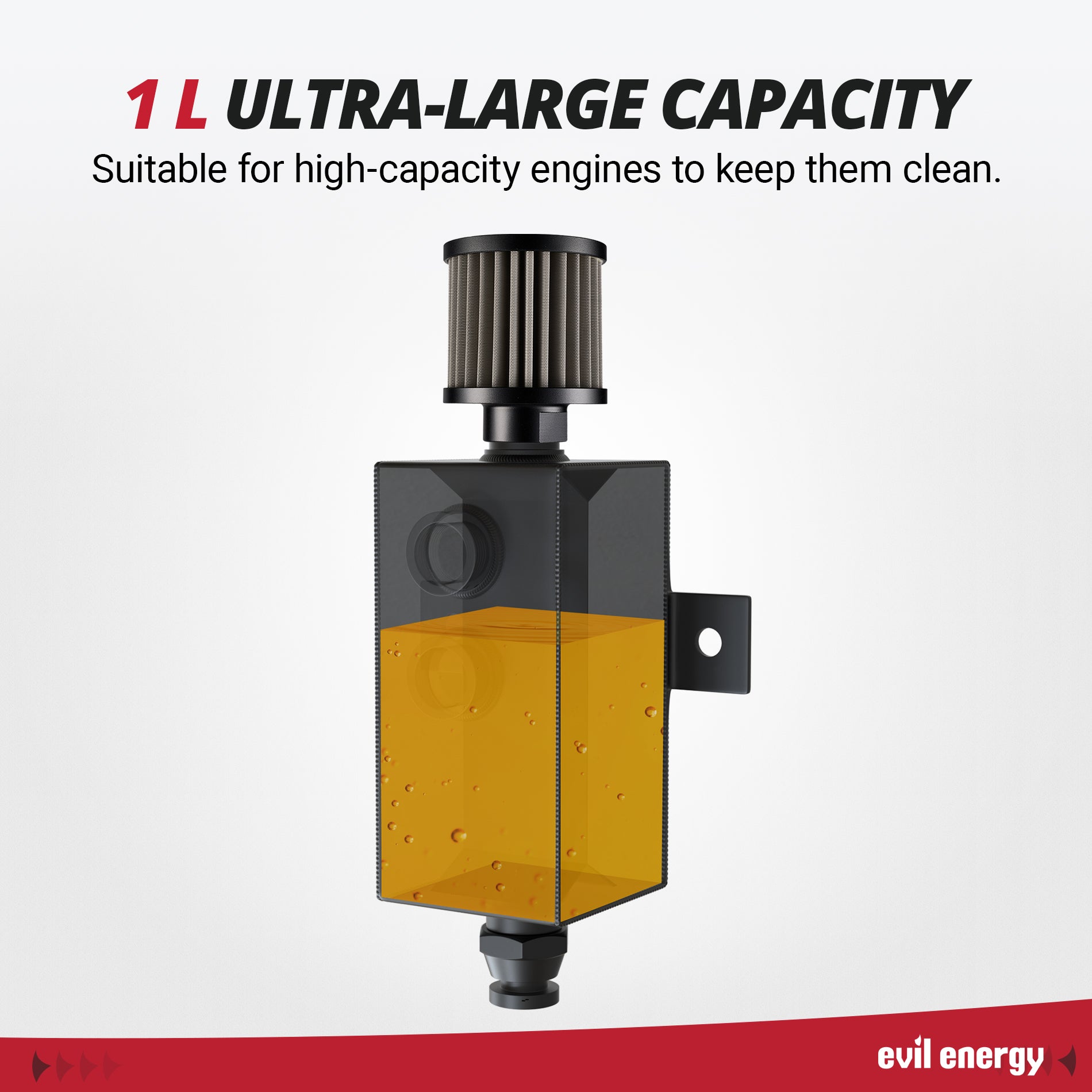

Capacity Options 1L / 2L / 3L
Key Features Integrated bottom drain valve (no-disassembly draining); breather filter; oil particle separation system
Mounting Design Dual-hole bracket (symmetric mounting holes for flexible, stable installation on frames/panels/subframes)
Package Include 1 × Oil Catch Can
1 × Breather Filter
2 ×Drain valve
Material Full T-6061 aluminum with TIG welding (high heat/pressure tolerance)
Condition New (100% brand-new components)

340mm Engine Oil Cooler Detail

Brand EVIL ENERGY
Universal Fitment Suitable for most cars, trucks, and performance vehicles (additional accessories may be required for specific applications); optimized for Cadillac, Chevrolet, GMC, Hummer, Pontiac LS V8 engines (2007-2015)
Cooler Material Aluminum Alloy (lightweight, corrosion-resistant, high heat dissipation)
Row Options 10ROW / 15ROW (340mm series, different cooling capacity for varied needs)
Oil Capacity 10ROW: 0.55L
15ROW: 0.8L
Cooler Size (L×W×H) 10ROW: 13.38" × 6.5" × 1.97"
15ROW: 13.38" × 9.45" × 1.97"
Test Pressure 116 PSI (stable performance under normal working conditions)
Burst Pressure 232 PSI (high safety margin, anti-leakage)
Hose Material Nylon braid with CPE inner layer (wear-resistant, high-pressure resistant)
Hose Specification 2 × 10AN CPE hoses (1 × 3.3FT + 1 × 3.9FT); working pressure: 500 PSI; temperature range: -40℉ to 257℉
Fittings 10AN 7/8-14 UNF fittings (secure, leak-free connections)
Function Cools engine oil, transmission fluid, and rear differentials; improves lubrication performance

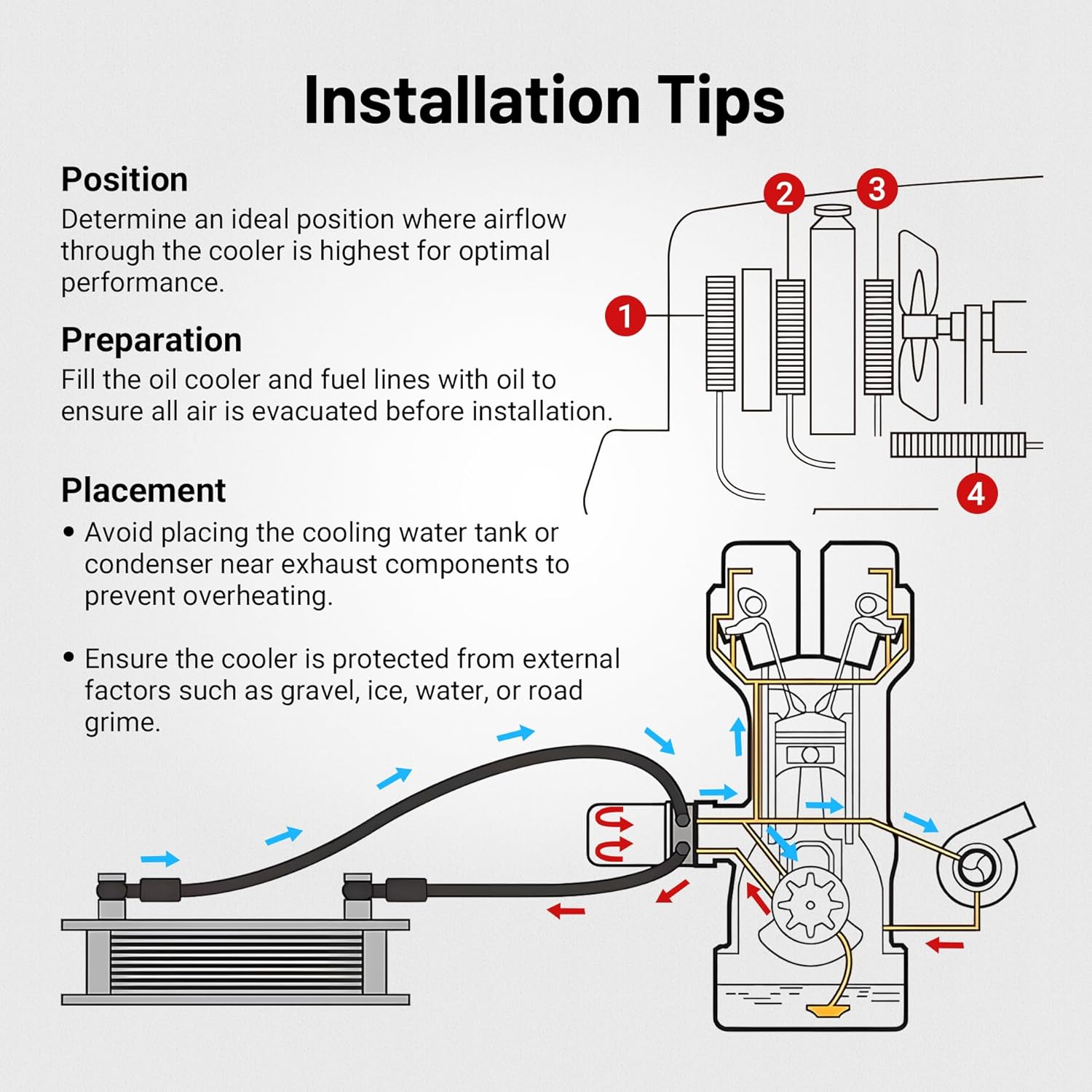

Installation Easy to install; mount in well-ventilated, debris-free location; installation instructions included
Condition New

If you need an additional mounting bracket for the oil cooler:
340mm Bracket
Recommend Non Marring Wrench :
Adjustable AN Fitting Wrench

Product Description

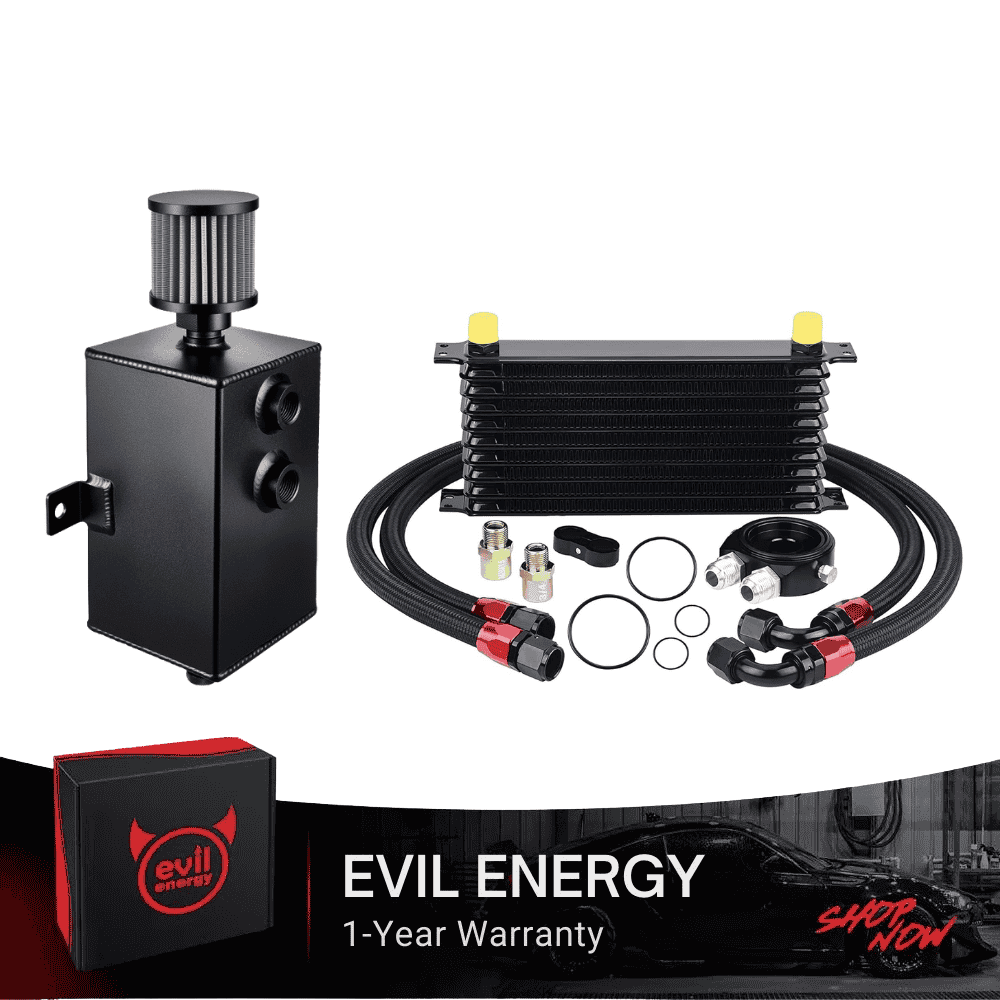

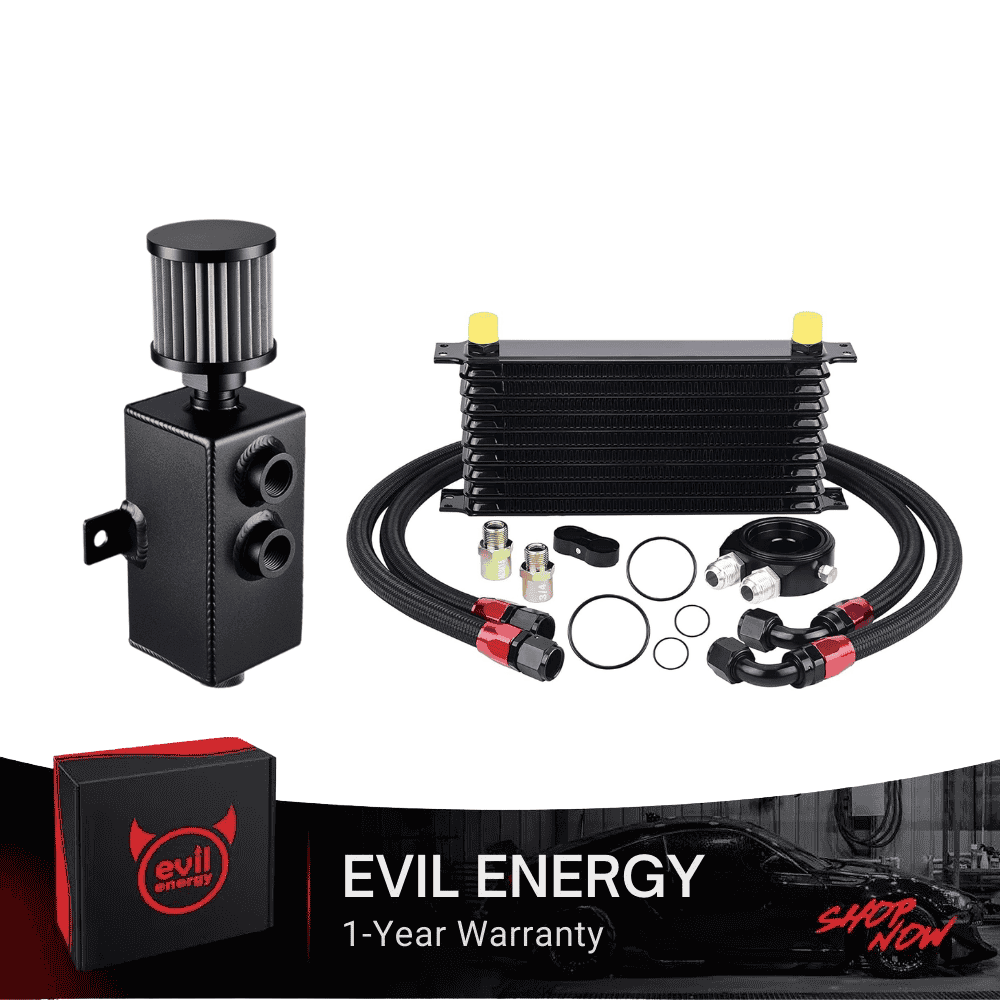

The EVIL ENERGY Combo Oil Catch Can Kit unites a high-performance 1L/2L/3L Oil Catch Can (Without Fuel Line Kit) and a 340mm Universal Stacked-Plate Engine Oil Cooler—delivering dual-engine protection to safeguard your powertrain and boost performance. This all-in-one solution tackles two critical engine health challenges: the oil catch can traps oil vapor to prevent carbon buildup, while the 340mm engine oil cooler lowers oil temperatures to stop thermal breakdown. The EVIL ENERGY Oil Catch Can Kit is the ideal upgrade for daily drivers, performance builds, racing vehicles, off-road setups, and specifically optimized for Cadillac, Chevrolet, GMC, Hummer, and Pontiac LS V8 engines (2007-2015).

Oil Catch Can

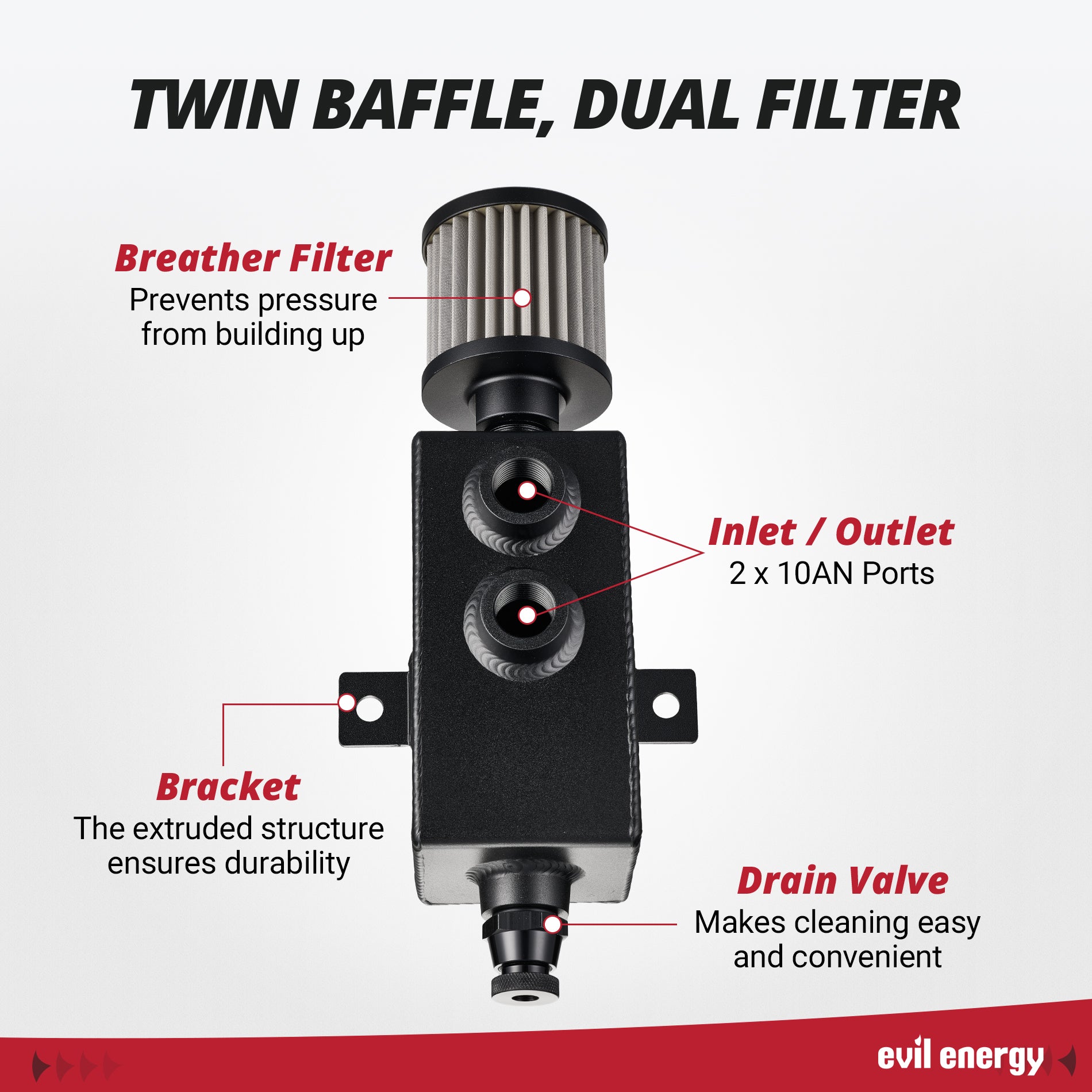

High-Performance Baffled Oil Catch Can

Crafted from full T-6061 aluminum with TIG welding and a black anodized finish, the oil catch can combines durability and functionality to withstand high heat and pressure.

  • Superior Filtration: Its oil particle separation system + breather filter traps impurities and blow-by, keeping intake tracts and valves clean—avoiding carbon buildup that reduces performance and engine lifespan.

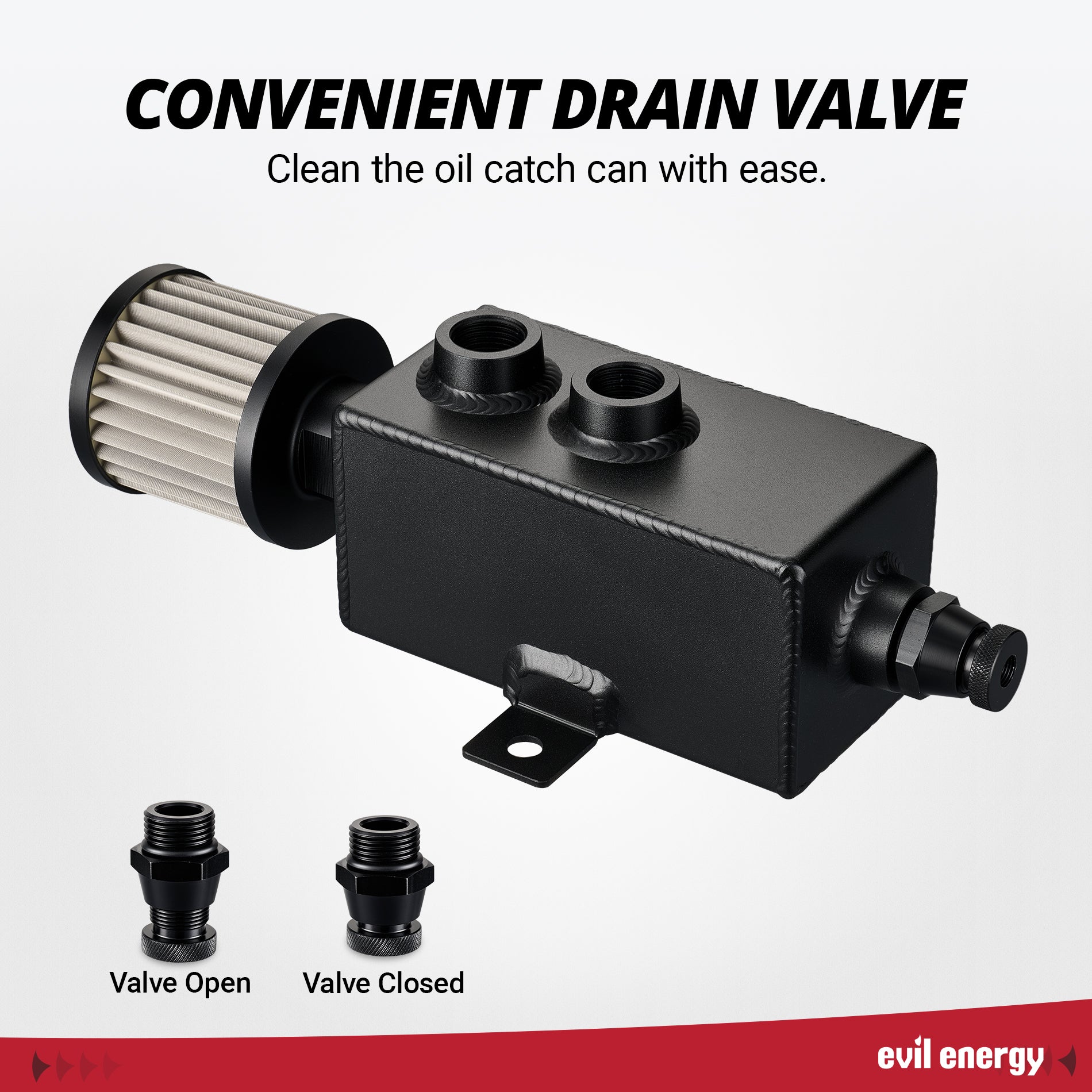

  • Easy Maintenance: An integrated bottom drain valve allows effortless oil draining without disassembly, saving time for daily users and high-maintenance setups (racing/off-road).
  • Flexible Installation: The dual-hole bracket design enables stable mounting on frames, panels, or subframes, adapting to various engine bay layouts even in aggressive driving.

340mm Oil Cooler

340mm Stacked-Plate Universal Engine Oil Cooler

The 340mm engine oil cooler (available in 10ROW/15ROW) features a precision-machined aluminum core that maximizes heat transfer, ensuring optimal oil temperature in all conditions.

  • Multi-Purpose Cooling: Effectively cools engine oil, transmission fluid, and rear differential oil—preventing oil degradation and reducing component wear under extreme scenarios (high-RPM racing, heavy towing, hot climates).
  • Durable Connections: Equipped with 10AN CPE hoses (nylon-braided + CPE inner layer) and 10AN 7/8-14 UNF fittings, it offers 500 PSI working pressure and -40℉ to 257℉ temperature tolerance—leak-free and abrasion-resistant.
  • Optimized Fit: Universal design fits most vehicles, with special optimization for LS V8 engines (2007-2015) for seamless integration and hassle-free installation.

Complete Kit for Hassle-Free Upgrading

Both components come with all necessary fittings and instructions, eliminating the need for extra part sourcing. By combining these two essential upgrades, you save time and money while getting professional-grade protection—keeping your engine running smoother, longer, and more efficiently.

Installation Preparation Package Contents 15ROW Oil Cooler Cooler Mounting Location Application Scenarios Combo Kit Installation

Why Choose EVIL ENERGY Combo Kit?

  • Dual Engine Protection: Oil catch can stops carbon buildup; 340mm oil cooler prevents oil thermal breakdown—two critical safeguards in one kit.
  • Premium Durability: Oil catch can (T-6061 aluminum + TIG welding + anodization) and oil cooler (aluminum alloy + 10AN CPE hoses) withstand extreme heat, pressure, and corrosion.
  • Targeted & Universal Fit: Optimized for LS V8 engines (2007-2015) while fitting most cars/trucks; multiple options (1L/2L/3L catch can; 10/15ROW cooler) for customized needs.
  • Hassle-Free Installation & Maintenance: Complete fittings/instructions included (DIY-friendly); catch can's drain valve and cooler's robust design minimize upkeep.
  • Professional-Grade Value: Saves money vs. separate purchases; top-tier components with 1-year warranty, fast shipping (1-2 business days), and 90-day hassle-free returns.
  • Secure Leak-Free Connections: 10AN 7/8-14 UNF fittings and high-pressure CPE hoses ensure reliable performance, even in high-intensity use.

For additional information or technical support, contact us at support@ievilenergy.com.
