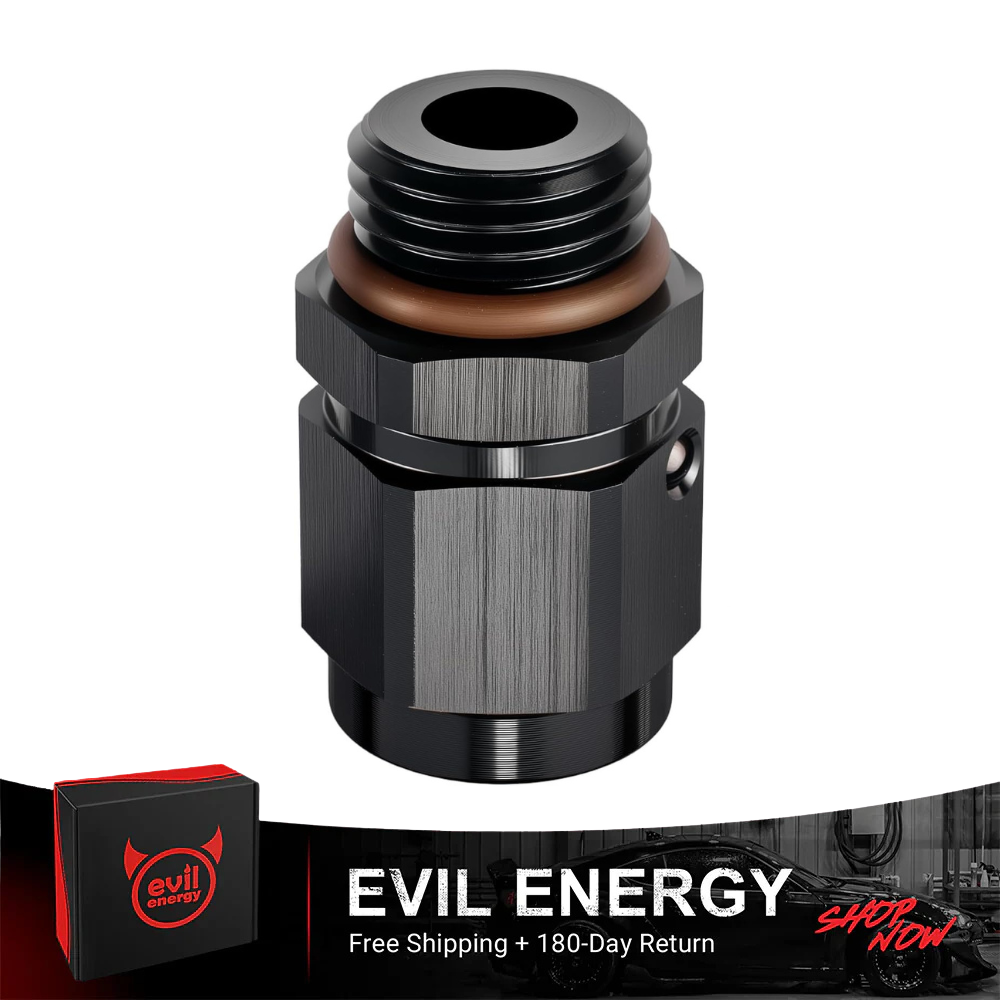

AN Female to ORB Male Fuel Rail Adapter

SPECIFICATIONS
DESCRIPTION
SHIPPING & RETURN
VIDEOS & BLOGS
FAQS
REVIEWS

Connection	AN female swivel to ORB male

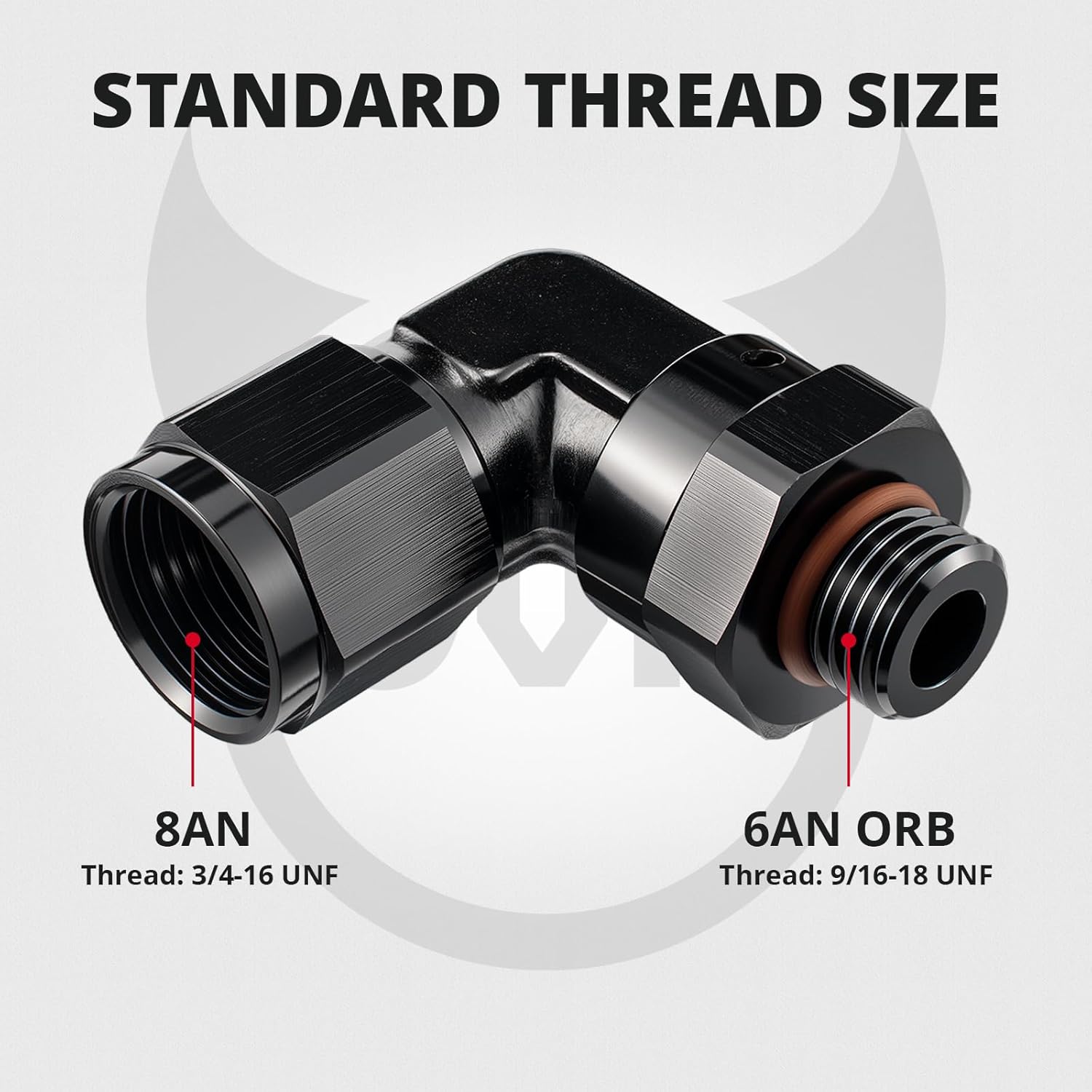

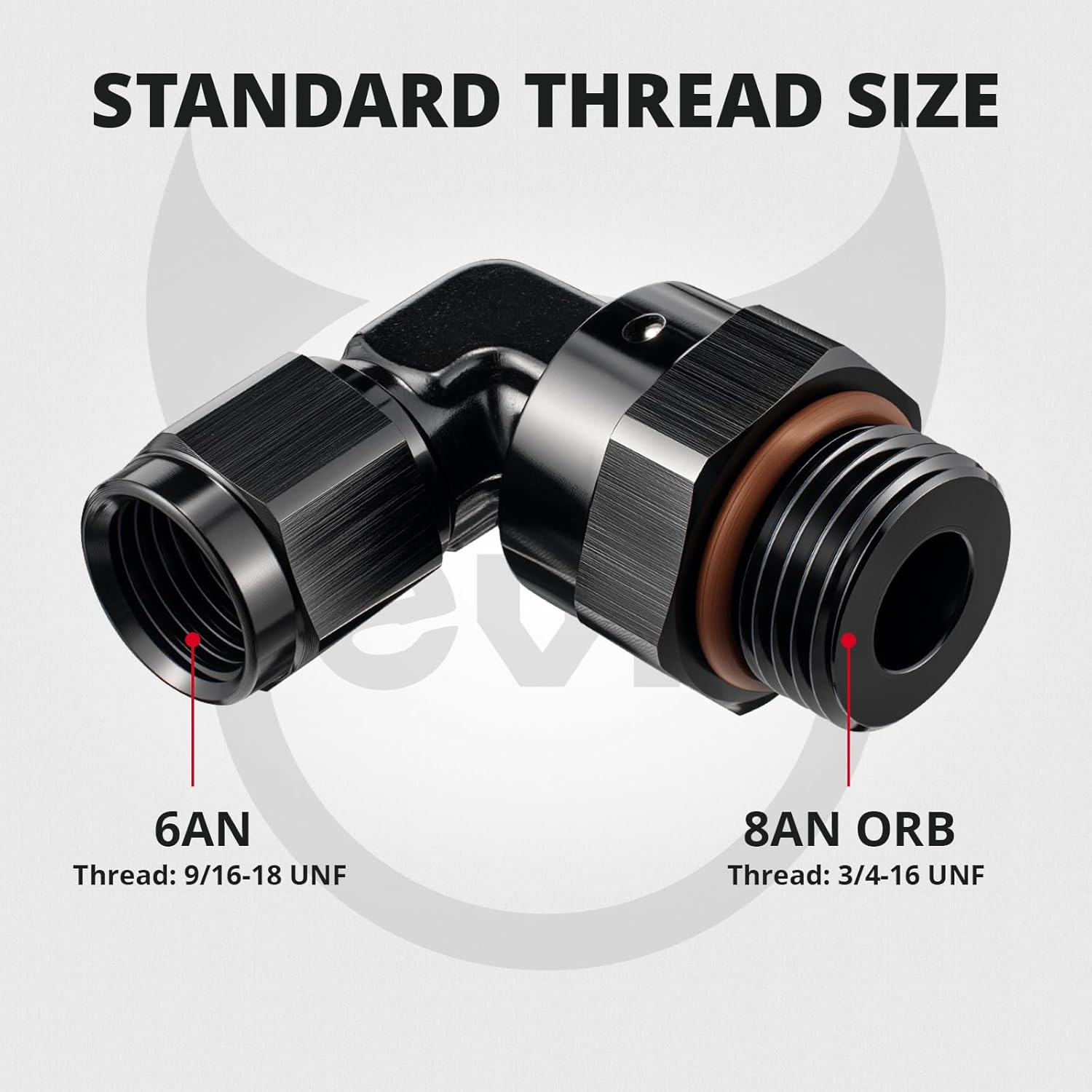

Size range	6AN, 8AN, 10AN, and 12AN combinations
Angle options	Straight or 90 degree, depending on size

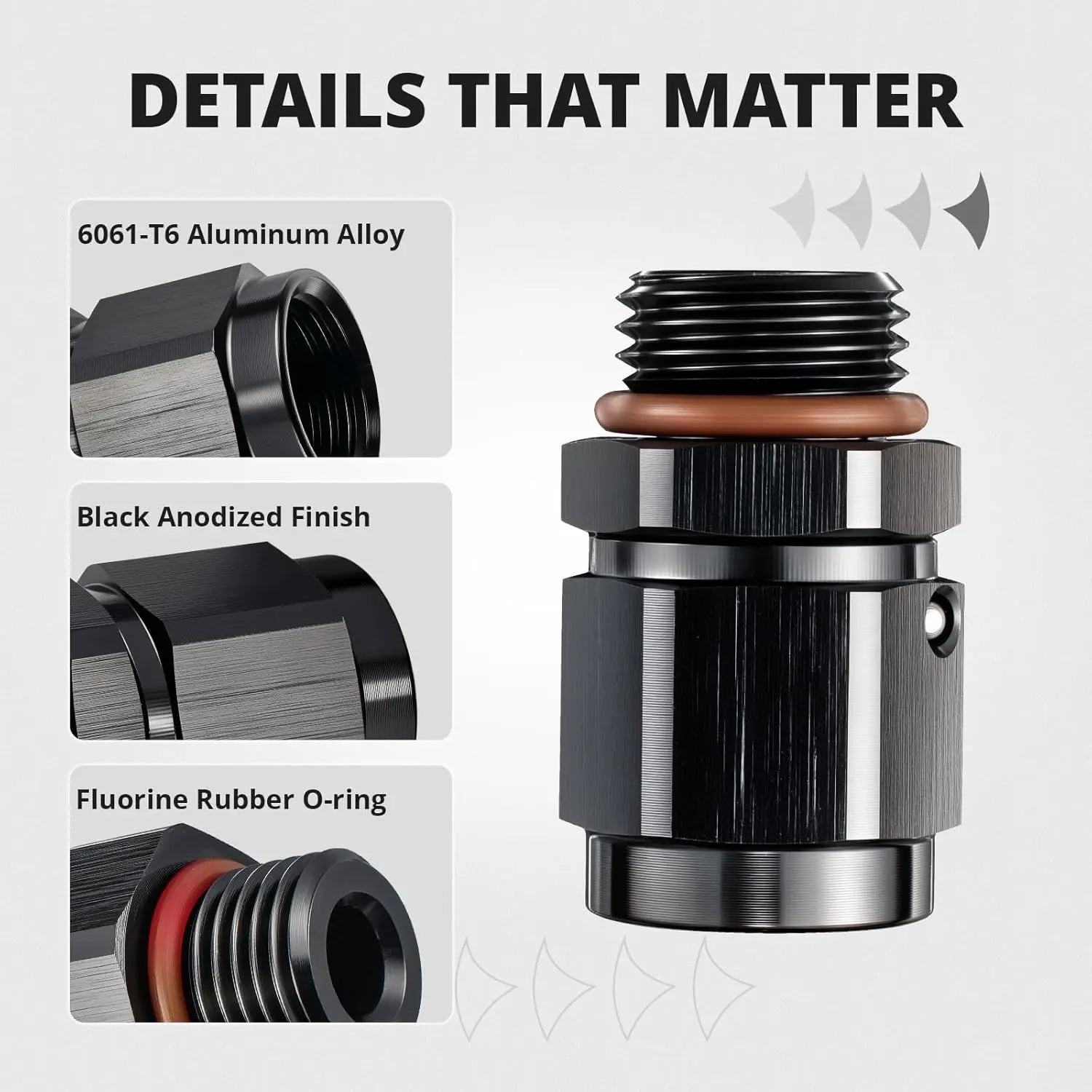

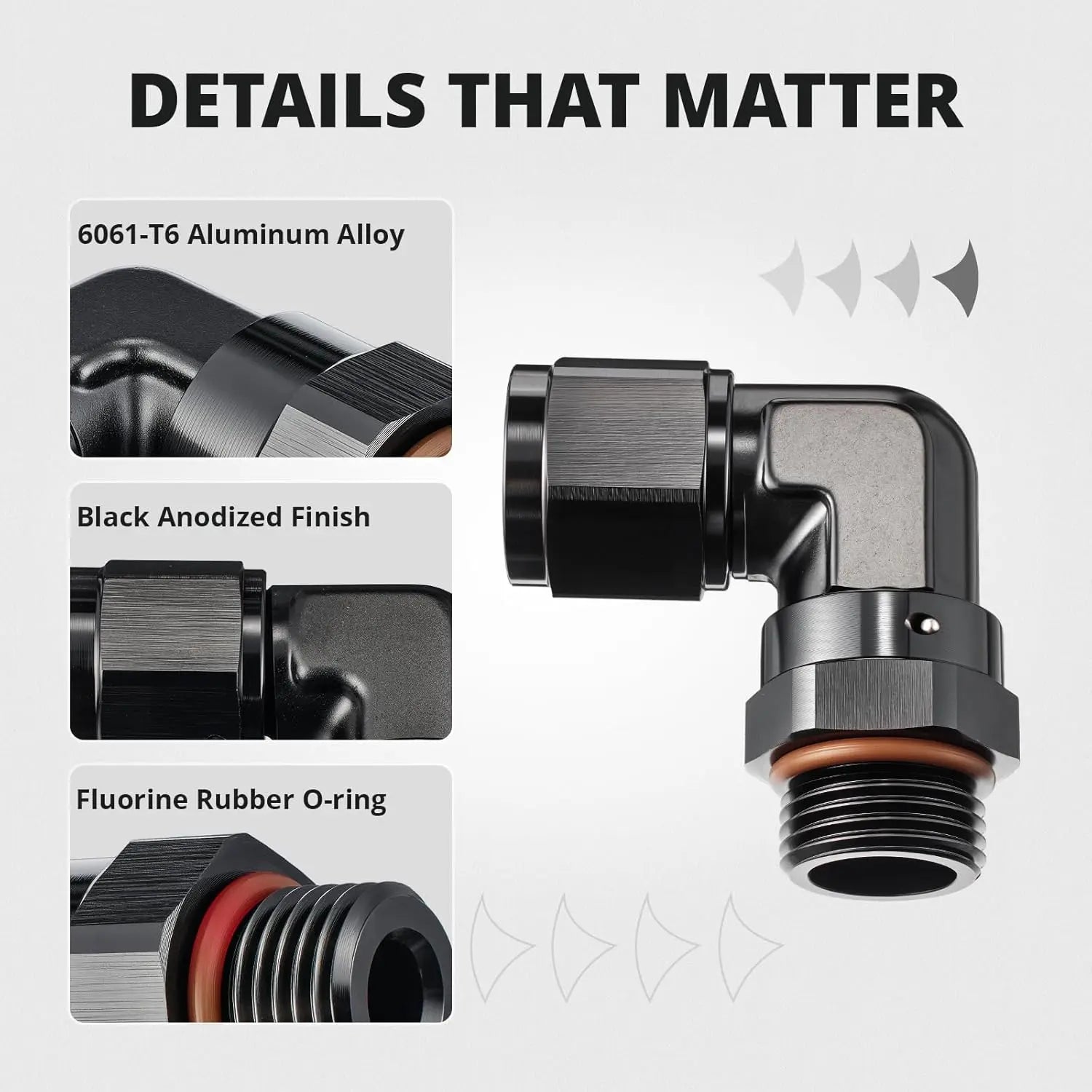

Material	6061-T6 aluminum
Finish	Black anodized
Seal type	37-degree AN flare and ORB O-ring

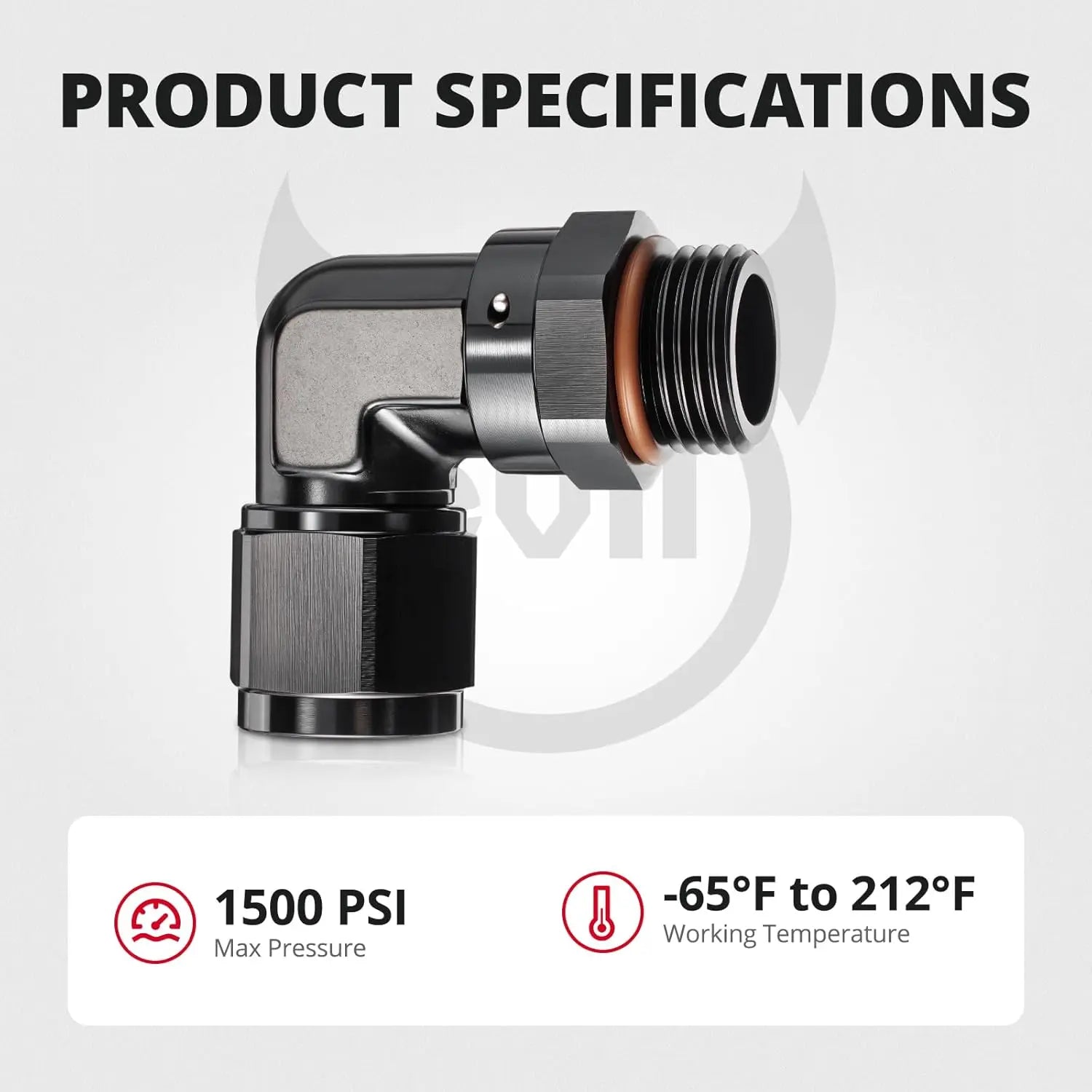

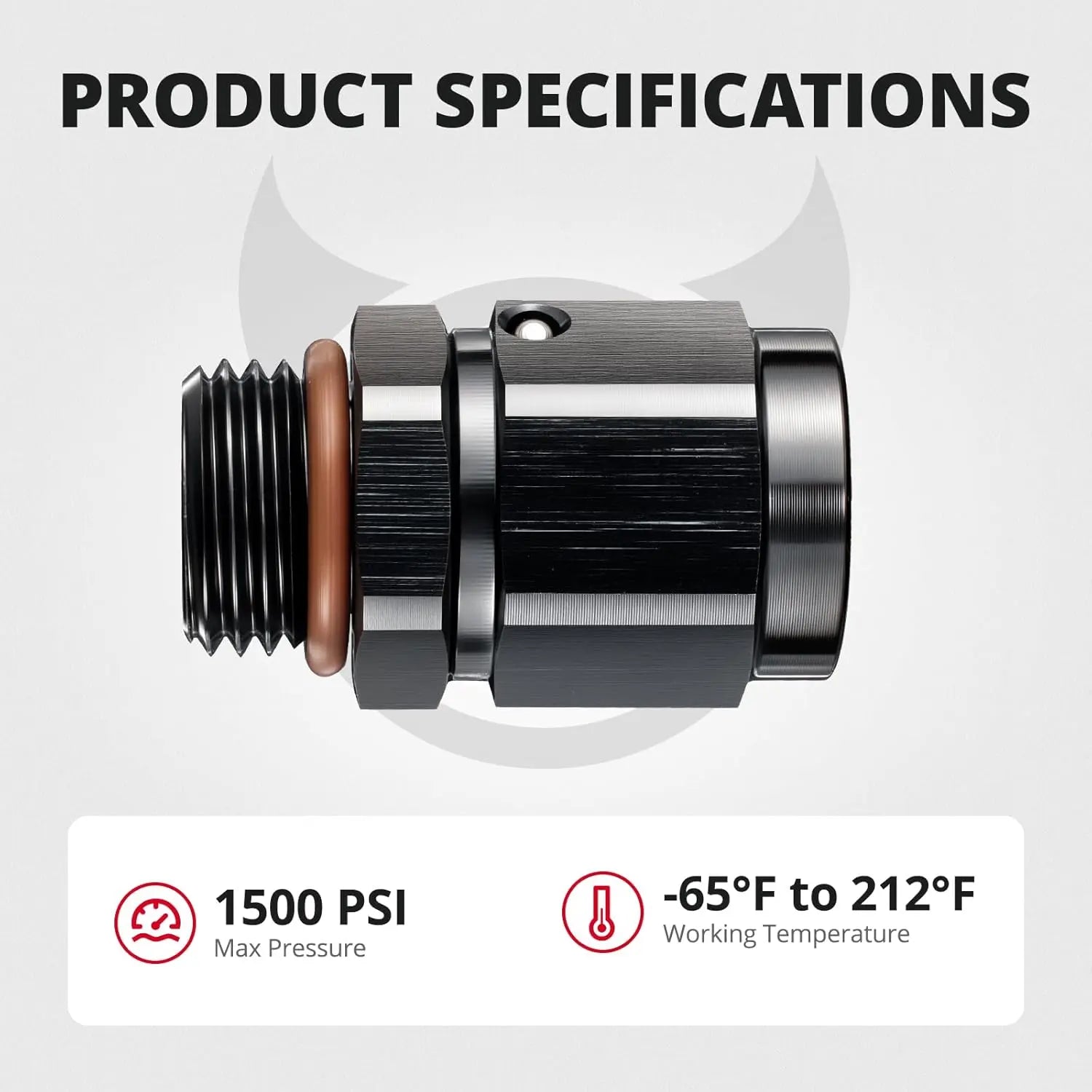

Maximum pressure	1500 PSI
Temperature range	-65°F to 212°F

DESCRIPTION

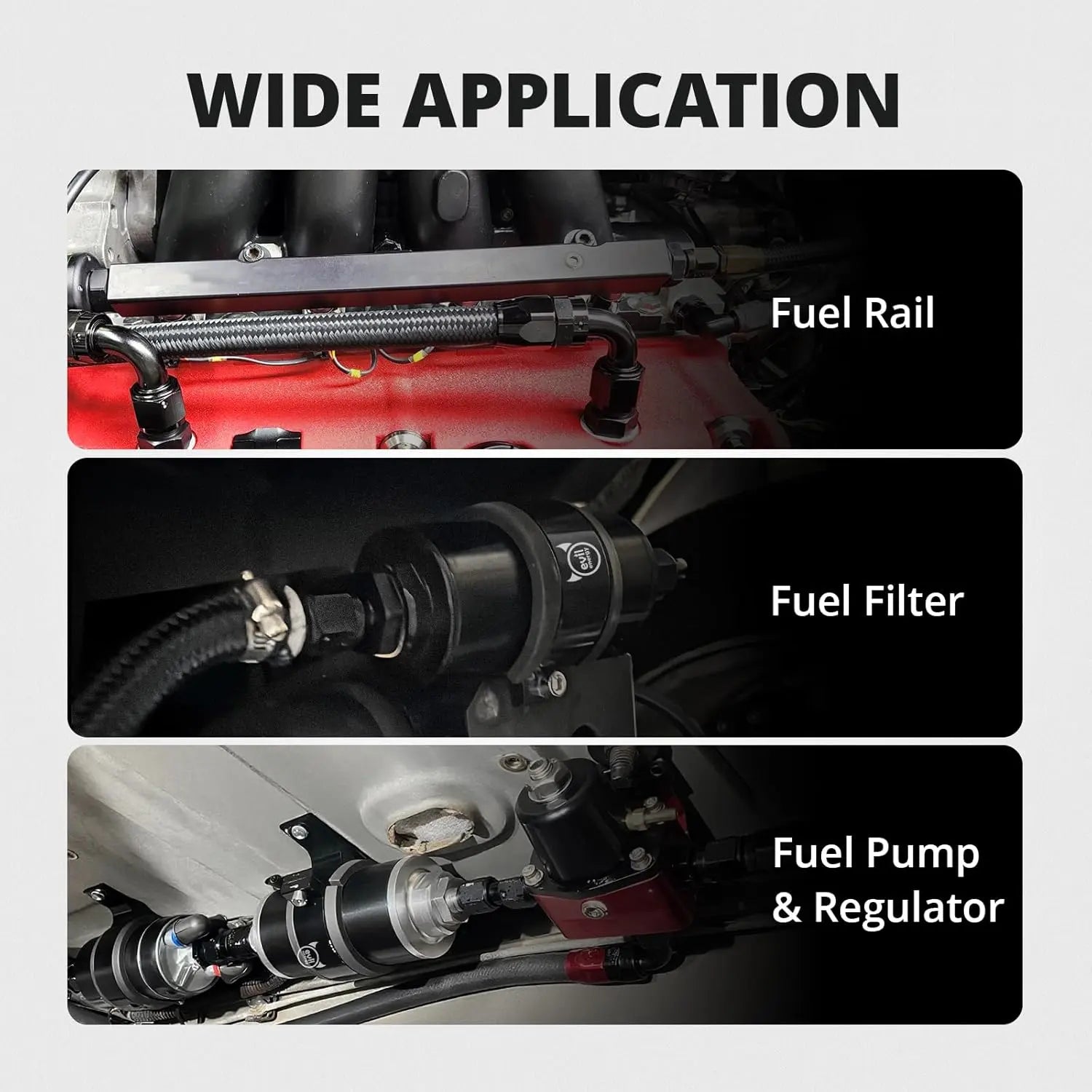

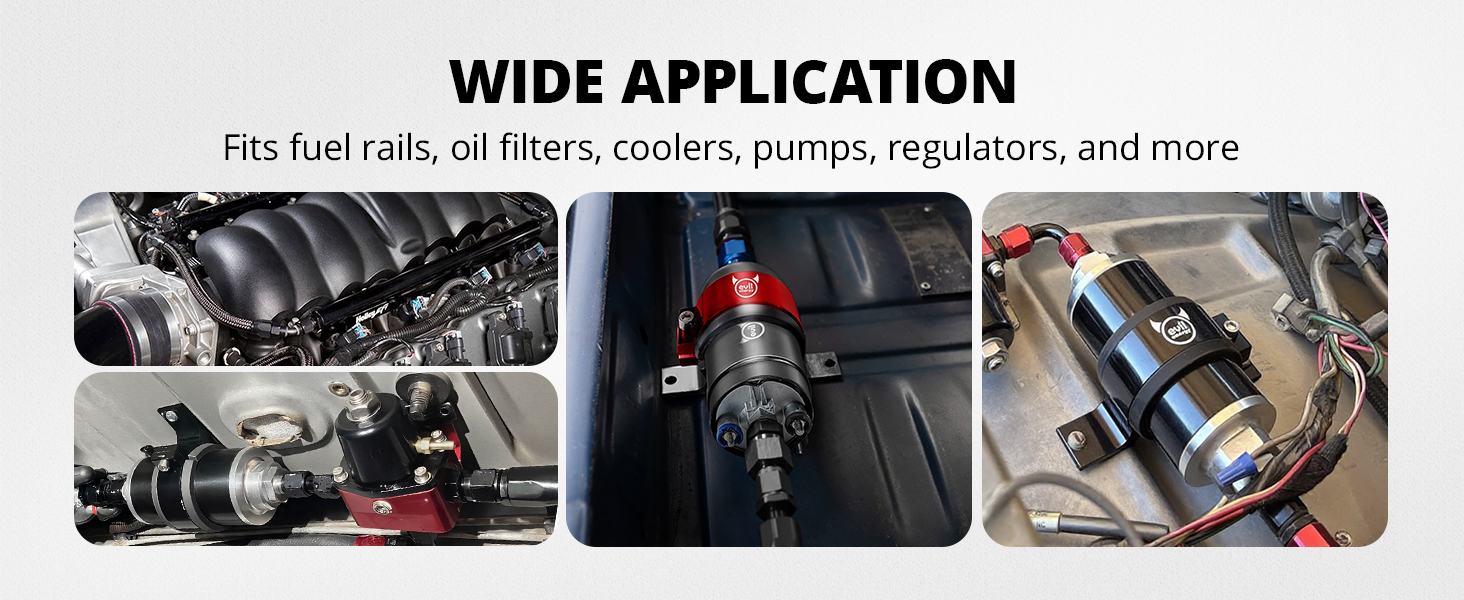

Connect an AN male flare component to a compatible female ORB port while selecting the size pair and angle needed for the installation. Straight and 90-degree options support fuel rails, filters, regulators, oil systems, and coolant layouts.

Choose Both AN and ORB Sizes

Match the AN Flare Connection

The swivel side is an AN female 37-degree flare. Confirm the mating component is the listed AN size and inspect the flare faces before assembly.

Match the ORB Port and O-Ring

The opposite end is an ORB male connection that seals with an O-ring. Match the ORB size to the female port, keep the O-ring clean, and do not treat the straight thread as the sealing surface.

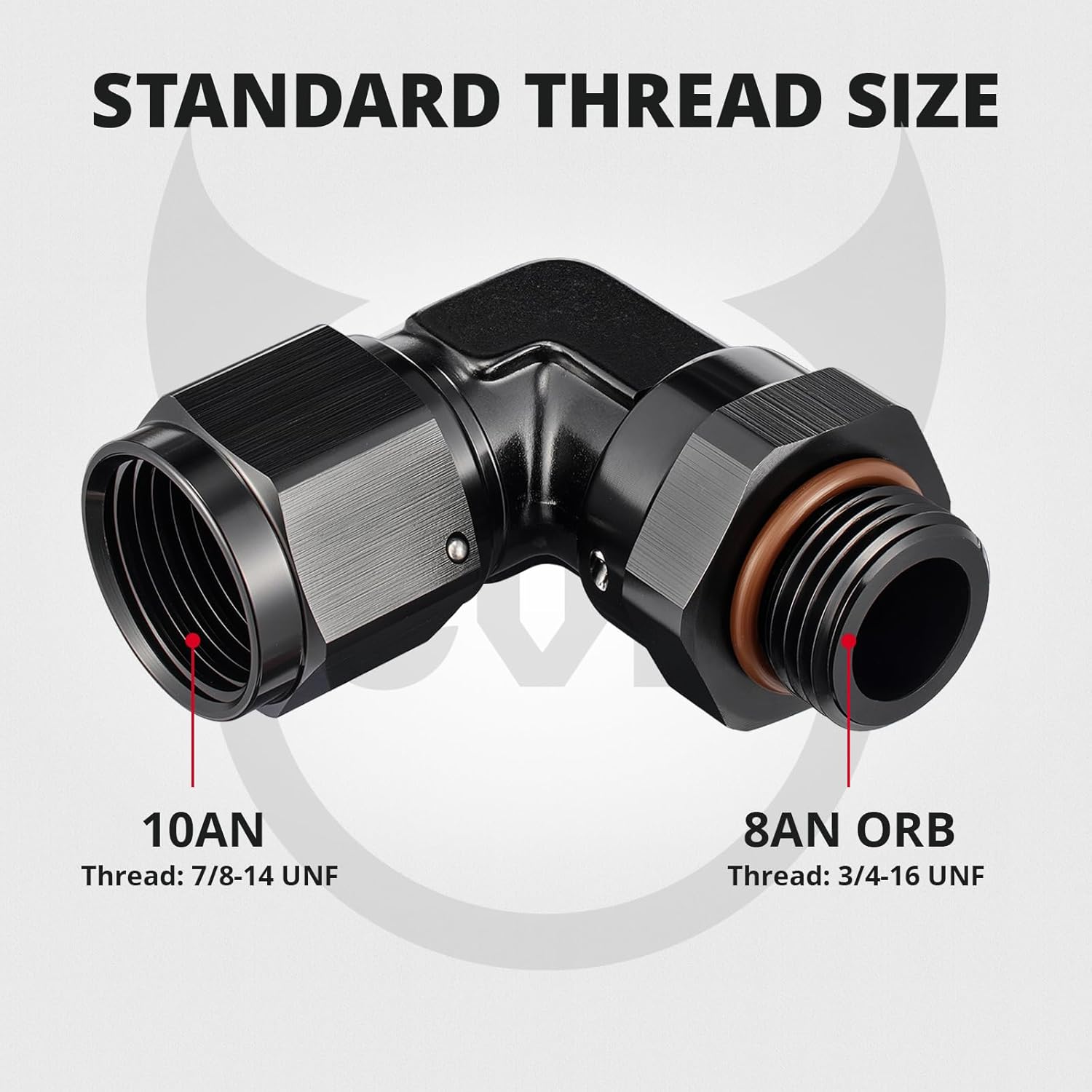

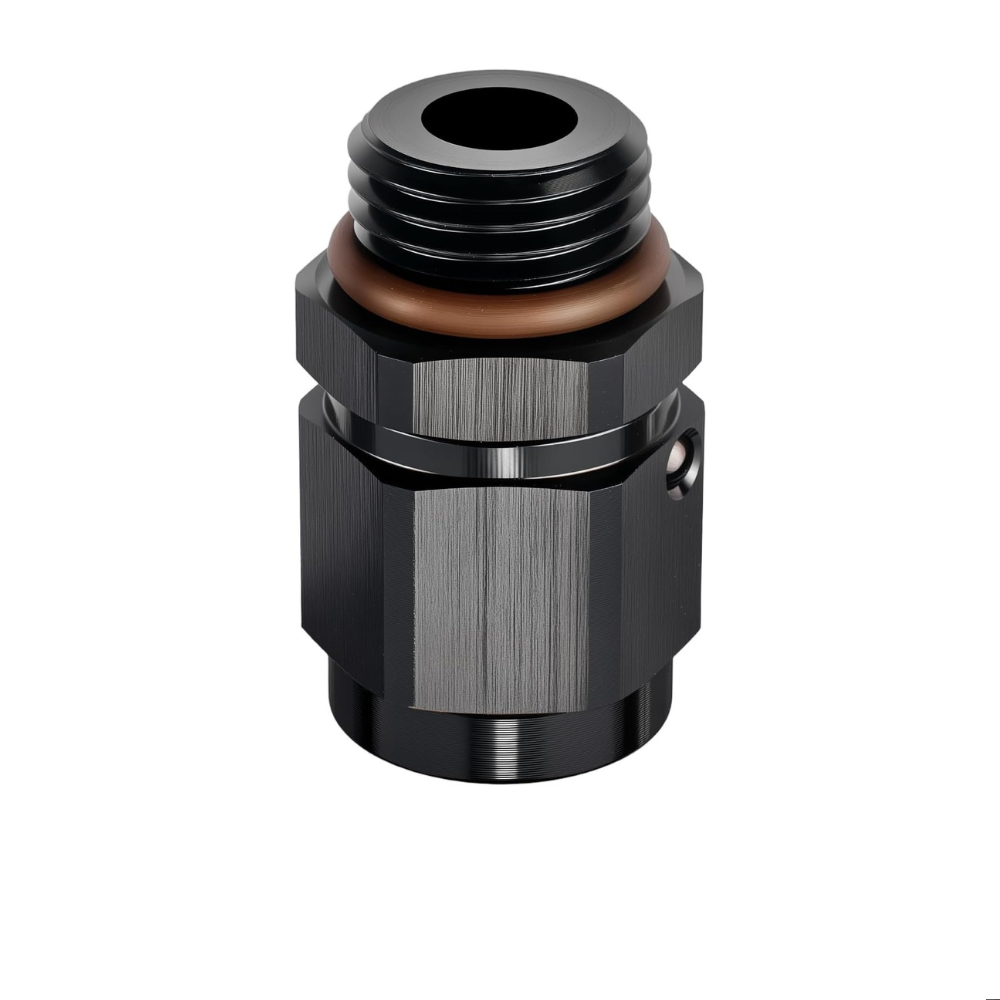

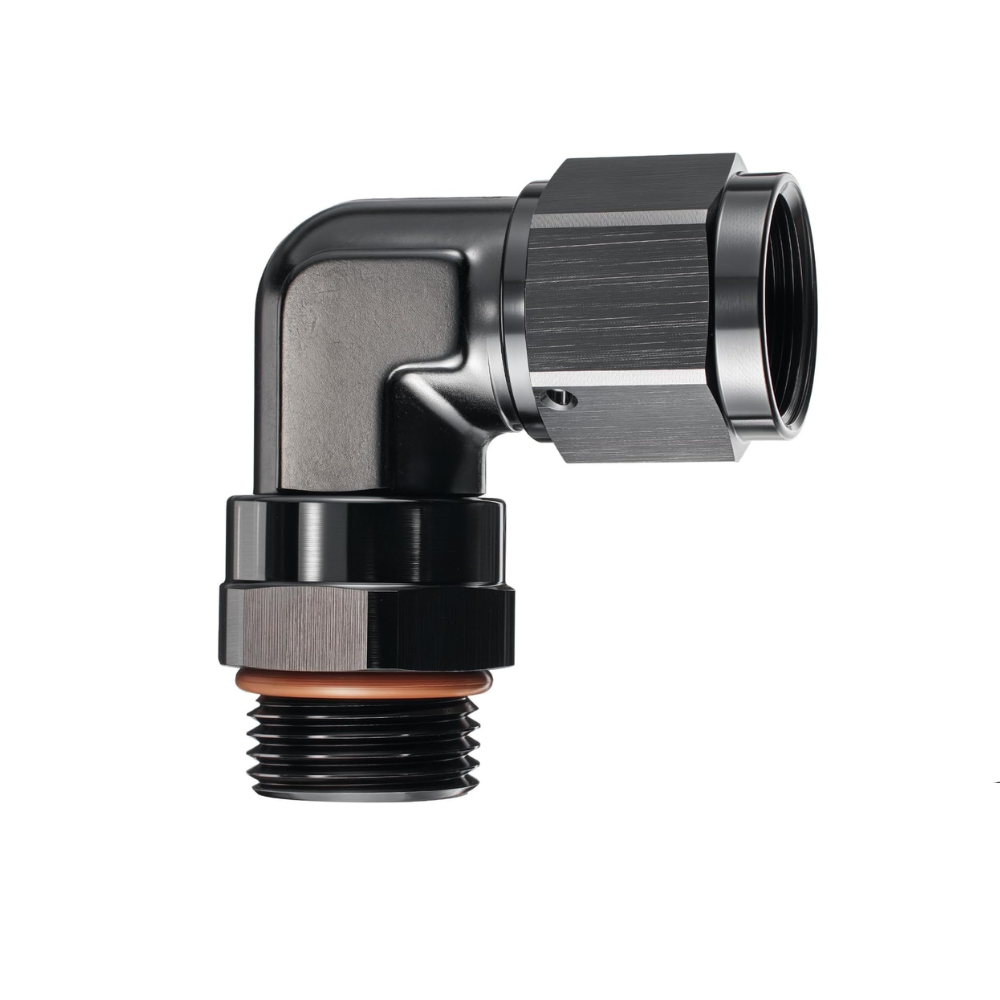

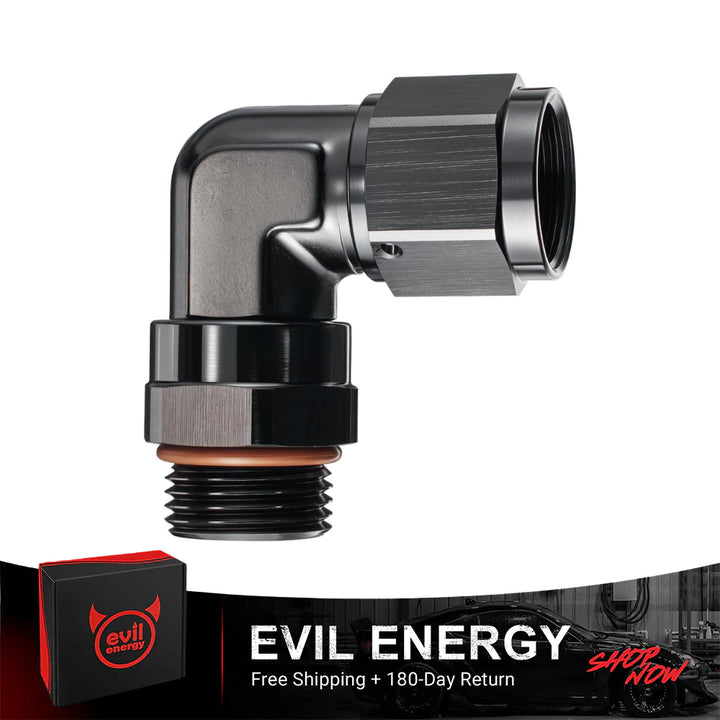

Select Straight or 90-Degree Routing

Choose the angle available for the selected size combination and leave clearance for tools, nearby fittings, and line movement. After assembly, support the line and pressure-test both sealing interfaces.

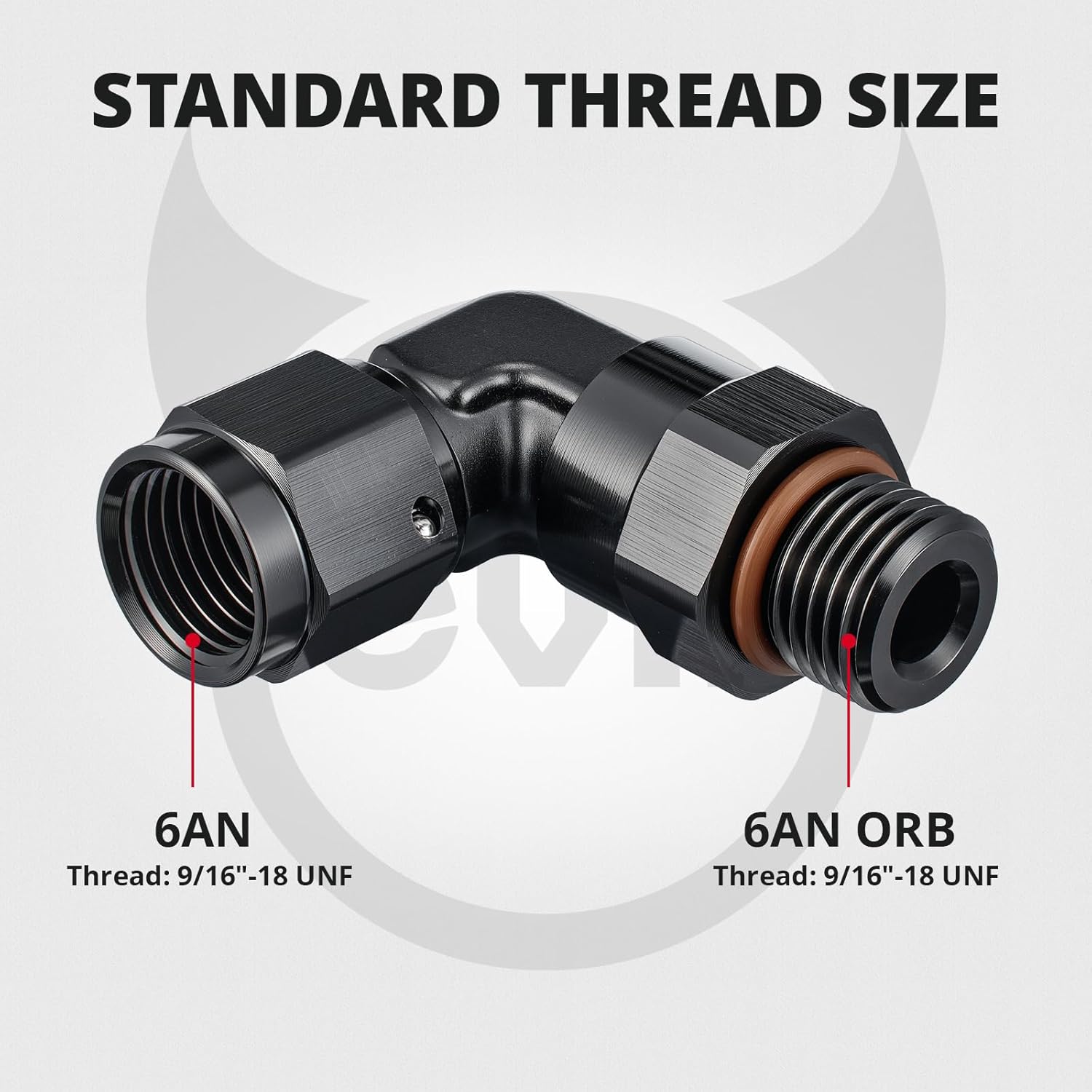

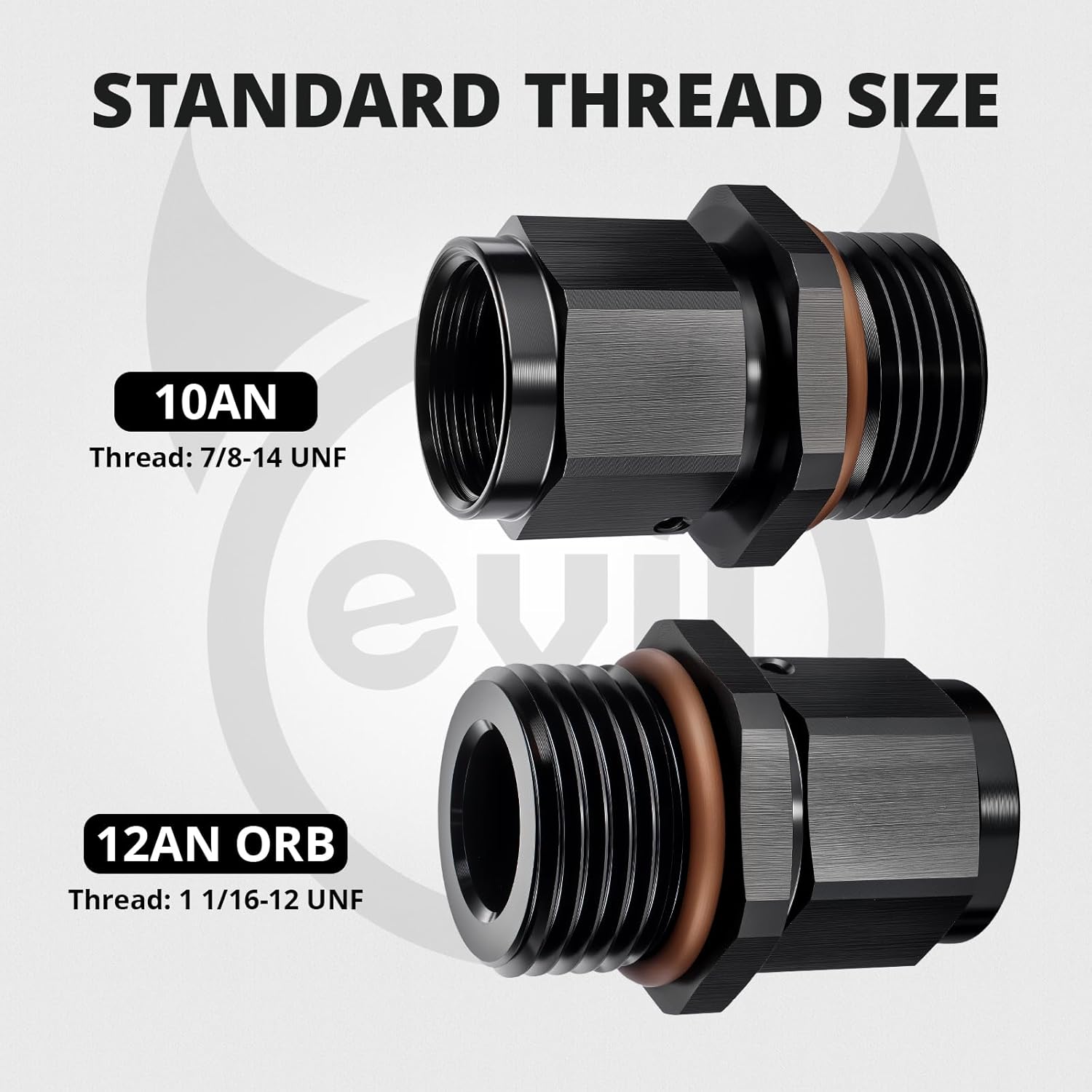

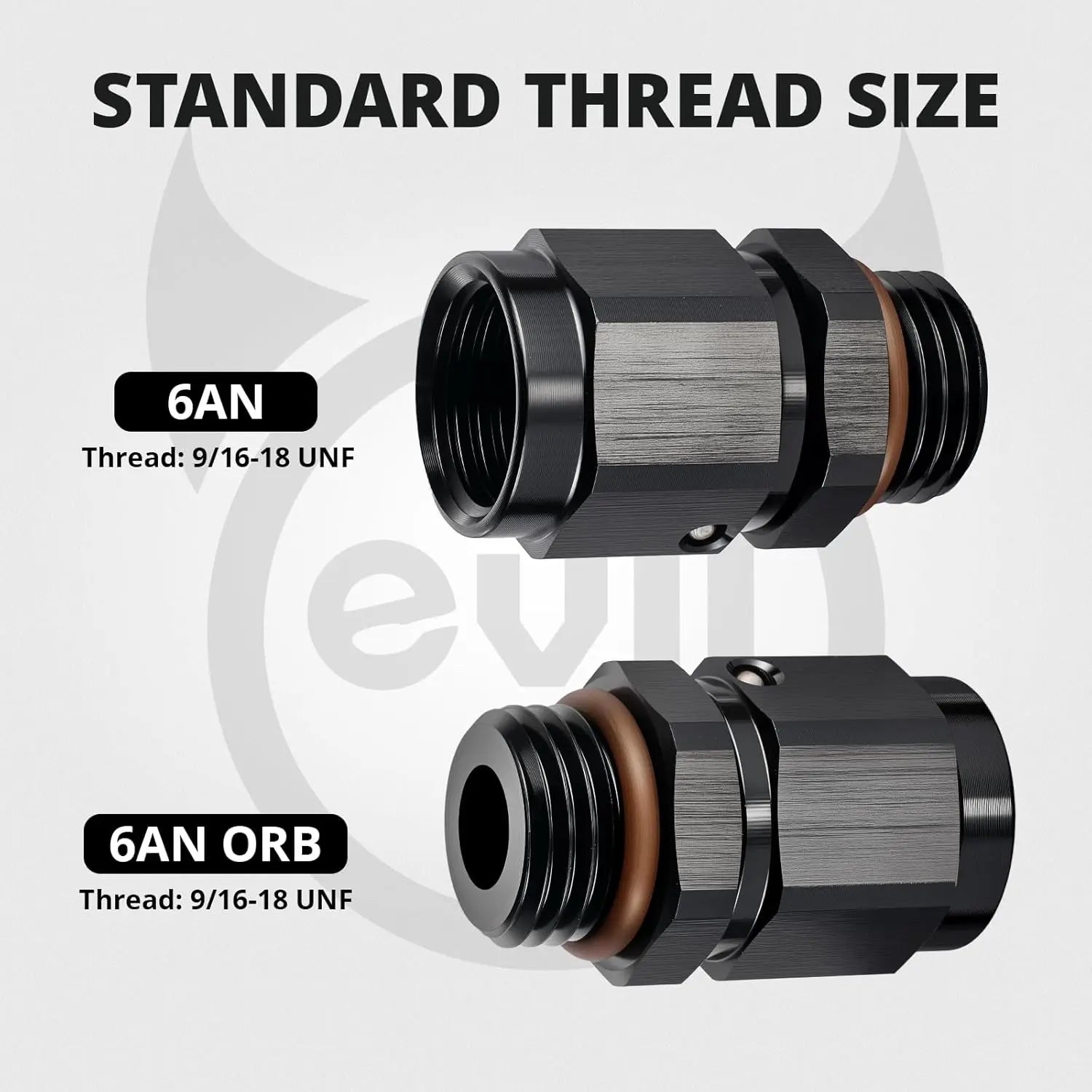

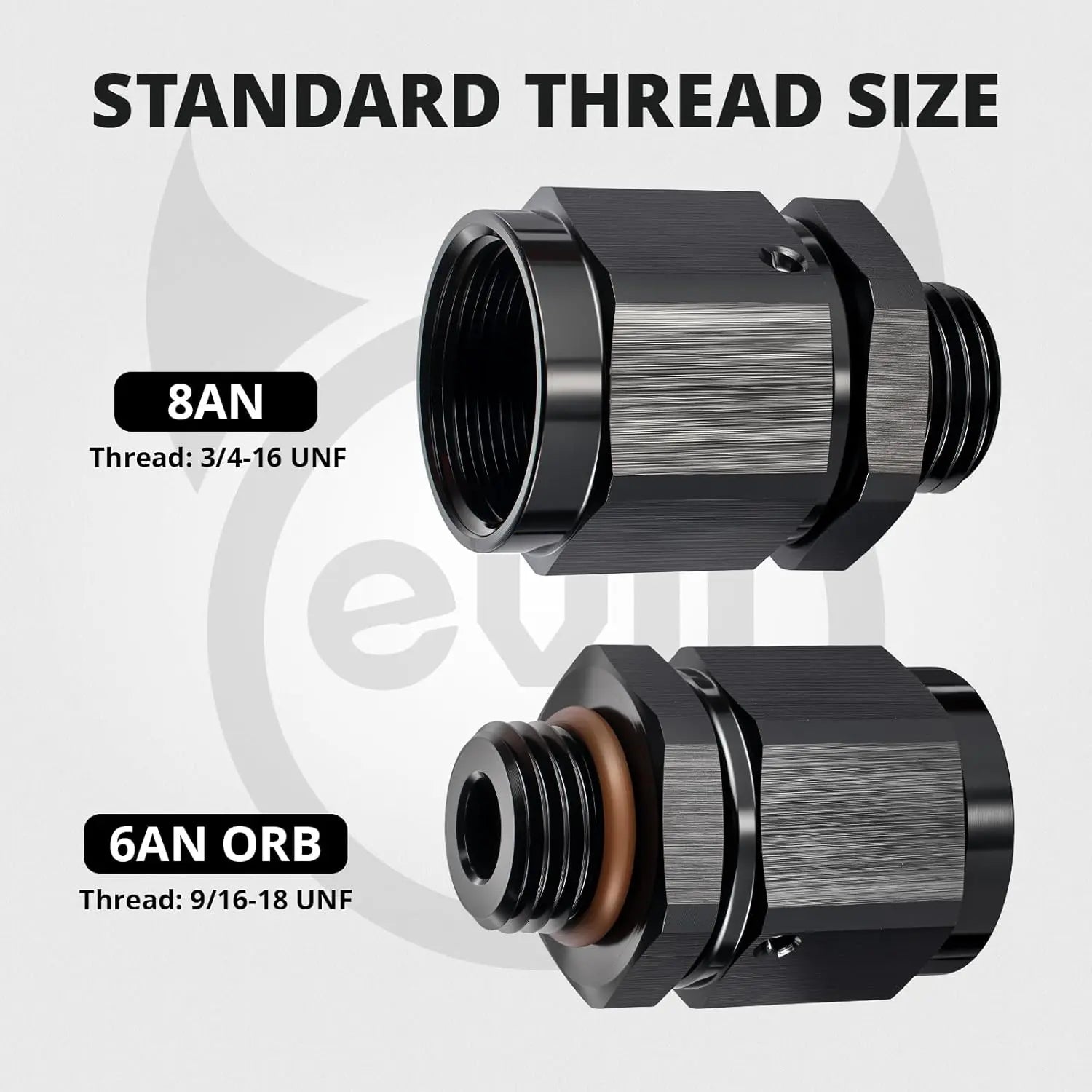

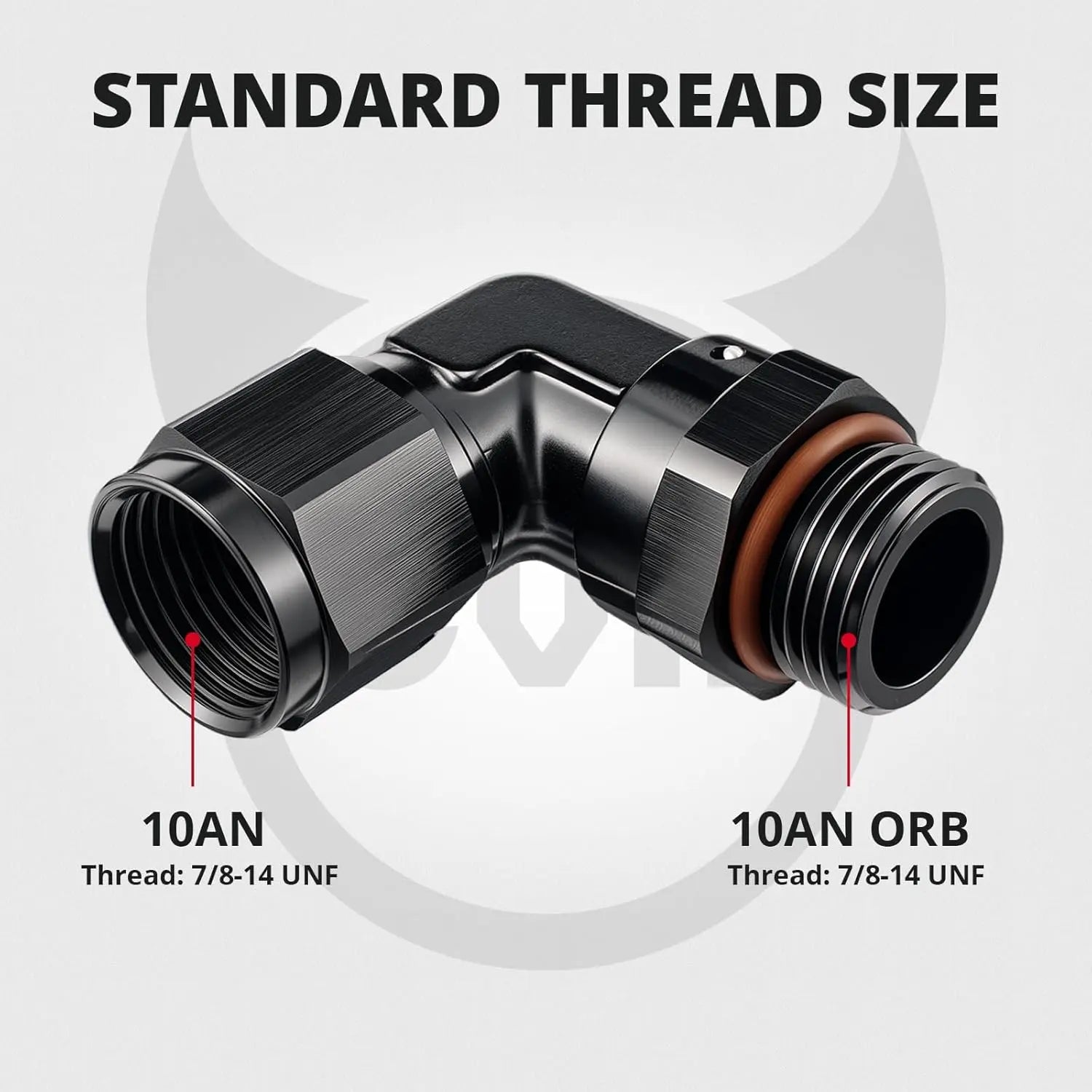

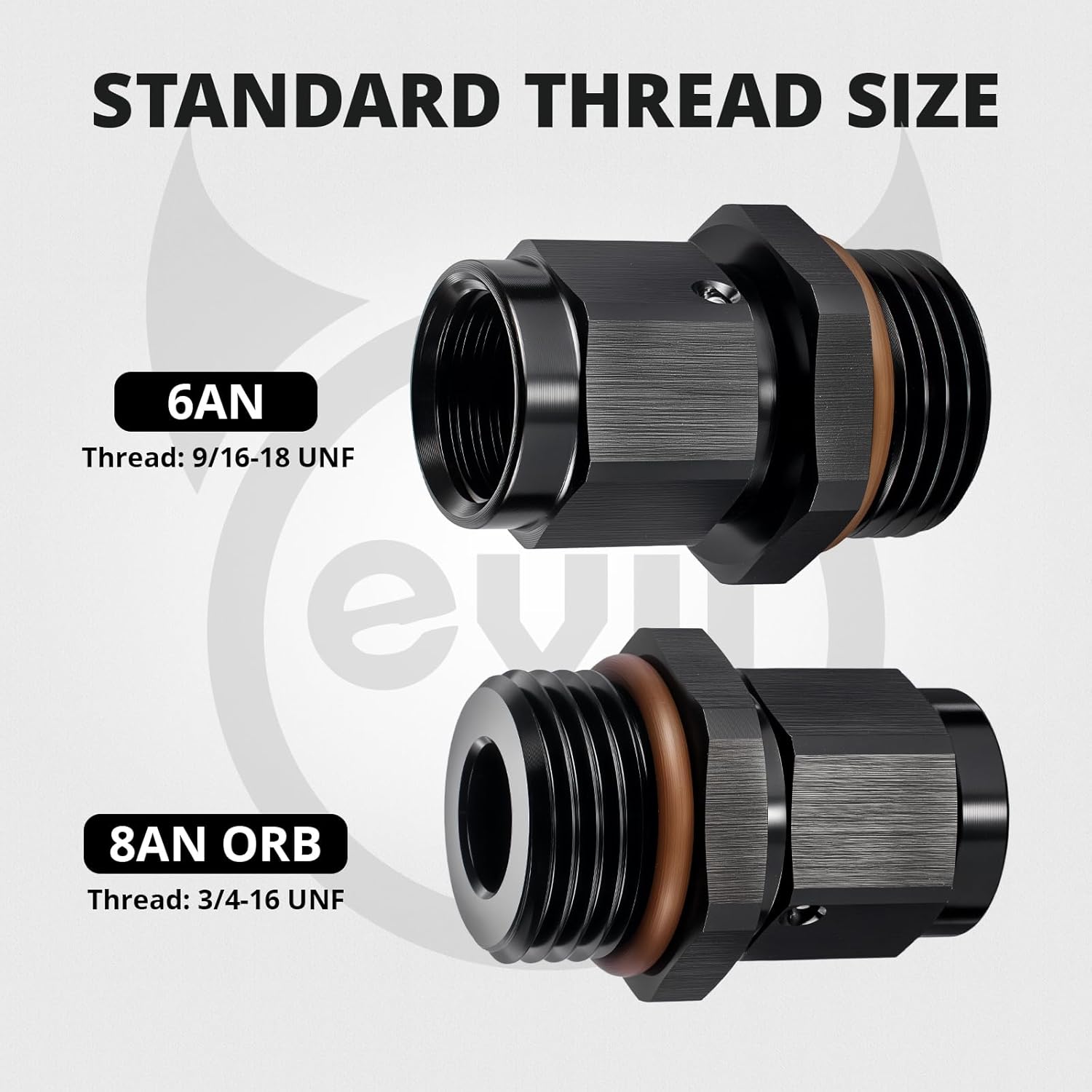

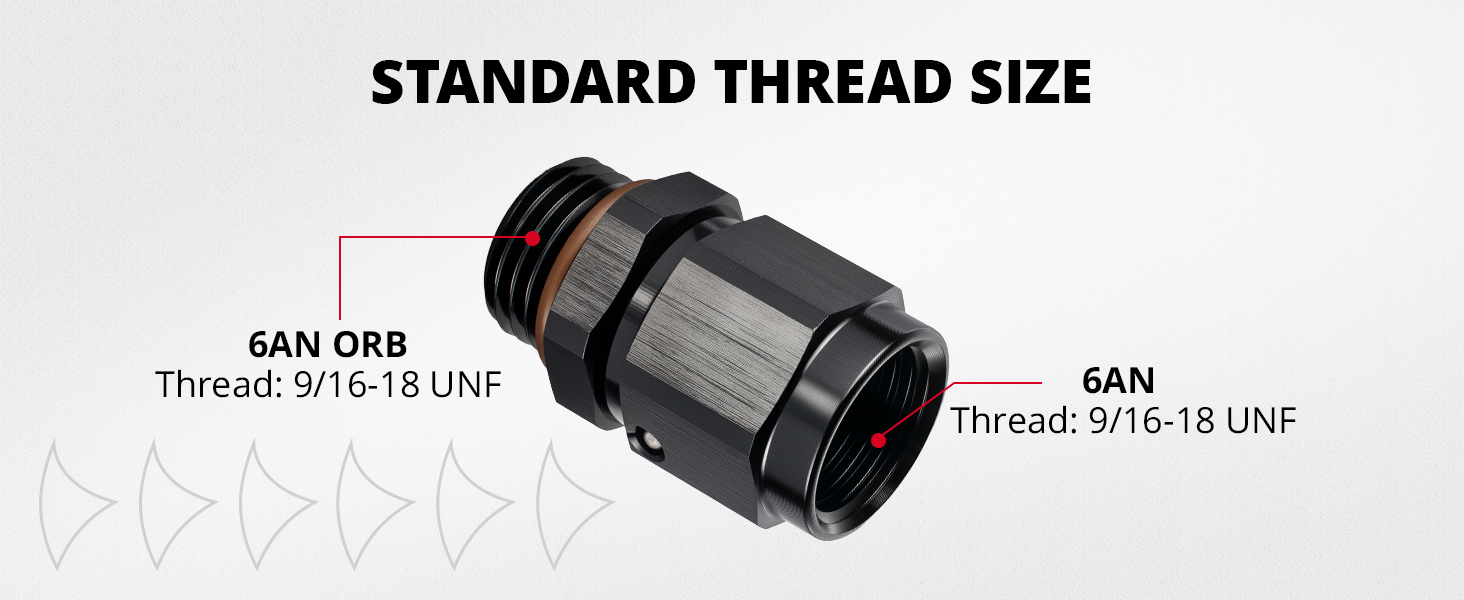

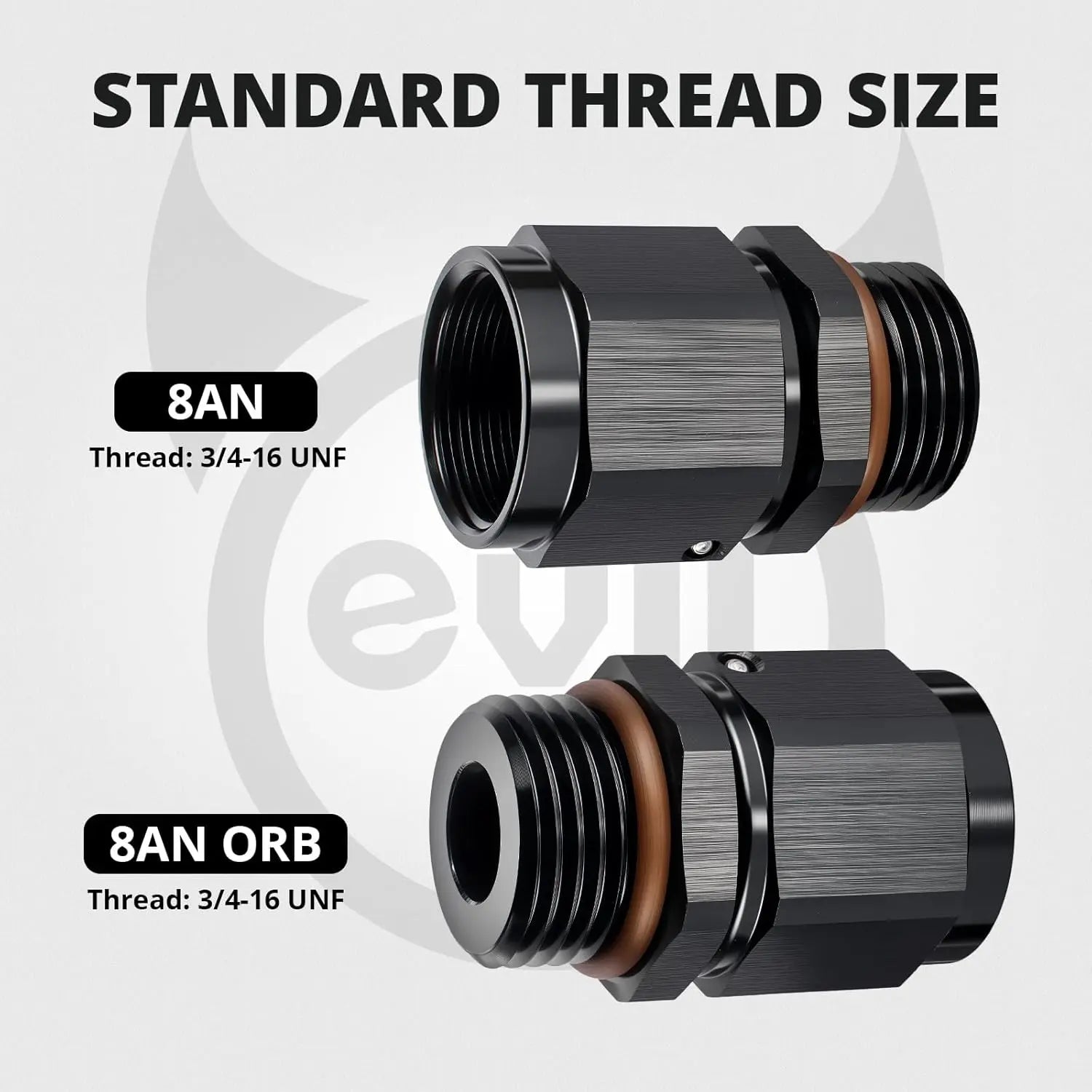

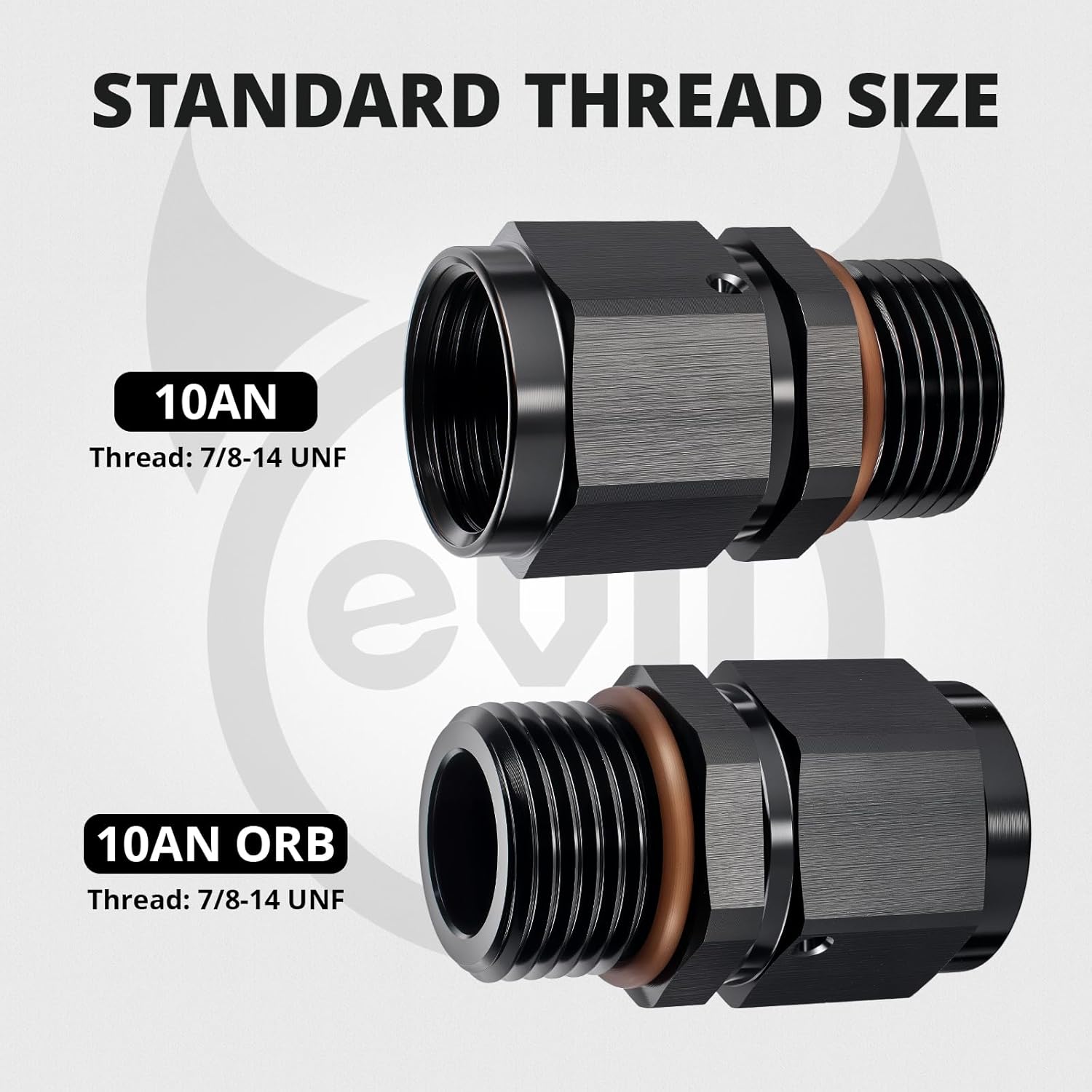

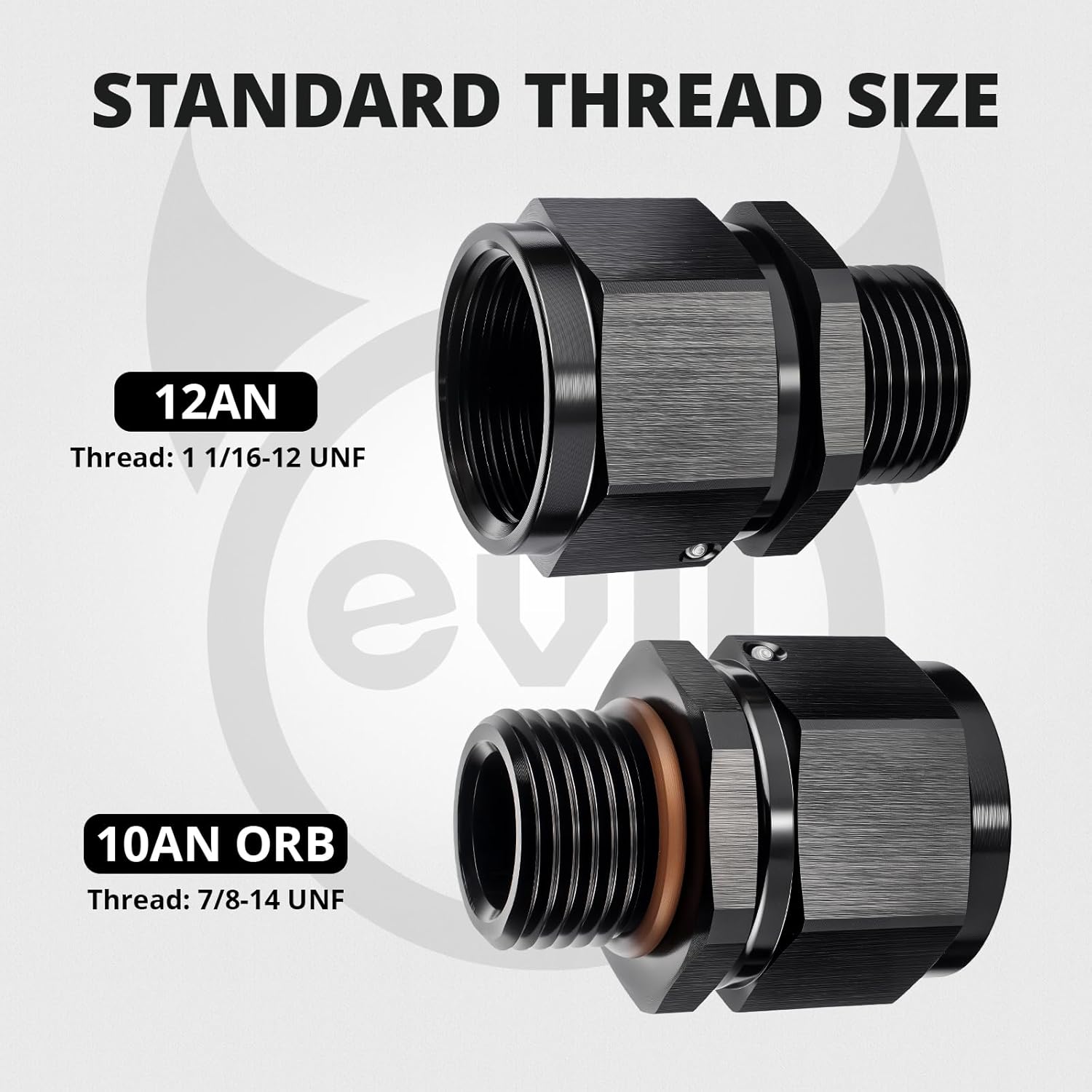

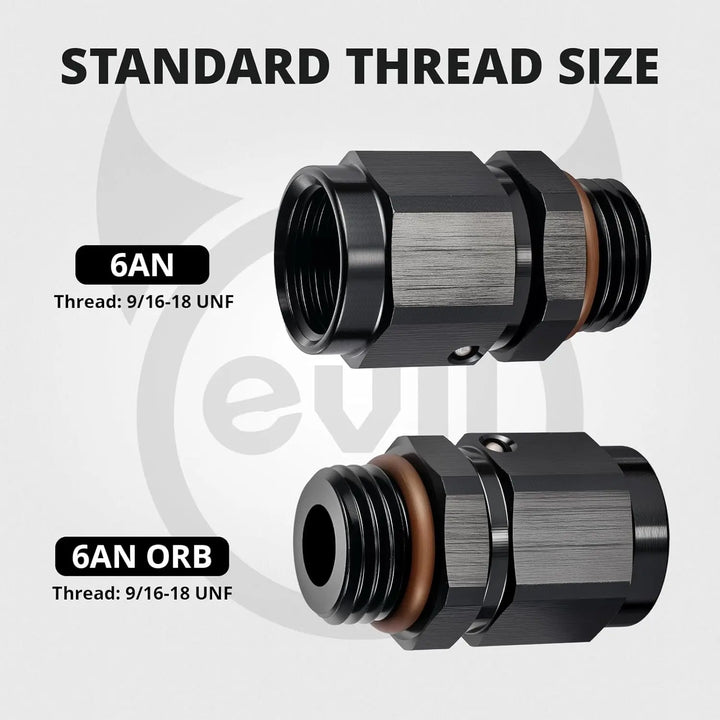

AN female swivel to ORB male adapter size combinations

SHIPPING & RETURN

Brand Summary

Policy	Details
Cancellation Policy	Orders can be canceled within 48 hours of placement. Refund processed in 3-5 business days.
Returns Policy	Returns accepted within 180 days. Full refund within 90 days; 15% fee for 90-180 days.
Non-Returnable Items	Only regular-priced items are eligible for refunds; sale items are non-refundable.
Refund Processing	If no refund received, check your bank/credit card. For ongoing issues, contact support@ievilenergy.com.

Return Reasons

Quality Issues: Provide photos/videos; we cover return shipping.
Wrong Item Ordered: Buyer covers return shipping; email within 30 days.
Change of Mind: Buyer covers return shipping; email within 30 days.
Shipping Damage: Inspect packages; do not sign for damaged items.
Incorrect Item Shipped: Contact within 7 days.

Price Protection Policy

Effective from August 25, 2024. Price drops within 7 days of purchase can be claimed.

Disclaimer

EVIL ENERGY reserves the right to interpret, modify, or terminate this policy in accordance with applicable laws and regulations.

If you need further information or assistance, feel free to ask!

VIDEOS & BLOGS

Product Videos

FAQS

Q: What connections does this adapter join?

A: It connects an AN male 37-degree flare component to a compatible female ORB port.

Q: Which sizes are available?

A: The product group includes 6AN, 8AN, 10AN, and 12AN connection combinations; match both ends.

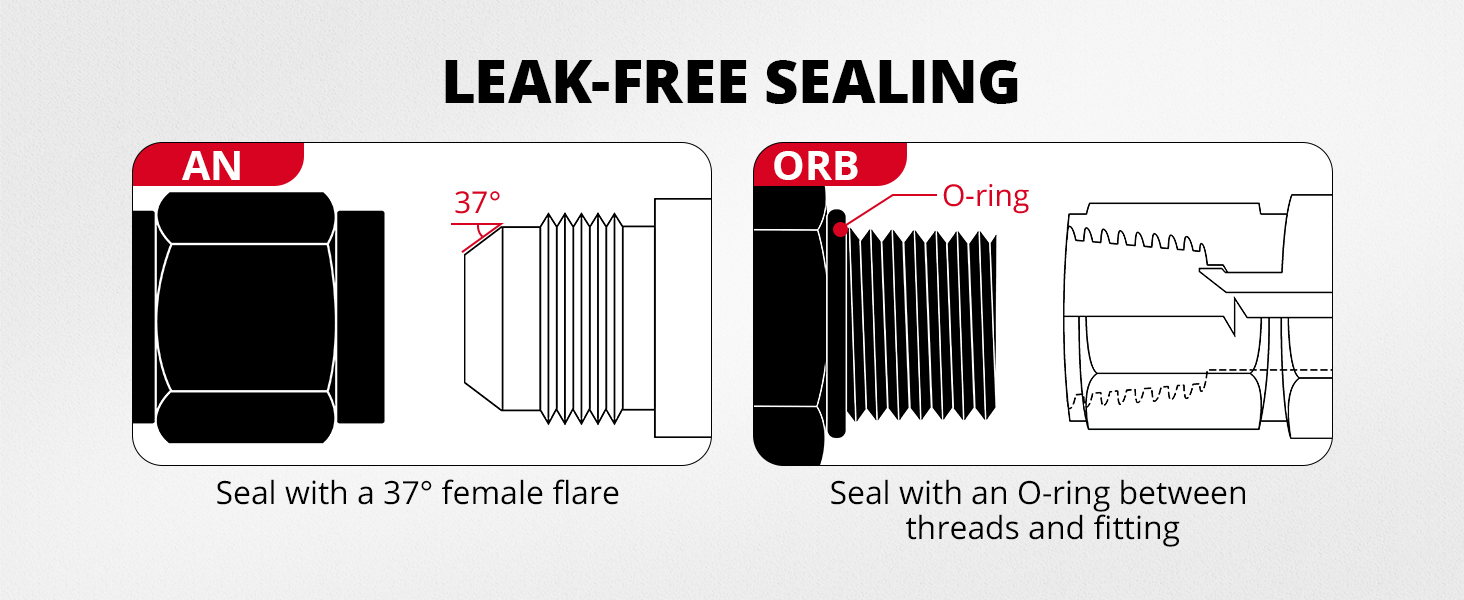

Q: Where does each end seal?

A: The AN side seals at the 37-degree flare and the ORB side seals at its O-ring.

Q: Are straight and 90-degree versions available?

A: Yes, but angle availability depends on the selected size combination.

Q: What should I check before pressure testing?

A: Confirm both sizes, O-ring condition, flare alignment, tool clearance, and supported line routing.
