EVIL ENERGY Aluminum Coiled Fuel Line Hard Tubing Kit 1060 Grade Aluminum Tube 25FT (3/8 5/16 inch)

3 sold in last 10 hours
$69.99
$69.99
$80.99
Size: 6AN to 3/8
Length: 25FT
SKU: EVFS10557S2
Product Type: Aluminum Fuel Line Kits

Skip the flaring tool and the tool shopping: this 3/8" or 5/16" aluminum fuel line kit comes with the tube bender, cutter, deburring tool, clamps, and 6AN compression fittings, ready for a clean hard line in one order. The 1060 aluminum tubing bends by hand, weighs about one-third as much as steel, and is rated to 700 PSI for gas, diesel, and E85.

EVIL ENERGY checkout payment icons and shopping service
EVIL ENERGY  Aluminum Coiled Fuel Line Hard Tubing Kit 1060 Grade Aluminum Tube 25FT (3/8 5/16 inch) - EVILENERGY

EVIL ENERGY Aluminum Coiled Fuel Line Hard Tubing Kit 1060 Grade Aluminum Tube 25FT (3/8 5/16 inch)

$69.99 $80.99
$69.99 $80.99

EVIL ENERGY Aluminum Coiled Fuel Line Hard Tubing Kit 1060 Grade Aluminum Tube 25FT (3/8 5/16 inch)

$69.99 $80.99
Size: 6AN to 3/8
Length: 25FT

Material 1060 Grade Aluminum (ASTM B210 Compliant)

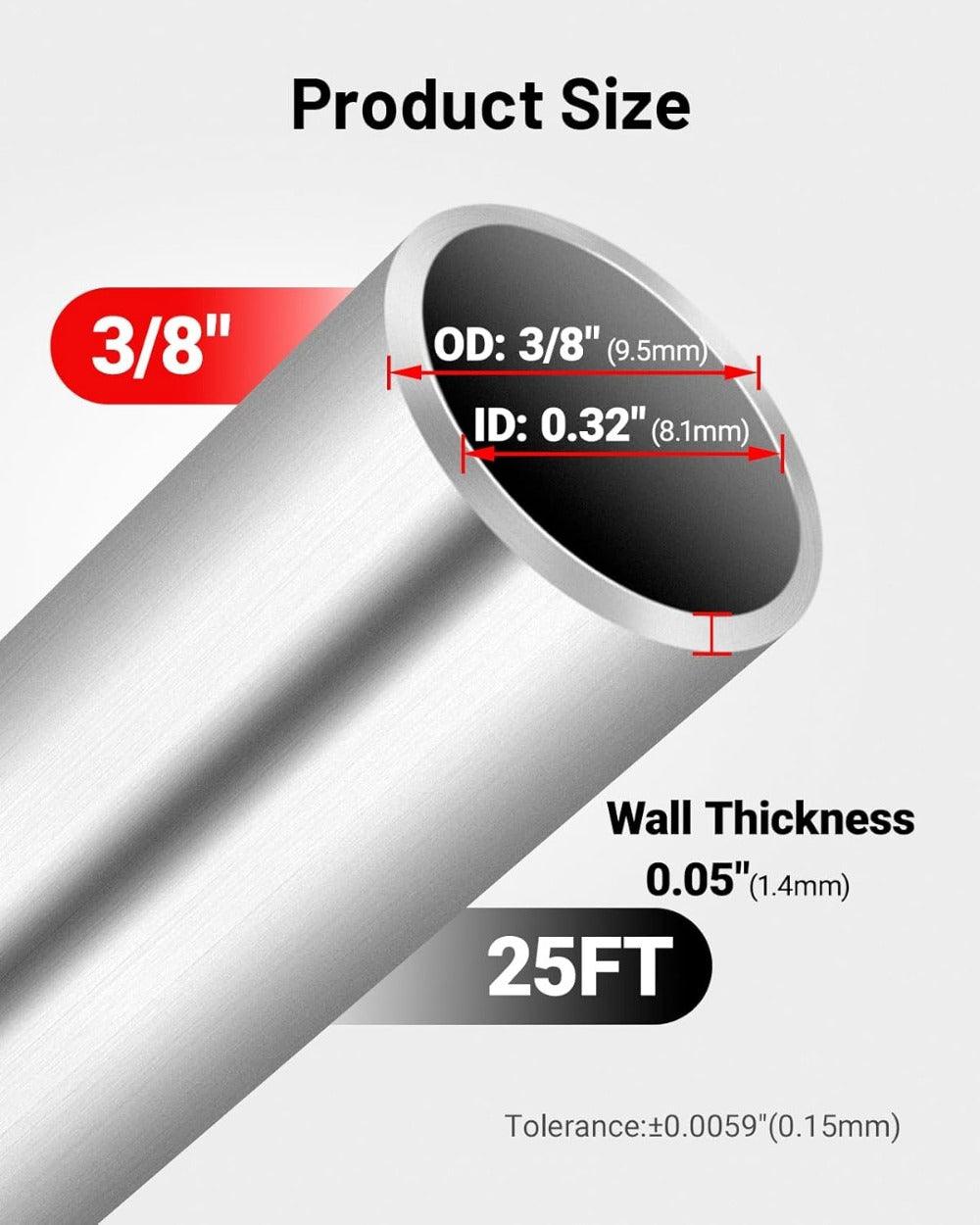

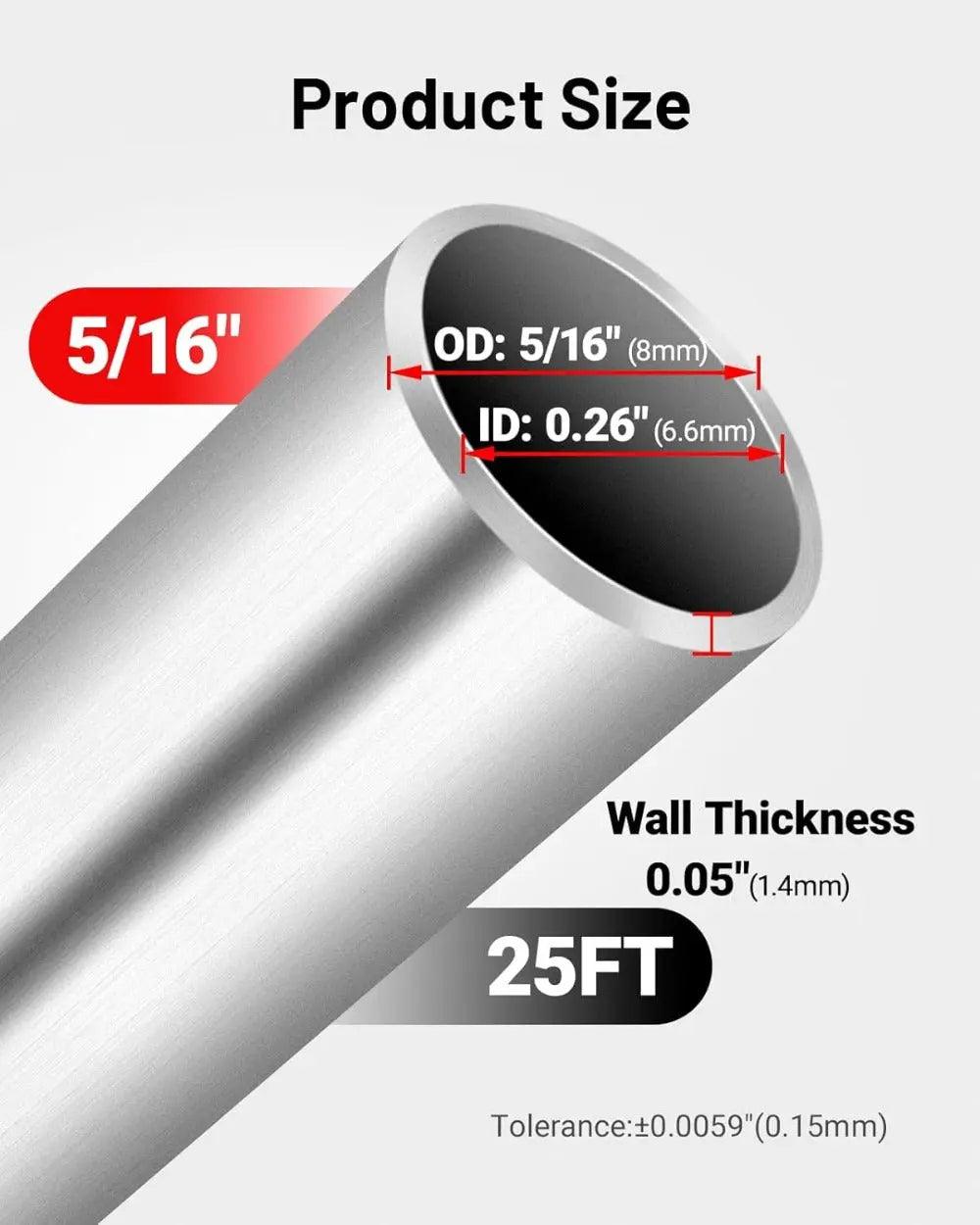

Outer Diameter 3/8" (9.5 mm) or 5/16" (8 mm)
Inner Diameter 0.32" (8.1 mm) or 0.26" (6.6 mm)
Wall Thickness 0.05" (1.4 mm)
Length 25 FT / 10 FT

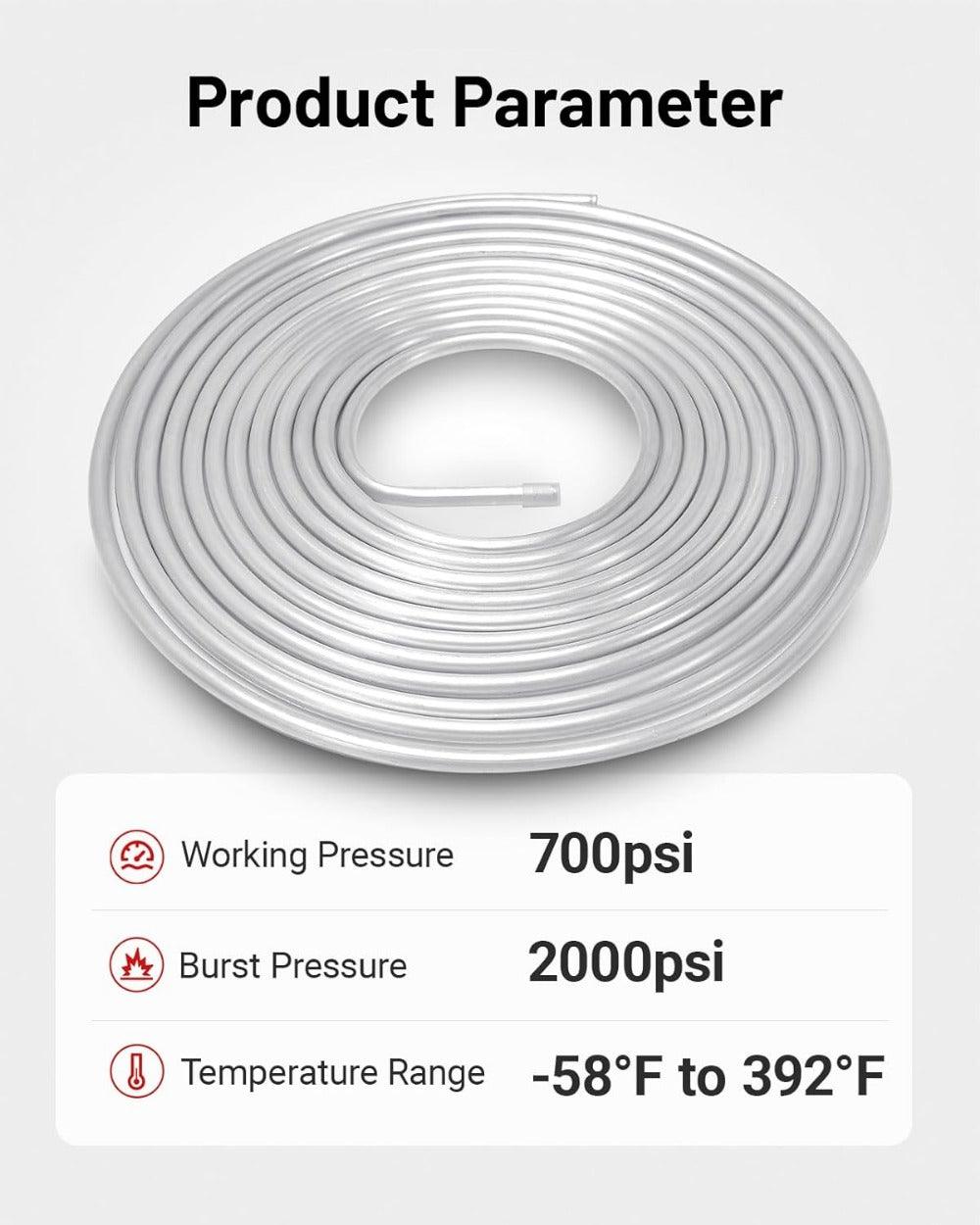

Working Pressure 700 PSI
Burst Pressure 2000 PSI
Temperature Range -58°F to 392°F (-50°C to 200°C)
Features Lightweight, Flexible, Corrosion-Resistant, Thermally Conductive
Applications • Fuel Line / Return Line
• Transmission Oil Line
• Automotive AC Line
• Air Compressor Tubing
• E85 / Gas / Diesel / Water

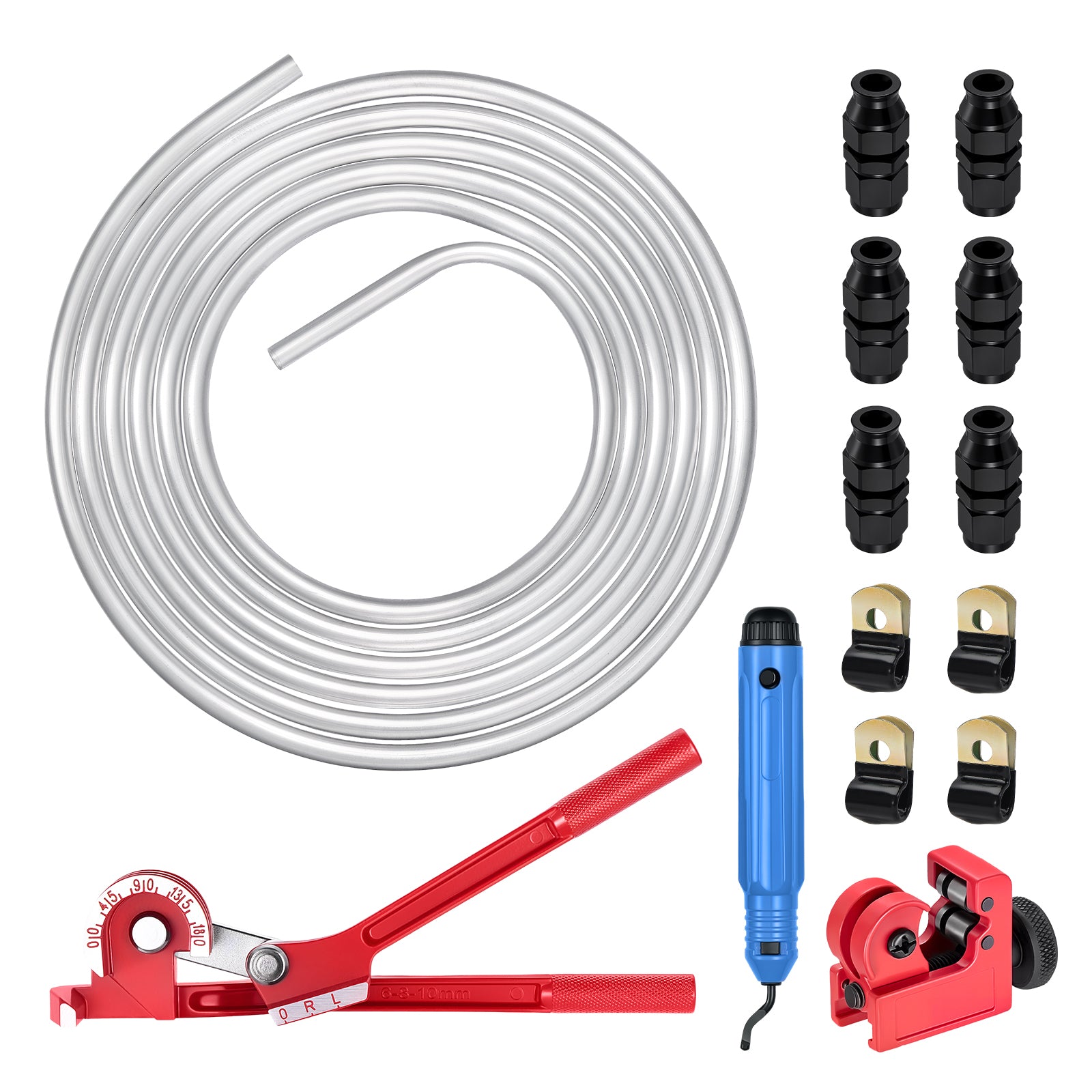

Kit Includes • 25 FT or 10 FT Aluminum Tubing
• 1 × Tube Cutter
• 1 × Tube Bender
• 1 × Deburring Tool
• 4 × Tube Clamps (3/8" or 5/16", matching the selected tube size)
• 6 × 6AN Female to Compression Fittings (3/8" or 5/16", matching the selected tube size)

The EVIL ENERGY 1060 aluminum fuel line kit is a lightweight, durable solution for high-pressure automotive fluid systems. Whether you are routing fuel, transmission oil, or air, this 25 FT or 10 FT aluminum hard line offers excellent corrosion resistance, heat transfer, and flexibility. Rated to 700 PSI working pressure and 2000 PSI burst, the coiled tubing is ideal for E85, diesel, gas, or AC retrofits. The kit includes essential tools (cutter, bender, deburring tool) so you can shape and install the line with ease. Perfect for LS swaps, restorations, or performance upgrades.

3/8 Aluminum Fuel Line Kit with 1060 Hard Tubing

3/8 aluminum fuel line routed through an engine bay with black 6AN fittings
700 PSI
Working pressure
2000 PSI
Burst pressure
-58°F to 392°F
Temperature range
ASTM B210
1060 grade aluminum

This 3/8 aluminum fuel line also comes as a 5/16 aluminum fuel line, each with a matching set of 6AN compression fittings. Both sizes replace aged hard line or build a clean custom route without buying the tools separately.

Which Aluminum Fuel Line Size and Length Do You Need?

Start with engine power and fuel type, then measure the route from the tank to the engine. E85 needs more fuel flow than gasoline, so step up one line size when running E85. The 3/8" tube has about 50% more flow area than the 5/16" tube.

6AN to 5/16
5/16"

5/16 Aluminum Fuel Line

GasolineUp to about 250 HP
E85Move up to 3/8"
Good forCarbureted engines, mild EFI, return lines
6AN to 3/8
3/8"

3/8 Aluminum Fuel Line

GasolineUp to about 375 HP
E85Up to about 250 HP
Good forLS swaps, EFI conversions, feed lines
More power
8AN+

Larger Fuel Line Builds

Above these levelsSize up to 8AN or larger
10 FT

10 FT Aluminum Fuel Line Coil

Fits engine-bay runs, transmission cooler lines, and repairs to one section of hard line.

25 FT

25 FT Aluminum Fuel Line Coil

Suits a tank-to-engine run. Measure the full route and double the length if the build needs both feed and return lines.

Aluminum fuel line tubing showing formability, thermal conductivity, oxide layer and light weight

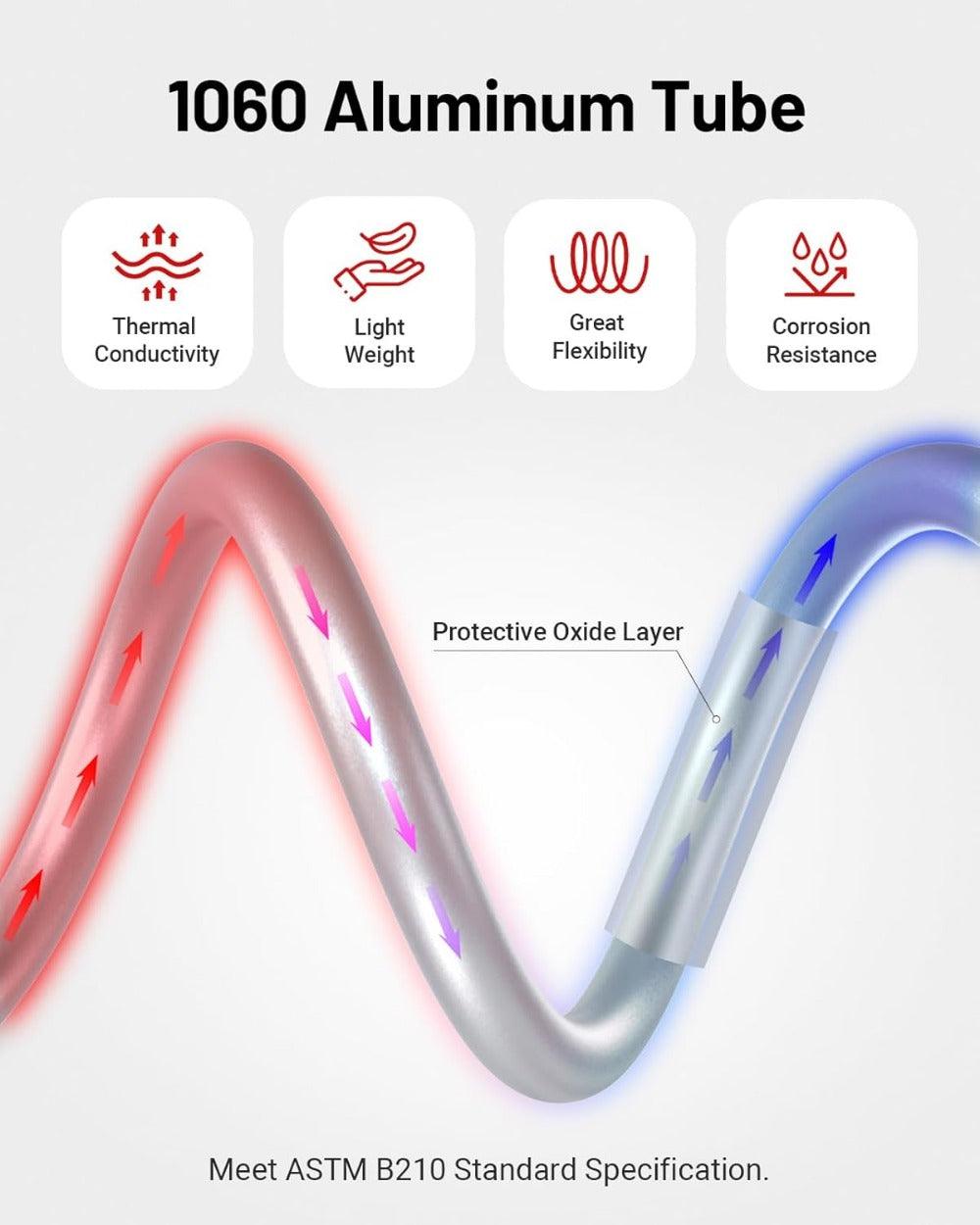

Why Use 1060 Aluminum for a Fuel Line?

Excellent formability: 1060 aluminum tubing bends easily, which suits DIY fuel line routing.

Protective oxide layer: the aluminum surface resists corrosion in humid environments.

Thermal conductivity: the tube suits transmission and other heat-transfer lines.

Lightweight structure: aluminum has about one-third the density of steel, which trims weight on long runs.

How Much Pressure Can an Aluminum Fuel Line Handle?

Most street fuel systems run far below the tube rating. A high pressure aluminum fuel line rated at 700 PSI working pressure leaves a wide margin above common carburetor and EFI settings, including a typical 50 PSI or 58 PSI setup.

12×

700 PSI working pressure compared with a 58 PSI EFI fuel system

Carburetor fuel system5–12 PSI

LS swap EFI fuel system58 PSI

Aluminum tube working pressure700 PSI

Aluminum tube burst pressure2000 PSI


What Comes in the Aluminum Fuel Line Kit?

One order covers the tubing, the tools, and the aluminum fuel line fittings. Six 6AN compression fittings are enough for three separate runs with a fitting on both ends, and four tube clamps secure the line along the chassis.

Long routes usually need more support points. Add extra mounts from the hose and tube management range when the line runs the length of the vehicle.

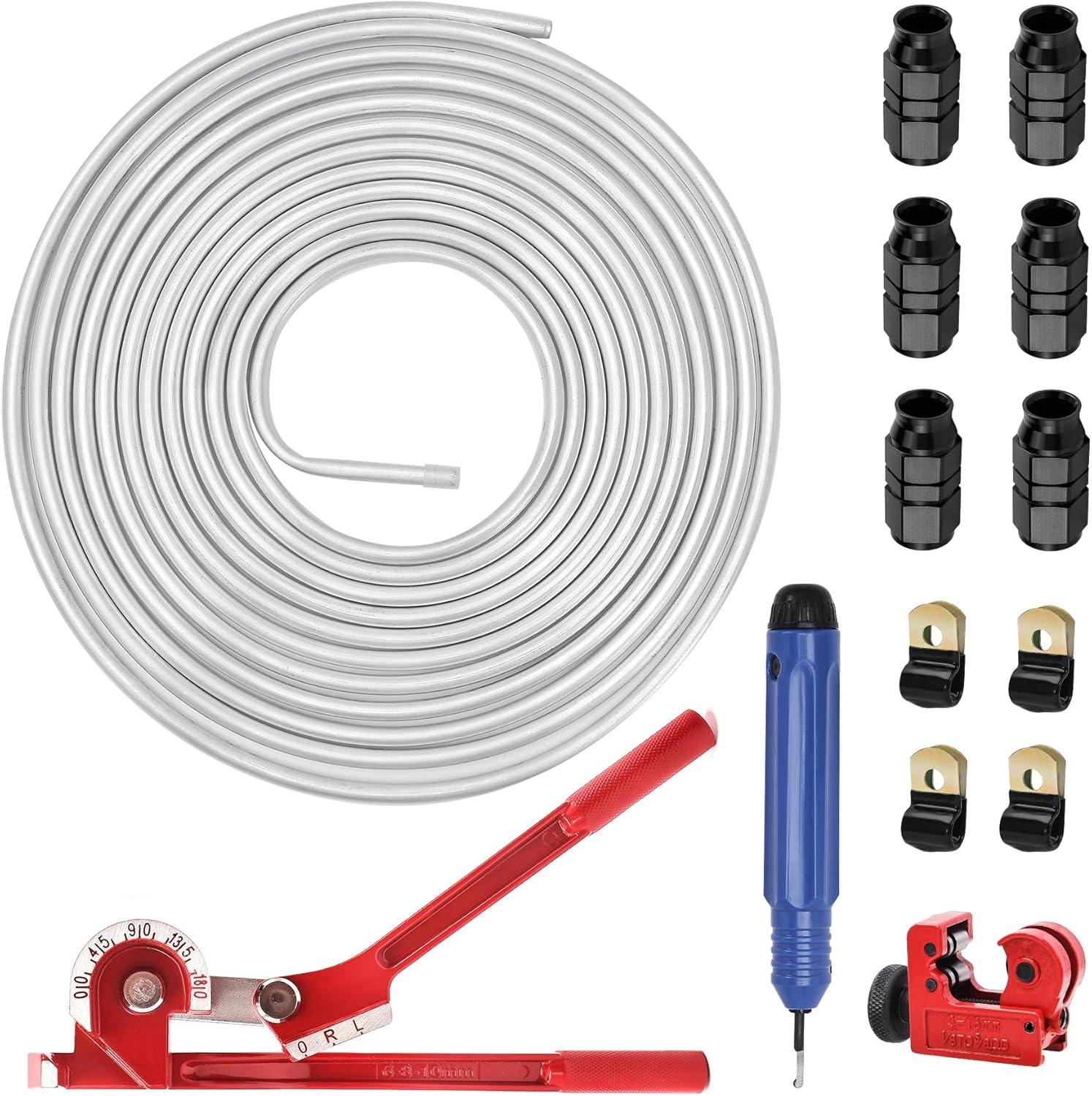

Aluminum fuel line kit contents with coil, tube cutter, bender, deburring tool, clamps and fittings

How to Install an Aluminum Fuel Line

Plan the route first, then work through four steps using the tube bender, tube cutter, and deburring tool in the kit.

Bending, cutting, deburring and installing aluminum fuel line tubing
Step 1

Bend the Aluminum Fuel Line

Bending aluminum fuel line with the included tube bender

Seat the tube in the 3/8", 5/16", or 1/4" groove of the tube bender and close the handles slowly.

A slow, steady bend keeps the tube round and helps prevent kinks.

Step 2

Cut the Tube to Length

Confirm the length before cutting. Rotate the tube cutter around the aluminum tube and tighten a little at a time for a square end.

Cutting 3/8 aluminum fuel line to length with a tube cutter
Step 3

Deburr the Tube End

Deburring the end of an aluminum fuel line

Clean the inside edge with the deburring tool so the tube end is smooth and metal chips stay out of the fuel system.

Step 4

Install the Fitting and Line

Slide on the compression fitting, tighten with an AN wrench, and connect the fitting adapters.

Install the line in place, secure it with the clamps, and pressure-check for leaks before driving.

Installing a 6AN compression fitting on aluminum fuel line
6AN female to 5/16 aluminum fuel line compression fitting with 37-degree flare seal

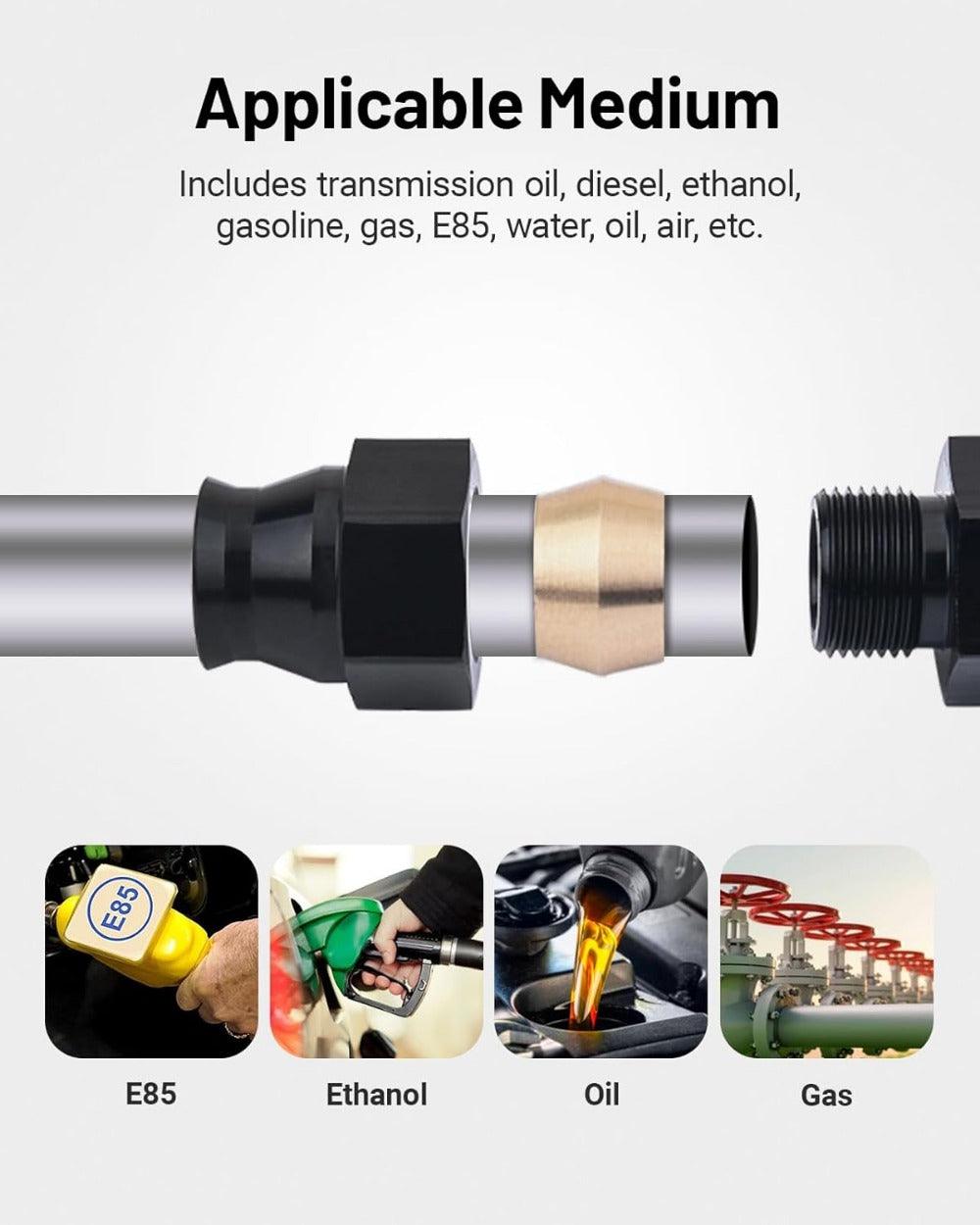

How Do 6AN Compression Fittings Seal on Hard Line?

These aluminum fuel line compression fittings clamp onto the tube on one side, so the hard line needs no flaring tool. The other side is a 6AN female 9/16 UNF thread that seals on a SAE 37-degree flare.

Each compression fitting connects only to stainless steel or aluminum hard line of the same size. Need a different end? See the AN hardline fittings for male, 90-degree, and tube nut and sleeve styles.

Aluminum Fuel Line vs Steel, Stainless and Nickel-Copper

The right hard line depends on the route, the tools on hand, and the type of build. Compare the main fuel line materials before choosing.

Comparison 1060 Aluminum Fuel Line Steel Fuel Line Stainless Fuel Line Nickel-Copper Fuel Line
Density (lighter is lower) 2.7 g/cm³ about 7.85 g/cm³ about 8.0 g/cm³ about 8.9 g/cm³
Bending Bends by hand with the included tube bender Needs a sturdy tube bender Hardest to bend, usually a heavy-duty bender Bends easily by hand or with a small bender
Corrosion protection Natural protective oxide layer Relies on plating or coating High corrosion resistance High corrosion resistance
Common connection Compression fittings included in this kit Flare, tube nut and sleeve Flare with a stainless-rated tool Flare, tube nut and sleeve
Good match for Custom fuel, return and transmission lines Factory-style chassis lines Long-life show and race builds Restoration fuel and brake lines

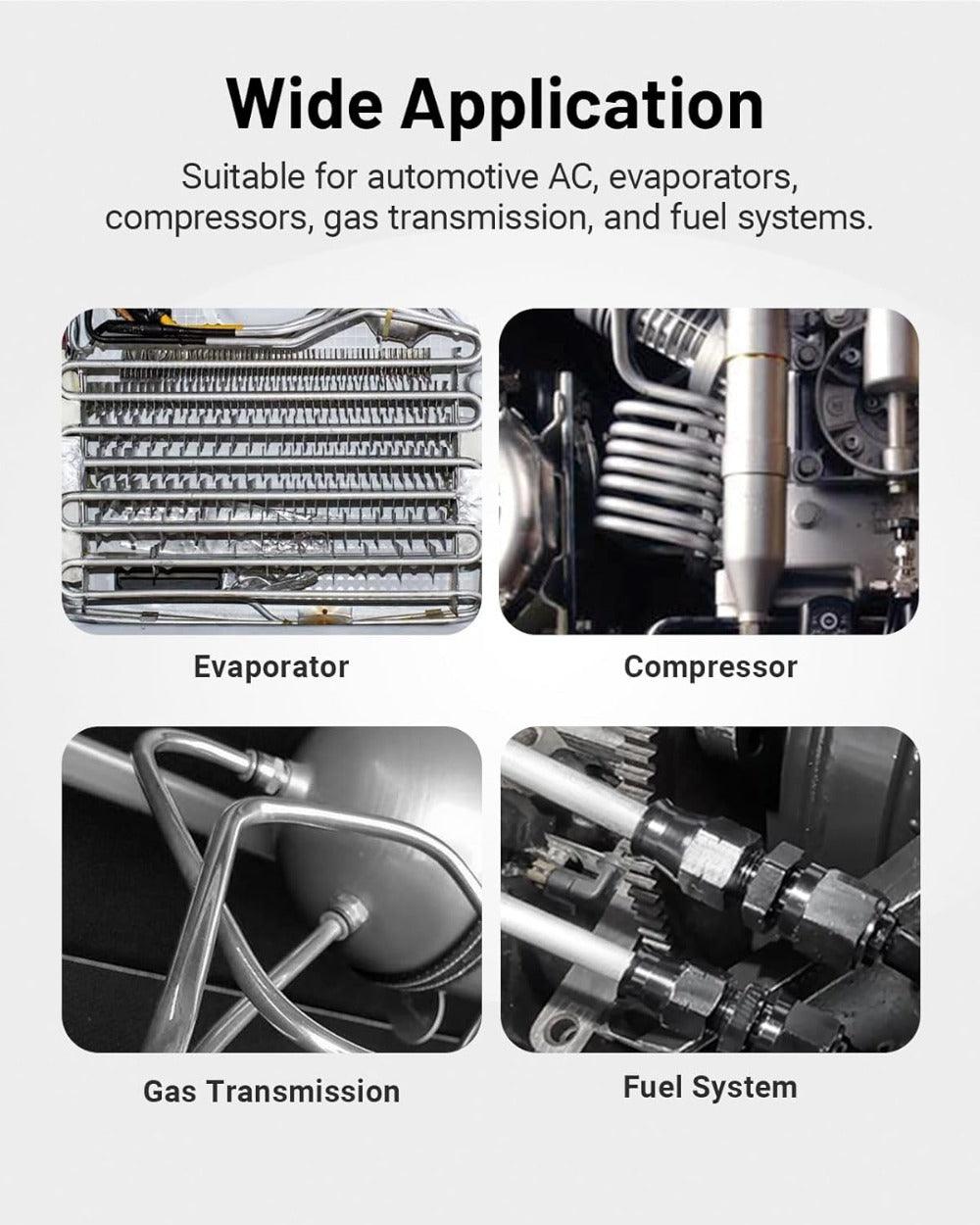

Aluminum Tubing Applications

Formed aluminum tubing used for fuel, return and transmission lines in vehicle builds

Formed aluminum tubing for fuel lines handles feed and return plumbing on gas, diesel, and E85 builds. The same coil also works for transmission oil lines, automotive AC lines, air compressor tubing, and water lines.

Aluminum Tubing for Car Air Conditioner Lines

The thermal conductivity of 1060 aluminum supports efficient heat exchange in an automotive AC line, connecting components such as the evaporator and condenser in custom or retrofit systems.

Have the refrigerant recovered with proper equipment before opening an AC system, then evacuate and recharge the system after the new line is installed.

Aluminum line routed between the evaporator, condenser and compressor in a car air conditioner

Brand Summary

Policy Details
Cancellation Policy Orders can be canceled within 48 hours of placement. Refund processed in 3-5 business days.
Returns Policy Returns accepted within 180 days. Full refund within 90 days; 15% fee for 90-180 days.
Non-Returnable Items Only regular-priced items are eligible for refunds; sale items are non-refundable.
Refund Processing If no refund received, check your bank/credit card. For ongoing issues, contact support@ievilenergy.com.

Return Reasons

  1. Quality Issues: Provide photos/videos; we cover return shipping.
  2. Wrong Item Ordered: Buyer covers return shipping; email within 30 days.
  3. Change of Mind: Buyer covers return shipping; email within 30 days.
  4. Shipping Damage: Inspect packages; do not sign for damaged items.
  5. Incorrect Item Shipped: Contact within 7 days.

Price Protection Policy

Effective from August 25, 2024. Price drops within 7 days of purchase can be claimed.

Disclaimer

EVIL ENERGY reserves the right to interpret, modify, or terminate this policy in accordance with applicable laws and regulations.

If you need further information or assistance, feel free to ask!

Q: Is an aluminum fuel line safe on a street car?
A: Yes, when it is routed and secured correctly. Clamp the aluminum fuel line firmly to the chassis, keep it away from exhaust heat, sharp edges and road debris, and use a short section of flexible hose where the line meets the engine, because the engine moves on its mounts and repeated flexing can work-harden aluminum. Pressure-check every fitting before driving.

Q: Is a 1060 aluminum fuel line good for E85?
A: Yes. The EVIL ENERGY 1060 aluminum fuel line is compatible with E85, gasoline and diesel. E85 needs more volume than gasoline, so size the line one step larger than a gasoline build at the same power. A 3/8" line suits E85 builds up to about 250 HP.

Q: Can a 3/8 aluminum fuel line handle 50 PSI or 58 PSI EFI pressure?
A: Yes. The tube is rated for 700 PSI working pressure and 2000 PSI burst, well above a 50 PSI to 58 PSI EFI system.

Q: What size aluminum fuel line do I need for my horsepower?
A: As a general guide on gasoline, a 5/16" aluminum fuel line suits up to about 250 HP and a 3/8" aluminum fuel line suits up to about 375 HP. Beyond that, move up to an 8AN line. Fuel pump flow, regulator setup and return line size also affect the result, so treat those numbers as a starting point rather than a hard limit.

Q: Do I need a flaring tool for this aluminum fuel line kit?
A: No. The included 6AN compression fittings clamp directly onto the cut and deburred tube. The 37-degree flare seal is on the 6AN side of the fitting, already machined, so it connects to 6AN male ends without flaring the aluminum tube. If you prefer flared hard line, the AN tube nut and sleeve fittings are a separate option.

Q: What fittings come with the 3/8 aluminum fuel line kit?
A: Six 6AN female to 3/8" compression fittings, or six 6AN female to 5/16" fittings on the 5/16" kit. That covers three runs with a fitting on both ends. To connect to a female AN port instead, add an AN male to hardline compression adapter.

Q: Should I use aluminum or steel fuel line?
A: Choose aluminum for a lighter custom line that bends by hand and connects with compression fittings. Choose steel for a factory-style chassis line. Aluminum has about one-third the density of steel, and this kit already includes the tools to form it, which makes aluminum the simpler choice for a home-garage install.

Q: How do I bend aluminum fuel line without kinking it?
A: Uncoil the tube by rolling the coil along a flat surface rather than pulling it straight off the end. Then seat the tube in the matching 3/8" or 5/16" groove of the tube bender and close the handles slowly in one smooth motion. Avoid re-bending the same spot, since aluminum work-hardens each time it is formed.

Q: Can aluminum fuel line be used for brake lines?
A: No. Use this aluminum tubing for fuel, return, transmission oil, AC, air compressor and water lines. Brake systems need brake-specific steel, stainless or nickel-copper line.

Q: Does this aluminum fuel line kit come in 1/2 inch?
A: No. The kit comes in 3/8" and 5/16" outer diameters, in 10 FT and 25 FT coils. For a build that needs more flow than a 3/8" line, the larger PTFE fuel line kits are the next place to look.
