Evilenergy | SKU: EVKT01871AN3-AMZ1

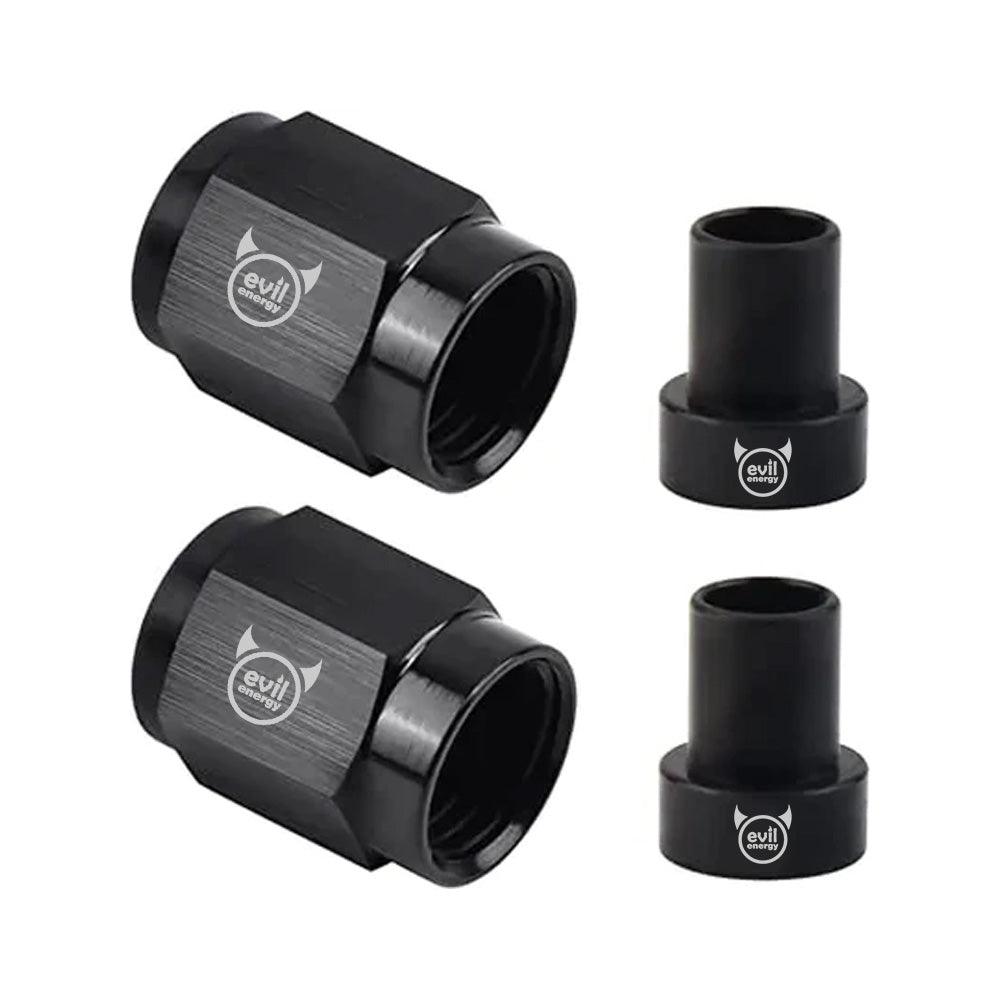

EVIL ENERGY AN Female Hardline Tube Nut & Sleeve Fitting For Alloy Tubing 2PCS

$12.71 USD

Shipping calculated at checkout.

SKU:	Size	Price	Stock
EVKT01871AN3-AMZ1	3AN-3/16	$12.71	✔
EVKT01871AN4-AMZ1	4AN-1/4	$12.71	✔
EVKT01871AN6-AMZ1	6AN-3/8	$15.24	✔
EVKT01871AN8-AMZ1	8AN-1/2	$16.05	✔
EVKT01871AN10-AMZ1	10AN-5/8	$17.05	✔
EVKT01871AN12-AMZ1	12AN-3/4	$17.04	✔

More payment options

Description

Product details

Thread Size	3an is 3/8-24 UNF,tube sleeve used to 3/16'' OD inch stainless steel tube. 4an is 7/16-20 UNF,tube sleeve used to 1/4'' OD stainless steel tube. 6an is 9/16-18 UNF,tube sleeve used to 3/8'' OD stainless steel tube. 8an is 3/4-16 UNF,tube sleeve used to 1/2'' OD stainless steel tube. 10an is 7/8-14 UNF,tube sleeve used to 5/8'' OD stainless steel tube. 12an is 1 1/16-12 UNF,tube sleeve used to 3/4'' OD stainless steel tube.
Material	Aluminum
Exterior Finish	Aluminum
Color	Black
Metal Type	Stainless Steel, Aluminum
Brand	EVIL ENERGY

[Installation] Need to install the tube nut on the tubing first,followed by this tube sleeve.Then use a 37° flaring tool to flare the end of the coiled aluminum tube.Professional installation recommended.
[Function] The nut is used for the conversion of the hard pipe and the fitting,the sleeve is used to fix the aluminum pipe and prevent it from moving, and the sleeve is sealed with a 37 degree and an outer flaring of the aluminum pipe.
[Note] 6AN tubing nuts and sleeves can only be used for stainless steel/aluminum tube, and a 37-degree angle flaring tool needs to be used to flaring the aluminum pipe to ensure tightness with the sleeve.
[Warranty] EVIL ENERGY provide 6an tube nut and sleeve 3-month warranty.
