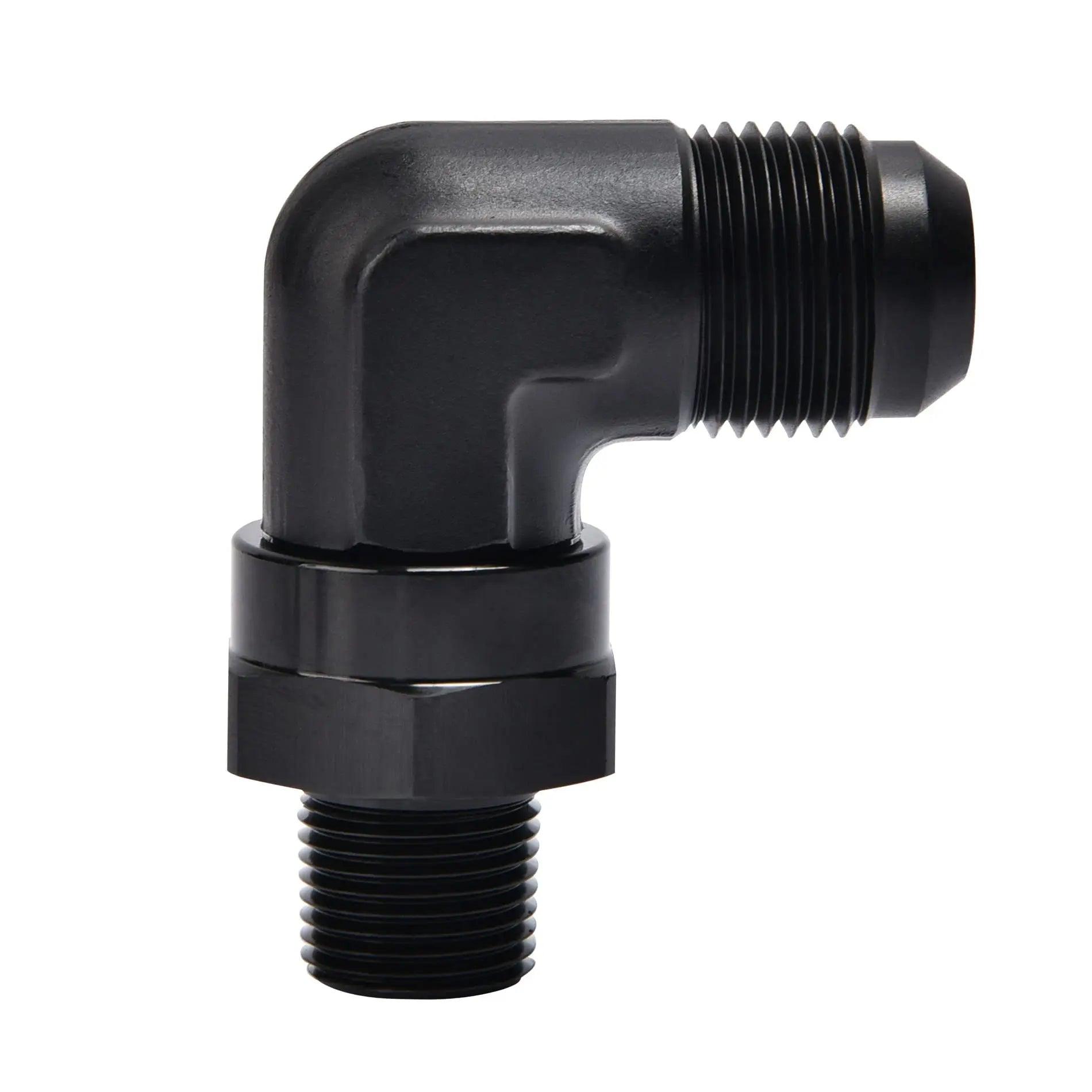

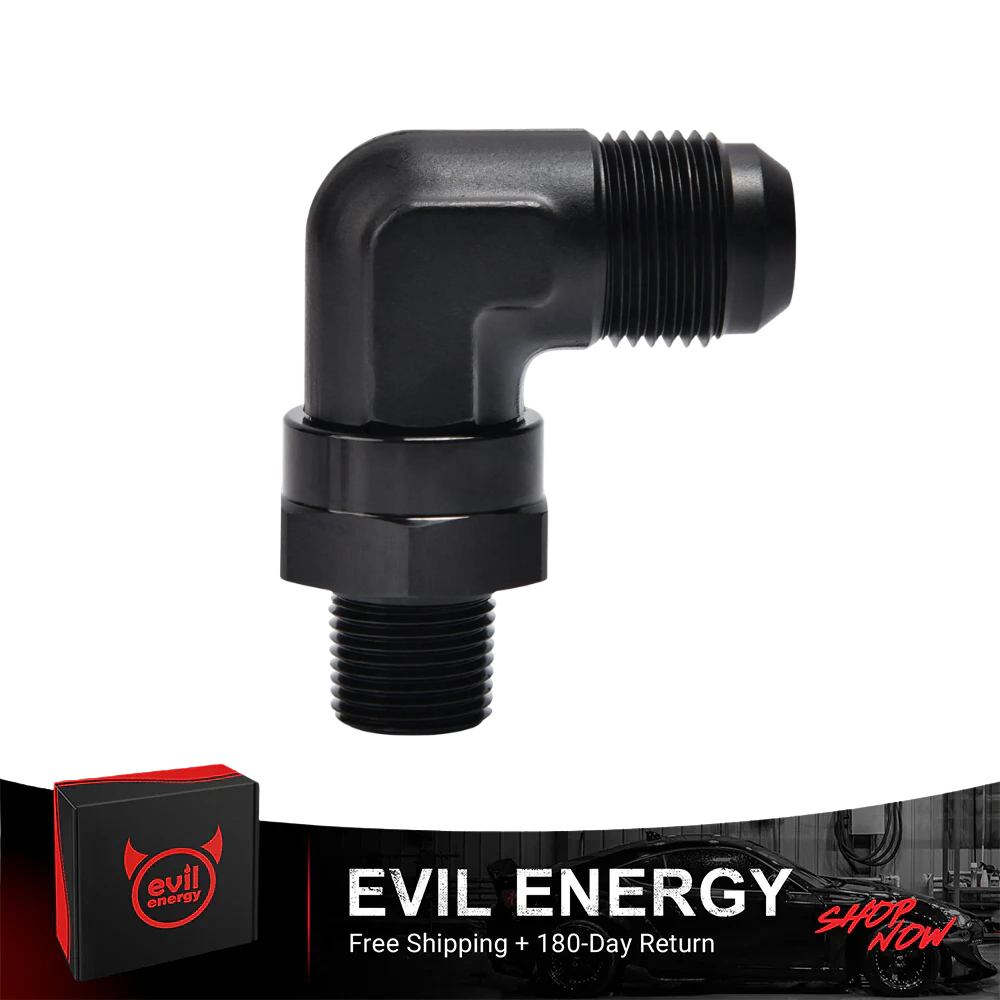

Evilenergy EVIL ENERGY AN Male Flare to NPT 90° Swivel Fitting Adapter Aluminum Black

EVIL ENERGY AN Male Flare to NPT 90° Swivel Fitting Adapter Aluminum Black

$12.69
$12.69
$0.00
AN size: 3AN
NPT size: 1/8
Add To Wish List
SKU: EVKT01867S7-AMZ1
Product Type: AN to NPT Fittings

  • 90° Swivel Elbow Design – Integrated swivel structure allows flexible clocking during installation, solving tight clearance and misalignment issues in performance engine bays.

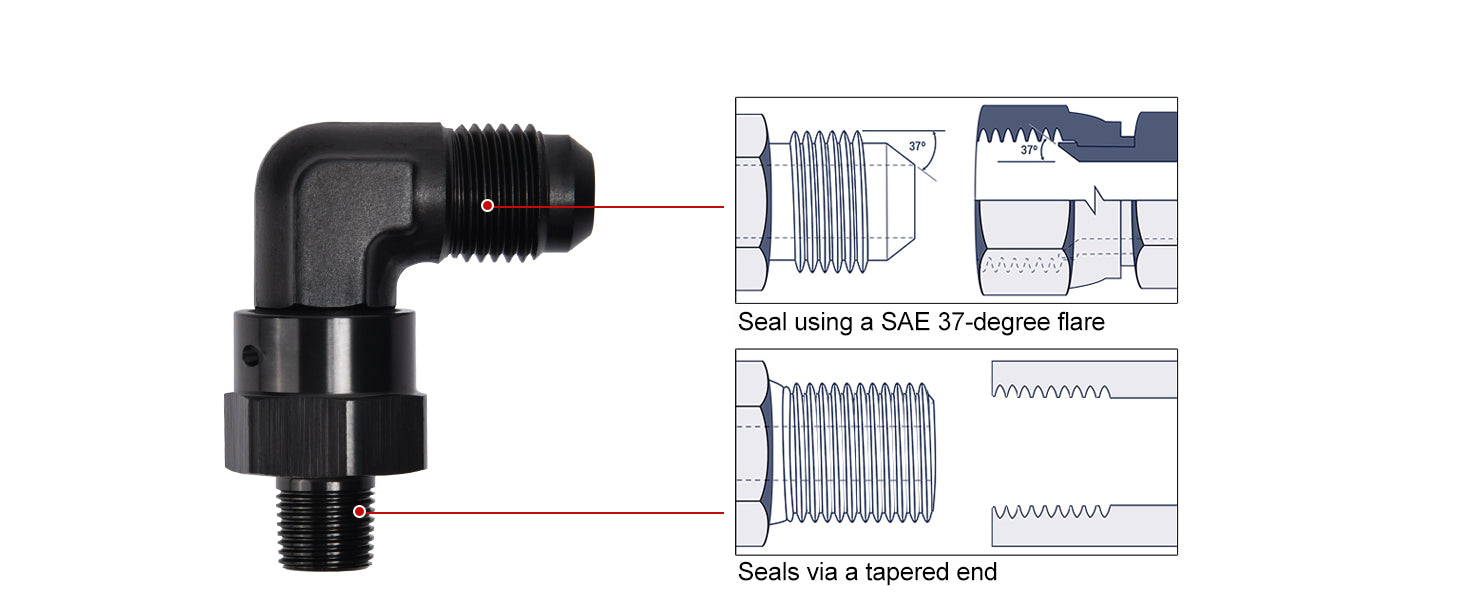

  • 37° AN to 60° NPT Dual Sealing – AN flare provides secure metal-to-metal sealing, while tapered NPT threads ensure strong mechanical pipe engagement.
  • 1500 PSI Pressure Rated – Built for high-pressure fuel, oil, and cooling systems with stable performance from -40℉ to 250℉.
  • Wide AN to NPT Fitment Range – Multiple thread combinations support custom fuel pumps, regulators, vacuum reservoirs, and supply line conversions.
  • 6061-T6 Aluminum Construction – Lightweight, corrosion-resistant, black anodized finish for durability and professional appearance.

EVIL ENERGY AN Male Flare to NPT 90° Swivel Fitting Adapter Aluminum Black

EVIL ENERGY AN Male Flare to NPT 90° Swivel Fitting Adapter Aluminum Black

$12.69 $0.00
$12.69 $0.00
EVIL ENERGY AN Male Flare to NPT 90° Swivel Fitting Adapter Aluminum Black
[8AN,3/8]
[6AN,3/8]
[6AN,1/4]
[6AN,1/8]
[3AN,1/8]

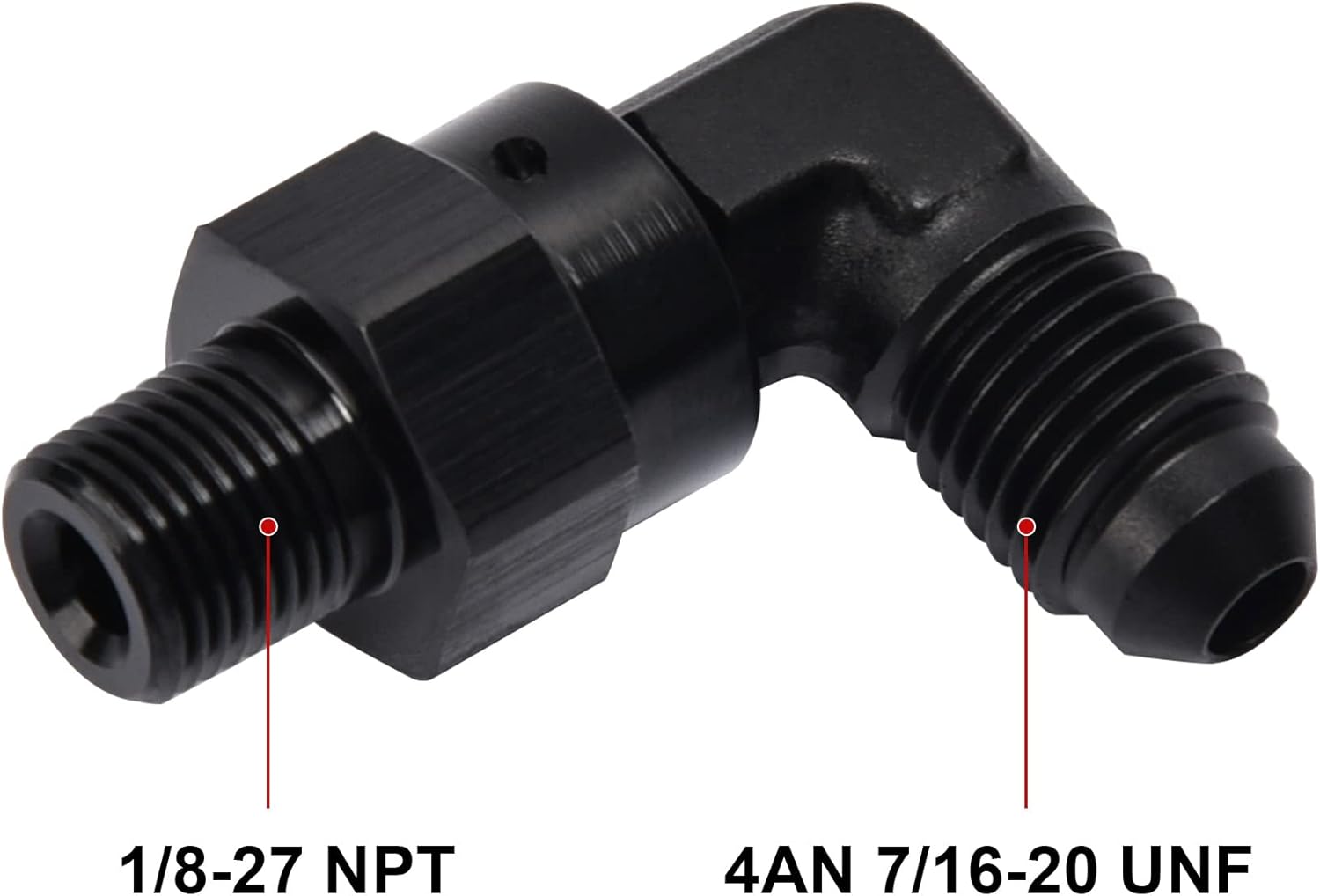

[4AN,1/8]

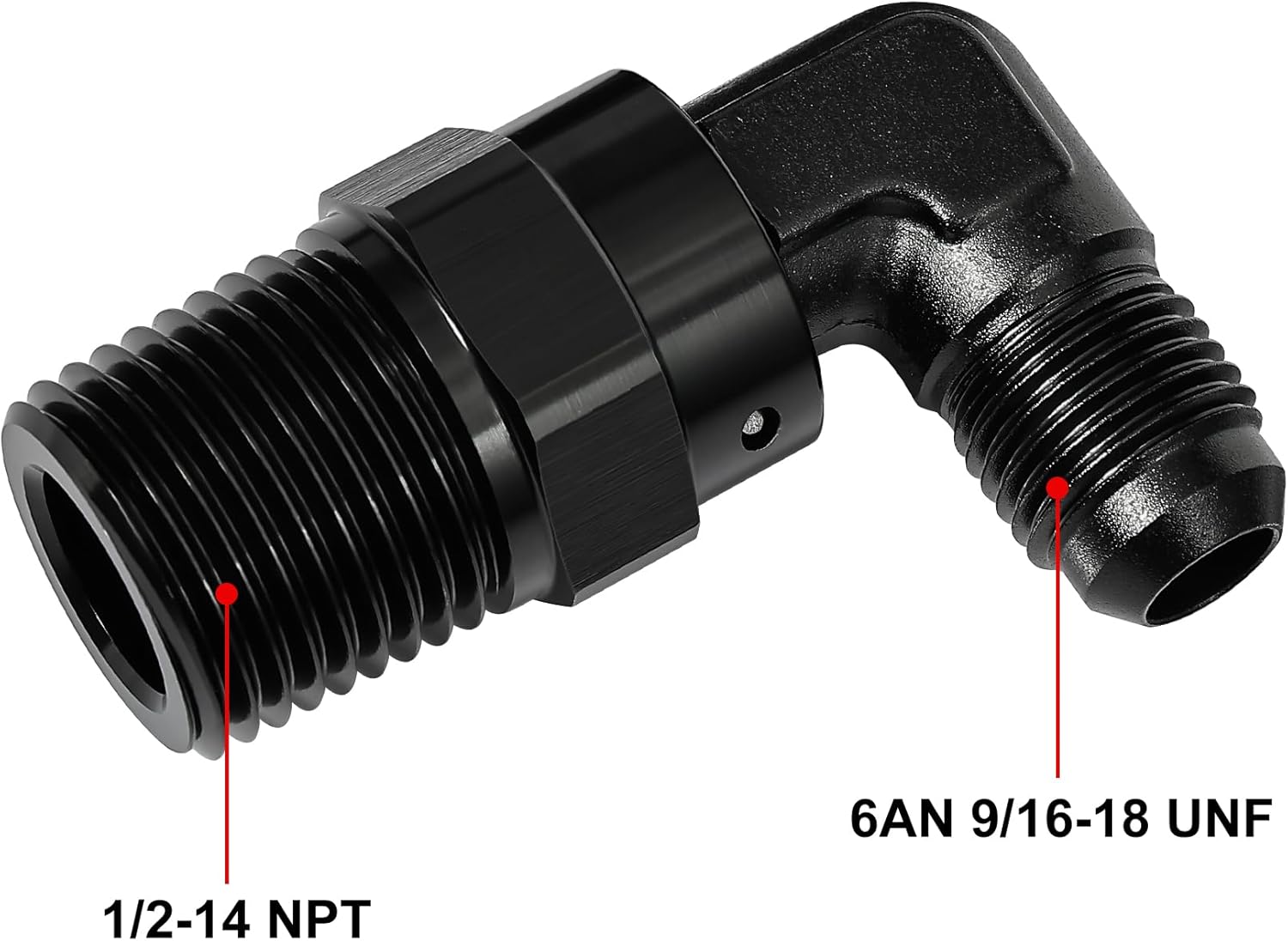

[6AN,1/2]

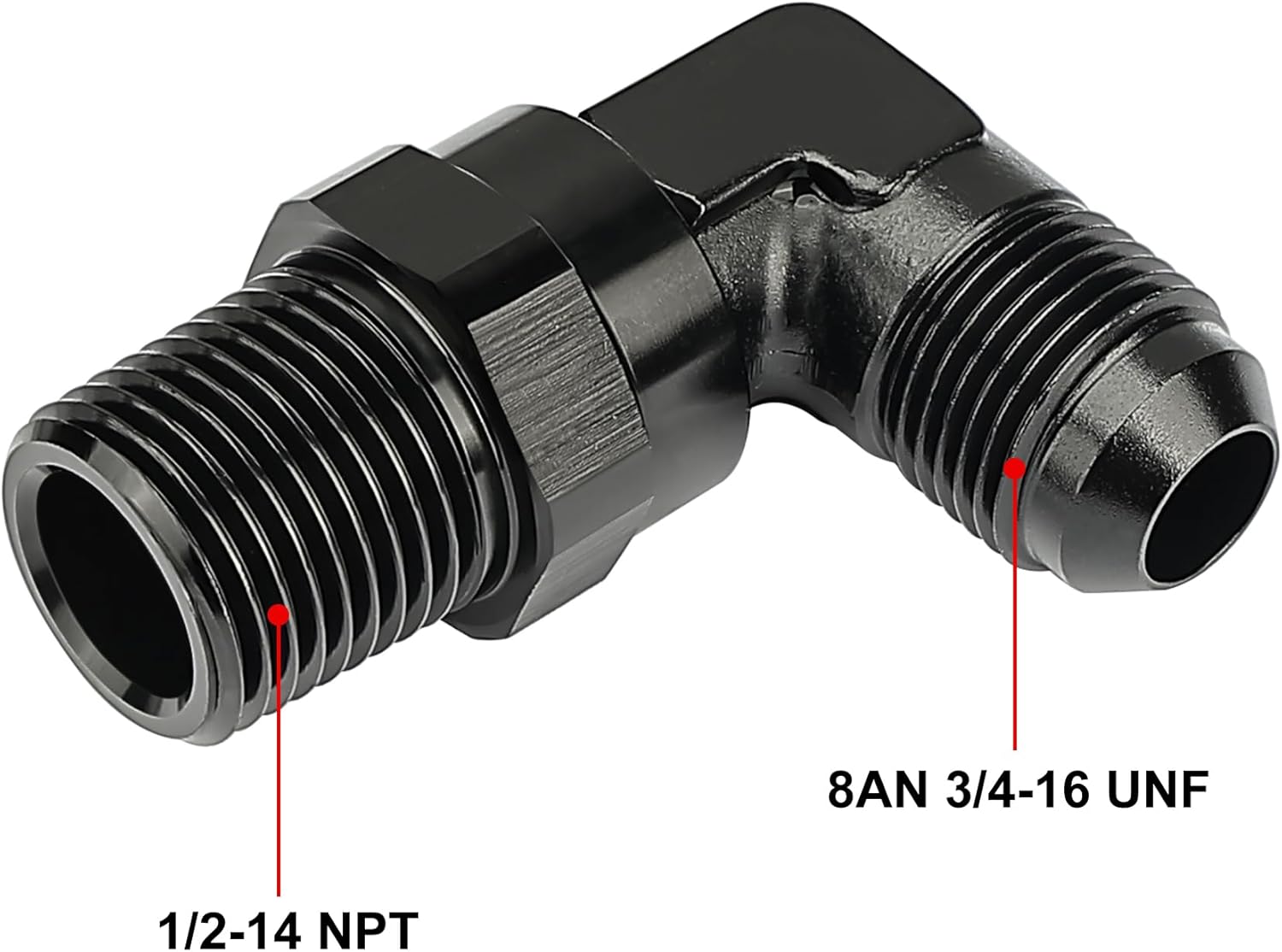

[8AN,1/2]
[10AN,3/8]
[10AN,1/2]

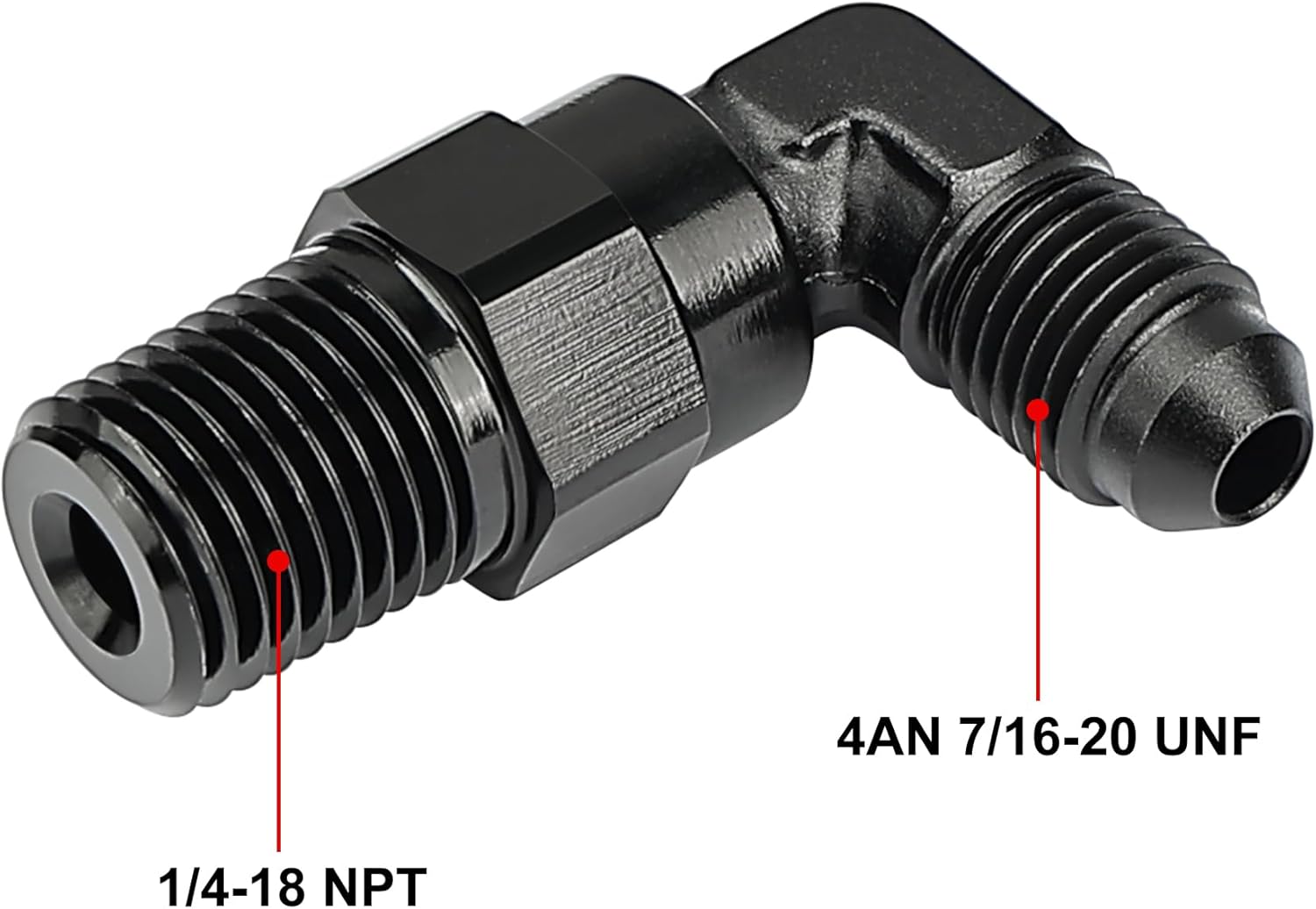

[4AN,1/4]
EVIL ENERGY AN Male Flare to NPT 90° Swivel Fitting Adapter Aluminum Black
EVIL ENERGY AN Male Flare to NPT 90° Swivel Fitting Adapter Aluminum Black
Evilenergy EVIL ENERGY AN Male Flare to NPT 90° Swivel Fitting Adapter Aluminum Black

EVIL ENERGY AN Male Flare to NPT 90° Swivel Fitting Adapter Aluminum Black

$12.69 $0.00
AN size: 3AN
NPT size: 1/8
SPECIFICATIONS

Brand EVIL ENERGY
Product Type 90° Swivel AN Male to NPT Pipe Adapter

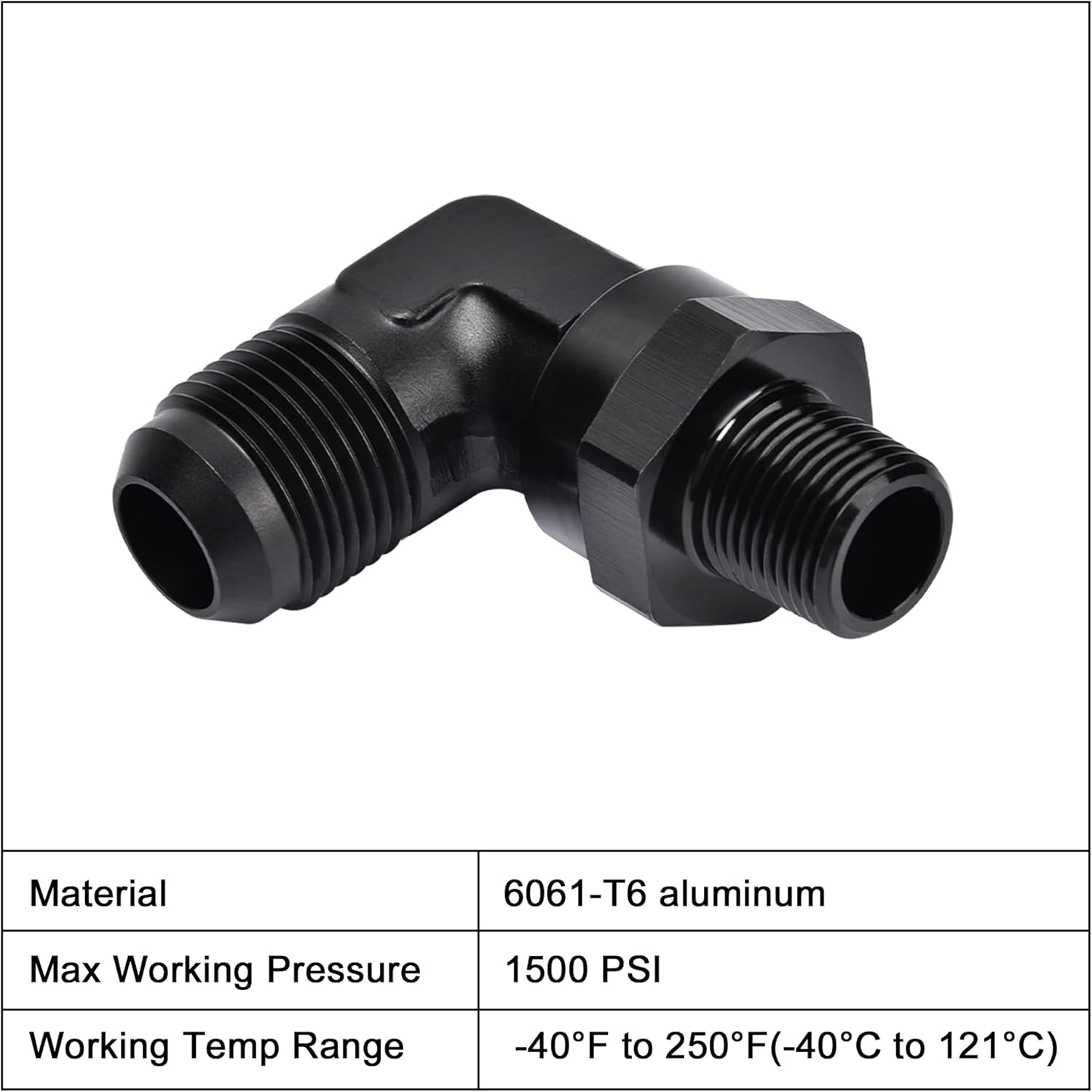

Material 6061-T6 Aluminum Alloy
Finish Black Anodized
Angle 90 Degree Elbow (Swivel Design)
AN Side Sealing 37° Flare (Metal-to-Metal Seal)
NPT Side Sealing 60° Tapered Pipe Thread (Sealant or PTFE Tape Recommended)
Max Working Pressure 1500 PSI
Working Temperature Range -40℉ to 250℉

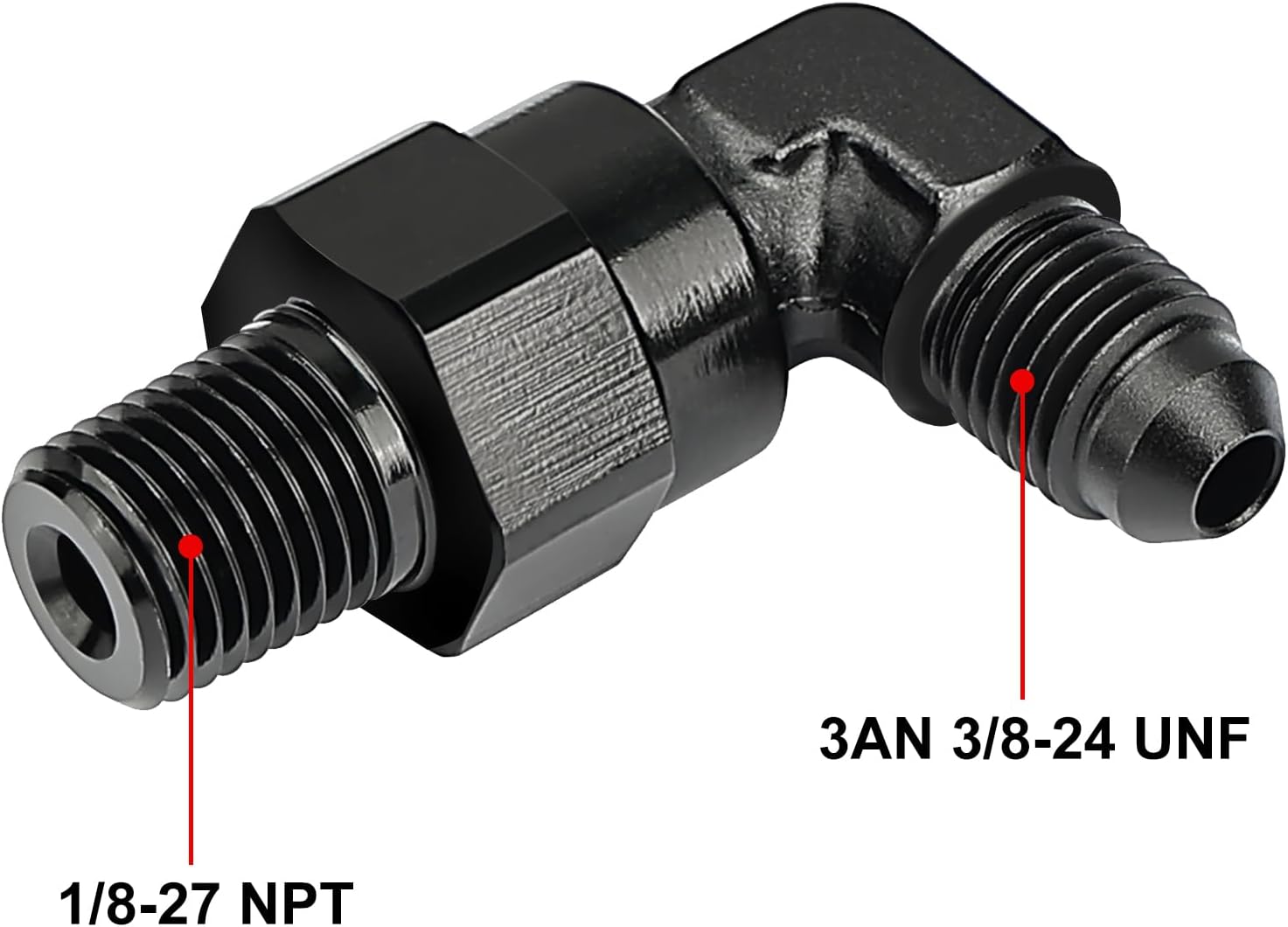

Available Size Options 3AN (3/8-24 UNF) to 1/8-27 NPT
4AN (7/16-20 UNF) to 1/8-27 NPT, 1/4-18 NPT

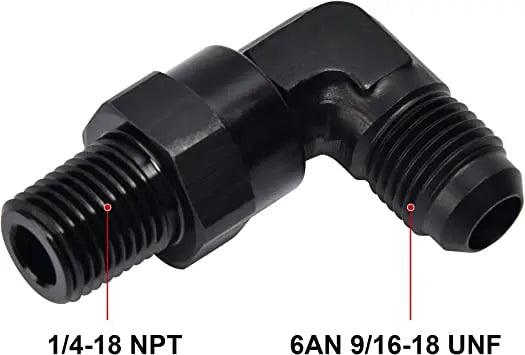

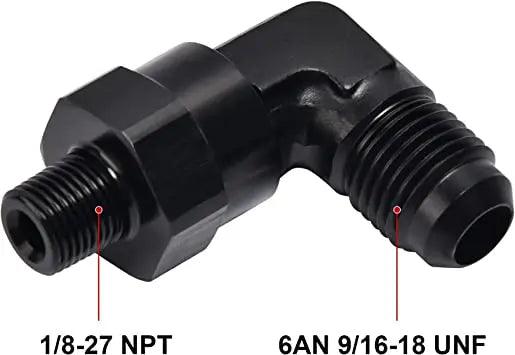

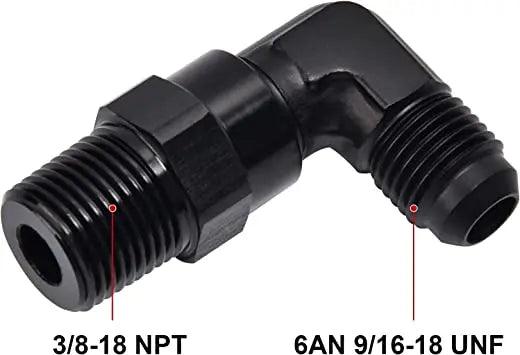

6AN (9/16-18 UNF) to 1/8-27 NPT, 1/4-18 NPT, 3/8-18 NPT, 1/2-14 NPT

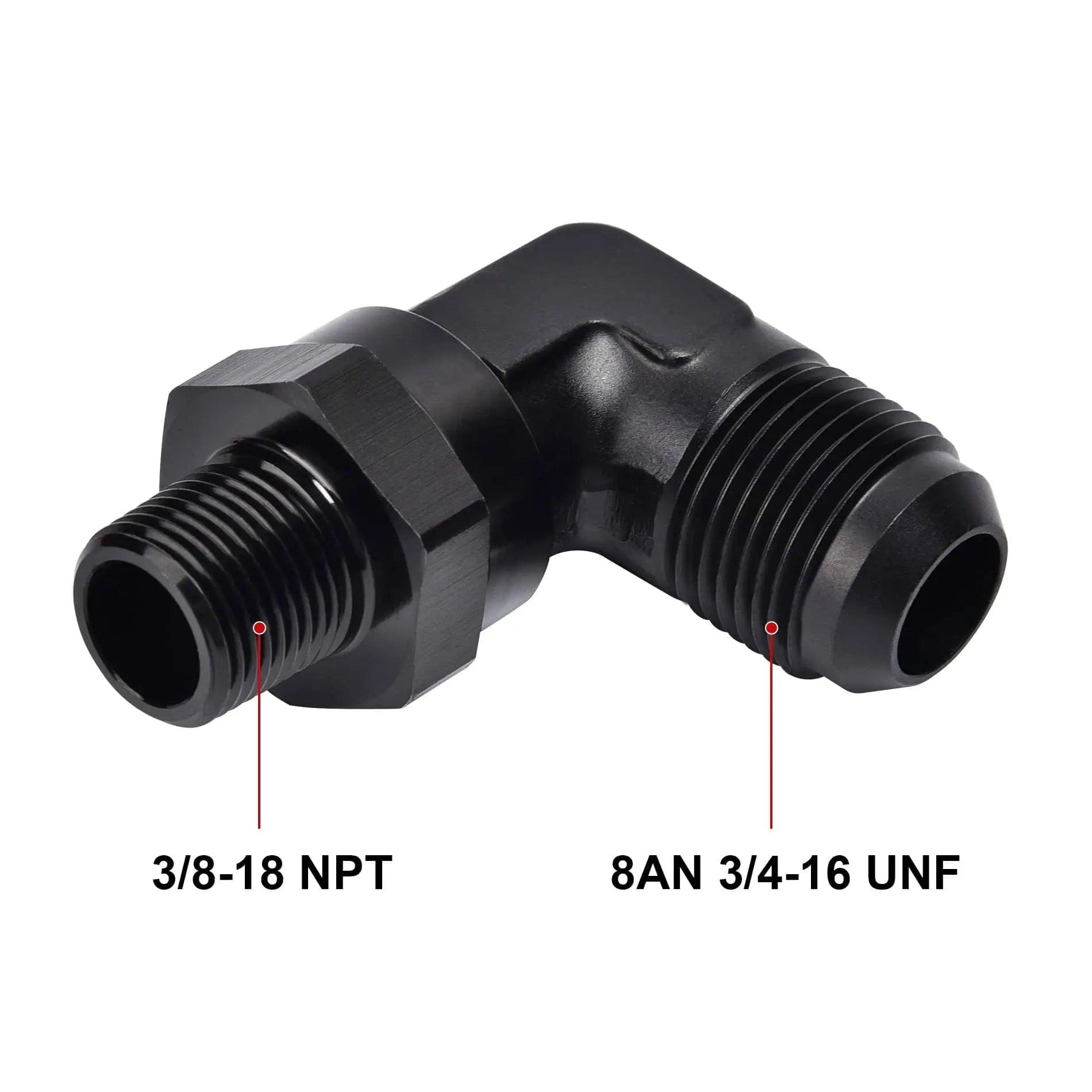

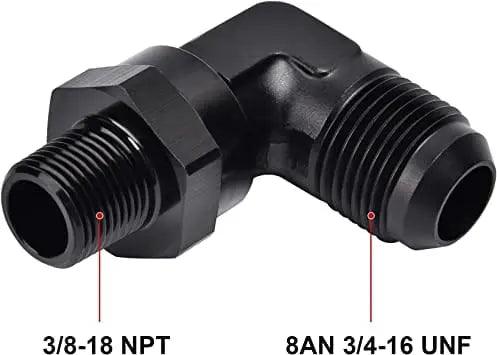

8AN (3/4-16 UNF) to 3/8-18 NPT, 1/2-14 NPT

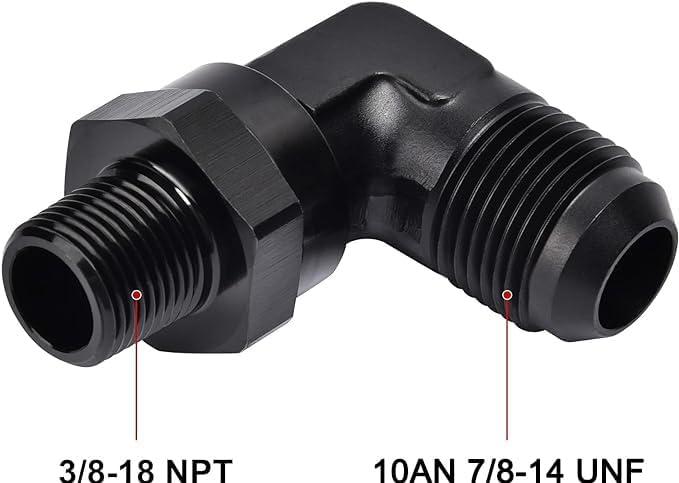

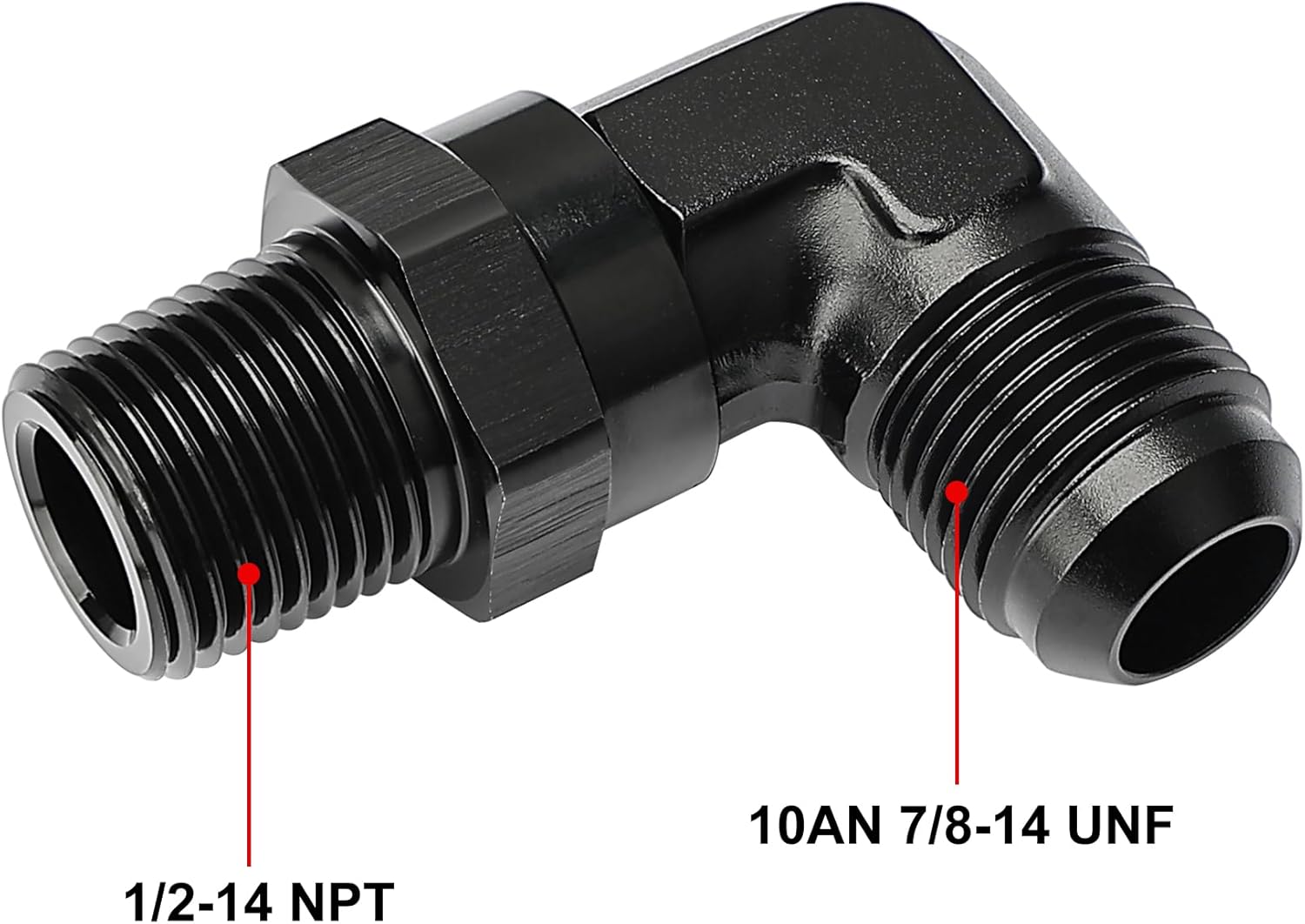

10AN (7/8-14 UNF) to 3/8-18 NPT, 1/2-14 NPT

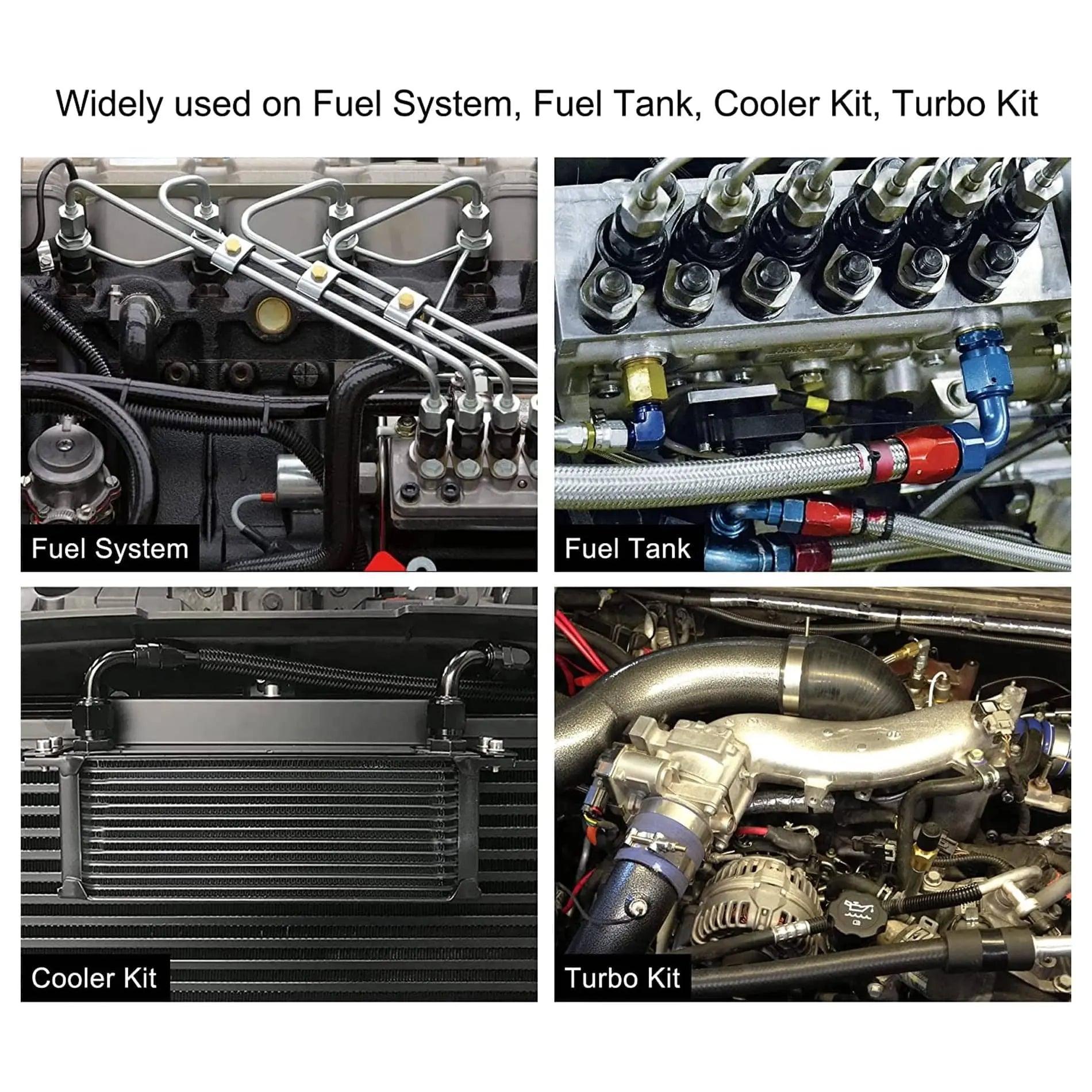

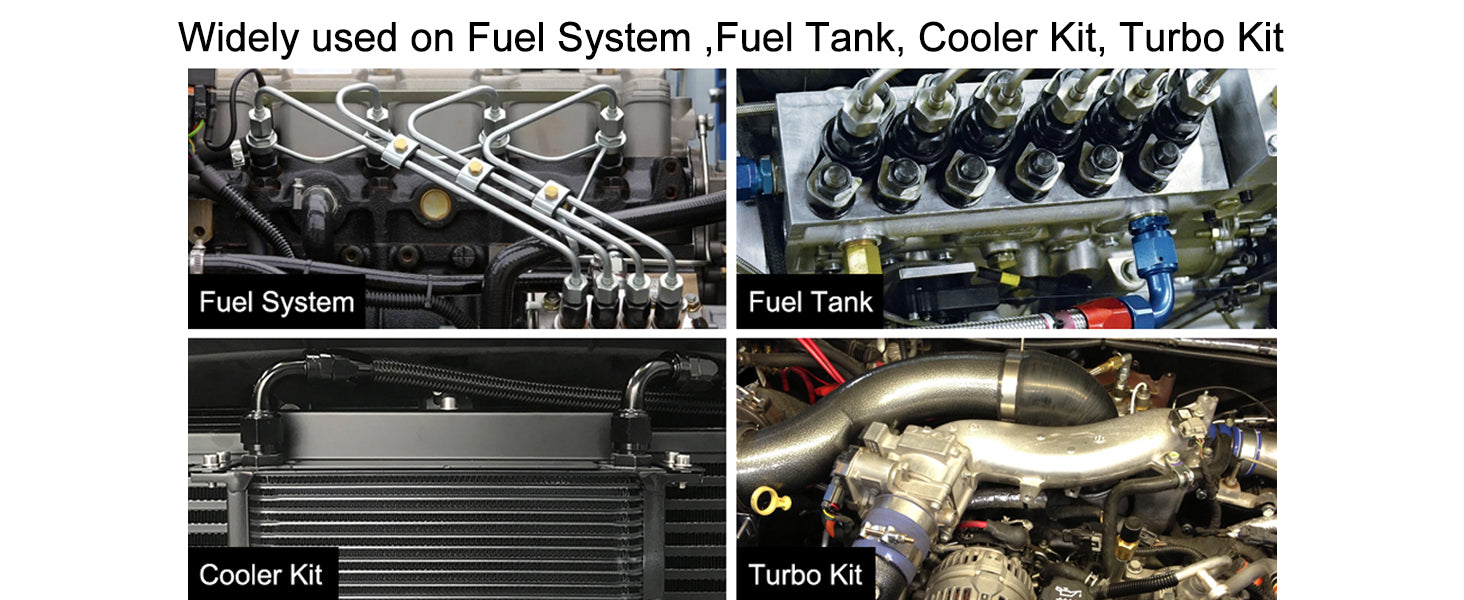

Applications Fuel pumps, fuel pressure regulators, vacuum reservoirs, fuel supply lines, oil and cooling systems

DESCRIPTION

Swivel Design Solves Real-World Installation Problems

Traditional fixed 90° fittings often require multiple adjustments to achieve proper alignment. This swivel AN to NPT adapter allows precise orientation after thread engagement, reducing hose twist, stress, and the risk of leaks.

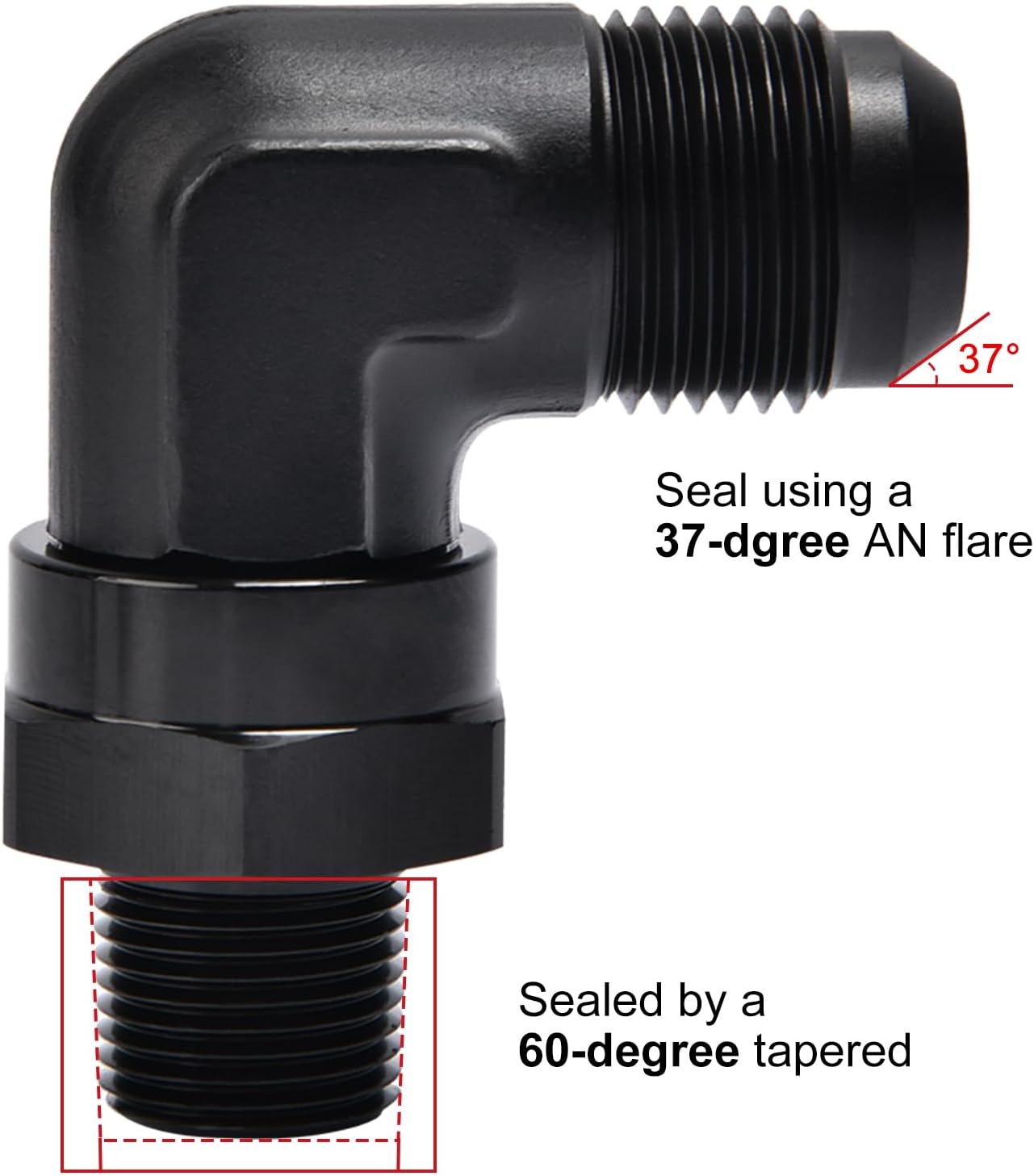

Dual-Seal Engineering for High Reliability

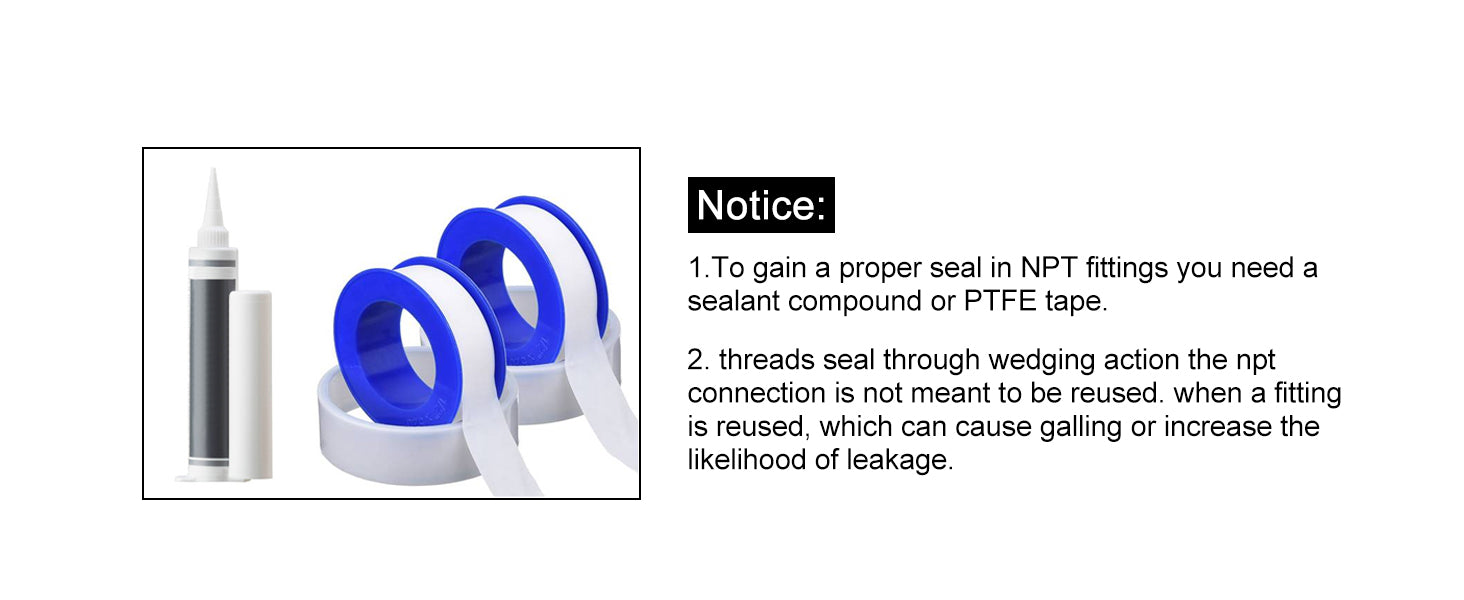

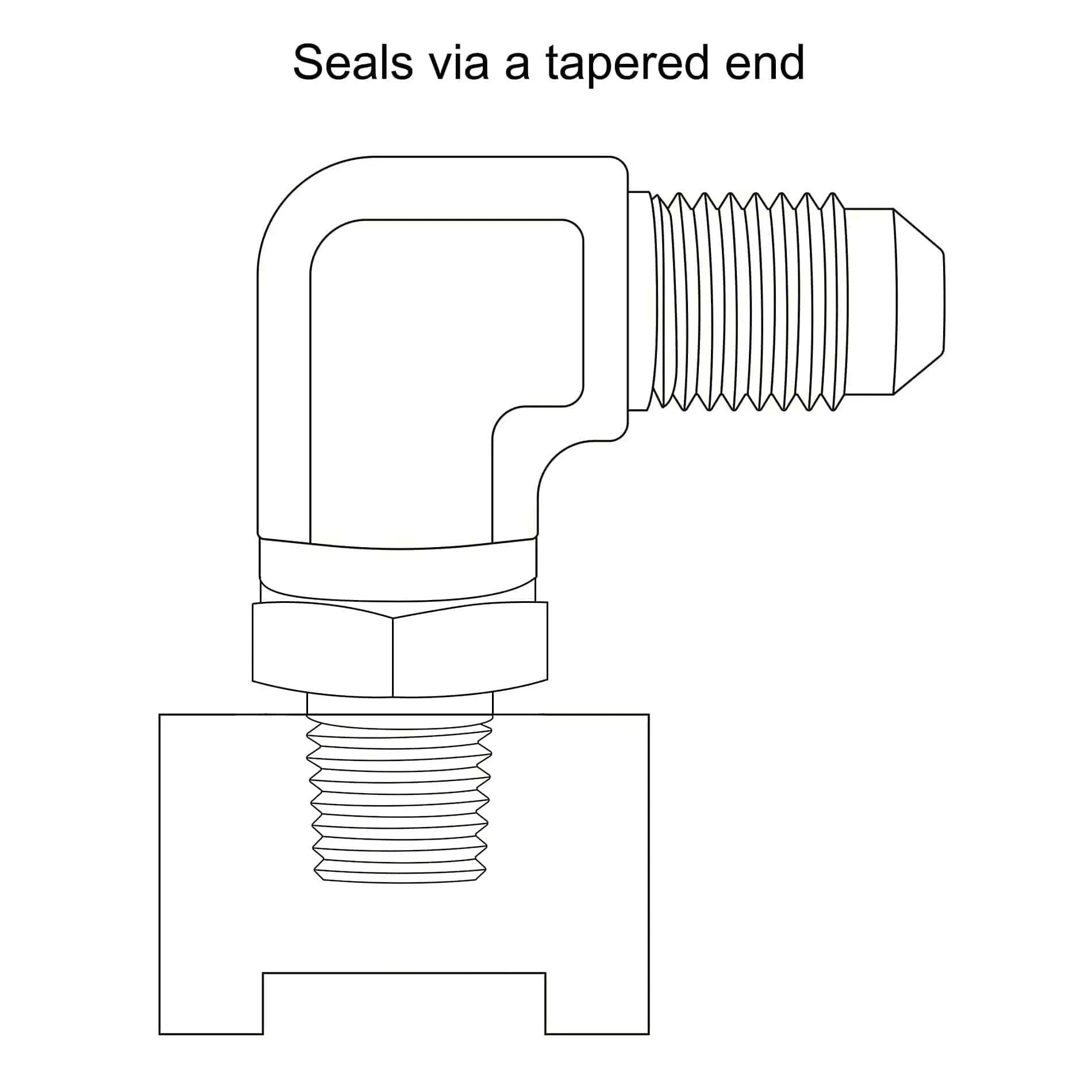

The AN side uses a precision-machined 37° flare for secure metal-to-metal sealing. The NPT side features tapered 60° pipe threads that create a tight mechanical seal under torque. For optimal performance, thread sealant or PTFE tape is recommended on the NPT side.

Built for High-Pressure Performance Systems

Rated up to 1500 PSI and operating between -40℉ and 250℉, this fitting supports demanding fuel injection systems, hard-wired fuel pumps, turbo oil feeds, and aftermarket regulator setups.

Bridges AN Hose Systems to Pipe Ports

Many pumps, regulators, and reservoirs use NPT ports, while performance fuel lines use AN fittings. This adapter provides a clean and secure transition between the two standards, simplifying custom builds and upgrades.

Lightweight Strength with Corrosion Resistance

Manufactured from 6061-T6 aluminum alloy, offering excellent strength-to-weight ratio. The black anodized coating enhances corrosion resistance while maintaining a clean, aggressive look for street or track builds.
