EVIL ENERGY 2.5-inch In 2.5-inch Out / 3.0-inch In 3.0-inch Out 50 Series Offset In Center Out Exhaust Muffler

Q: What does a 50 Series 2-chamber muffler sound like?

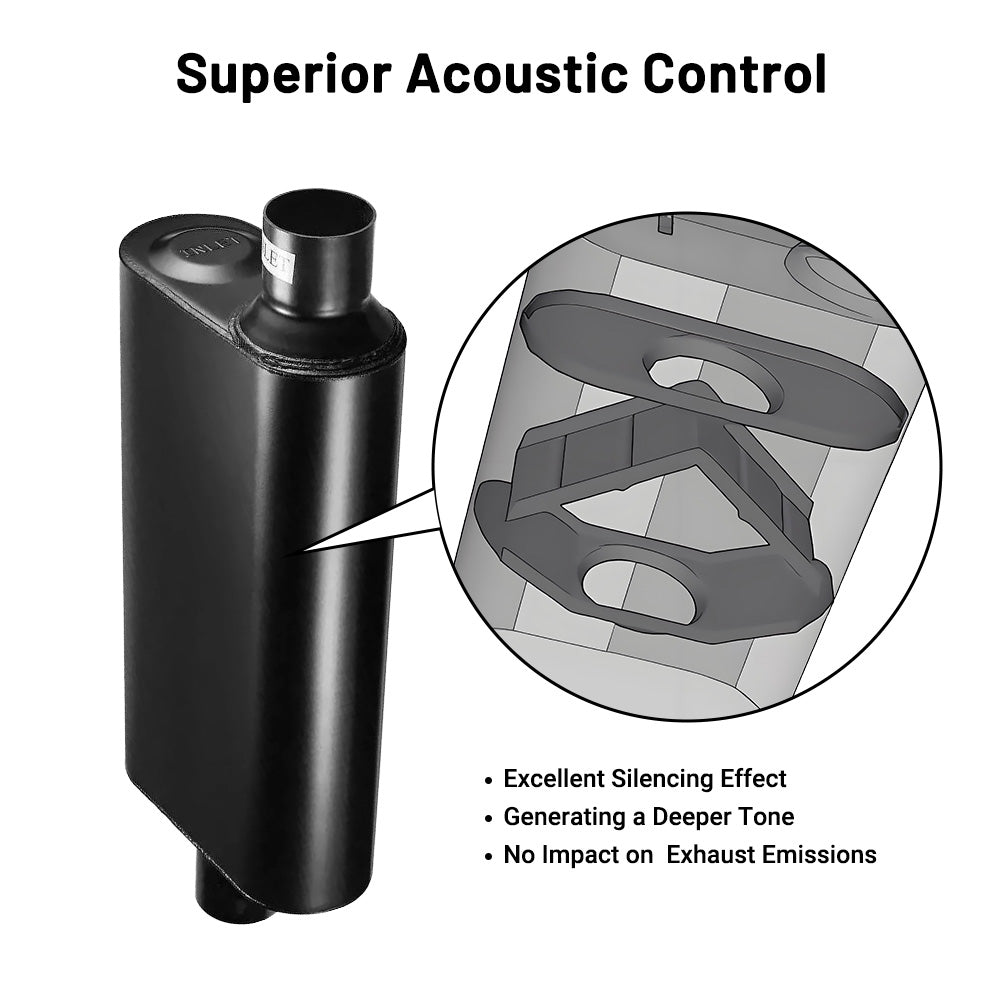

A: The 50 Series 2-chamber Exhaust Muffler produces a moderate, deep exterior tone with less interior resonance than a more aggressive chambered muffler. Expect a noticeable muscle-car rumble at idle and under throttle, with a calmer cabin at highway speed. The final sound also depends on engine size, pipe diameter, crossover type and tailpipe routing.

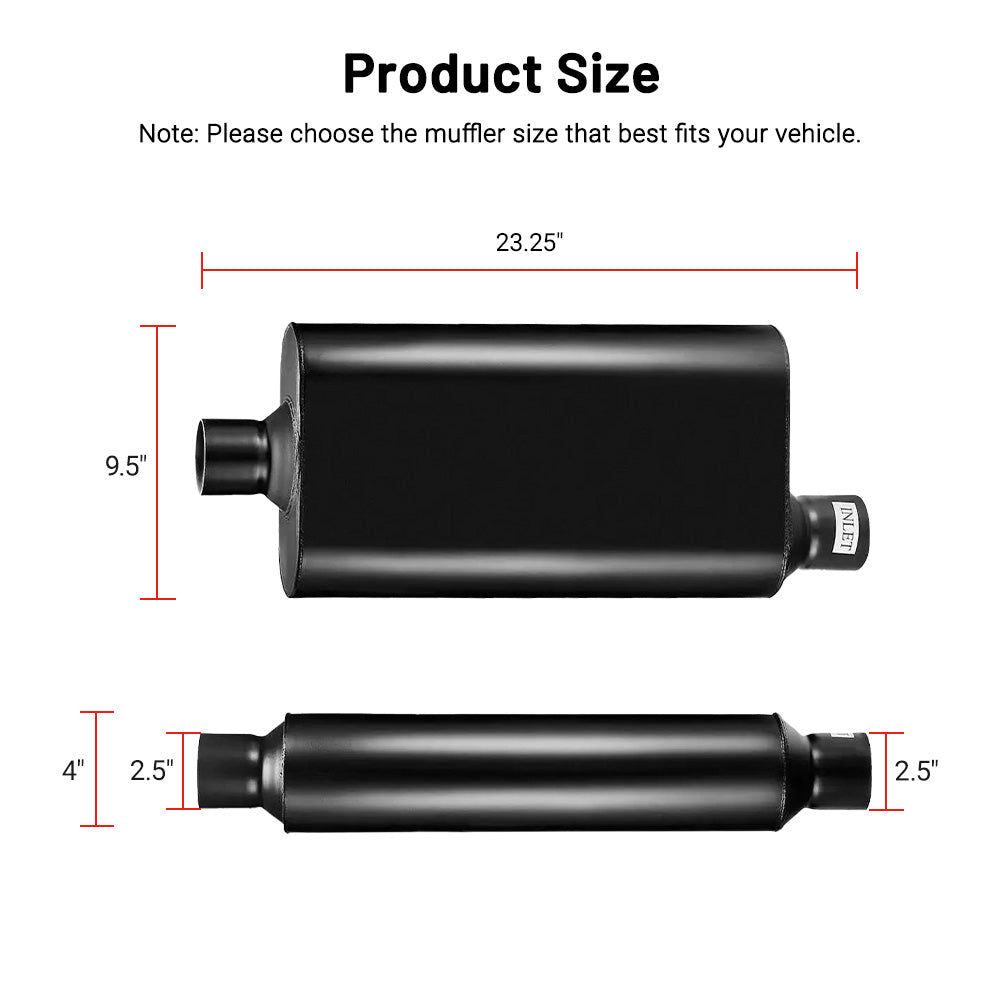

Q: Which size should I choose for my V8 truck or muscle car, 2.5 in or 3.0 in?

A: Match the muffler to the exhaust pipe already on the vehicle. As a general guide, a 2.5 in Exhaust Muffler suits stock to mildly modified street V8s on true dual exhaust (roughly 250 to 375 hp) and V6 or small V8 trucks with single exhaust. A 3.0 in Exhaust Muffler suits large-displacement, high-RPM or boosted engines and single exhaust trucks moving more air. An oversized system can cost low-end torque on a mild street engine.

Q: Will the muffler drone on the highway in my truck or Mustang?

A: The 50 Series design is built to reduce interior resonance compared with louder chambered mufflers, so most drivers find highway cruising comfortable. Drone can still depend on the rest of the system: running at least 12 in of tailpipe after the muffler, routing the tailpipe out from under the vehicle, and adding an H-pipe or X-pipe on true dual systems all help keep cabin noise down.

Q: Can I install the offset in / center out muffler backwards?

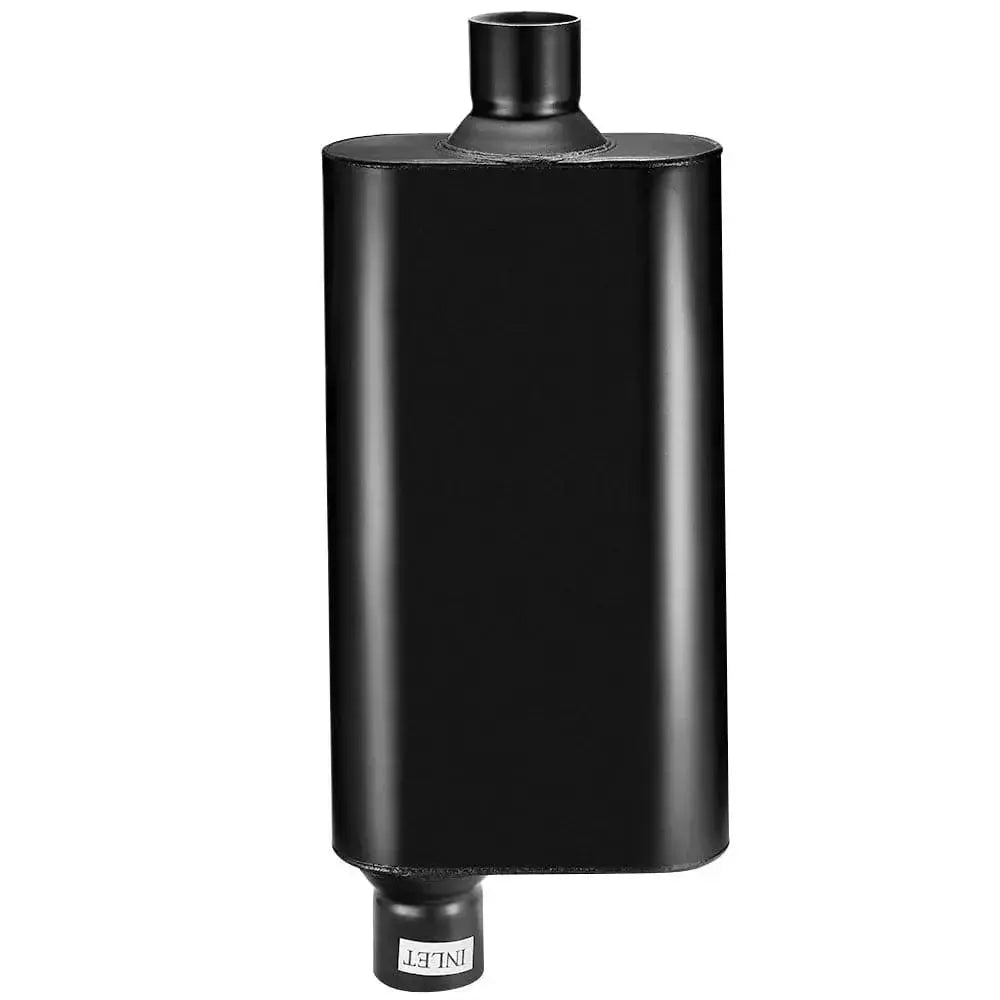

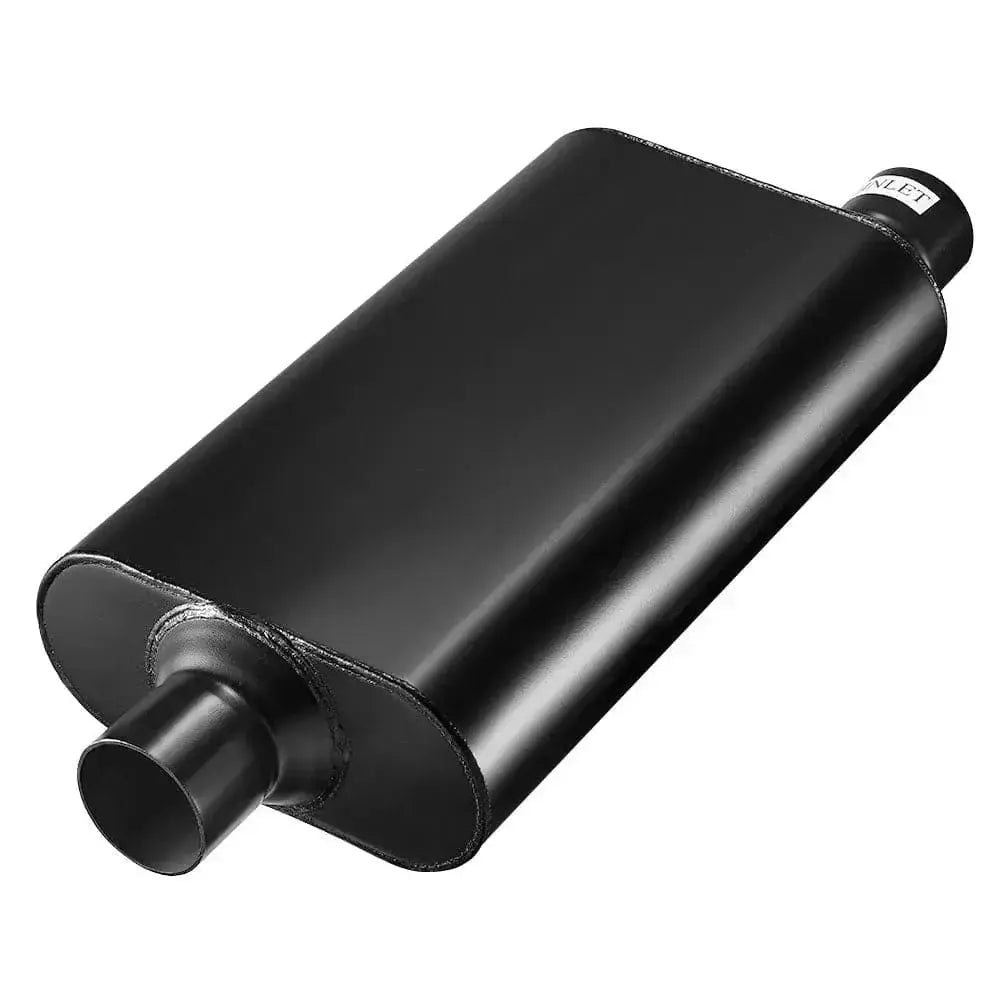

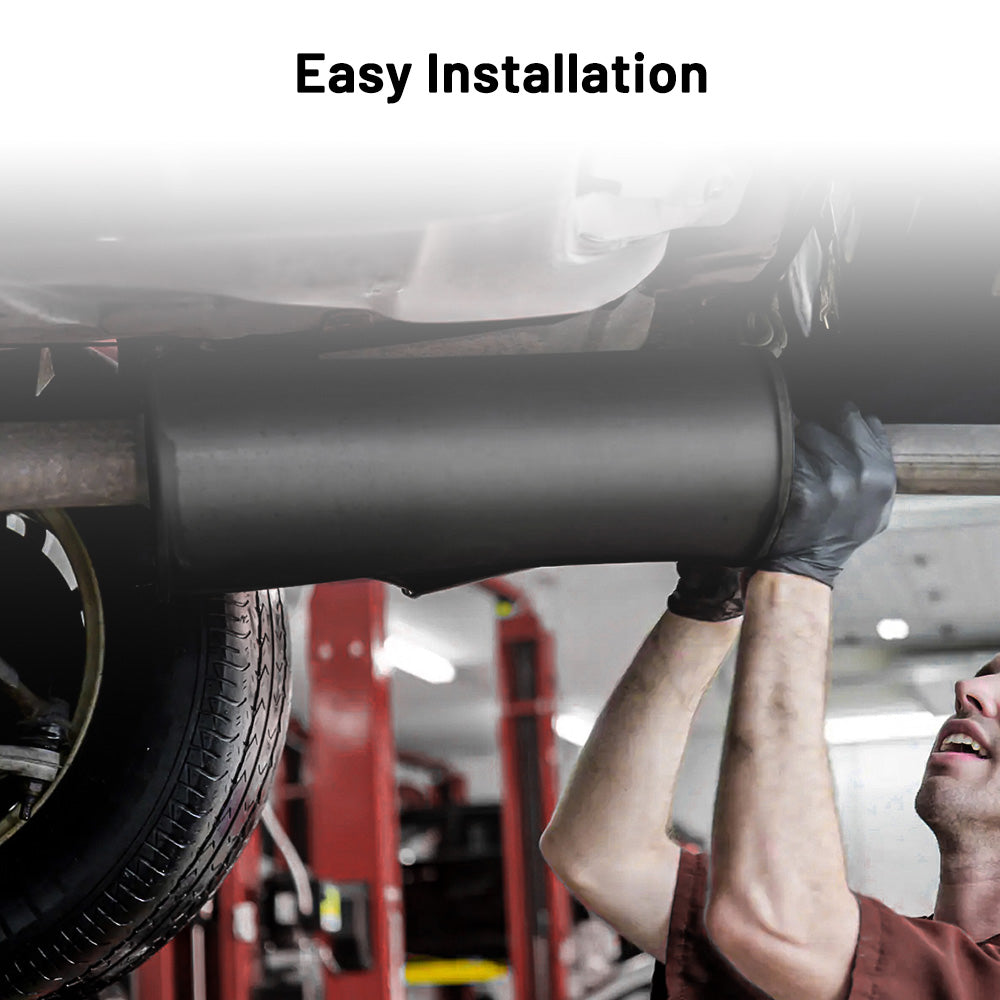

A: No. The muffler is not reversible, so the offset inlet must face the engine and the center outlet must face the tailpipe. Before cutting any pipe, hold the muffler in place and choose which side the offset inlet sits on, so the inlet pipe clears the driveshaft, frame rail and fuel tank.

Q: Should I clamp or weld the muffler?

A: Both work with the slip-fit inlet and outlet. Clamping with band clamps or U-bolt exhaust clamps is the easiest DIY option and allows the muffler to be removed later. Welding creates a permanent, leak-free joint and is the common choice at exhaust shops. Whichever method you choose, make sure the pipe slides fully into each connection.

Q: Will a 50 Series muffler add horsepower?

A: A chambered muffler flows more freely than many restrictive factory mufflers, which can help the engine breathe better, especially with headers or other exhaust upgrades. Gains depend on the whole exhaust system, the engine and the tune, so think of the muffler mainly as a sound and flow upgrade rather than a major power adder on its own.

Q: Why is my new muffler smoking after installation?

A: Light smoke or a burning-paint smell during the first few drives is normal while the high-temperature black paint cures. The smoke should fade after several heat cycles. If smoke continues, or if you smell exhaust inside the cabin, check every clamp and joint for an exhaust leak and make sure the muffler is not touching the floor pan, fuel lines or wiring.

Q: Is the muffler legal to install in California and other states?

A: In California, Vehicle Code 27150 requires every vehicle to have an adequate muffler, and Vehicle Code 27151 treats a modified or non-original exhaust on a vehicle under 6,000 lb GVWR as compliant when it measures 95 dBA or less under the current SAE test standard. Since 2019, an exhaust noise stop can bring a fine on the spot instead of a fix-it ticket. Drivers who are cited can have the vehicle tested by the California Smog Check Referee (https://asktheref.org/services/citations-and-noise-violations/), which can issue a noise certificate for the court. Vehicles rated above 5,999 lb GVWR cannot receive a Referee sound reading. Other states set their own sound rules, and none allow removing catalytic converters. If you want the quietest setup, compare the moderate sound levels in our exhaust mufflers and resonators, or add a stainless steel exhaust resonator to further tame drone and volume.

Q: Will the muffler cause a check engine light?

A: No. The muffler sits after the catalytic converters and the oxygen sensors, so replacing the muffler does not change what the engine computer reads. A check engine light after an exhaust job usually points to an exhaust leak ahead of an oxygen sensor or a disturbed sensor connector, so inspect those areas if a light appears.

Q: Will the muffler pass my state safety inspection?

A: In states with periodic safety inspections, inspectors typically check for a working muffler, exhaust leaks, loose or missing hangers, and pipes that are rusted through. A properly installed 50 Series Exhaust Muffler with tight clamps or welds and secure hangers is designed to meet those basic requirements. Inspection rules vary by state, so check your state DMV or inspection program guidelines.

Q: What else do I need to install the muffler?

A: The package includes one Exhaust Muffler. Plan for exhaust pipe clamps (unless welding), exhaust hangers or mounts, and an exhaust tip if you want one. Heat shields are recommended when the muffler sits close to the floor pan or fuel tank. You may also need extra exhaust pipe to reach the muffler location and to run at least 12 in of tailpipe after the outlet.

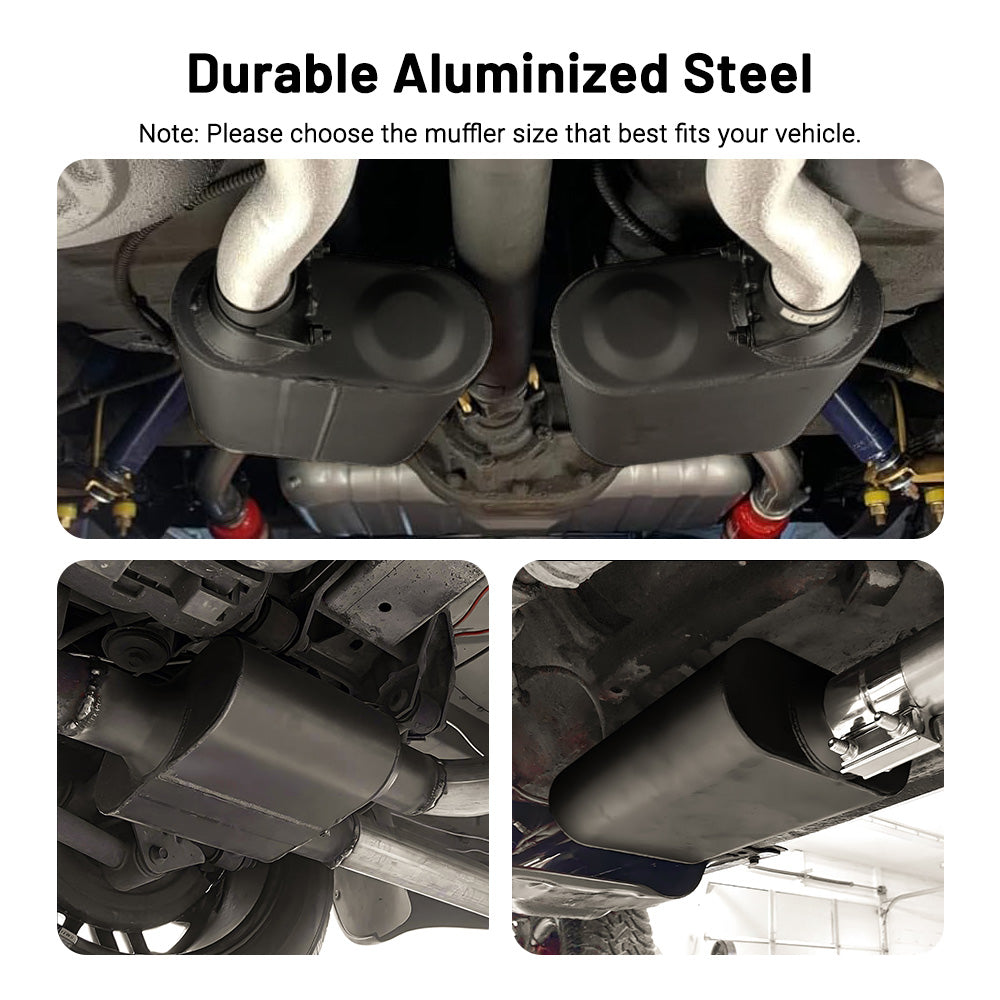

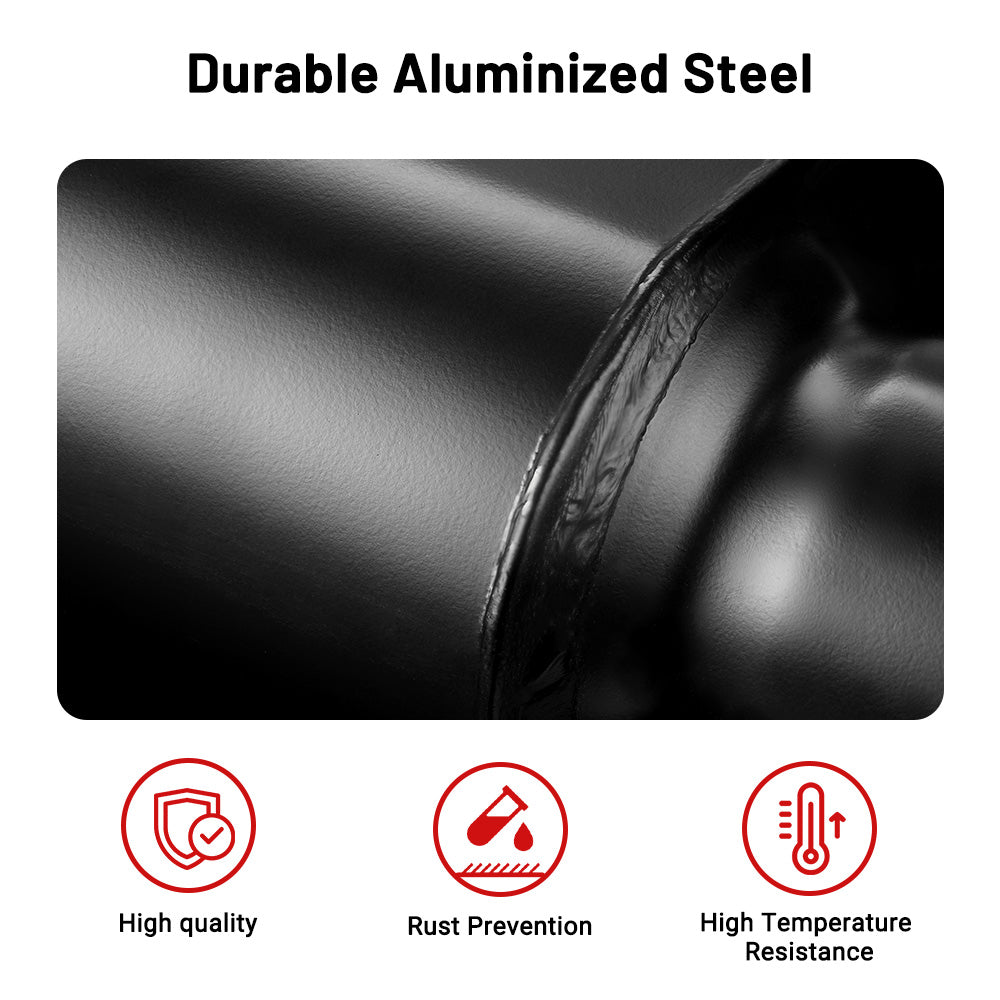

Q: Will the aluminized steel muffler rust in salt-belt winters?

A: Aluminized steel resists rust far better than plain steel, but road salt in the Northeast, Midwest and Canada is hard on any exhaust part. Rinse the underbody regularly during winter, especially around the welds and clamps, and inspect the muffler during oil changes. Short trips that never fully heat the exhaust can leave moisture inside the case, so an occasional longer drive helps dry the system out.
