2.5-Inch Exhaust Band Clamps vs. V-Band Clamps: The 2026 Pro Guide to Performance Sealing

Selecting the right clamps is a critical decision when engineering exhaust systems for high-performance automotive, motorcycle, or marine applications. Whether you are finalizing a 2026 LS swap, plumbing a custom turbo build, or prepping a track-day monster, the debate between 2.5-inch band-style exhaust clamps and reusable V-band couplers remains a hot topic in the racing community.

But which one actually holds up under the extreme thermal expansion and intense pressures of modern racing? In this 2026 updated guide, we move beyond the basics to explore the unique durability, sealing mechanisms, and installation trade-offs of both options. Whether you prioritize a leak-proof 360-degree seal or the convenience of a quick-release setup, this in-depth comparison will help you pick the definitive solution for your specific build.

Let’s dive into the technical breakdown.

1. Clamping Mechanisms: How They Create a Seal

Before choosing, it’s essential to understand the mechanical engineering behind each joint. For 2026 builds, material quality—such as the 304 Stainless Steel used in EVIL ENERGY components—is just as vital as the mechanism itself.

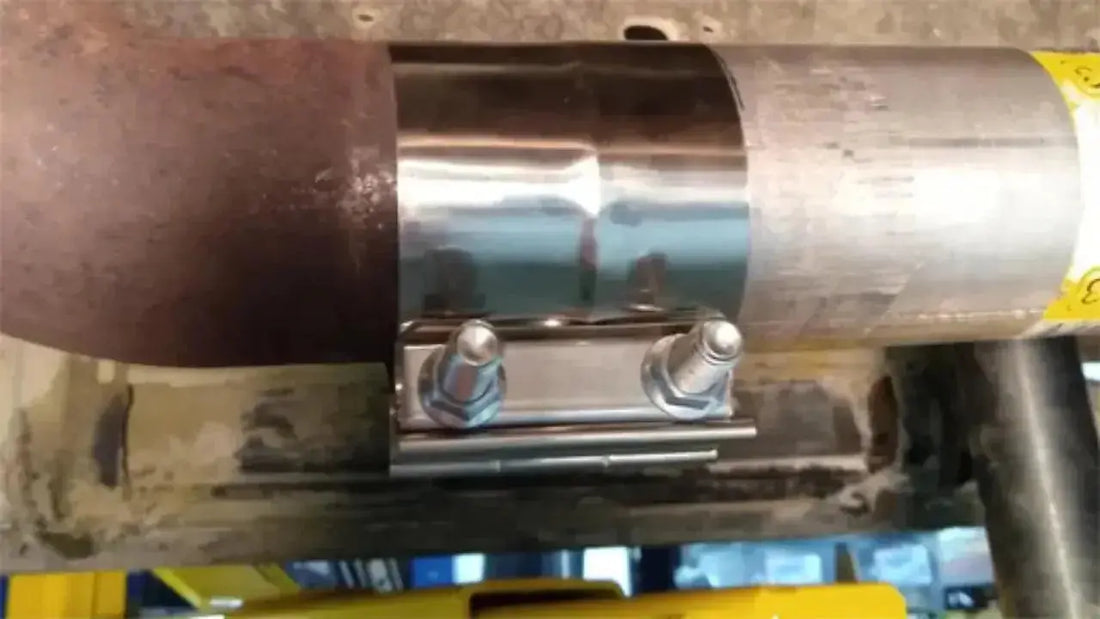

2.5-Inch Exhaust Band Clamps (Lap/Butt Joint Style)

• The Design: Features a wide, high-tensile stainless steel band that wraps entirely around the pipe junction.
• How it Works: As the Grade 8 or heavy-duty bolts are torqued, the band deforms slightly to conform to the pipe’s shape, creating a high-pressure 360-degree seal.
• Key Advantage: Unlike standard U-bolt clamps, these distribute clamping force evenly, preventing pipe distortion.
• Gasket Status: No gaskets required; the metal-to-metal compression provides the seal.

V-Band Clamps (Flange-Based Coupling)

• The Design: It utilizes two precision-machined interlocking flanges that are securely wedged together by a high-tensile V-shaped clamp outer retainer. This design ensures perfect axial alignment and a gas-tight seal even under extreme exhaust pressures.
• How it Works: The V-retainer applies inward radial force that converts into strong axial pressure, wedging the two flanges together.
• Key Advantage: It does not rely on the band itself to seal the pipe; instead, the inner flanges do the work. This makes it a 'quick-release' favorite for turbochargers and modular sections.
• Gasket Status: No gaskets required; premium versions (like those from EVIL ENERGY) often feature a 'male-to-female' interlocking design to ensure perfect alignment without leaks.

Both create joints without the potential leakage hassles of gaskets. But the sealing performance differs:

2. Sealing Performance: Zero-Leak Solutions for 2026 Builds

Preventing exhaust leaks is not just about sound—it’s critical for maintaining backpressure, ensuring accurate O2 sensor readings, and preventing dangerous fumes from entering the cabin. Here is how these two systems compare in sealing efficiency:

2.5-Inch Exhaust Band Clamps: The 360-degree Advantage

• Uniform Compression: These clamps provide a consistent 360-degree seal by wrapping the entire circumference of the pipe. This eliminates the 'weak points' often found in traditional U-bolt clamps.
• Thermal Resilience: Engineered for 2026 performance standards, premium bands (like EVIL ENERGY’s 304 Stainless Steel series) maintain a tight seal even as exhaust piping expands and contracts during extreme heat cycles.
• Long-Term Reliability: By offering greater durability than traditional graphite or composite gaskets, they provide a maintenance-free, long-term leak prevention solution for daily drivers and track cars alike.

V-Band Clamps: The Precision Seal

• Gas-Tight Interface: When installed with precision-welded flanges, V-bands deliver a superior gas-tight seal capable of handling high-boost turbo applications.
• Material Sensitivity: Sealing performance is highly dependent on quality. Low-grade V-bands are prone to warping; hence, using a CNC-machined V-shaped clamp is essential to prevent flange distortion.
• Torque Dependency: Seal integrity relies entirely on precise alignment and correct bolt torque. Modern interlocking (male-to-female) V-band designs significantly reduce the risk of bypass leaks compared to flat-face versions.

The Verdict: While both are excellent, the band clamp’s full-circumference design offers a slight edge for critical, non-modular applications where a 'set-and-forget' leak-proof seal is the top priority.

3. Strength & Durability: Surviving Extreme Racing Conditions

Performance exhaust systems are subject to violent vibrations, high internal pressures, and relentless heat cycling. In 2026, as engines run hotter and leaner, the durability of your hardware is the frontline defense against system failure.

2.5-Inch Exhaust Band Clamps: The 'Set-and-Forget' Choice

Pros:

• Constant Clamping Force: Proven to maintain high-tension loads over years of service without needing adjustment.
• Fatigue Resistance: The wide surface area of the band resists cracking and material relaxation, even when subjected to the extreme temperature cycling of NASCAR or Track Day environments.
• Vibration Immunity: Unlike standard nut-and-bolt flanges, the full-wrap design is virtually immune to loosening under high-frequency harmonics.

Cons:

• Material Sensitivity: Performance is only as good as the alloy. Subpar 'economy' steels can stretch; hence, EVIL ENERGY uses 304 Stainless Steel to prevent premature band failure.


V-Band Clamps: The High-Pressure Specialist

Pros:

• Robust Structural Integrity: When forged from high-grade stainless steel, V-bands offer a rigid connection that handles high-boost turbo pressures (40+ PSI) without flinching.
• Expansion Ready: The interlocking flange design allows for minor longitudinal pipe expansion while keeping the connection intact—essential for turbo downpipes.

Cons:

• Installation Sensitivity: Prone to fatigue failure if the flanges are misaligned during welding.
• Maintenance Required: Can loosen over time if the safety nut is not properly torqued or if a low-quality T-bolt is used.

Technical Summary: Both deliver tremendous durability in racing environments when properly engineered. However, V-bands require more precise fitment and periodic inspection, whereas band clamps offer a more resilient, low-maintenance solution for long-term builds.

4. Cost Considerations & 2026 Market Value

When budgeting for your exhaust build, it’s important to look beyond the initial price tag and consider the 'total cost of installation,' which includes welding and hardware longevity. As of 2026, market pricing for premium 304 Stainless Steel components has stabilized as follows:

2.5-Inch Exhaust Band Clamps: The Budget-Friendly Powerhouse

• Price Range: Typically $15 to $35 for high-quality professional units.
• Value Factor: These are generally more cost-effective because they don't require specialized flanges. They offer 'off-the-shelf' convenience for standard pipe diameters, making them the best value for cat-back systems and muffler swaps.

V-Band Clamps: The Premium Investment

• Price Range: Usually $35 to $85+ per assembly (includes two flanges and one V-shaped clamp).
• Value Factor: While the hardware cost is higher, the ROI comes from reduced labor time during future maintenance. However, you must factor in the cost of professional TIG welding to attach the flanges to your piping.

Clamp Type	Initial Hardware Cost	Installation Effort	Long-Term Value
Band Clamp	Lower ($$)	Low (Bolt-on)	High (Set-and-forget)
V-Band Clamp	Higher ($$$)	High (Requires Welding)	Exceptional (For modular systems)

Pro Tip: For those managing multiple builds, sourcing from high-volume performance brands like EVIL ENERGY can reduce costs without sacrificing the material integrity required for racing applications.

5. Reusability & Serviceability

In the world of high-performance tuning, the ability to quickly disconnect and retighten components for transmission swaps, turbo inspections, or exhaust tuning is a massive advantage.

V-Band Clamps: The King of Quick-Release

• Infinite Reusability: Designed specifically for modularity, a high-quality V-band can be reused dozens of times without degrading the seal.
• Gasket-Free Design: Because they rely on the mechanical interference of precision-machined flanges, there are no gaskets to replace or scrape off.
• 2026 Maintenance Tip: To maximize the lifespan of your V-shaped clamp, always apply a small amount of high-temp anti-seize to the T-bolt threads to prevent galling during repeated disassembly.

2.5-Inch Exhaust Band Clamps: Resilient but Sensitive

• Reusable with Care: These bands can be reused, but they require careful removal. Because the band 'forms' to the pipe under high torque, aggressive removal can stretch or distort the stainless steel.
• No Gaskets Needed: Contrary to common misconceptions, professional-grade lap joint band clamps (like the EVIL ENERGY 304 series) do not require gaskets for an optimal seal.
• Best Practice: If the band shows signs of thinning or significant 'dimpling' from previous installs, replacing the hardware is recommended to ensure 100% leak-proof performance in racing environments.

The Verdict: V-bands are the clear winner for frequent disassembly. However, band clamps offer excellent reusability for long-term setups that only require occasional maintenance.

6. Ideal Applications: Matching the Clamp to Your Build

Choosing the right clamp depends entirely on your project's architecture. Based on 2026 performance trends, here is where each system excels:

When to Choose V-shaped clamp Couplers:

• Modular Turbo Systems: Ideal for turbocharger downpipes and intercooler piping where high-pressure resilience and frequent access are required.
• High-Maintenance Race Builds: Perfect for track cars that require regular transmission removal, oil pan access, or exhaust tuning between heats.
• Space-Constrained Areas: Use V-bands when you need a low-profile connection in tight engine bays where a bulky bolt-on clamp won't fit.
• Aesthetic Performance: The clean, professional look of a V-band is the industry standard for 'show-quality' engine bays and high-end custom headers.

When to Choose 2.5-inch Exhaust Band Clamps:

• Cat-Back & Muffler Upgrades: The best choice for connecting mufflers, resonators, or mid-pipes where a permanent, leak-proof 360-degree seal is preferred over quick-release functionality.
• Custom Engine Swaps (e.g., LS or SR20 Swaps): Excellent for joining mismatched or custom-cut piping sections where you need slight axial flexibility during the initial mockup.
• High-Vibration Environments: Preferred for off-road or endurance racing where the full-circumference grip of a 304 Stainless Steel band prevents pipe 'walking' or hardware loosening.
• Daily Drivers: For long-term reliability without the need for periodic welding inspections, band clamps offer a 'set-and-forget' solution.

Conclusion

When it comes to critical joints on high-end race exhausts, the choice between a 2.5-inch band clamp and a V-band coupler often dictates the long-term reliability of the entire system.

• The Case for Band Clamps: For custom, one-off builds where fitment flexibility and absolute sealing are paramount, 2.5-inch exhaust band clamps are the superior choice. Their 360-degree compression design provides unmatched peace of mind, acting as a fail-safe against leaks in high-vibration, demanding racing environments.
• The Case for V-Bands: While V-bands offer faster installation and a modular 'quick-release' convenience, they require precision welding and perfect alignment to match the resilience of a heavy-duty band clamp.

Pro Tip for 2026 Builds: Never compromise on hardware when protecting expensive engines and high-flow exhaust systems. Always source components from premium brands that prioritize precision manufacturing. EVIL ENERGY offers a specialized range of 304 Stainless Steel exhaust components designed specifically to endure the extreme thermal and mechanical stresses of modern racing. Investing in top-notch clamps today is the best insurance against catastrophic failure on the track tomorrow.

	2.5-inch Exhaust Band Clamps	V-Band Clamps
Clamp Mechanism	Full band with flanged sleeve	V-shaped flanges with partial clamp
Sealing Ability	Consistent 360-degree seal. Very resistant to leaks.	Also seals well when installed properly. More prone to leaks from low quality.
Strength	Extremely durable with minimal relaxation over time.	It is also very strong but more dependent on proper installation.
Cost	$35-$75 for quality bands.	$25-$60 per off-the-shelf clamp.
Reusability	It can be reused with care. Requires new gaskets.	Easily disconnected and retightened. No gaskets.
Ideal Applications	Custom race systems that need precise fitment and maximum sealing.	Simple connections that are disassembled frequently for maintenance.
