EVIL ENERGY SAE 30R10 Submersible Fuel Hose-3/8 & 5/16 Inch(1/5/10FT)

3 sold in last 10 hours
$52.48
$52.48
Size: 5/16 inch
Length: 5FT
SKU: EVKT07332S1-1.524-AMZ1
Product Type: Submersible Fuel Hose

  • Withstands 300 PSI working pressure, 1200 PSI burst rating, and -40°F to 212°F wide temperature range
  • Compatible with gasoline, diesel, biodiesel (B100/B20), E10–E85 ethanol blends, oil, and mineral spirits
  • Constructed with nitrile inner tube, stainless steel braid reinforcement, and nitrile/PVC outer layer
  • Replaces 30R7/30R9 hose for critical submerged fuel system use. The hose is designed for submersibles and meets and exceeds the SAE 30R10 rating.

EVIL ENERGY checkout payment icons and shopping service
[5/16 inch,10FT]

EVIL ENERGY SAE 30R10 Submersible Fuel Hose-3/8 & 5/16 Inch(1/5/10FT)

$52.48
$52.48

EVIL ENERGY SAE 30R10 Submersible Fuel Hose-3/8 & 5/16 Inch(1/5/10FT)

$52.48
Size: 5/16 inch
Length: 5FT

Brand Evil Energy
Product Type Submersible Fuel Line Hose
Available Sizes 3/8" / 5/16"
Available Lengths 1FT (0.3m), 5FT (1.52m), 10FT (3.05m)
Fuel Hose Color Black
Fuel Hose Material Nitrile inner, stainless braid mid-layer, PVC/Nitrile outer

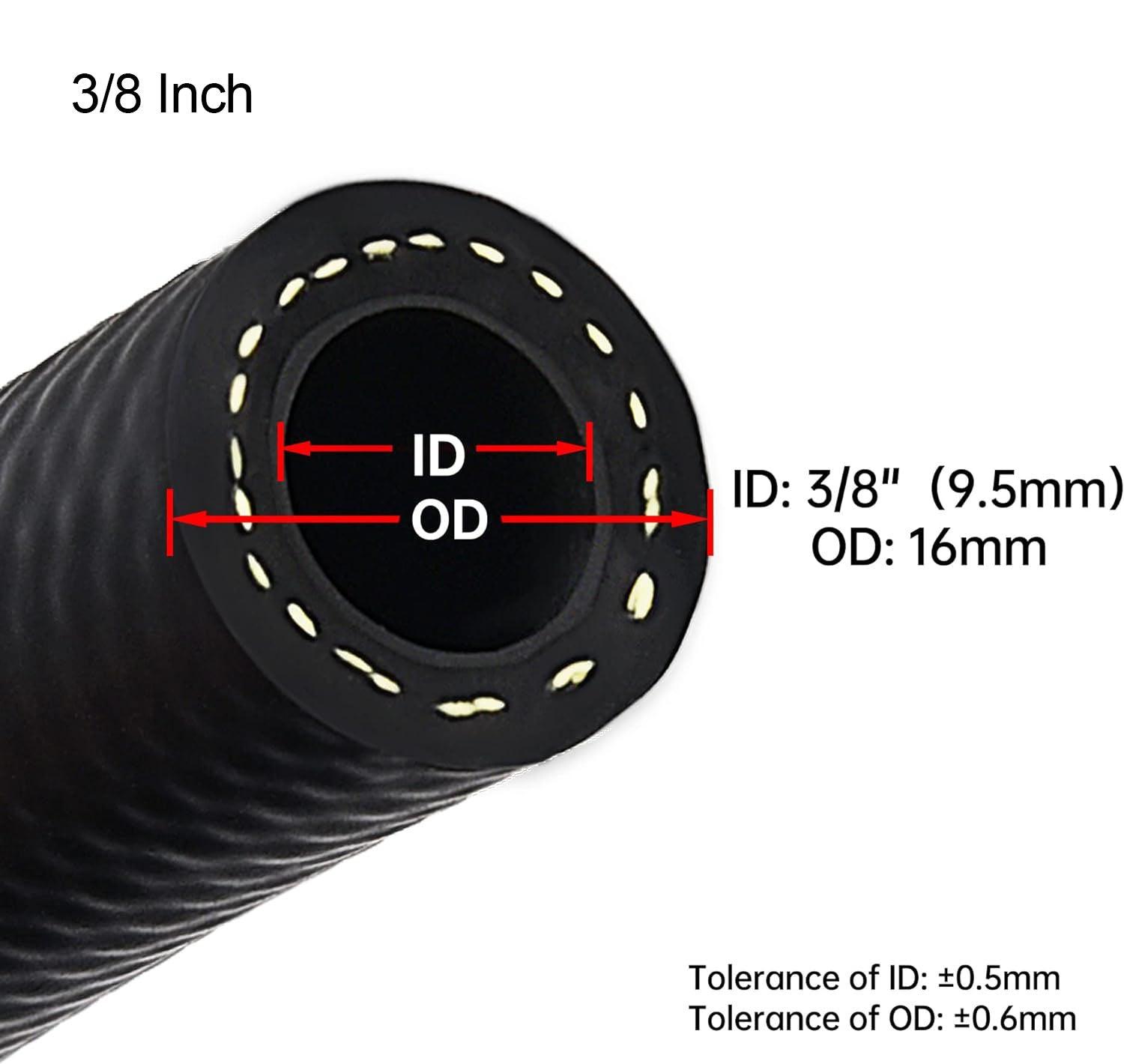

Inner Diameter 3/8" (9.5mm) ±0.5mm

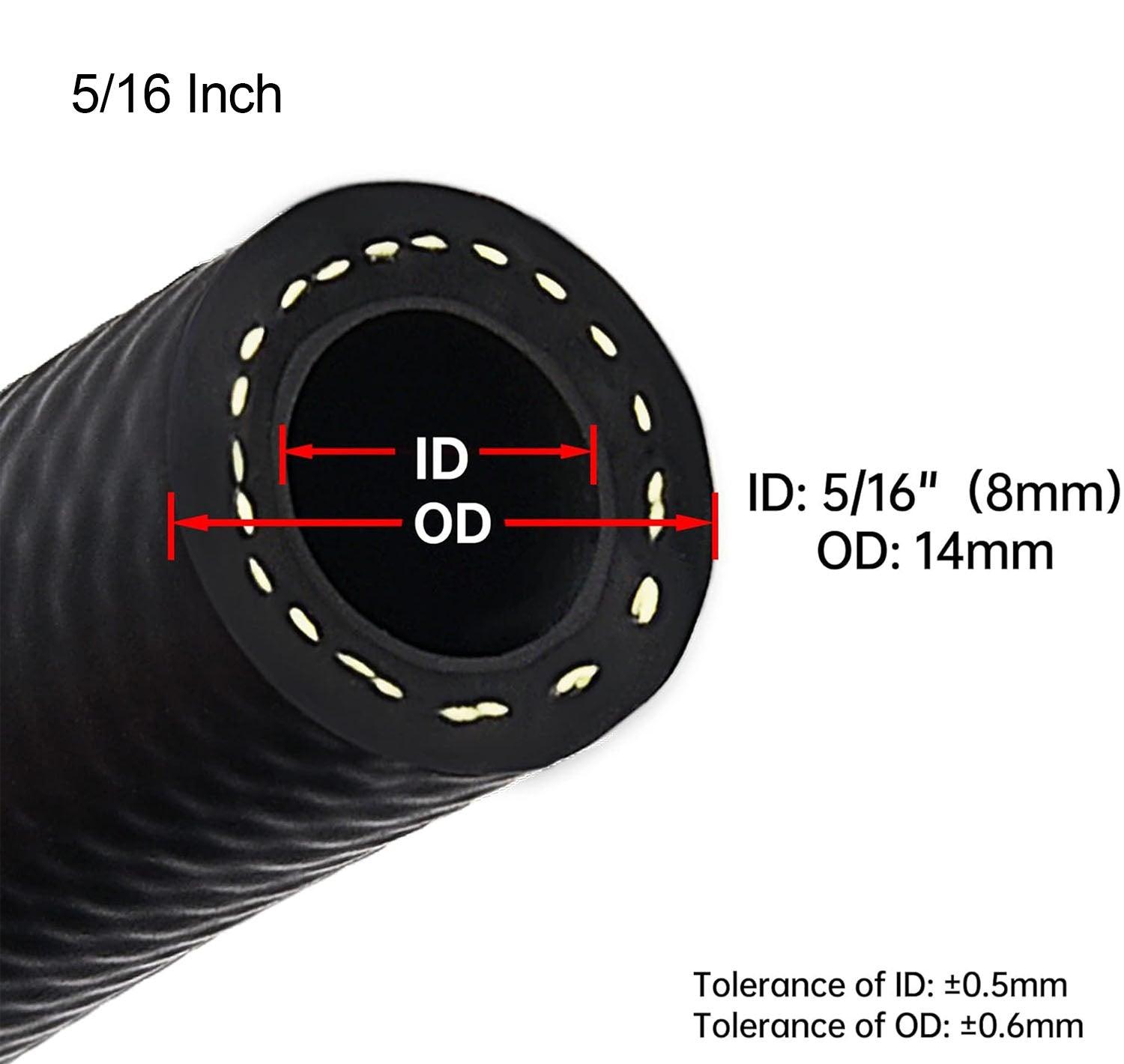

5/16" (8mm) ±0.5mm
Outer Diameter 3/8": 16mm ±0.6mm
5/16": 14mm ±0.6mm

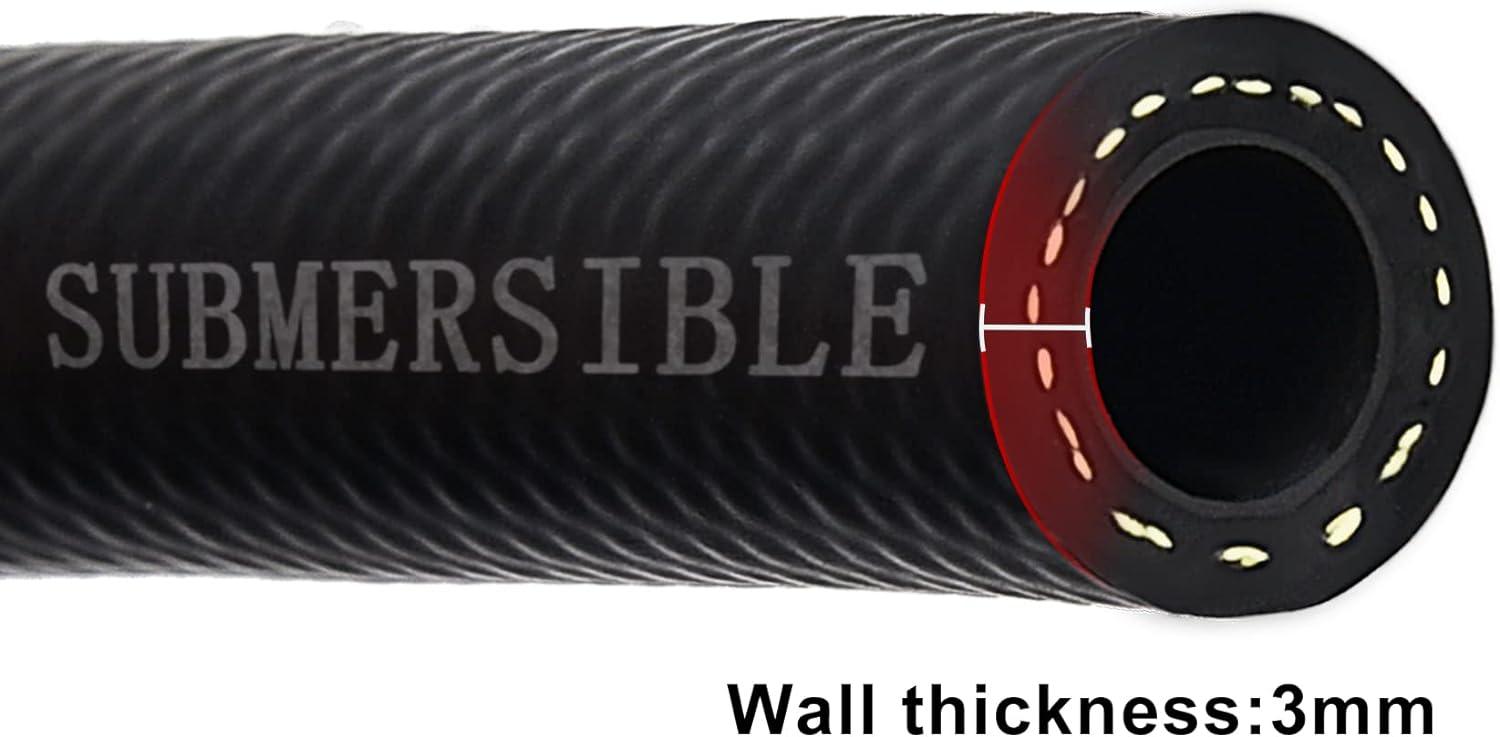

Wall Thickness 3mm
Minimum Bend Radius 3/8": 76mm
5/16": 64mm

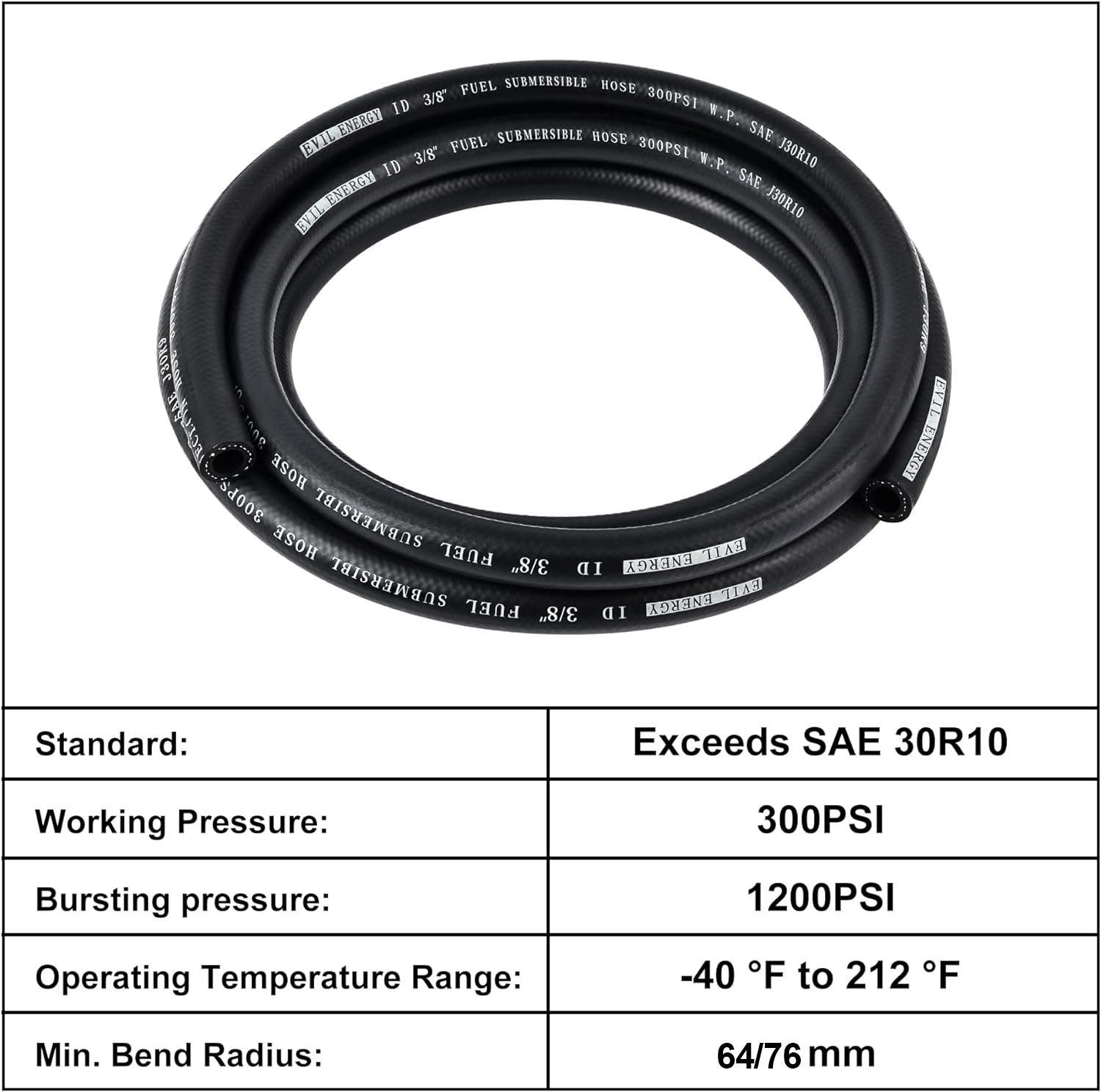

Working Pressure 300 PSI
Burst Pressure 1200 PSI
Temperature Range -40°F to 212°F (-40°C to 100°C)
EFI Compatible Yes
Compatibility Gasoline, E10–E85, Diesel, Biodiesel, Oil, Mineral Spirits, etc.
Application In-tank fuel pump hose, EFI systems, transmission cooler, fuel injection lines

EVIL ENERGY submersible fuel hose meets SAE 30R10 and is engineered for extreme in-tank performance. Designed to resist ethanol blends like E85, it supports 300 PSI pressure and high temps up to 212°F. With a multilayer construction and tight bend radius, it's ideal for EFI, fuel pump, or 30R7/30R9 replacement applications.

Submersible Fuel Hose

What Are the Advantages of EVIL ENERGY SAE 30R10 Submersible Fuel Hose?

The EVIL ENERGY SAE 30R10 Submersible Fuel Hose is designed for in-tank installation and fuel injection systems. It clearly outperforms standard low-pressure fuel hose in fuel resistance, pressure capacity and fitment.

  • Fuel Resistance Inside and Out: The FKM fluoroelastomer inner and outer layers resist gasoline, diesel, biodiesel and ethanol fuels, including E85. The entire hose can stay submerged in the fuel tank long term, with a low tendency to swell, soften or crack. It meets the SAE J30R10 submersible specification, which standard R7 and R9 fuel hose does not.
  • Generous Pressure Margin: With a 300 PSI working pressure and a 1200 PSI burst pressure, it provides a solid safety margin for EFI supply and return lines.
  • Solid Construction: The aramid braid reinforcement withstands the pressure pulses created when the fuel pump builds pressure, and helps the hose keep its shape. A temperature range of -40°F to 212°F (-40°C to 100°C) covers cold winter starts and normal operating conditions.
  • Ready-to-Fit Sizes: The 3/8" and 5/16" sizes match common fuel pump outlets and fuel lines, so adapters are usually not needed when replacing an old hose.

Advantage

Whether for in-tank installation, EFI fuel delivery or refreshing the fuel lines on an older vehicle, this one hose covers the job, making your fuel system more durable and easier to maintain.

What is the difference between SAE 30R10 and SAE 30R7/30R9 hose?

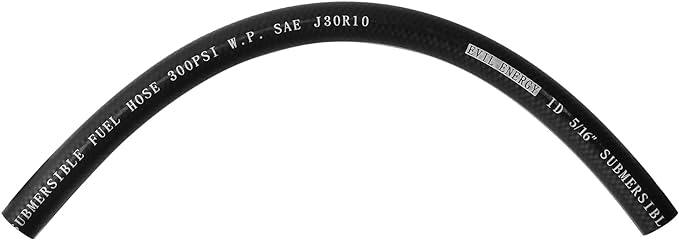

The difference is the outside of the hose. 30R7 and 30R9 Fuel Line are certified to carry fuel on the inner tube only; their outer covers are built for ozone and weather resistance, not for fuel contact. 30R10 is certified for continuous immersion, the inner tube and the outer cover both resist fuel at the same time. That is why 30R10 is the only standard acceptable inside a fuel tank. If a 30R7 or 30R9 hose sits in fuel, the cover absorbs it, swells, loses strength, and eventually cracks and sheds debris into the pump screen. R9's advantage over R7 is lower permeation for emissions, not immersion. Check the print on the hose wall: look for "SAE J30 R10" before it goes in the tank.

SAE 30R Fuel Hose Grade Comparison

Grade Positioning Fuel Inside Hose Hose Submerged in Fuel Typical Installation Location
30R7 Basic low-pressure fuel hose ✔ ✘ Outside the tank, low-pressure supply section
30R9 Low-permeation fuel hose (meets emissions regulations) ✔ ✘ Outside the tank, supply/return section on modern vehicles
30R10 Submersible fuel hose ✔ ✔ Inside the tank, fuel pump outlet
30R12 High-pressure injection hose (EFI high-pressure section) ✔ (high pressure) ✘ Engine bay, high-pressure fuel rail section

EVIL ENERGY 3/8" & 5/16" SAE 30R10 Submersible Fuel Hose: Use Case Application

In-Tank Installation (Submersible)

This fuel hose meets the SAE J30R10 submersible specification and can be fully immersed in gasoline for long periods. It is suited to connecting the in-tank fuel pump outlet to the tank outlet fitting. The stainless steel braid reinforcement helps the hose keep its shape and resists wear from pump vibration and fuel movement, reducing the risk of collapse or kinking inside the tank. Suitable for tanks holding gasoline, E10 to E85 ethanol blends, and diesel.

Electronic Fuel Injection (EFI) Systems

Suitable for EFI supply and return lines, connecting the fuel pump, fuel filter, fuel rail and pressure regulator. A working pressure of 300 PSI and a burst pressure of 1200 PSI provide a generous safety margin for typical port fuel injection systems.

Engine Oil and Transmission Cooling Lines

Can be used for oil cooler feed and return lines, making it a good fit for engine oil and transmission fluid cooling modifications. The hose resists mineral oils and lubricants and withstands temperatures up to 212°F (100°C). Please confirm that your system's actual fluid temperature stays within this range before use.

General Replacement and Upgrade

Can replace SAE 30R7 and 30R9 fuel hose. With higher pressure and immersion ratings, it is well suited to repairs on older vehicles, fuel system refurbishment and ethanol fuel conversions. Choose the matching inner diameter (3/8" or 5/16") and use clamps or fittings rated for fuel injection systems.

How to Install Your Submersible Fuel Hose?

Installation

Here is how to install your hose correctly, step by step:

1. Measure first. Check the outer diameter of your fuel pump outlet before cutting. Match it to the hose inner diameter: 5/16" SAE 30R10 Submersible Fuel Hose (7.9mm ID) for the smaller outlets common on OE pumps, 3/8" SAE 30R10 Submersible Fuel Hose (9.5mm ID) for the larger outlets on many high-flow units.

2. Cut square. Use a sharp blade and cut the hose at a clean 90-degree angle. A square end seats fully over the outlet barbs; an angled cut leaves a gap that leaks.

3. Push to the bottom. Slide the hose onto the outlet until it bottoms out. You should feel the barbs grip the inner wall.

4. Clamp in the right spot. Set the worm gear clamp behind the barb ridge, not on the tip of the fitting. Snug, not crushed. Always use a new clamp.

5. Test before you close the tank. Reinstall the pump, prime the system, and check every joint for seepage with the system under pressure. Close the tank only after every connection is dry.

Safety notes: Disconnect the battery before working on the fuel tank. Work in a ventilated area away from open flame, and relieve fuel pressure before opening any line.

Need help picking a size or confirming fitment? Contact us and we will check it with you before you order.
