Evilenergy | SKU: KT07051D90BK-AMZ1

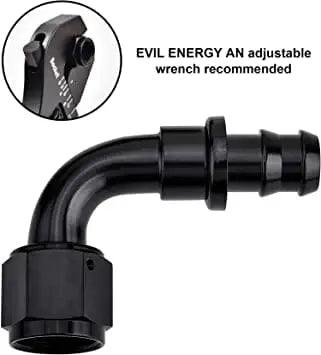

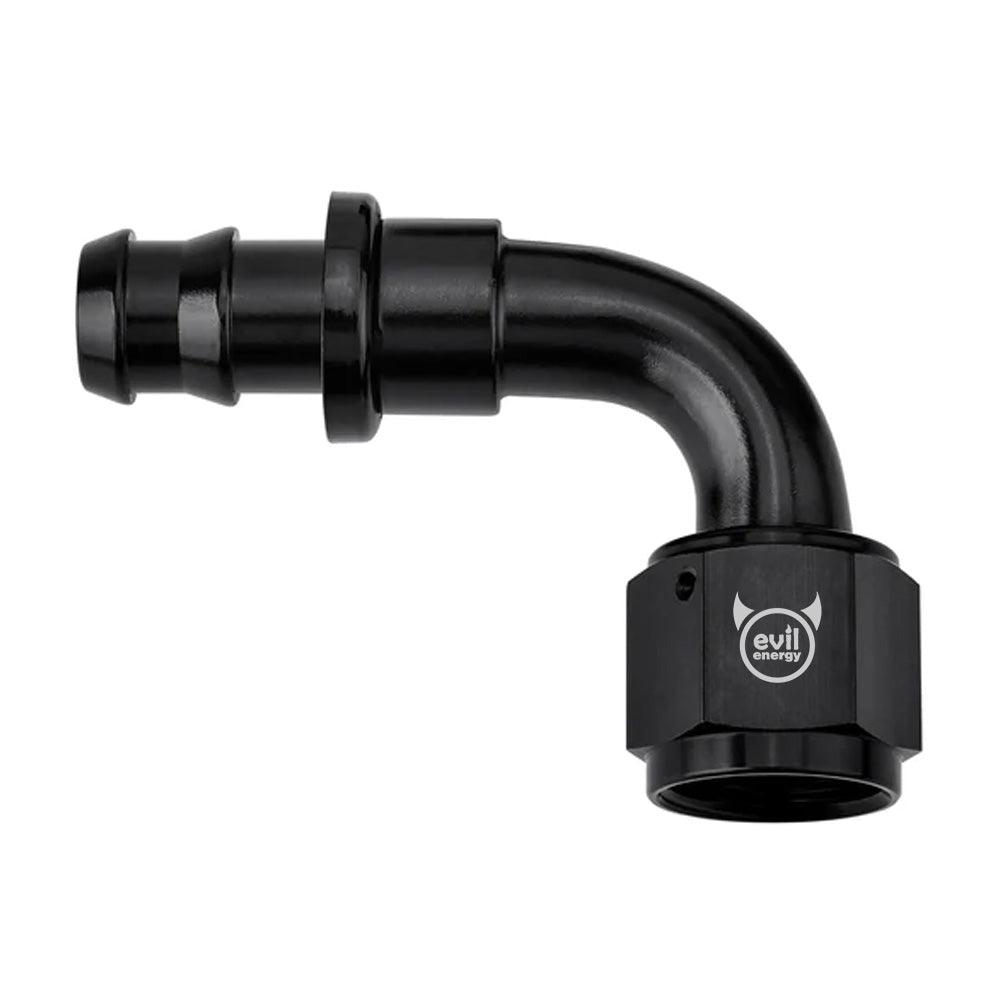

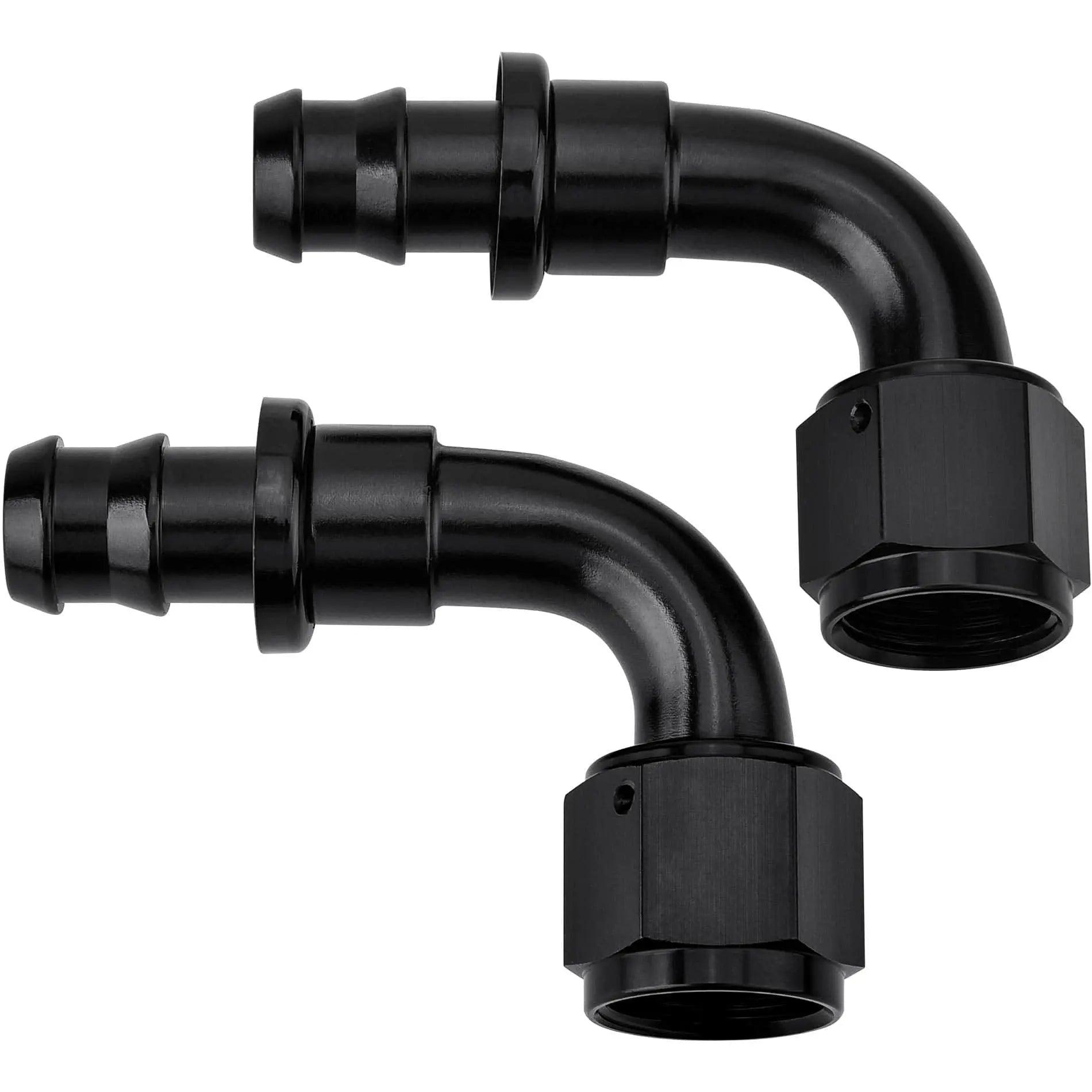

EVIL ENERGY 90 Degree Push Lock AN Hose Fitting End (4/6/8/10/12AN )

$11.99 USD

Shipping calculated at checkout.

SKU:	Size	Price	Stock
KT07051D90BK-AMZ1	4AN	$11.99	✔
KT01328D90-AMZ1	6AN	$11.99	✔
KT01329D90-AMZ1	8AN	$11.99	✔
KT01330D90-AMZ1	10AN	$11.99	✔
KT07052D90BK-AMZ1	12AN	$18.99	✔

Description

Product details

Size	4/6/8/10/12AN
Material	Aluminum
Brand	EVIL ENERGY
Color	Black
Angel	90 Degree
Connector Type	Brab
Thread Type	UNF
Exterior Finish	Aluminum

About this item

[Size]

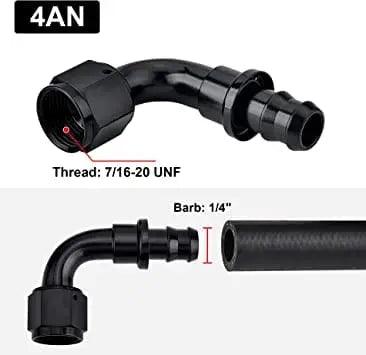

4AN to 1/4 inch barb, and thread size of 4an is 7/16-20 UNF.

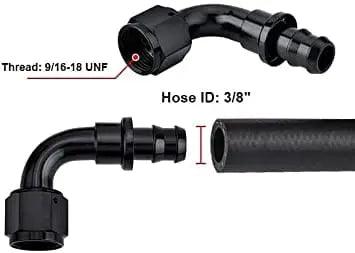

6AN to 3/8 inch barb, and thread size of 6an is 9/16-18UNF.
8AN to 1/2 inch barb, and thread size of 8an is 3/4-16UNF.
10AN to 5/8 inch barb, and thread size of 10an is 7/8-14UNF.

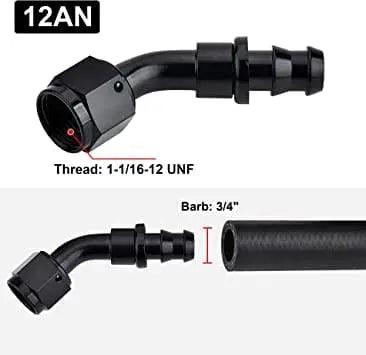

12AN to 3/4 inch barb, and thread size of 12an is 1-1/16-12 UNF.

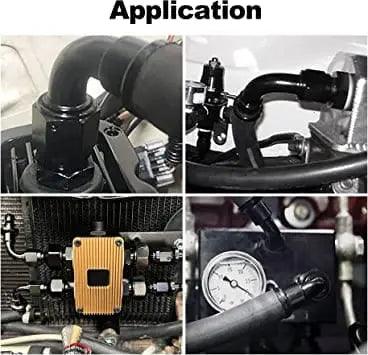

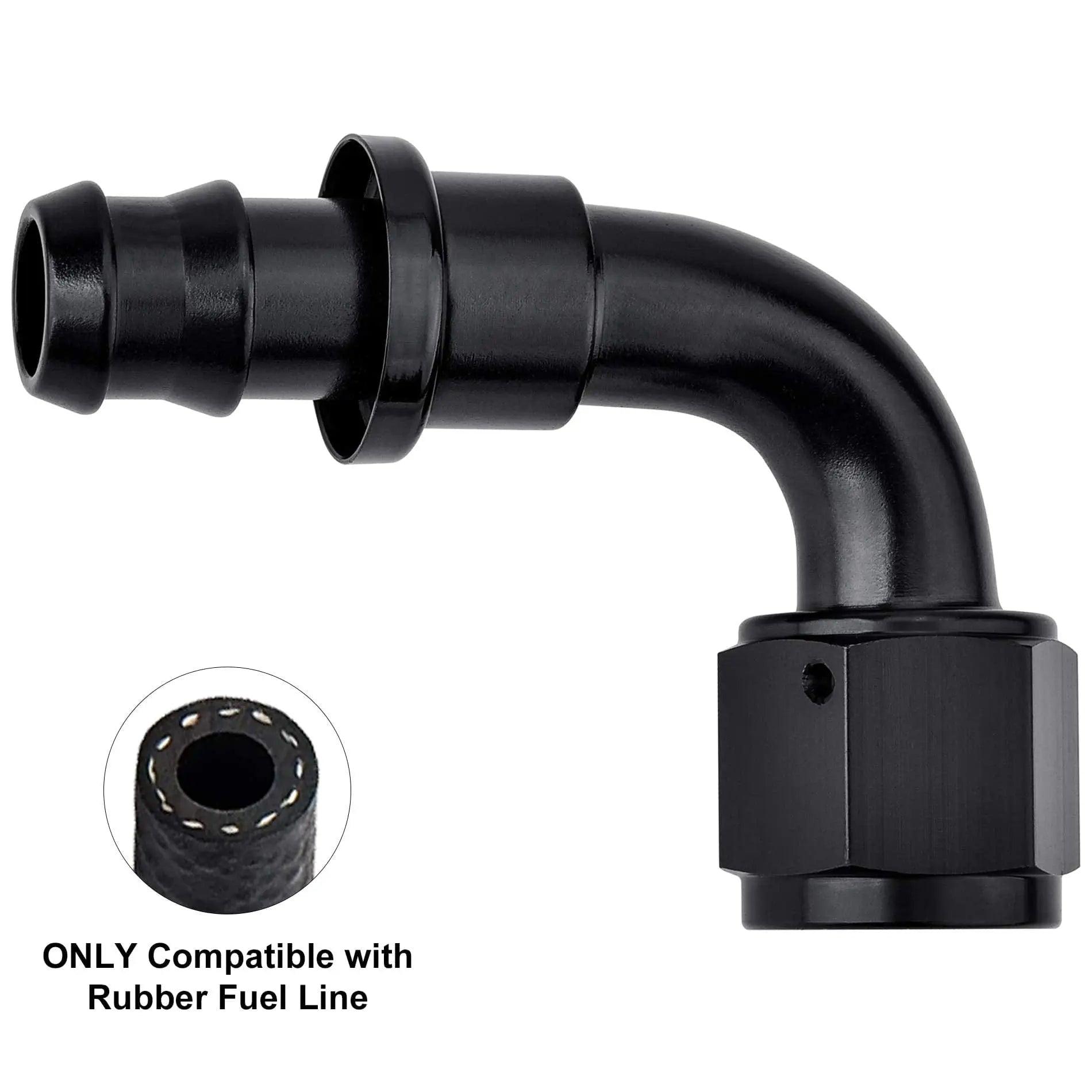

[Application] The barb fitting only work with rubber fuel line.

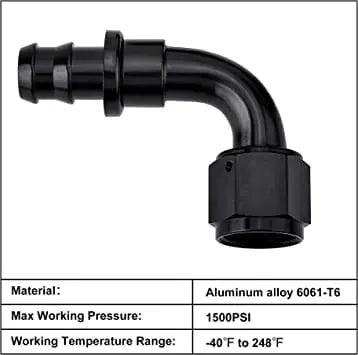

[Parameter] Max working pressure: 1500PSI; Temperature range: -40℉ to 248℉.
[Material] Made of aluminum alloy 6061-T6.

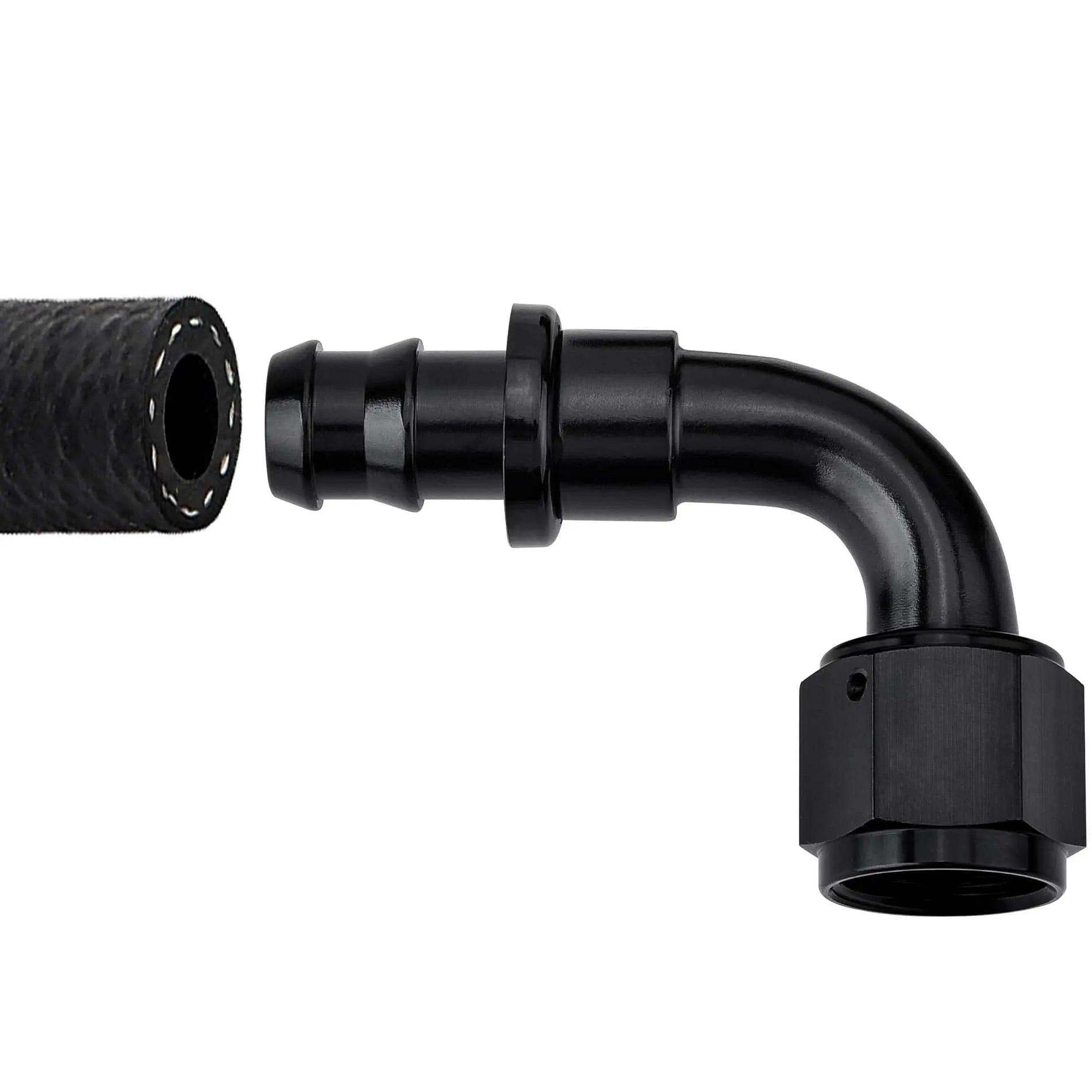

[Installation] Easy to install, it is recommended to use clamps to enhance sealing.
