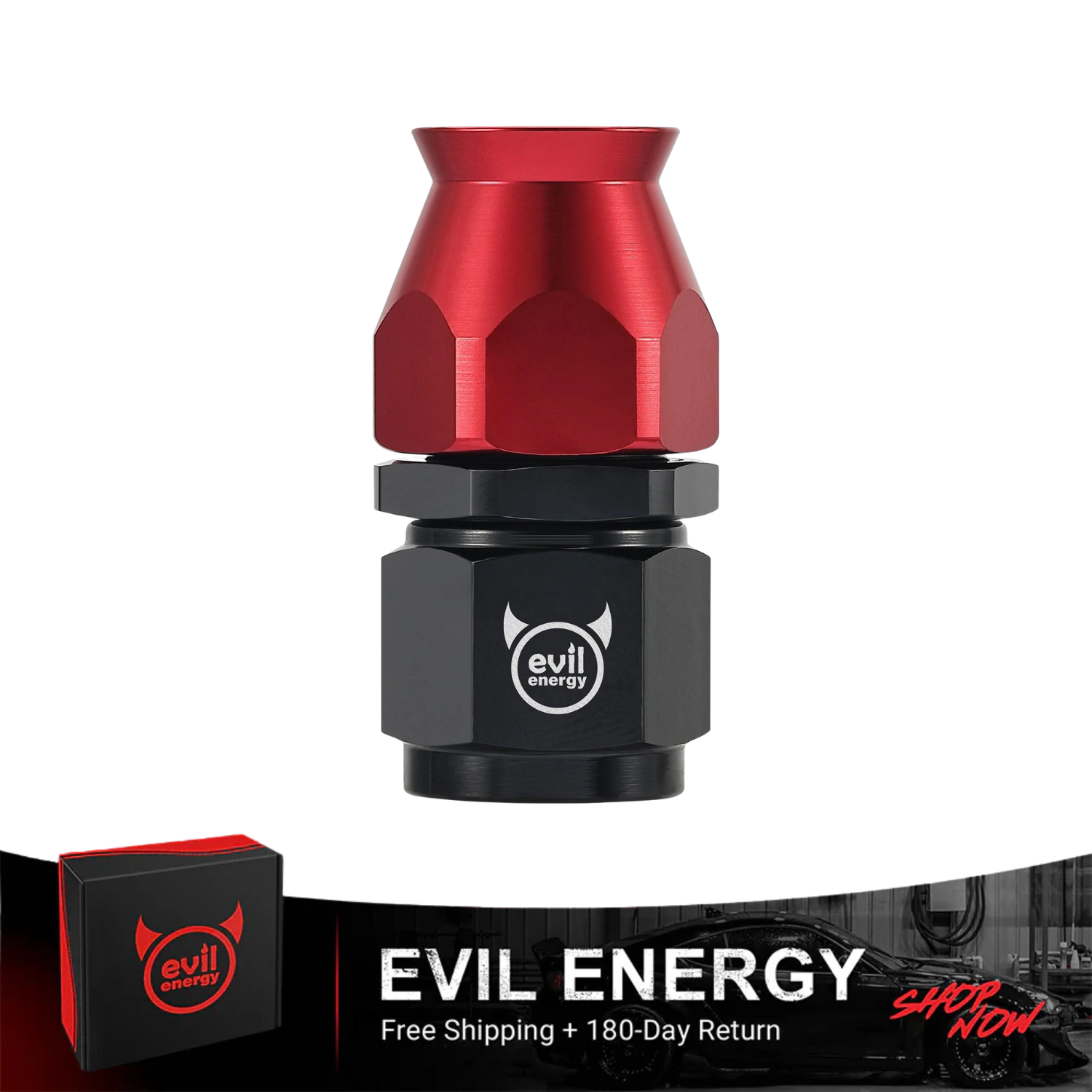

[Straight,1PC]

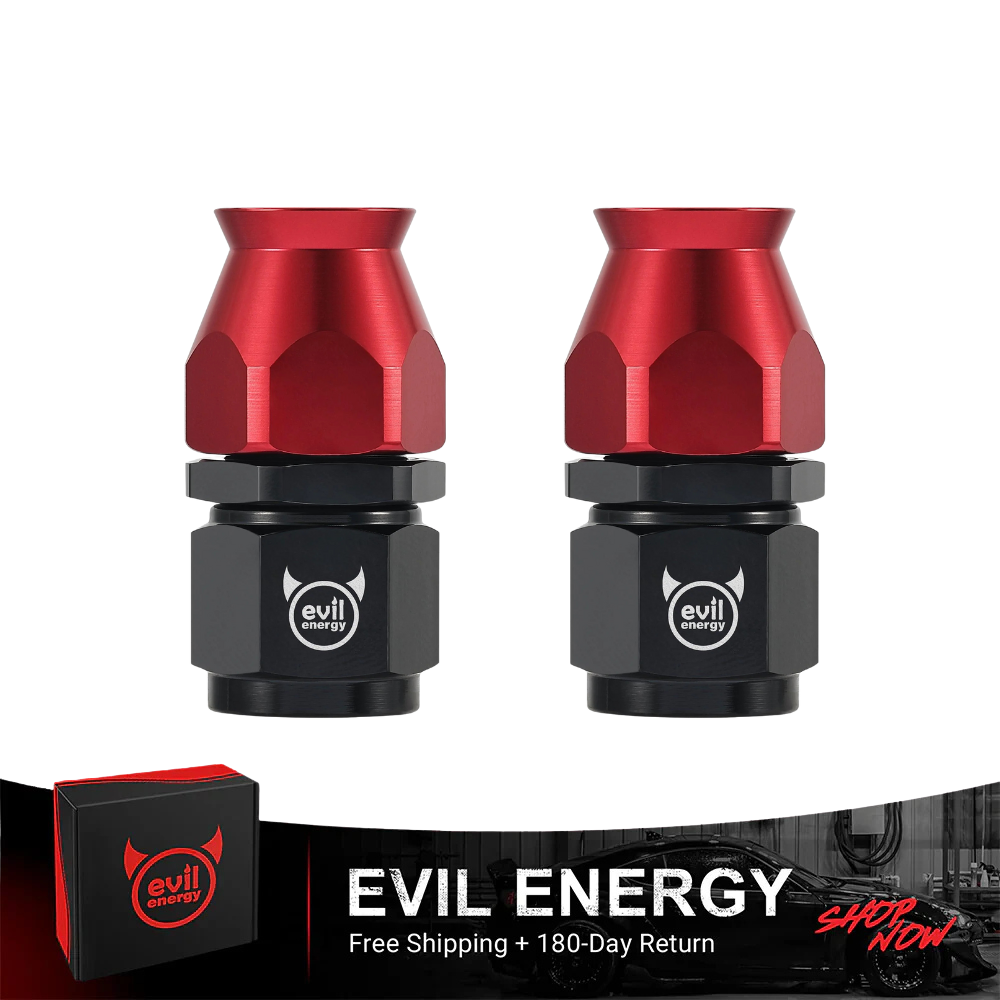

[Straight,2PCS]

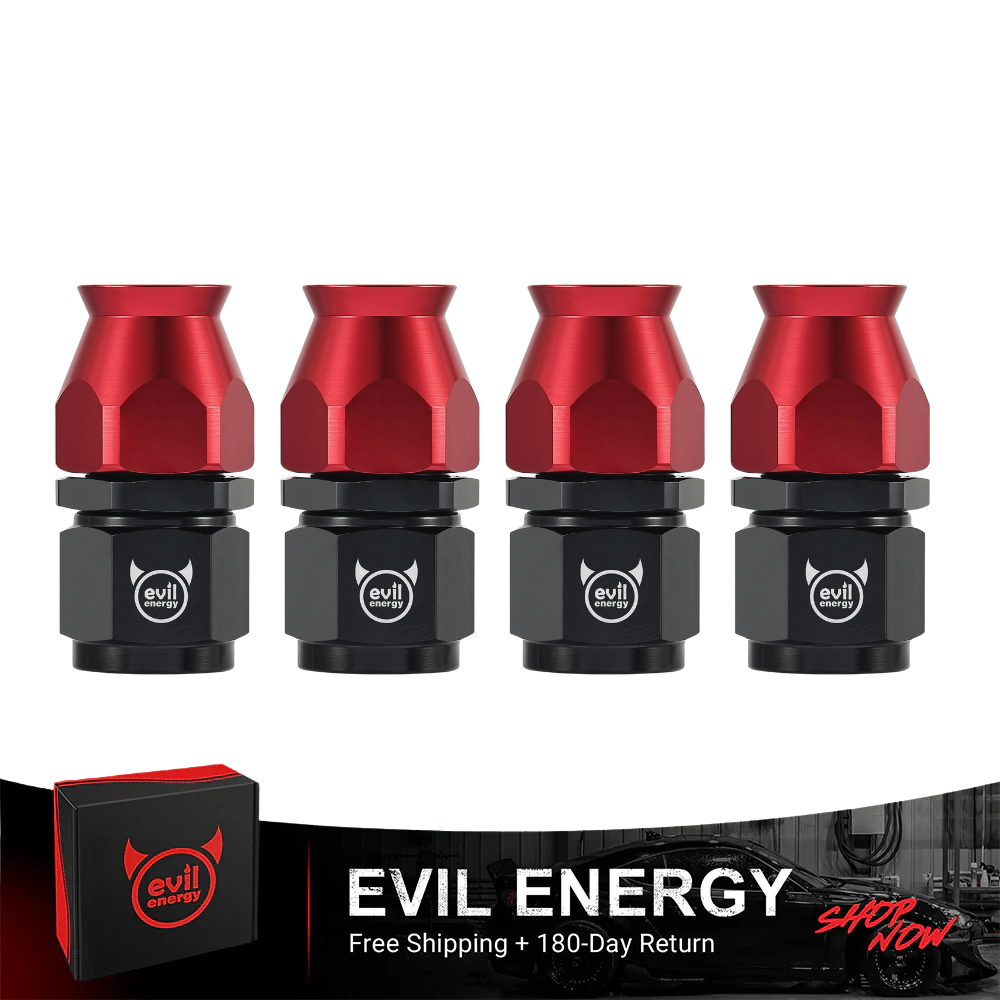

[Straight,4PCS]
[45°,1PC]

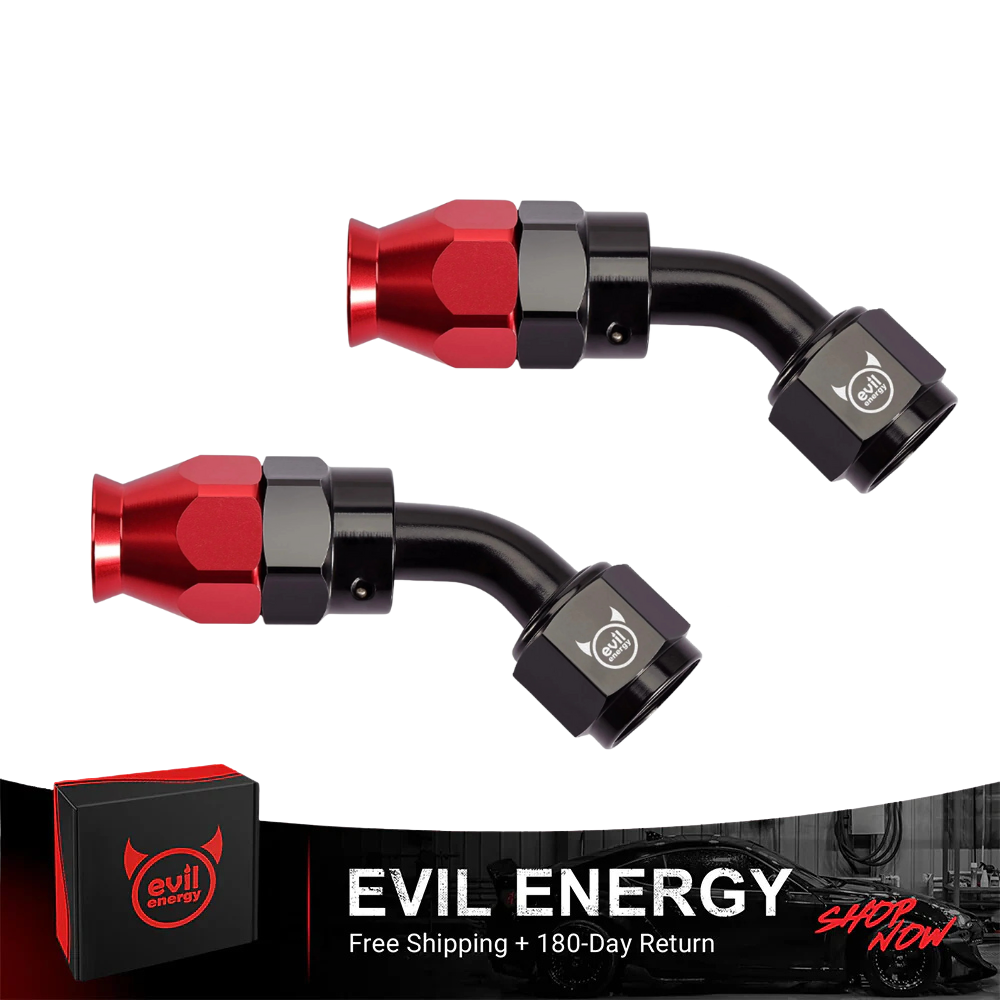

[45°,2PCS]

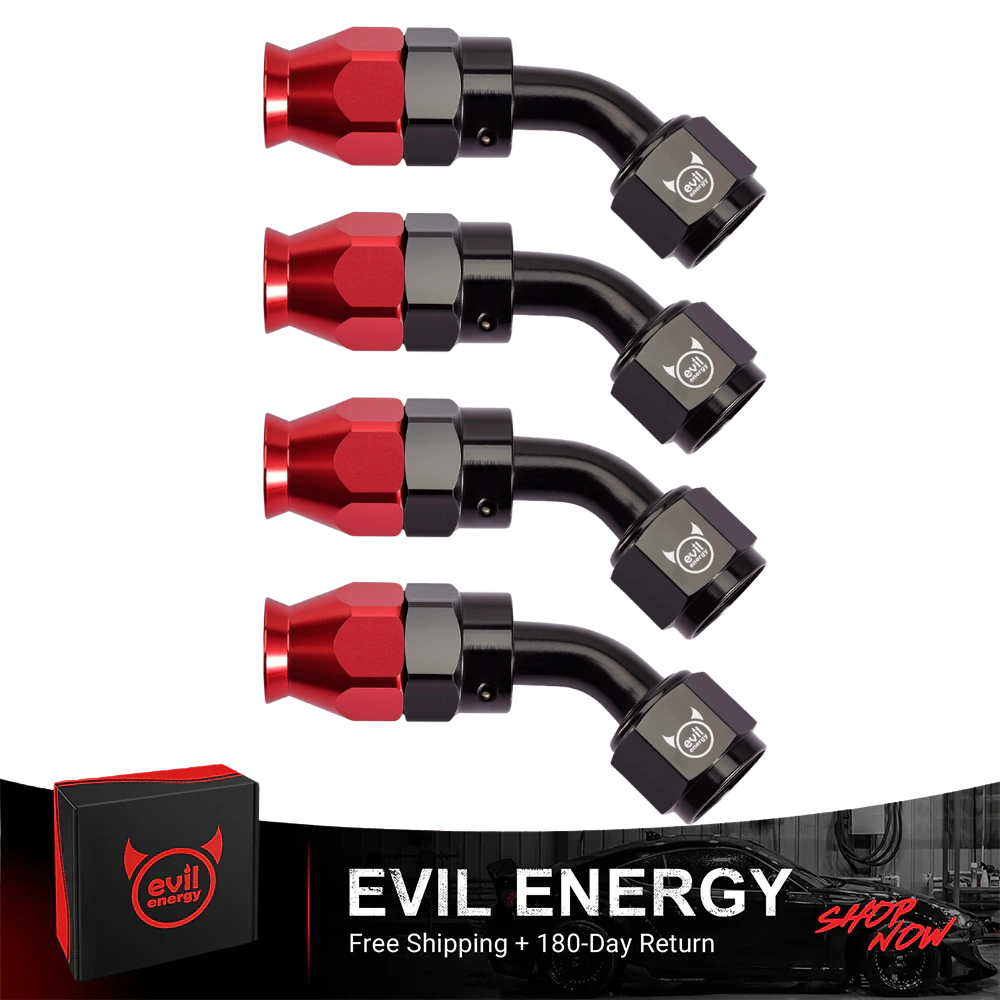

[45°,4PCS]

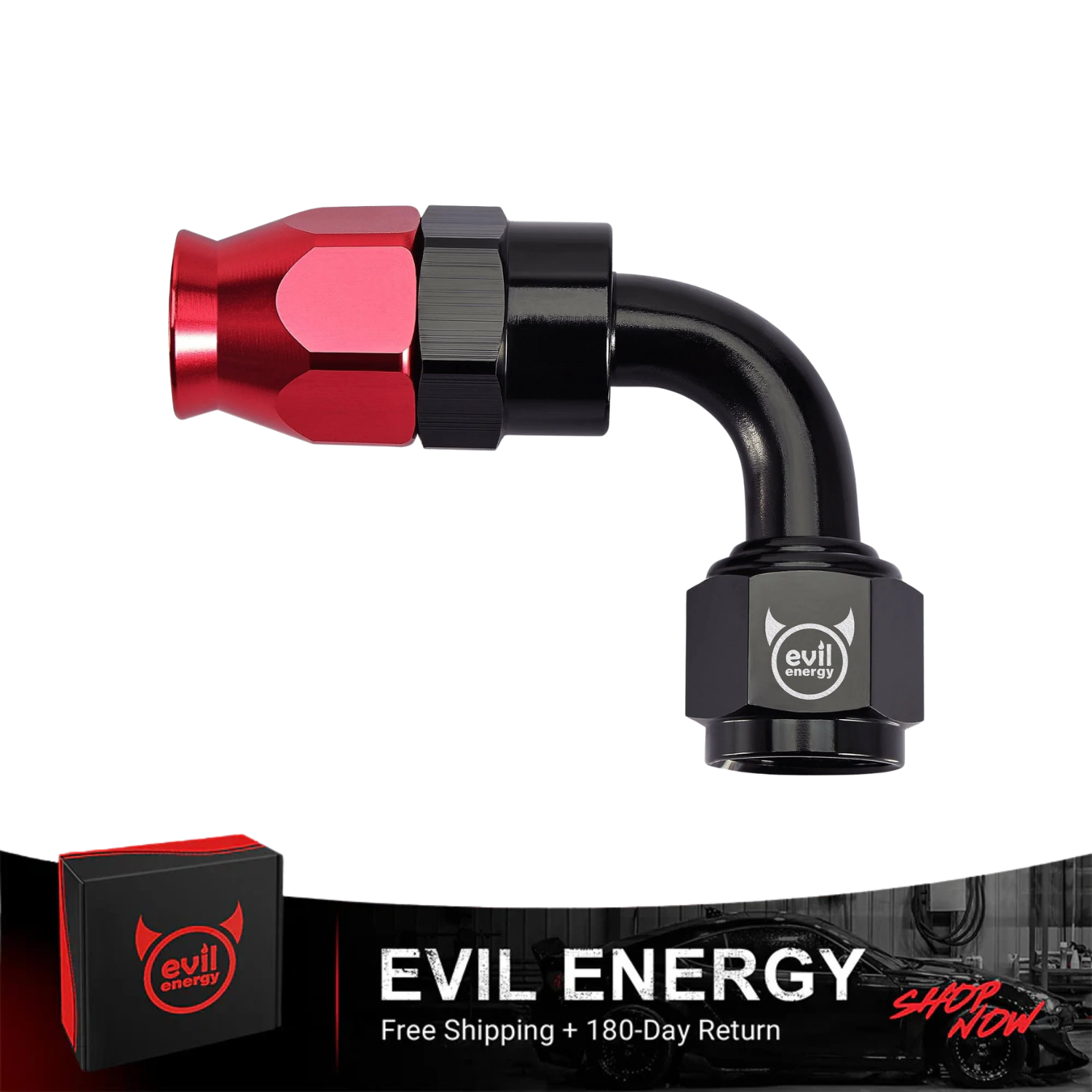

[90°,1PC]

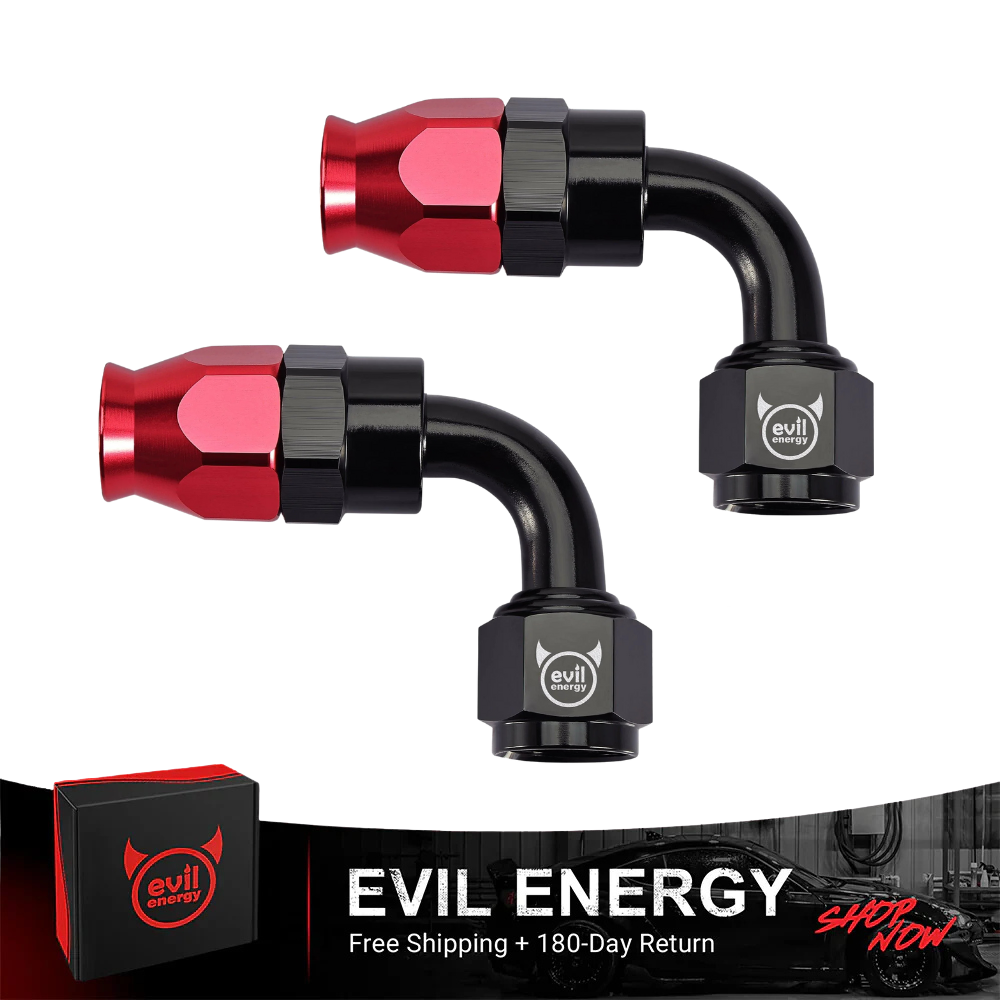

[90°,2PCS]

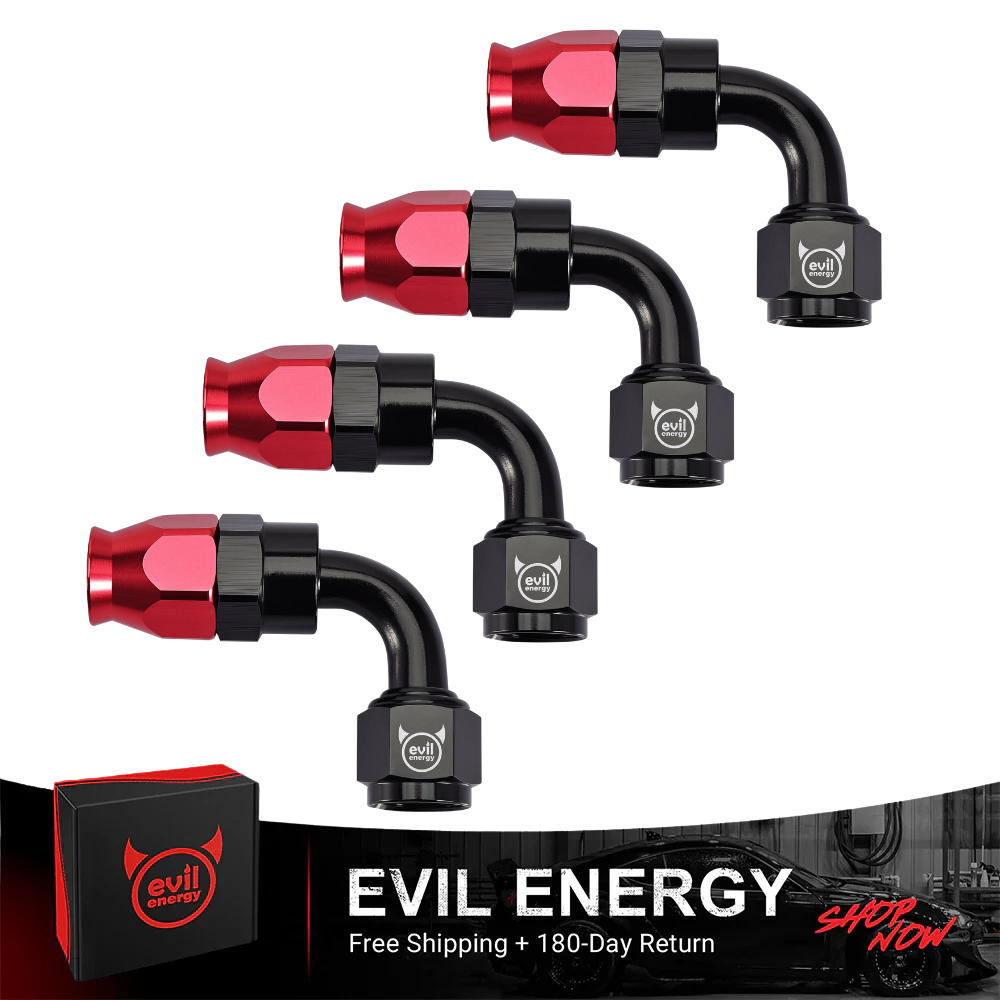

[90°,4PCS]
EVIL ENERGY PTFE Hose End Fitting Red&Black for PTFE Hose Only(4/6/8/10AN)
EVIL ENERGY PTFE Hose End Fitting Red&Black for PTFE Hose Only(4/6/8/10AN)
EVIL ENERGY PTFE Hose End Fitting Red&Black for PTFE Hose Only(4/6/8/10AN)
EVIL ENERGY PTFE Hose End Fitting Red&Black for PTFE Hose Only(4/6/8/10AN)
EVIL ENERGY PTFE Hose End Fitting Red&Black for PTFE Hose Only(4/6/8/10AN)

EVIL ENERGY PTFE Hose End Fitting Red&Black for PTFE Hose Only(4/6/8/10AN)

3 sold in last 10 hours
$9.99
$9.99
Angle: Straight
Size: 4AN
Quantity: 1PC
SKU: EVKT01718D0BR
Product Type: PTFE Fittings
EVIL ENERGY checkout payment icons and shopping service
[Straight,1PC]

EVIL ENERGY PTFE Hose End Fitting Red&Black for PTFE Hose Only(4/6/8/10AN)

$9.99
$9.99

EVIL ENERGY PTFE Hose End Fitting Red&Black for PTFE Hose Only(4/6/8/10AN)

$9.99
Angle: Straight
Size: 4AN
Quantity: 1PC

PTFE Hose Ends for the Correct Liner

Properties Details
Hose PTFE fuel line only
Available sizes 4AN, 6AN, 8AN, 10AN
Angles Straight: 4AN–10AN; 45° and 90°: 6AN–10AN
AN thread sizes 4AN: 7/16-20; 6AN: 9/16-18; 8AN: 3/4-16; 10AN: 7/8-14 UNF
Material 6061-T6 aluminum alloy
Finish Red and black
Sealing 37-degree AN flare
Feature 360-degree swivel
Working pressure 1500 PSI
Working temperature -65°F to 252°F

PTFE Hose Ends for the Correct Liner

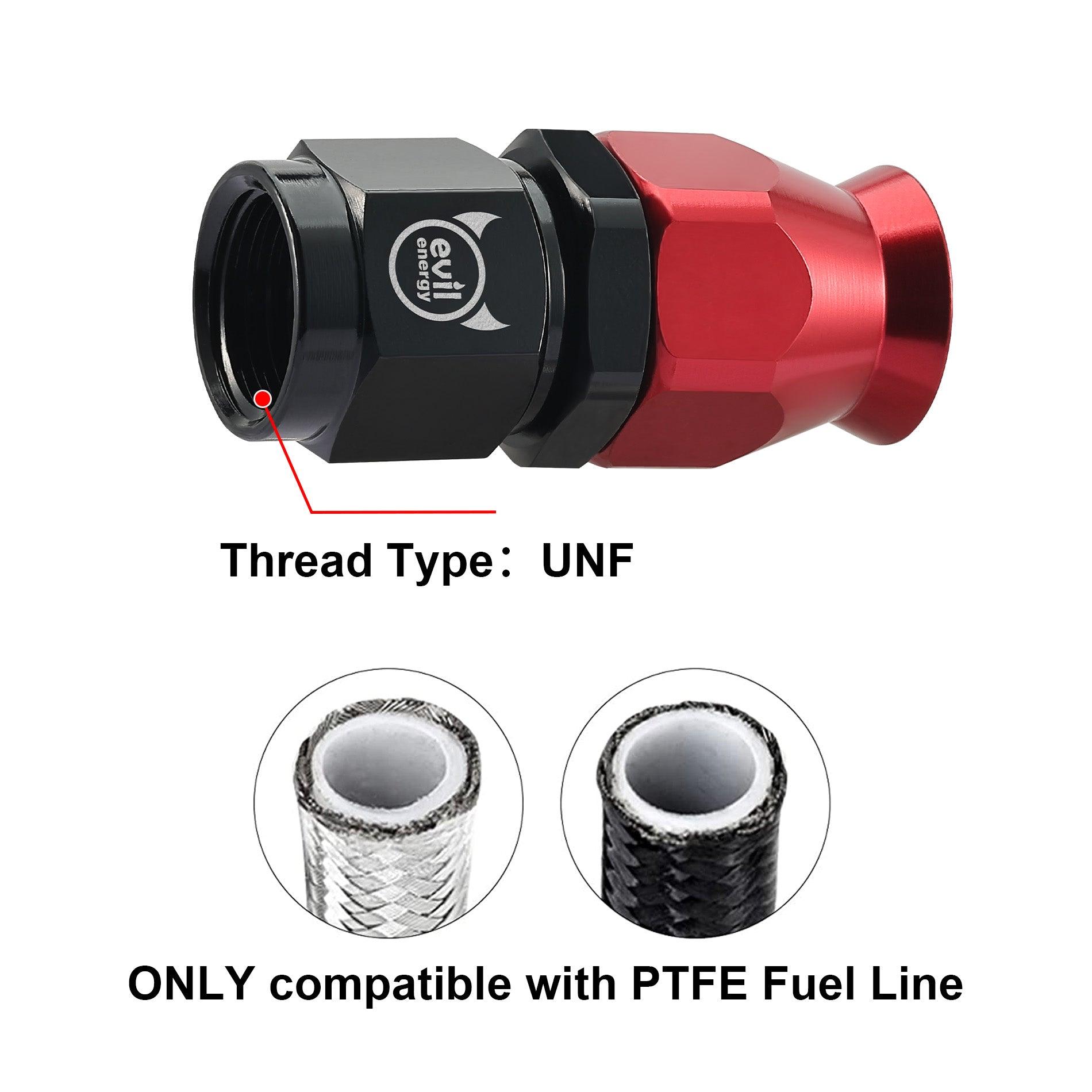

A hose end chosen by the outside braid alone can be wrong for the liner inside. This fitting is specified for PTFE fuel line only, so the socket and insert match the PTFE hose construction.

Choose straight in 4AN through 10AN, or 45-degree and 90-degree in 6AN through 10AN.

EVIL ENERGY PTFE Hose End Fitting Red&Black for PTFE Hose Only(4/6/8/10AN)

Choosing the PTFE AN Fitting

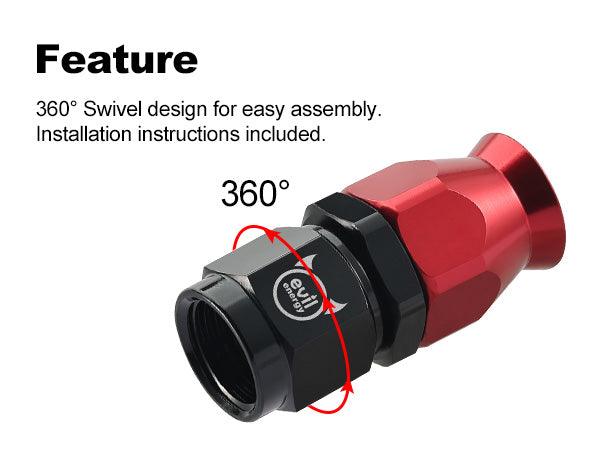

Match the AN size and body angle to the PTFE line and component, and keep the 37-degree flare seat clean. The 360-degree swivel helps orient the connection during assembly.

The listed thread sizes are 7/16-20, 9/16-18, 3/4-16 and 7/8-14 UNF for 4AN through 10AN.

EVIL ENERGY PTFE Hose End Fitting Red&Black for PTFE Hose Only(4/6/8/10AN)

Why Choose This PTFE Hose End?

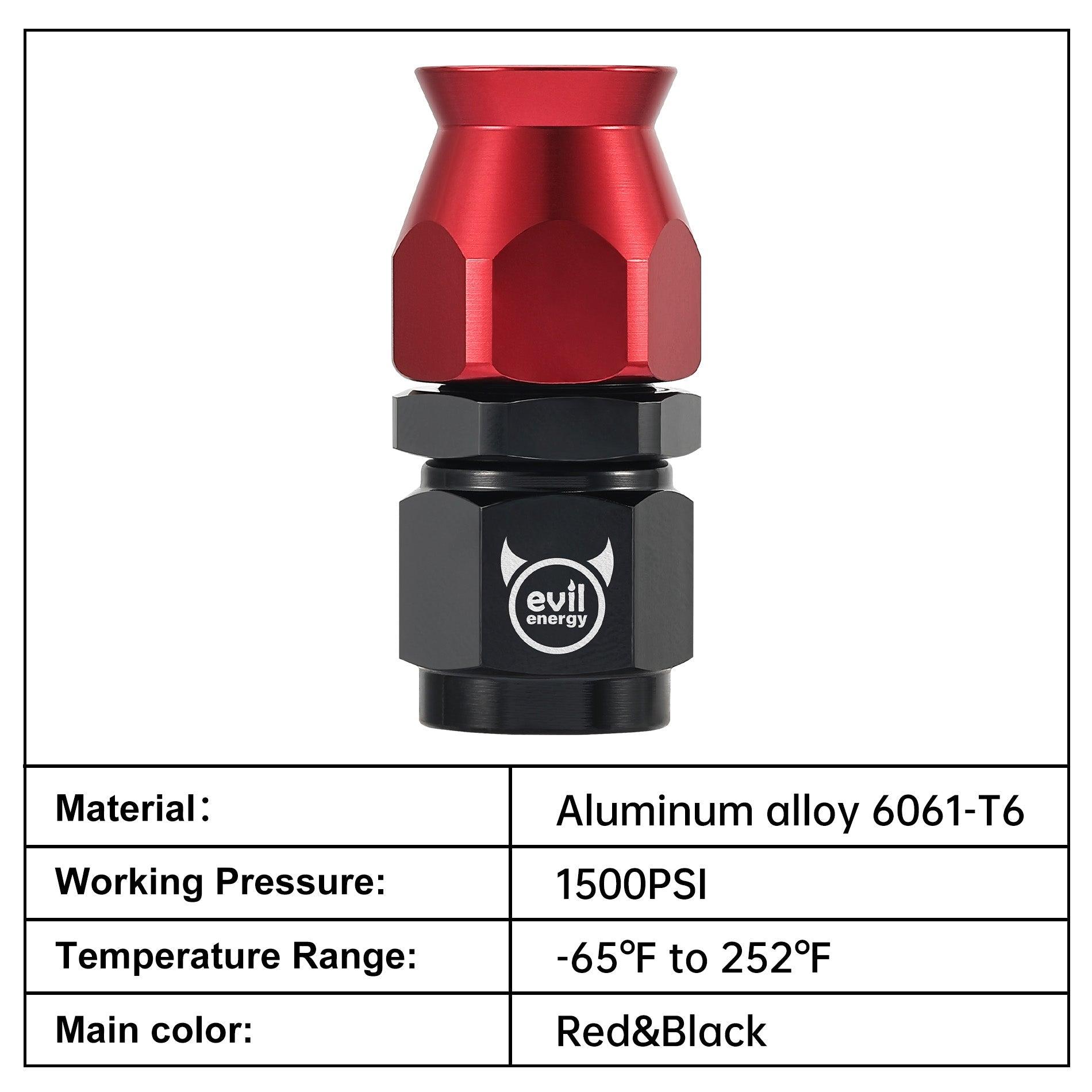

The body is 6061-T6 aluminum alloy with a red and black finish. The listed working pressure is 1500 PSI and the temperature range is -65°F to 252°F.

Choose it for a PTFE line that needs a straight, 45-degree or 90-degree hose end matched to the actual liner construction.

EVIL ENERGY PTFE Hose End Fitting Red&Black for PTFE Hose Only(4/6/8/10AN)

Installing the PTFE Hose End

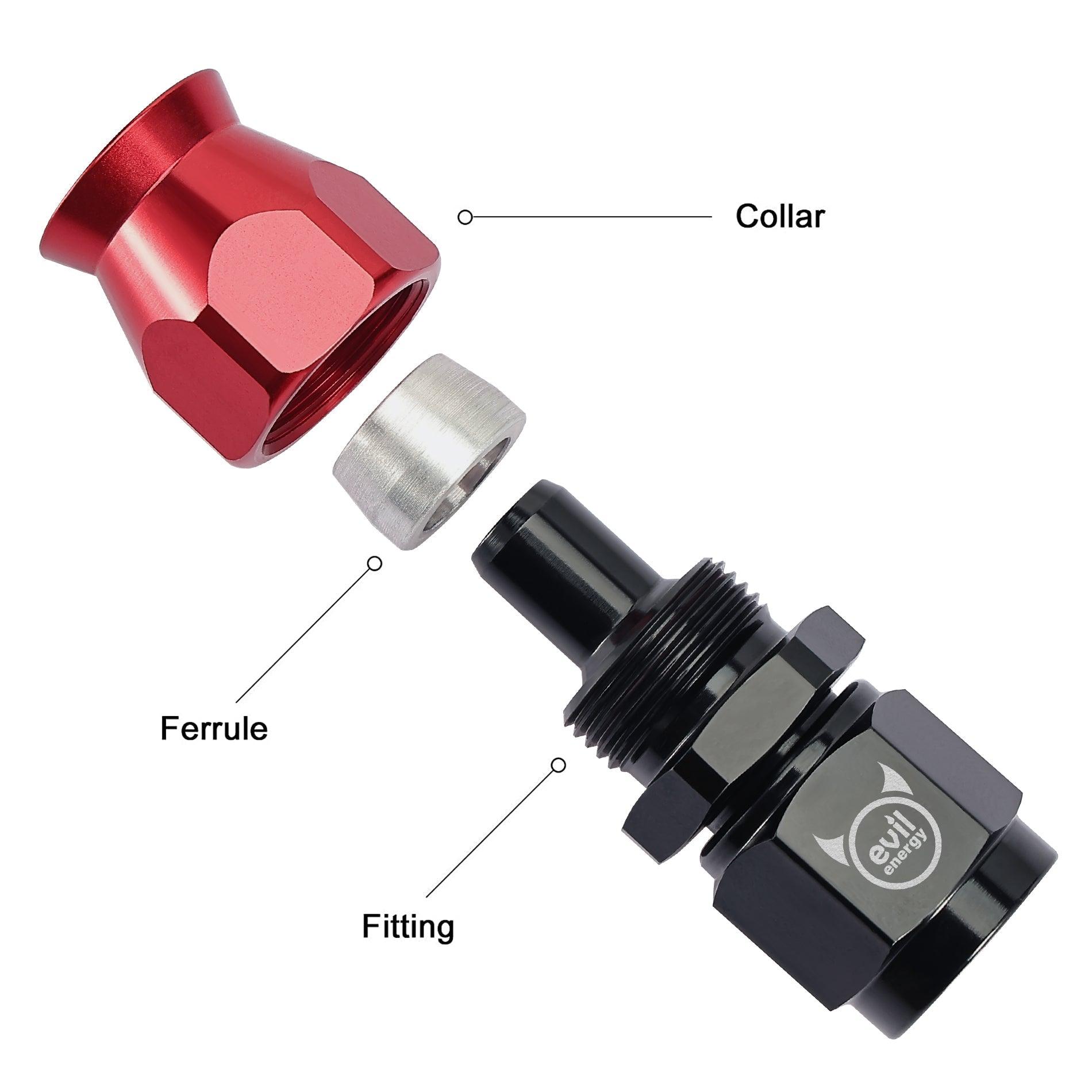

Match the PTFE hose and fitting size before assembling the socket, and follow the PTFE hose-end procedure. Keep the hose seated and the 37-degree seat clean and aligned.

If fluid appears, inspect the hose/socket joint separately from the AN flare joint and correct the affected connection.

EVIL ENERGY PTFE Hose End Fitting Red&Black for PTFE Hose Only(4/6/8/10AN)

Brand Summary

Policy Details
Cancellation Policy Orders can be canceled within 48 hours of placement. Refund processed in 3-5 business days.
Returns Policy Returns accepted within 180 days. Full refund within 90 days; 15% fee for 90-180 days.
Non-Returnable Items Only regular-priced items are eligible for refunds; sale items are non-refundable.
Refund Processing If no refund received, check your bank/credit card. For ongoing issues, contact support@ievilenergy.com.

Return Reasons

  1. Quality Issues: Provide photos/videos; we cover return shipping.
  2. Wrong Item Ordered: Buyer covers return shipping; email within 30 days.
  3. Change of Mind: Buyer covers return shipping; email within 30 days.
  4. Shipping Damage: Inspect packages; do not sign for damaged items.
  5. Incorrect Item Shipped: Contact within 7 days.

Price Protection Policy

Effective from August 25, 2024. Price drops within 7 days of purchase can be claimed.

Disclaimer

EVIL ENERGY reserves the right to interpret, modify, or terminate this policy in accordance with applicable laws and regulations.

If you need further information or assistance, feel free to ask!

Q: What hose is this hose end designed for?

A: It is specified for PTFE fuel line only.

Q: Which AN sizes are offered?

A: The listed sizes are 4AN, 6AN, 8AN and 10AN.

Q: Which body angles are available?

A: Straight is offered in 4AN–10AN; 45-degree and 90-degree are offered in 6AN–10AN.

Q: What are the AN thread sizes?

A: The listed threads are 7/16-20, 9/16-18, 3/4-16 and 7/8-14 UNF for 4AN through 10AN.

Q: How does the AN side seal?

A: The AN flare seals on the 37-degree angle.

Q: What material and finish are specified?

A: The product specifies 6061-T6 aluminum alloy with a red and black finish and a 360-degree swivel design.

Q: What are the pressure and temperature ratings?

A: The listed working pressure is 1500 PSI and the temperature range is -65°F to 252°F.

Q: Can I use this with a braided line that is not PTFE?

A: No. It is specified for PTFE fuel line only; choose a matching hose end for a different hose construction.

Q: How do I choose the angle?

A: Select straight, 45-degree or 90-degree to match the PTFE line route, and choose the AN size for the line and component.

Q: What should I check during assembly?

A: Match the PTFE hose and fitting size, keep the socket assembly correct, and inspect the 37-degree seat for cleanliness and alignment.
