EVIL ENERGY PTFE Hose End Fitting 90 Degree Black Tight Radius Aluminum for Teflon Hose Only - EVILENERGY
EVIL ENERGY EVIL ENERGY PTFE Hose End Fitting 90 Degree Black Tight Radius Aluminum for Teflon Hose Only
[10AN] EVIL ENERGY 10AN tight-radius 90-degree AN fitting for PTFE hose, 7/8-14 UNF connection diagram

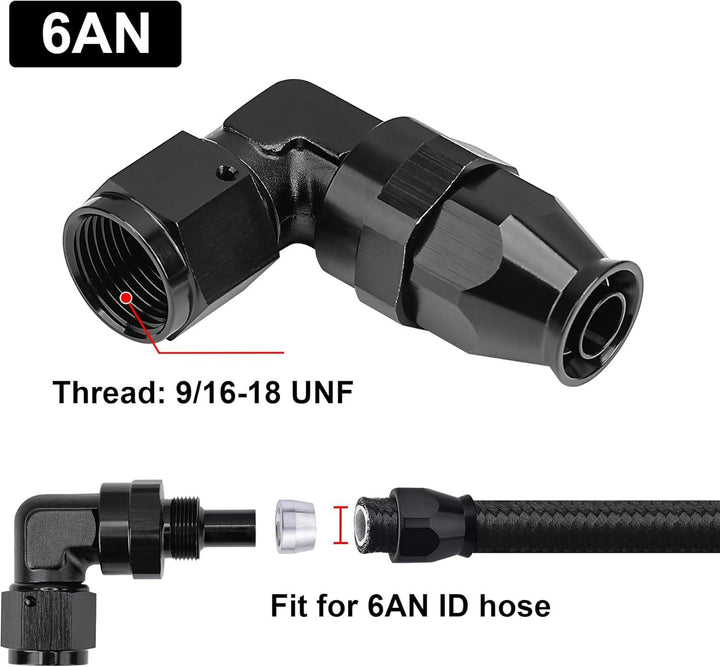

[6AN] EVIL ENERGY 6AN tight-radius 90-degree AN fitting for PTFE hose, 9/16-18 UNF connection diagram
[8AN] EVIL ENERGY 8AN tight-radius 90-degree AN fitting for PTFE hose, 3/4-16 UNF connection diagram
EVIL ENERGY PTFE Hose End Fitting 90 Degree Black Tight Radius Aluminum for Teflon Hose Only - EVILENERGY
EVIL ENERGY PTFE Hose End Fitting 90 Degree Black Tight Radius Aluminum for Teflon Hose Only - EVILENERGY
EVIL ENERGY PTFE Hose End Fitting 90 Degree Black Tight Radius Aluminum for Teflon Hose Only - EVILENERGY

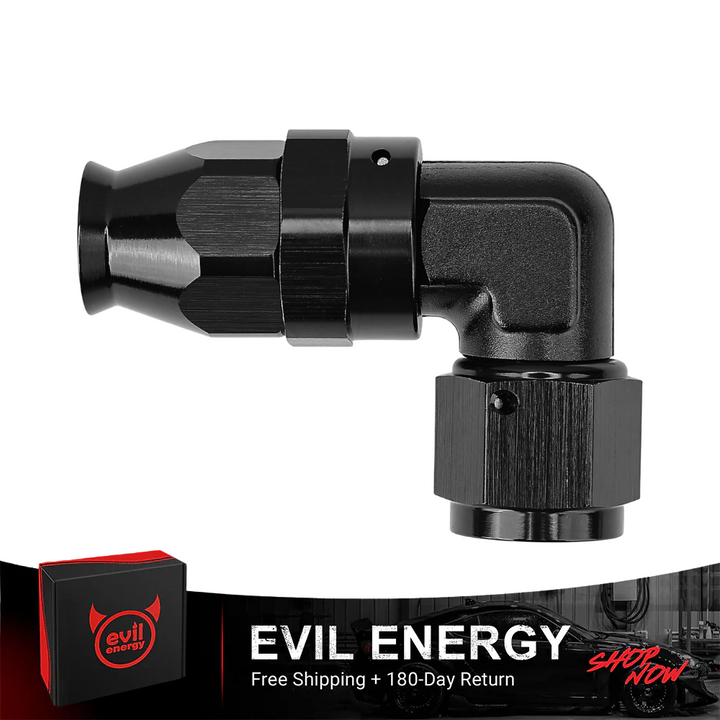

EVIL ENERGY PTFE Hose End Fitting 90 Degree Black Tight Radius Aluminum for Teflon Hose Only

3 sold in last 10 hours
$30.99
$30.99
$30.99
Size: 6AN
SKU: EVKT10207AN6D90BK-AMZ1
Product Type: PTFE Fittings
EVIL ENERGY checkout payment icons and shopping service
EVIL ENERGY PTFE Hose End Fitting 90 Degree Black Tight Radius Aluminum for Teflon Hose Only - EVILENERGY

EVIL ENERGY PTFE Hose End Fitting 90 Degree Black Tight Radius Aluminum for Teflon Hose Only

$30.99
$30.99

EVIL ENERGY PTFE Hose End Fitting 90 Degree Black Tight Radius Aluminum for Teflon Hose Only

$30.99
Size: 6AN

Brand EVIL ENERGY
Product Type 90-degree PTFE AN hose end fitting
Size • 6AN
• 8AN
• 10AN
Fitting Angle 90 degree
Hose Construction PTFE hose only
Connector Type Female AN swivel, mates with a male AN flare
AN Sealing Interface 37-degree flare
Body Layout Compact 90-degree hose end with 360-degree swivel assembly

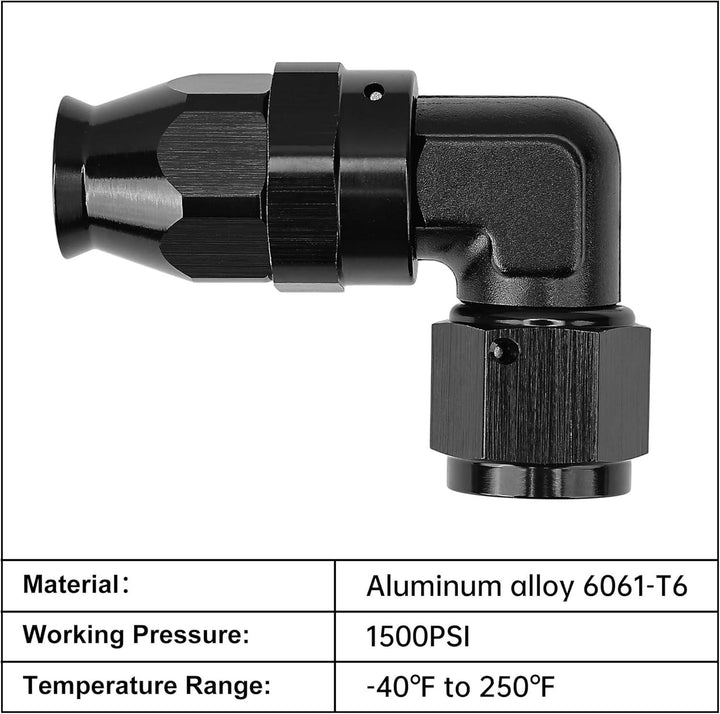

Material 6061-T6 aluminum alloy
Finish Black anodized

AN Fittings for Tight PTFE Routes

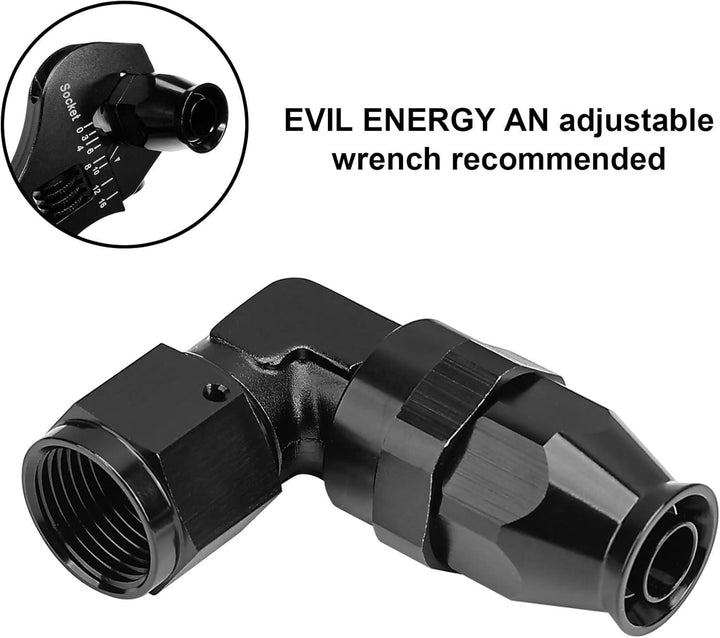

A PTFE line leaving a component at the wrong angle can crowd nearby parts and pull against its connection. This EVIL ENERGY compact 90-degree hose end turns the line at the fitting, giving you a right-angle route while keeping the connection matched to PTFE hose.

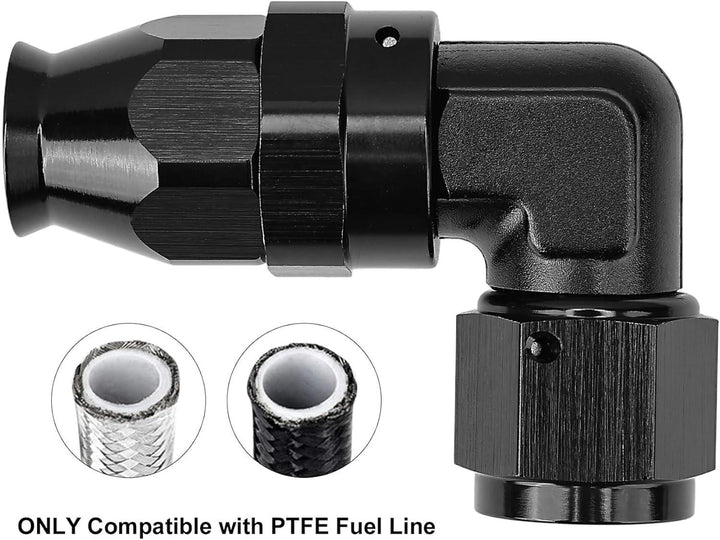

Choose it when your assembly needs a tight-radius elbow and the correct PTFE hose-end construction. It is specified for PTFE line only; a similar-looking CPE braided line requires its own matching hose end.

EVIL ENERGY 6AN 90 degree PTFE swivel hose end fitting for tight PTFE line routes

Choosing 6AN Fittings for Clearance

For a 6AN PTFE assembly, choose the 6AN option and check the mating AN connection, the hose and the space around the elbow. The actual size choices are 6AN, 8AN and 10AN. All use the compact 90-degree layout; changing size does not select a different bend angle.

  • Match the hose construction: use PTFE line with the appropriate size and assembly requirements.
  • Match the component interface: the AN connection needs the corresponding male AN flare and 37-degree seat.
  • Check the complete envelope: allow room for the elbow, hose socket, adjoining component and tools.
  • Keep the line relaxed: do not use a tight route to pull the hose end sideways.
6AN, 8AN and 10AN PTFE hose end fitting thread and hose ID specifications

Why Choose PTFE AN Fittings?

The compact right-angle body addresses the route at the component, while the 360-degree swivel helps orient the connection during assembly. The body uses 6061-T6 aluminum with a black anodized finish. Select by the actual hose, AN size and clearance needed rather than assuming every braided line uses the same internal fitting construction.

The swivel assists assembly orientation; it does not change the elbow into a straight or 45-degree body. Check the final hose approach before completing the line.

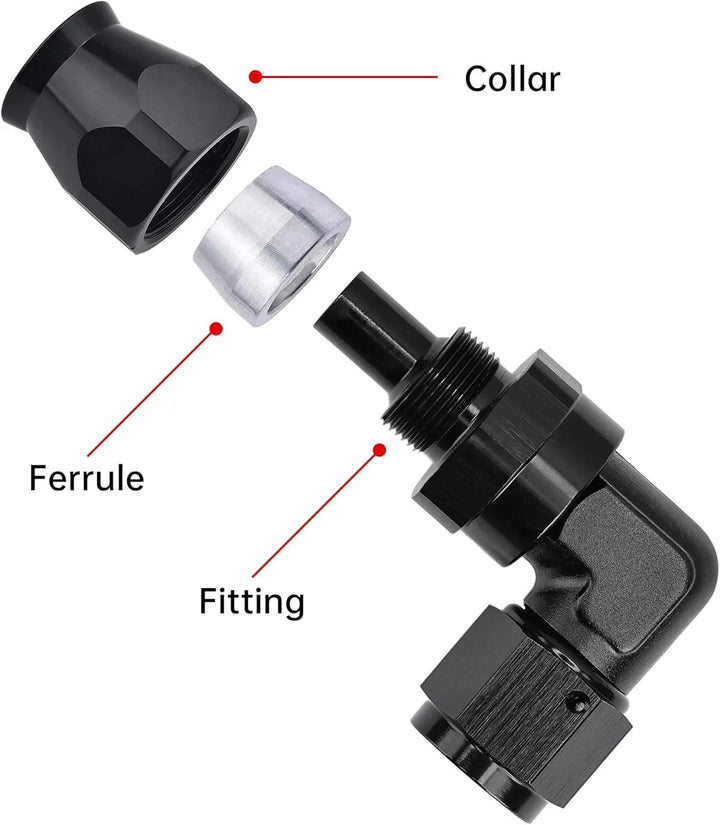

PTFE AN swivel fitting with 37 degree flare seal diagram and 6061-T6 aluminum body

Installing AN Fittings Without Side Load

Check that the PTFE hose and fitting sizes match before assembling the socket. Keep the hose properly seated as the components are assembled, following the specific hose-end procedure. Do not substitute a procedure for a different hose construction.

At the AN joint, inspect the male flare and mating seat for debris, damage and alignment. A wrong interface, damaged sealing face or line pulling sideways can leave a leak path. If fluid appears, inspect the hose/socket joint separately from the AN flare joint and correct the affected connection before use. Do not compensate for a mismatch by applying an assumed torque or extra turns.

AN 90 degree swivel hose end features for installing PTFE fittings without side load

Brand Summary

Policy Details
Cancellation Policy Orders can be canceled within 48 hours of placement. Refund processed in 3-5 business days.
Returns Policy Returns accepted within 180 days. Full refund within 90 days; 15% fee for 90-180 days.
Non-Returnable Items Only regular-priced items are eligible for refunds; sale items are non-refundable.
Refund Processing If no refund received, check your bank/credit card. For ongoing issues, contact support@ievilenergy.com.

Return Reasons

  1. Quality Issues: Provide photos/videos; we cover return shipping.
  2. Wrong Item Ordered: Buyer covers return shipping; email within 30 days.
  3. Change of Mind: Buyer covers return shipping; email within 30 days.
  4. Shipping Damage: Inspect packages; do not sign for damaged items.
  5. Incorrect Item Shipped: Contact within 7 days.

Price Protection Policy

Effective from August 25, 2024. Price drops within 7 days of purchase can be claimed.

Disclaimer

EVIL ENERGY reserves the right to interpret, modify, or terminate this policy in accordance with applicable laws and regulations.

If you need further information or assistance, feel free to ask!

Q: Which hose construction is this tight-radius end designed for?

A: This hose end is specified for PTFE fuel line only. Match the actual PTFE hose construction and size before assembly.

Q: Can I use it with a CPE braided line?

A: This is a PTFE-only hose end. Choose a hose end specified for CPE when the line has a CPE inner rather than selecting by the outside braid alone.

Q: Which AN sizes are offered?

A: The actual size selections are 6AN, 8AN and 10AN.

Q: Does choosing 8AN change the body angle?

A: No. This product has a compact 90-degree layout; the Size selection changes the AN interface and hose size, not the bend angle.

Q: When is the tight-radius body useful?

A: Choose it when the PTFE line needs a right-angle turn near the component and a compact fitting body. Check clearance for the actual hose, socket and mating connection.

Q: What seals the AN side?

A: The mating AN connection uses a 37-degree flare seat. Match the corresponding male AN component and inspect both sealing faces.

Q: What does the 360-degree swivel help with?

A: It helps orient the connection during assembly without changing the selected 90-degree body geometry.

Q: What material and surface treatment are specified?

A: The product specifies 6061-T6 aluminum with an anodized black finish.

Q: Which dimensions should I check before placing it beside a component?

A: Check the selected AN size, PTFE hose size, body envelope and room for tools. The compact layout does not remove the need for access at the socket and adjoining connection.

Q: How do I trace a leak after assembly?

A: Inspect the PTFE hose/socket assembly separately from the AN flare joint. Check the correct hose and AN size, seating, cleanliness, damage and line alignment, then correct the affected joint before use.
