Evilenergy  |  SKU: EVCS00420BK-3

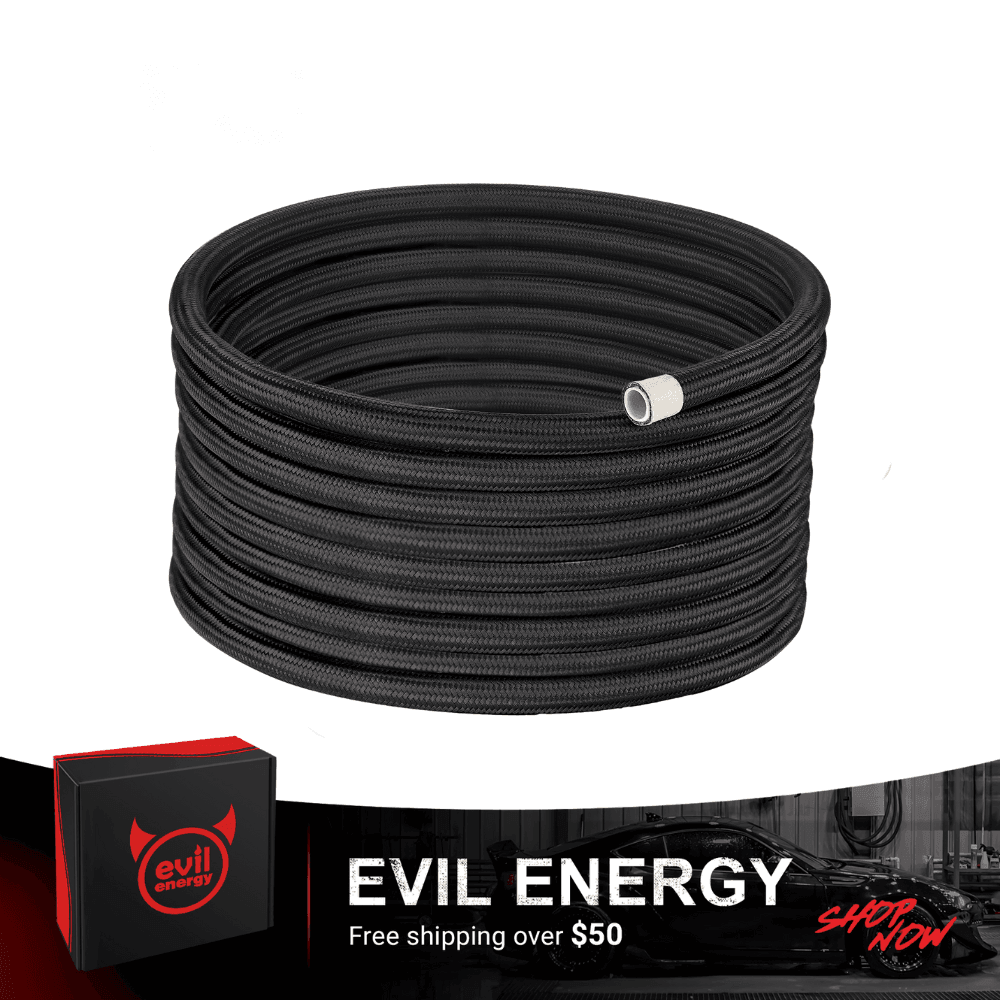

4/6/8/10AN PTFE Fuel Line E85 Nylon Braided Fuel Hose 10-25FT Optional | EVIL ENERGY

$34.59 USD $39.99
Shipping calculated at checkout.

Product Brief


Size
Length
Color: Black

Description

Product Details

Brand EVIL ENERGY

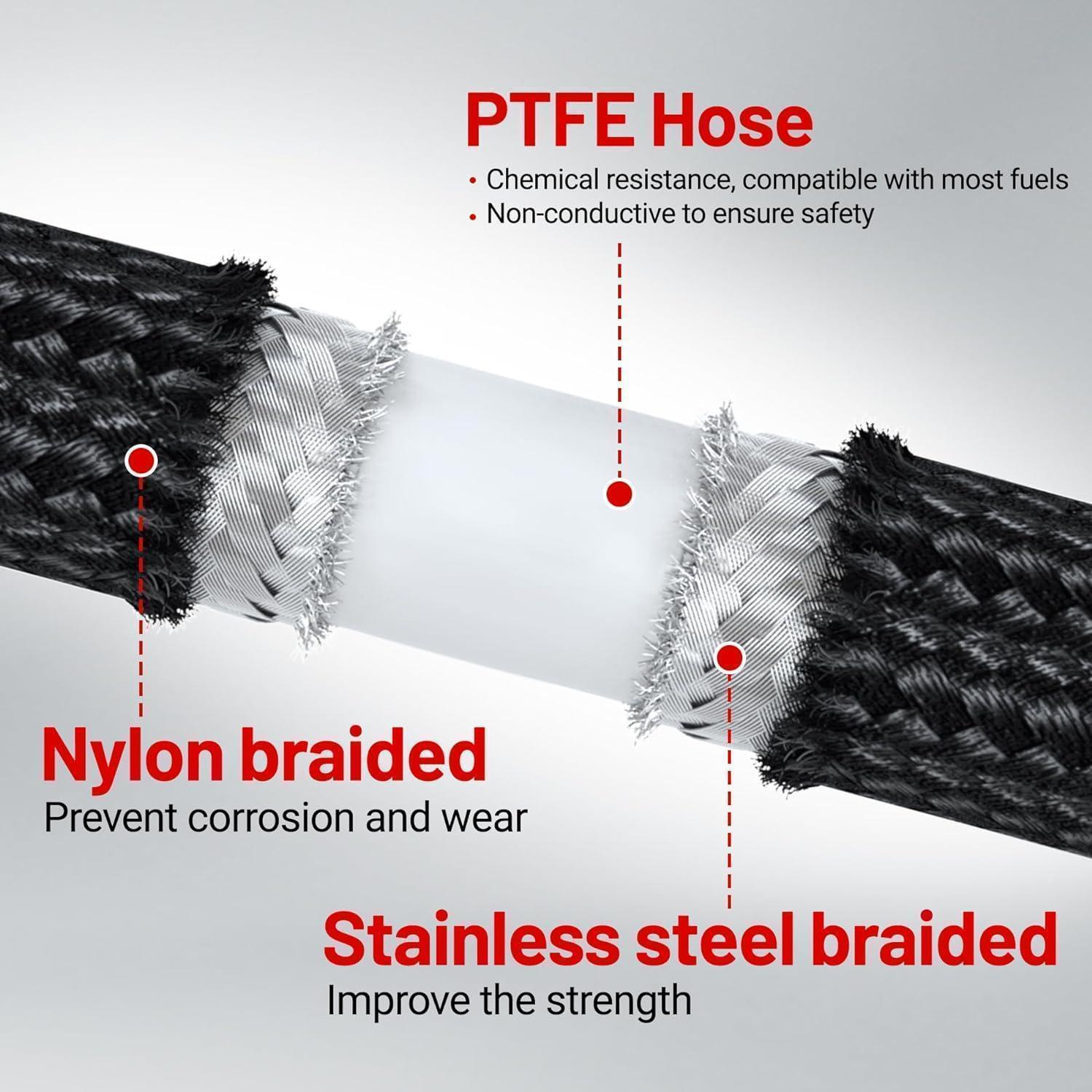

Material Nylon, Polytetrafluoroethylene (PTFE)
Color Black
Size 4/6/8/10AN
Length 10FT/20FT/25FT
Hose ID & OD

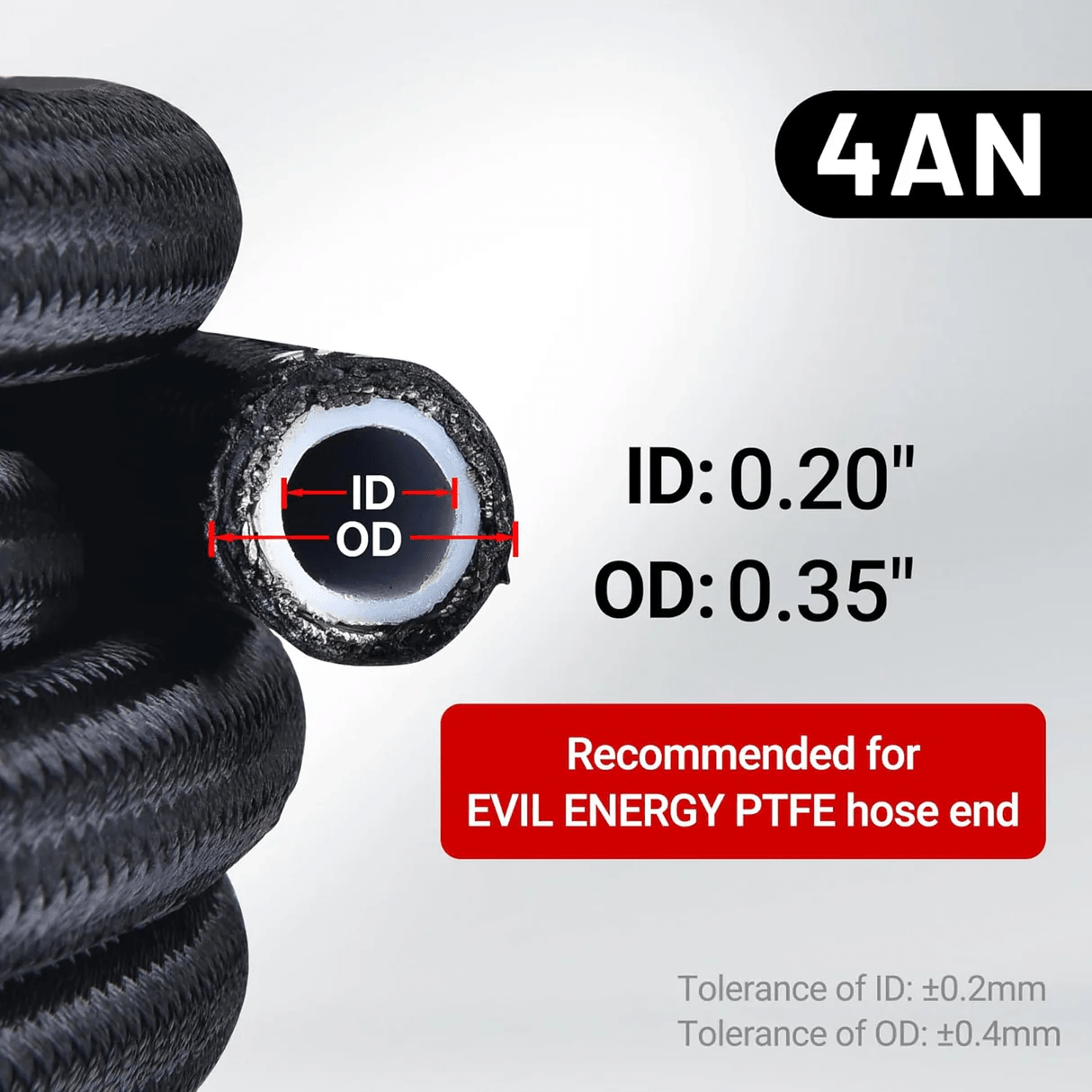

4AN ID: 3/16". OD: 0.34inch.

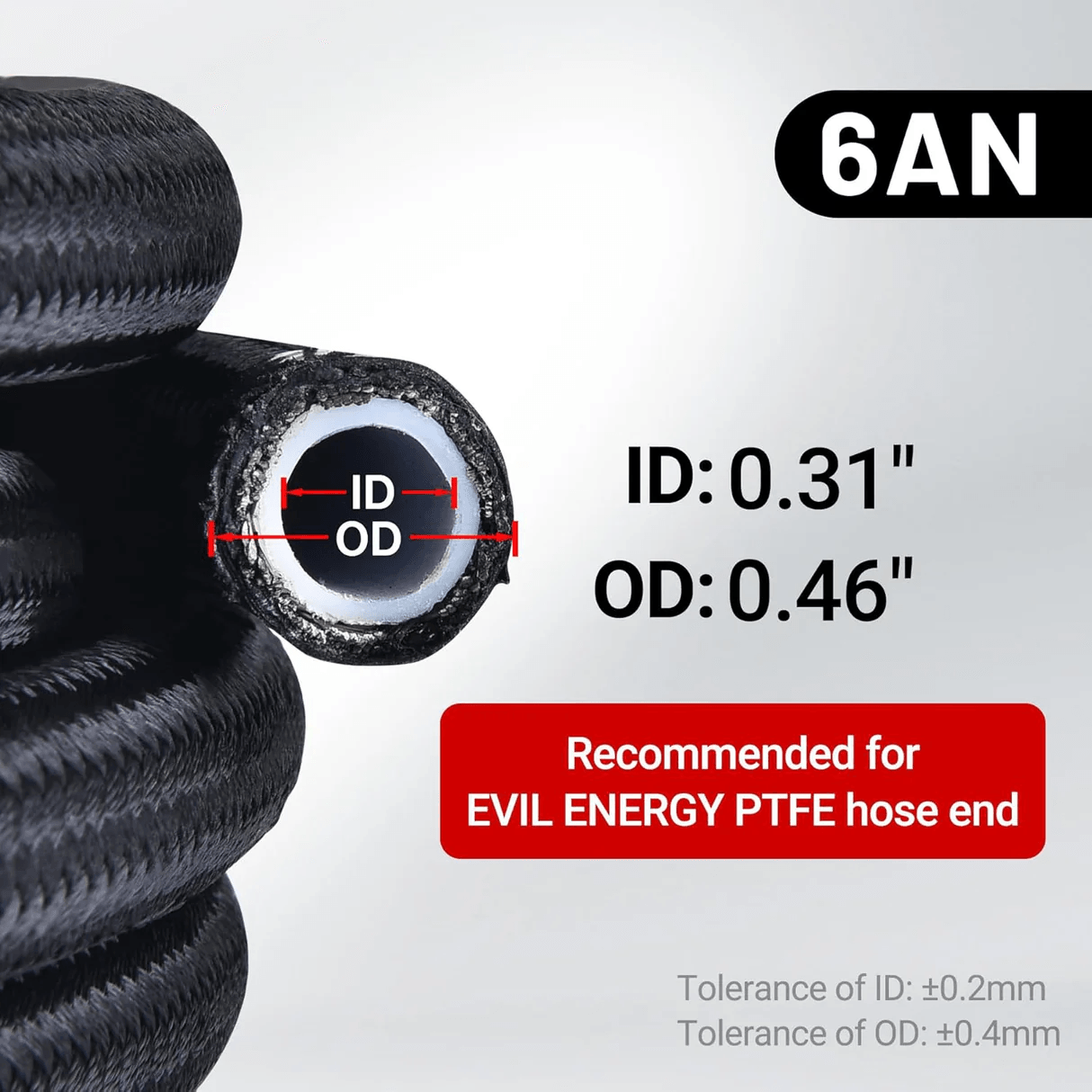

6AN ID: 5/16". OD: 0.465inch.

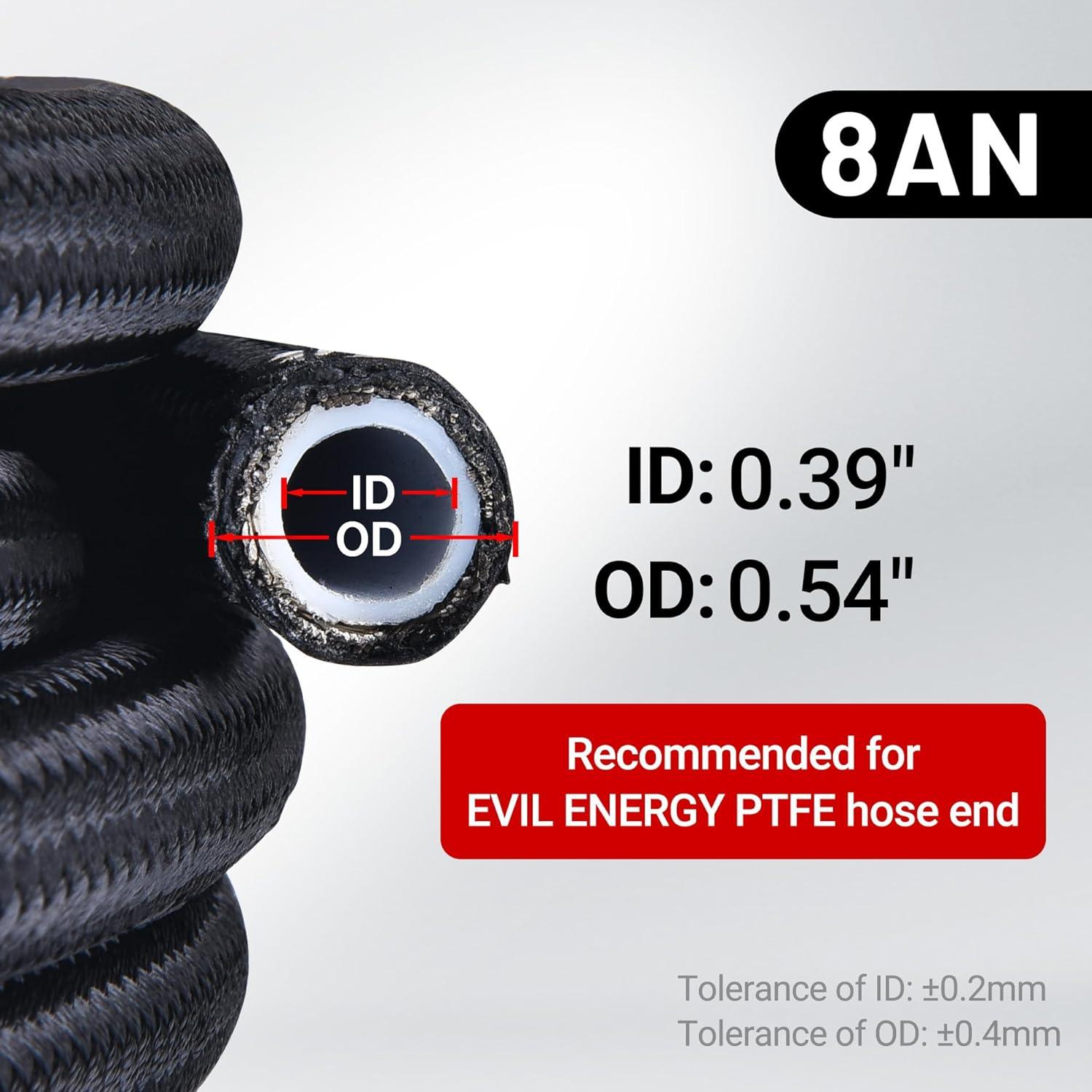

8AN ID: 13/32". OD: 0.543inch.

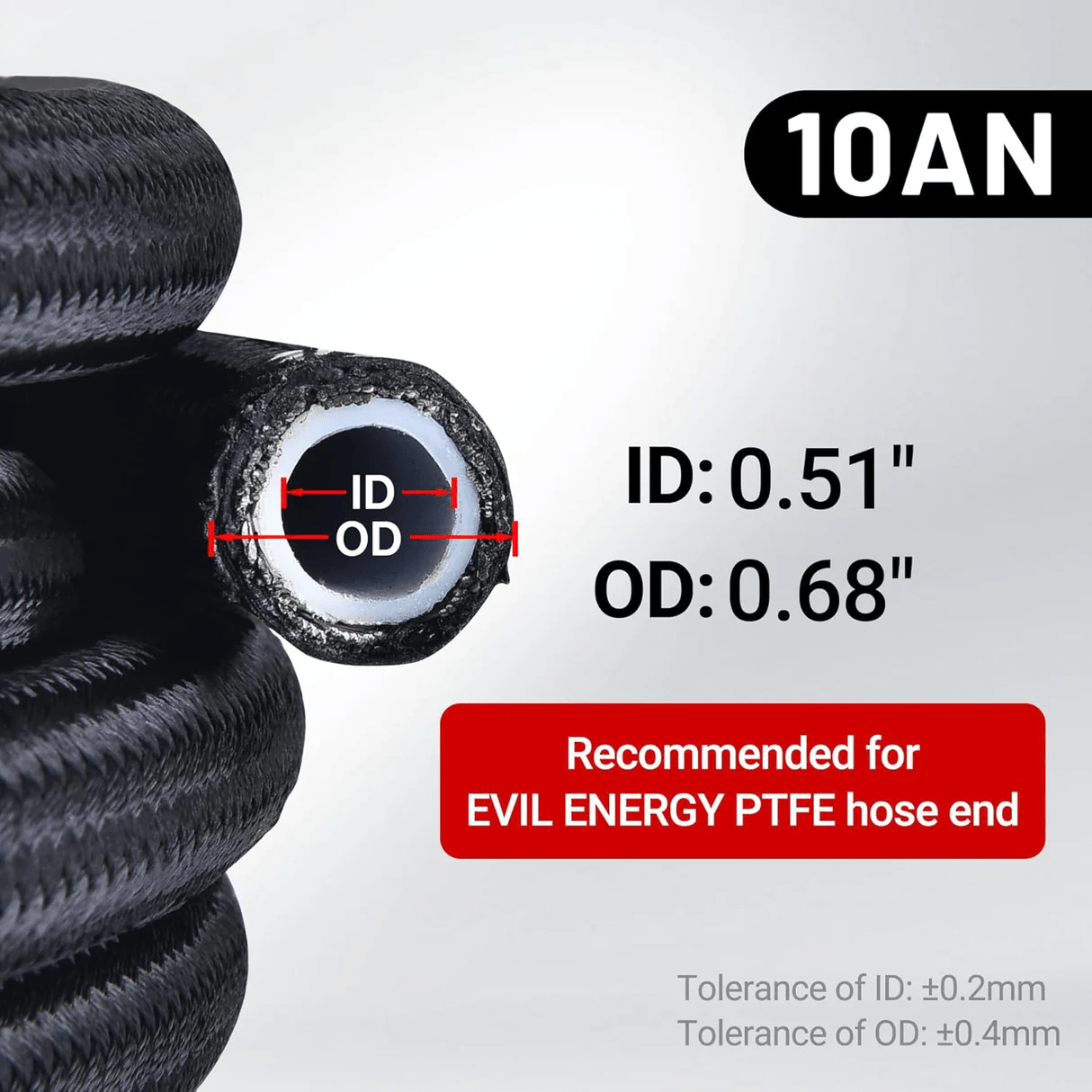

10AN ID: 1/2". OD: 0.68inch.

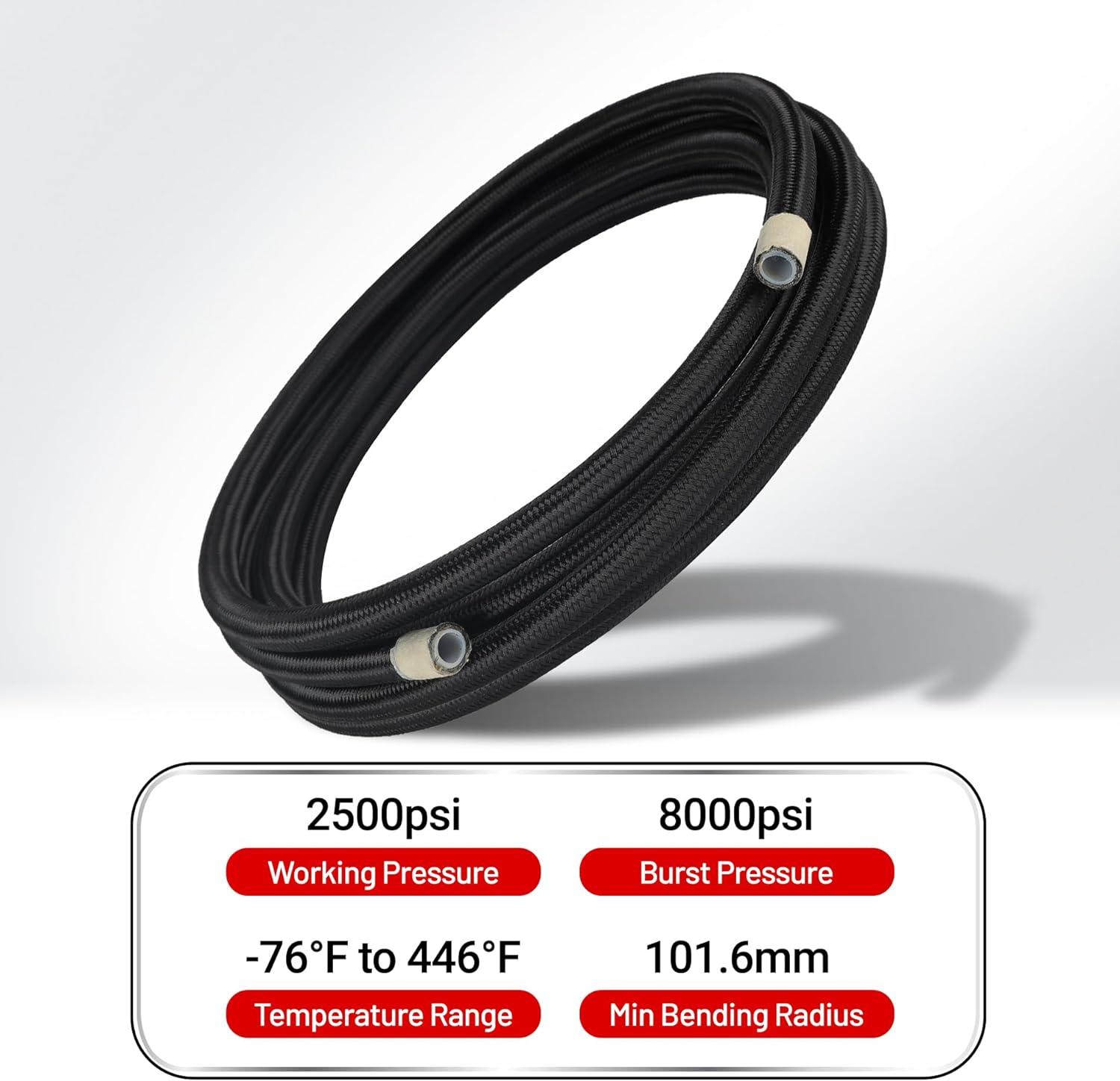

Temperature Range  -76℉ to 446℉ (-60℃ to 230℃)

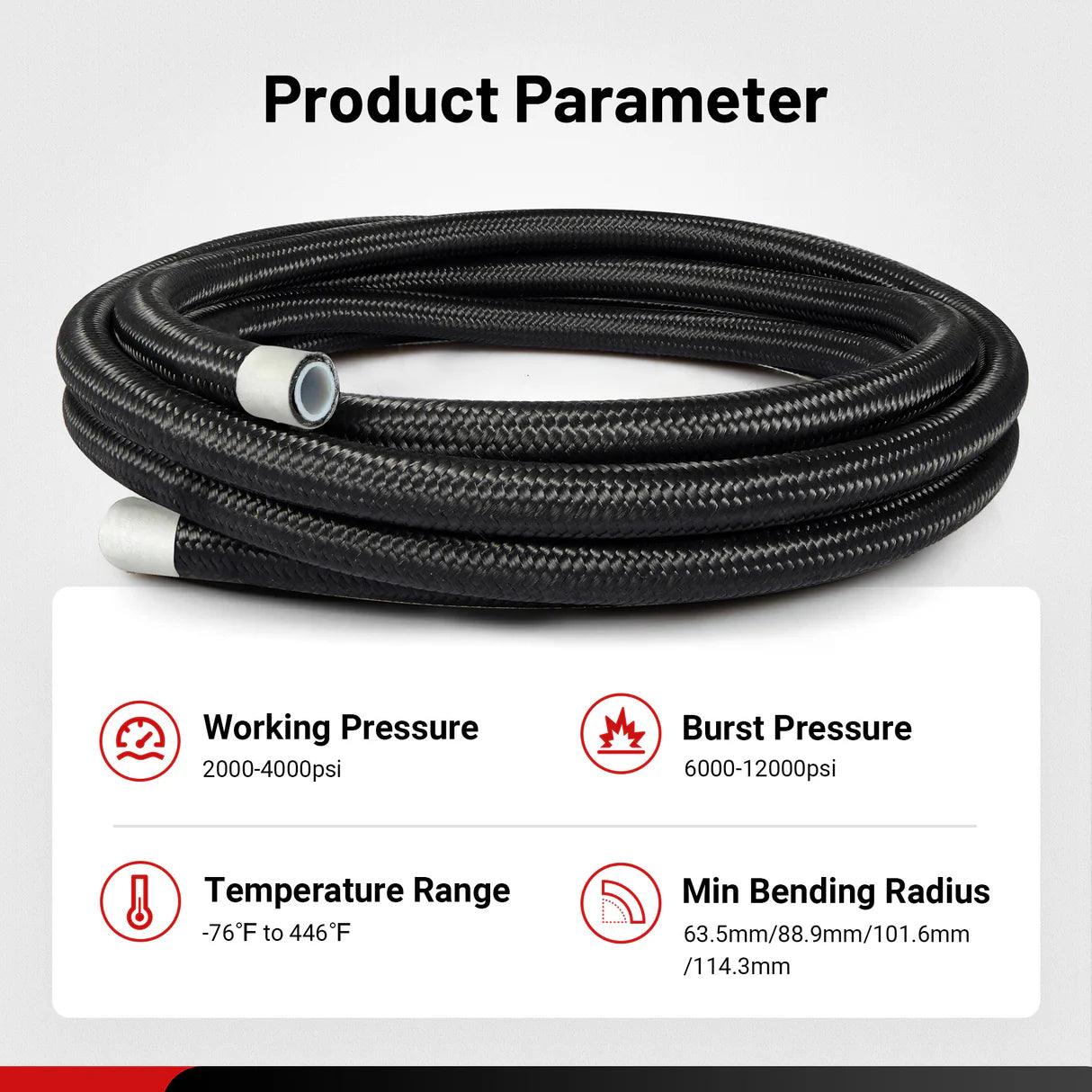

Max Working Pressure

4AN: 4000psi

6AN: 3000psi

8AN: 2500psi

10AN: 2000psi

Maximum Pressure

4AN: 12000 Pound per Square Inch

6AN: 10000 Pound per Square Inch

8AN: 8000 Pound per Square Inch

10AN: 6000 Pound per Square Inch

Min Bending Radius

4AN: 50.8mm

6AN: 63.5mm

8AN: 88.9mm

10AN: 101.6mm


About this item

  • [Applications] PTFE fuel lines are versatile and suitable for various applications including fuel injection hoses, boost lines, carburetor fuel lines, LS engine swap fuel lines, fuel return lines, vapor return lines, and fuel supply lines.

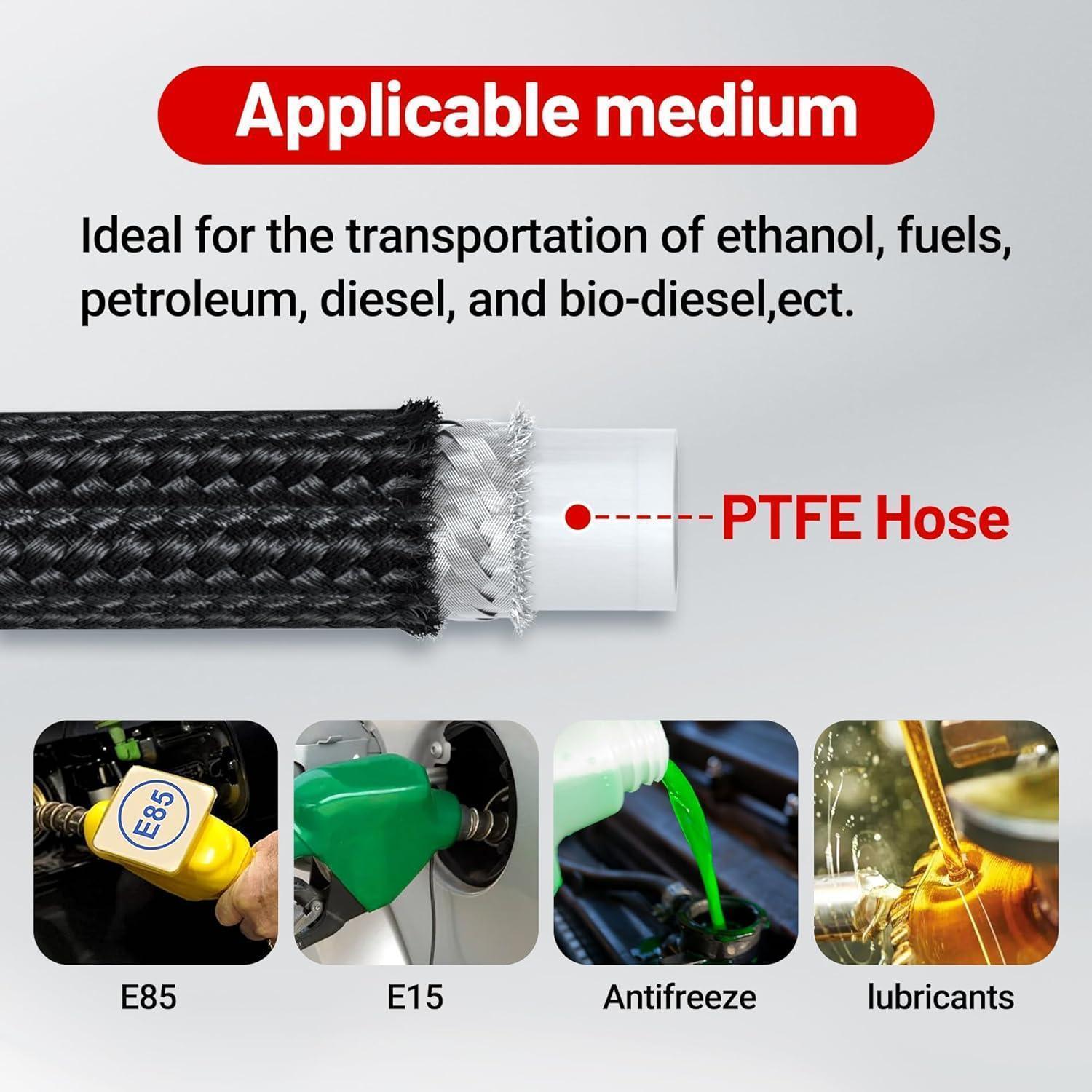

  •  [Medium] They are compatible with all automotive fuels, lubricants, and coolants.

  • [Installation] Due to their rigidity, PTFE hoses do not bend or fold easily, so professional installation is strongly advised.
  • [Warranty]: EVIL ENERGY provides 6 months warranty for this. For any questions or additional information, feel free to contact us at support@ievilenergy.com.

Product Description

EVIL ENERGY 4/6/8/10AN PTFE E85 Fuel Line Nylon Braided Fuel Hose 10-25FT OptionalEVIL ENERGY 4/6/8/10AN PTFE E85 Fuel Line Nylon Braided Fuel Hose 10-25FT OptionalEVIL ENERGY 4/6/8/10AN PTFE E85 Fuel Line Nylon Braided Fuel Hose 10-25FT OptionalEVIL ENERGY 4/6/8/10AN PTFE E85 Fuel Line Nylon Braided Fuel Hose 10-25FT OptionalEVIL ENERGY 4/6/8/10AN PTFE E85 Fuel Line Nylon Braided Fuel Hose 10-25FT OptionalEVIL ENERGY 4/6/8/10AN PTFE E85 Fuel Line Nylon Braided Fuel Hose 10-25FT Optional
