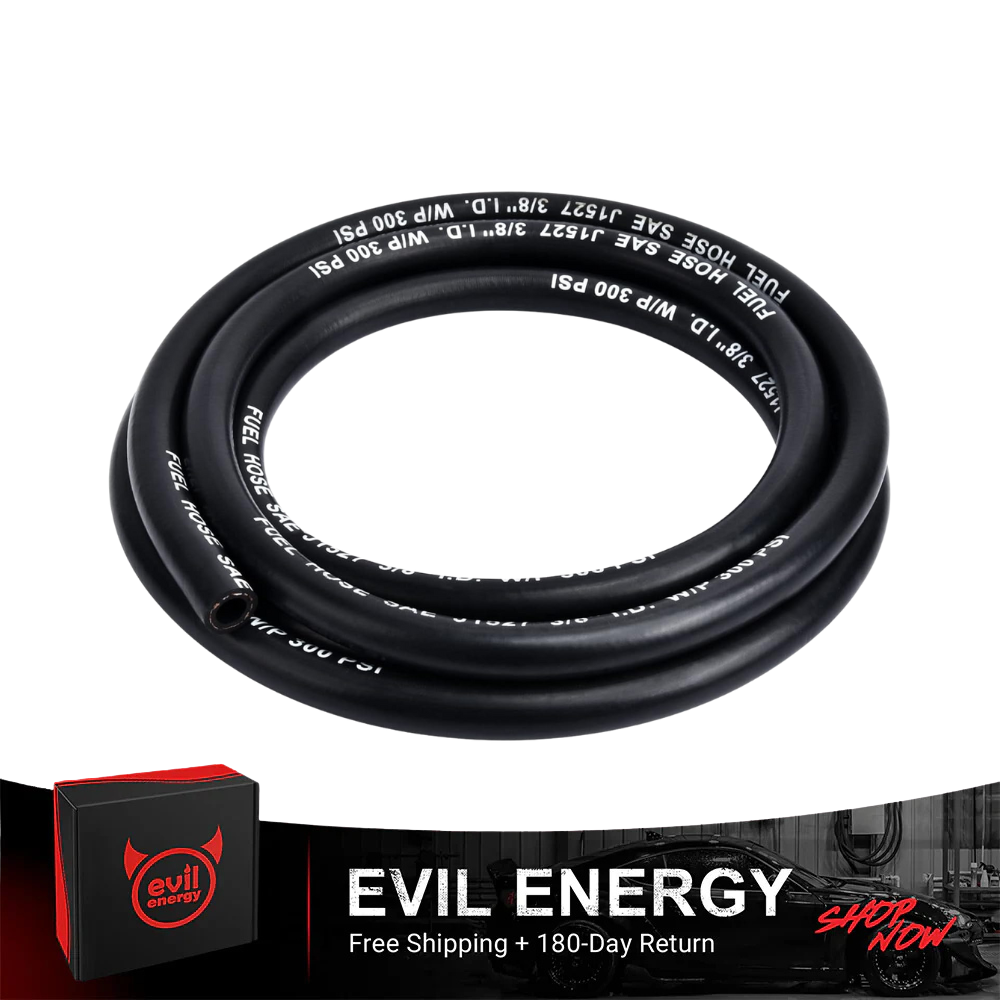

EVIL ENERGY Marine Fuel Hose Type A1-15 SAE J1527 Rubber Hose -3/8 1/4 5/16 Inch (10/25FT)

Q: How do I choose between the 10FT and 25FT length of EVIL ENERGY Marine Fuel Hose?

A: Use a piece of string to measure each fuel run along its actual routing path, then add allowance for turns and for the hose end sliding over each fitting, and pick the closest length. For a single short run (such as a portable tank to an outboard, or a filter to the engine), 10FT (3.05m) is usually enough. Choose 25FT (7.62m) when the tank is far from the engine, when the line must be split into several sections (tank to water separator, separator to filter, filter to engine), or when you want a spare length on hand. The cost per foot is lower on 25FT than on 10FT; check the listed price at checkout. When in doubt, go longer, since extra hose can be trimmed but a short hose cannot be fixed.

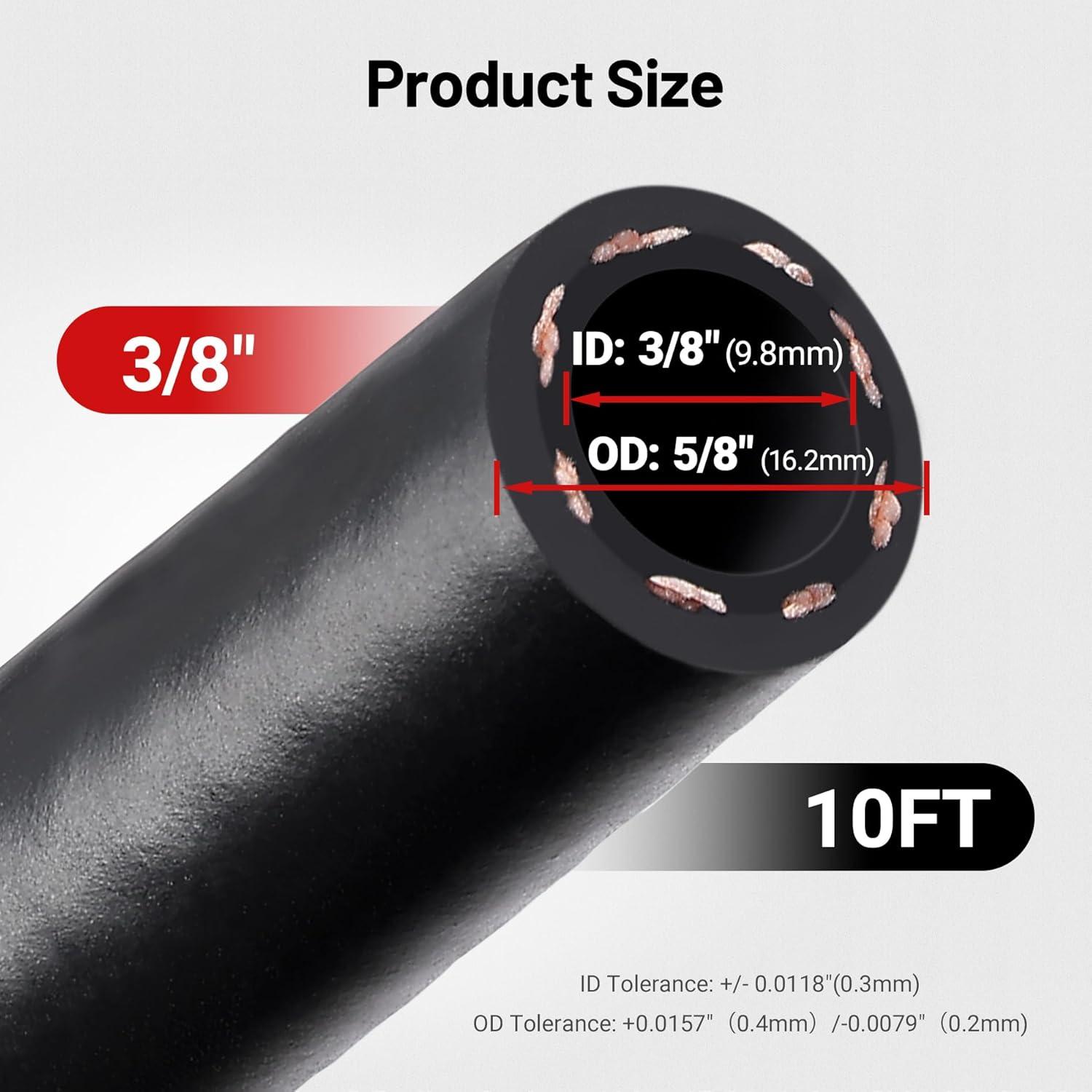

Q: My boat has fuel lines of different sizes. How should I order EVIL ENERGY Marine Fuel Line Hose in 1/4", 5/16" and 3/8"?

A: Different inner diameters on the same fuel line are common. For example, the run from the tank to the filter may be 3/8", while the run from the filter to the engine is 5/16". Before ordering, check the print on the old hose for each section. If nothing is printed, measure the outer diameter of the fitting barb, and choose each section by its own inner diameter. All three inner diameters and both lengths can be selected separately, so you can order section by section instead of replacing the whole line with a single size. If the inner diameter does not match, the primer bulb and fittings will not fit properly, and forcing the hose on can lead to leaks.

Q: How should I cut and store a roll of EVIL ENERGY Marine Fuel Hose 25FT?

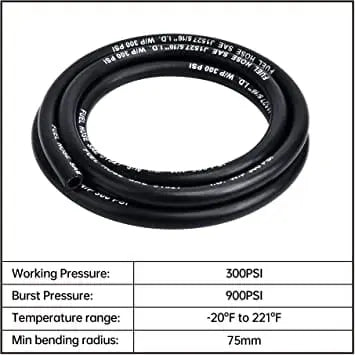

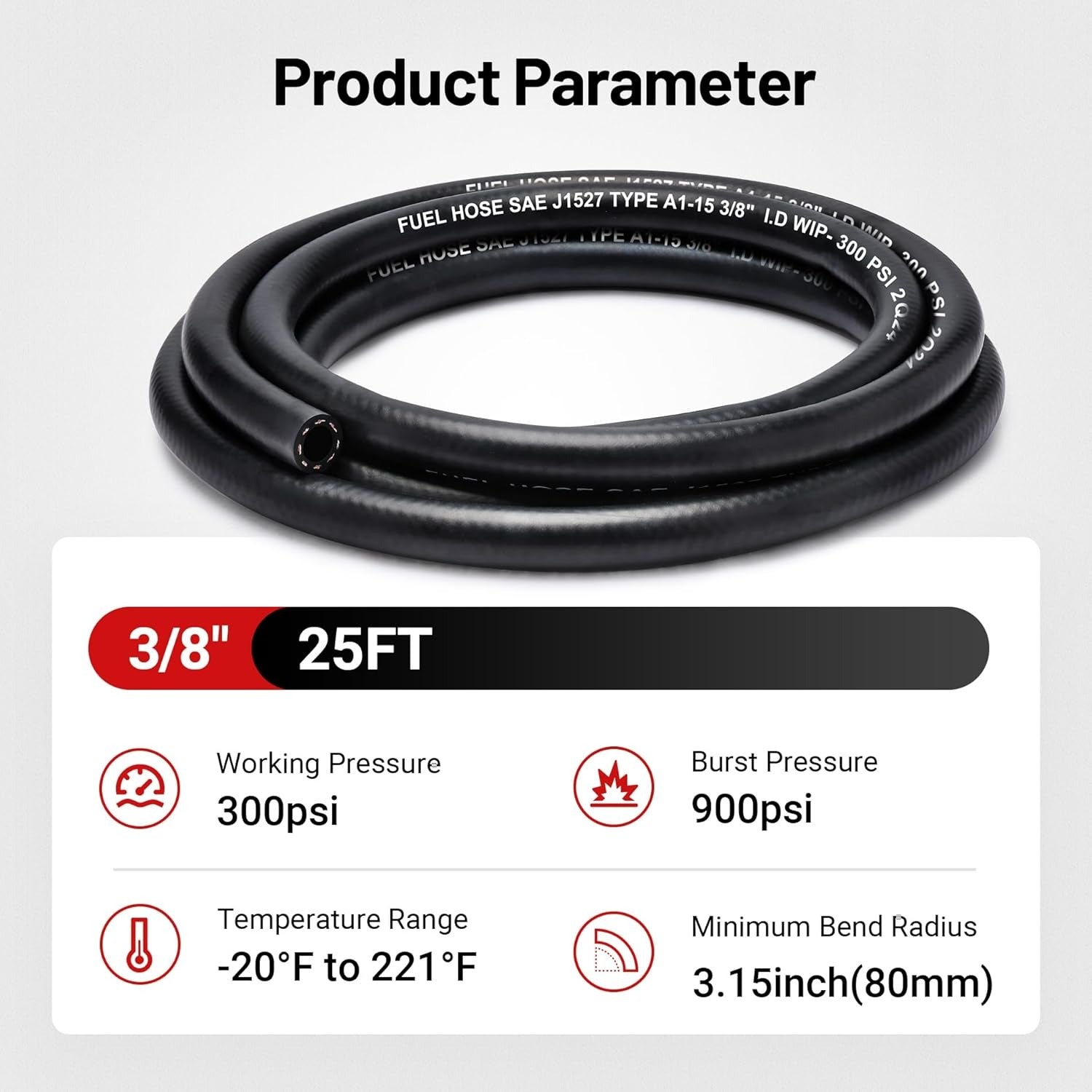

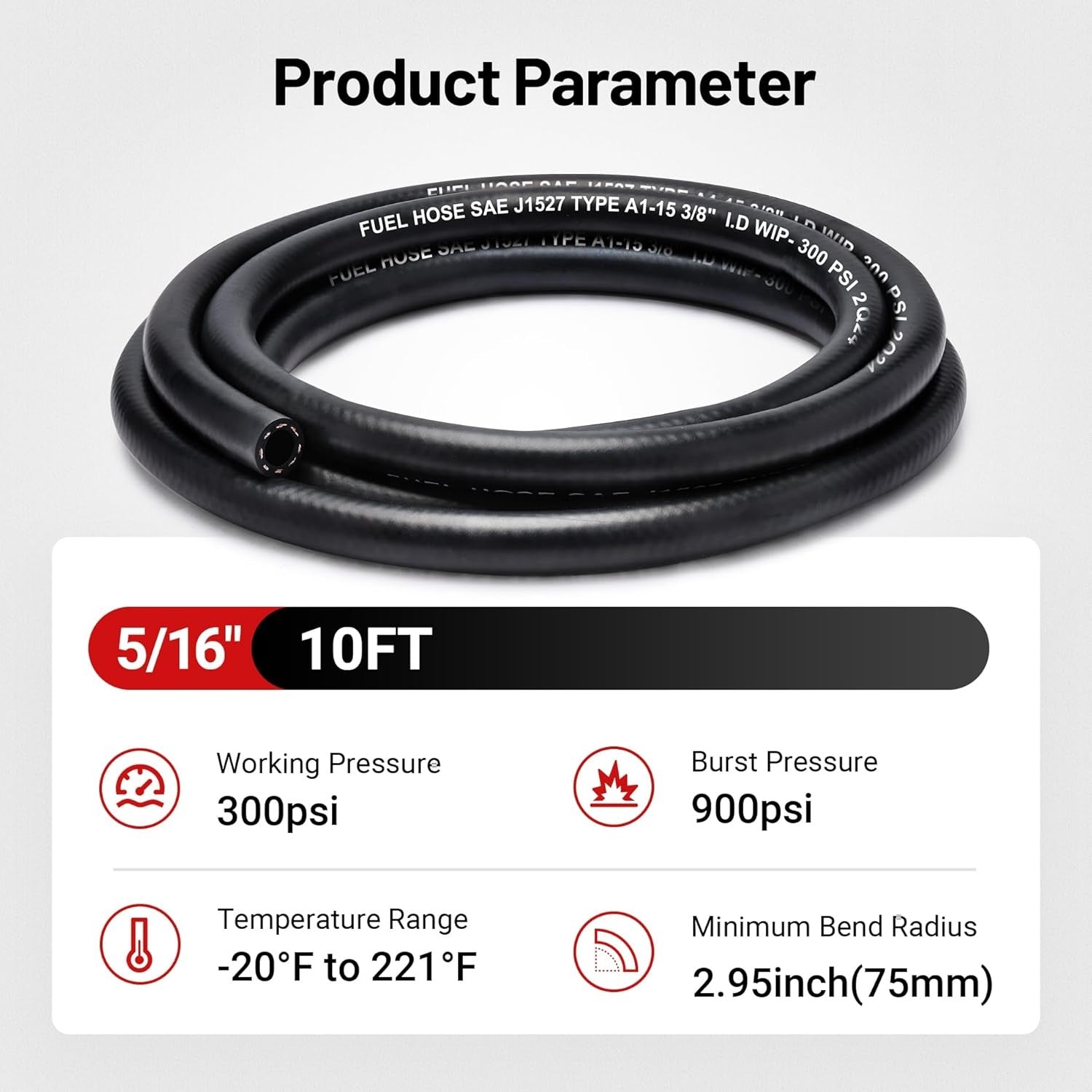

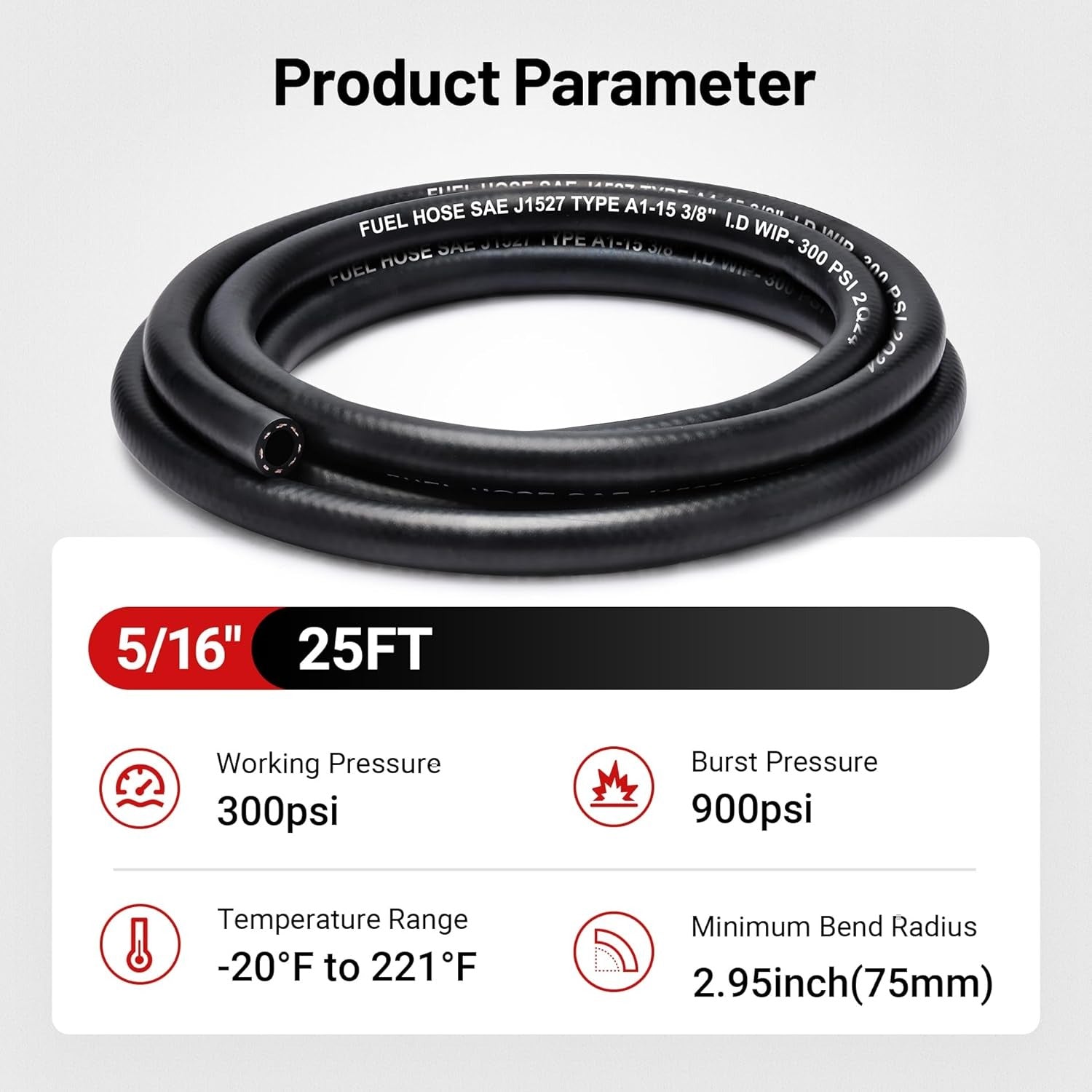

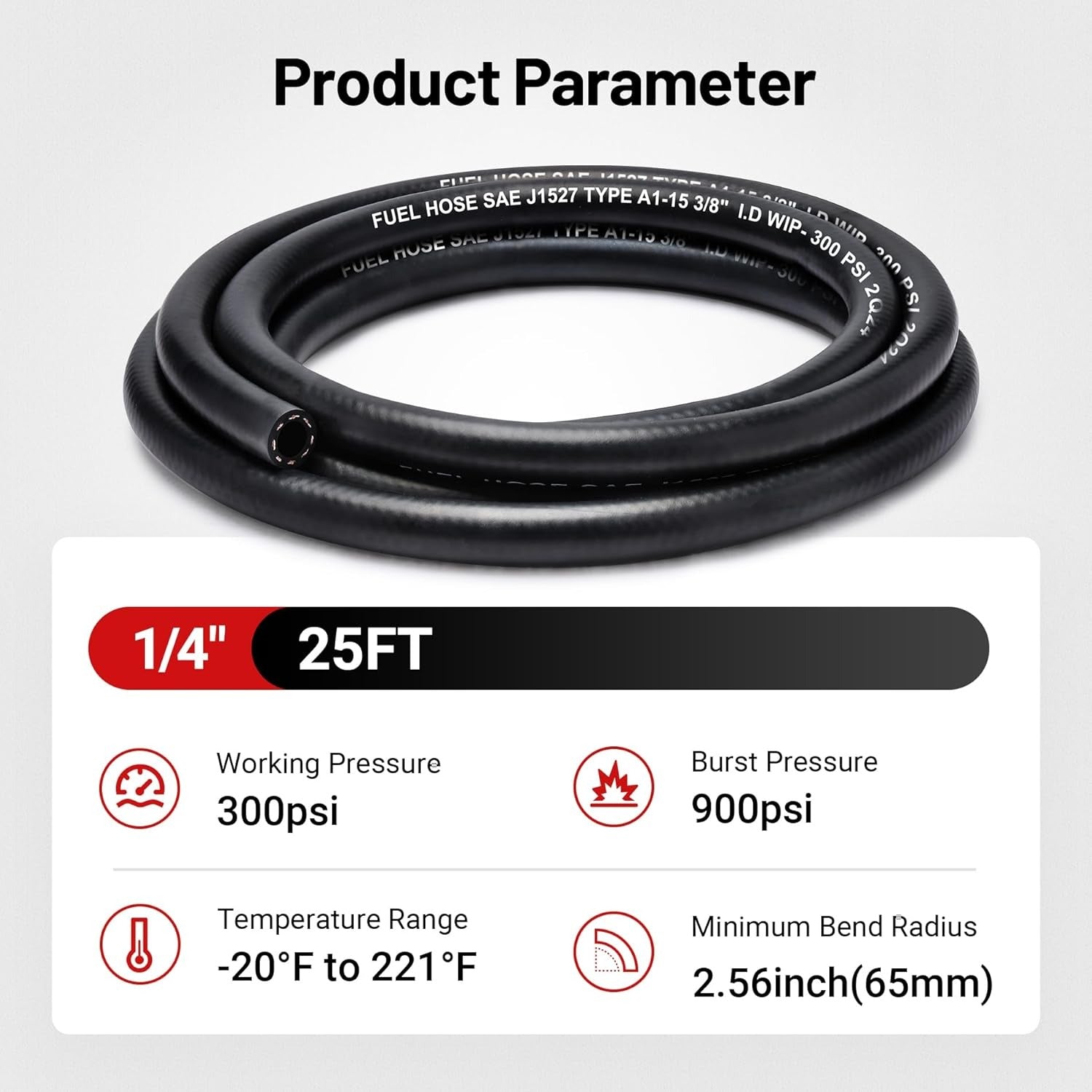

A: Measure each section first and mark it on the hose, then cut it square with a sharp blade so the flat end seats fully over the fitting. The markings repeat along the hose at intervals, so after cutting, make sure each section still shows a marking you can check later. Coil the remaining hose loosely, keeping the coil diameter no tighter than the minimum bend radius (65mm for 1/4", 75mm for 5/16", 80mm for 3/8"). Store it in a cool, dry place away from sunlight, heat and sharp objects, and label the inner diameter. Before using it again, check for cracks and stiffness.

Q: Can I join two pieces of EVIL ENERGY Marine Fuel Hose into one longer run?

A: Avoid it where you can. Every added joint is another possible leak point, so a fuel line should be run in one piece. If you must extend it, use a marine barbed straight coupler that matches the inner diameter, with a stainless steel clamp on each end, and double clamps are recommended. Place the joint where it can be inspected, not hidden under floor panels or foam. After joining, pressurize the system and check each joint for seepage.

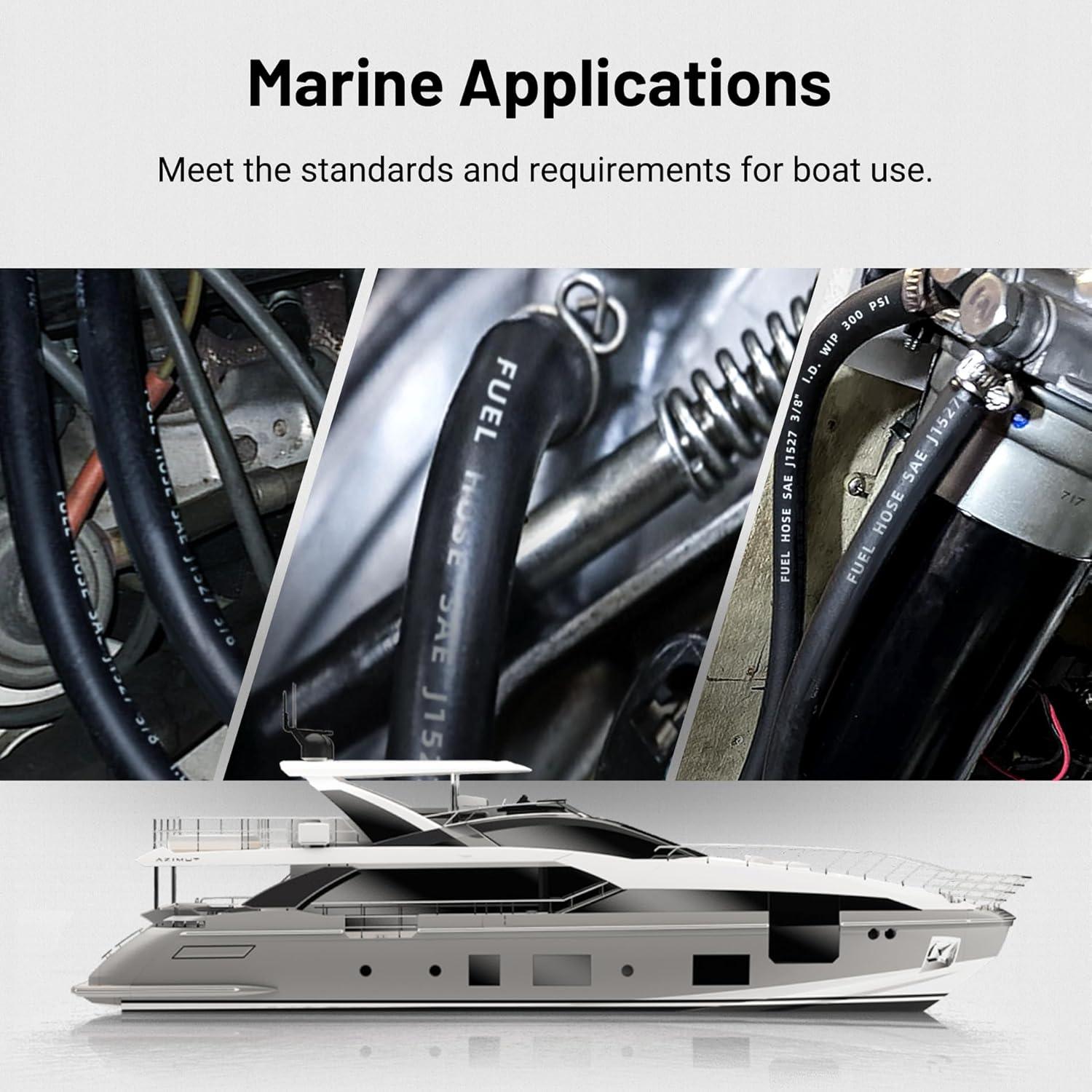

Q: Which positions in an inboard engine compartment require EVIL ENERGY Marine Fuel Hose Type A1-15?

A: Gasoline lines in the engine compartment should use USCG Type A1-15 hose (the ABYC H-24 requirement). Under U.S. 33 CFR 183.558, the line from the fuel pump to the carburetor must be Type A1 hose, and the line from the tank to the engine inlet must also be A1 (B1 hose is allowed only if it meets additional leakage conditions). These are requirements for boat builders at the factory. When a boat owner replaces a hose, replacing it with A1-15 of the same kind is the safest approach. After purchase, check the markings on the hose, and follow the requirements of the boat builder and engine manufacturer.

Q: What else do I need to build an outboard fuel line assembly with EVIL ENERGY Marine Fuel Hose 10FT or 25FT?

A: Besides the hose, you will need a primer bulb with the same inner diameter as the hose (choose an EPA-certified one); engine-side and tank-side quick-connect fittings, chosen by engine brand; stainless steel clamps, with two recommended for each fitting; and a water-separating fuel filter, with 10 micron a common rating. A standard fuel line assembly is commonly 6 feet long, so use 10FT when the tank is farther away. After assembly, pressurize the system and check each joint for seepage.

Q: Can EVIL ENERGY Marine Fuel Hose be used as a fuel return line?

A: Yes. A return line also often holds fuel, and the A1-15 class is designed for lines that hold fuel at all times. The 300 PSI working pressure also covers a low-pressure return. The inner diameter of the return line should match the engine’s return fitting, and the engine manual takes priority.

Q: Is EVIL ENERGY Marine Fuel Hose suitable for EFI or direct-injection marine engines?

A: It is suitable for the low-pressure supply side, such as the feed lines from the tank to the pump and from the pump to the filter, at a rated working pressure of 300 PSI. For the high-pressure fuel rail and the high-pressure section of direct-injection engines, use the high-pressure hose and fittings specified by the engine manufacturer, and do not substitute this hose. Whether you can replace the low-pressure supply lines on an EFI engine is determined by the engine manual.

Q: Does EVIL ENERGY Marine Fuel Hose need extra sun protection on an open boat?

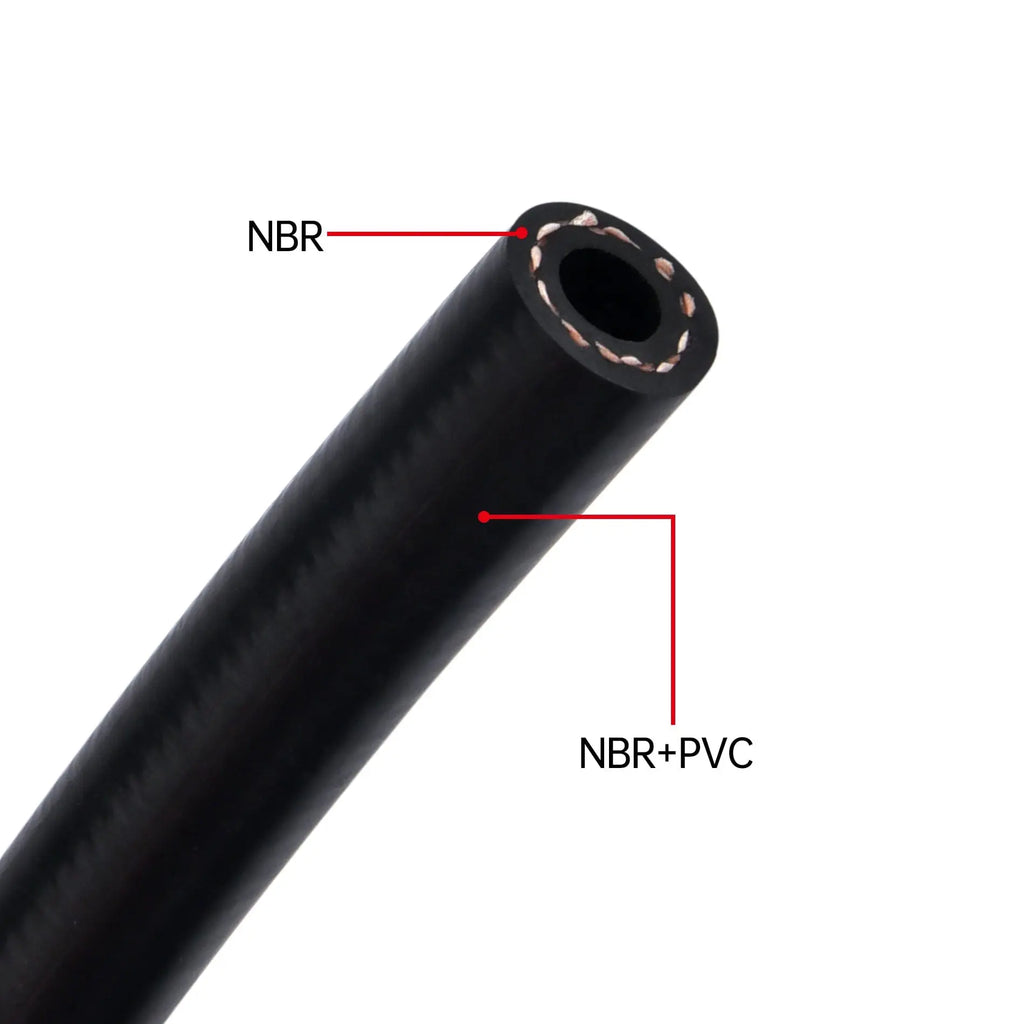

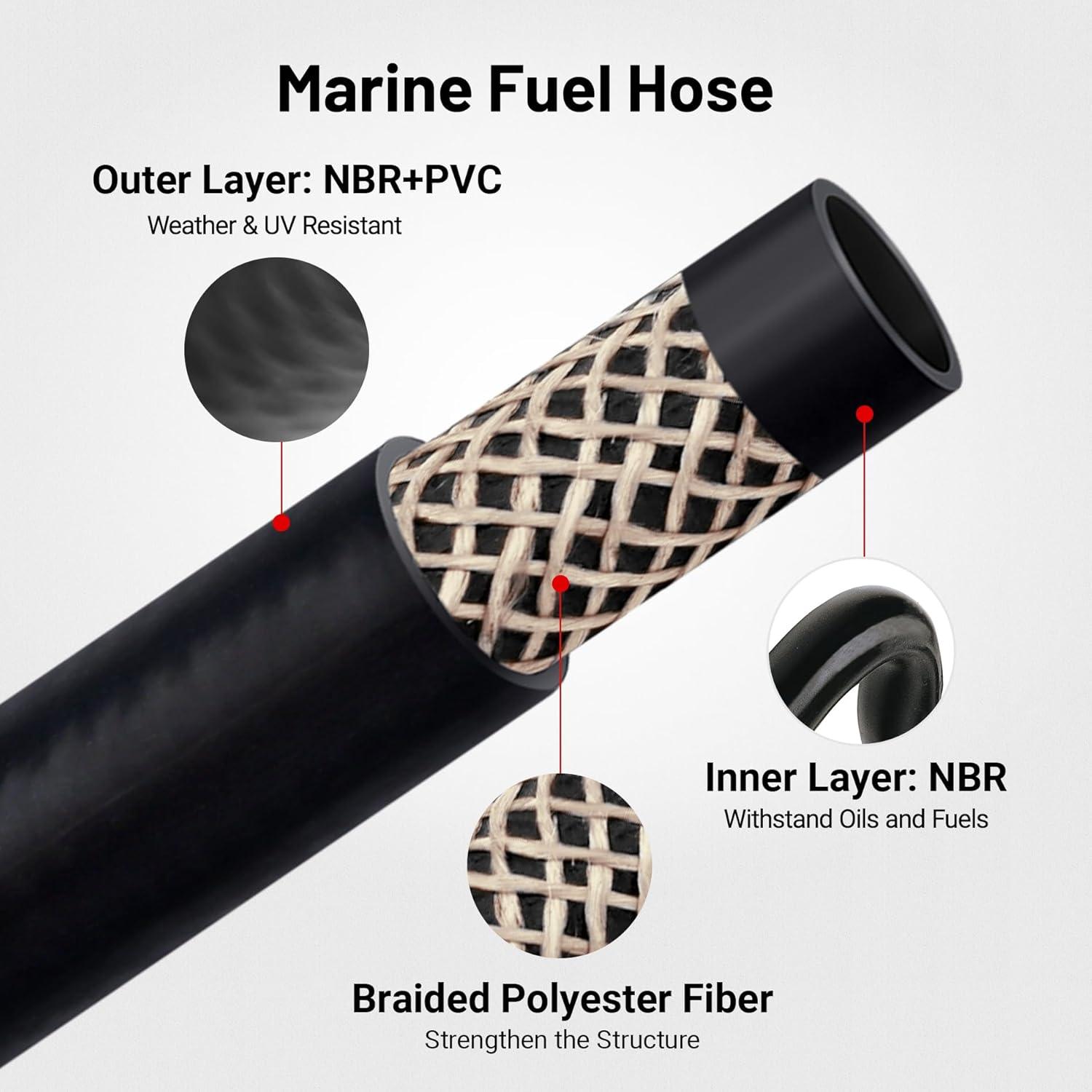

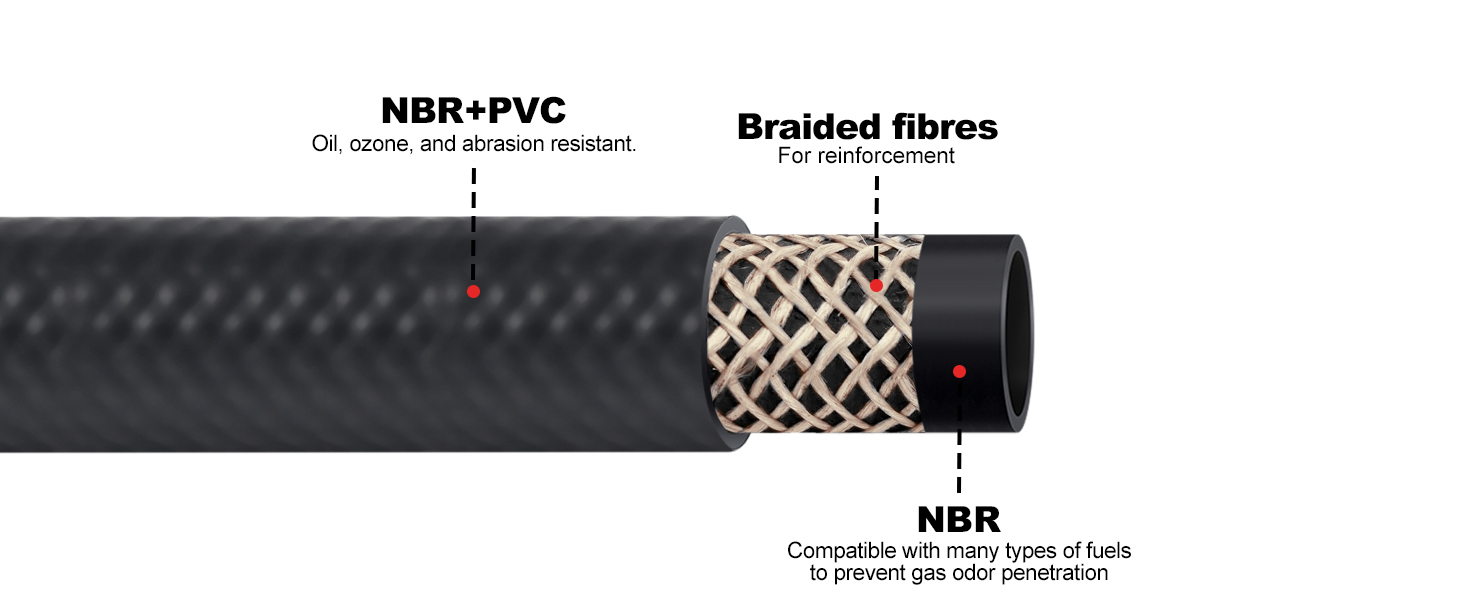

A: The NBR and PVC outer cover resists UV, ozone and weathering, which suits more exposed locations, but sunlight and ozone remain the fastest causes of fuel hose aging. Where possible, add a protective sleeve or wrap to block light, and add chafe protection where the hose passes through a splash well or rubs against hard surfaces. Inspect it once a season for stiffness or fine cracks, especially around the clamps, which is where cracking usually starts first.
