What makes this LS high ram intake different from a stock LS intake manifold?

This LS high ram intake uses a HI-RAM high-rise design with a large plenum and a 102 mm throttle body bore to support stronger airflow at higher RPM. Compared with many stock-style LS intake manifolds, it is better suited for performance-oriented EFI combinations.

SPECIFICATIONS DESCRIPTION SHIPPING & RETURN FAQS REVIEWS

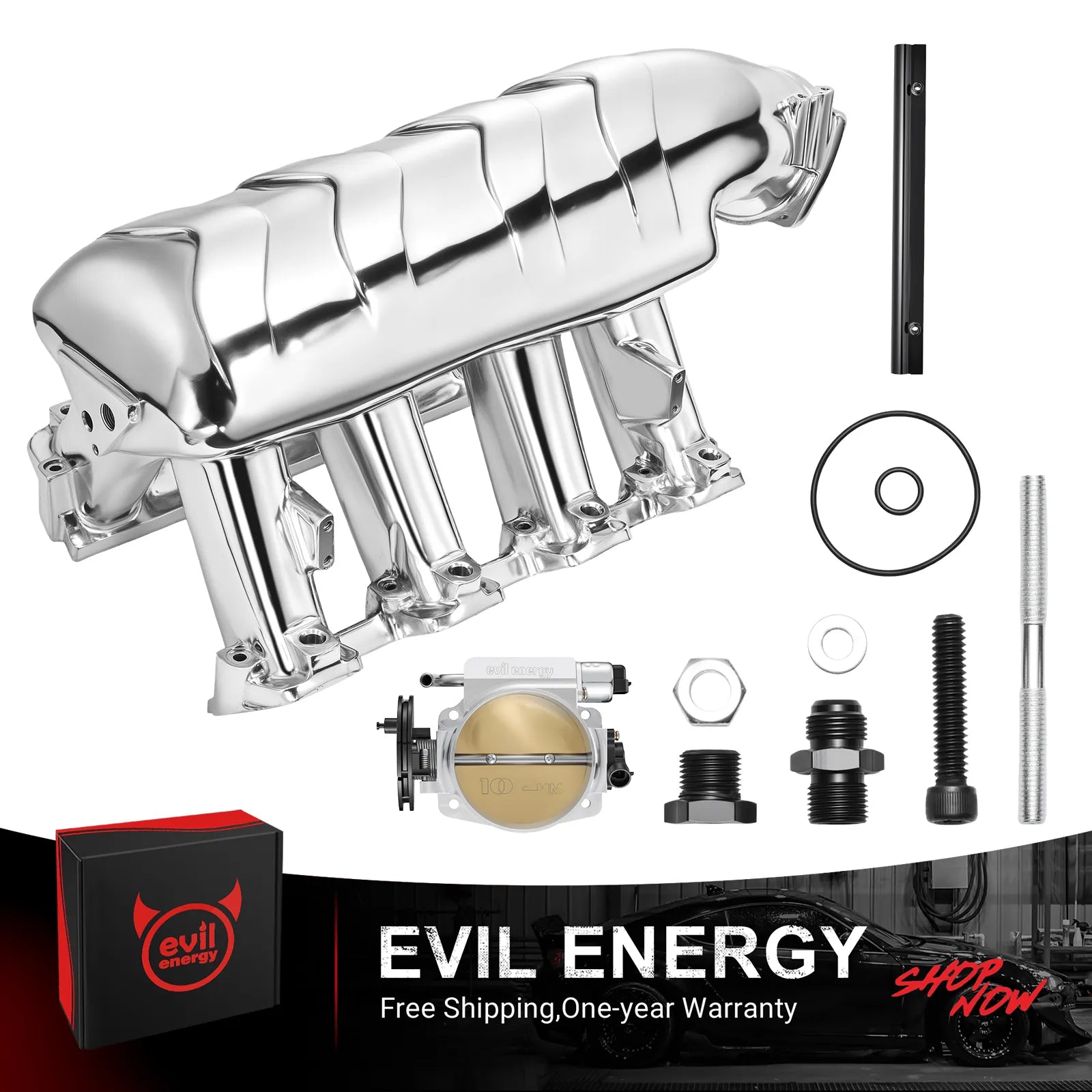

EVIL ENERGY polished chrome sheet metal intake manifold kit with fuel rails, fuel line, o-rings, and mounting hardware bolts next to a sports car image background, offering free shipping and one-year warranty.[Polished Silver,Without Throttle Body]

Vehicle fitment guide chart for LS3 6.2L, L99 6.2L, L92 6.2L, and L76 6.0L engines, showing compatibility for Chevrolet Corvette C6, Camaro SS, Pontiac G8 GXP, Cadillac Escalade, and GMC Yukon Denali.

Size reference diagram for the polished aluminum intake manifold specifying dimensions of 23.96 inches length, 13.33 inches width, and 12.03 inches height, including fuel rails and hardware parameters.

Side view and bottom port view of a premium polished aluminum alloy intake manifold featuring a precision fit sturdy structure, high temperature resistance, high hardness, anti-rust, and anti-corrosion properties.[Polished Silver]

Close up of a high-rise design optimized intake manifold plenum base with red glowing light effect showing airflow precise volume and stable airflow paths for engine performance.

EVIL ENERGY intake manifold upgrade designed to optimize intake efficiency, increase engine power and torque, achieve more complete combustion, improve fuel-air mixture, and improve fuel economy.

A mechanic holding a wrench installs a finely crafted perfectly fitted aluminum intake manifold into a red classic car engine bay, emphasizing original holes with no modification required.

High-rise EFI performance intake manifold overlaid on a classic V8 engine bay, showing peak torque RPM at 5,000 to 7,000 plus and peak horsepower RPM at 7,000 to 8,500 plus for high-RPM performance.

EVIL ENERGY 102mm HI-RAM LS3 Intake Manifold 300117 Aluminum EFI for LS3 L92 L99 L76 Rectangular Port with Fuel Rails

$579.99; $579.99
Unit price: per

Style

92mm
102mm

Color: Polished Silver

Style: With Throttle Body With Throttle Body Without Throttle Body

Product variants

Quantity:

Add To Wish List

SKU: EVBUH0007018

Product Type: Gasoline Intake Manifold

EVIL ENERGY checkout payment icons and shopping service

EVIL ENERGY 102mm HI-RAM LS3 Intake Manifold 300117 Aluminum EFI for LS3 L92 L99 L76 Rectangular Port with Fuel Rails

$579.99

Choose Options

$579.99

Quantity:

EVIL ENERGY 102mm HI-RAM LS3 Intake Manifold 300117 Aluminum EFI for LS3 L92 L99 L76 Rectangular Port with Fuel Rails

$579.99

Color: Polished Silver

Style: With Throttle Body With Throttle Body Without Throttle Body

Product variants

SPECIFICATIONS
DESCRIPTION
SHIPPING & RETURN
FAQS
REVIEWS

SPECIFICATIONS

Product Details

Brand	EVIL ENERGY
Part Number	300117
Manifold Type	HI-RAM (High-Rise)
RPM Range	Peak Torque ~5,000–7,000+ RPM; Peak HP ~7,000–8,500+ RPM
Material	Premium Cast Aluminum Alloy
Finish	Polished Silver
Throttle Body Bore	102 mm
Compatible Engine Family	Fits all GM LS Gen III engines equipped with LS3/L92/L99/L76 style rectangular port cylinder heads Chevrolet:Small-Block Gen IV L76:364 (6.0L); Chevrolet:Small-Block Gen IV L92:376 (6.2L); Chevrolet:Small-Block Gen IV L99:376 (6.2L); Chevrolet:Small-Block Gen IV LS3:376 (6.2L)
Compatible Vehicles	Chevy Corvette C6 (2008–2013) Camaro SS Gen5 (2010–2015) Cadillac Escalade (2007–2014) GMC Yukon Denali (2007–2014) Chevy Suburban LTZ (2007–2014) Pontiac G8 GT / GXP (2008–2009) Holden VE/VF Commodore SS & more
Fuel System Compatibility	EFI
Includes	EFI Fuel Rails
Dimensions	23.96 in (L) × 13.33 in (W) × 12.03 in (H) / 608.49mm × 338.50mm × 305.46mm
Warranty	1 Year

DESCRIPTION

EVIL ENERGY Performance LS engine intake manifold

Chasing 800+ horsepower? The EVIL ENERGY intake manifold (300117) is a high-performance LS3 intake manifold purpose-built for serious high-RPM racing. If you are looking to upgrade your LS engine intake manifold, this 102mm high-rise LS manifold features extended-length tuned runners and an oversized plenum to optimize volumetric efficiency.

As a heavy-duty LS aluminum intake, it is engineered from premium cast alloy with a polished silver finish. It stands out as the ultimate LS high-rise intake of choice for naturally aspirated big-displacement builds, large single/twin turbochargers, and supercharged combinations targeting maximum horsepower. For those executing a 6.0 LS intake upgrade or a 6.2L build, this complete fuel injection manifold kit includes matching high-flow fuel rails for seamless, bolt-on convenience on all rectangular port platforms.

Vehicle & Engine Fitment

GM V8 Engine Family & Cylinder Head Specifications

Cylinder Head Compatibility: Precision-engineered strictly for GM V8 engines equipped with factory or aftermarket LS3/L92/L99/L76 style rectangular port cylinder heads.
Engine Generation Note: Designed as a direct bolt-on for Gen IV platforms, and fully compatible with Gen III engine blocks (such as 6.0L iron blocks) only when retrofitted with Gen IV rectangular port cylinder heads for custom LS swap applications.
Gen IV L76 Specification: Small-Block Gen IV L76 — 364 Cubic Inches (6.0L) V8 Engine.
Gen IV L92 Specification: Small-Block Gen IV L92 — 376 Cubic Inches (6.2L) V8 Engine.
Gen IV L99 Specification: Small-Block Gen IV L99 — 376 Cubic Inches (6.2L) V8 Engine.
Gen IV LS3 Specification: Small-Block Gen IV LS3 — 376 Cubic Inches (6.2L) V8 Engine.

Detailed Fitment Application by Engine Sub-Model

1. LS3 — 376 ci (6.2L) Engine Fitment

Chevrolet Corvette C6 Base: Fits models equipped with the 6.2L LS3 engine (2008–2013).
Chevrolet Camaro SS (Manual): Fits Gen5 manual transmission models (2010–2015).
Pontiac G8 GXP: Fits the rare high-performance 6.2L variant (2009).
HSV (Holden Special Vehicles): Fits E3 and Gen-F performance models (2013–2017).

2. L99 — 376 ci (6.2L) Engine Fitment

Chevrolet Camaro SS (Automatic): Fits Gen5 automatic transmission models featuring Active Fuel Management (2010–2015).

3. L92 — 376 ci (6.2L) Engine Fitment

Cadillac Escalade / Escalade ESV: Fits luxury SUV luxury platforms (2007–2014).
GMC Yukon Denali / Denali XL: Fits full-size high-trim sport utility vehicles (2007–2014).
Chevrolet Suburban LTZ: Fits premium 6.2L-equipped family haulers (2007–2014).
Chevrolet Silverado 1500 (High-End): Fits luxury-trim or sport-package trucks (2007–2009).
GMC Sierra 1500 (High-End): Fits high-end luxury trim light-duty trucks (2007–2009).

4. L76 — 364 ci (6.0L) Engine Fitment

Holden Commodore SS (VE/VF): Fits Australian market 6.0L performance sedans, wagons, and Utes (2008–2017).
Holden Caprice (WM/WN): Fits long-wheelbase luxury platforms running the 6.0 LS intake configuration (2008–2014).
Chevrolet Caprice PPV: Fits North American law enforcement fleet vehicles running the L76 block (2011–2017).
Pontiac G8 GT: Fits the popular sports sedan equipped with the L76 6.0 LS intake manifold setup (2008–2009).

Key Features

HI-RAM High-Rise Induction Architecture

Peak Powerband Target: Engineered specifically for extreme engine speeds, optimizing peak torque across 5,000–7,000+ RPM and peak horsepower within a 7,000–8,500+ RPM powerband.
Airflow Optimization: Features extended-length tuned intake runners paired with an oversized tunnel-ram plenum to maximize volumetric efficiency at high airflow velocities.
Forced Induction & NA Potential: The definitive LS high-rise intake configuration for naturally aspirated big-displacement motors, large single/twin turbochargers, and supercharged racing combinations aiming for 800+ horsepower.

102mm Throttle Body Flange Specification

Bore Diameter: Massive 102mm throttle body bore accepts high-volume aftermarket throttle bodies to satisfy extreme engine air demands.
Restriction Elimination: Drastically minimizes intake tract restriction and boundary layer turbulence, which is critical for maximizing high-RPM boost feeding in forced-induction applications.

Integrated EFI Fuel Delivery System

Complete System Inclusion: Comes fully equipped with a dedicated set of matching high-flow extruded aluminum fuel rails for a true, direct-fit bolt-on installation.
Component Simplification: Eliminates the hassle and additional cost of tracking down separate rail kits—everything required for an EFI intake manifold plumbing layout is included in the box.

Precision Rectangular Port Alignment

Port Configuration Compatibility: Precision-cast to ensure absolute, 100% matching alignment with factory or aftermarket LS3, L92, L99, and L76 rectangular port cylinder heads.
Sealing Integrity: Guarantees a perfectly flush, leak-free gasket seal right out of the box with zero grinding, porting, or head modifications required.

Premium Cast Aluminum Alloy Construction

Structural Durability: Every square inch of the runner walls and plenum surfaces is precision-cast from high-grade LS aluminum intake alloy, engineered to resist cracking or ballooning under extreme boost pressures.
Surface Coating Protectant: Finished with a brilliant polished silver coating that delivers rugged anti-rust, anti-corrosion, and high-temperature resistant properties.
Physical Dimension Footprint:
- Total Length: 23.96 inches (608.49 mm)
- Total Width: 13.33 inches (338.50 mm)
- Total Height: 12.03 inches (305.46 mm)

Package Contents

EVIL ENERGY LS3 HI-RAM EFI Intake Manifold, Polished Silver (Part No. 300117) × 1
EFI Fuel Rails × 1 Set
Complete Installation Hardware Kit × 1

Why Choose EVIL ENERGY LS3 HI-RAM Intake Manifold?

When every horsepower counts, the EVIL ENERGY LS3 HI-RAM EFI intake manifold delivers the high-RPM airflow, 102mm capacity, and build quality that serious racers and engine builders demand. Every LS intake manifold we produce is precision cast from premium aluminum — designed as a direct bolt-on upgrade for rectangular port LS platforms. Whether you're building a turbocharged drag car, a supercharged track weapon, or a max-effort naturally aspirated race engine, this HI-RAM intake with included fuel rails is engineered to help you reach your 800+ HP target.

Proven Race-Level Performance: HI-RAM high-rise design optimized for 7,000–8,500+ RPM peak power — the intake manifold of choice for turbo, supercharger, and big-displacement NA builds.
Everything Included: EFI fuel rails and complete hardware kit included — no need to source separate components.
Easy Returns: 90-day hassle-free return with free return shipping (unused, uninstalled).
Warranty: 1-year warranty on all products.

Who Is This EVIL ENERGY LS Engine Intake Manifold For?

The EVIL ENERGY intake manifold is designed for performance-focused builders who need a high-rise EFI intake manifold for rectangular-port GM LS combinations. This LS engine intake manifold is best suited for users building LS3, L92, L99, or L76 engine combinations and looking for a polished LS aluminum intake with 102 mm throttle body compatibility and included EFI fuel rails.

This LS3 intake manifold is a strong fit for:

LS engine builders upgrading from a stock composite intake to a high-rise aluminum setup
6.0 LS intake manifold shoppers building L76-based performance combinations
LS high ram intake buyers planning turbocharged, supercharged, or high-RPM naturally aspirated EFI builds
LS swap enthusiasts who need a rectangular-port fuel injection manifold
Track-day, drag racing, and street/strip builders prioritizing upper-RPM airflow over stock-style packaging

Best Use Scenarios

This LS intake manifold is ideal for the following applications:

High-RPM EFI performance builds targeting strong top-end horsepower
LS3 intake manifold upgrades for rectangular-port 6.2L combinations
LS 6.0 intake manifold upgrades for L76 6.0L builds using EFI
Turbo and supercharged projects requiring a durable LS aluminum intake
Custom LS swap builds where hood clearance, throttle body size, and EFI layout are already part of the build plan
Race-oriented or weekend performance vehicles using a LS high-rise intake rather than a stock-height manifold

Important Buyer Fit Note

Because this LS high ram intake uses a HI-RAM (High-Rise) design and measures 12.03 inches in height, it is best for buyers who have already planned for additional hood clearance. It is not the ideal choice for stock hood applications or buyers seeking a low-profile street replacement manifold.

SHIPPING & RETURN

Brand Summary

Policy	Details
Cancellation Policy	Orders can be canceled within 48 hours of placement. Refund processed in 3-5 business days.
Returns Policy	Returns accepted within 180 days. Full refund within 90 days; 15% fee for 90-180 days.
Non-Returnable Items	Only regular-priced items are eligible for refunds; sale items are non-refundable.
Refund Processing	If no refund received, check your bank/credit card. For ongoing issues, contact support@ievilenergy.com.

Return Reasons

Quality Issues: Provide photos/videos; we cover return shipping.
Wrong Item Ordered: Buyer covers return shipping; email within 30 days.
Change of Mind: Buyer covers return shipping; email within 30 days.
Shipping Damage: Inspect packages; do not sign for damaged items.
Incorrect Item Shipped: Contact within 7 days.

Price Protection Policy

Effective from August 25, 2024. Price drops within 7 days of purchase can be claimed.

Disclaimer

EVIL ENERGY reserves the right to interpret, modify, or terminate this policy in accordance with applicable laws and regulations.

If you need further information or assistance, feel free to ask!

FAQS

Q: What engines is this EVIL ENERGY LS engine intake manifold designed for?
A: This EVIL ENERGY intake manifold is designed for GM LS applications using LS3/L92/L99/L76-style rectangular port cylinder heads. It is a performance-focused LS intake manifold for compatible 6.0L and 6.2L EFI engine combinations.

Q: Is this an LS3 intake manifold or a 6.0 LS intake manifold?
A: It can serve both applications when the engine uses the correct rectangular port setup. This makes it suitable for buyers searching for an LS3 intake manifold, 6.0 LS intake manifold, or LS 6.0 intake manifold for compatible LS builds.

Q: Is this intake manifold for EFI or carburetor setups?
A: This is an EFI intake manifold only. It is designed as a fuel injection manifold for electronic fuel injection systems and is not intended for carbureted applications.

Q: What makes this LS high ram intake different from a stock LS intake manifold?
A: This LS high ram intake uses a HI-RAM high-rise design with a large plenum and a 102 mm throttle body bore to support stronger airflow at higher RPM. Compared with many stock-style LS intake manifolds, it is better suited for performance-oriented EFI combinations.

Q: Will this LS high rise intake fit under a factory hood?
A: Because this LS high rise intake measures 12.03 in tall, hood clearance should always be checked before purchase. High-rise LS intake designs are commonly used on builds that already have additional hood clearance or modified engine bay packaging.

Q: Does this LS aluminum intake include fuel rails?
A: Yes. This LS aluminum intake includes EFI fuel rails, which helps simplify installation for customers building a complete EFI intake upgrade.

Q: Does this LS intake manifold support a 102 mm throttle body?
A: Yes. This LS intake manifold features a 102 mm throttle body bore, making it a strong match for high-flow EFI combinations that require increased airflow capacity.

Q: Is this LS manifold better for street driving or high-RPM performance builds?
A: Based on its HI-RAM design and listed RPM range, this LS manifold is best suited for upper-RPM performance applications. It is a popular style for race-oriented, boosted, or aggressive naturally aspirated EFI builds.

Q: Will my existing injectors, throttle body, and other EFI parts work with this intake manifold fuel injection setup?
A: Compatibility can vary by build. Before ordering, buyers should confirm throttle body size, injector setup, fuel rail layout, and other EFI hardware to ensure the intake manifold fuel injection system matches their specific LS combination.

Q: What should I verify before ordering this EVIL ENERGY intake manifold?
A: Before purchasing, confirm cylinder head port style, EFI compatibility, throttle body size, hood clearance, and your overall engine combination. Checking these details in advance helps ensure the EVIL ENERGY intake manifold is the right fit for your project.
