EVIL ENERGY Front Wheel Spacers for 2004-2023 F150 2WD 4WD-Suspension Forged Strut Spacers (2-3 Inch)
- $45.99
- $45.99
$0.00- Unit price
- per
SKU:
EVKT04595RD-AMZ1
Product Type:
Lift Blocks
| Brand | EVIL ENERGY |
| Auto Part Position | Front |
| Material | 6061-T6 aluminum |
| Included Components | • 2 × front strut spacers (housing) with studs • Lock nuts and washers • Installation instructions |
| Maximum Lifting Height | • 2.0 inch option • 2.5 inch option • 3.0 inch option |
| Spacer Thickness | • 2.0 inch lift: 1.34 in • 3.0 inch lift: 1.97 in |
| Bolt Grade | 12.9 grade |
| Finish | Red anodized, heat treated |
| Compatible Models |
Leveling Lift Kit for Ford • 2004-2023 Ford F-150 2WD • 2004-2023 Ford F-150 4WD |
| Installation | Bolt-on; no cutting, drilling or coil spring compression |
Which F-150 leveling kit height fits your truck?
Upgrade your Ford F-150's suspension with the Evil Energy F-150 leveling lift kit, designed for 2004-2023 2WD and 4WD models. Choose a 2.0, 2.5 or 3.0 inch front lift to level the front end with the rear, enhancing your truck's overall look and off-road capability.
The kit spans four F-150 generations, from the 11th-generation trucks that arrived in 2004 through the 14th-generation trucks of 2021-2023, so one part number per height covers most half-ton Fords on the road.
Lift options
2.0 / 2.5 / 3.0 in
Model years
2004-2023
Drive
2WD & 4WD
Install time
About 1-2 hours
Why choose this F-150 leveling lift kit?
01
Tailored for Your F-150: Specifically designed for the 2004-2023 Ford F-150, this leveling kit provides a precise fit and a performance boost.
02
Durability & Reliability: Machined from forged 6061-T6 aluminum to ensure long-lasting strength, even in tough conditions.
03
Affordable & Efficient: A cost-effective solution for leveling your truck and improving ride height without the cost of a full suspension lift.
04
Enhanced Performance: Ideal for off-road enthusiasts, this kit improves your truck's ground clearance and makes way for larger wheels and tires.
How do the 2.0, 2.5 and 3.0 inch F-150 sizes compare?
All three sizes use the same bolt-on F-150 front strut spacer design; only the thickness changes. Pick the height by the tires you plan to run and the weight you carry up front.
| Size | 2.0 inch | 2.5 inch | 3.0 inch |
| Spacer thickness | 1.34 in | Between 2.0 and 3.0 | 1.97 in |
| Stance | Removes most factory rake | Levels nearly every F-150 | Slightly nose-high |
| Best for | Stock or slightly taller tires | 33 inch tires on many trims | Steel winch bumper or plow mount |
What is the F-150 leveling spacer made of?
Five details decide how a Ford F-150 strut spacer holds up over years of daily driving, towing and gravel roads.

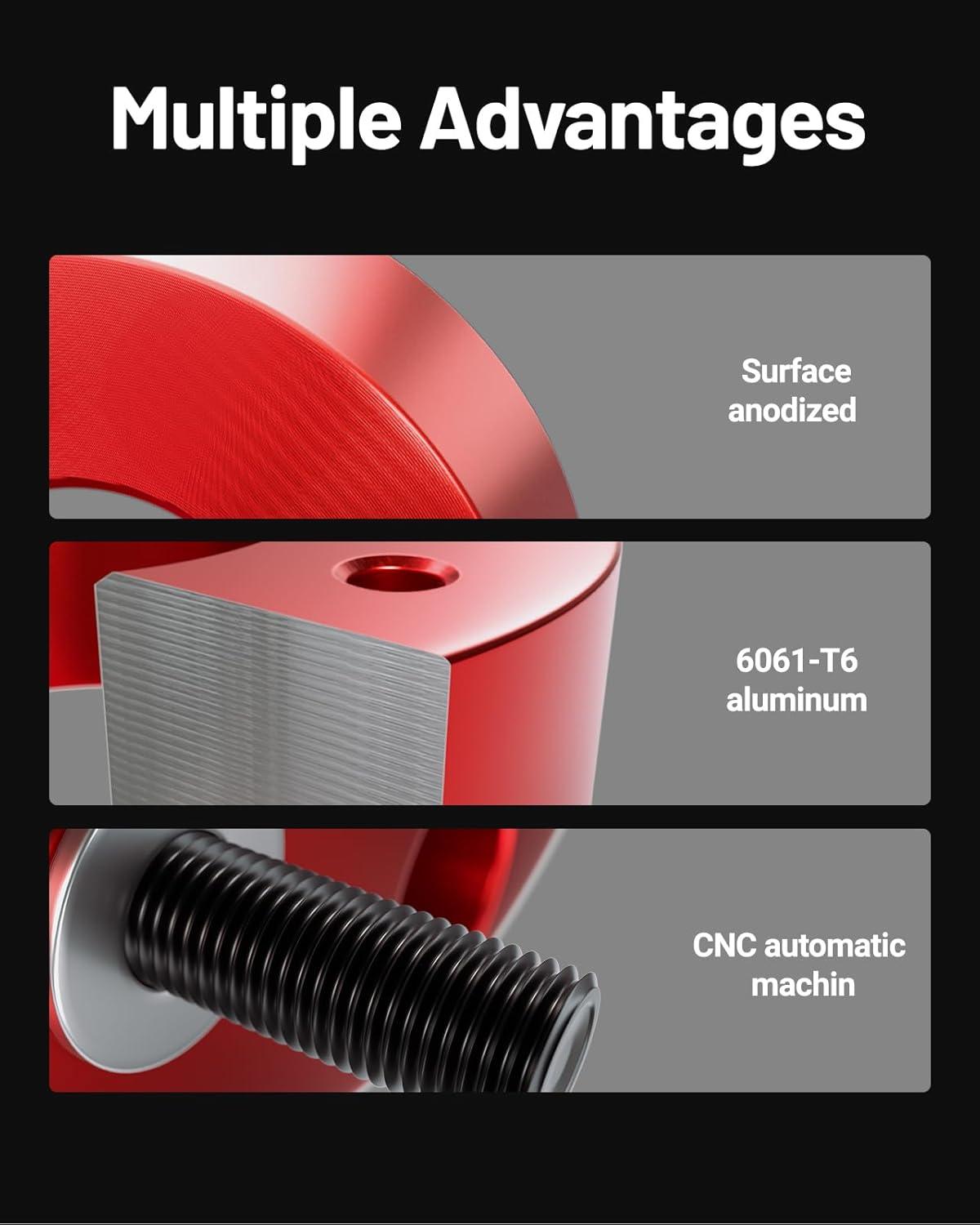

Finish
Will the anodized finish survive F-150 winters?
The red anodized shell is part of the aluminum surface rather than a coat of paint, so it will not peel when gravel or road salt hits the F-150 strut spacer behind the front tire.
Material
Is the F-150 leveling spacer aluminum or steel?
Each F-150 front leveling spacer is forged 6061-T6 aluminum. It is lighter than a steel spacer, so it does not add unsprung weight, and unlike polyurethane it does not compress or lose height over time.
Machining
Why do precise stud holes matter on an F-150 spacer?
The CNC-machined holes match the F-150 strut top mount, so the strut seats squarely in the frame bucket. A misaligned spacer can tilt the strut and cause clunks over bumps.
Hardware
What hardware comes with the F-150 kit?
The kit ships with 12.9 grade studs and nylon-insert lock nuts. Grade 12.9 is stronger than the common 10.9 class, which gives extra margin on a 5,000-plus pound half-ton pickup.
Heat treatment
How does heat treatment help on rough roads?
Heat treating brings the aluminum to the T6 temper, raising its hardness and fatigue resistance, so the F-150 strut spacer holds up to washboard gravel, potholes and trail use.
Does this leveling kit fit my F-150?
The F-150 leveling lift kit fits coilover-front Ford F-150 pickups from 2004 through 2023. Check these three points against your truck:
Model years
2004-2023 Ford F-150
Drive type
2WD and 4WD
Cab and bed
Regular Cab, SuperCab, SuperCrew; any bed length
How do you install an F-150 leveling kit at home?
With jack stands and basic hand tools, most DIY installs take about 1-2 hours. There is no need to compress the coil spring.
1
Remove the spring assembly: take off the wheel, disconnect the sway bar end link and lower the knuckle to free the strut.
2
Locate the installation position on top of the strut mount.
3
Install the leveling spacer with the supplied studs and lock nuts.
4
Install back to the vehicle, torque to factory spec, then align the front end.
Want to lift both ends of your F-150?
The F-150 3 inch front 2 inch rear kit adds 2 inch rear lift blocks and U-bolts. Bigger tires on a leveled F-150 often pair with 6x135 wheel spacers for the F-150 to clear the upper control arm.
Shop the F-150 3/2 kit →Why Choose Evil Energy?
Elevate your F-150 with our suspension upgrades, including leveling kits, lift blocks, wheel spacers and coilovers built for Ford trucks.
We prioritize quality control, ensuring each component meets rigorous standards for perfect fitment and durability, effectively addressing common ride-height and tire-clearance challenges faced by F-150 owners.
✓ Enhanced Performance: Our leveling parts add ground clearance and room for larger tires.
✓ Professional Grade: Ideal for serious modifiers seeking reliable and high-performance upgrades.
✓ Fast Shipping: Orders are processed within 1-2 business days for quick delivery.
✓ Easy Returns: Enjoy a hassle-free 90-day return policy with free return shipping (Requires no use or installation, packaging intact). 90-180 days will be charged a 15% operating fee.
✓ Warranty: EVIL ENERGY provides 1-year warranty on this kit. For questions, reach out to us via email.
