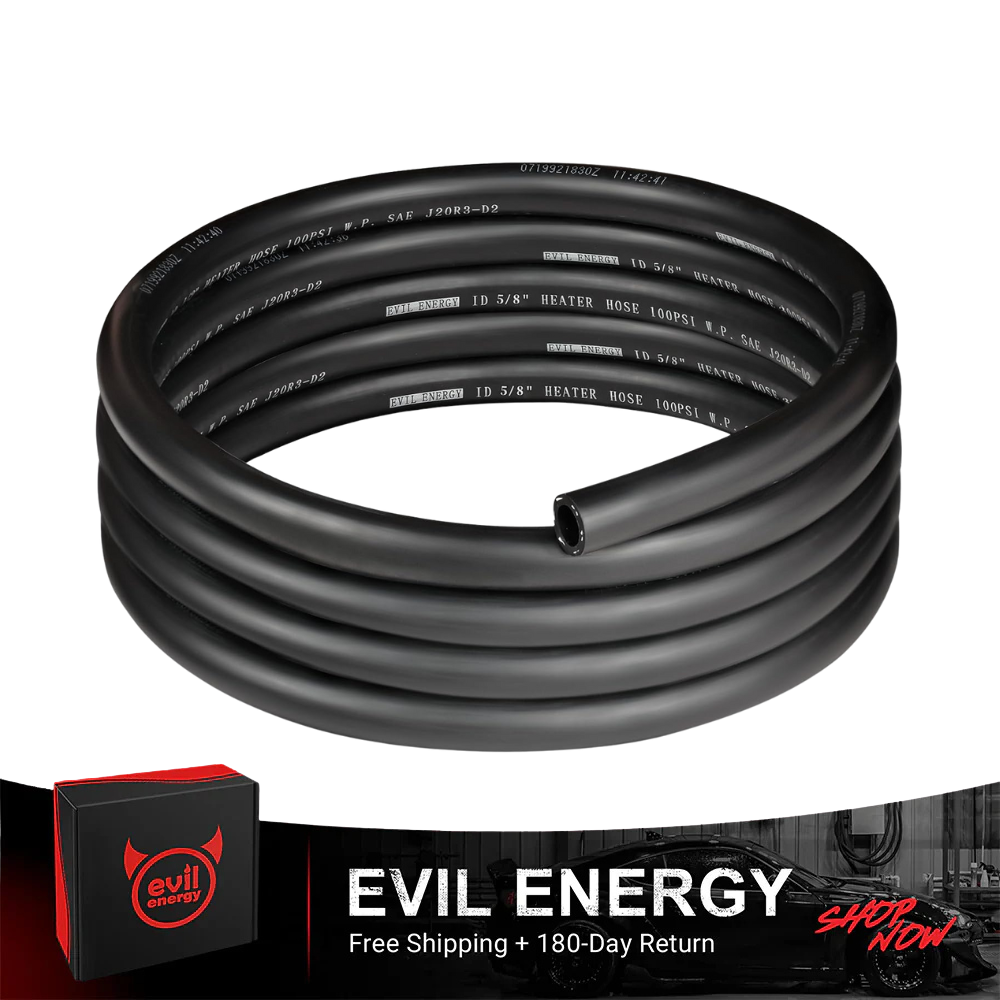

[10FT]
[15FT]
[20FT]

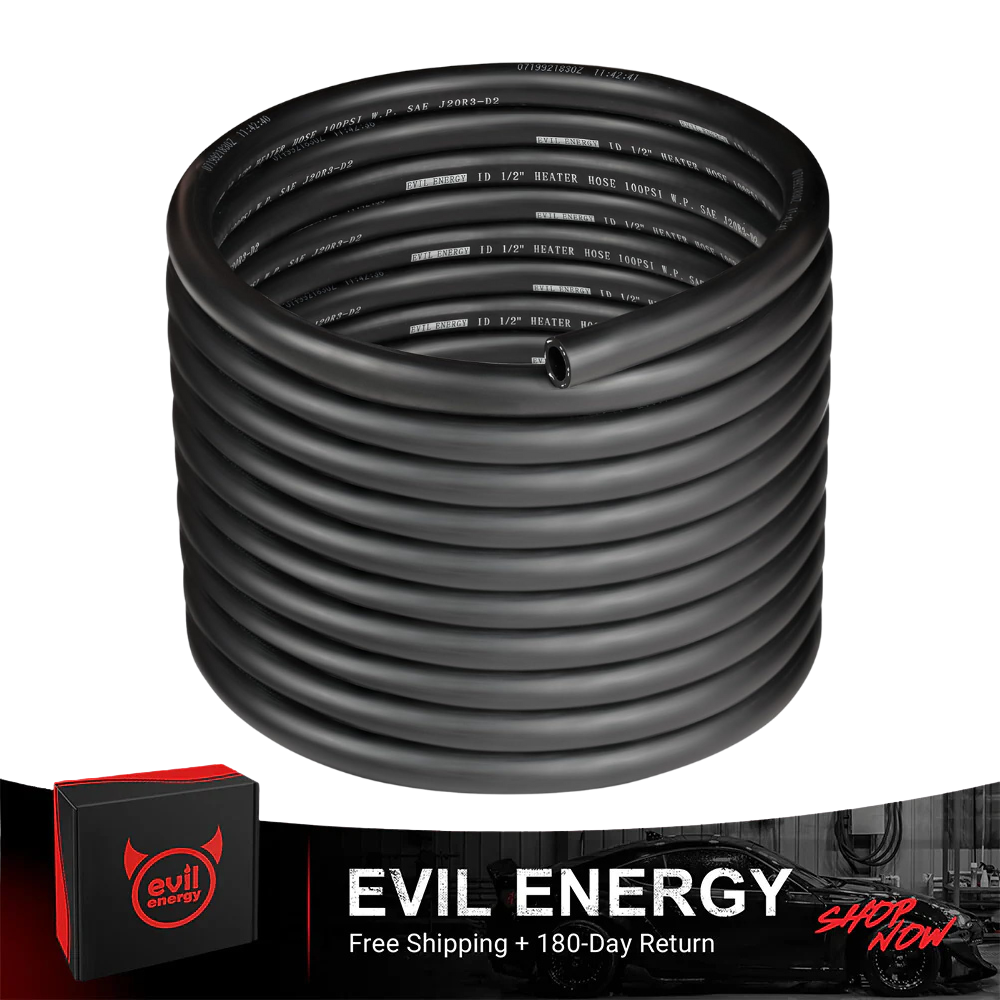

[25FT]
[50FT]
[1/2 inch,25FT]
[5/8 inch,5FT]
[3/8 inch,25FT]
[5/8 inch,25FT]
[3/8 inch,20FT]
[3/8 inch,10FT]
[5/8 inch,15FT]
[1/2 inch,20FT]
[1/2 inch,10FT]
[3/4 inch,25FT]
[1 inch,10FT]
[1 inch,20FT]
[5/16 inch,20FT]
[3/4 inch,15FT]
[5/16 inch,15FT]
[5/16 inch,25FT]
[5/16 inch,10FT]
[1/2 inch,15FT]
[3/4 inch,10FT]
[1 inch,15FT]
[1 inch,25FT]
[3/4 inch,20FT]
[5/8 inch,10FT]
[5/8 inch,20FT]
[3/8 inch,15FT]
[3/4 inch,50FT]
[5/8 inch,50FT]
[1/2 inch,5FT]
[3/8 inch,5FT]
[3/4 inch,5FT]
[1 inch,5FT]
[5/16 inch,5FT]
[3/8 inch,20FT]
[5/8 inch,15FT]
[3/8 inch,10FT]
[1/2 inch,20FT]
[1/2 inch,10FT]
[3/4 inch,25FT]
[1 inch,10FT]
[5/16 inch,20FT]
[1/2 inch,15FT]
[1 inch,20FT]
[3/4 inch,15FT]
[5/16 inch,15FT]
[5/16 inch,25FT]
[5/16 inch,10FT]
[1/2 inch,25FT]
[5/8 inch,25FT]
[1 inch,15FT]
[3/4 inch,10FT]
[1 inch,25FT]
[3/4 inch,20FT]
[5/8 inch,20FT]
[5/8 inch,10FT]
[3/8 inch,15FT]
[5/8 inch,50FT]
[3/4 inch,50FT]
[1/2 inch,5FT]
[3/4 inch,5FT]
[3/8 inch,5FT]
[1 inch,5FT]
[5/8 inch,5FT]
[5/16 inch,5FT]

EVIL ENERGY Heater Hose Coolant Radiator Straight 100PSI SAE 20R3 (5/8,1/2,3/4,3/8,5/16,1 inch)

SKU: EVCS07282S5BK-1.5
Product Type: Heater Hose
$17.39
$17.39
Size: 5/16 inch
Length: 5FT

The EVIL ENERGY Heater Hose is designed for high-temperature and high-pressure cooling system applications. Made from durable EPDM rubber and compliant with SAE 20R3 Class D-2, it delivers long-lasting flexibility and resistance to heat, ozone, and coolant chemicals.

Rated for up to 100 PSI and -40°F to 257°F, this hose ensures stable flow and reliable performance in radiators, heater cores, and overflow tanks. Available in multiple ID sizes (5/16 inch to 1 inch) and lengths up to 25FT for universal installation across classic, performance, and heavy-duty engines.

Ideal for those upgrading or restoring engine cooling systems, 454 big block builds, or custom EFI setups that demand consistent coolant circulation and long-term durability.

Secure online checkout with free 1-year warranty, 180-day money-back guarantee, free shipping over $50, and expert customer support from EVIL ENERGY.
[5FT]

EVIL ENERGY Heater Hose Coolant Radiator Straight 100PSI SAE 20R3 (5/8,1/2,3/4,3/8,5/16,1 inch)

$17.39
[5FT]
[10FT]
[15FT]
[20FT]
[25FT]
[50FT]
[1/2 inch,25FT]
[5/8 inch,5FT]
[3/8 inch,25FT]
[5/8 inch,25FT]
[3/8 inch,20FT]
[3/8 inch,10FT]
[5/8 inch,15FT]
[1/2 inch,20FT]
[1/2 inch,10FT]
[3/4 inch,25FT]
[1 inch,10FT]
[1 inch,20FT]
[5/16 inch,20FT]
[3/4 inch,15FT]
[5/16 inch,15FT]
[5/16 inch,25FT]
[5/16 inch,10FT]
[1/2 inch,15FT]
[3/4 inch,10FT]
[1 inch,15FT]
[1 inch,25FT]
[3/4 inch,20FT]
[5/8 inch,10FT]
[5/8 inch,20FT]
[3/8 inch,15FT]
[3/4 inch,50FT]
[5/8 inch,50FT]
[1/2 inch,5FT]
[3/8 inch,5FT]
[3/4 inch,5FT]
[1 inch,5FT]
[5/16 inch,5FT]
[3/8 inch,20FT]
[5/8 inch,15FT]
[3/8 inch,10FT]
[1/2 inch,20FT]
[1/2 inch,10FT]
[3/4 inch,25FT]
[1 inch,10FT]
[5/16 inch,20FT]
[1/2 inch,15FT]
[1 inch,20FT]
[3/4 inch,15FT]
[5/16 inch,15FT]
[5/16 inch,25FT]
[5/16 inch,10FT]
[1/2 inch,25FT]
[5/8 inch,25FT]
[1 inch,15FT]
[3/4 inch,10FT]
[1 inch,25FT]
[3/4 inch,20FT]
[5/8 inch,20FT]
[5/8 inch,10FT]
[3/8 inch,15FT]
[5/8 inch,50FT]
[3/4 inch,50FT]
[1/2 inch,5FT]
[3/4 inch,5FT]
[3/8 inch,5FT]
[1 inch,5FT]
[5/8 inch,5FT]
[5/16 inch,5FT]
EVIL ENERGY Heater Hose Coolant Radiator Straight 100PSI SAE 20R3 (5/8,1/2,3/4,3/8,5/16,1 inch)
EVIL ENERGY Heater Hose Coolant Radiator Straight 100PSI SAE 20R3 (5/8,1/2,3/4,3/8,5/16,1 inch)
EVIL ENERGY Heater Hose Coolant Radiator Straight 100PSI SAE 20R3 (5/8,1/2,3/4,3/8,5/16,1 inch)

EVIL ENERGY Heater Hose Coolant Radiator Straight 100PSI SAE 20R3 (5/8,1/2,3/4,3/8,5/16,1 inch)

$17.39
Size: 5/16 inch
Length: 5FT

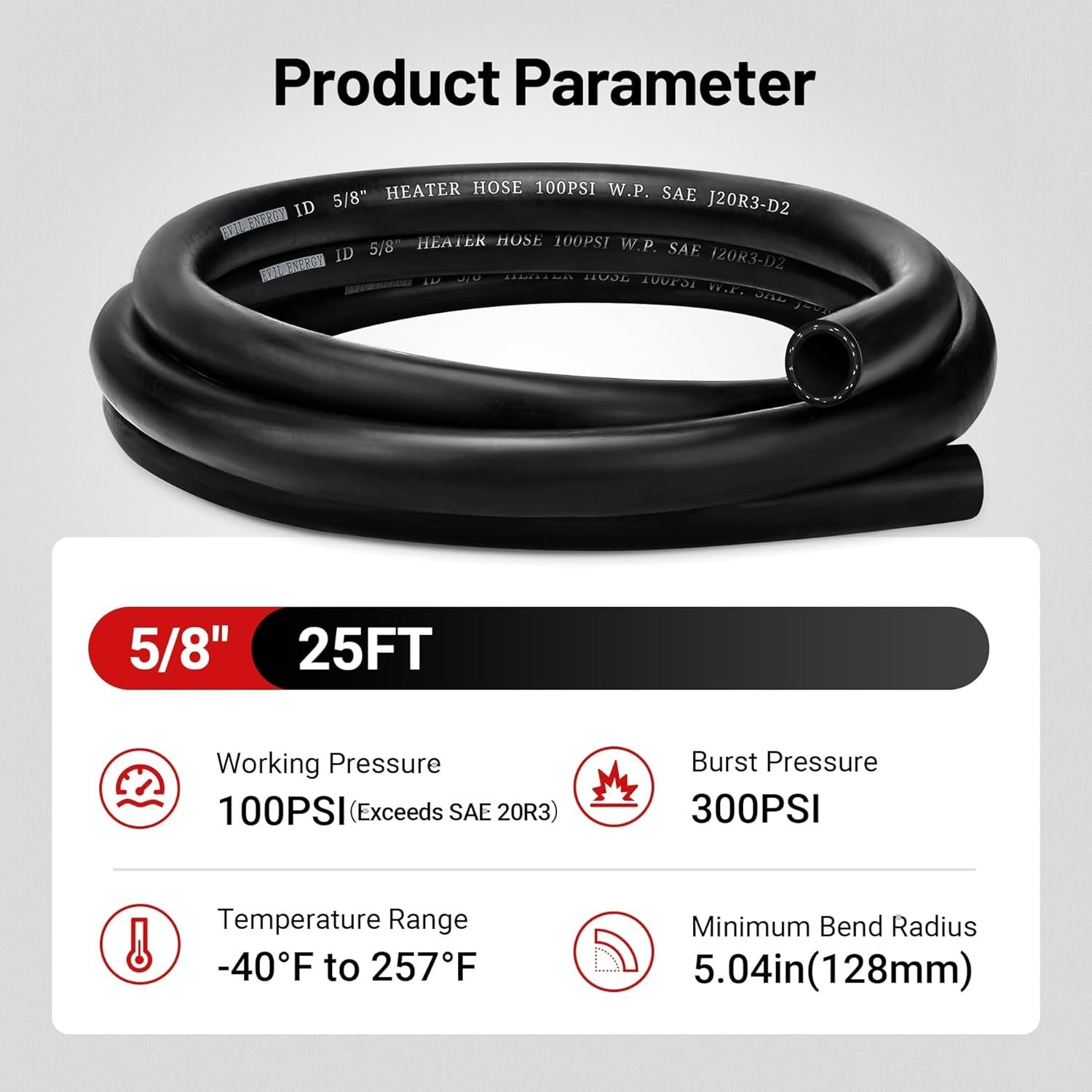

Specifications

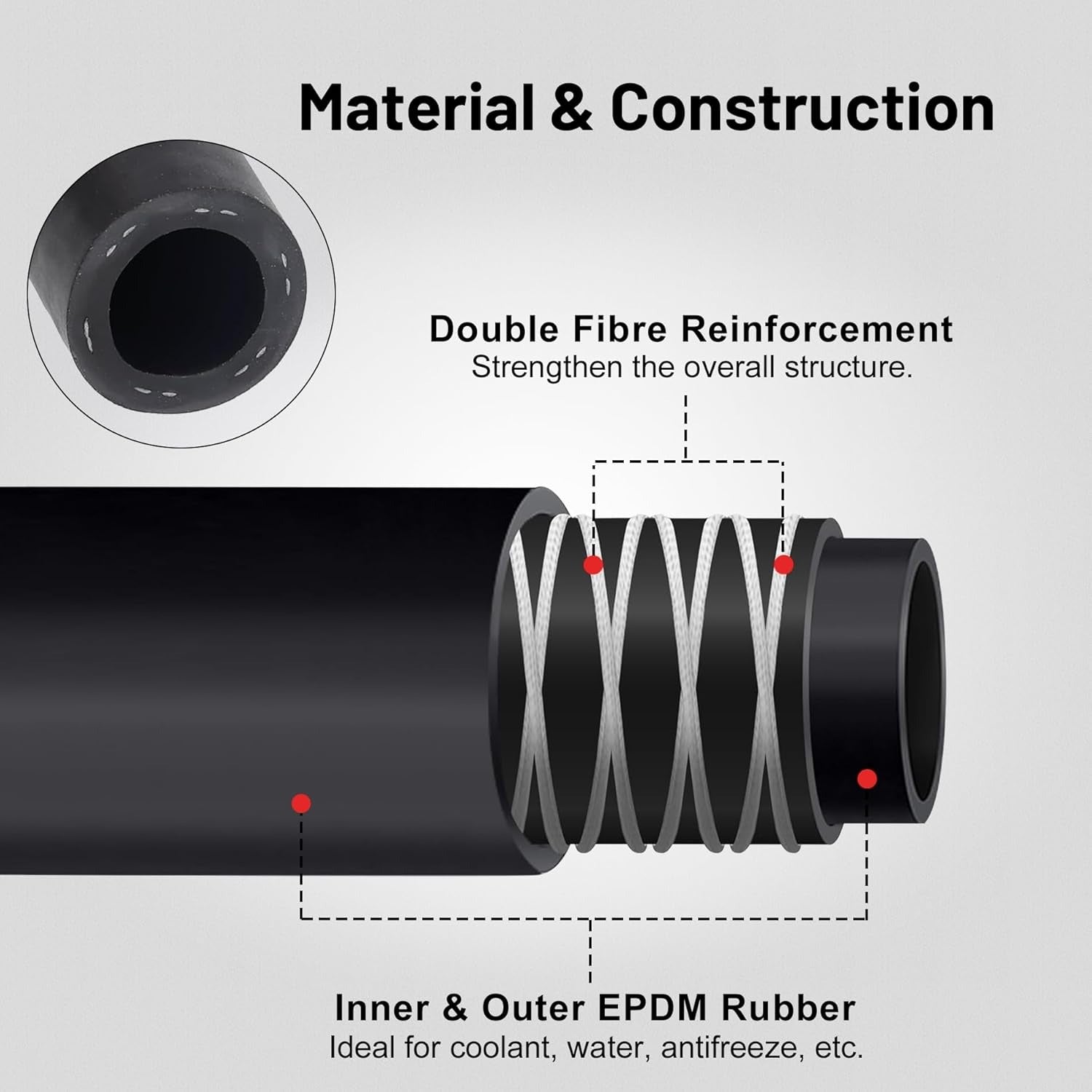

Material EPDM Rubber
Standard SAE 20R3, Class D-2
Finish Black Smooth Exterior
Working Pressure Up to 100 PSI (varies by size)
Burst Pressure 180–400 PSI
Temperature Range -40°F to 257°F (-40°C to 125°C)

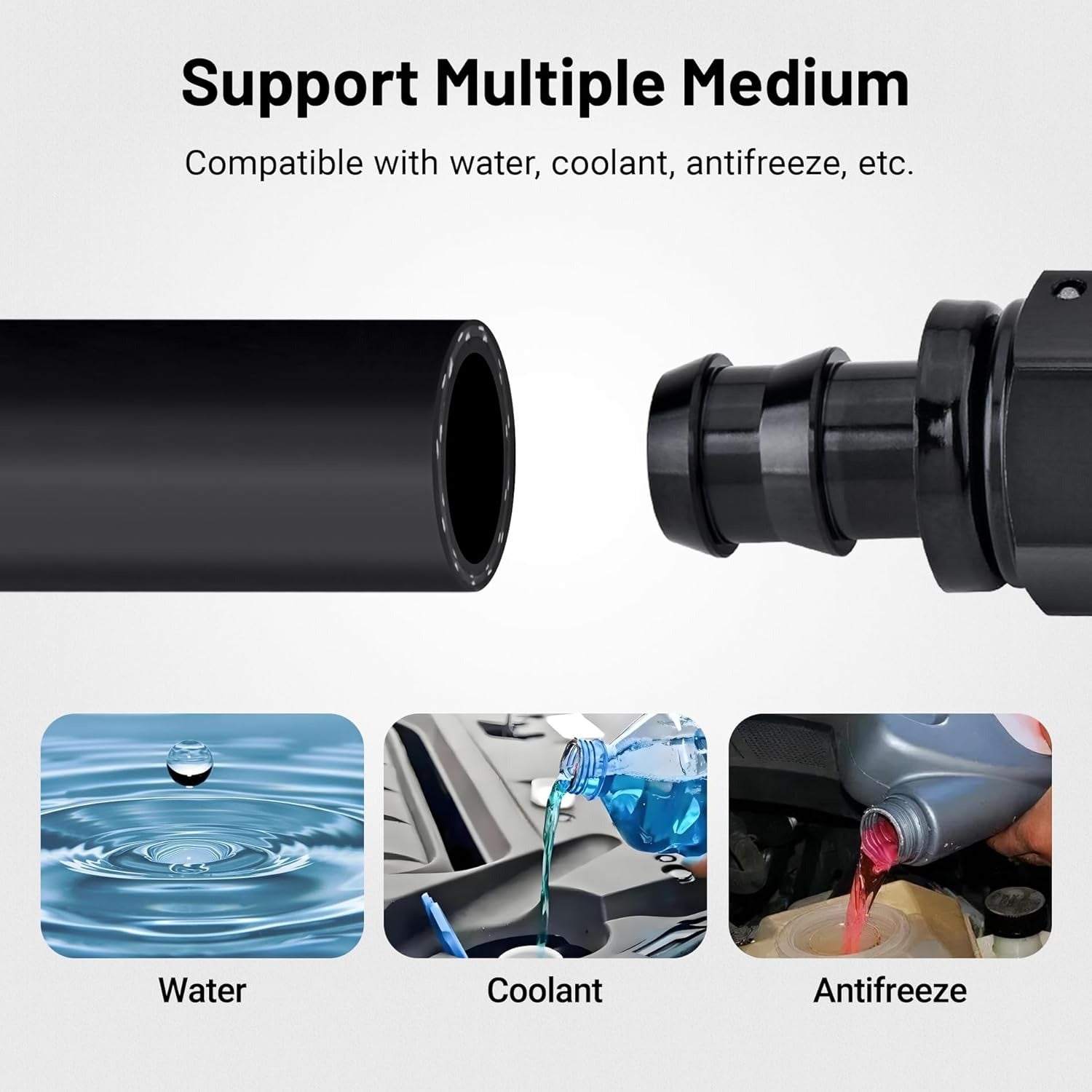

Compatibility Coolant, Water, Antifreeze

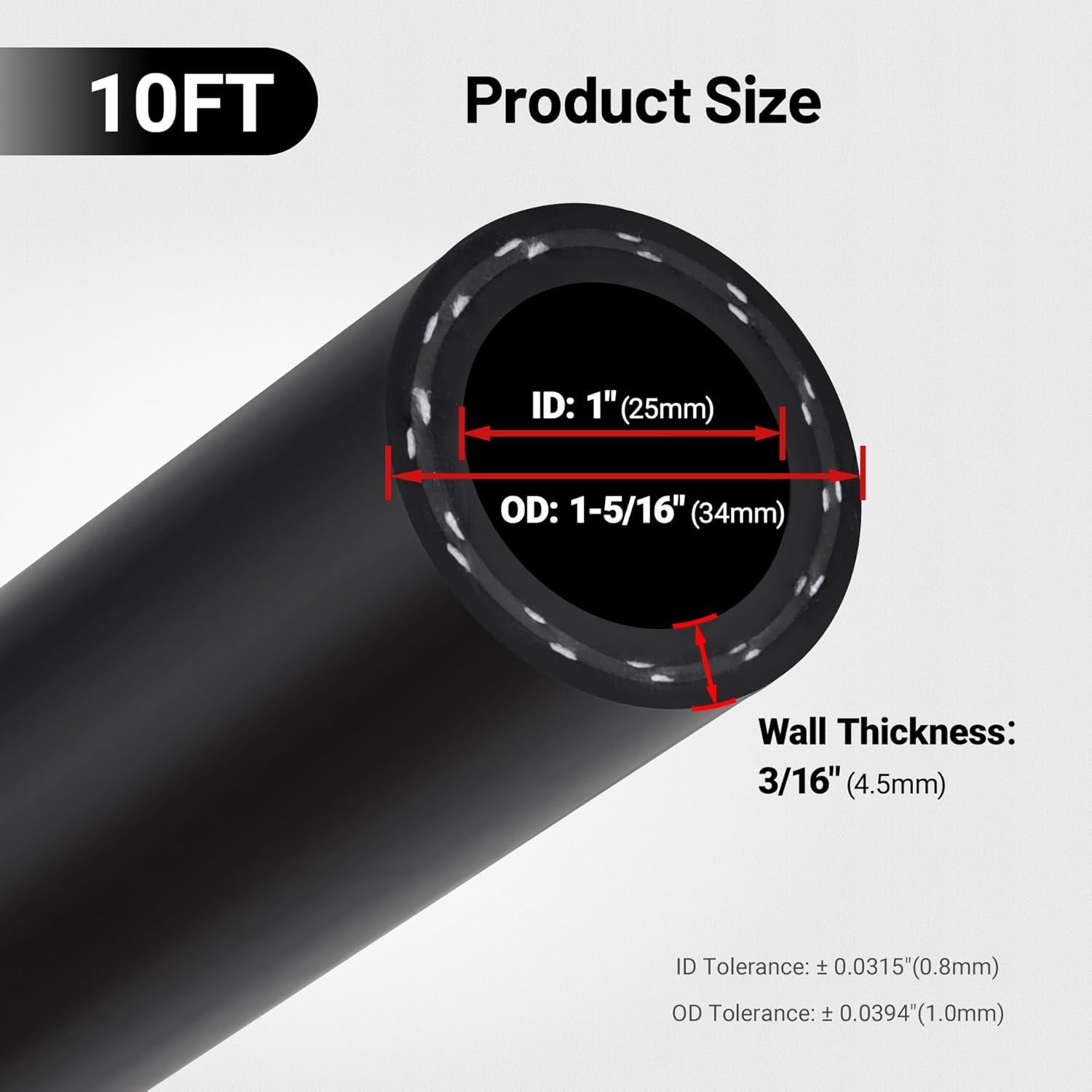

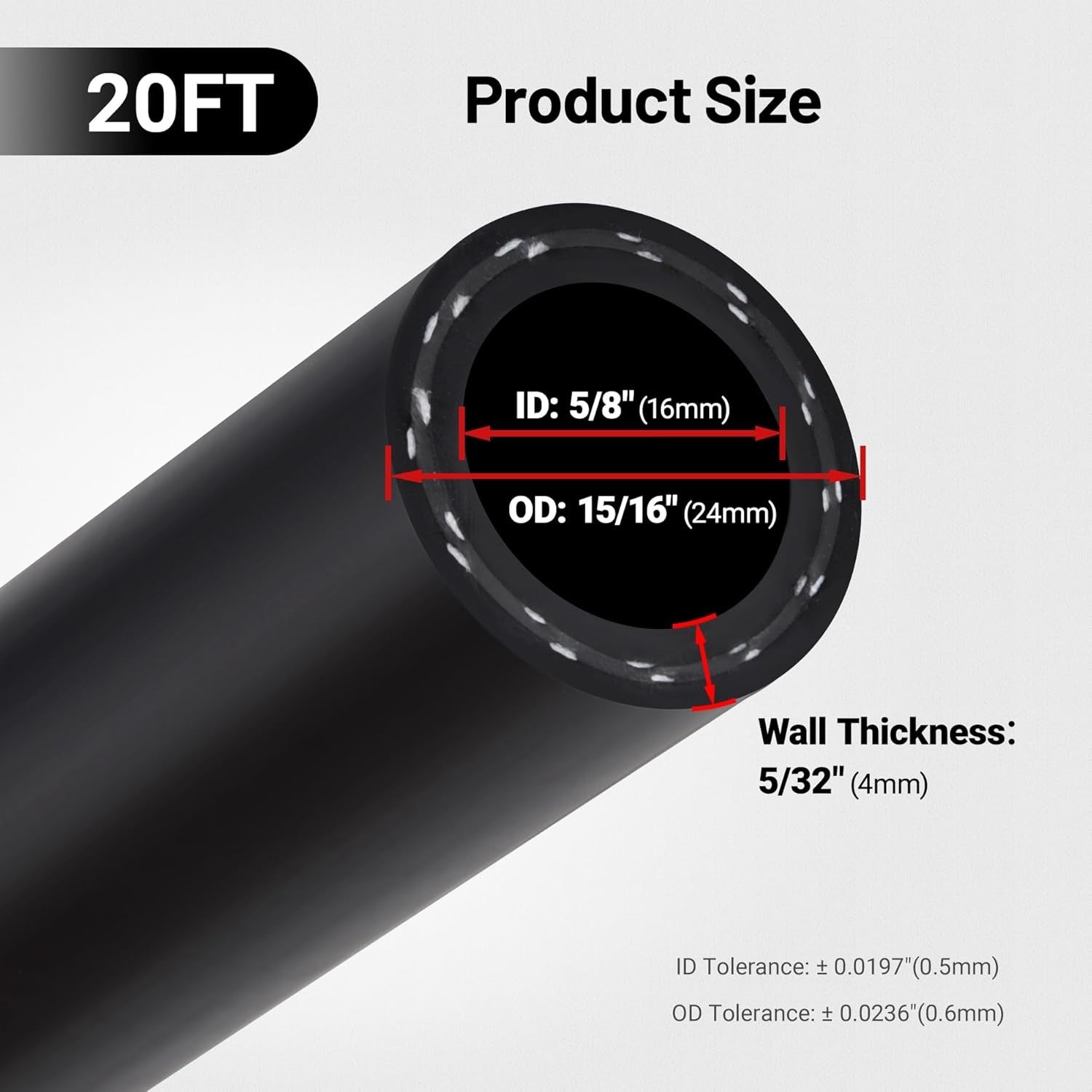

Sizes Available (ID / OD) 5/16 inch: 8mm / 14mm
3/8 inch: 9.5mm / 16mm
1/2 inch: 13mm / 20mm
5/8 inch: 16mm / 24mm
3/4 inch: 19mm / 28mm
1 inch: 25mm / 34mm
Length Options 5FT / 10FT / 15FT / 20FT / 25FT/ 50FT
Minimum Bend Radius 5/16 inch: 64mm
3/8 inch: 76mm
1/2 inch: 104mm
5/8 inch: 128mm
3/4 inch: 152mm
1 inch: 200mm

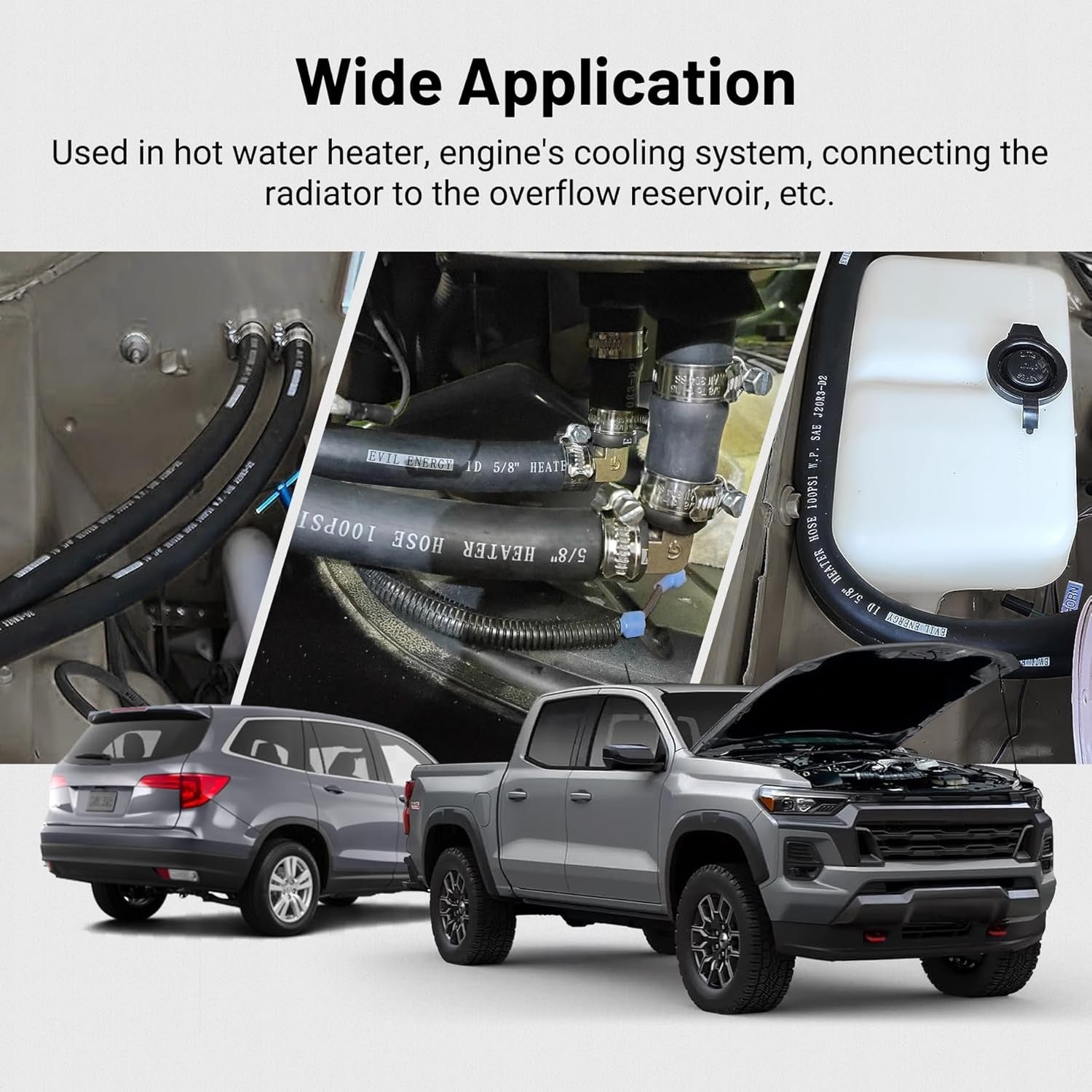

Applications Heater core, radiator, overflow tank, engine cooling system

Description

Built for professional automotive performance, the EVIL ENERGY EPDM Heater Hose withstands extreme conditions while maintaining flexibility and leak-free sealing. It resists coolant degradation, electrochemical corrosion, and heat aging, ensuring long service life even under continuous high-temperature operation.
Perfect for engine swaps, custom builds, and radiator system repairs, this hose simplifies routing and supports clean, OEM-style installations. Pair with EVIL ENERGY AN fittings or barb adapters for a complete, reliable coolant line solution.

Straight Heater Hose SAE 20R3MaterialFuel Line Hose seriesApplication
