EVIL ENERGY Leveling Lift Kit For 2004-2023 F150 2WD 4WD, Front Suspension Forged Strut Spacers (2-3inch)
EVIL ENERGY EVIL ENERGY Front Leveling Kits For 2007-2023 Chevy Silverado 1500 GMC Sierra 1500 2WD 4WD Suspension Forged Strut Spacers Lift Kits(2-3 inch )
EVIL ENERGY EVIL ENERGY Front Leveling Kits For 2007-2023 Chevy Silverado 1500 GMC Sierra 1500 2WD 4WD Suspension Forged Strut Spacers Lift Kits(2-3 inch )
EVIL ENERGY EVIL ENERGY Front Leveling Kits For 2007-2023 Chevy Silverado 1500 GMC Sierra 1500 2WD 4WD Suspension Forged Strut Spacers Lift Kits(2-3 inch )
EVIL ENERGY EVIL ENERGY Front Leveling Kits For 2007-2023 Chevy Silverado 1500 GMC Sierra 1500 2WD 4WD Suspension Forged Strut Spacers Lift Kits(2-3 inch )
EVIL ENERGY Front Wheel Spacers for 2007-2023 Chevy Silverado 1500 GMC Sierra 1500 2WD 4WD – Suspension Forged Strut Spacers (2-3 Inch) - EVILENERGY
3 inch
EVIL ENERGY Front Wheel Spacers for 2007-2023 Chevy Silverado 1500 GMC Sierra 1500 2WD 4WD – Suspension Forged Strut Spacers (2-3 Inch)
">

EVIL ENERGY Front Wheel Spacers for 2007-2023 Chevy Silverado 1500 GMC Sierra 1500 2WD 4WD – Suspension Forged Strut Spacers (2-3 Inch)

3 sold in last 10 hours
$43.99
$43.99
$59.99
Size: 2 inch
SKU: EVKT04592RD-AMZ1
Product Type: Lift Blocks

  • Compatibility: Compatible with 2007-2023 Silverado 1500 2WD 4WD,2007-2023 Sierra 1500 2WD 4WD
  • Benefits:Forged from 6061-T6 aluminum alloy material sturdy and durable,CNC automatic processing ensure high accuracy and stability, Provide accurate hole position for easy installation,12.9 Grade premium bolts excellent resistance to corrosion by anodized surface and heat treatment
  • Function:The kit provides unparalleled ground clearance to conquer off-road obstacles and allow to use larger rims and tires,install it make your truck a cool look
  • Installation:completed Installation within 1-2 hours, No cutting and drilling required and does not require strut/coil disassembly like other kits,With instructions to guide you to better installation
  • Note:Raise the front of your truck by 2 inch, Due to suspension geometry,the ratio between lift height and kit thickness is not 1:1

EVIL ENERGY checkout payment icons and shopping service
EVIL ENERGY Leveling Lift Kit For 2004-2023 F150 2WD 4WD, Front Suspension Forged Strut Spacers (2-3inch)

EVIL ENERGY Front Wheel Spacers for 2007-2023 Chevy Silverado 1500 GMC Sierra 1500 2WD 4WD – Suspension Forged Strut Spacers (2-3 Inch)

$43.99 $59.99
$43.99 $59.99

EVIL ENERGY Front Wheel Spacers for 2007-2023 Chevy Silverado 1500 GMC Sierra 1500 2WD 4WD – Suspension Forged Strut Spacers (2-3 Inch)

$43.99 $59.99
Size: 2 inch

Brand EVIL ENERGY
Auto Part Position Front
Material Forged 6061-T6 aluminum
Included Components • 2 × front strut spacers (housing) with pre-installed studs
• Lock nuts and washers
• Installation instructions
Maximum Lifting Height • 2 inch option
• 3 inch option
Spacer Thickness • 2 inch lift: 1.34 in
• 3 inch lift: 2.00 in
Bolt Grade 12.9 grade
Finish Red anodized, heat treated
Compatible Models Front Leveling Kit for Chevy
• 2007-2023 Chevy Silverado 1500 2WD
• 2007-2023 Chevy Silverado 1500 4WD
Front Leveling Kit for GMC
• 2007-2023 GMC Sierra 1500 2WD
• 2007-2023 GMC Sierra 1500 4WD
Not Compatible • Silverado 2500HD / 3500HD
• Sierra 2500HD / 3500HD
Installation Bolt-on; no cutting, drilling or coil spring compression

What does a front leveling kit do for the 2007-2023 Silverado 1500?

Designed specifically for Chevy Silverado owners, this Silverado 1500 front leveling kit improves the suspension's stance by raising the front height. GM builds the half-ton with the nose sitting lower than the bed, so a loaded truck still rides flat; on an empty daily driver that rake simply looks nose-down. Two forged aluminum strut spacers lift the front 2 or 3 inches, so the front fenders line up with the bed and the truck is better equipped for rough terrain, with better ground clearance and stability off-road.

The same strut spacers fit the GMC Sierra 1500 from 2007 through 2023, in both 2WD and 4WD.

What are the key features of this Silverado leveling kit?

High-Strength Forged Aluminum

Crafted from high-strength forged 6061-T6 aluminum, providing exceptional durability and corrosion resistance to withstand tough driving conditions.

Increased Front Height

Raises the front by 2-3 inches, improving visibility and road adaptability, particularly for off-road driving.

Easy Installation

No modification to the original vehicle structure required, with a simple installation process suitable for DIY enthusiasts, saving both time and installation costs.

Perfect Fit for 2007-2023 Chevy Silverado

Designed specifically for 2007-2023 Chevy Silverado 1500 and GMC Sierra 1500 models, ensuring a seamless fit and optimal performance.

Enhanced Suspension Performance

Improves suspension system performance, increasing stability on rough terrains and uneven surfaces.

Durability and Safety

Corrosion-resistant and rust-proof, designed to handle all weather conditions and terrains, ensuring long-term reliability and safety.

2 inch or 3 inch leveling kit for a Silverado 1500?

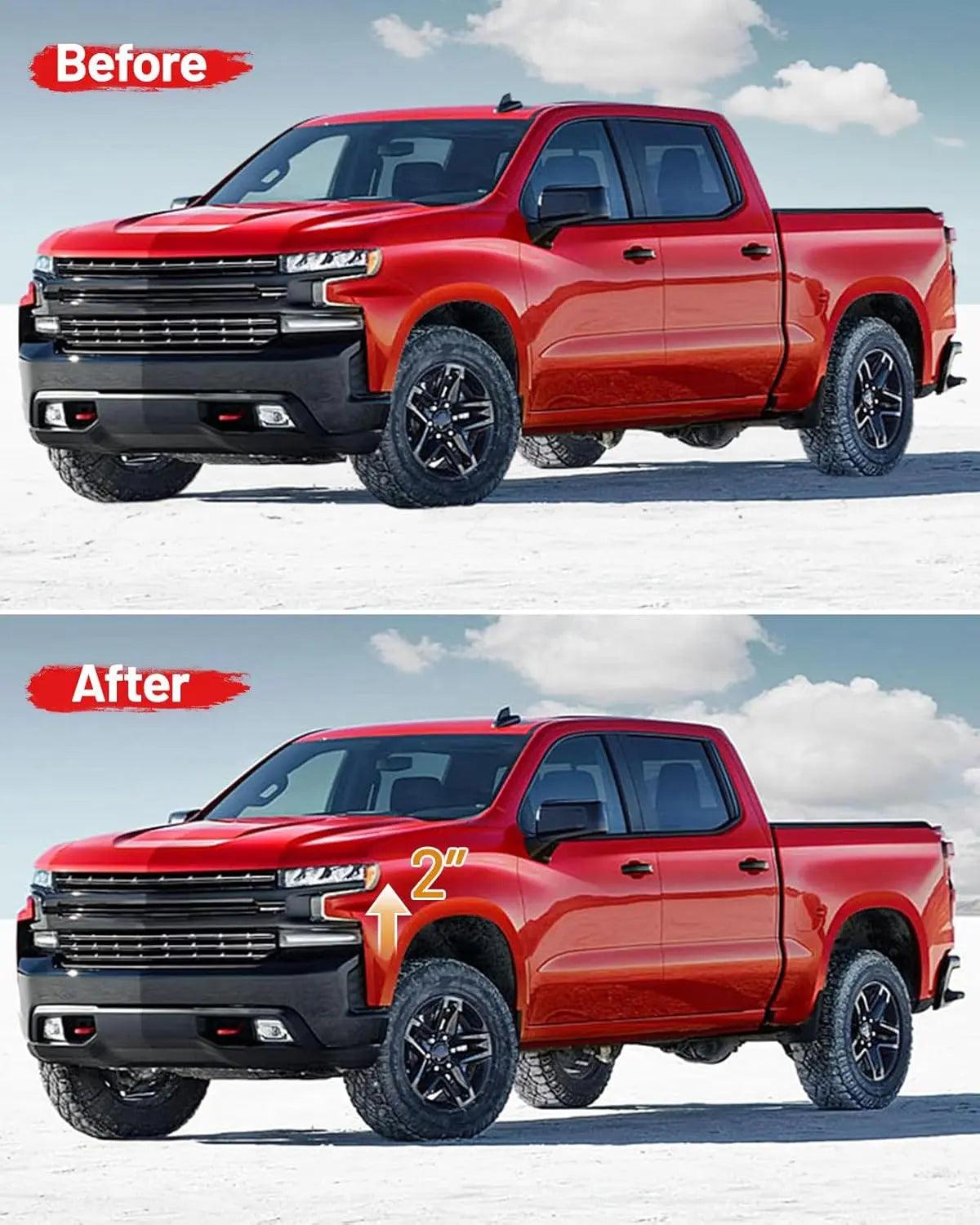

2 inch front leveling kit on a Chevy Silverado 1500

The 2 inch Silverado leveling kit uses a 1.34 inch thick spacer and cancels most of the factory rake, so the truck sits close to flat from front to rear. It suits a daily driver that keeps a near-stock tire size.

The 3 inch Silverado leveling kit uses a 2.00 inch spacer. The nose ends up slightly higher than the bed, which leaves room for a heavier steel front bumper, a winch, or a 33 inch class all-terrain tire.

Because the strut mounts partway along the lower control arm, the lift at the fender is about 1.5 times the spacer thickness.

2 inch lift · spacer 1.34 in



Near-level stance, stock-size tires, daily driving

3 inch lift · spacer 2.00 in



Slight nose-high stance, steel bumper or winch, 33 inch class tires

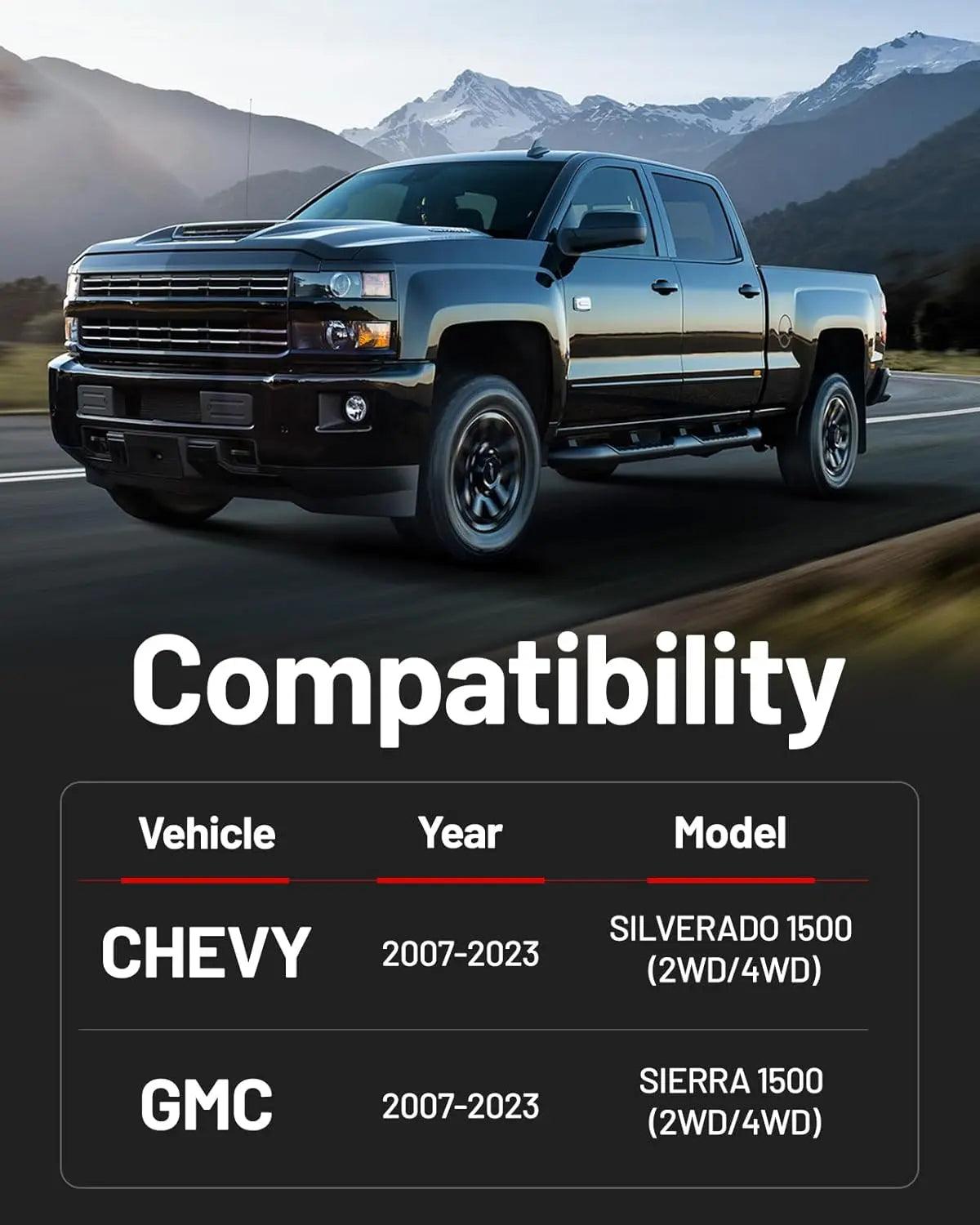

Which Silverado and Sierra trucks fit this leveling kit?

Compatibility chart for Chevy Silverado 1500 and GMC Sierra 1500 leveling kit 2007-2023

The Silverado 1500 strut spacers fit three generations of GM half-ton pickups:

Chevy Silverado 1500: 2007-2023, 2WD / 4WD

GMC Sierra 1500: 2007-2023, 2WD / 4WD

Does not fit Silverado or Sierra 2500HD / 3500HD trucks, which use torsion-bar front suspension

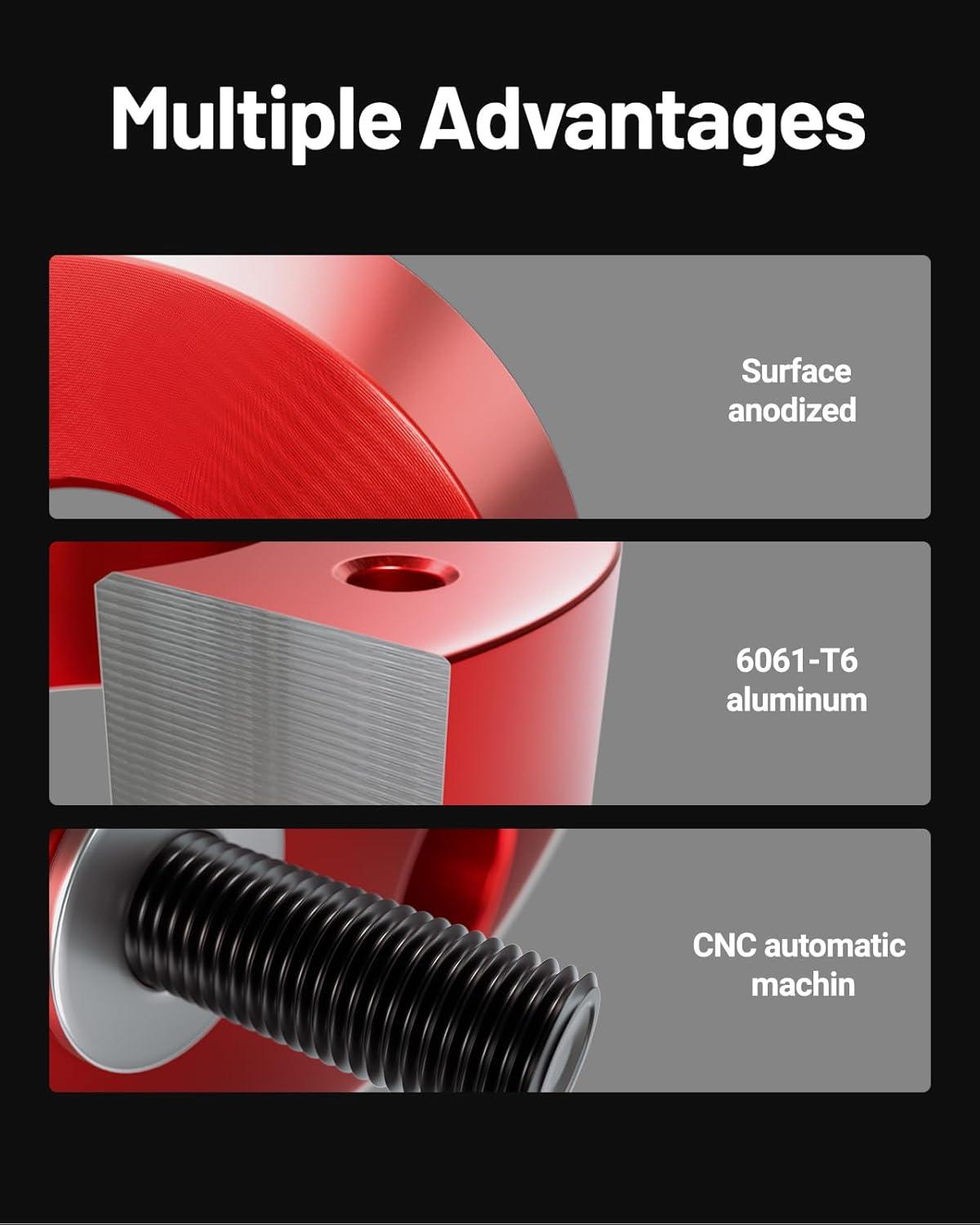

Why does an anodized finish matter on a leveling spacer?

Anodized surface of Silverado 1500 aluminum strut spacer

Anodizing turns the outer layer of the aluminum into a hard oxide shell. On a Silverado front strut spacer that sits right above the wheel, that shell resists road salt, brine and gravel spray, so the part does not chalk or corrode after a few winters.

What is 6061-T6 forged aluminum?

Forged 6061-T6 aluminum Silverado leveling spacer

6061-T6 is a heat-treated aluminum alloy widely used in truck and aircraft structures. Forging the billet before machining aligns the grain, so the forged Silverado leveling spacer keeps its shape under the front corner weight of a full-size pickup while weighing far less than steel.

How does CNC machining help the spacer fit?

CNC machined stud holes on Silverado strut spacer

Every stud hole is CNC drilled to line up with the factory strut top mount, so the Silverado 1500 leveling kit bolts on without slotting holes or forcing studs into place.

Why use 12.9 grade bolts on a leveling kit?

12.9 grade bolts and lock nuts for Silverado leveling kit

Grade 12.9 is the highest common metric strength class. The kit's studs and lock nuts hold the strut to the spacer through potholes, washboard roads and trail hits, and the lock nuts resist backing off from vibration.

What does heat treating add to the strut spacer?

Heat treated and hardened Silverado aluminum leveling spacer

Heat treating brings 6061 aluminum to its T6 temper, raising hardness and fatigue strength. That matters on a part loaded and unloaded thousands of times every mile on a 2007-2023 Silverado 1500.

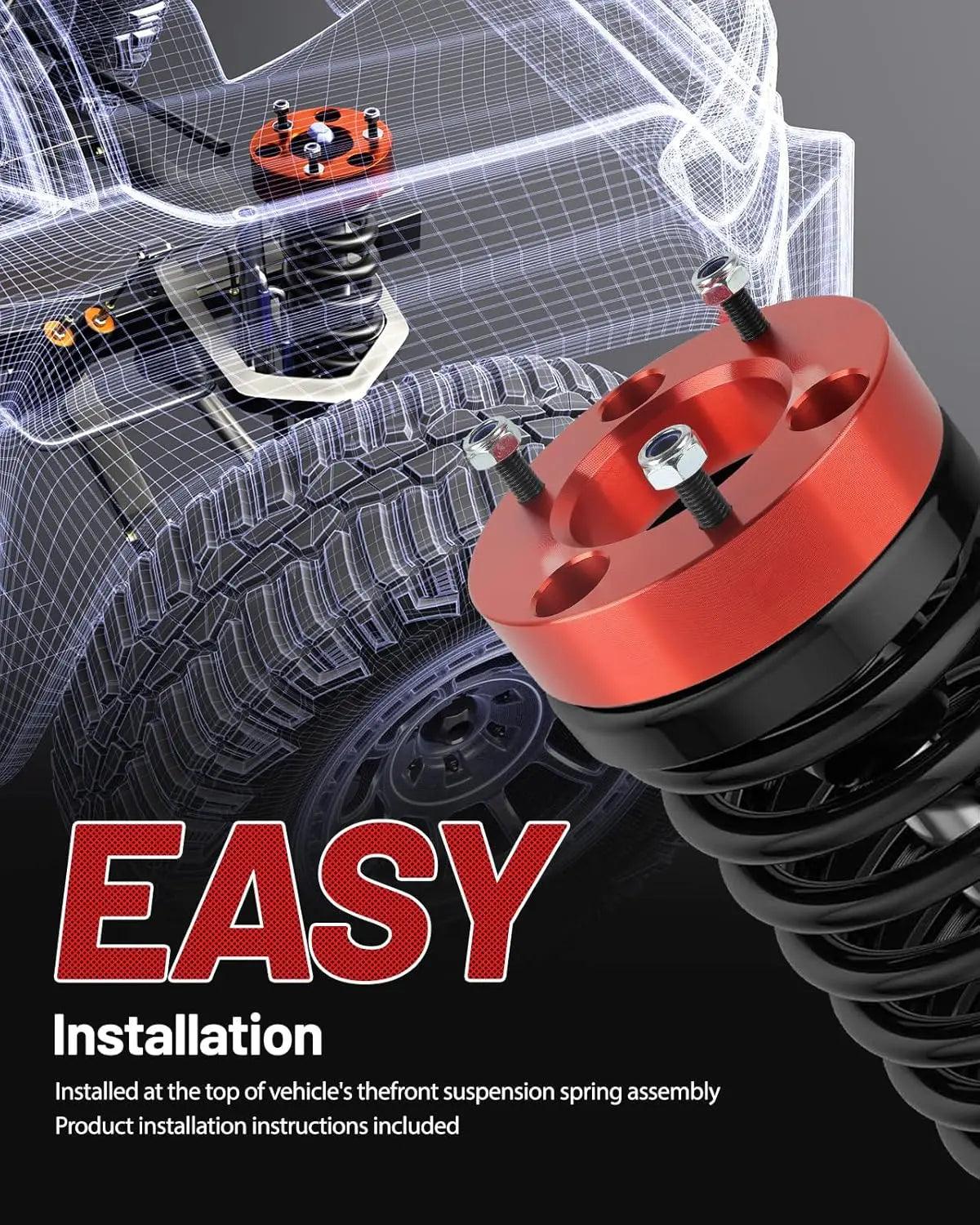

How do you install a Silverado 1500 leveling kit?

Installation steps for Silverado 1500 front strut spacer leveling kit

Most owners finish in about 1-2 hours per truck with a floor jack, jack stands, metric sockets and a torque wrench. The coil spring stays assembled the whole time.

1

Remove the strut assembly: lift the truck, remove the wheel, disconnect the sway bar end link and upper control arm ball joint, and unbolt the strut.

2

Find the installation position: the spacer goes on top of the strut, between the upper mount and the frame bucket.

3

Install the leveling spacer: bolt the spacer to the strut top with the supplied nuts.

4

Install back to the vehicle: reinstall the strut, torque every fastener to factory spec, then get a front-end alignment and re-aim the headlights.

Need the rear of your Silverado raised too?

The 3 inch front and 2 inch rear Silverado kit adds rear lift blocks and U-bolts. After leveling, many owners widen the stance with 6x5.5 wheel spacers for Silverado and Sierra, or compare every option in our truck leveling kits and lift blocks.

Why Choose Evil Energy?

Elevate your truck's stance with our suspension upgrades, including leveling kits, lift blocks, wheel spacers and coilovers for Silverado, Sierra and other full-size pickups.

We prioritize quality control, ensuring each component meets rigorous standards for perfect fitment and durability, effectively addressing common suspension challenges faced by truck owners.

Enhanced Performance

Our suspension parts add ground clearance and room for larger tires on your truck.

Professional Grade

Ideal for serious modifiers seeking reliable and high-performance upgrades.

Fast Shipping

Orders are processed within 1-2 business days for quick delivery.

Easy Returns

Enjoy a hassle-free 90-day return policy with free return shipping (Requires no use or installation, packaging intact). 90-180 days will be charged a 15% operating fee.

Warranty

EVIL ENERGY provides 1-year warranty on this kit. For questions, reach out to us via email.

For additional information, please contact us at support@ievilenergy.com.

More Products

Brand Summary

Policy Details
Cancellation Policy Orders can be canceled within 48 hours of placement. Refund processed in 3-5 business days.
Returns Policy Returns accepted within 180 days. Full refund within 90 days; 15% fee for 90-180 days.
Non-Returnable Items Only regular-priced items are eligible for refunds; sale items are non-refundable.
Refund Processing If no refund received, check your bank/credit card. For ongoing issues, contact support@ievilenergy.com.

Return Reasons

  1. Quality Issues: Provide photos/videos; we cover return shipping.
  2. Wrong Item Ordered: Buyer covers return shipping; email within 30 days.
  3. Change of Mind: Buyer covers return shipping; email within 30 days.
  4. Shipping Damage: Inspect packages; do not sign for damaged items.
  5. Incorrect Item Shipped: Contact within 7 days.

Price Protection Policy

Effective from August 25, 2024. Price drops within 7 days of purchase can be claimed.

Disclaimer

EVIL ENERGY reserves the right to interpret, modify, or terminate this policy in accordance with applicable laws and regulations.

If you need further information or assistance, feel free to ask!

Q: Should I pick the 2 inch or 3 inch leveling kit for my 2007-2023 Silverado 1500?

A: The 2 inch Silverado leveling kit brings most trucks close to level with the rear. The 3 inch kit leaves the nose slightly higher, which is useful if you plan to add a heavier steel front bumper or a winch. If you mostly drive on the street, the 2 inch is usually enough.

Q: Will a Silverado 1500 leveling kit affect ride comfort?

A: The strut spacer does not compress the coil spring or change spring rate, so ride feel stays close to stock. Some drivers notice slightly firmer front response over potholes because the suspension sits at a different point in its travel.

Q: Does the GMC Sierra 1500 Denali fit this leveling kit?

A: Yes, the kit fits 2007-2023 Sierra 1500 2WD/4WD, including the Denali. Some Denali trims come with factory adaptive suspension (MagneRide); the strut spacer still bolts on, but recheck ride height after installation and calibrate the headlights.

Q: Can I fit 33 inch tires on a Silverado 1500 with only a 2 inch leveling kit?

A: Many owners fit 275/60R20 or 275/65R18 tires (about 32-33 inches) after a 2 inch level on the stock wheels. Wider 33x12.50 tires usually need a wheel with more negative offset or wheel spacers.

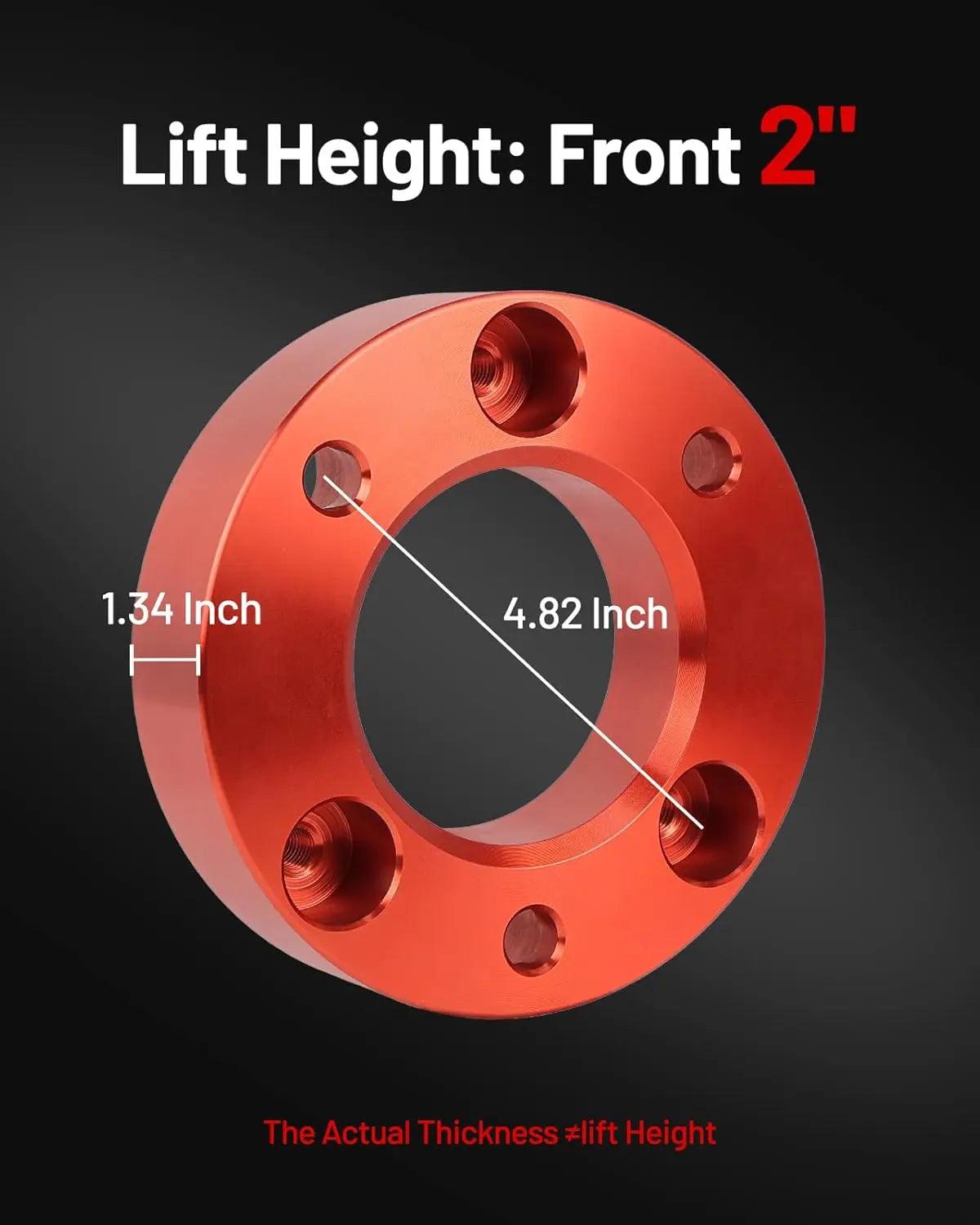

Q: What does a 1.34 inch spacer mean for a 2 inch lift?

A: The strut sits partway out on the lower control arm, so the spacer's lift at the fender is about 1.5 times its thickness. That is why a 1.34 inch thick spacer produces about 2 inches of lift.

Q: Will leveling my Silverado wear out the CV axles?

A: At 2 inches, CV axle angles change only slightly. At 3 inches on a 4WD truck, the angle is steeper, so inspect the CV boots for cracks at each oil change.

Q: How do I aim my headlights after leveling the Silverado?

A: Park on flat ground facing a wall about 25 feet away. Adjust the beam cutoff so it sits at or just below the height of the headlight center. Most Silverado headlights have a vertical adjustment screw on top of the housing.

Q: Is this Evil Energy Silverado leveling spacer made of steel or aluminum?

A: It is CNC machined from 6061-T6 aluminum, then anodized and heat treated. It is lighter than a steel spacer and does not rust in salt-belt winters.

Q: Do I need to remove the coil spring to install this leveling kit?

A: No. The spacer bolts to the top of the strut assembly, and the spring stays assembled. You only need to remove the whole strut assembly to install it.

Q: Will a front-only leveling kit make my Silverado sag when towing?

A: After leveling, the front and rear sit at about the same height, so the rear may drop slightly below the nose when towing. If you tow often, look at the 3 inch front 2 inch rear kit, which adds lift blocks at the rear.
