EVIL ENERGY Exhaust Manifold for 1983-1993 Ford Mustang SVO Thunderbird XR4Ti 2.3L

3 sold in last 10 hours
$169.00
$169.00
SKU: EVES08287
Product Type: Exhaust Manifold

Boost Your Ford's Power with Evil Energy!

Upgrade your 1983-1993 Ford Mustang SVO or Thunderbird XR4Ti with our high-performance exhaust manifold. Designed for 2.3L engines, it boosts horsepower and enhances sound.

EVIL ENERGY checkout payment icons and shopping service
EVIL ENERGY Exhaust Manifold for 1983-1993 Ford Mustang SVO Thunderbird XR4Ti 2.3L - EVILENERGY

EVIL ENERGY Exhaust Manifold for 1983-1993 Ford Mustang SVO Thunderbird XR4Ti 2.3L

$169.00
$169.00

EVIL ENERGY Exhaust Manifold for 1983-1993 Ford Mustang SVO Thunderbird XR4Ti 2.3L

$169.00

Brand EVIL ENERGY
Model EM29102X
Product Type Tubular Turbo Exhaust Manifold (Header), Top-Mount T3
Engine Ford 2.3L SOHC (Lima) Turbocharged Inline-4
Material Stainless Steel
Surface Finish Mirror Polish
Construction Tubular design with mandrel-bent pipes
Runner Design Equal-length runners merging into one collector
Turbo Flange T3 4-bolt rectangular inlet, top-mount position
Compatible Turbochargers โ€ข Garrett T3 (stock on most 2.3L turbo Fords)
โ€ข T3/T4 hybrid
โ€ข 1987-1988 Turbo Coupe IHI (same inlet bolt pattern)
Wastegate Flange 2-bolt external wastegate flange
Head Flanges Hydraulically flattened
Welding TIG welded joints
Fitment Type Bolts directly to the stock 2.3L turbo cylinder head; relocates the turbo, so a header-style downpipe and wastegate plumbing are required
EGR Provision None
Intended Use Off-road and racing use; no CARB Executive Order

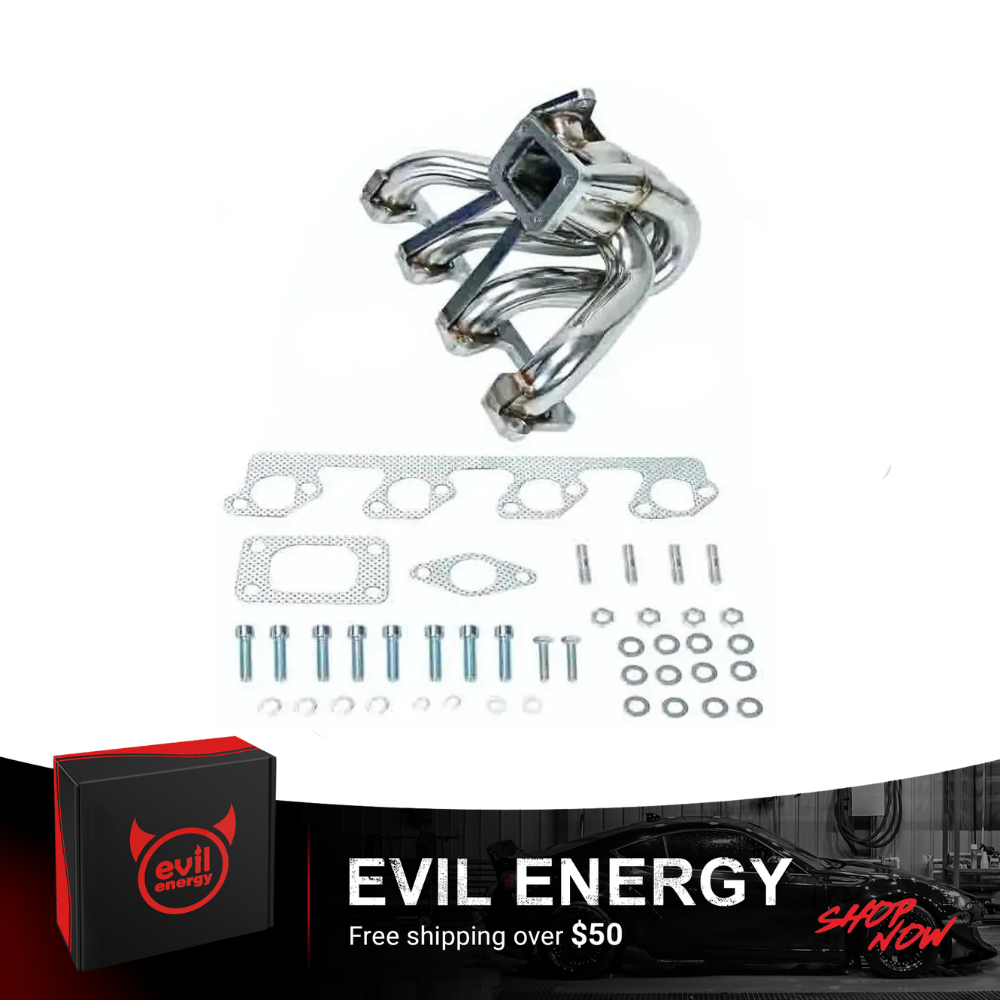

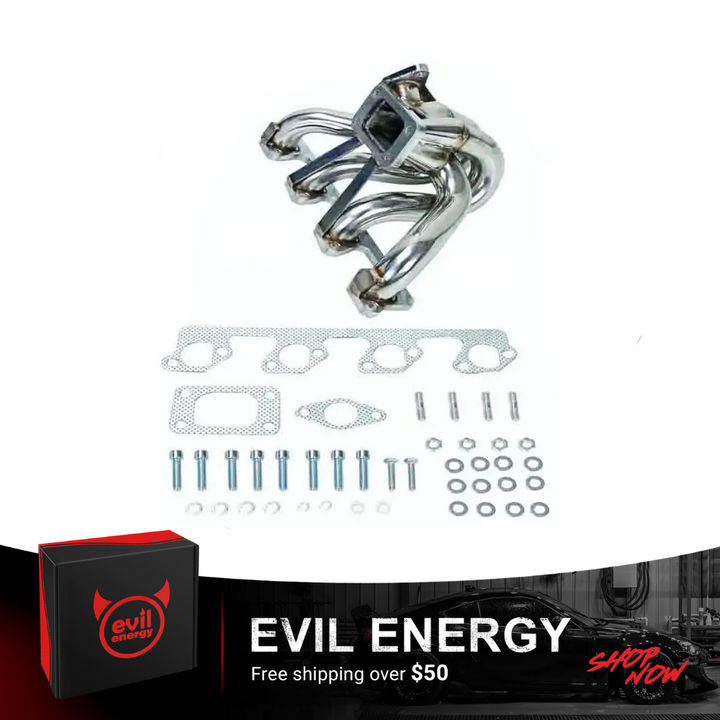

Package Includes โ€ข 1 ร— turbo exhaust manifold
โ€ข 1 ร— cylinder head gasket for the manifold
โ€ข 1 ร— T3 turbo flange gasket
โ€ข 1 ร— wastegate flange gasket
โ€ข Mounting studs, bolts, nuts and washers
Quality Certification ISO9001:2000
Compatible Vehicles 2.3L Turbo Exhaust Manifold for Ford
โ€ข Mustang 2.3L Turbo (Turbo GT / Turbo): 1983-1984
โ€ข Mustang SVO 2.3L Turbo: 1984-1986
โ€ข Thunderbird Turbo Coupe 2.3L: 1983-1988

2.3L Turbo Exhaust Manifold for Mercury / Merkur
โ€ข Mercury Capri RS Turbo 2.3L: 1983-1984
โ€ข Mercury Cougar XR-7 2.3L Turbo: 1984-1986
โ€ข Merkur XR4Ti 2.3L Turbo: 1985-1989
Not Compatible โ€ข 1979-1981 Mustang and Capri 2.3L Turbo (carbureted draw-through turbo, different exhaust layout)
โ€ข 1987-1993 Mustang 2.3L (naturally aspirated, no turbo)
โ€ข 2015 and newer Mustang 2.3L EcoBoost
โ€ข 2.3L Duratec engines (Ranger, Focus, Mazda)

This 2.3L turbo exhaust manifold is a tubular, top-mount T3 header for the fuel-injected Ford 2.3L turbo found in the Mustang SVO, Thunderbird Turbo Coupe, Merkur XR4Ti, Cougar XR-7 and 1983-1984 Mustang and Capri turbo cars. It is built for owners replacing a tired or cracked cast manifold and for builders moving to a bigger T3 or T3/T4 hybrid with an external wastegate. It bolts straight to the stock cylinder head, but it moves the turbo up and toward the center of the engine bay, so plan the downpipe, wastegate and turbo lines before the header arrives.

2.3L turbo exhaust manifold with top-mount T3 flange for Mustang SVO, Thunderbird Turbo Coupe and Merkur XR4Ti

Which Ford 2.3L turbo cars fit this turbo manifold?

The 2.3 turbo header fits the fuel-injected Ford 2.3L SOHC turbo engine: the 1984-1986 Mustang SVO, 1983-1988 Thunderbird Turbo Coupe, 1985-1989 Merkur XR4Ti, 1984-1986 Mercury Cougar XR-7, and the 1983-1984 Mustang Turbo GT and Capri RS Turbo. It does not fit the carbureted 1979-1981 turbo cars or the naturally aspirated 1987-1993 Mustang 2.3L. It is also a different engine from the modern 2.3L EcoBoost, so a 2015 or newer Mustang EcoBoost needs a different part.

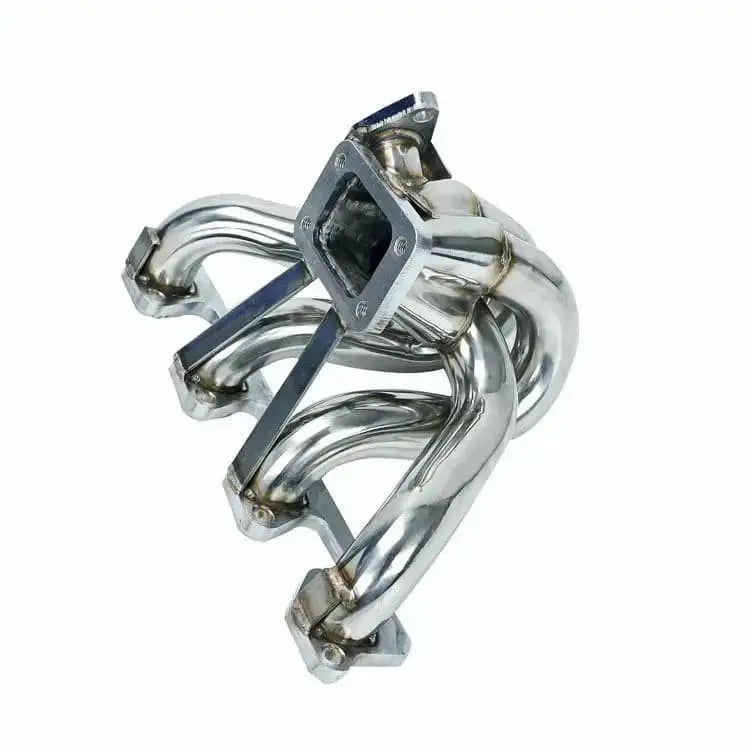

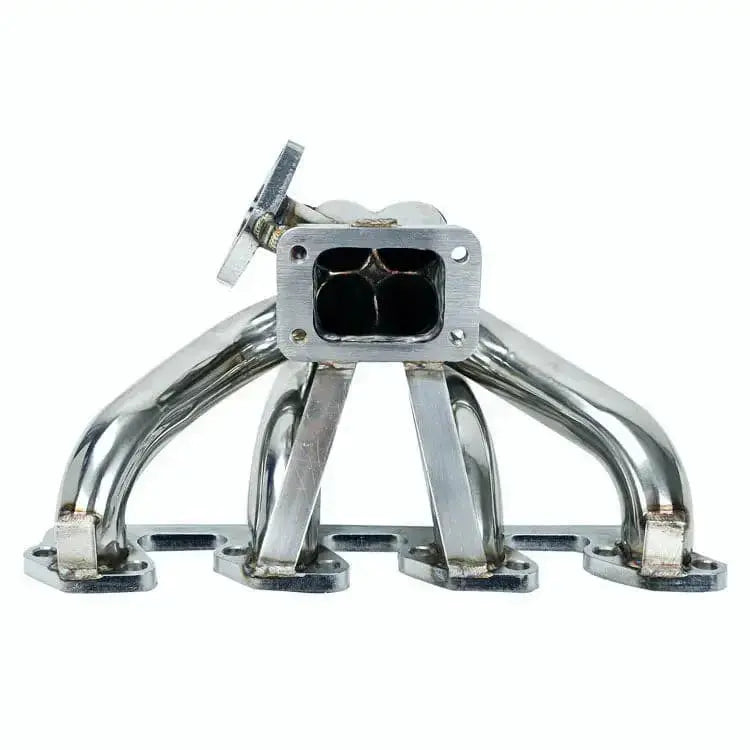

T3 turbo flange on the stainless Ford 2.3L turbo manifold, viewed from above

Which turbochargers bolt to the T3 flange?

The collector ends in a T3 4-bolt rectangular flange, the same inlet used by the Garrett T3 that Ford fitted to the SVO, the XR4Ti and the 1983-1986 Turbo Coupe. It also accepts T3/T4 hybrid turbos, the usual next step for more power, and the IHI turbo from the 1987-1988 Turbo Coupe, which shares the same inlet bolt pattern. A T3 turbo flange gasket and mounting studs come in the kit.

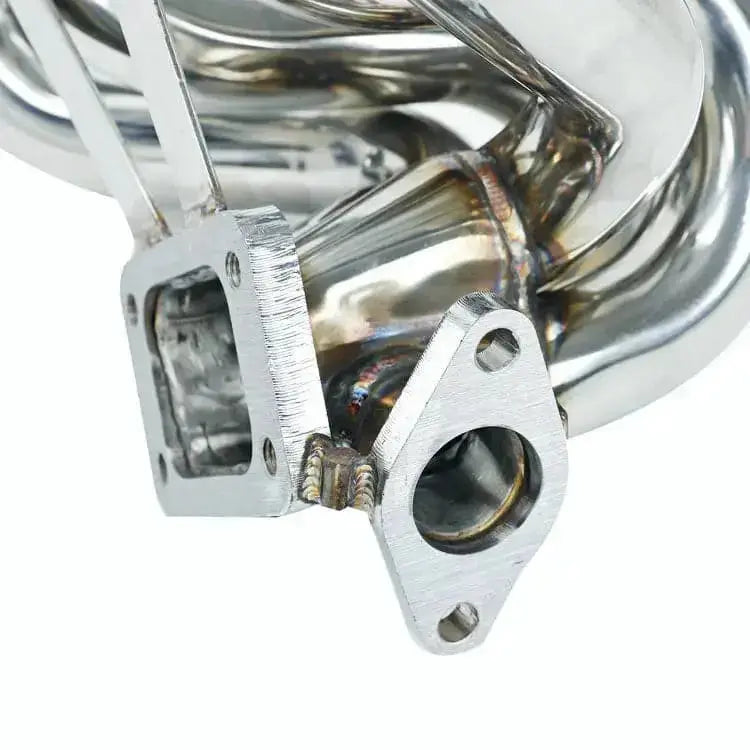

Two-bolt external wastegate flange next to the T3 turbo flange on the 2.3L turbo header

How do you set up the wastegate on the 2.3 turbo header?

A 2-bolt external wastegate flange sits on the collector next to the turbo flange. You can mount an external wastegate there and route its dump tube back into the downpipe through a flexible section, or bolt on a block-off plate and keep using the internal wastegate on a stock T3. A 2-bolt weld-on exhaust flange kit makes it easier to build the dump tube or a custom downpipe joint.

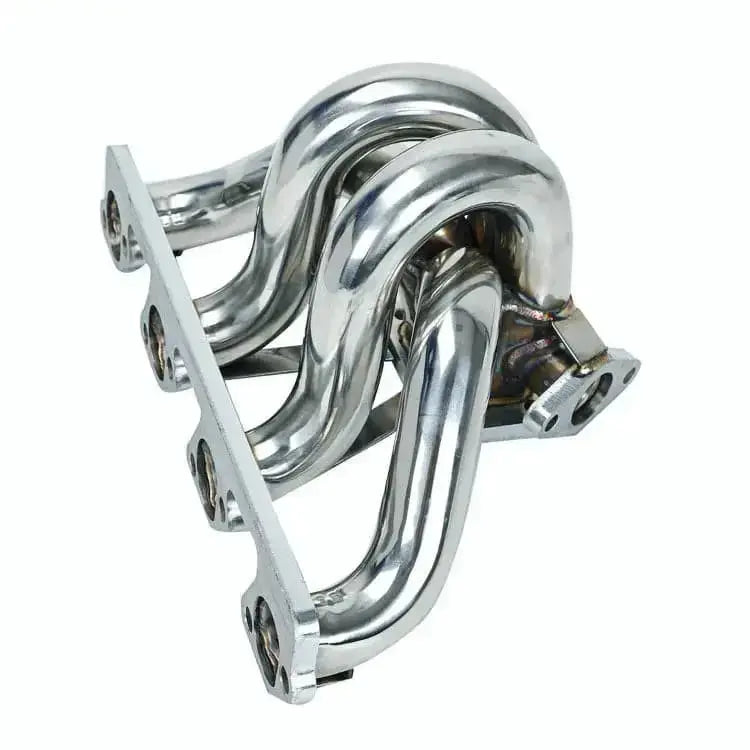

Equal-length mandrel-bent runners on the Ford 2.3L turbo tubular exhaust manifold

Why does the turbo sit higher on a tubular 2.3L header?

The four equal-length runners loop up and merge above the exhaust ports, which puts the turbo in a top-mount position instead of low beside the block like the factory cast manifold. That layout gives each cylinder a similar path to the turbine and makes the turbo much easier to reach. It also means the stock downpipe, oil feed and return lines, and coolant lines usually will not line up, and the intercooler or intercooler piping may need rerouting to the new compressor outlet.

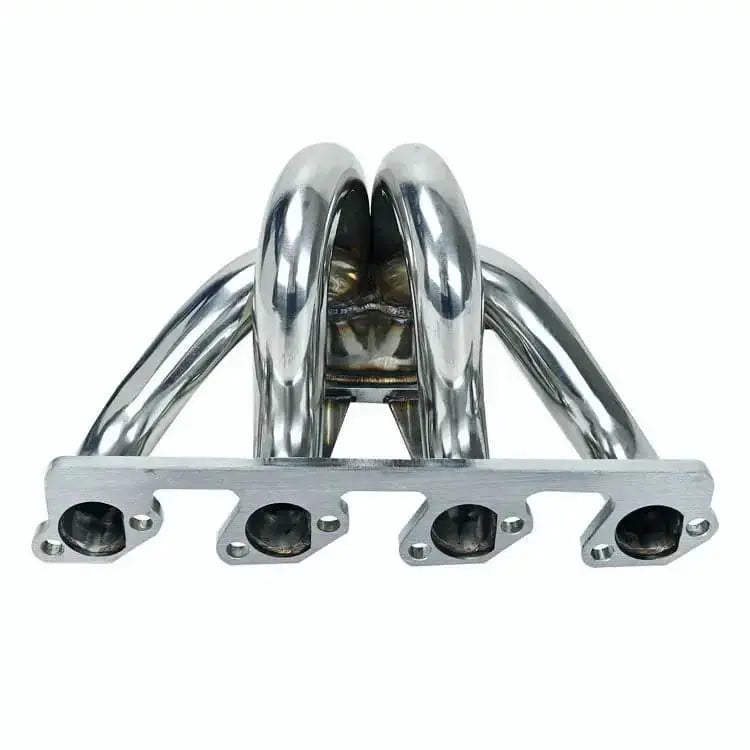

Flat four-port head flange on the stainless 2.3L turbo exhaust manifold for Ford Lima engines

How is the stainless 2.3L turbo manifold built?

The stainless steel turbo manifold uses mandrel-bent pipes, which keep their full diameter through every bend for free flow. The four-port head flange is hydraulically flattened so it sits flush against the 2.3L head, and every joint is TIG welded. The mirror-polished finish will color to gold and blue with heat, as all stainless exhaust parts do. Compare other applications in the exhaust manifold collection.

Brand Summary

Policy Details
Cancellation Policy Orders can be canceled within 48 hours of placement. Refund processed in 3-5 business days.
Returns Policy Returns accepted within 180 days. Full refund within 90 days; 15% fee for 90-180 days.
Non-Returnable Items Only regular-priced items are eligible for refunds; sale items are non-refundable.
Refund Processing If no refund received, check your bank/credit card. For ongoing issues, contact support@ievilenergy.com.

Return Reasons

  1. Quality Issues: Provide photos/videos; we cover return shipping.
  2. Wrong Item Ordered: Buyer covers return shipping; email within 30 days.
  3. Change of Mind: Buyer covers return shipping; email within 30 days.
  4. Shipping Damage: Inspect packages; do not sign for damaged items.
  5. Incorrect Item Shipped: Contact within 7 days.

Price Protection Policy

Effective from August 25, 2024. Price drops within 7 days of purchase can be claimed.

Disclaimer

EVIL ENERGY reserves the right to interpret, modify, or terminate this policy in accordance with applicable laws and regulations.

If you need further information or assistance, feel free to ask!

Q: Will this 2.3L turbo exhaust manifold fit a 2015 or newer Mustang EcoBoost 2.3L?

A: No. This turbo manifold is for the 1980s Ford 2.3L SOHC "Lima" turbo engine used in the Mustang SVO, Thunderbird Turbo Coupe and Merkur XR4Ti. The modern 2.3L EcoBoost is an entirely different engine with a different head, port spacing and turbo, so nothing on this header lines up with it.

Q: Does the 2.3 turbo header fit a 1987-1988 Thunderbird Turbo Coupe with the factory IHI turbo?

A: Yes. Ford used a Garrett T3 on every other fuel-injected 2.3L turbo car and an IHI turbo only on the 1987-1988 Turbo Coupe, and owners who have swapped between them report that the IHI and T3 share the same turbine inlet bolt pattern. The IHI therefore bolts to the T3 flange on this header. Its elbow, wastegate actuator and oil return differ from a T3, so a later IHI-to-T3 upgrade means changing those parts as well.

Q: Can I reuse the stock downpipe on my Mustang SVO, Turbo Coupe or XR4Ti with this tubular turbo manifold?

A: Usually not. The factory cast manifold hangs the turbo low beside the block, while this header puts the turbo up top near the center of the engine bay. The turbo outlet ends up in a different place, so the factory downpipe will not reach. Plan on a downpipe made for a center or top-mount 2.3L turbo header, or have one fabricated. Leave room for a flex section and an O2 sensor bung, since the factory O2 sensor lives in the elbow right after the turbo.

Q: My stock T3 turbo has an internal wastegate. What do I do with the external wastegate flange on the Ford 2.3L turbo header?

A: You have two choices. To keep the internal wastegate, bolt a 2-bolt block-off plate with a gasket over the external flange and leave the actuator connected to boost pressure as before. Factory 2.3L turbo actuators are rated around 10 psi. To run an external wastegate, mount one on the flange, set the internal flapper so it stays shut, and route the dump tube back into the downpipe through a braided flex section so heat growth does not crack the welds. External gates control boost more steadily as the turbo gets bigger, which is why builders running T3/T4 hybrids usually choose them.

Q: Do I need new oil and coolant lines when I install the 2.3L turbo manifold?

A: Plan on it. Because the turbo moves up, the factory oil feed, oil return and coolant lines are usually too short or bent the wrong way. Many 2.3L turbo owners switch to a braided oil feed line and a larger AN-fitting oil return. The return needs to drop downhill into the block without sags, because a turbo that cannot drain well will push oil past its seals.

Q: What torque should I use on the 2.3L turbo exhaust manifold bolts?

A: Owners quoting the Ford service manual for the 2.3L turbo give a two-step spec: snug all bolts to 5-7 lb-ft, then tighten to 16-23 lb-ft, working from the center bolts out toward the ends. Start every bolt or stud by hand first so the flange is not pulled crooked. Stainless steel grows more with heat than the cast manifold it replaces, so recheck the manifold bolts after the first few heat cycles and again at the next oil change.

Q: Why do tubular 2.3 turbo headers crack, and how do I prevent it on mine?

A: Two things do most of the damage. A top-mount header carries the full weight of the turbo out on the runners, and thin-wall stainless tubing expands and contracts every time the engine heats up and cools down. Owners on TurboFord who kept their headers in one piece all did some of the same things. They added a brace from the turbo flange or collector down to the engine block or motor mount so the runners are not holding the turbo up. They used flex sections in the downpipe and the wastegate dump tube so the exhaust system cannot lever on the collector. And they rechecked bolt torque after heat cycles. Worn motor mounts make cracking worse, so replace any that are collapsed.

Q: Will the tubular 2.3L turbo manifold spool faster than the stock E6 cast manifold?

A: It depends on the rest of the build. Owners report mixed results with a stock-sized T3: some feel quicker response, while others found a ported E6 cast manifold spooled just as fast with a broader torque curve. The tubular header shows its advantage as the turbo gets larger, with a T3/T4 hybrid and external wastegate, where its equal-length runners and free-flowing collector support more top-end power.

Q: Is the 2.3L turbo exhaust manifold street legal on a Mustang SVO or Thunderbird Turbo Coupe in California?

A: No. The header has no EGR provision, while the factory 2.3L turbo manifold feeds the EGR valve through a tube at the back of the manifold. It also has no CARB Executive Order number. California's Smog Check covers gasoline cars from the 1976 model year onward, and the visual inspection fails any aftermarket exhaust manifold without an EO. On a California-registered car this header is for off-road or racing use only. Owners in other states should check their local inspection rules.

Q: What else should I budget for along with the 2.3 turbo header?

A: Count on a header-style downpipe and either a wastegate block-off plate or an external wastegate with a flexible dump tube. You will likely need new oil feed, oil return and coolant lines, a turbo brace, and possibly revised intercooler or compressor outlet piping. Fresh exhaust manifold bolts and anti-seize are worth adding too. Budgeting for the full set up front avoids having the car sit half-finished while parts trickle in.
