EVILENERGY EVIL ENERGY NPT Male to Barb Fitting Adapter 45/90 Degree Hose Fitting Aluminum Black

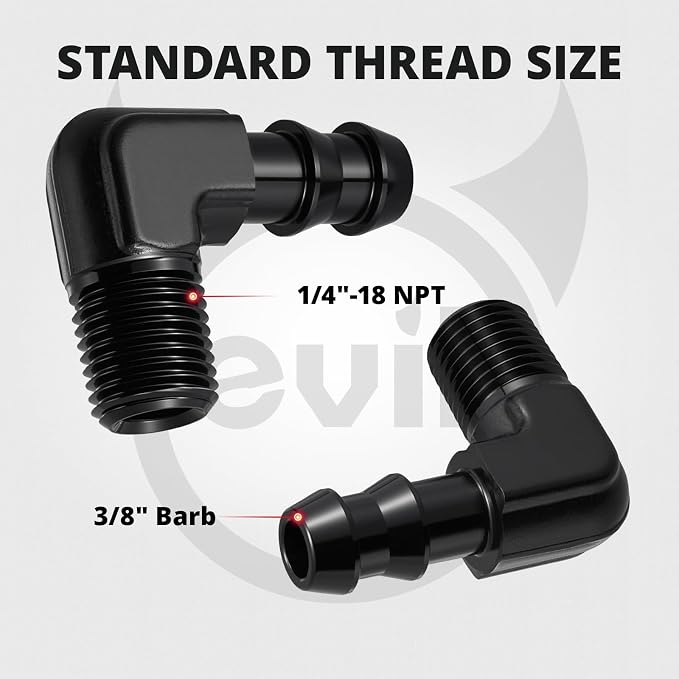

[1/4 NPT to 3/8 Barb]

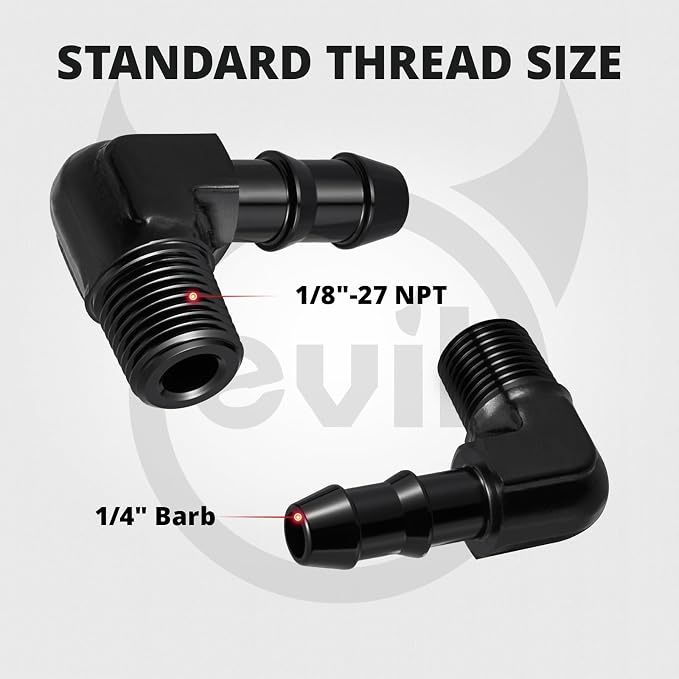

[1/8 NPT to 1/4 Barb]

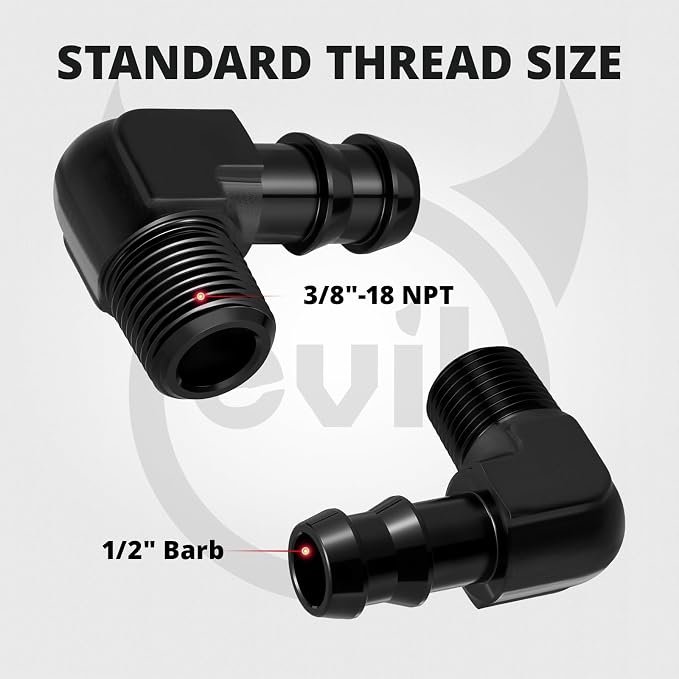

[3/8 NPT to 1/2 Barb]
EVILENERGY EVIL ENERGY NPT Male to Barb Fitting Adapter 45/90 Degree Hose Fitting Aluminum Black
[1/4 NPT to 3/8 Barb]
[1/8 NPT to 1/4 Barb]
[3/8 NPT to 1/2 Barb]
EVILENERGY EVIL ENERGY NPT Male to Barb Fitting Adapter 45/90 Degree Hose Fitting Aluminum Black
EVILENERGY EVIL ENERGY NPT Male to Barb Fitting Adapter 45/90 Degree Hose Fitting Aluminum Black
EVILENERGY EVIL ENERGY NPT Male to Barb Fitting Adapter 45/90 Degree Hose Fitting Aluminum Black
EVILENERGY EVIL ENERGY NPT Male to Barb Fitting Adapter 45/90 Degree Hose Fitting Aluminum Black
EVILENERGY EVIL ENERGY NPT Male to Barb Fitting Adapter 45/90 Degree Hose Fitting Aluminum Black
EVILENERGY EVIL ENERGY NPT Male to Barb Fitting Adapter 45/90 Degree Hose Fitting Aluminum Black

EVIL ENERGY NPT Male to Barb Fitting Adapter 45/90 Degree Hose Fitting Aluminum Black

$15.99
$15.99
$15.99
Size: 1/4 NPT to 3/8 Barb
Style: 90 Degree
Add To Wish List
SKU: EVJN-CS21-00089020
Product Type: NPT to Barb Fittings

Connect a female 1/2-14 NPT port to a 5/8-inch ID hose while keeping the line routed close to the component. This EVIL ENERGY NPT to barb adapter features a fixed 90-degree design, a black-anodized aluminum body, and a male tapered NPT connection. Use a compatible thread sealant on the NPT side and a properly sized hose clamp on the barb side. Hose, clamp, and thread sealant are not included.

EVIL ENERGY checkout payment icons and shopping service
EVILENERGY EVIL ENERGY NPT Male to Barb Fitting Adapter 45/90 Degree Hose Fitting Aluminum Black

EVIL ENERGY NPT Male to Barb Fitting Adapter 45/90 Degree Hose Fitting Aluminum Black

$15.99
$15.99
EVILENERGY EVIL ENERGY NPT Male to Barb Fitting Adapter 45/90 Degree Hose Fitting Aluminum Black
[1/4 NPT to 3/8 Barb]
[1/8 NPT to 1/4 Barb]
[3/8 NPT to 1/2 Barb]
EVILENERGY EVIL ENERGY NPT Male to Barb Fitting Adapter 45/90 Degree Hose Fitting Aluminum Black
[1/4 NPT to 3/8 Barb]
[1/8 NPT to 1/4 Barb]
[3/8 NPT to 1/2 Barb]
EVILENERGY EVIL ENERGY NPT Male to Barb Fitting Adapter 45/90 Degree Hose Fitting Aluminum Black
EVILENERGY EVIL ENERGY NPT Male to Barb Fitting Adapter 45/90 Degree Hose Fitting Aluminum Black
EVILENERGY EVIL ENERGY NPT Male to Barb Fitting Adapter 45/90 Degree Hose Fitting Aluminum Black
EVILENERGY EVIL ENERGY NPT Male to Barb Fitting Adapter 45/90 Degree Hose Fitting Aluminum Black
EVILENERGY EVIL ENERGY NPT Male to Barb Fitting Adapter 45/90 Degree Hose Fitting Aluminum Black
EVILENERGY EVIL ENERGY NPT Male to Barb Fitting Adapter 45/90 Degree Hose Fitting Aluminum Black

EVIL ENERGY NPT Male to Barb Fitting Adapter 45/90 Degree Hose Fitting Aluminum Black

$15.99
Size: 1/4 NPT to 3/8 Barb
Style: 90 Degree

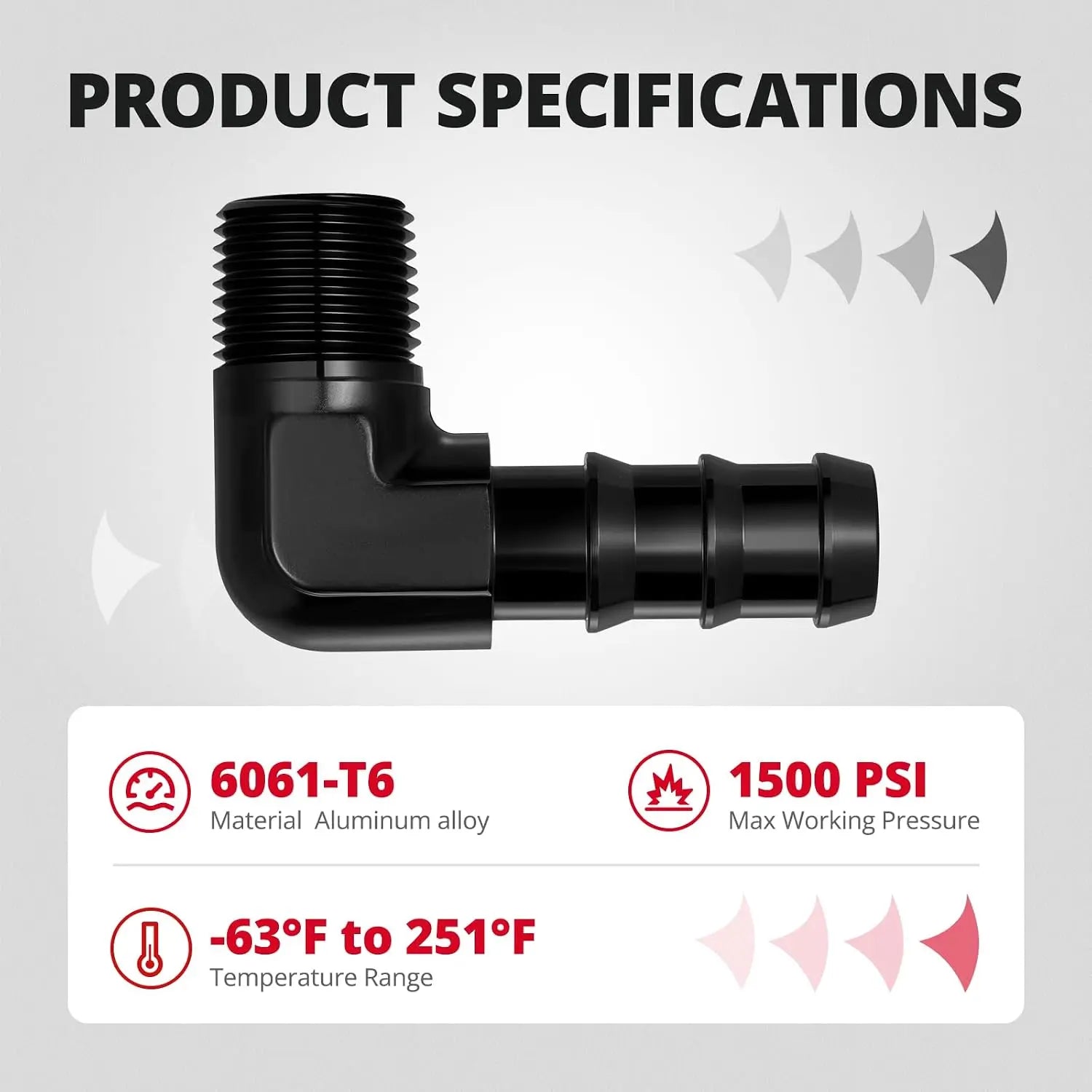

SPECIFICATIONS

Product Details

Specification Details
Package 1x EVIL ENERGY NPT to Barb Adapter
Brand EVIL ENERGY
Fitting Material 6061-T6 Aluminum
Fitting Finish Black Anodized
Fitting Color Black
NPT Thread Size 1/2-14 NPT (Male)
Barb OD 5/8 inch (15.9mm)

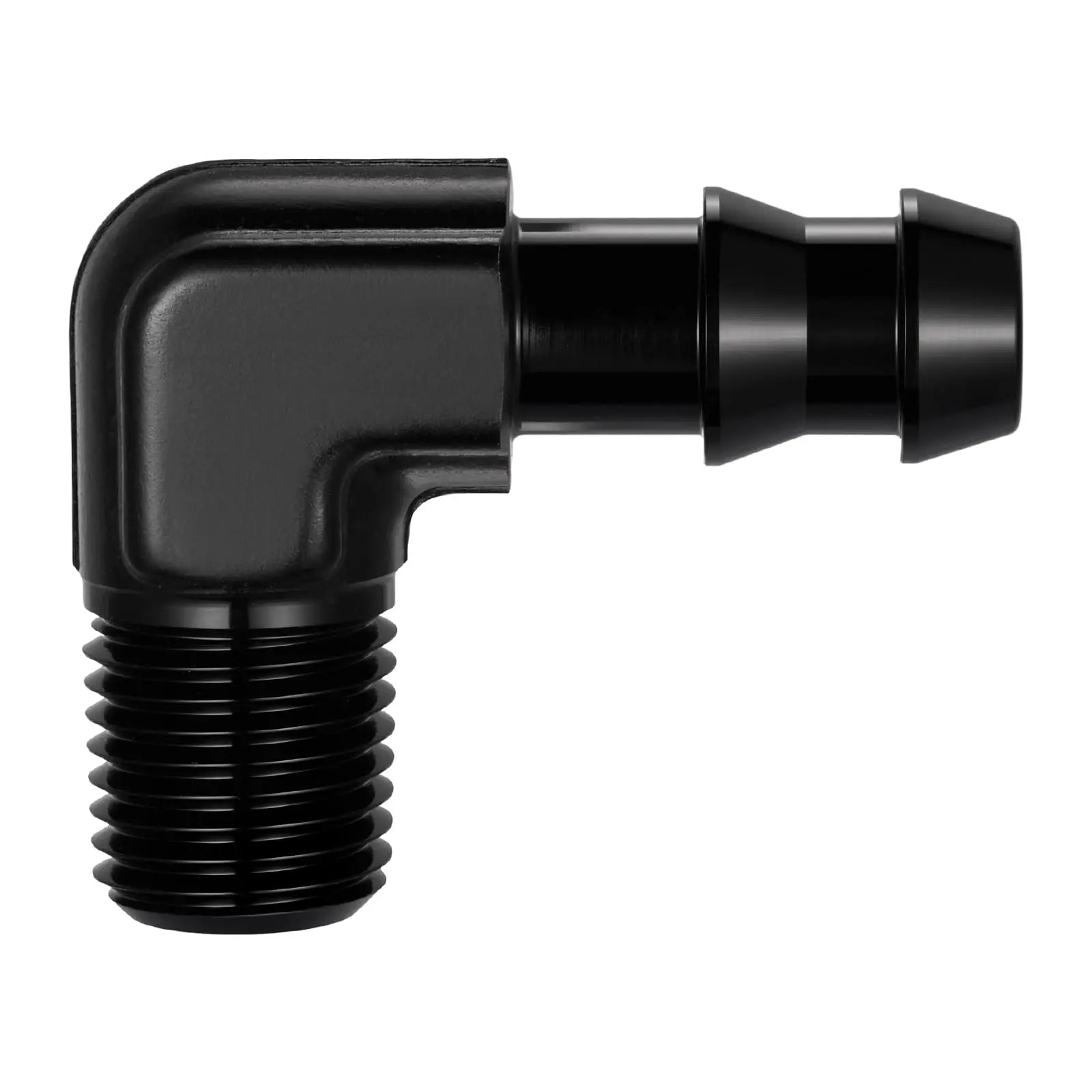

Fitting Angle 90 Degree
Fitting Working Pressure 1500 PSI
Fitting Temperature Range -64°F to 252°F (-53°C to 122°C)
Fitting Seal Type Tapered NPT threads (use sealant or PTFE tape)
Fitting Compatible Media Fuel, Oil, Water, Air
Fitting Connector Type Barb
Fitting Thread Type NPT
Number of Pieces 1
Manufacturer Speedwow Tuning

DESCRIPTION

About this item

Connect a female 1/2-14 NPT port to a 5/8-inch ID hose while keeping the line routed close to the component. This 90-degree EVIL ENERGY NPT to barb adapter is designed for custom fuel, oil, water, and air plumbing where a straight fitting would require excessive hose bend or additional clearance.

Secure the Hose with a Compatible Clamp

Push the correct 5/8-inch ID hose fully over the barb and secure it with a properly sized clamp suitable for the hose material, fluid, temperature, and system pressure. The hose and clamp are sold separately.

6061-T6 Aluminum with Black Anodized Finish

Machined from 6061-T6 aluminum alloy and finished with a black anodized coating, this fitting resists corrosion, wear, and chemical exposure for long-term reliability in fuel, oil, water, and air systems.

1500 PSI Working Pressure with Tapered Thread Seal

Rated for 1500 PSI working pressure and temperatures from -64°F to 252°F. The NPT side uses tapered threads for a metal-to-metal seal — apply sealant or PTFE tape on installation to guarantee a leak-free connection.

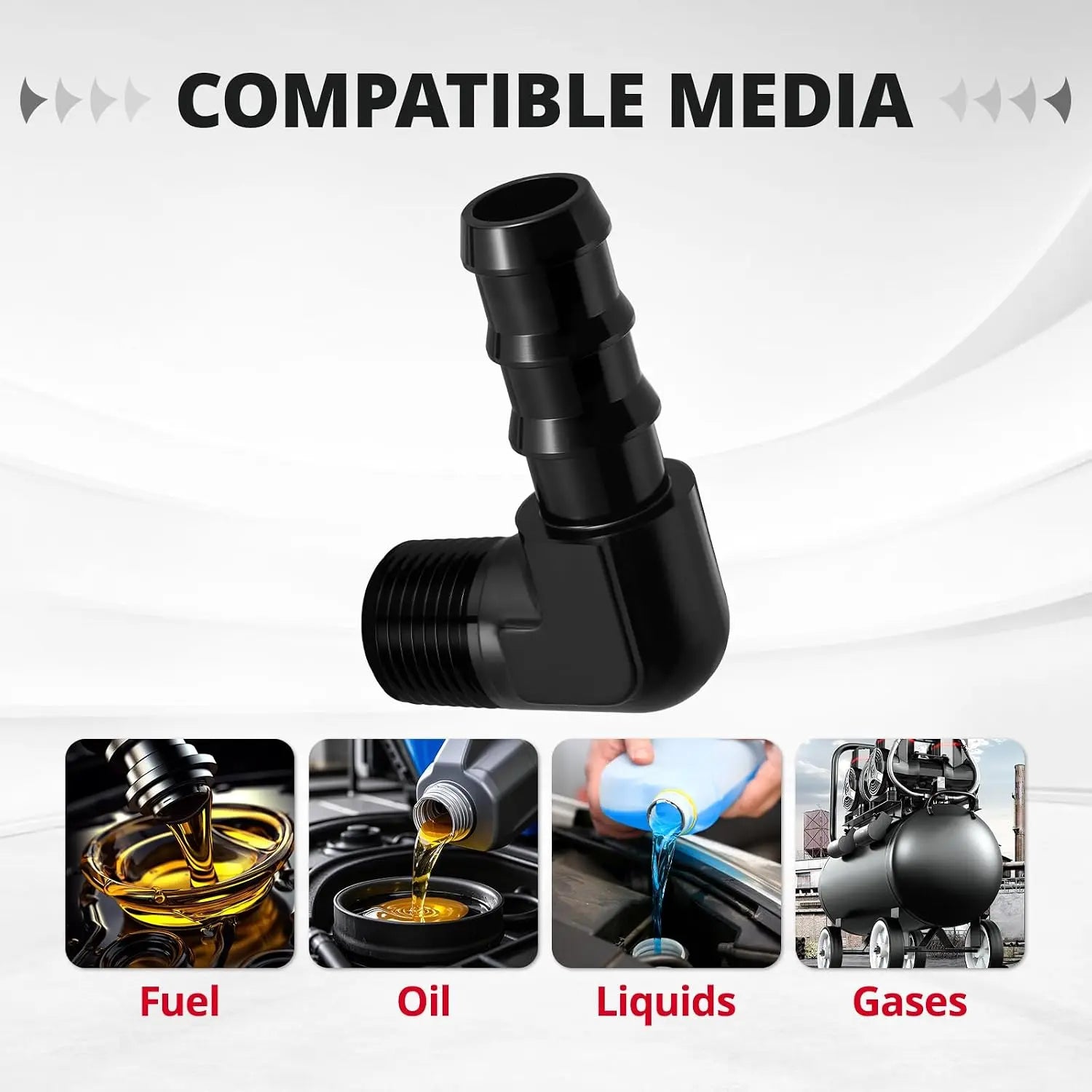

Universal Fuel, Oil, Water, and Air Compatibility

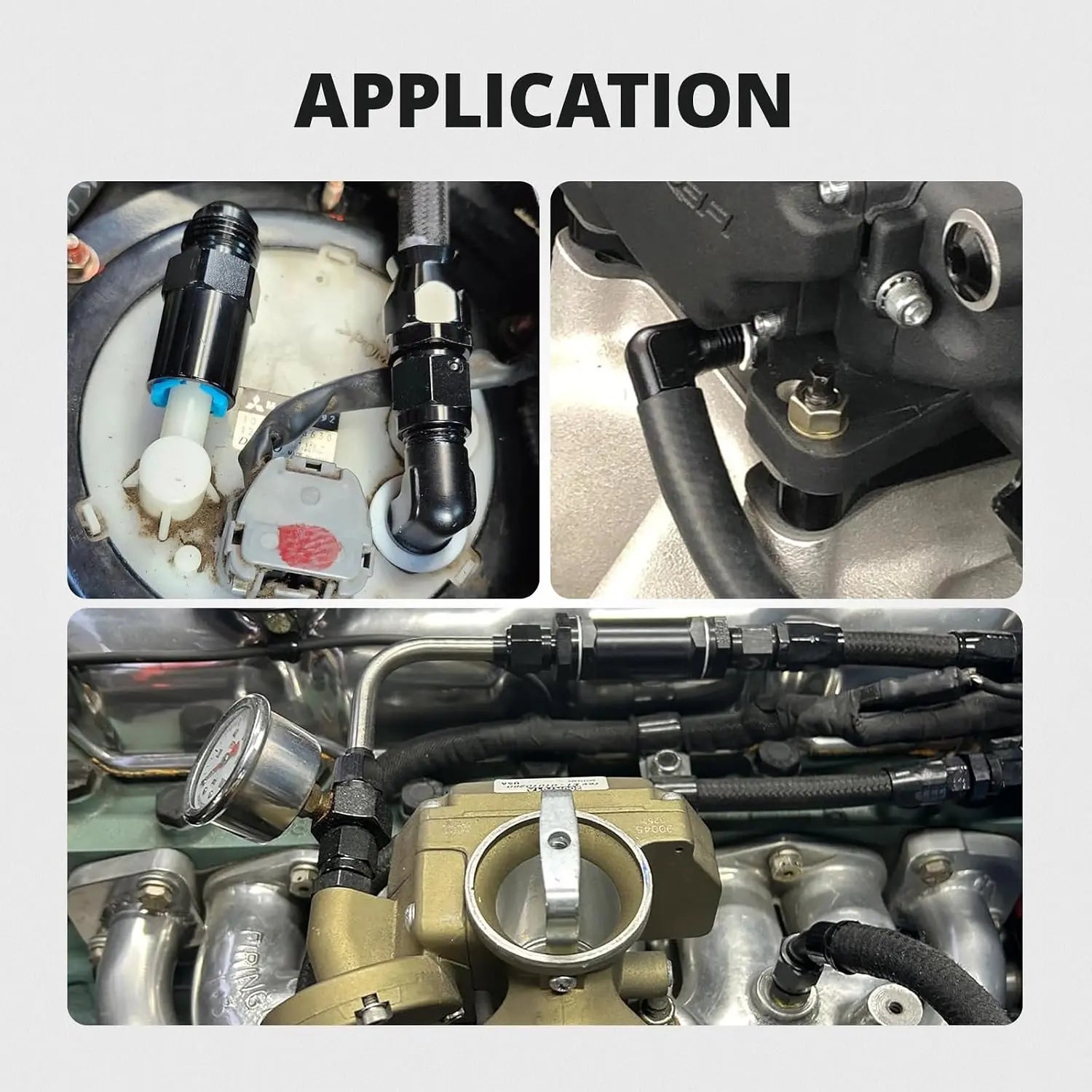

Safe for fuel, oil, water, and air transfer. Use it on fuel lines, oil cooler feeds, water plumbing, and pneumatic systems. Always pair the barb end with a hose clamp for a secure, leak-free seal.

Before You Order and Install

Match the NPT Port

This adapter has a 1/2-14 NPT male thread and must be installed in a matching female NPT port. It is not compatible with AN, ORB, BSP, metric, or straight-thread ports without the correct adapter.

Match the Hose ID

The hose barb is intended for a 5/8-inch ID hose. Do not select the fitting based only on the hose outside diameter. Verify the hose manufacturer’s stated inside diameter and fluid compatibility before installation.

Plan the Final Barb Direction

Test-fit the adapter before final tightening so the 90-degree barb points in the required routing direction. Do not describe the fitting as swivel-adjustable unless the product has a separate swivel mechanism.

Use the Correct Sealing Method

Apply a compatible thread sealant or PTFE tape to the tapered NPT connection and secure the hose with a properly sized clamp. The hose, clamp, and thread sealant are not included.

Verify the Complete System Rating

Confirm that the fitting, hose, clamp, threaded port, sealant, fluid, temperature, and pressure requirements are compatible. The maximum rating of the completed connection is determined by the lowest-rated component in the system.

SHIPPING & RETURN

Brand Summary

Policy Details
Cancellation Policy Orders can be canceled within 48 hours of placement. Refund processed in 3-5 business days.
Returns Policy Returns accepted within 180 days. Full refund within 90 days; 15% fee for 90-180 days.
Non-Returnable Items Only regular-priced items are eligible for refunds; sale items are non-refundable.
Refund Processing If no refund received, check your bank/credit card. For ongoing issues, contact support@ievilenergy.com.

Return Reasons

  1. Quality Issues: Provide photos/videos; we cover return shipping.
  2. Wrong Item Ordered: Buyer covers return shipping; email within 30 days.
  3. Change of Mind: Buyer covers return shipping; email within 30 days.
  4. Shipping Damage: Inspect packages; do not sign for damaged items.
  5. Incorrect Item Shipped: Contact within 7 days.

Price Protection Policy

Effective from August 25, 2024. Price drops within 7 days of purchase can be claimed.

Disclaimer

EVIL ENERGY reserves the right to interpret, modify, or terminate this policy in accordance with applicable laws and regulations.

If you need further information or assistance, feel free to ask!

FAQS

Q: What hose size fits the 1/2 NPT to 5/8 hose barb adapter?

A: The barb is designed for a 5/8-inch ID hose. Verify the hose manufacturer’s stated inside diameter before ordering, because the hose outside diameter varies according to wall thickness and construction.

Q: Does the 1/2 NPT male thread require thread sealant?

A: Yes. The tapered 1/2-14 NPT male thread requires a compatible thread sealant or PTFE tape. Follow the sealing-product manufacturer’s application instructions and keep excess material out of the fluid passage.

Q: Is a hose clamp included with the NPT to barb adapter?

A: No. The package contains one 90-degree adapter. The hose, hose clamp, thread sealant, and PTFE tape are not included.

Q: Can the 90 degree hose barb fitting connect to an AN port?

A: No. This product has a male NPT thread, not a 37-degree AN flare. Connecting it to an AN, ORB, BSP, metric, or straight-thread port requires the correct separate adapter.

Q: Can the NPT to barb adapter be used with fuel, oil, water, and air?

A: It may be used with compatible fuel, oil, water, and air systems when the fitting, hose, clamp, thread sealant, operating temperature, and system pressure are all suitable for the selected fluid.

Q: Is this NPT hose barb adapter suitable for high-pressure applications?

A: Do not use the adapter in a high-pressure system unless EVIL ENERGY has confirmed the working-pressure rating for the fitting and the complete hose-and-clamp assembly. The finished connection is limited by its lowest-rated component.

Q: Why use a 90 degree NPT to hose barb fitting instead of a straight adapter?

A: A 90-degree adapter changes the hose direction close to the threaded port, which can reduce the hose bend and installation space required near pumps, tanks, coolers, and reservoirs.

Q: How should the 90 degree hose barb adapter be positioned during installation?

A: Test-fit the adapter before final tightening and make sure the barb points in the required hose-routing direction. Do not overtighten the aluminum NPT thread, and do not assume the elbow can swivel after installation unless the product is specifically identified as a swivel fitting.
