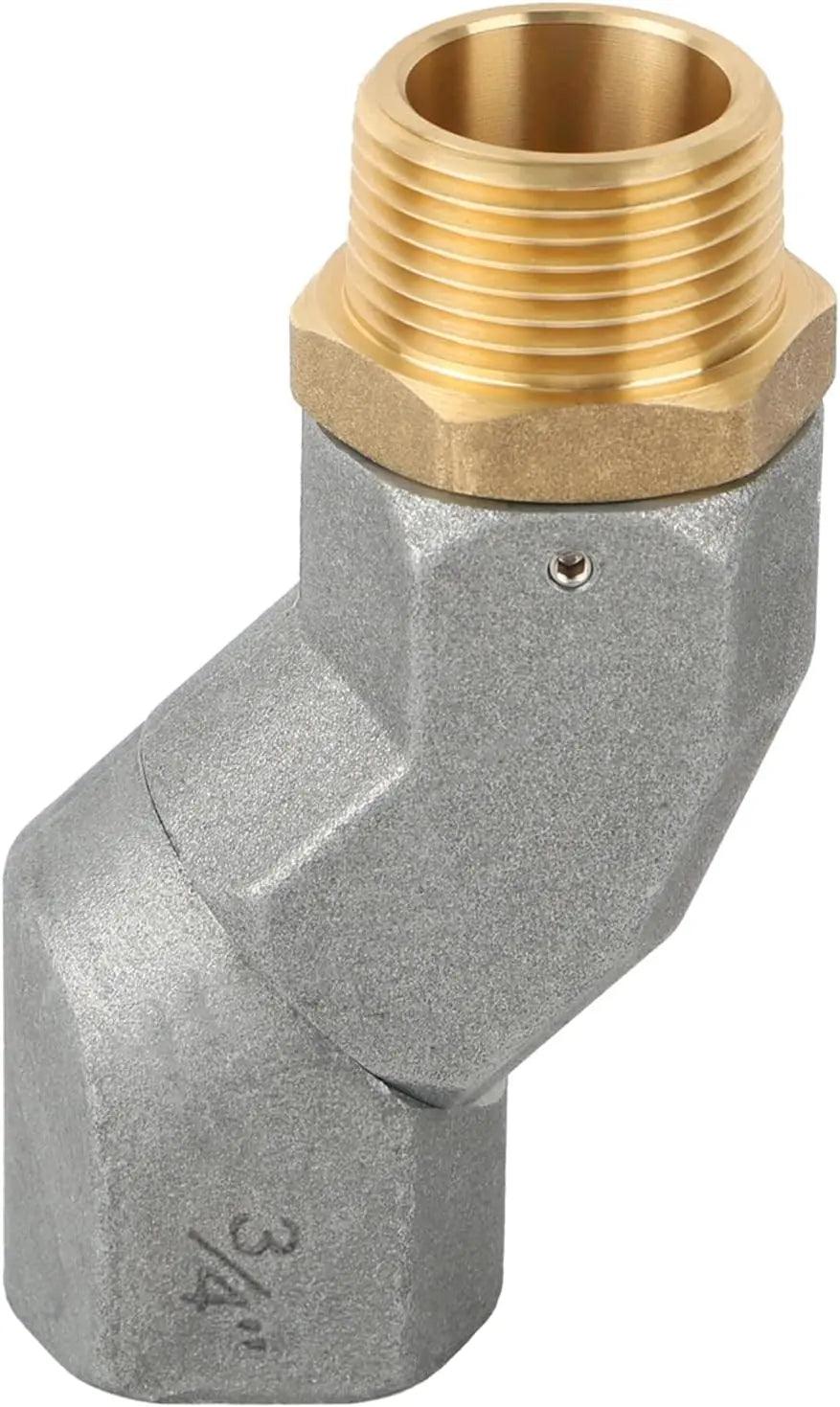

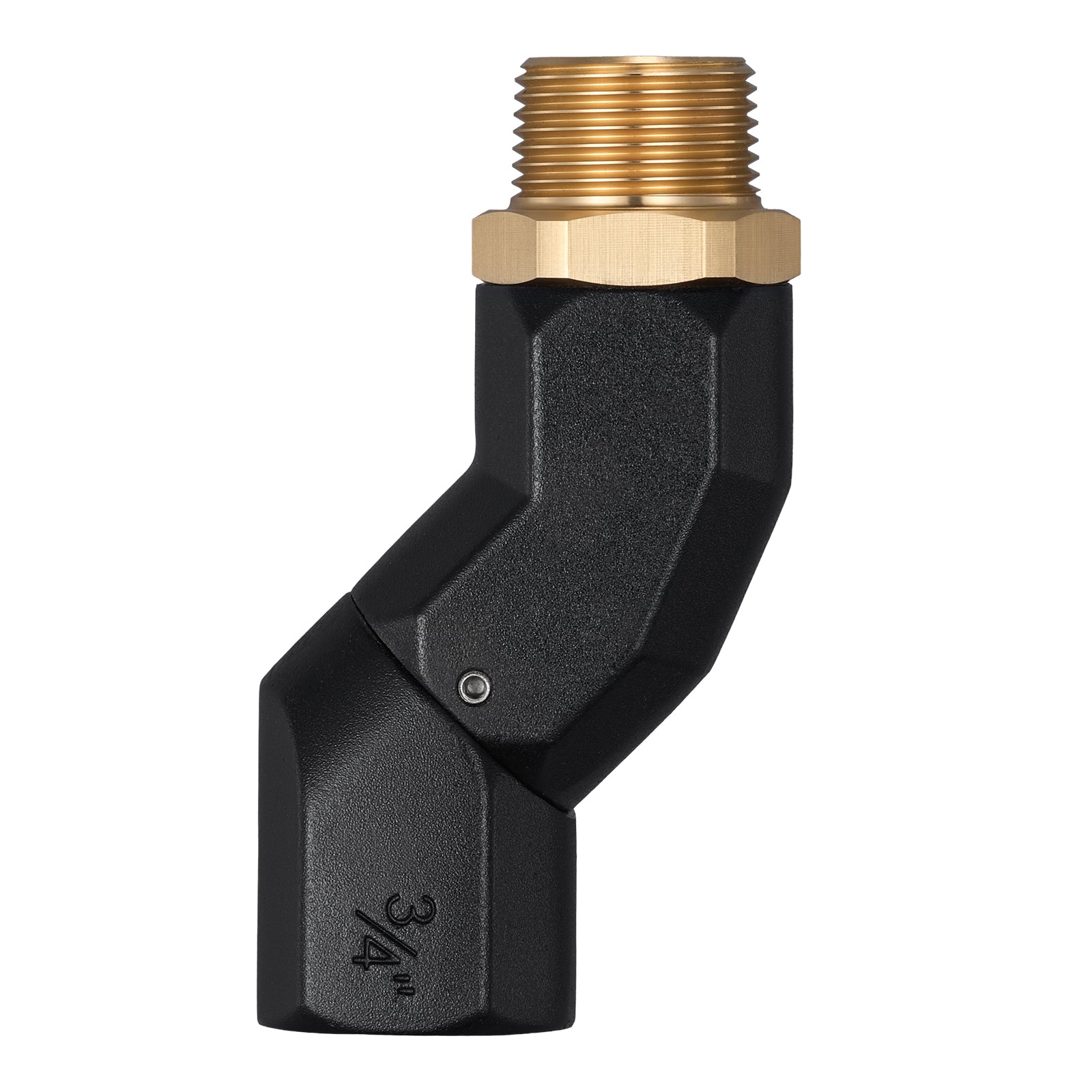

EVIL ENERGY NPT Fuel Transfer Hose Swivel 360 Rotating Connector for Fuel Nozzle Multi Plane Swivel

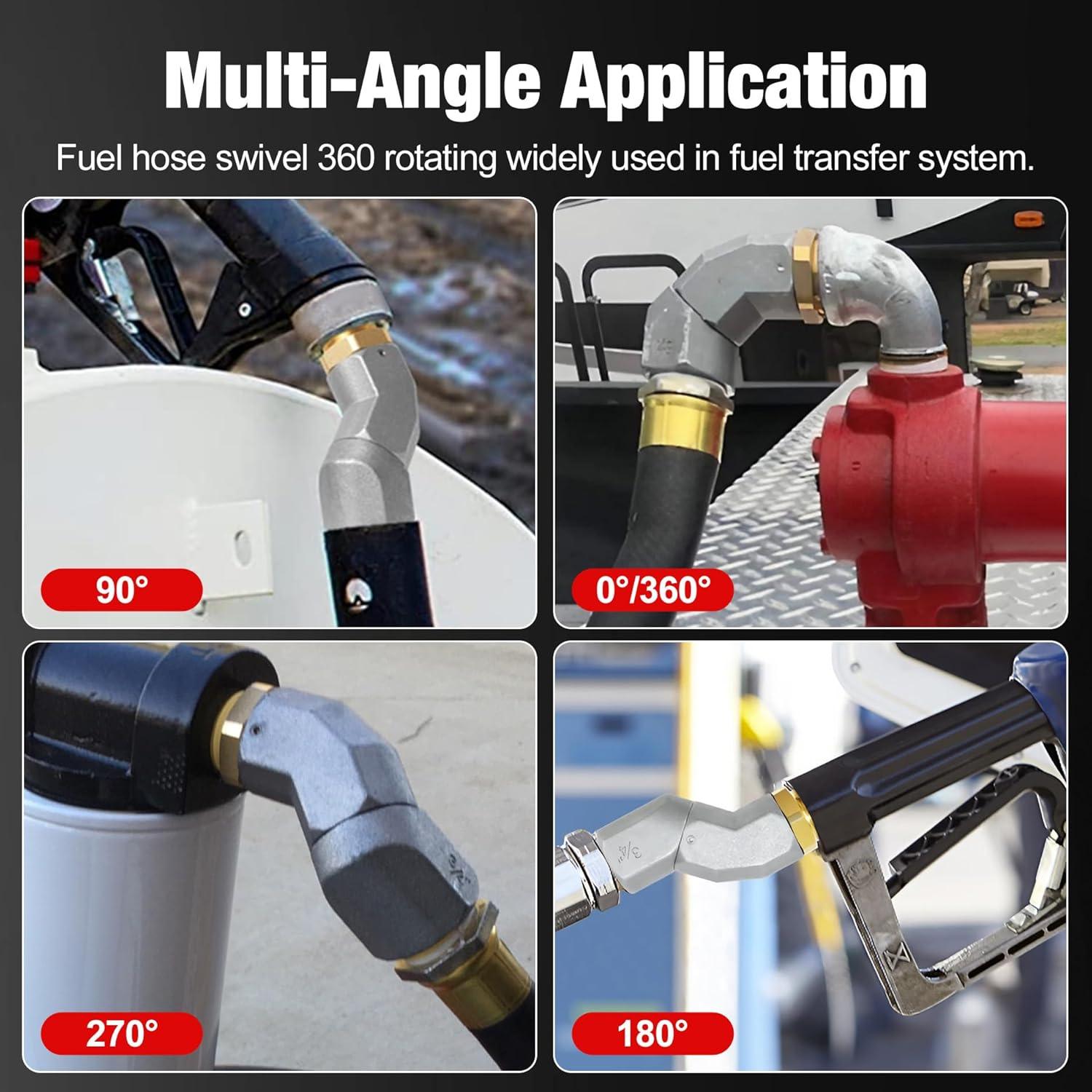

Q: Where should I install a fuel hose swivel?

A: Between the hose and the nozzle. That is where the twisting originates, since the nozzle is what you rotate to reach a filler neck. A second fuel swivel at the pump or tank outlet removes the remaining torsion, and running one at each end is the setup most operators settle on after replacing their first kinked hose.

Q: Does the male and female end have to be the same size?

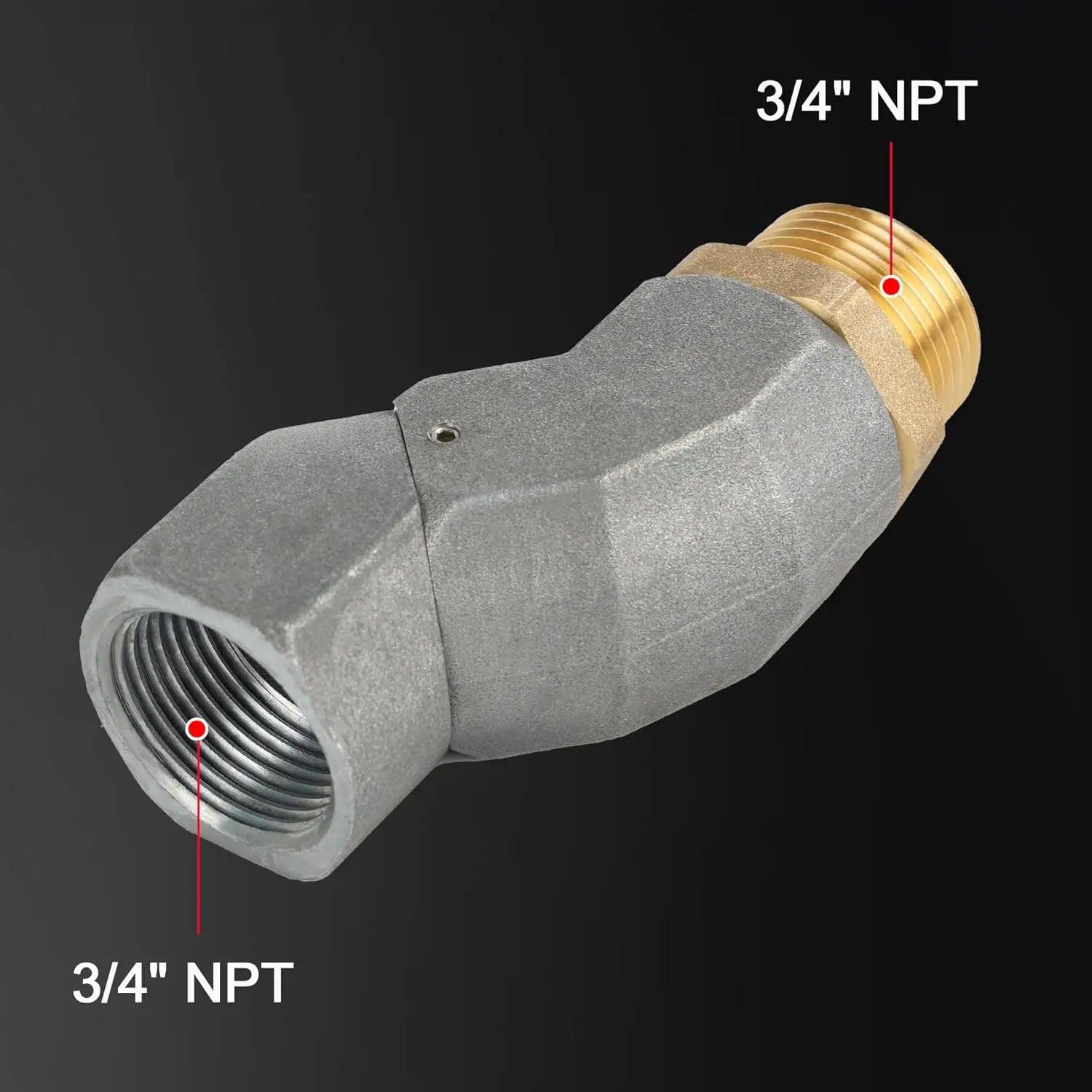

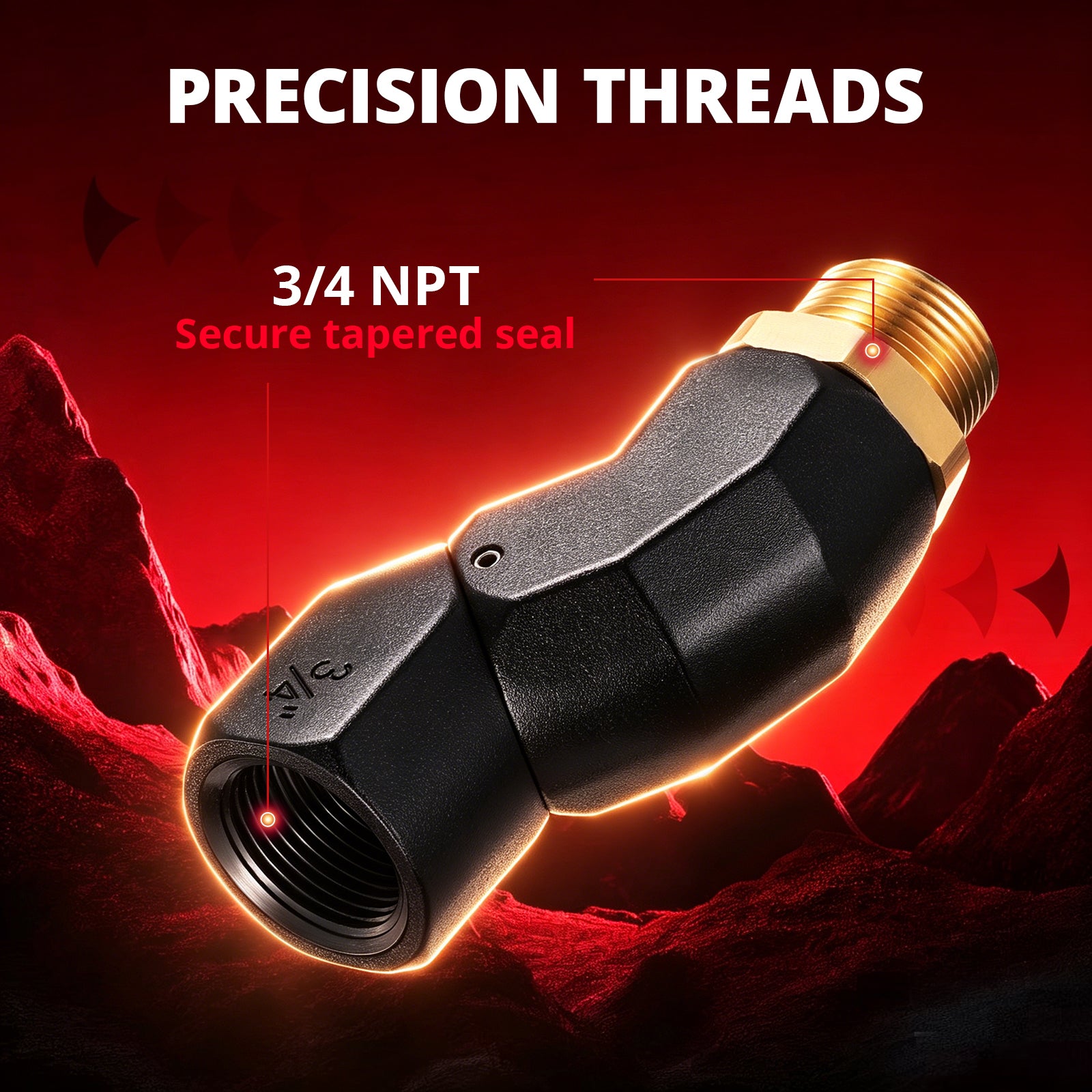

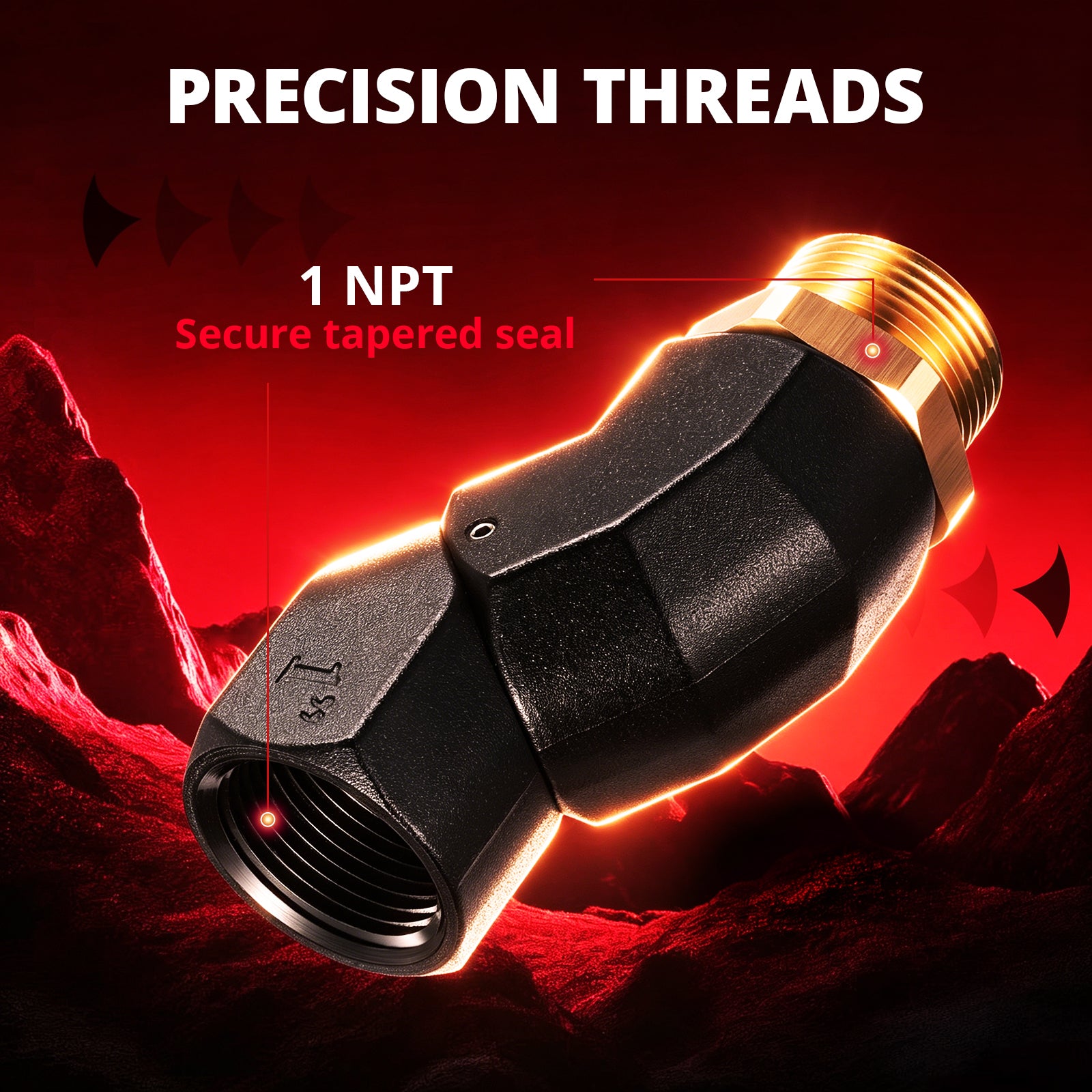

A: Yes, on this fitting. Each fuel hose swivel has a male NPT end and a female NPT end of the same size. The 3/4 inch version is 3/4" NPT on both ends and the 1 inch version is 1" NPT on both ends. It is an inline adapter, not a reducer. If you need to change thread size, add a separate reducing bushing.

Q: Do I need Teflon tape or thread sealant?

A: Yes. NPT is a tapered thread and it seals on the threads, so it needs sealant. Use a fuel-rated liquid thread sealant rather than standard PTFE tape, because tape can shred and travel downstream into a nozzle or a pump. If you do use tape, wrap it clockwise and start one full thread back from the end so nothing can shear off into the fuel stream.

Q: How tight should the NPT threads be?

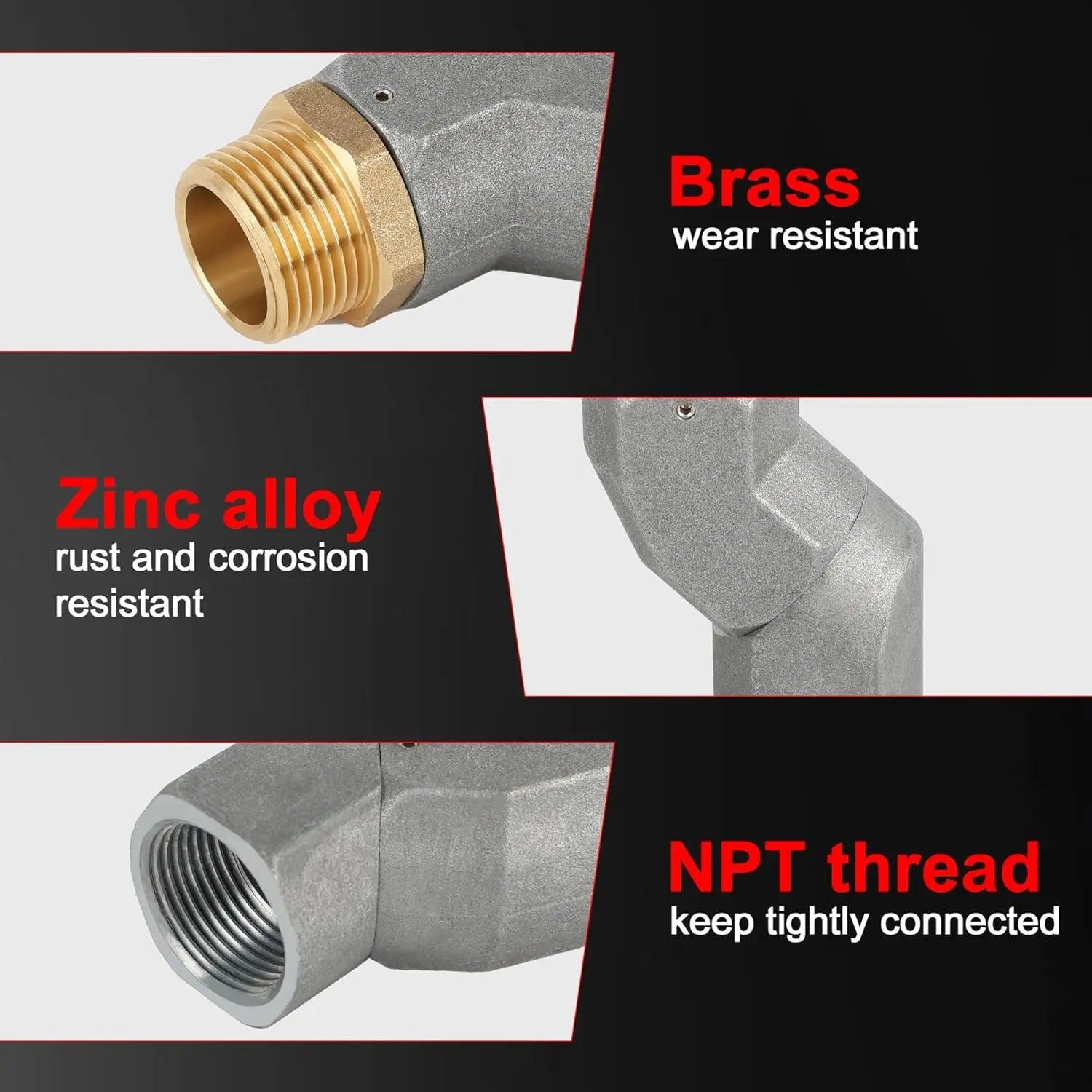

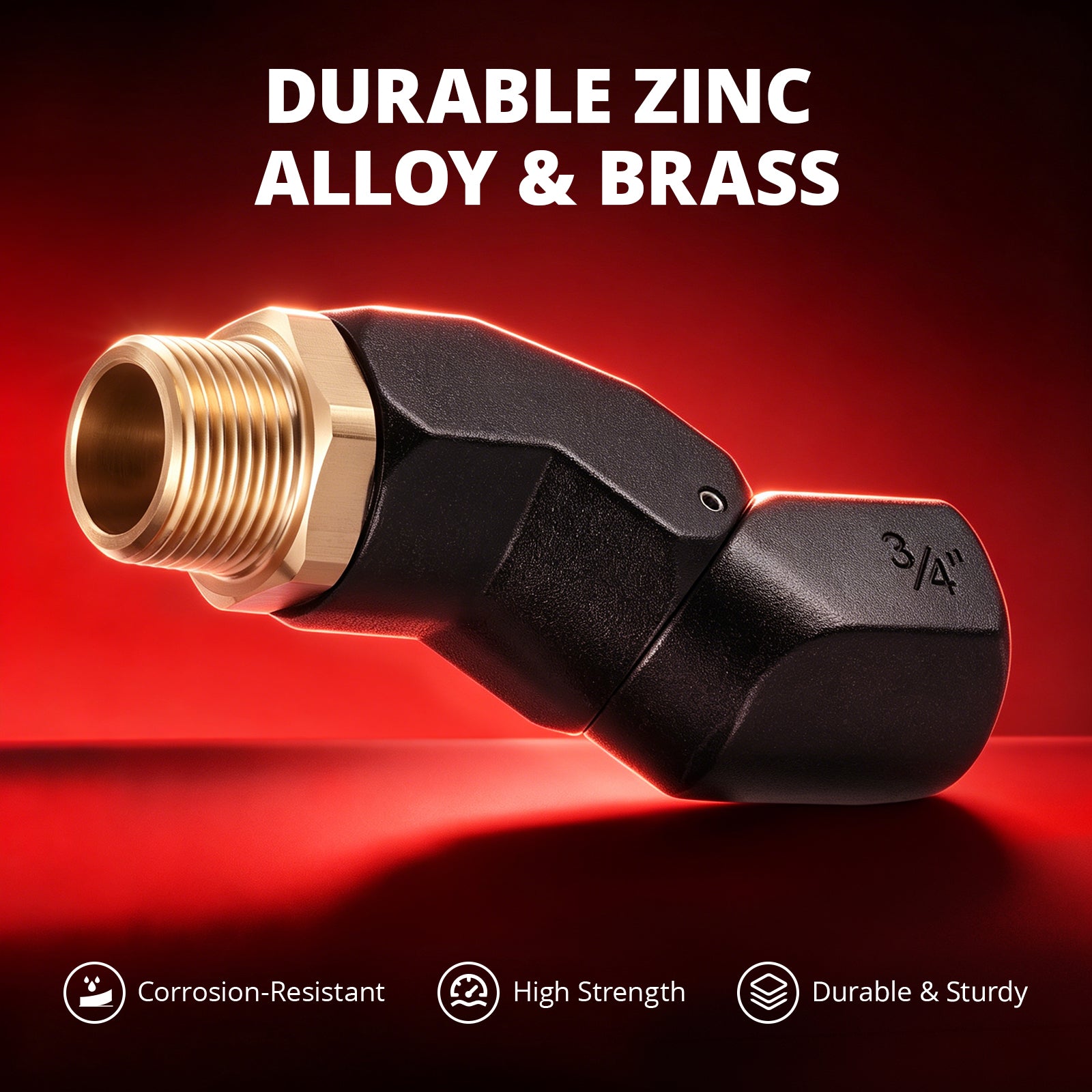

A: Hand tight, then roughly two to three turns with a wrench. Stop when it feels solid rather than chasing a number. NPT wedges tighter the further it goes, so over-tightening a brass thread into a zinc body can split the body. If it still weeps at that point, back it out, clean the threads and reapply sealant rather than forcing another turn.

Q: Can I use this with gasoline, or only diesel?

A: It is compatible with diesel, kerosene and oil, and with gasoline in non-commercial applications such as farm and fleet fueling. Commercial retail dispensing is a separate question. In the US, swivel connectors used on retail dispensers are certified to UL 567 and UL 567A, and a dispenser rated above E25 will be marked with the specific listed models permitted on it. If you are equipping a public dispenser, use hardware carrying that listing.

Q: What about E85 and high ethanol blends?

A: Check the ethanol rating of every part in the chain, not just the hose. Ethanol is more aggressive toward metals and elastomers than gasoline, and the industry standard for swivel connectors reflects this: UL 567A exists specifically to cover E0 through E85, and many professional swivels are listed only to E10. A hose rated for E85 does not make the swivel on the end of it E85 rated. For dedicated high-ethanol service, confirm the rating of the swivel itself before use.

Q: Why does my new swivel leak at the threads?

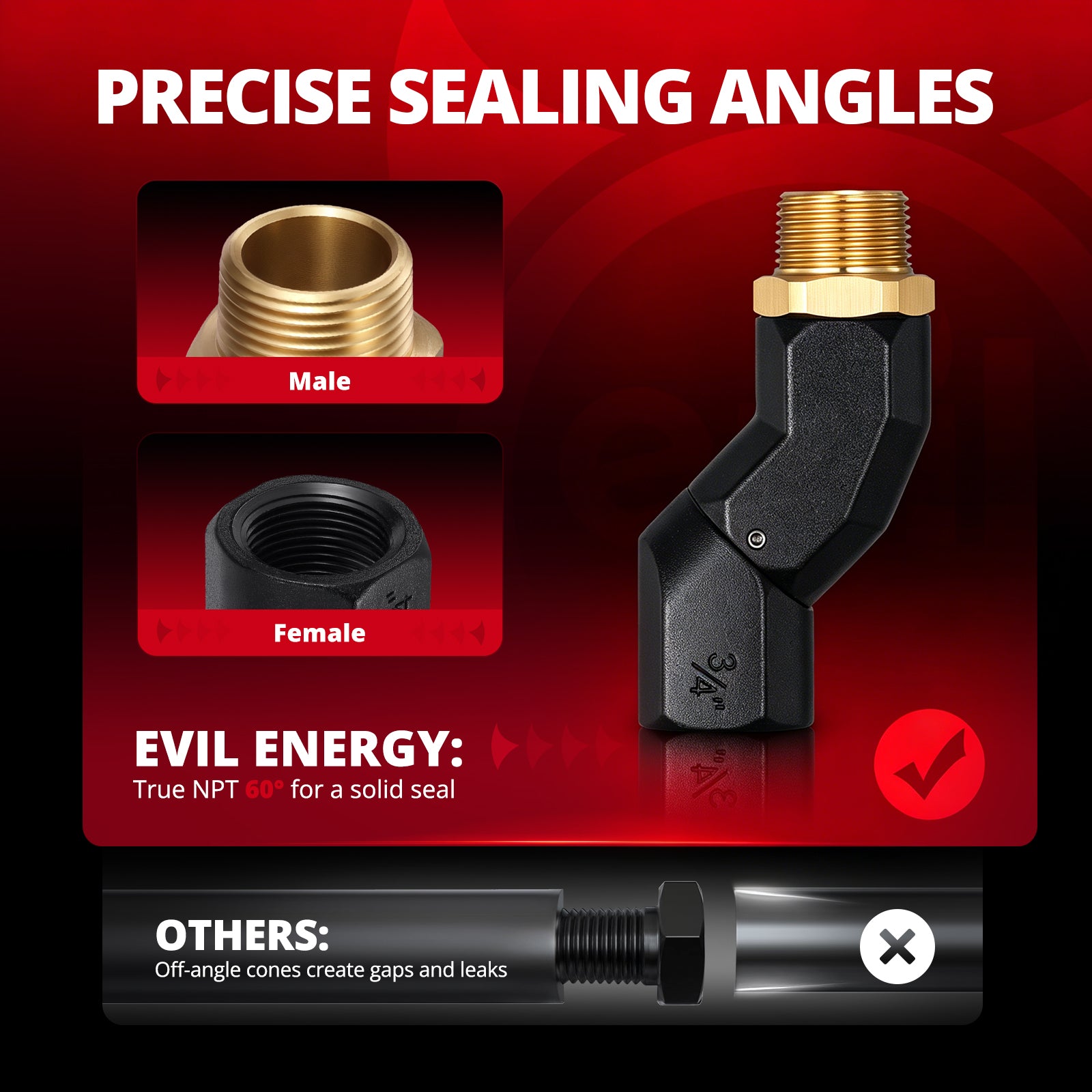

A: In order of likelihood: no sealant, wrong sealant, or not enough thread engagement. NPT will feel tight well before it is sealed, which fools people into stopping early. Also check that you have not mixed NPT with BSP. The two look nearly identical but use different thread angles, 60 degrees against 55 degrees, and a BSP fitting will thread into an NPT port for several turns and never seal.

Q: How do I know if the swivel itself has failed rather than the joint?

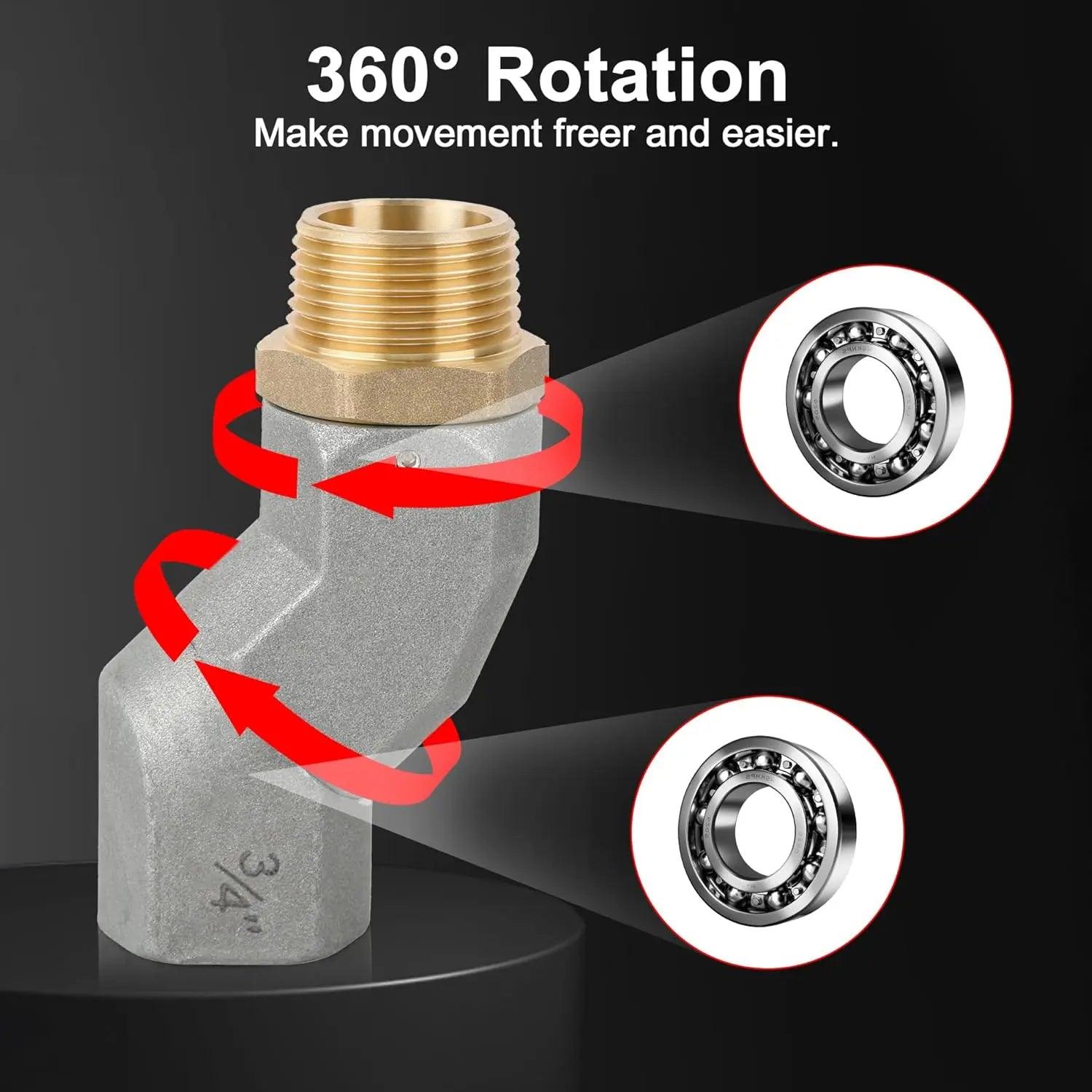

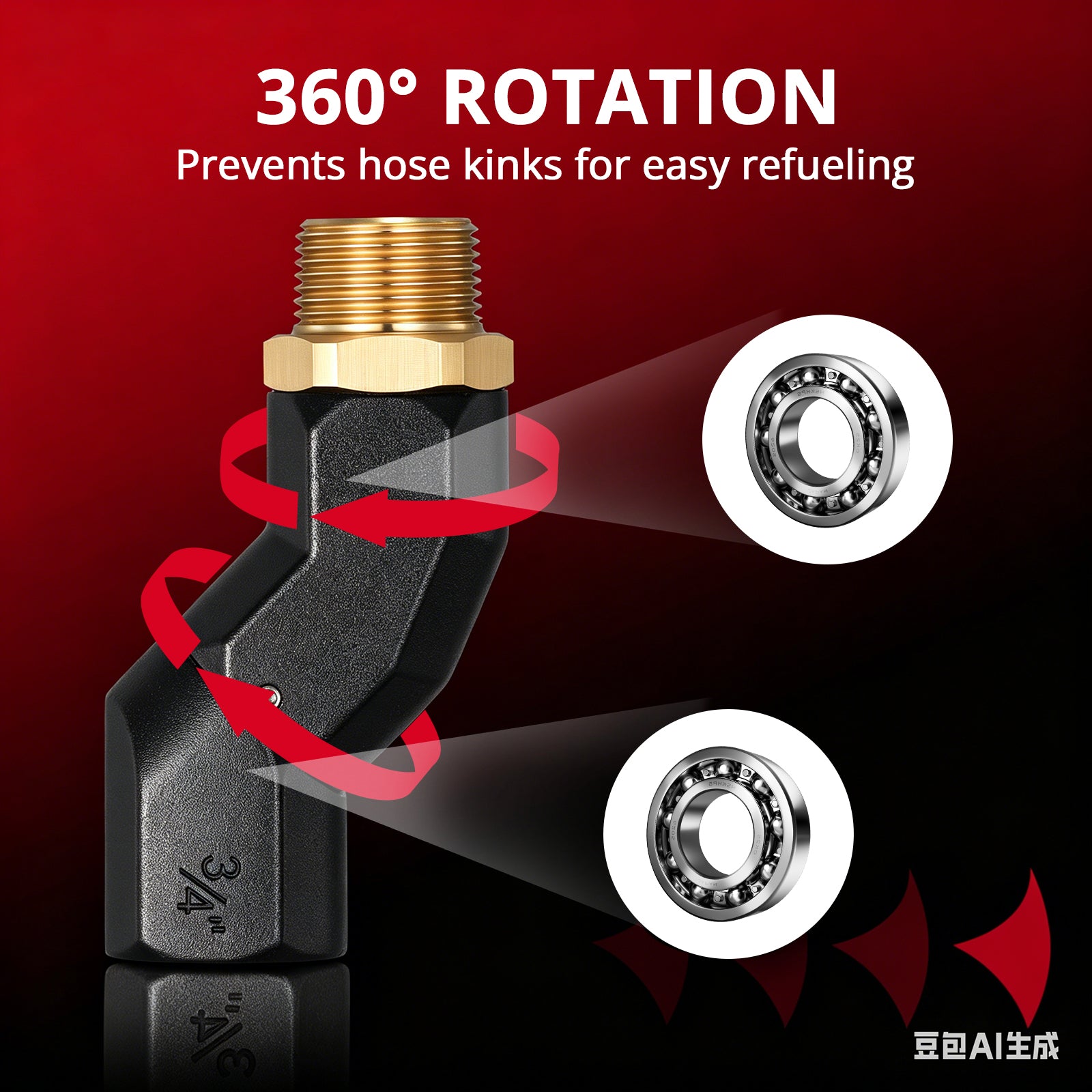

A: Wipe the fitting dry, run the pump, and watch where the wetness reappears. Fuel at the threaded ends means a sealant problem. Fuel appearing at the rotating joint in the middle means the internal seal is worn, which is the normal end of life for any swivel. A swivel that has become stiff or notchy to turn is usually near that point even if it is not leaking yet.

Q: Will a swivel reduce my flow rate?

A: In practice, no. A fuel hose swivel is a straight-through passage matched to the nominal thread size, so a 1" NPT swivel does not restrict a 1" line in any way an operator would notice. Real flow loss in a transfer setup comes from hose length, lift height and filter condition, not from a single inline fitting.

Q: Should I buy one, two, or a multipack?

A: Count the ends that move. One covers the nozzle end of a single hose. Two covers both ends, which is where most single-hose setups land. The 6 and 12 packs are for farms, fleets and rental operations running several stations, where the cost of a spare on the shelf is far below the cost of a truck waiting on a fitting.
