Product Specifications
| Brand | EVIL ENERGY |
| Material |
Fuel Hose Material: Nylon, Synthetic Rubber, PTFE Fitting Material: Aluminum |
| Hose ID & OD |

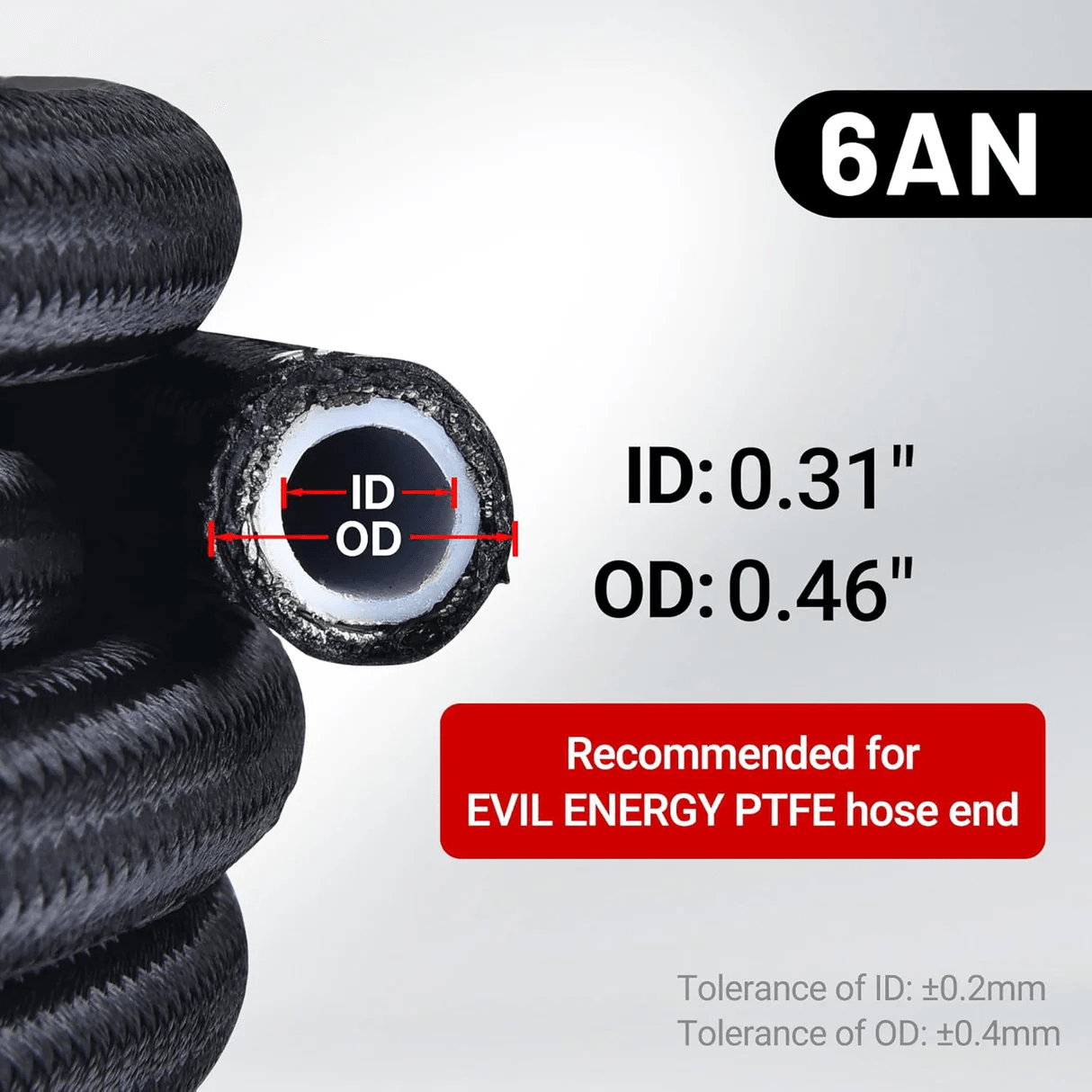

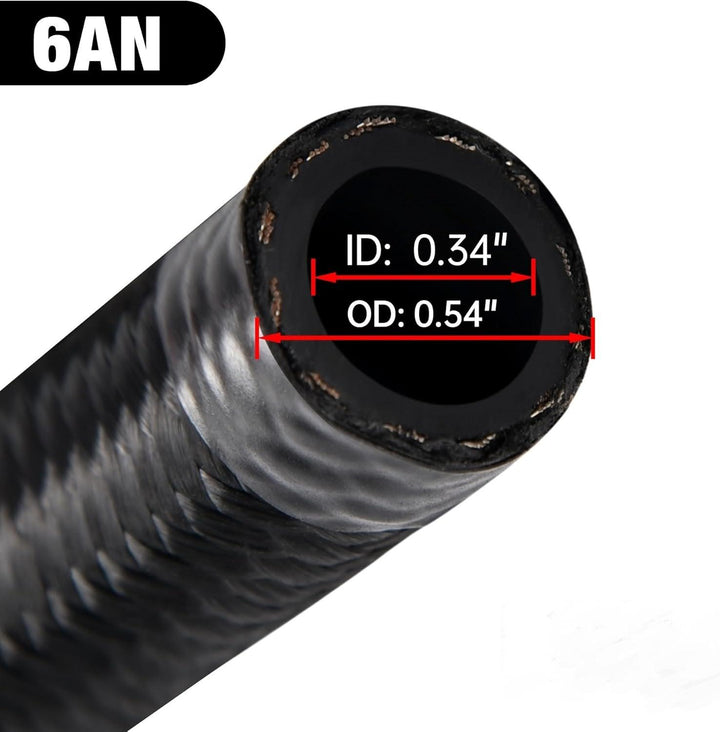

6AN PTFE ID: 0.31", OD: 0.465" 6AN CPE ID: 0.34", OD: 0.54" |
| Maximum Working Pressure |
6AN PTFE: 3000psi 6AN CPE: 500psi |
| Maximum Pressure |
6AN PTFE: 10000 PSI 6AN CPE: 2000 PSI |
| Min Bending Radius | 6AN: 63.5mm |
| Kit Includes |
|
Product Description
Key Features

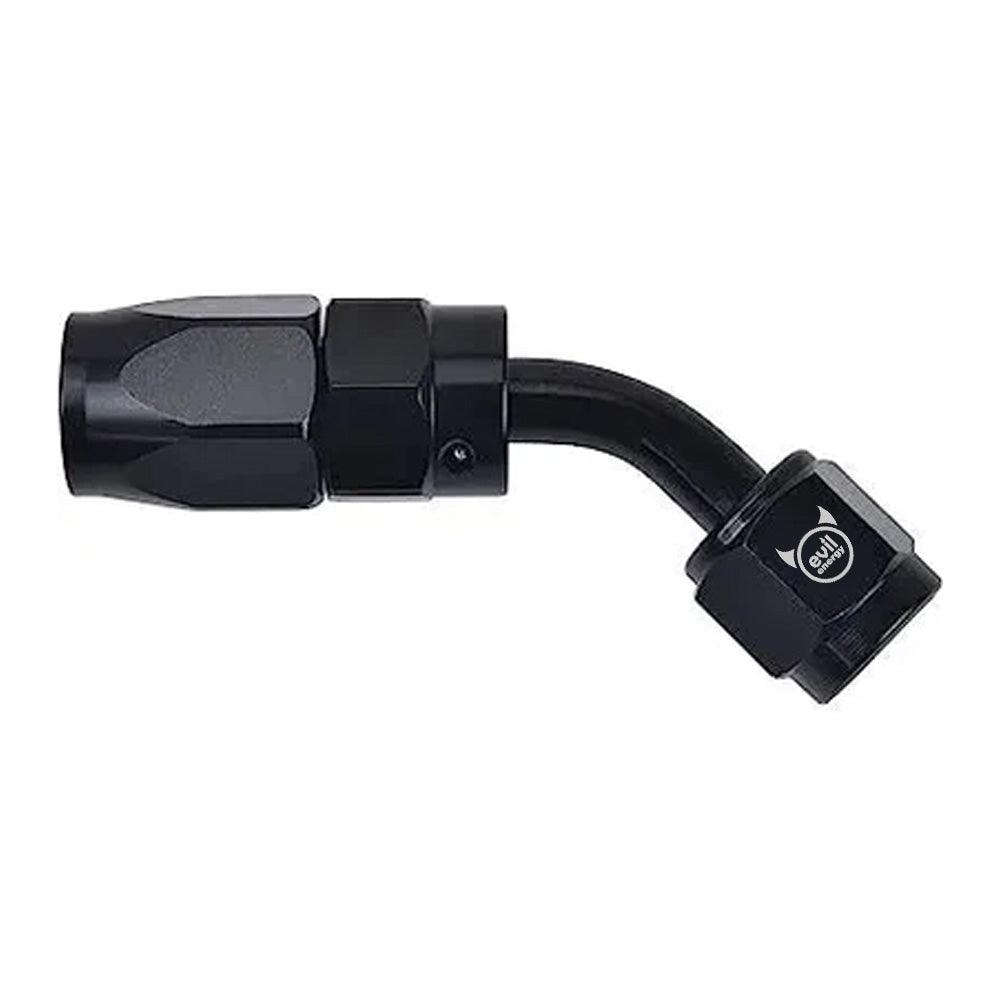

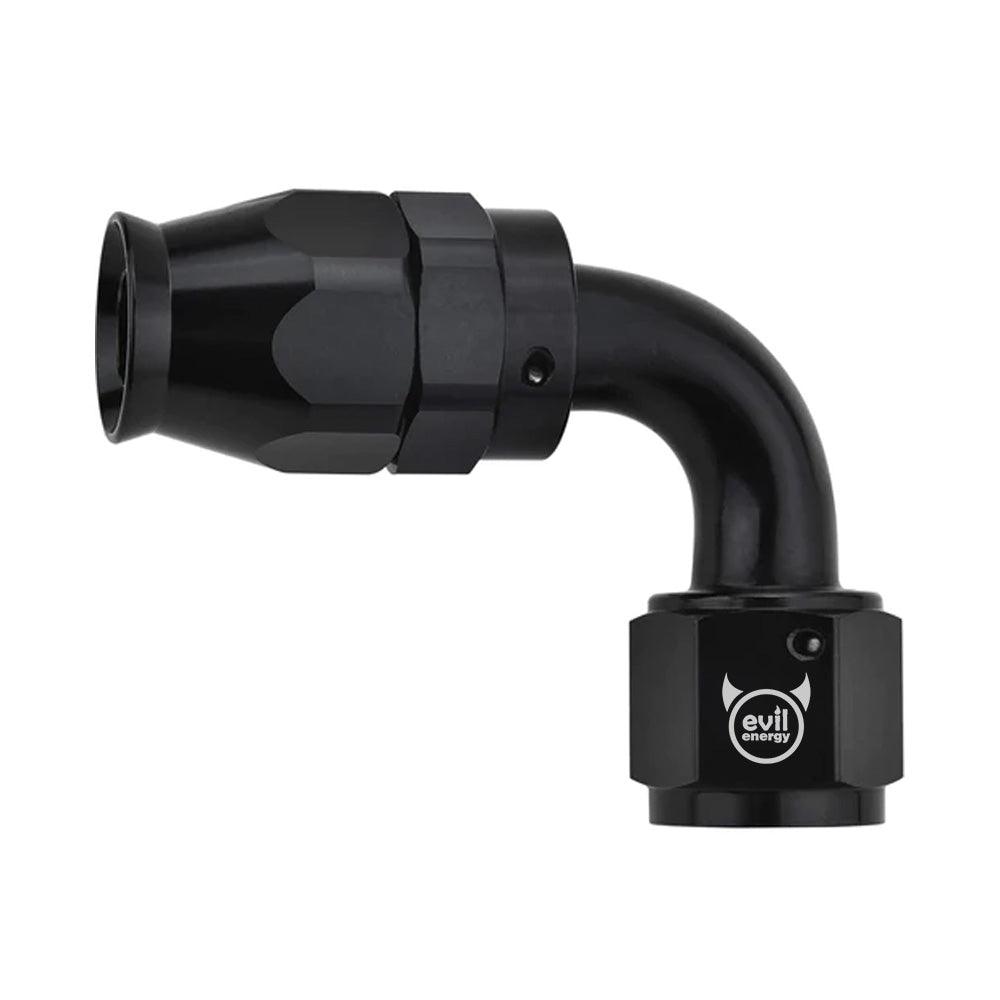

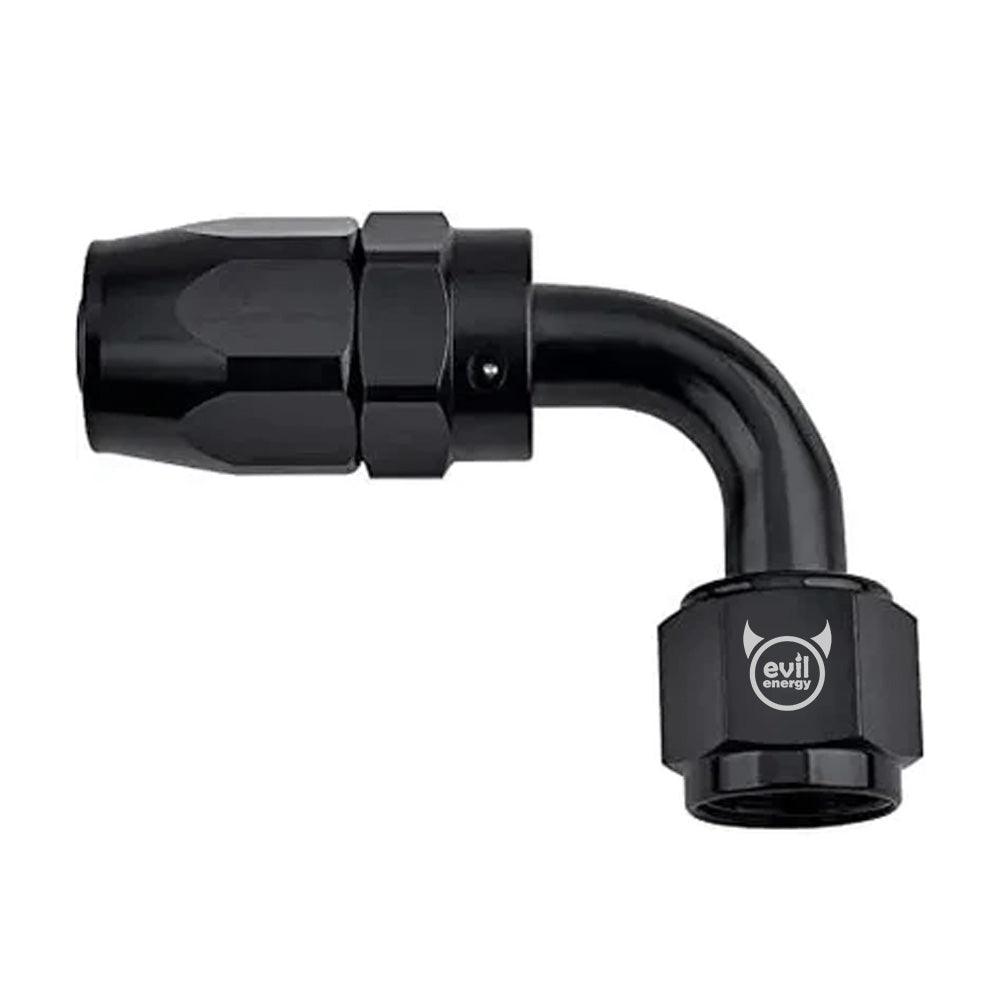

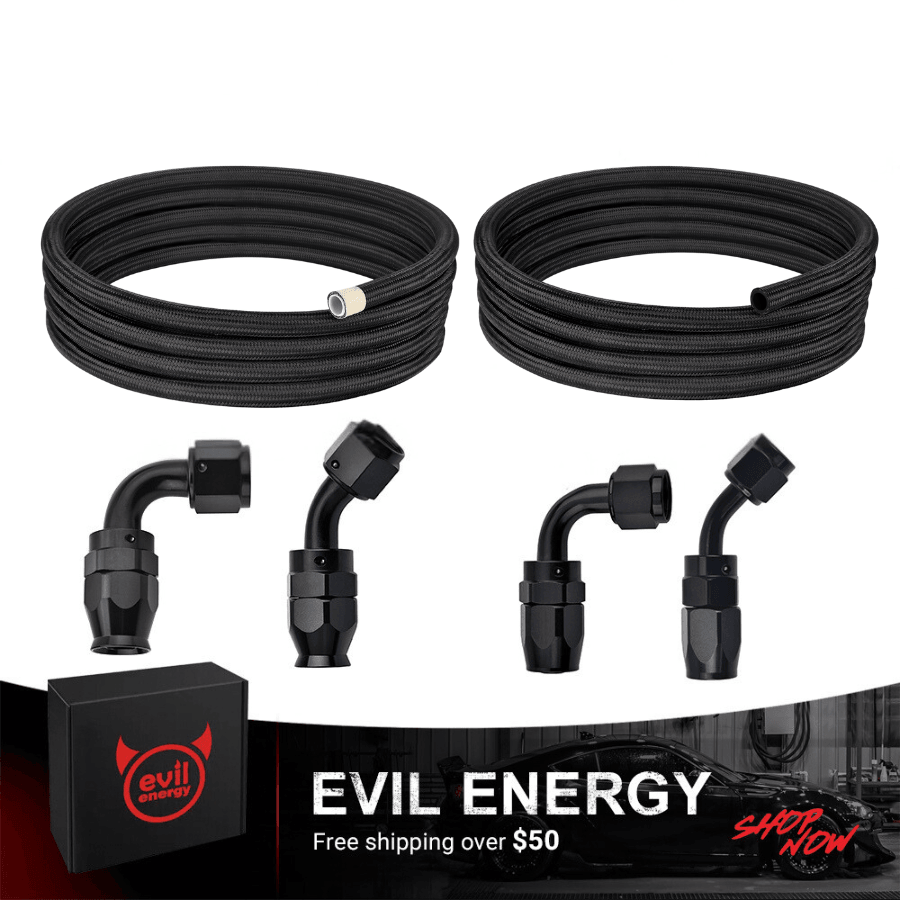

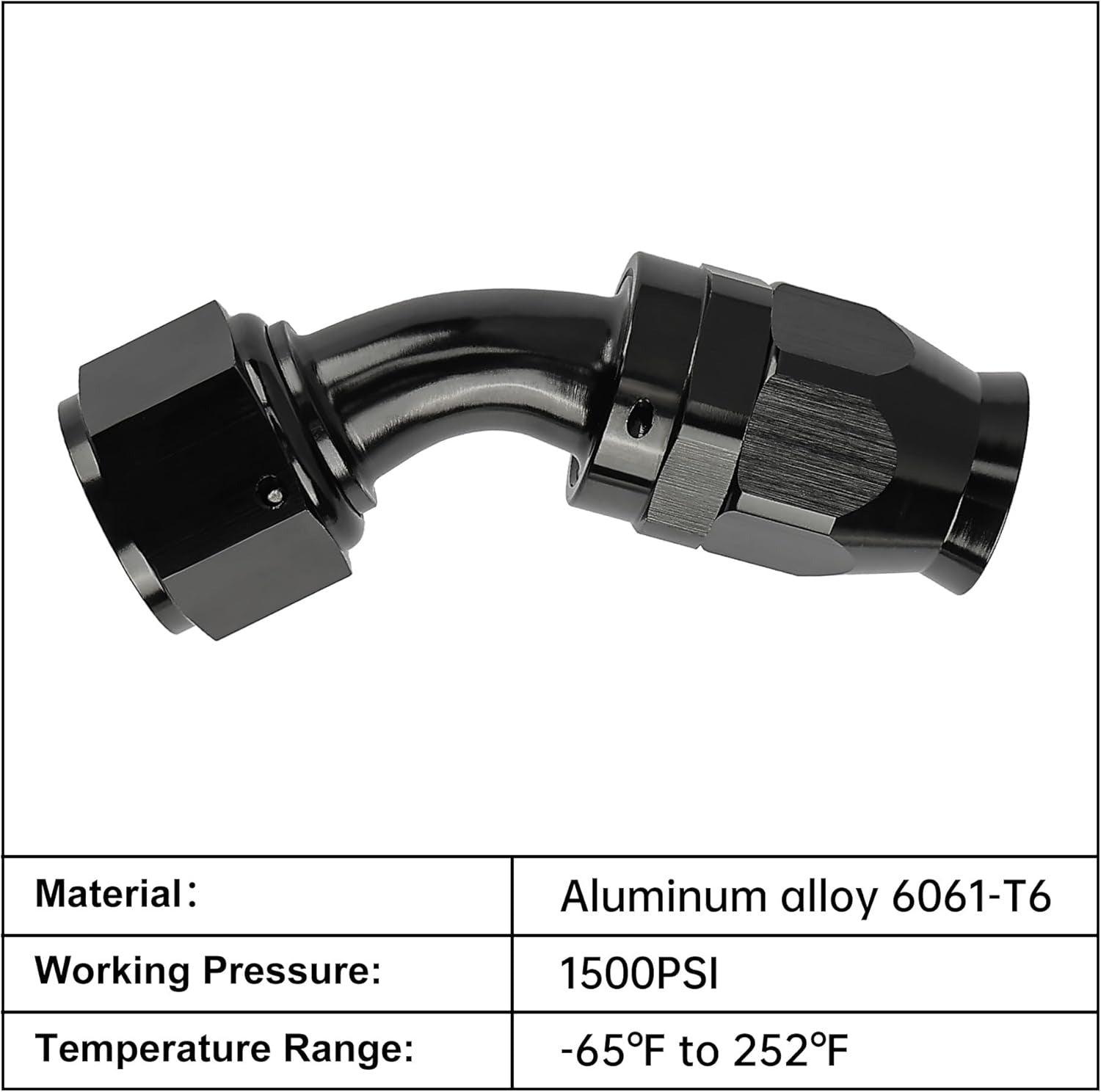

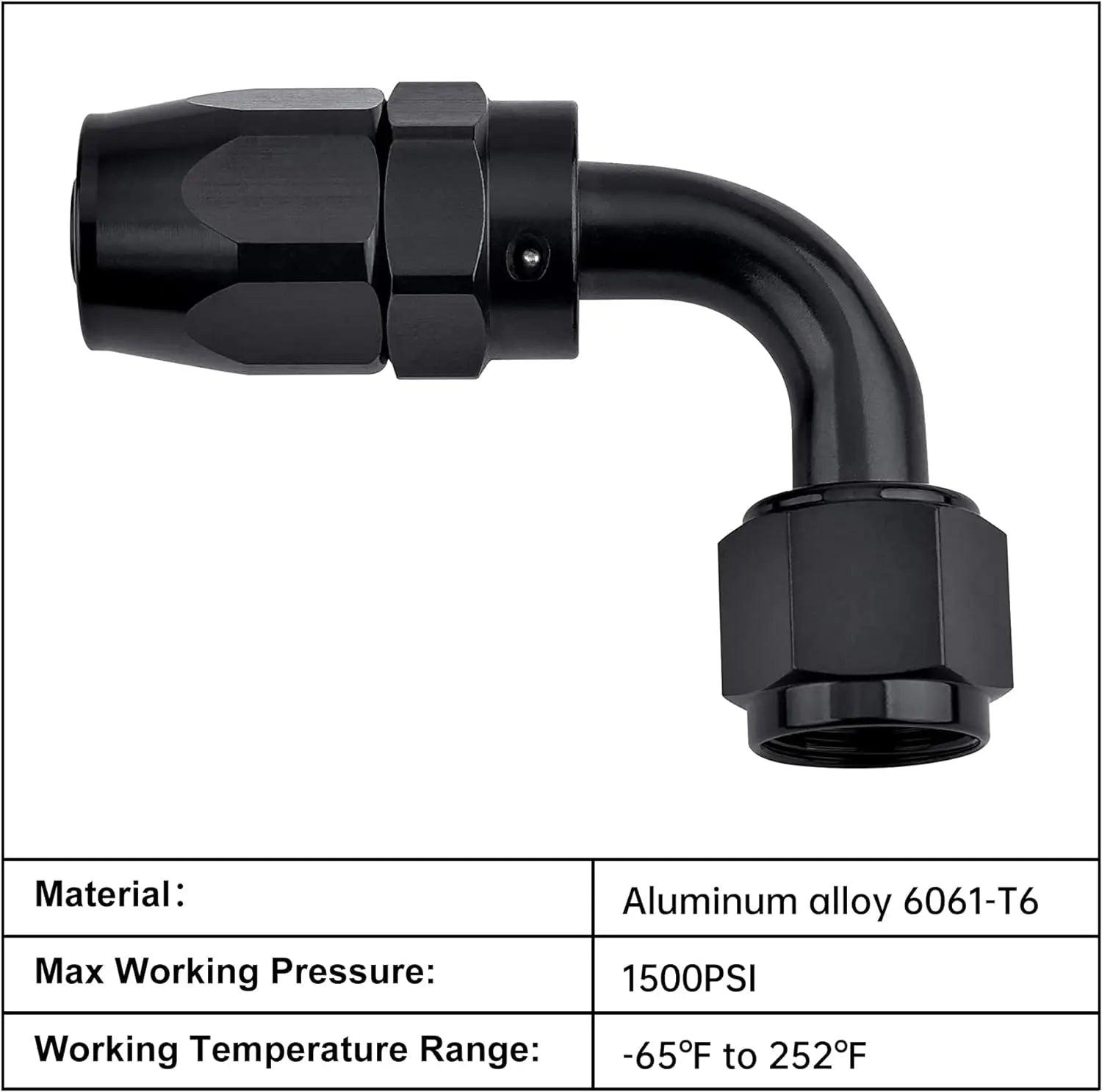

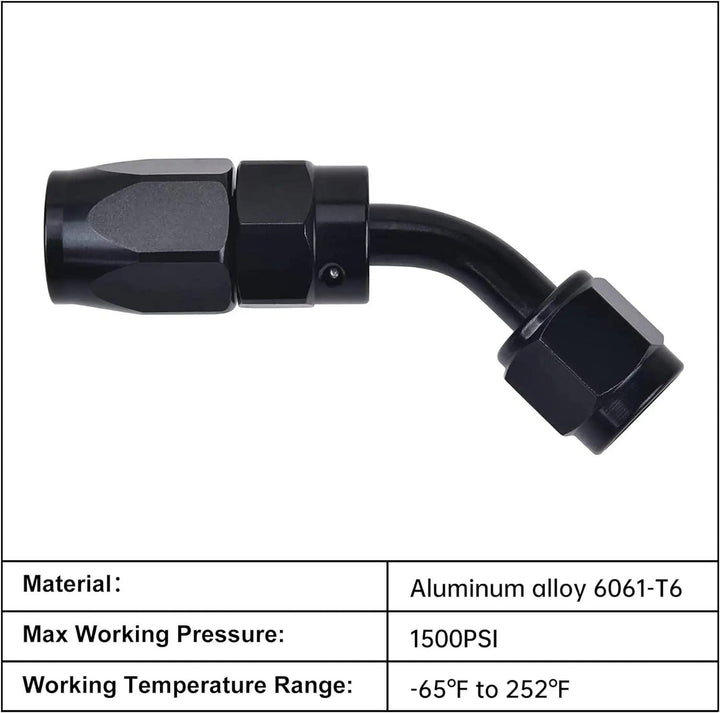

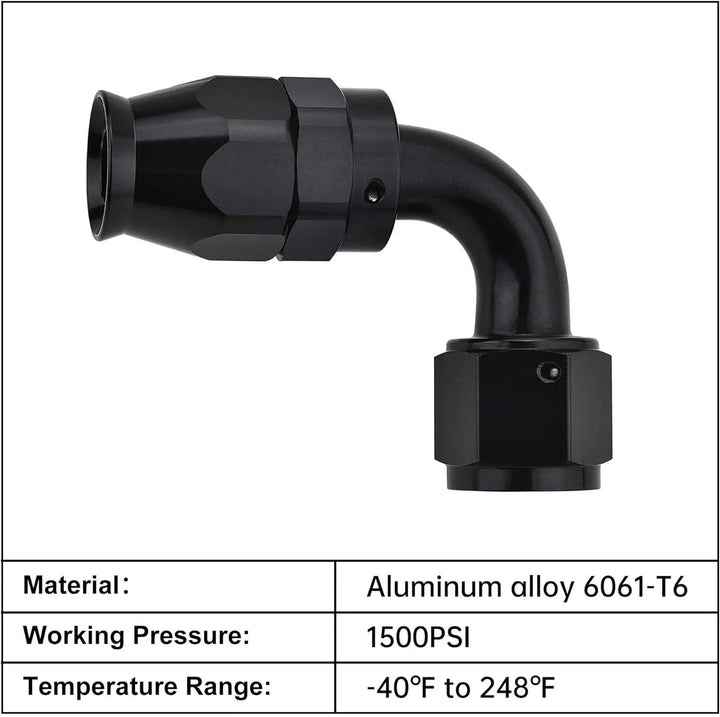

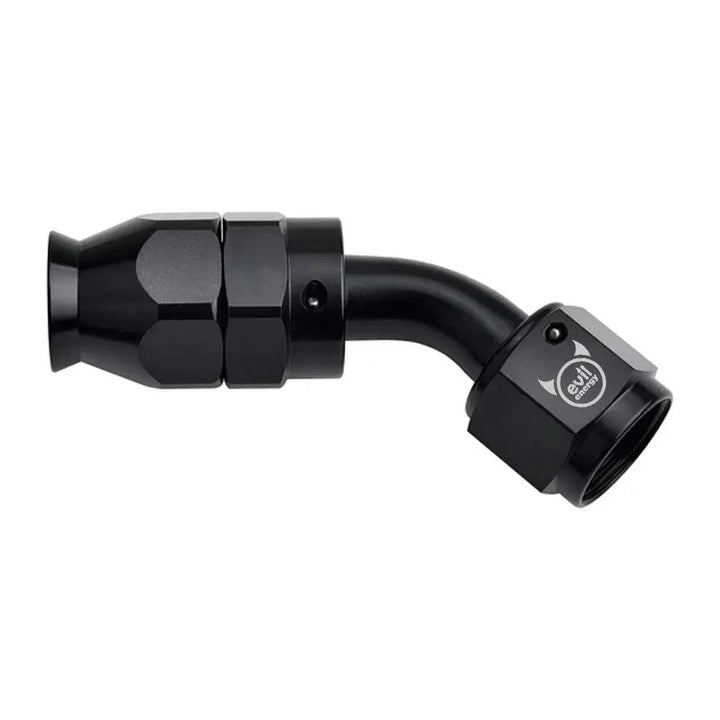

- Upgrade your fuel system with durable 5FT AN6 PTFE and CPE oil hoses, paired with precision-engineered 45° and 90° fittings for optimized fuel flow.
- Designed for high-performance and reliability, ideal for professional and DIY applications. Superior resistance to heat and corrosion makes it perfect for racing and daily driving alike.
High-Quality Fuel Lines

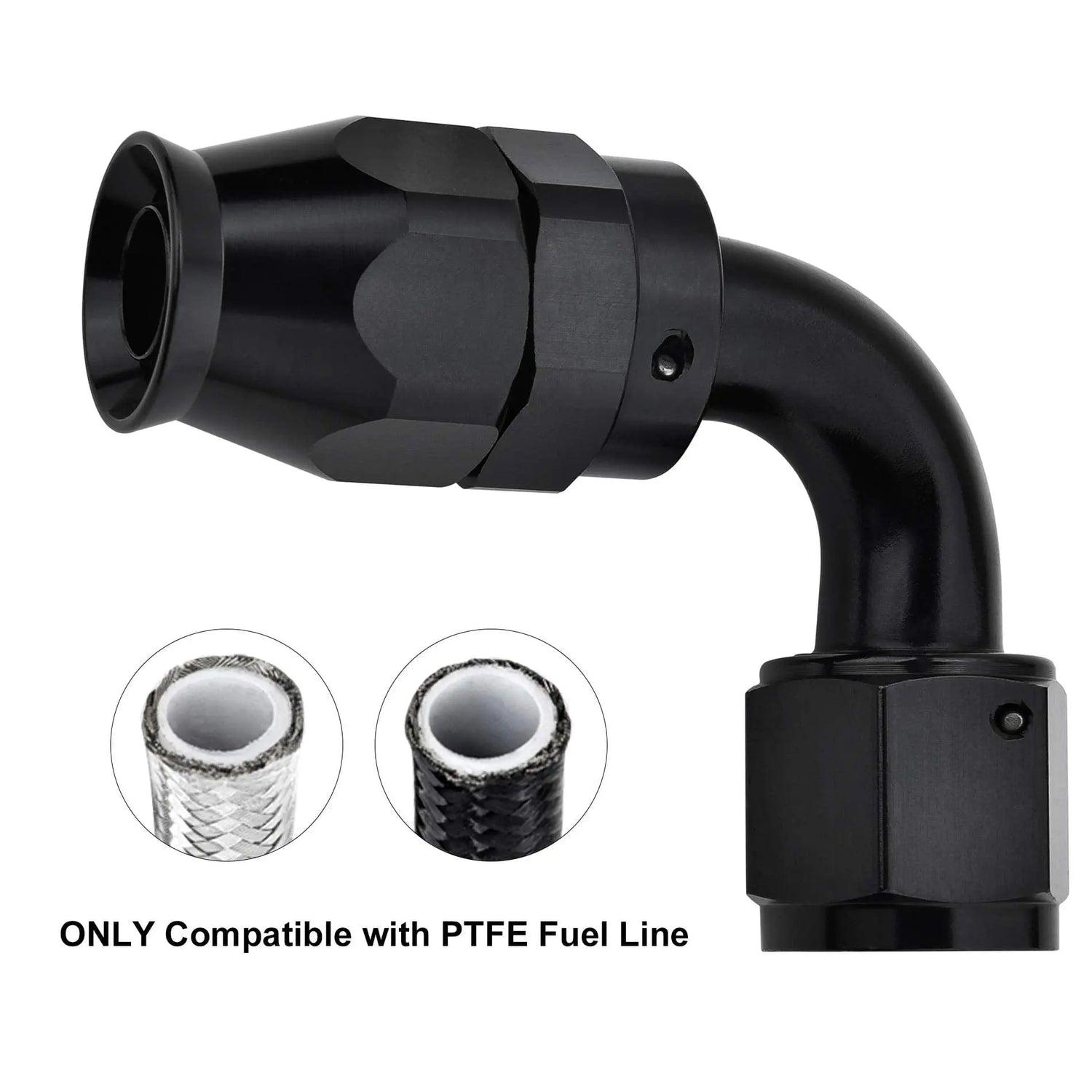

- PTFE Fuel Hose: Ideal for fuel injection, boost lines, and LS swaps. Compatible with all automotive fuels and coolants.
- CPE Fuel Hose: Perfect for transmission oil cooler lines, fuel return lines, and coolant hoses.
Complete 6AN Hose Ends Fittings
- All necessary 6AN fittings included for straightforward installation.
Why Choose Evil Energy?
At EVIL ENERGY, we are committed to providing reliable and efficient fuel system solutions for car enthusiasts worldwide. Our products, including fuel filters, fuel pressure regulators, braided fuel lines, and fittings, undergo extensive research and rigorous testing to ensure the highest quality and performance standards.
- Fast Shipping: Orders are processed within 1-2 business days for quick delivery.
- Easy Returns: Enjoy a hassle-free 90-day return policy with free return shipping (unused and intact packaging). Returns from 90-180 days will incur a 15% operating fee.
- Warranty: EVIL ENERGY provides a 1-year warranty on this kit. For questions, contact us via email.
For additional information, please contact us at support@ievilenergy.com.
Moderate
Estimated Time: 0.5-1 hour
Tools Required
- AN wrench set
- Bench vise
- Hose cutter or fine-tooth hacksaw
- Deburring tool
- Marker
- Assembly lubricant
- Safety glasses
- Fuel-resistant gloves
Pre-Installation Checklist
- Confirm whether the supplied hose is CPE, PTFE, or antistatic PTFE and use the matching assembly method.
- Plan the routing path away from exhaust heat, moving parts, sharp edges, and abrasion points.
- Confirm the correct hose ends and AN fittings are available.
- Wear safety glasses and fuel-resistant gloves and work away from ignition sources.
Installation Steps
- Measure the hose along the intended routing path and allow enough length for bends without kinks or tension.
- Wrap the cutting area with tape, make a square cut, then deburr and clean the hose end.
- For CPE hose, secure the socket in a vise, thread the hose into it until snug, leave a 1-1.5 mm gap, and mark the hose position.

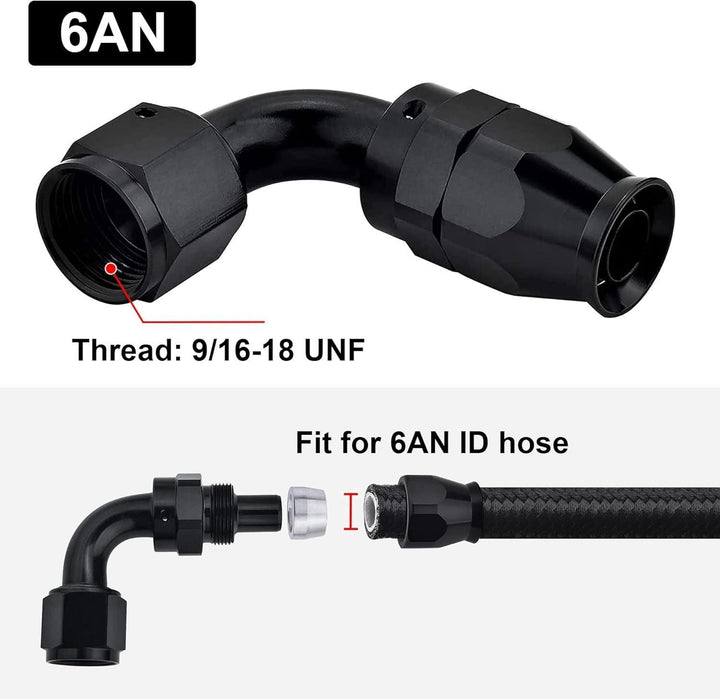

- For PTFE hose, slide on the socket, flare back the outer braid, seat the ferrule fully on the PTFE liner with no gap, and push the assembly onto the nipple.
- Apply assembly lubricant to the fitting threads, hold the socket securely, and tighten the fitting body until fully seated.
- Clean and pressure-test the completed hose assembly before installing it.
- Install the hose according to the system flow diagram and secure it away from heat, sharp edges, and moving parts.
Post-Installation Verification
- Verify all hose ends are fully seated and fittings are secure without overtightening.
- Confirm no hose is kinked, twisted, under tension, or exposed to abrasion or excessive heat.
- Pressure-test the assembly and inspect every connection for leaks before starting the engine.
- Reinspect after the road test and after 50-100 km.
Troubleshooting
- Fuel leak: turn the ignition OFF immediately and replace damaged hose or fittings before operation.
- Restricted flow or low pressure: inspect for kinks, incorrect routing, debris, or an incomplete hose-end assembly.
- Air entering the system or fluctuating pressure: check all hose ends and fittings for loose connections or leaks.
Maintenance
- Inspect hose routing, abrasion protection, and fittings periodically.
- Replace any hose that is damaged, leaking, kinked, or heat-affected before operating the vehicle.
