EVIL ENERGY 8.5mm Spark Plug Wire Set Compatible with 2003-2006 Dodge Ram 1500 5.7L HEMI V8, 90 Degree DD Plug Boots

Q: Will these 5.7 HEMI spark plug wires fit 2003–2006 Dodge Ram 1500 trucks?

A: The verified 32039-style reference range is 2003–2005 Dodge Ram 1500 5.7L HEMI. A 2006 truck is not part of the verified reference range; compare the original connectors, boot angle and routing, then confirm fitment with EVIL ENERGY support before ordering.

Q: Are these 8.5mm spark plug wires universal?

A: No. This is a fitment-specific spark plug wire set. Confirm the vehicle year, 5.7L HEMI engine, eight-wire layout, connector ends and 90-degree plug-end boot geometry rather than ordering by wire diameter alone.

Q: Where can I find a 2003, 2004 or 2005 Dodge Ram 1500 5.7 HEMI spark plug wire diagram?

A: Use the factory service manual for the vehicle-specific routing diagram. Before removing the old wires, photograph and label their paths, then replace one wire at a time so each new wire follows the original route.

Q: How do I install spark plug wires on a 5.7L HEMI?

A: Let the engine cool completely, disconnect the negative battery cable and replace one wire at a time. Pull from the boots instead of the cable, match the original routing, fully seat both ends and keep the wires away from exhaust surfaces, sharp edges and moving parts.

Q: How do I test spark plug wires with a multimeter, and what resistance should I expect?

A: With the engine off and cool, disconnect both ends and measure resistance from terminal to terminal. This set is specified at 1.2 kΩ ±20% per meter, so expected resistance depends on each wire's length. Do not expect wires of different lengths to produce identical readings.

Q: What are the symptoms of bad spark plug wires, and can bad spark plug wires cause a misfire?

A: Damaged or high-resistance wires can contribute to visible arcing, rough running, hesitation, hard starting or misfires under load. These symptoms can also come from spark plugs, ignition coils, injectors or mechanical problems, so diagnose the system before assuming the wires are the only cause.

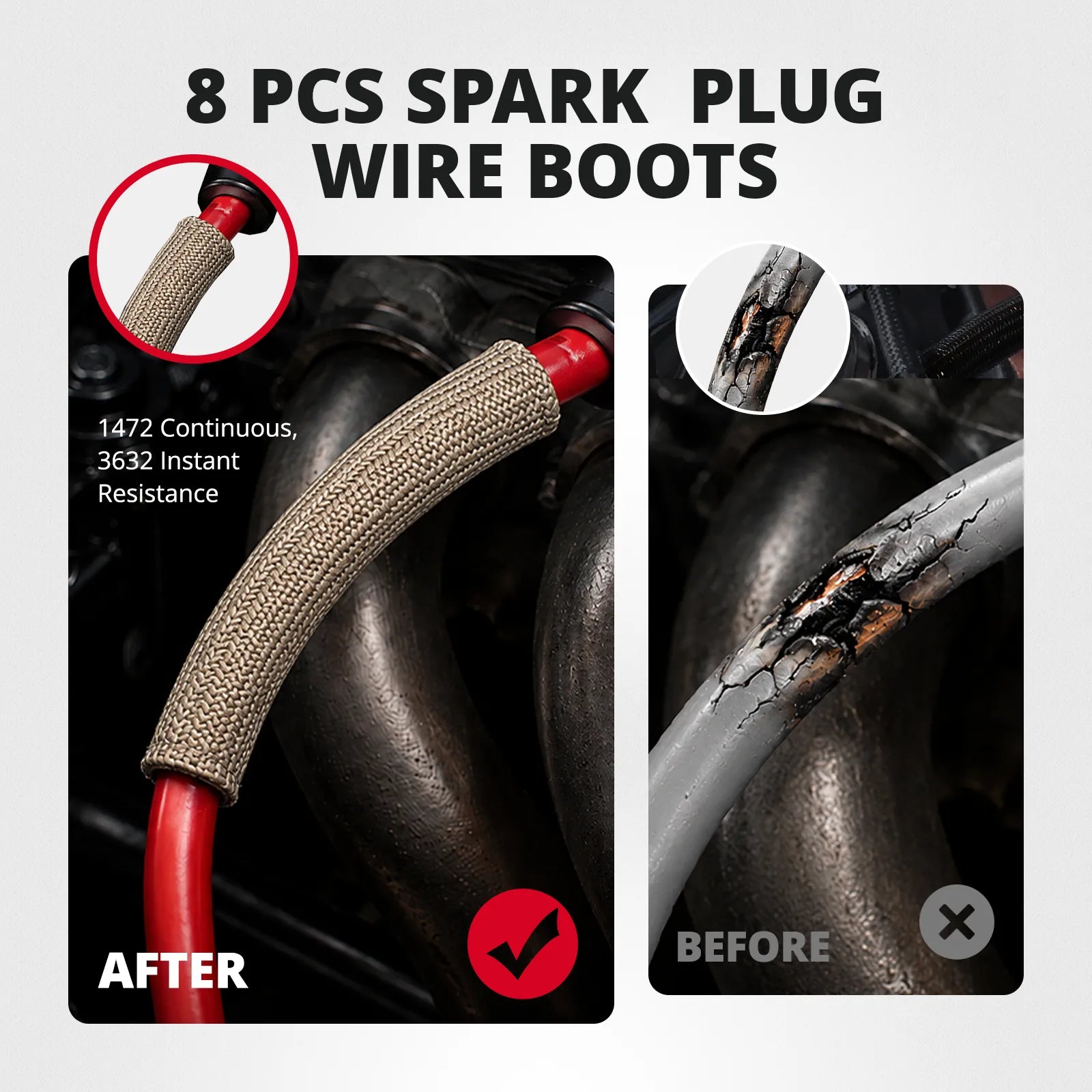

Q: Should I use a spark plug wire heat sleeve near the exhaust?

A: A properly rated spark plug wire heat sleeve can provide additional protection where exhaust-side clearance is limited, but it does not make direct exhaust contact acceptable. Route and secure every wire away from manifolds, headers and other hot surfaces.

Q: How long do spark plug wires last?

A: There is no universal replacement interval because service life depends on heat exposure, routing, mileage and engine condition. Inspect the wires during ignition service and replace them when the jacket is cracked, burned or hardened, the boots are loose, or resistance is outside the published specification.

Q: What is included in this spark plug wire set, and are spark plugs included?

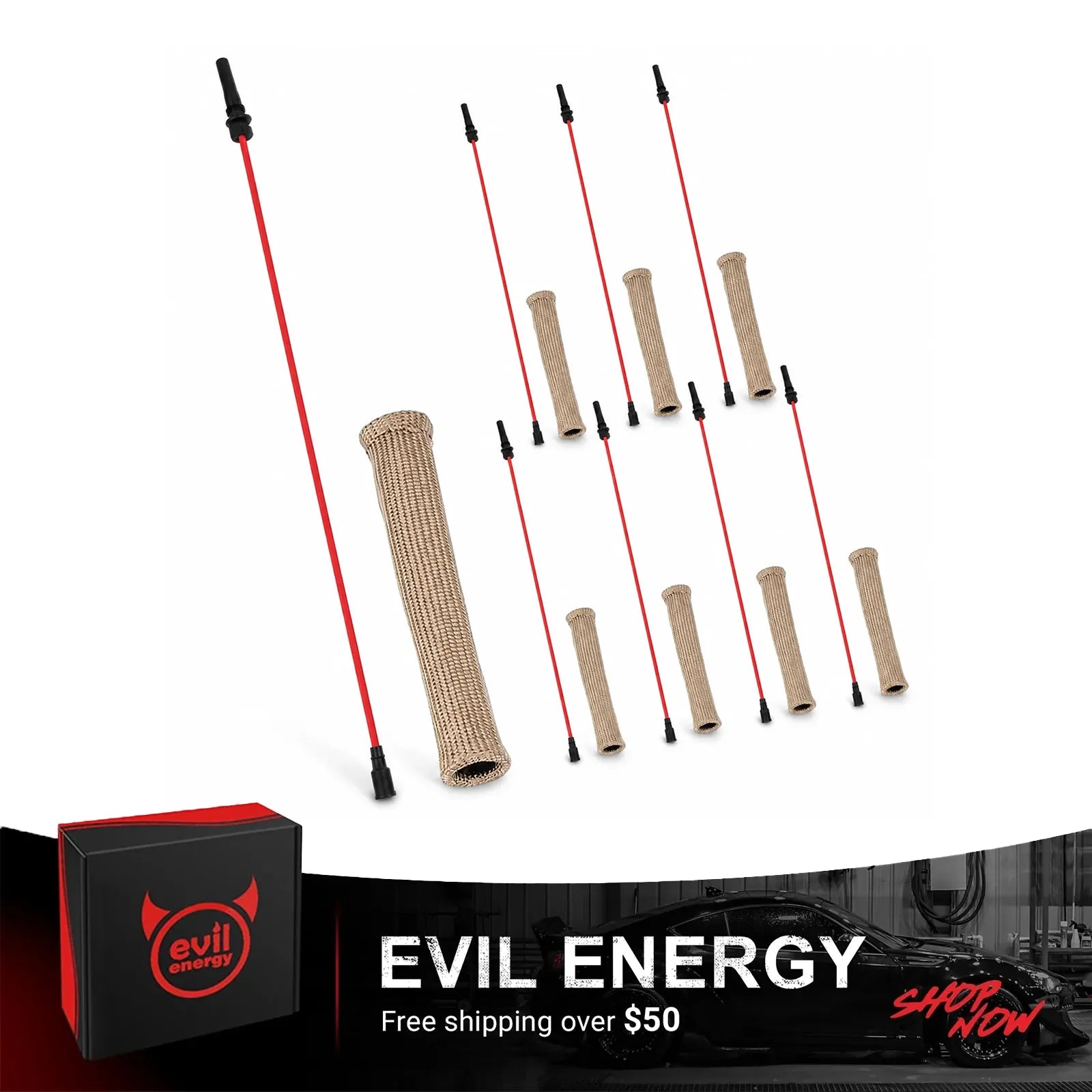

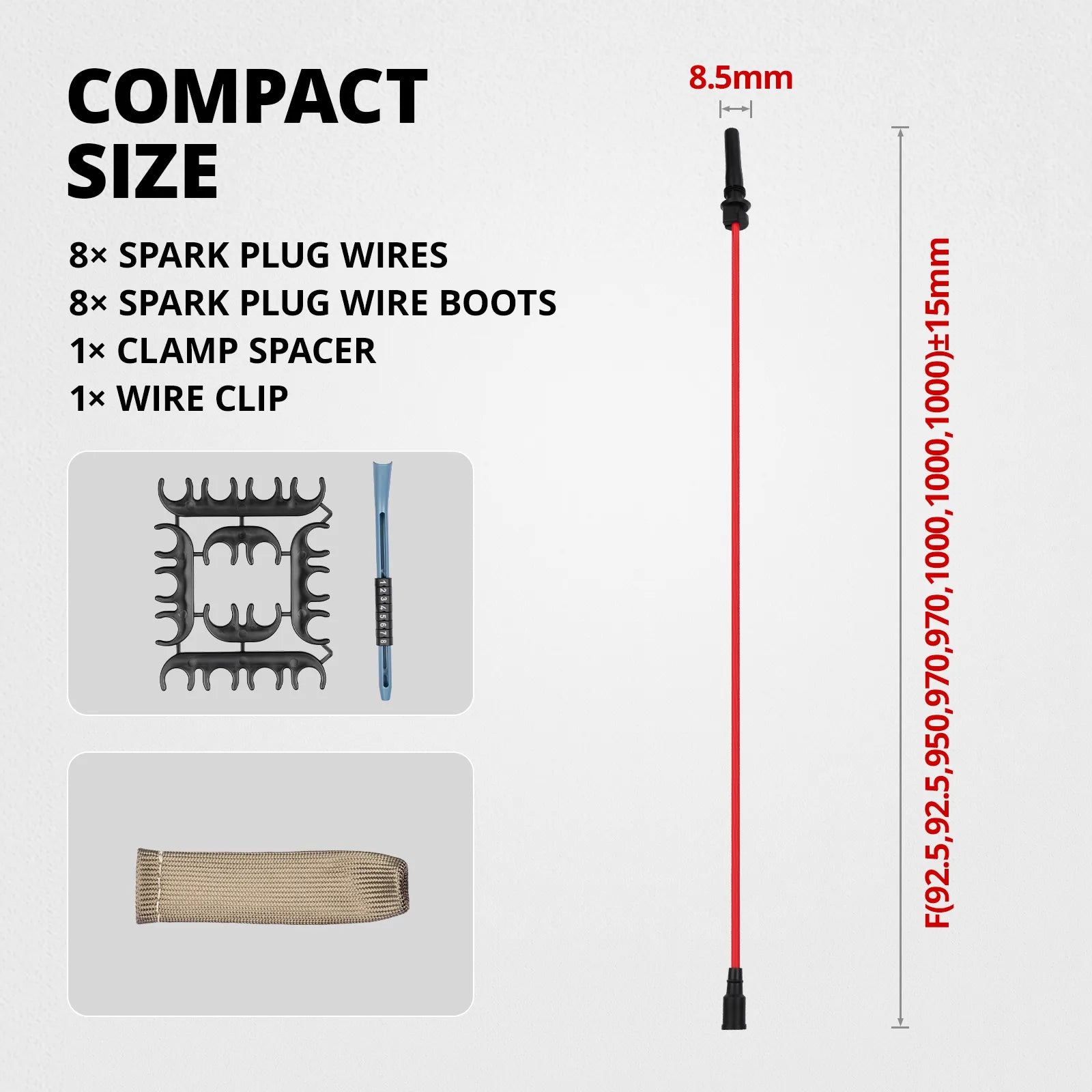

A: The set includes eight preassembled 8.5mm spark plug wires, eight basalt spark plug wire heat sleeves, coil-end boots and 90-degree DD-style plug-end boots. Spark plugs are not included.

Q: Do thicker 8.5mm spark plug wires automatically add horsepower?

A: No. Wire diameter alone does not guarantee additional horsepower. Correct fitment, insulation condition, conductor resistance, suppression capability, secure terminals and safe routing are more important than choosing a wire solely because it is thicker.
