EVIL ENERGY 6/8/10AN Fuel Line Kit with Adjustable Wrench, 6/8/10AN Hose Braided Fuel Line Hose With Fitting Kit CPE 10FT

About this item

Struggling with leaking fittings, abraded hose, or missing assembly tools can slow down a custom fluid-line installation. The EVIL ENERGY CPE nylon braided fuel line kit combines a reinforced 10FT hose with six aluminum swivel fittings, separator clamps, an adjustable wrench, and protective gloves. It suits DIY builders and professional technicians fabricating compatible fuel, oil, coolant, transmission, hydraulic, turbo, or vacuum lines in garages and performance workshops.

CPE Nylon Braided Fuel Line Kit Fitment

• Compatible fuel types: conventional fuel, diesel, race gas, and E15, according to the available product information.
• Compatible automotive fluids: Also listed for engine oil, coolant, antifreeze, transmission fluid, lubricants, hydraulic fluid, and vacuum applications.
• Compatible line applications: Fuel supply, fuel return, transmission cooler, coolant, fuel gauge, vacuum, turbo cooler, and oil feed lines.
• Universal applications: Suitable for compatible cars, trucks, race vehicles, engine swaps, and other custom automotive projects requiring plumbing.
• Incompatible fuel warning: The product image specifically states that the hose is not compatible with E85, E10, or methanol.
• Variant notice: This listing covers the 8AN 10FT kit. Do not use specifications from a different hose size or length.
• Installation requirement: Cutting, fitting assembly, routing, cleaning, and pressure testing are required.

Key Features of the CPE Nylon Braided Fuel Line Kit

• Three-Layer Reinforced Construction: A CPE rubber inner tube, 304 stainless steel wire layer, and braided nylon exterior combine fluid resistance, pressure reinforcement, flexibility, and abrasion protection.
• Six Multi-Angle Swivel Fittings: Two straight, two 45-degree, and two 90-degree hose ends support practical routing around pumps, filters, coolers, regulators, and engine components.
• Pressure and Temperature Capability: The hose supports 750 PSI maximum working pressure and has a 2,250 PSI burst rating across a -22°F to 248°F operating range.
• Installation Tools Included: A 3AN–16AN adjustable wrench helps grip AN components, while the protective gloves help shield hands from exposed reinforcement strands during cutting and assembly.

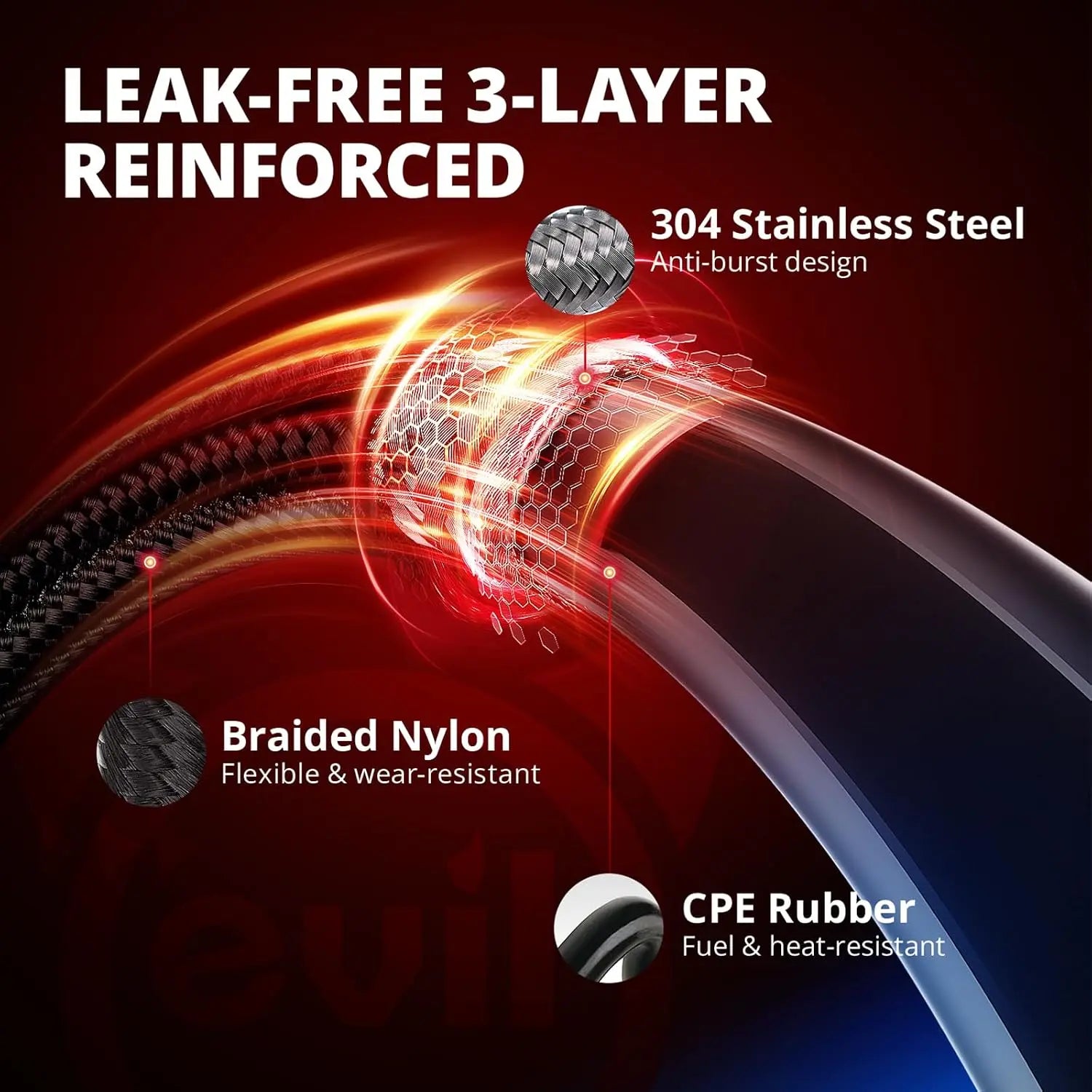

Three-Layer Construction of the CPE Fuel Hose

The hose combines a fuel- and heat-resistant CPE rubber inner tube with 304 stainless steel reinforcement and a flexible braided nylon outer cover. The stainless layer helps control hose expansion under pressure, while the nylon exterior protects the reinforcement against abrasion during engine-bay and chassis routing.

Keep the hose away from sharp edges, moving parts, and direct exhaust heat. Secure long sections with suitable supports and maintain at least the specified 3.5-inch bend radius to reduce kinking, localized stress, and internal flow restriction.

Swivel Hose Ends for Custom Fluid-Line Routing

The included black aluminum hose ends use threads and a 360-degree swivel connection. Straight, 45-degree, and 90-degree configurations let installers select a suitable approach angle around fuel pumps, filters, regulators, coolers, fuel cells, and other components.

Inspect all fitting threads and sealing surfaces before assembly. Hold the fitting body correctly while tightening so the swivel end can be oriented without cross-threading or twisting the installed hose.

CPE Fuel Hose Compatibility and Fuel Restrictions

The supplied information lists the 8AN hose for fuel, diesel, E15, race gas, engine oil, coolant, antifreeze, transmission fluid, lubricants, hydraulic fluid, and vacuum service. Typical uses include fuel supply and return lines, cooler lines, gauge lines, turbo lines, and oil-feed routing.

Do not use this CPE fuel hose with E85, E10, or methanol. For unsupported ethanol blends or specialized chemicals, verify the hose material before installation or choose a compatible PTFE hose system.

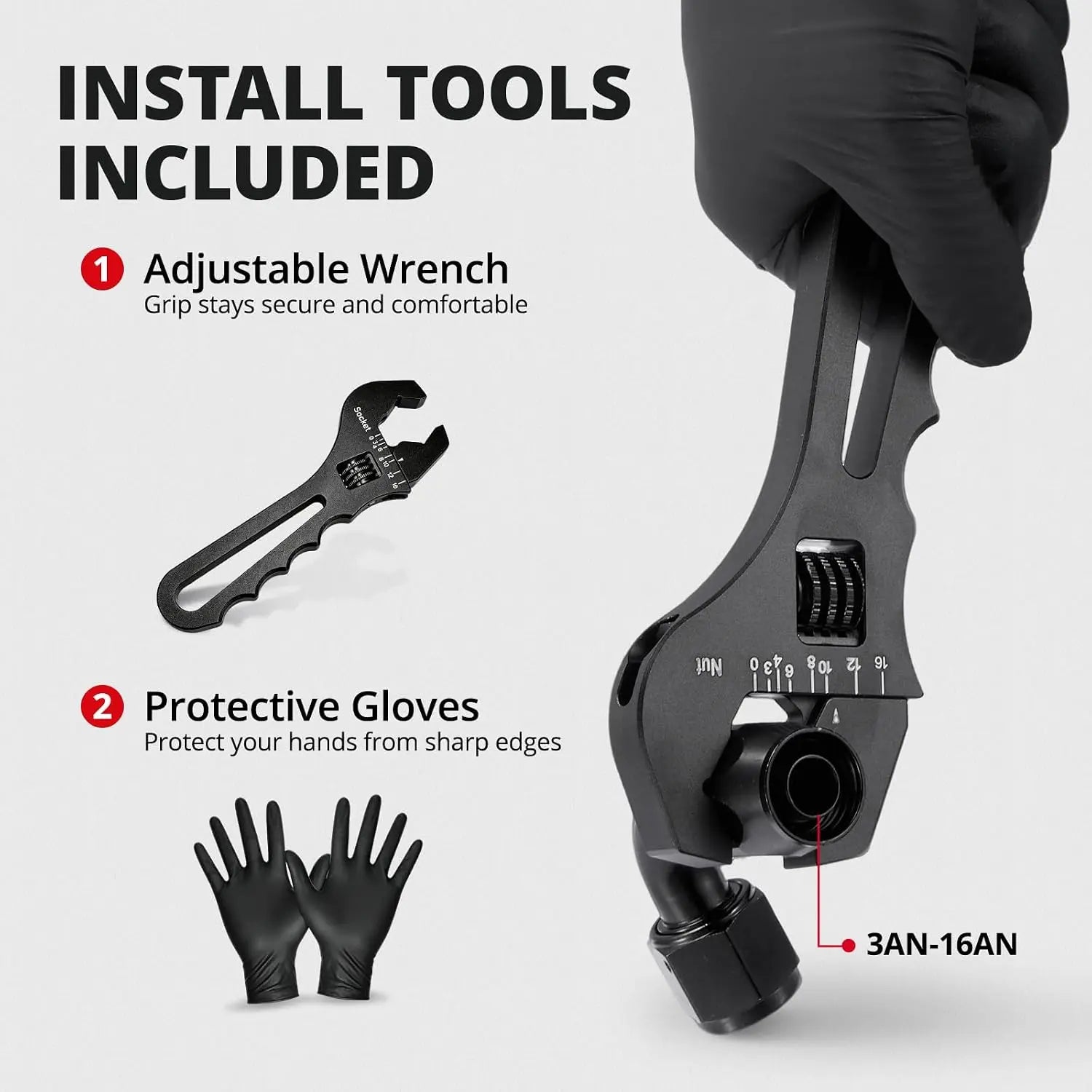

Fuel Line Installation with Wrench and Protective Gloves

The supplied wrench adjusts from 3AN through 16AN and has a shaped grip for holding compatible AN fittings. The included protective gloves help protect the installer's hands from sharp nylon or stainless steel strands that may become exposed when cutting the reinforced hose.

Measure the route before cutting, wrap the cutting area to control the braid, and make a clean square cut. Remove loose strands, fully seat the hose in each socket, clean the completed assemblies internally, and pressure-test every connection before operating the vehicle.

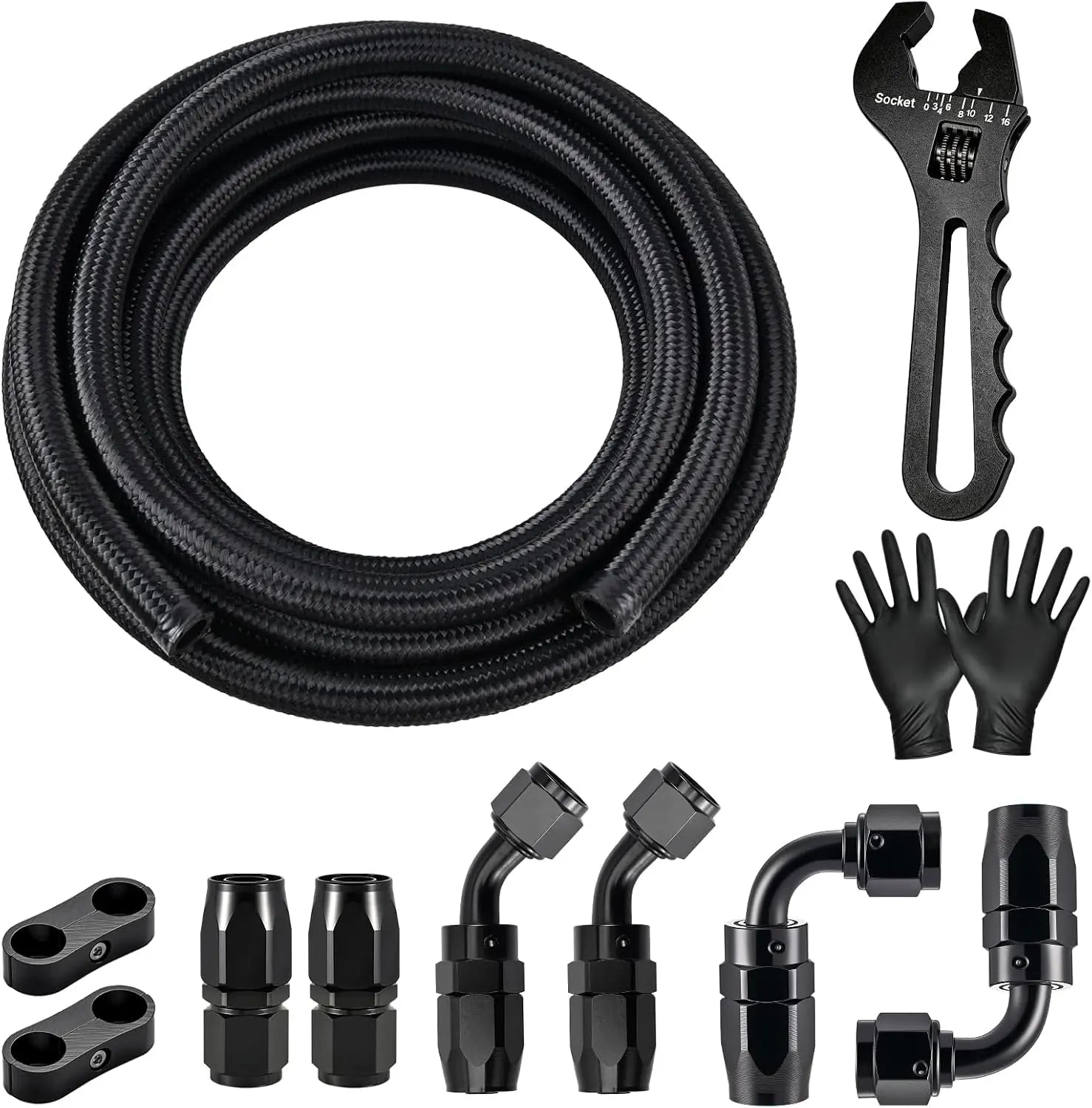

What is Included with the CPE Fuel Line Kit?

• 10FT nylon-braided CPE fuel hose × 1
• Straight swivel hose end fitting, 3/4-16 UNF × 2
• 45-degree swivel hose end fitting, 3/4-16 UNF × 2
• 90-degree swivel hose end fitting, 3/4-16 UNF × 2
• Dual-hose separator clamp × 2
• 3AN–16AN adjustable AN fitting wrench × 1
• Protective installation gloves × 1 pair

Package verification notice: The package contains six 8AN swivel hose ends in total: two straight, two 45-degree, and two 90-degree fittings. No 180-degree hose ends are shown or listed for this 8AN 10FT variant.

Why Choose EVIL ENERGY CPE Nylon Braided Fuel Line Kit?

• Compact custom-line package: The 10FT hose and six fittings provide the components needed for shorter custom routing projects without purchasing a longer hose kit.
• Practical fitting selection: Straight, 45-degree, and 90-degree hose ends support common routing angles around pumps, filters, coolers, and engine components.
• Reinforced hose protection: Stainless steel reinforcement supports pressurized service, while the nylon exterior helps protect the hose from abrasion.
• Organized installation: Two separator clamps help keep parallel lines aligned, while the included wrench and gloves support fitting assembly and hose preparation.
• Clear compatibility guidance: Documented fluid support and explicit E85, E10, and methanol restrictions help prevent incorrect hose selection.
