CPE Rubber hose with reinforced structure featuring 304 Stainless Steel, Braided Nylon, and CPE Rubber&heat resistant

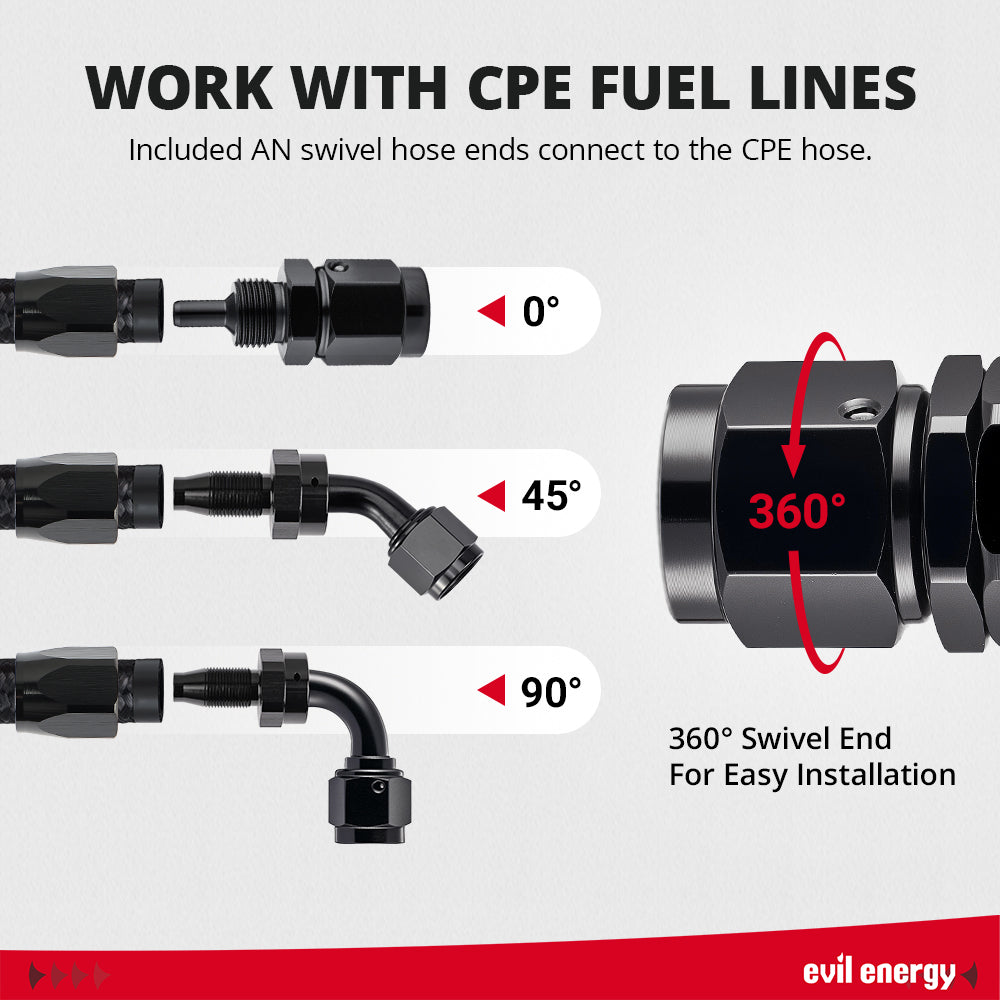

Works with CPE fuel lines — includes AN swivel hose ends for 0°, 45°, 90°, and 360° rotation, enabling fast, hassle-free installation.

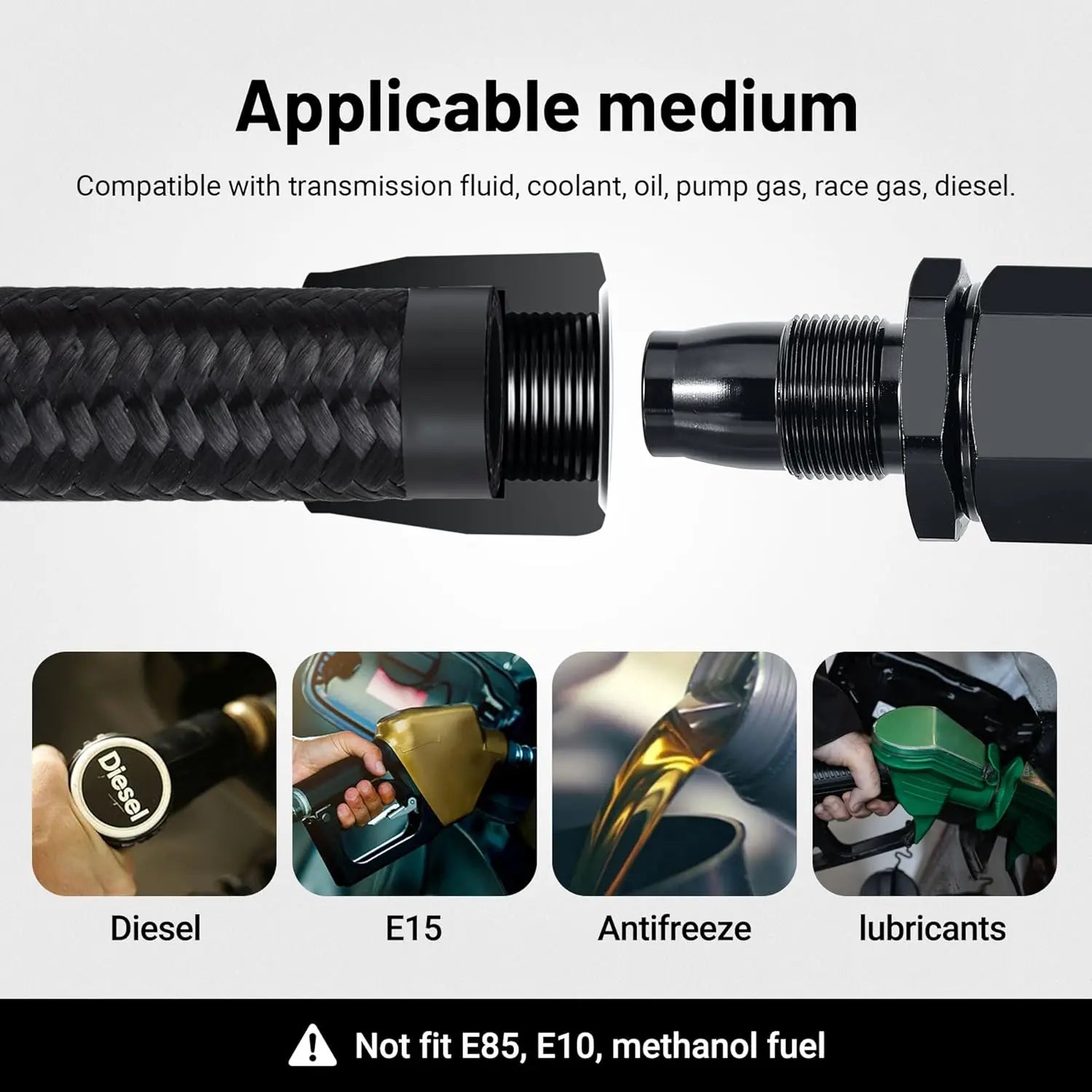

CPE FUEL LINE Compatible with transmission fluid, coolant, engine oil, pump gas, race gas, diesel, E15, and antifreeze. Note: Not suitable for E85, E10, or methanol fuel.
EVIL ENERGY Fuel Cell Gas Tank - Over 500,000 Raving Fans & User Testimonials

EVIL ENERGY CPE 10FT 4/6/8/10 AN Fuel Line Kit

SKU: EVFS10997AN4
Product Type: CPE Fuel Line Kits
$59.99
$59.99
Size: 4AN

Core Versatility

  • Multi-purpose: Ideal for fuel supply/return, transmission oil coolers, coolant, vacuum, turbo coolers, or oil feed lines.
  • Broad compatibility: Works with transmission fluid, oil, race gas, diesel, hydraulic fluid (excludes E85/E10 ethanol fuel).
  • Size options: Available in 4AN/6AN/8AN/10AN to fit diverse vehicle setups.

Premium Durability

  • Construction: CPE rubber inner + 304 stainless steel helix + nylon outer braid; aluminum alloy fittings.
  • Resilient: Abrasion/corrosion-resistant, withstands harsh engine bay conditions for long-lasting use.

High-Performance Specs

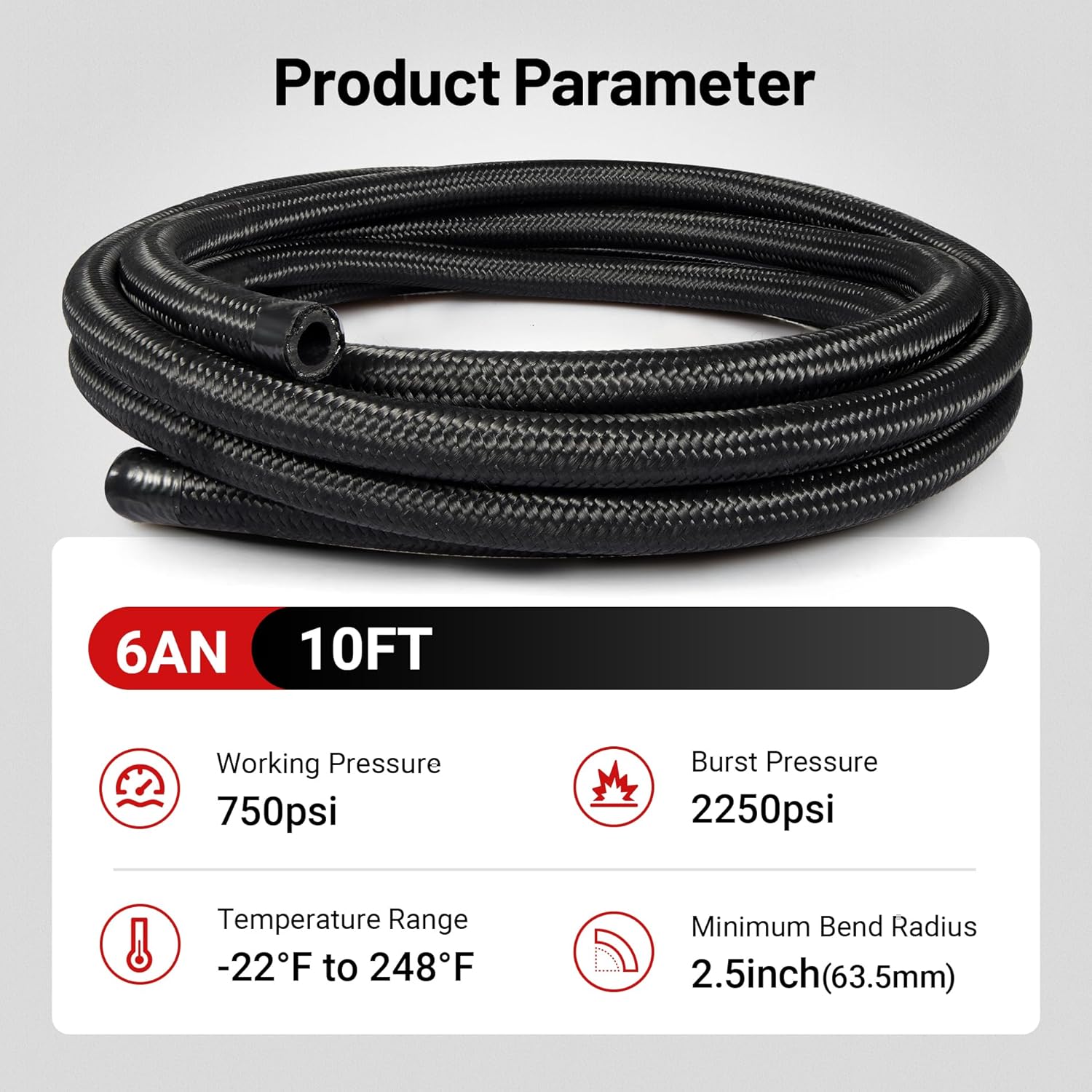

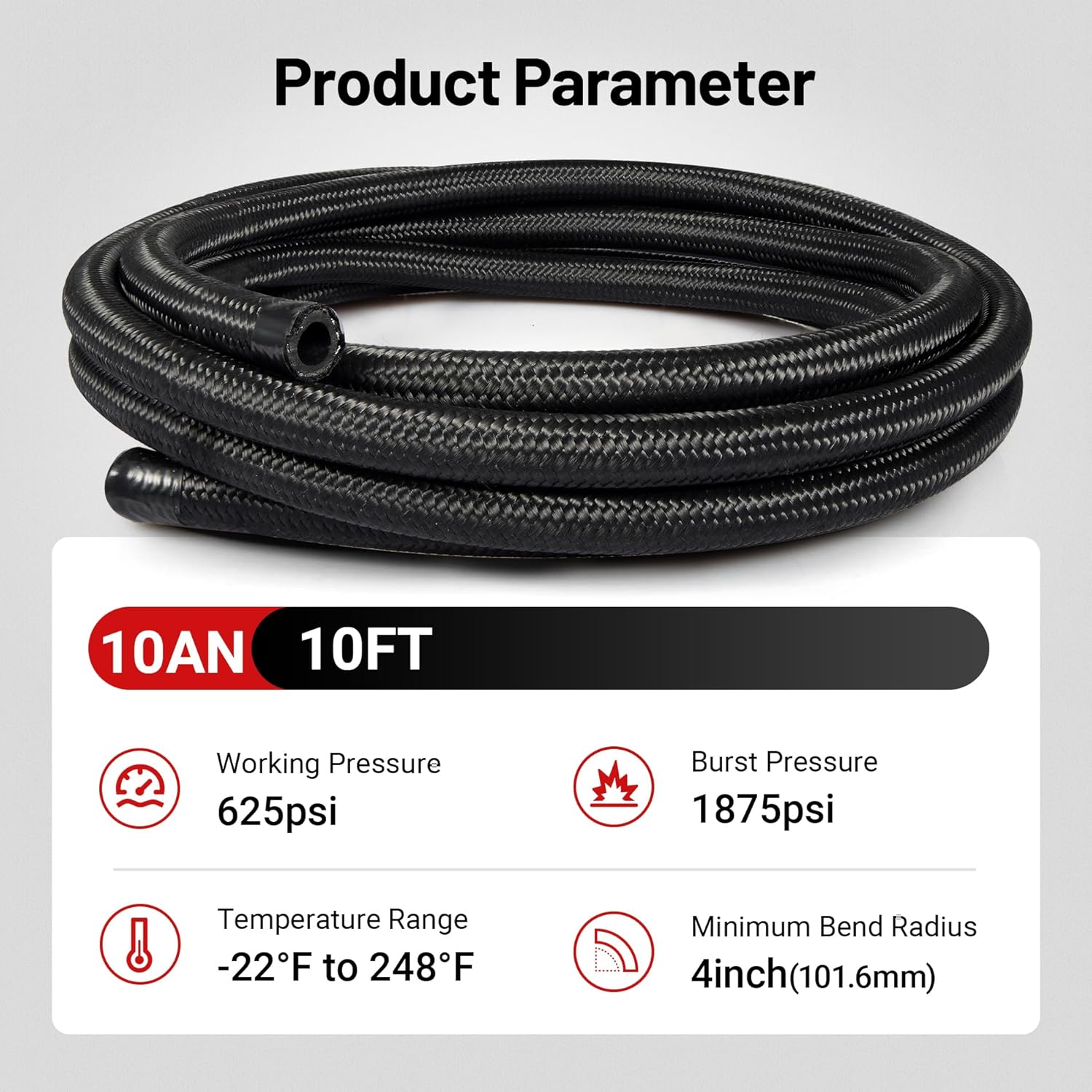

  • Pressure: 750PSI working (625PSI for 10AN); 2250PSI bursting (1875PSI for 10AN).
  • Temperature range: -22°F to 248°F (-30°C to 120°C) – adapts to all climates.
  • Size-specific dimensions: Tailored ID/OD/min bending radius for each AN size (see specs table for details).

Package Include

  • 1 × 10FT Braided CPE Fuel Line (matching AN size)
  • Universal fittings: 2×straight/2×45°/2×90° hose ends, 2×blanking plugs, 2×hose separator clamps
  • Size-specific adapters: AN-to-AN and AN-to-NPT adapters tailored for 4AN/6AN/8AN/10AN

Application & Value

  • Suitable for: Street vehicles, high-performance builds, racing, off-roading, and automotive repairs.
  • Cost-effective: All-in-one 16-piece kit – no extra purchases needed.
  • Note: Do Not fit E85, E10 Ethanol Fuel

Secure online checkout with free 1-year warranty, 180-day money-back guarantee, free shipping over $50, and expert customer support from EVIL ENERGY.
EVIL ENERGY EVIL ENERGY CPE 10FT 4AN Fuel Line Kit

EVIL ENERGY CPE 10FT 4/6/8/10 AN Fuel Line Kit

$59.99
EVIL ENERGY EVIL ENERGY CPE 10FT 4AN Fuel Line Kit
EVIL ENERGY EVIL ENERGY CPE 10FT 4AN Fuel Line Kit
EVIL ENERGY EVIL ENERGY CPE 10FT 4AN Fuel Line Kit[4AN]
[6AN]
[8AN]
[10AN]
EVIL ENERGY EVIL ENERGY CPE 10FT 4AN Fuel Line Kit[4AN]
[6AN]
[8AN]
[10AN]
CPE Rubber hose with reinforced structure featuring 304 Stainless Steel, Braided Nylon, and CPE Rubber&heat resistant
Works with CPE fuel lines — includes AN swivel hose ends for 0°, 45°, 90°, and 360° rotation, enabling fast, hassle-free installation.
CPE FUEL LINE Compatible with transmission fluid, coolant, engine oil, pump gas, race gas, diesel, E15, and antifreeze. Note: Not suitable for E85, E10, or methanol fuel.
EVIL ENERGY Fuel Cell Gas Tank - Over 500,000 Raving Fans & User Testimonials

EVIL ENERGY CPE 10FT 4/6/8/10 AN Fuel Line Kit

$59.99
Size: 4AN
Specifications

Product Manual

CPE Fuel Line Details

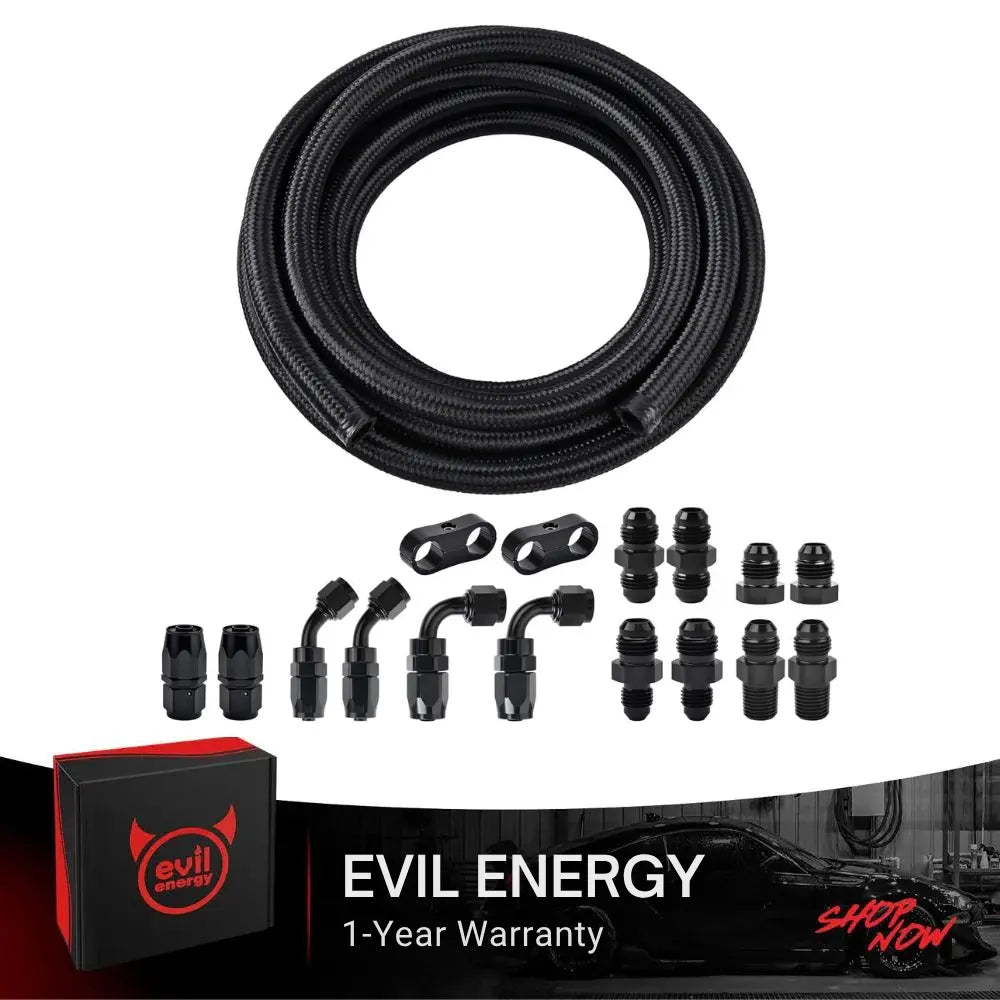

Complete 16-Piece Fitting Kit – Ready for Installation

This all-in-one kit comes with every component you need to set up your fluid system without extra purchases. The package includes:

Package Common Accessories:
2 × hose end straight fitting
2 × 45°hose end fitting
2 × 90°hose end fitting
2 × Blanking Plug
2 × Hose separator clamp
Size-Specific Accessories:
4AN:
2 × 4AN to 3AN Adapter
2 × 4AN to 4AN Adapter
2 × 4AN to 1/8 NPT Adapter
6AN:
2 × 6AN to 6AN Adapter
2 × 6AN to 4AN Adapter
2 × 6AN to 1/4 NPT Adapter
8AN:
2 × 8AN to 8AN Adapter
2 × 8AN to 10AN Adapter
2 × 8AN to 3/8 NPT Adapter
10AN:
2 × 10AN to 10AN Adapter
2 × 6AN to 10AN Adapter
2 × 10AN to 3/8 NPT Adapter

Description

The EVIL ENERGY 4/6/8/10AN Braided Fuel Line Kit is a versatile, high-performance fluid transfer solution designed for automotive enthusiasts, DIY modifiers, and professional mechanics alike. Engineered to meet the demands of diverse vehicle systems, this kit is a one-stop solution for all your fluid transfer needs, with broad applicability across vehicle setups.
hero-video

High-Performance Specifications for Extreme Conditions

Built to handle intense demands, the kit boasts impressive performance metrics: 750PSI maximum working pressure (625PSI for 10AN) and 2250PSI bursting pressure (1875PSI for 10AN), with a temperature range of -22°F to 248°F. This ensures stable operation in all climates and driving scenarios—from freezing winters to scorching summer races.

Feature

Multi-Purpose Versatility for Diverse Vehicle Systems

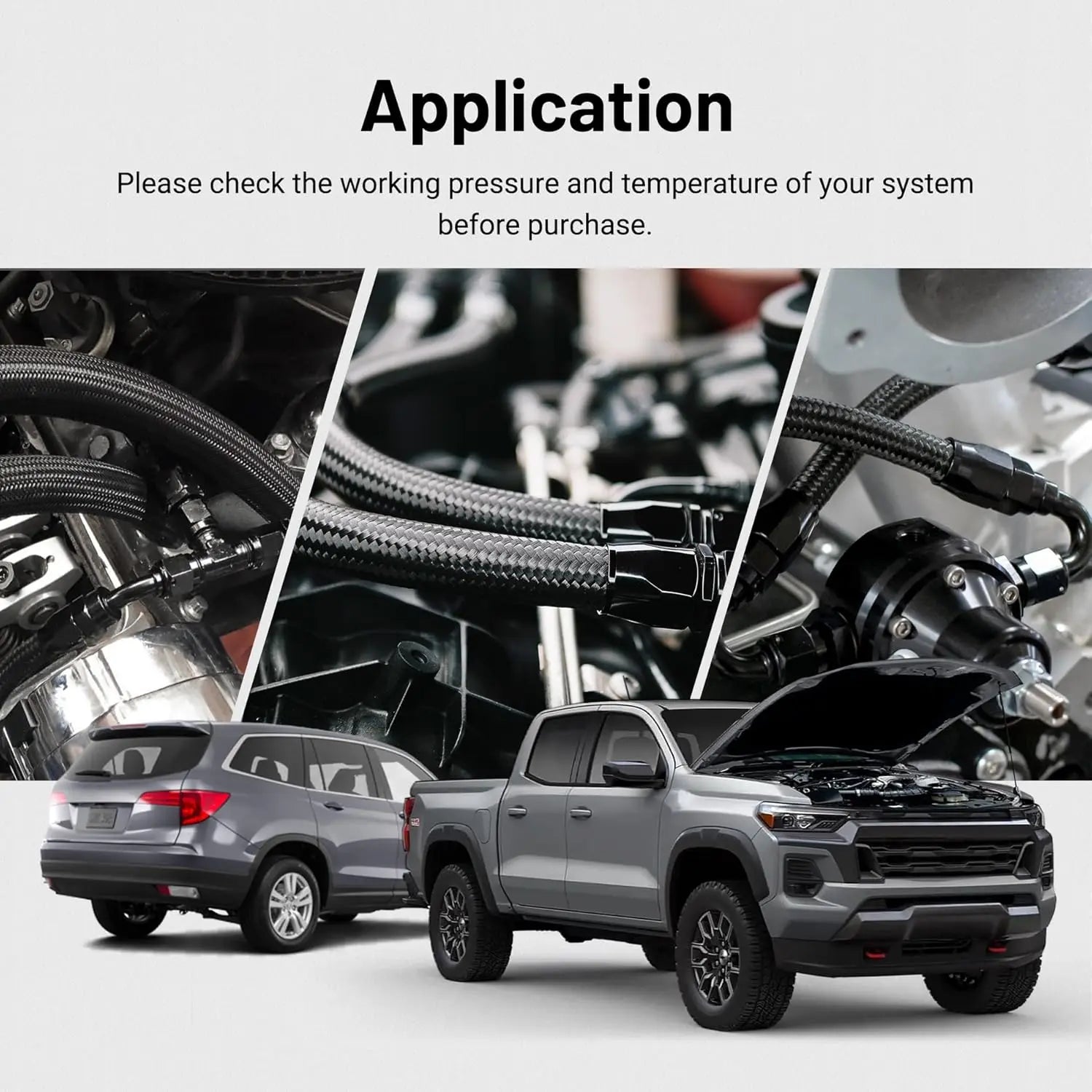

This kit excels in a wide range of applications, serving as a transmission oil cooler line, fuel supply/return line, coolant fluid hose, vacuum line, turbo cooler line, or oil feed line. It's compatible with transmission fluid, oil, race gas, diesel, hydraulic fluid, and vacuum—making it suitable for both daily-driven street vehicles and high-performance racing/off-road builds.Application

Premium Materials Durable Construction

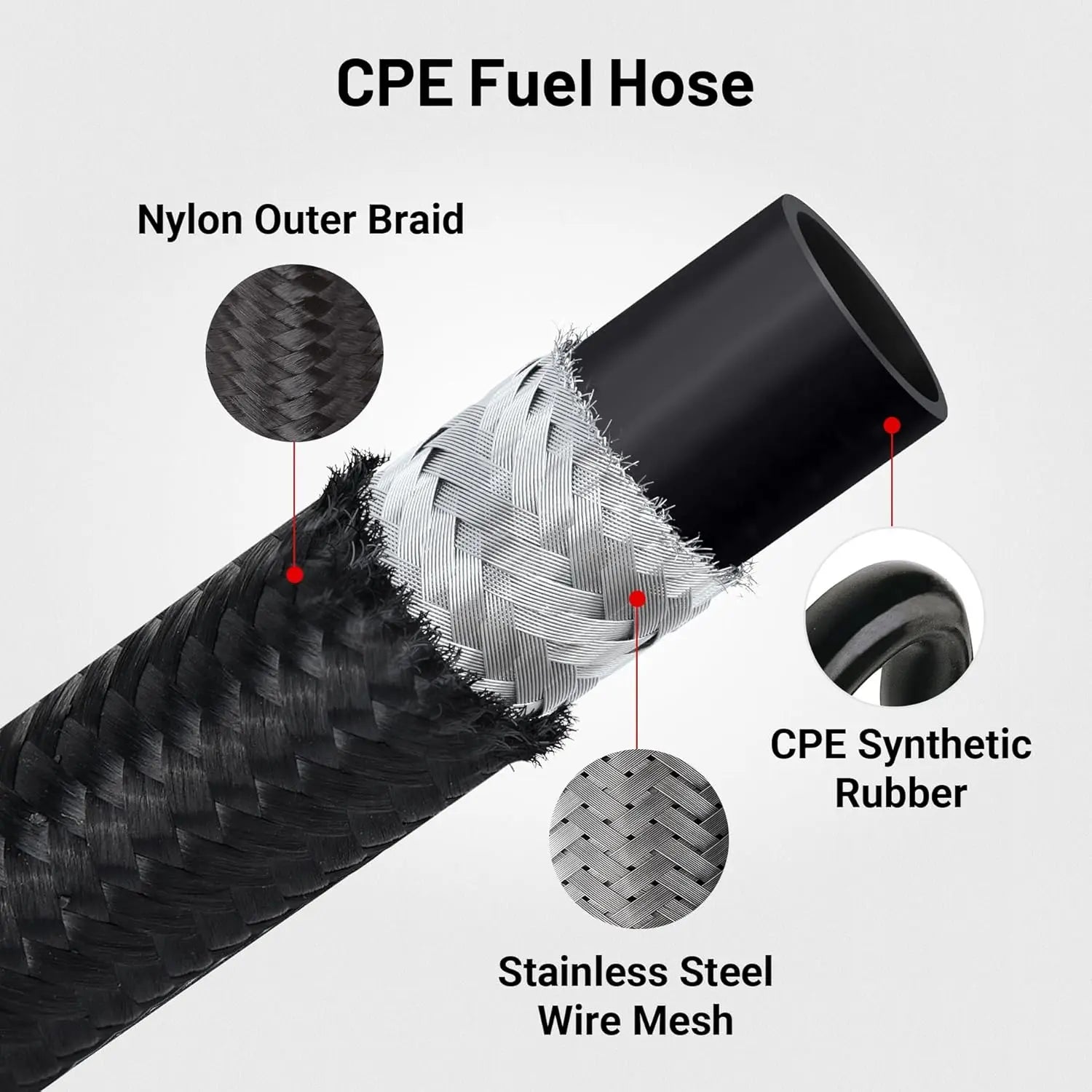

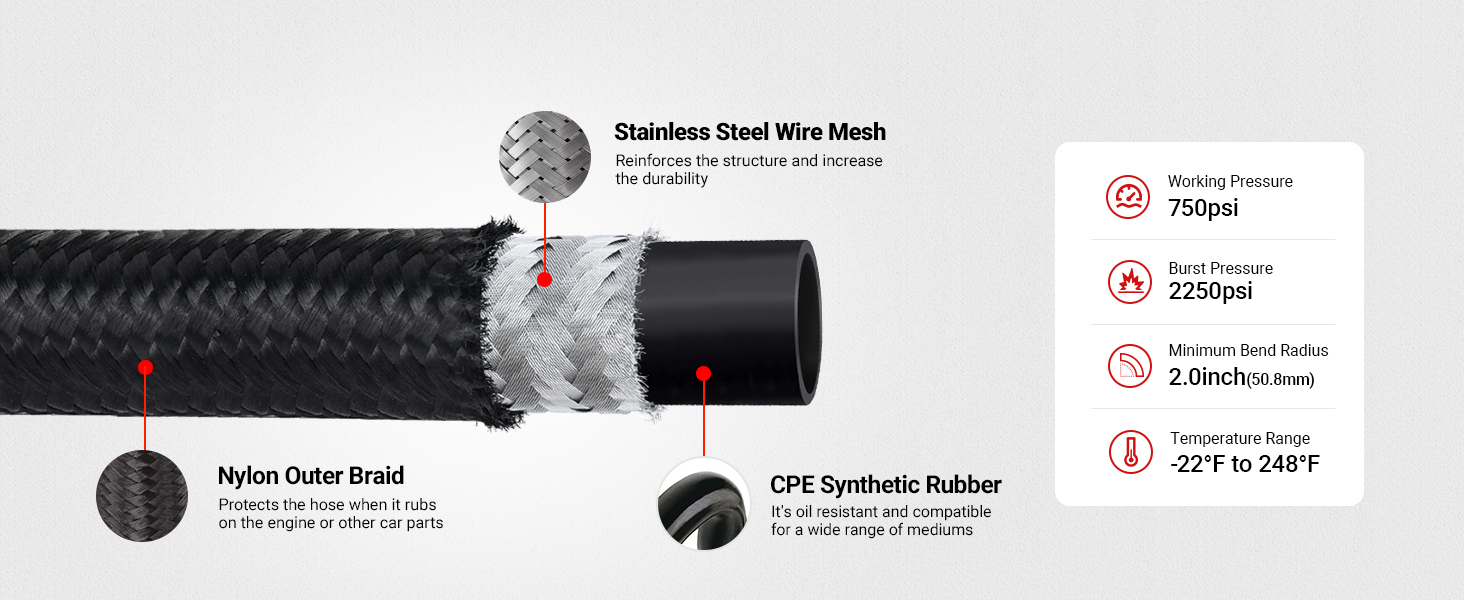

Crafted for long-lasting reliability, the braided fuel hose features a CPE rubber inner layer (resistant to corrosion and fluid degradation) reinforced with a 304 stainless steel wire helix for structural stability, and wrapped in a nylon outer braid for superior abrasion resistance. The hose fittings are made of high-quality aluminum alloy, ensuring secure, leak-free connections even under extreme conditions.

More Related Products

Why Choose Us?

  • All-In-One 16-Piece Fitting Kit: Includes both universal accessories (straight/45°/90° hose ends, blanking plugs, separator clamps) and size-specific adapters—covers all connection needs for 4AN/6AN/8AN/10AN setups, no extra purchases required.
  • Extreme Performance Ratings: Handles 750PSI maximum working pressure (625PSI for 10AN) and 2250PSI bursting pressure (1875PSI for 10AN), with a -22°F to 248°F temperature range—stable in all climates and high-stress driving scenarios (racing, off-roading, daily use).
  • Multi-Scenario Versatility: Ideal for fuel supply/return lines, transmission oil coolers, coolant systems, vacuum lines, turbo coolers, and oil feed lines. Compatible with transmission fluid, oil, race gas, diesel, hydraulic fluid, and vacuum (excludes E85/E10 ethanol fuel).
  • Premium Durable Construction: CPE rubber inner core (resists corrosion/fluid degradation) + 304 stainless steel wire helix (structural stability) + nylon outer braid (abrasion resistance); high-quality aluminum alloy fittings ensure leak-free connections even under extreme conditions.
  • Size-Specific Optimization: Available in 4AN/6AN/8AN/10AN with tailored dimensions (ID/OD/min bending radius) to fit diverse vehicle setups—from compact street cars to high-performance racing builds.
Shipping & Return

Brand Summary

Policy Details
Cancellation Policy Orders can be canceled within 48 hours of placement. Refund processed in 3-5 business days.
Returns Policy Returns accepted within 180 days. Full refund within 90 days; 15% fee for 90-180 days.
Non-Returnable Items Only regular-priced items are eligible for refunds; sale items are non-refundable.
Refund Processing If no refund received, check your bank/credit card. For ongoing issues, contact support@ievilenergy.com.

Return Reasons

  1. Quality Issues: Provide photos/videos; we cover return shipping.
  2. Wrong Item Ordered: Buyer covers return shipping; email within 30 days.
  3. Change of Mind: Buyer covers return shipping; email within 30 days.
  4. Shipping Damage: Inspect packages; do not sign for damaged items.
  5. Incorrect Item Shipped: Contact within 7 days.

Price Protection Policy

Effective from August 25, 2024. Price drops within 7 days of purchase can be claimed.

Disclaimer

EVIL ENERGY reserves the right to interpret, modify, or terminate this policy in accordance with applicable laws and regulations.

If you need further information or assistance, feel free to ask!

FAQs

Q1: Is this fuel line compatible with E85 or E10 ethanol fuel?

A1: No, this fuel line is NOT compatible with E85 or E10 ethanol fuel. It works with transmission fluid, oil, race gas, diesel, hydraulic fluid, and vacuum systems.

Q2: What are the key dimensions for each AN size?
A2:

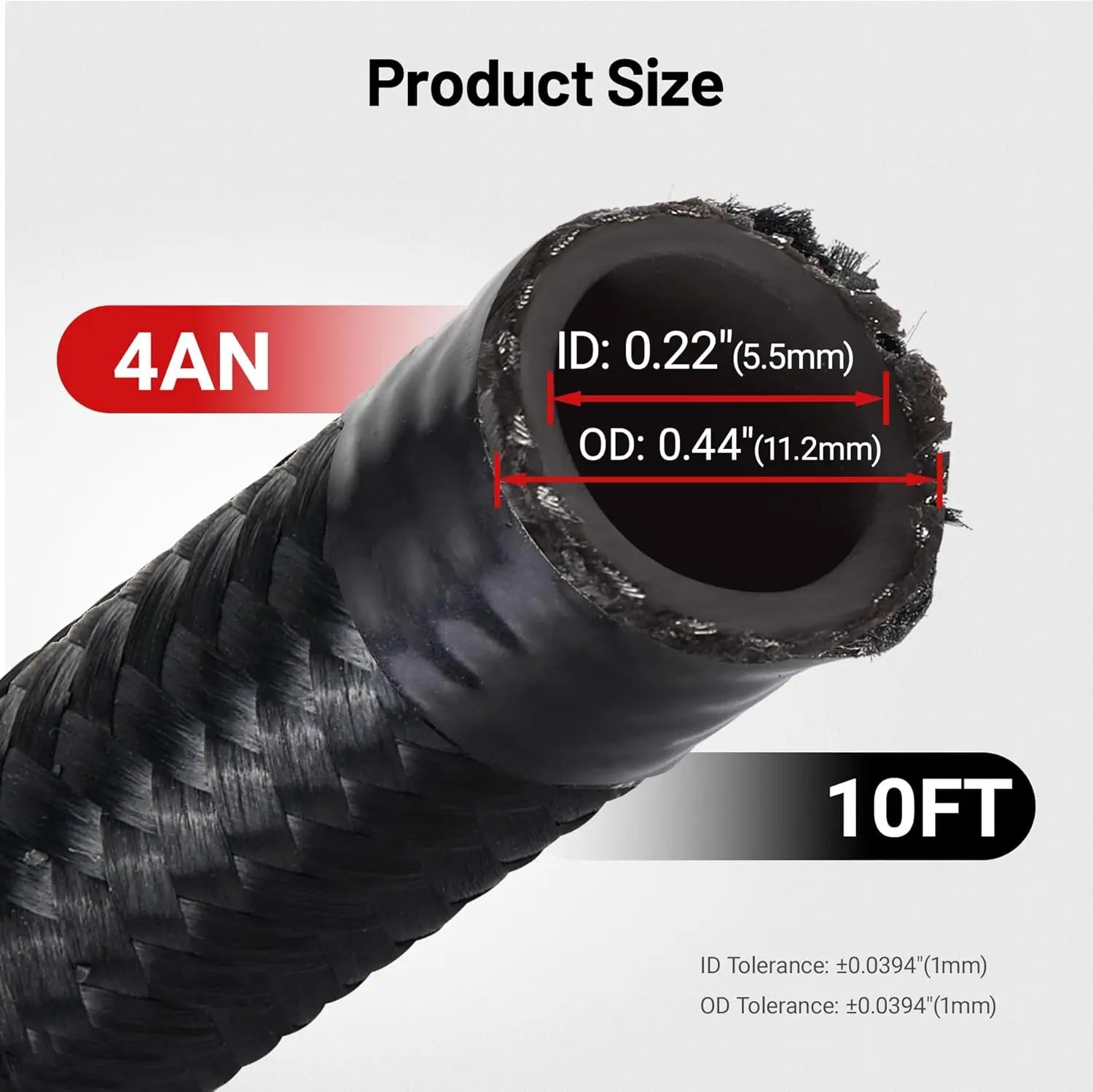

  • 4AN: 0.228"(5.79mm) ID / 0.425"(10.8mm) OD / 2.0"(50.8mm) min bending radius
  • 6AN: 0.343"(8.71mm) ID / 0.543"(13.79mm) OD / 2.5"(63.5mm) min bending radius

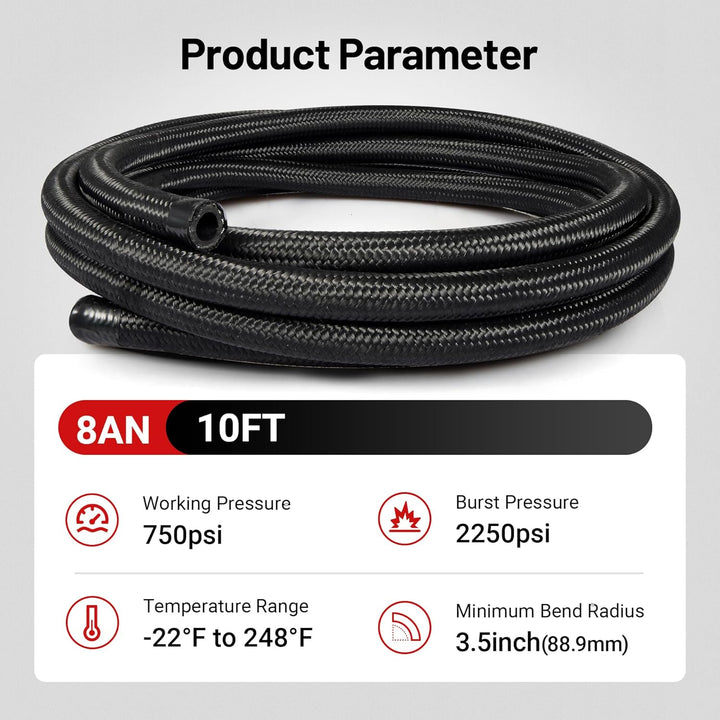

  • 8AN: 0.437"(11.1mm) ID / 0.642"(16.31mm) OD / 3.5"(88.9mm) min bending radius

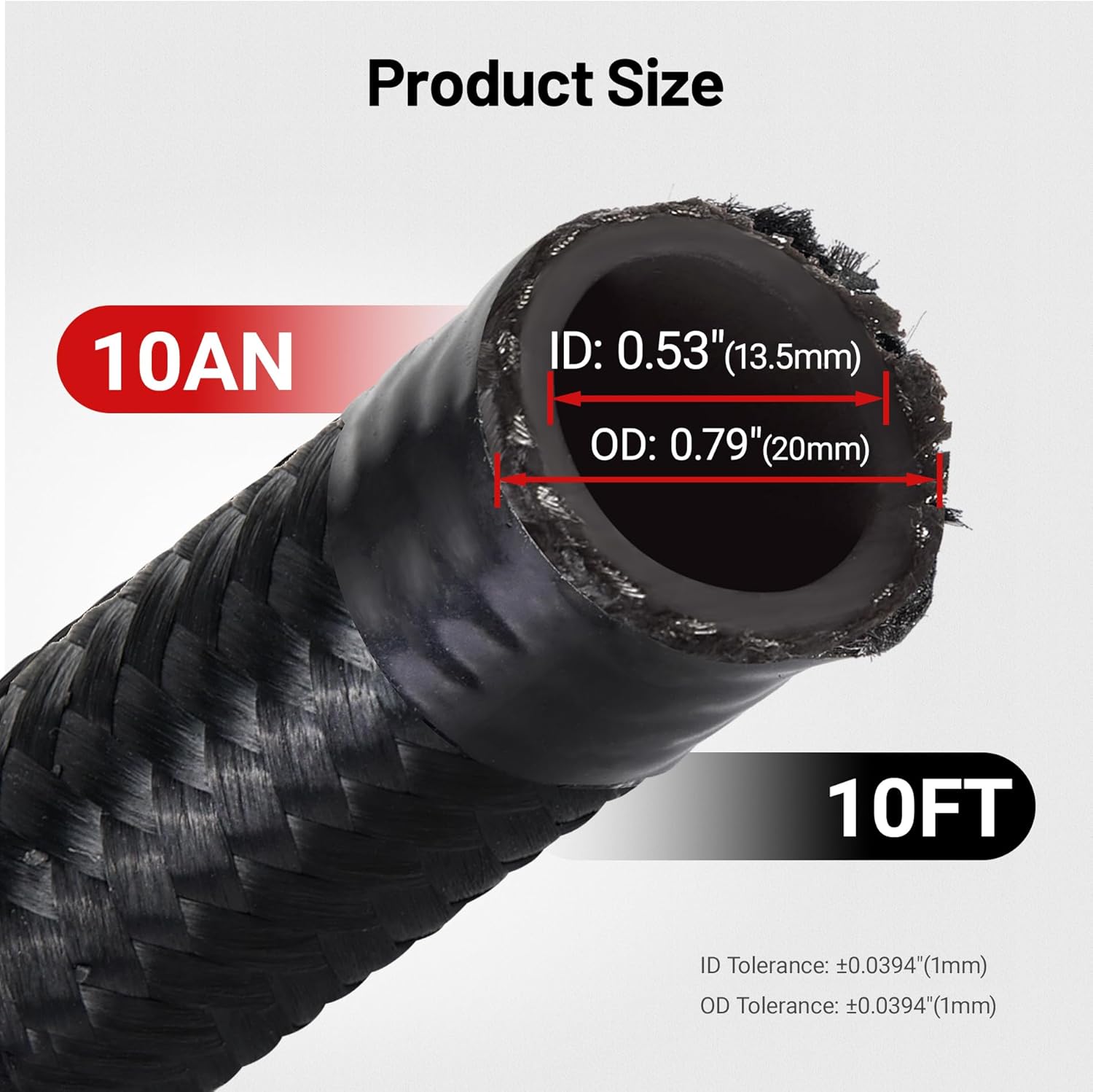

  • 10AN: 0.551"(14mm) ID / 0.784"(19.91mm) OD / 4.0"(101.6mm) min bending radius

Q3: Do I need special tools to install this kit?
A3: No special tools are required. Standard automotive wrenches are sufficient to secure the fittings, making installation accessible for both DIY enthusiasts and professional mechanics.

Q4: What vehicles or applications is this kit suitable for?
A4: It's designed for street vehicles, high-performance builds, racing cars, and off-road vehicles. Perfect for fluid transfer in fuel, transmission, coolant, vacuum, and turbo systems.

Q5: Can the adapters be used to connect to different thread sizes or AN fittings?
A5: Yes! The size-specific adapters (e.g., 4AN to 3AN, 6AN to 1/4 NPT) allow you to connect the fuel line to smaller/larger AN components or threaded ports (common in sensors, pumps, filters), expanding compatibility with various vehicle parts.
