EVIL ENERGY 4/6/8/10/12/16/20 AN Hose End Fitting Swivel for CPE Braided Hose Black

3 sold in last 10 hours
$11.29
$11.29
$12.19
Size: 6AN
Style: 90 Degree
SKU: EVKT01322D90-AMZ1
Product Type: Swivel Hose End Fittings

Upgrade your automotive fluid transfer system with the EVIL ENERGY AN Hose End Fitting Swivel. Designed for compatibility with CPE braided hoses, these fittings offer versatility and durability. Available in sizes 4/6/8/10/12/16/20 AN, these fittings are suitable for a wide range of applications.

EVIL ENERGY checkout payment icons and shopping service

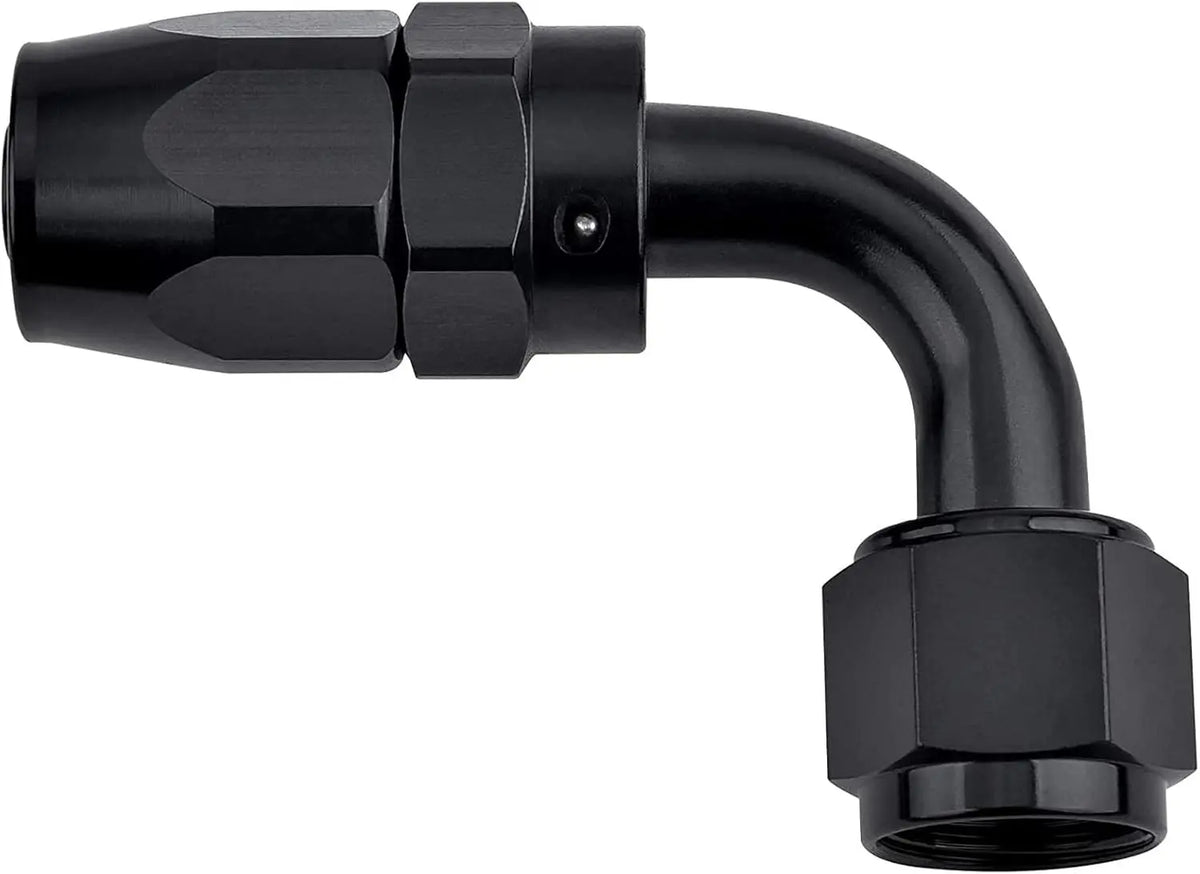

[6AN,90 Degree]

EVIL ENERGY 4/6/8/10/12/16/20 AN Hose End Fitting Swivel for CPE Braided Hose Black

$11.29 $12.19
$11.29 $12.19

EVIL ENERGY 4/6/8/10/12/16/20 AN Hose End Fitting Swivel for CPE Braided Hose Black

$11.29 $12.19
Size: 6AN
Style: 90 Degree

AN Fitting Dimensions: Connection Guide

Properties Details
Size 4/6/8/10/12/16/20 AN
Angle

Straight

45 Degree

60 Degree

90 Degree

120 Degree

150 Degree

180 Degree



Material Aluminum
Brand EVIL ENERGY
Color Black
Exterior Aluminum
Hose construction CPE inner hose with stainless-steel or nylon braiding
AN sealing interface 37-degree flare
Assembly design 360-degree swivel; choose the complete offered size-and-angle option

AN Fittings for CPE Hose

The wrong hose-end angle can leave a braided line pulling against its connection or bending sharply beside a component. These EVIL ENERGY swivel hose ends let you choose an offered AN size and body angle for your CPE braided line, then align the connection during assembly.

Match three things before ordering: the CPE hose construction, the AN size and the direction the line needs to leave the component. The fittings are specified for stainless-steel-braided or nylon-braided hose with a CPE inner.

Choose 6AN Fittings by Route

For a 6AN CPE line, compare the actual straight, 45-, 60-, 90-, 120-, 150- and 180-degree selections against the required route. Choose a turn at the connection when the hose cannot approach in line, allowing room for the body, hose socket and assembly tools.

  • Match the size at both interfaces: check the hose and mating AN component together.
  • Select a complete offered combination: each size has its own angle choices. For example, the actual 20AN choices are straight, 45 and 90 degrees.
  • Keep the line relaxed: do not use hose tension to hold the fitting in position.

Why Choose These AN Fittings?

The 6061-T6 aluminum body and black finish suit a matching braided-line assembly. The 360-degree swivel helps orient the connection without changing the selected bend angle. Sizes from 4AN through 20AN provide options for different assemblies; the correct choice still depends on the actual hose, mating connection and offered layout.

The AN interface uses a 37-degree flare seat. Choose the matching AN connection rather than judging compatibility from a similar-looking thread or the outside diameter of the braided cover.

Installing AN Fittings Without Hose Twist

  • Check the hose-end assembly: confirm the correct CPE hose and AN size, and check that the hose remains properly seated as the socket is assembled.
  • Inspect the flare joint: debris, scratches or misalignment at the mating flare faces can leave a leak path.
  • Align before tightening: use the swivel for assembly orientation; do not pull a misrouted line into place with the connection.

If a joint seeps, distinguish the hose/socket connection from the AN flare joint and correct the affected area before use. Follow the component-specific assembly procedure rather than applying an assumed torque or number of turns.

For a matching line, compare the CPE nylon-braided hose options and confirm the same AN size and intended assembly. For interface identification, read the AN connection guide.

Brand Summary

Policy Details
Cancellation Policy Orders can be canceled within 48 hours of placement. Refund processed in 3-5 business days.
Returns Policy Returns accepted within 180 days. Full refund within 90 days; 15% fee for 90-180 days.
Non-Returnable Items Only regular-priced items are eligible for refunds; sale items are non-refundable.
Refund Processing If no refund received, check your bank/credit card. For ongoing issues, contact support@ievilenergy.com.

Return Reasons

  1. Quality Issues: Provide photos/videos; we cover return shipping.
  2. Wrong Item Ordered: Buyer covers return shipping; email within 30 days.
  3. Change of Mind: Buyer covers return shipping; email within 30 days.
  4. Shipping Damage: Inspect packages; do not sign for damaged items.
  5. Incorrect Item Shipped: Contact within 7 days.

Price Protection Policy

Effective from August 25, 2024. Price drops within 7 days of purchase can be claimed.

Disclaimer

EVIL ENERGY reserves the right to interpret, modify, or terminate this policy in accordance with applicable laws and regulations.

If you need further information or assistance, feel free to ask!

Q: Which line route is this CPE swivel hose end intended to suit?

A: Choose the complete size-and-angle option that matches the line route. Straight, 45-, 60-, 90-, 120-, 150- and 180-degree layouts appear across the product, but not every size has every angle.

Q: Which AN sizes can I select on this product?

A: 4AN, 6AN, 8AN, 10AN, 12AN, 16AN, 20AN. Choose the actual size required by both the hose assembly and its mating AN connection.

Q: What should I match at the AN flare joint?

A: Match the hose end to a male AN component of the selected size with a corresponding 37-degree flare seat. A similar-looking threaded part is not enough.

Q: What does the swivel help with during assembly?

A: It helps orient the connection while keeping the line relaxed. Do not twist the hose or pull it sideways to force the fitting into position.

Q: What body material and finish are specified?

A: The product specifies 6061-T6 aluminum with a black finish. Use the selected size and layout to establish fit rather than the material alone.

Q: Which hose construction should I check before assembly?

A: Match the hose end to the stainless-steel-braided or nylon-braided hose construction specified for this product. This listing specifically identifies CPE braided hose.

Q: Does one angle selection include every bend shown?

A: No. Select the one complete size-and-style combination needed for the connection; other angle choices are separate selections.

Q: What complete option would I receive for the first available selection?

A: The complete selection is 4AN / Straight. Other menu values do not change that complete selection unless you choose a different actual variant.

Q: Where should I leave room for installation tools?

A: Leave access at the swivel nut, hose socket and adjoining male AN component. Check the actual hose approach before cutting and assembling the line.

Q: How do I trace a leak at this hose-end assembly?

A: Inspect the hose/socket connection separately from the 37-degree AN flare joint. Check the selected size, hose seating, debris or damage at the flare and line alignment before returning the assembly to service.
