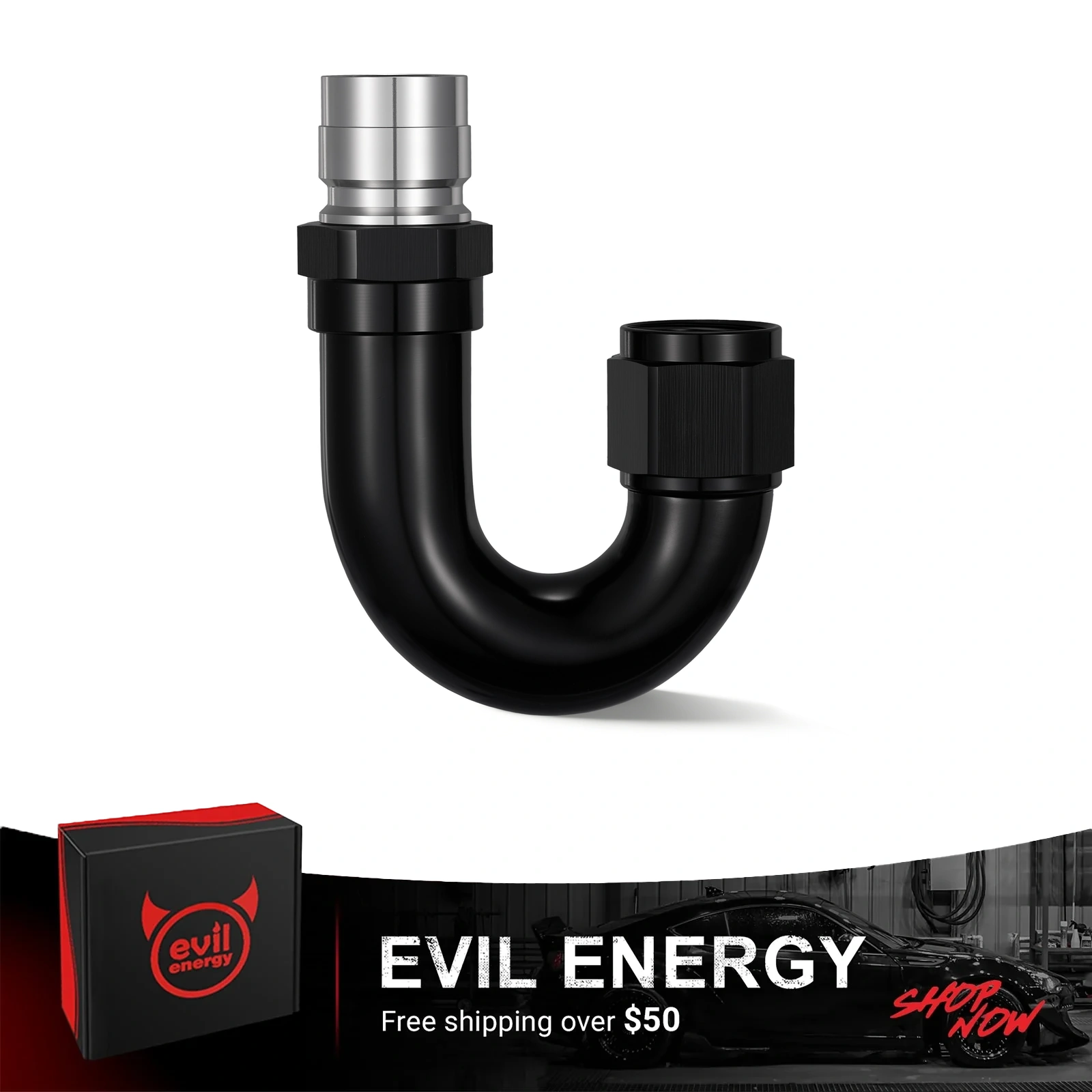

[180 Degree]
[90 Degree]

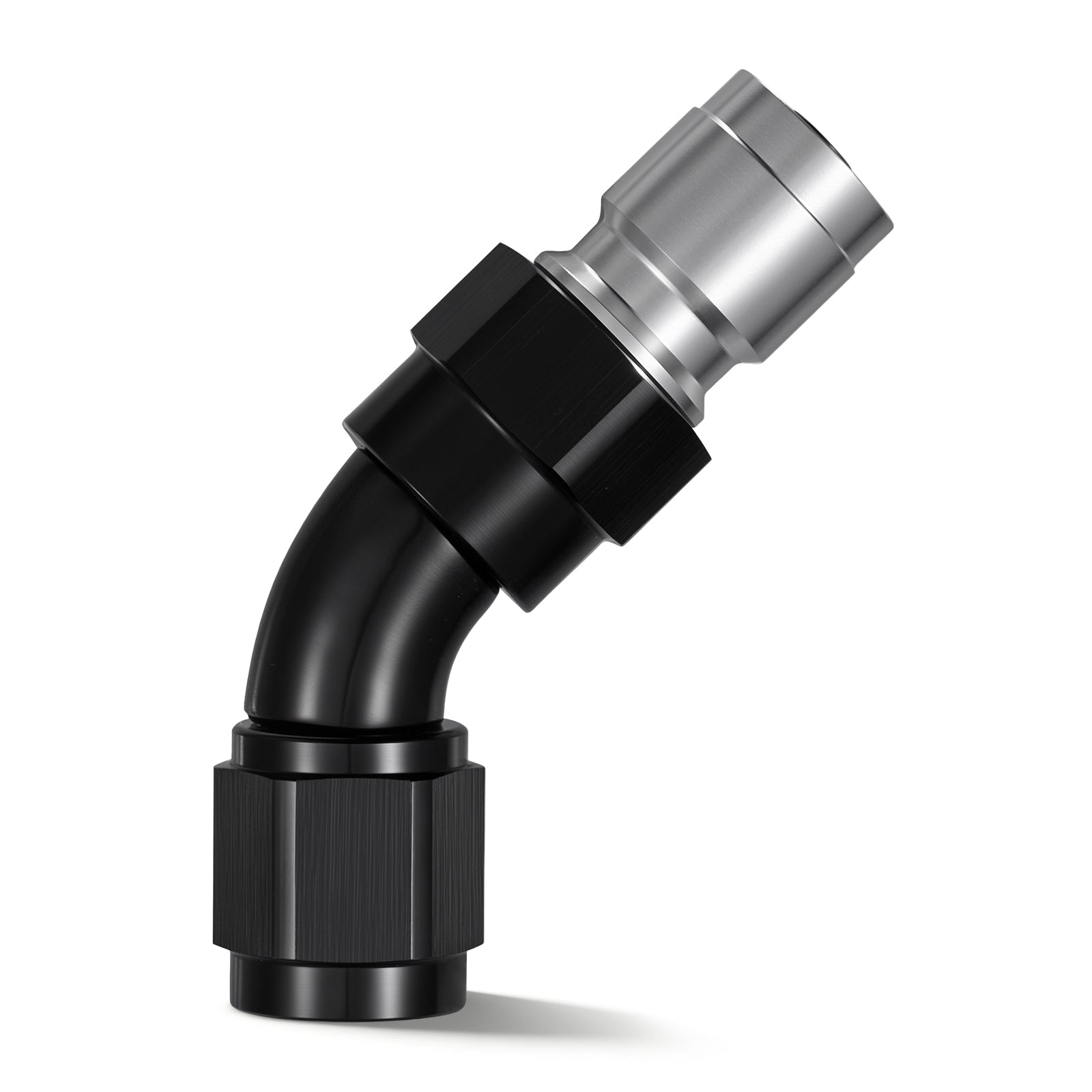

[45 Degree]
[Straight]
[4AN]
[4AN]
[6AN]
[6AN]

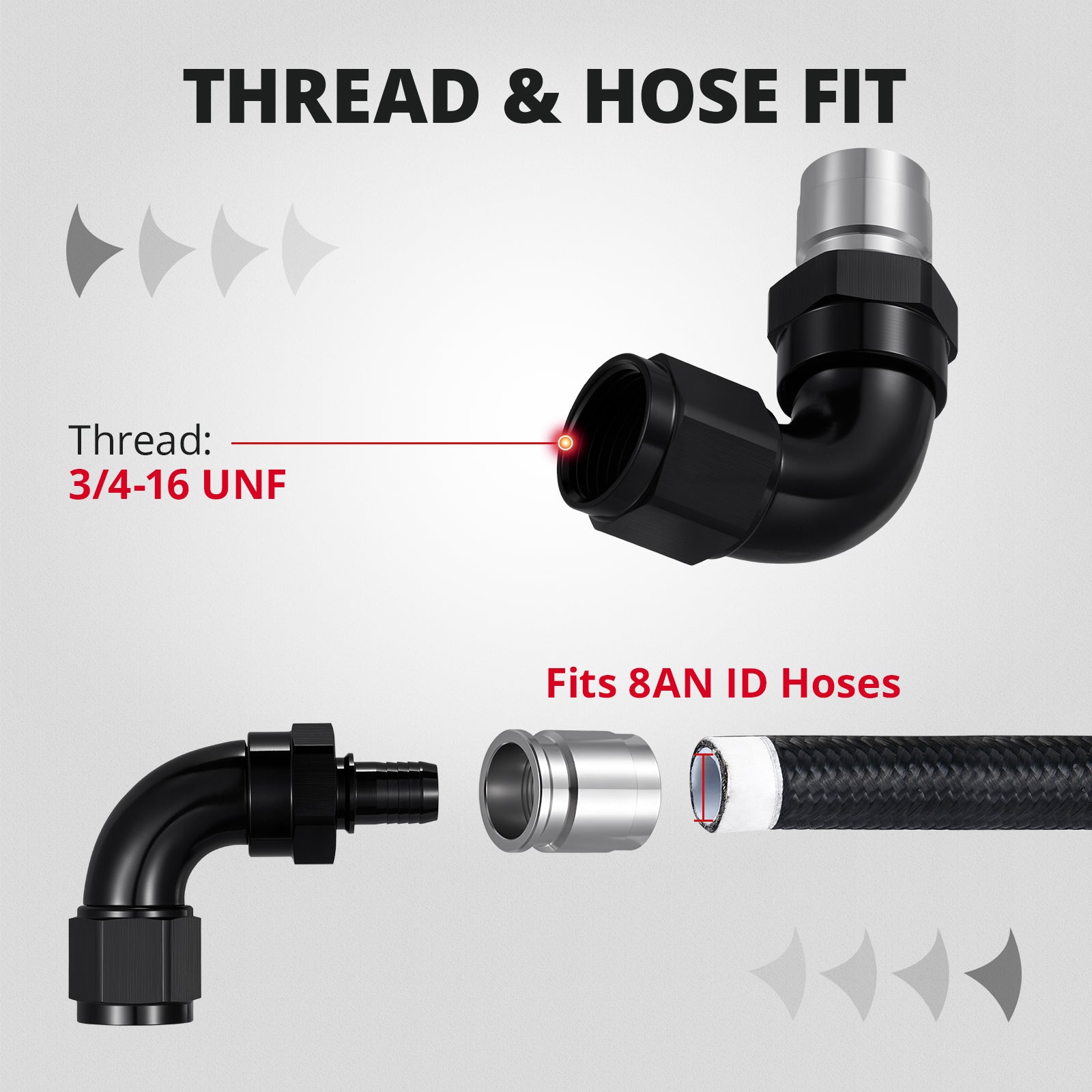

[8AN]
[8AN]

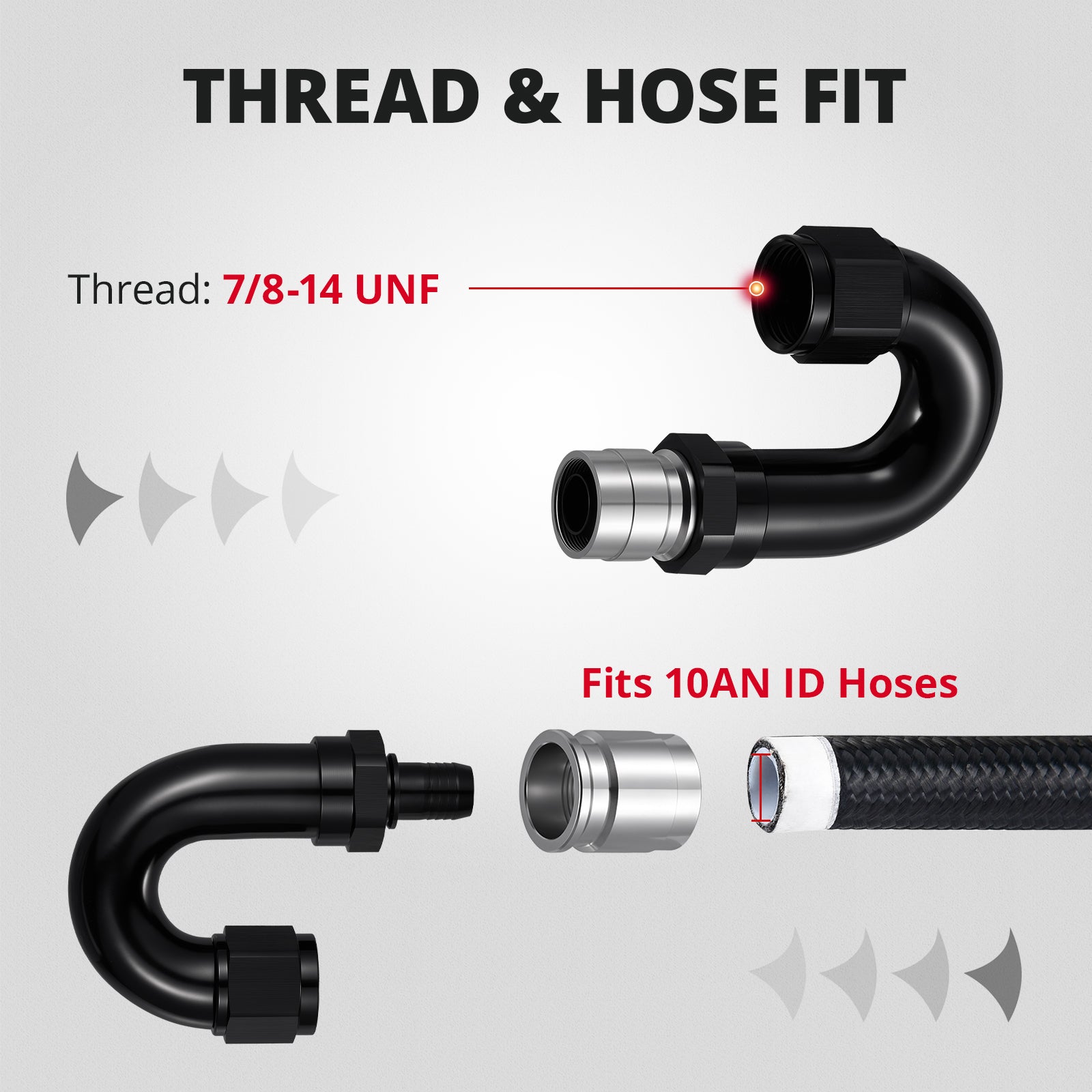

[10AN]
[10AN]

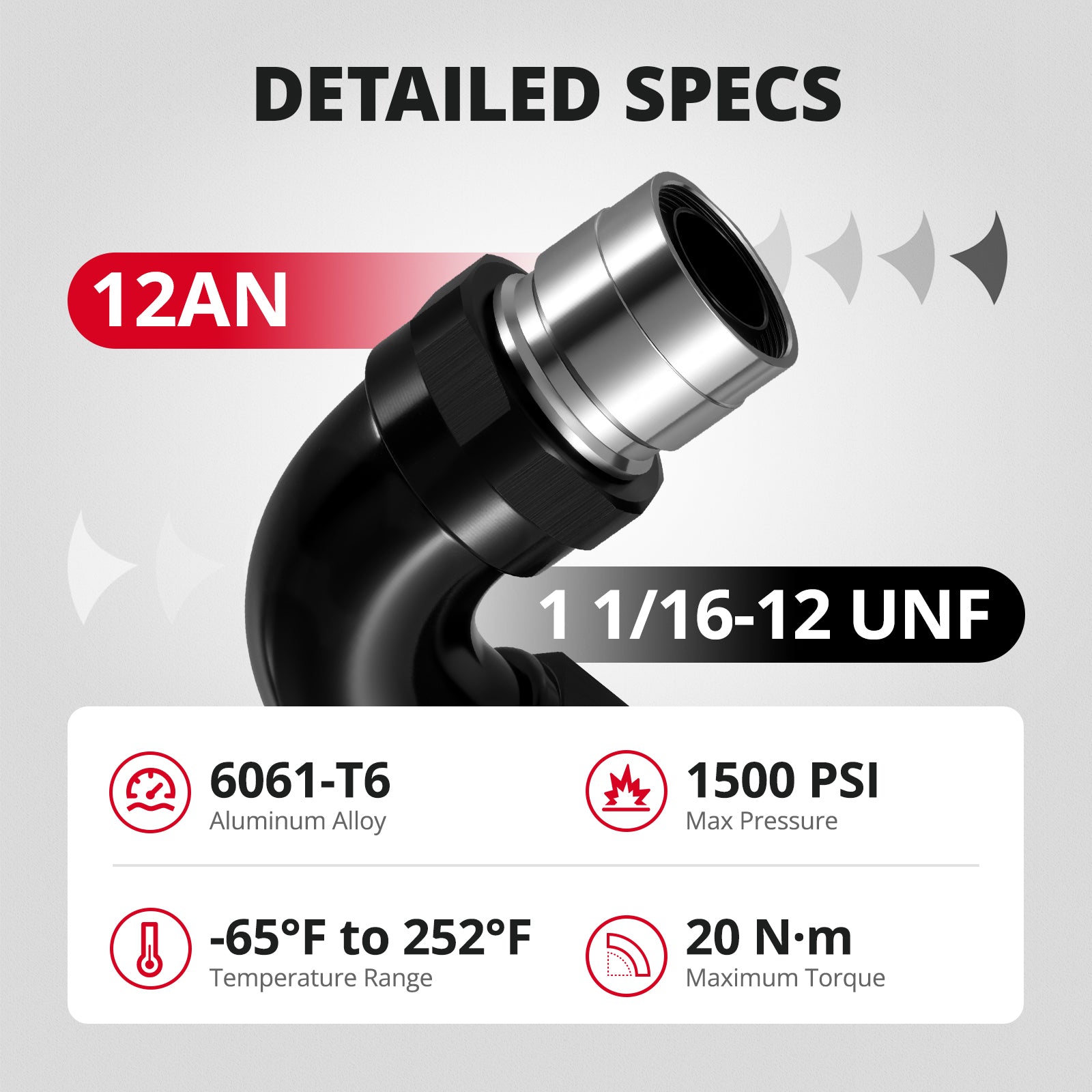

[12AN]
[12AN]

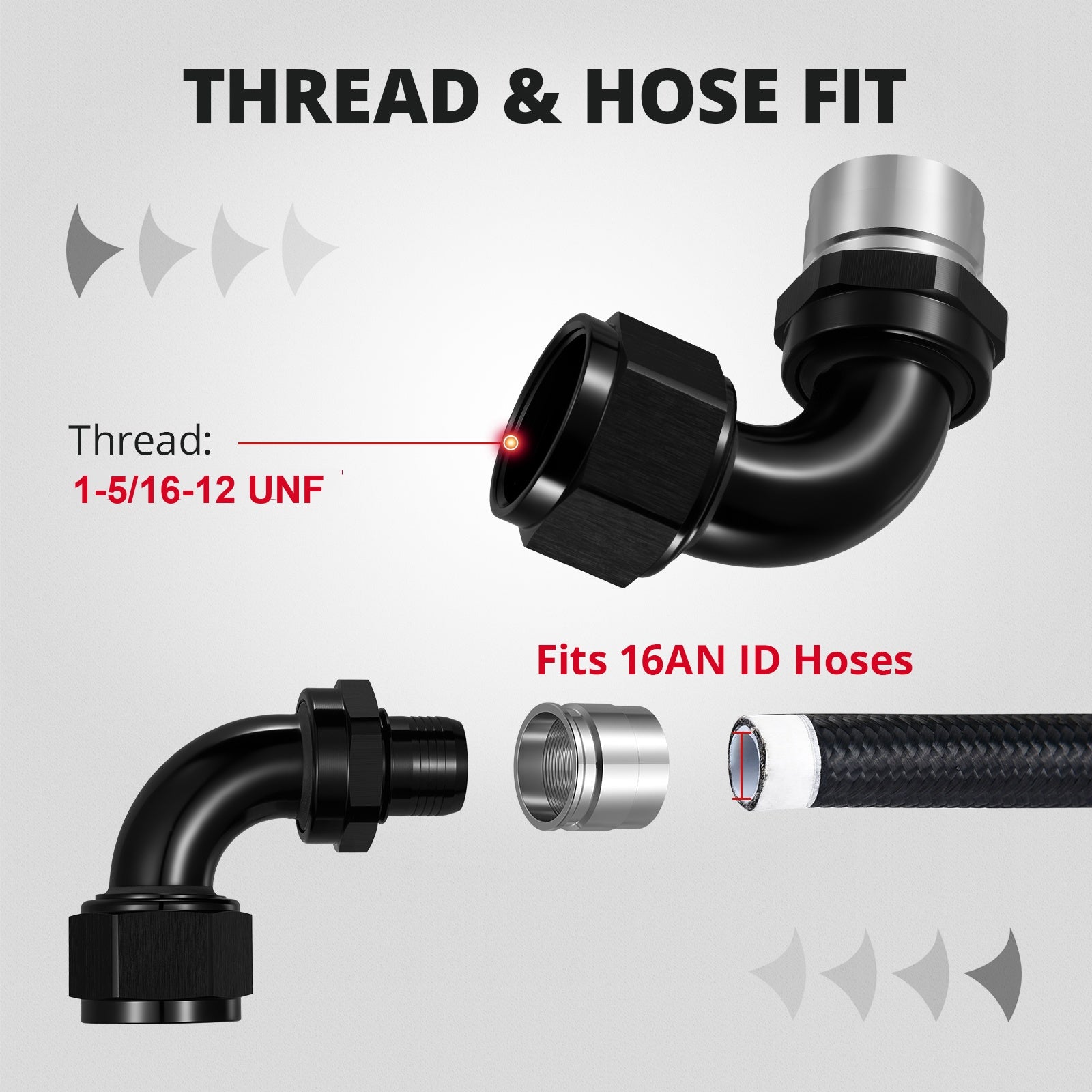

[16AN]
[16AN]

EVIL ENERGY 4/6/8/10/12/16AN Straight/45/90 Degree Crimp PTFE Hose End Fitting for PTFE Hose

$15.99
$15.99
$0.00
Size: 4AN
Style: 45 Degree
Add To Wish List
SKU: EVBVT0001016
Product Type: Crimp Fittings

  • Parameter: Maximum working pressure: 1,500 PSI. Working temperature range: -65℉ to 252℉ (-53℃ to 122℃)

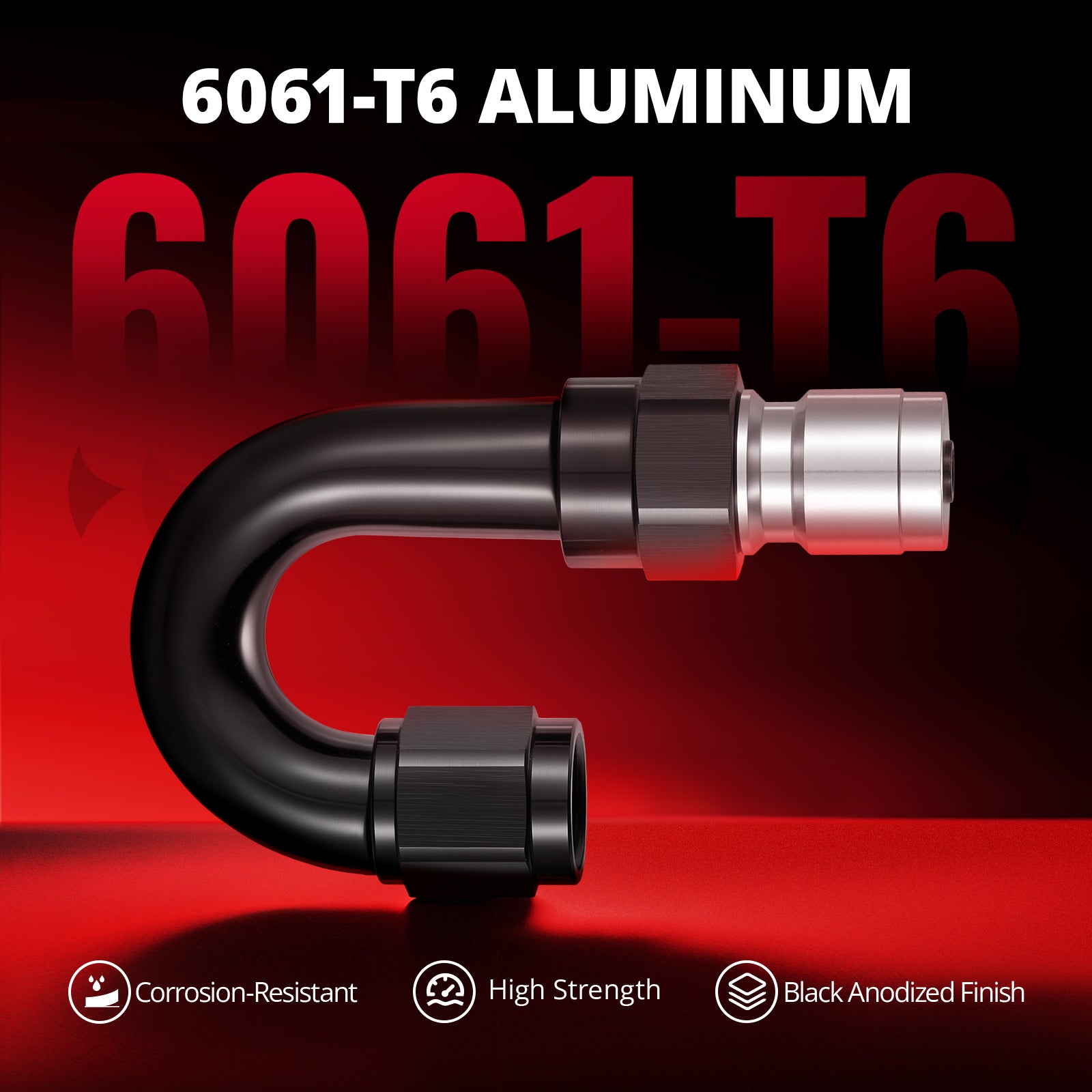

  • Material: Made of 6061-T6 aluminum alloy with a matching aluminum crimping sleeve, finished in hard-anodized black for corrosion resistance
  • Feature: This hose end fitting features a crimp-on design, requiring no welding; simply insert the connector into the hose and crimp it in place. Installation must be performed using a crimping machine and dies
  • Application: The crimp fitting works only with PTFE Stainless Braided Hoses and PTFE Nylon Braided Hoses, not suitable for CPE hoses and rubber hoses.

EVIL ENERGY checkout payment icons and shopping service
[180 Degree]

EVIL ENERGY 4/6/8/10/12/16AN Straight/45/90 Degree Crimp PTFE Hose End Fitting for PTFE Hose

$15.99 $0.00
$15.99 $0.00
[180 Degree]
[90 Degree]
[45 Degree]
[Straight]
[4AN]
EVIL ENERGY 4/6/8/10/12/16AN Straight/45/90 Degree Crimp PTFE Hose End Fitting for PTFE Hose
[4AN]
[6AN]
[6AN]
[8AN]
[8AN]
[10AN]
[10AN]
[12AN]
[12AN]
[16AN]
[16AN]
EVIL ENERGY 4/6/8/10/12/16AN Straight/45/90 Degree Crimp PTFE Hose End Fitting for PTFE Hose
EVIL ENERGY 4/6/8/10/12/16AN Straight/45/90 Degree Crimp PTFE Hose End Fitting for PTFE Hose
EVIL ENERGY 4/6/8/10/12/16AN Straight/45/90 Degree Crimp PTFE Hose End Fitting for PTFE Hose

EVIL ENERGY 4/6/8/10/12/16AN Straight/45/90 Degree Crimp PTFE Hose End Fitting for PTFE Hose

$15.99 $0.00
Size: 4AN
Style: 45 Degree

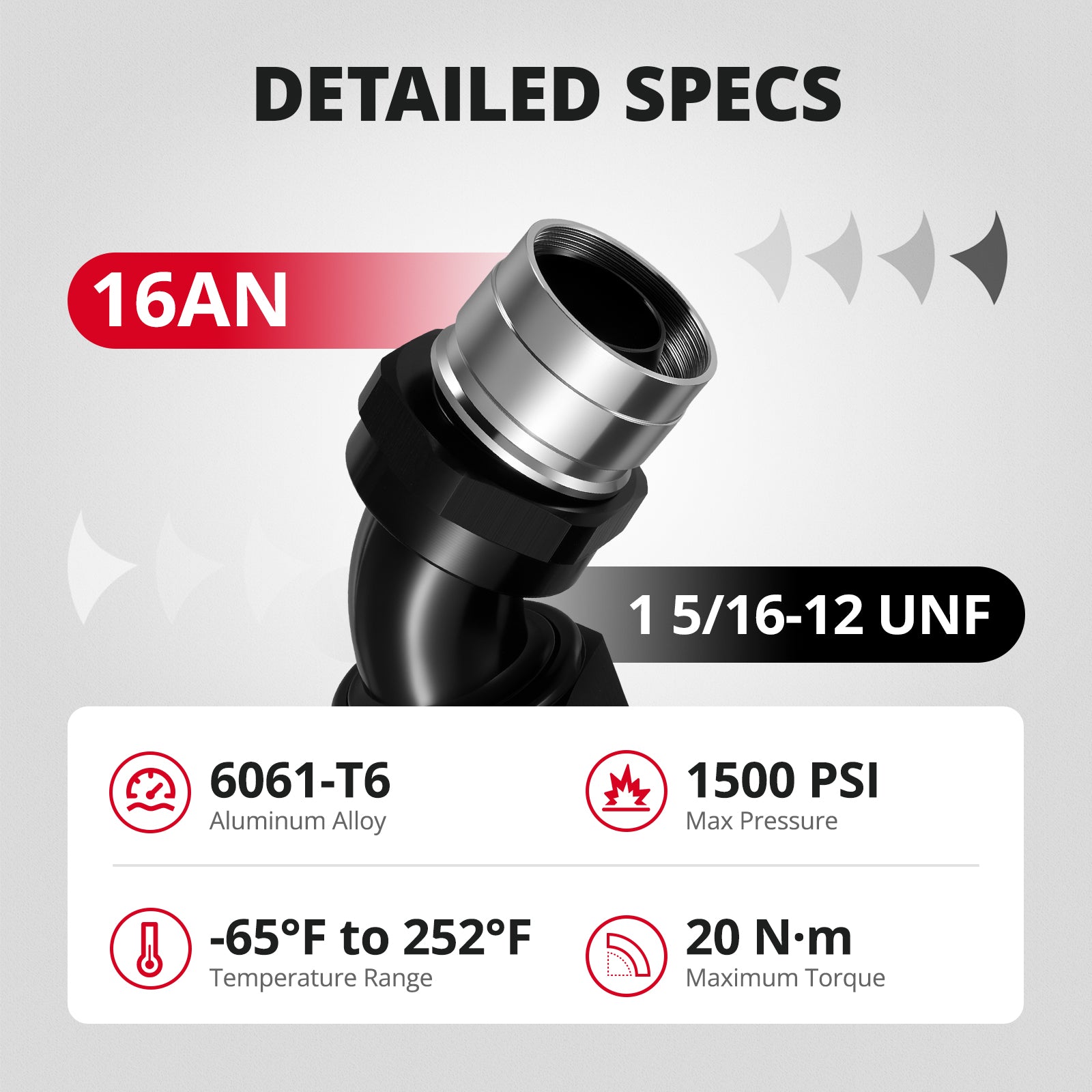

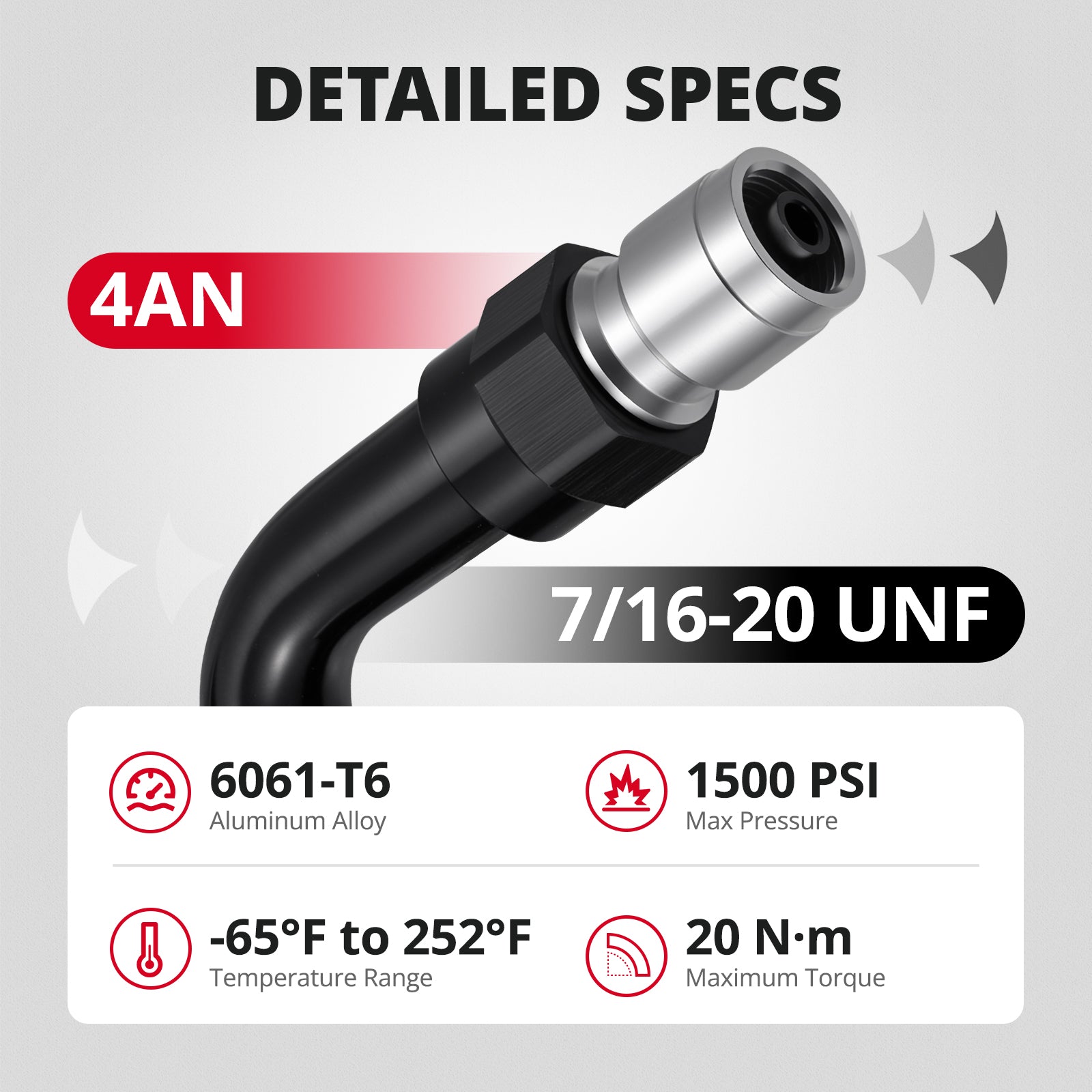

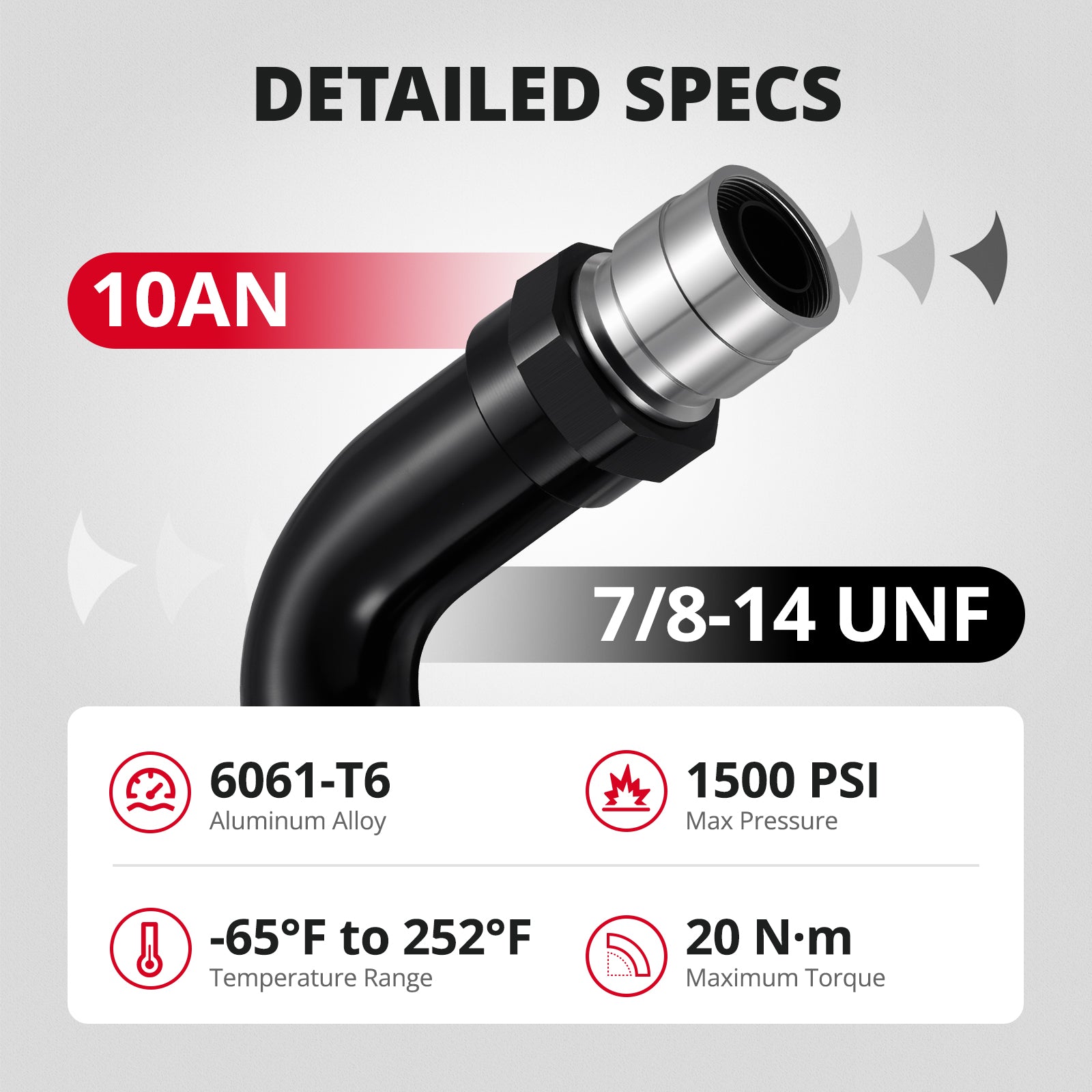

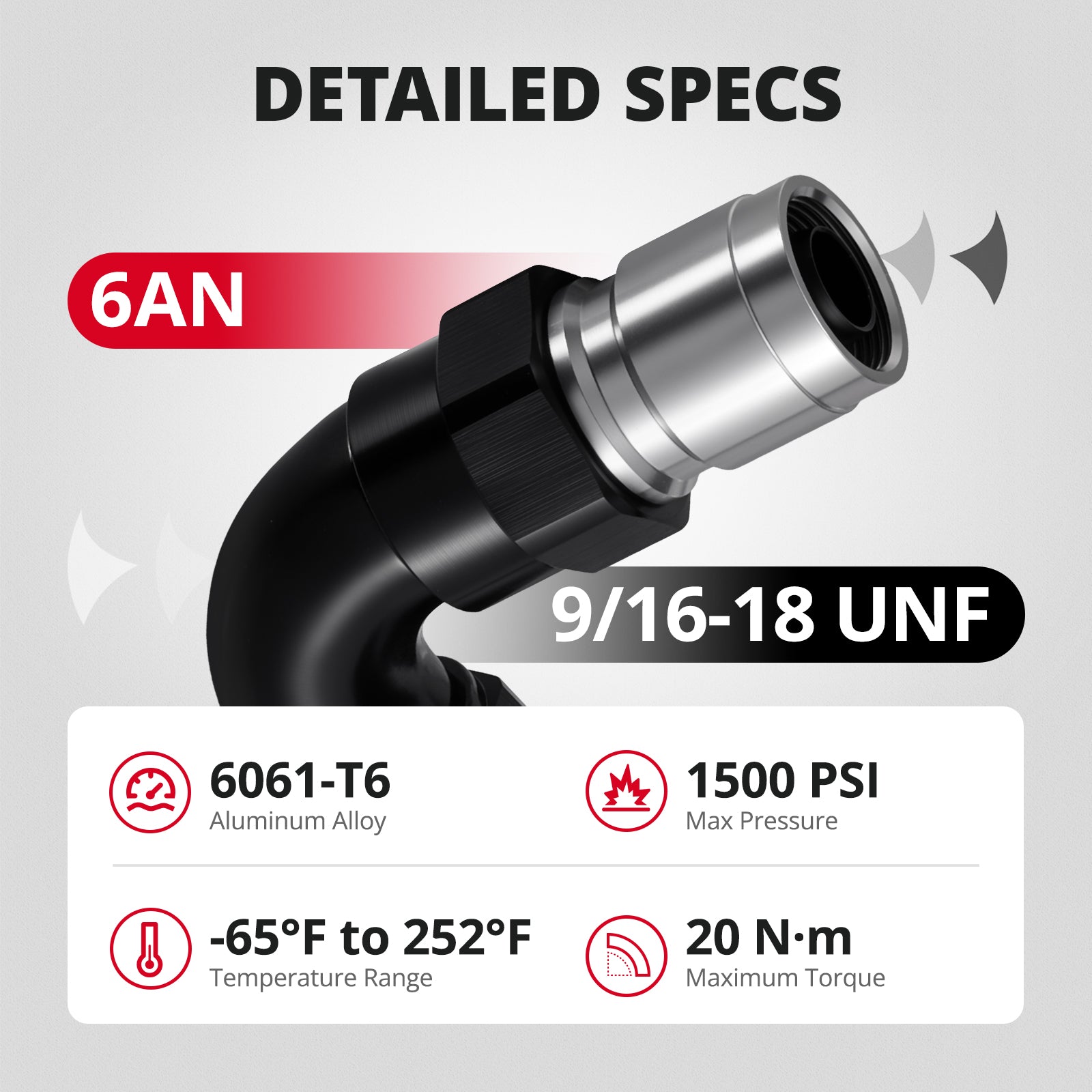

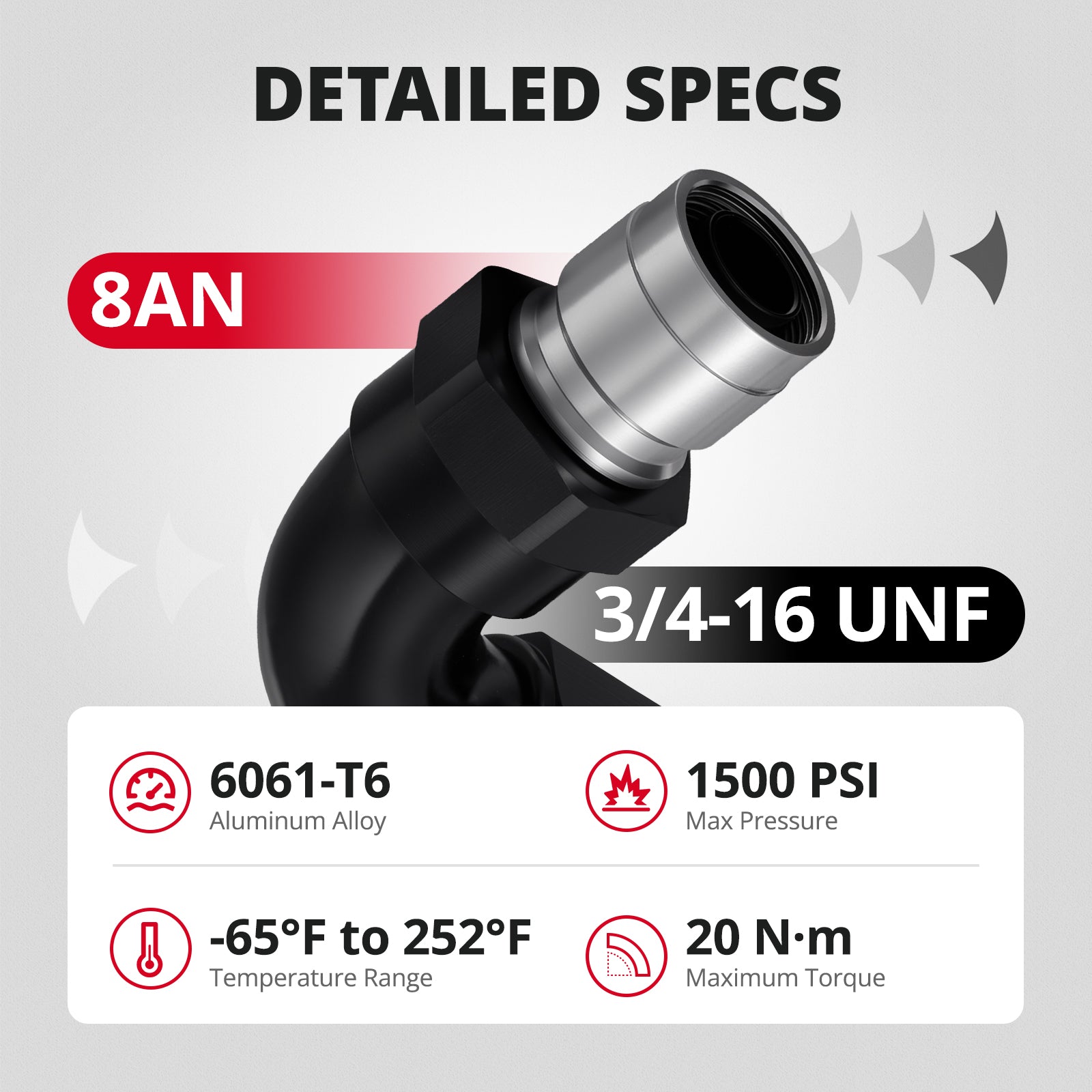

SPECIFICATIONS

Brand EVIL ENERGY
Material 6061-T6 Aluminum Alloy
Available Sizes 4AN 6AN 8AN 10AN 12AN 16AN

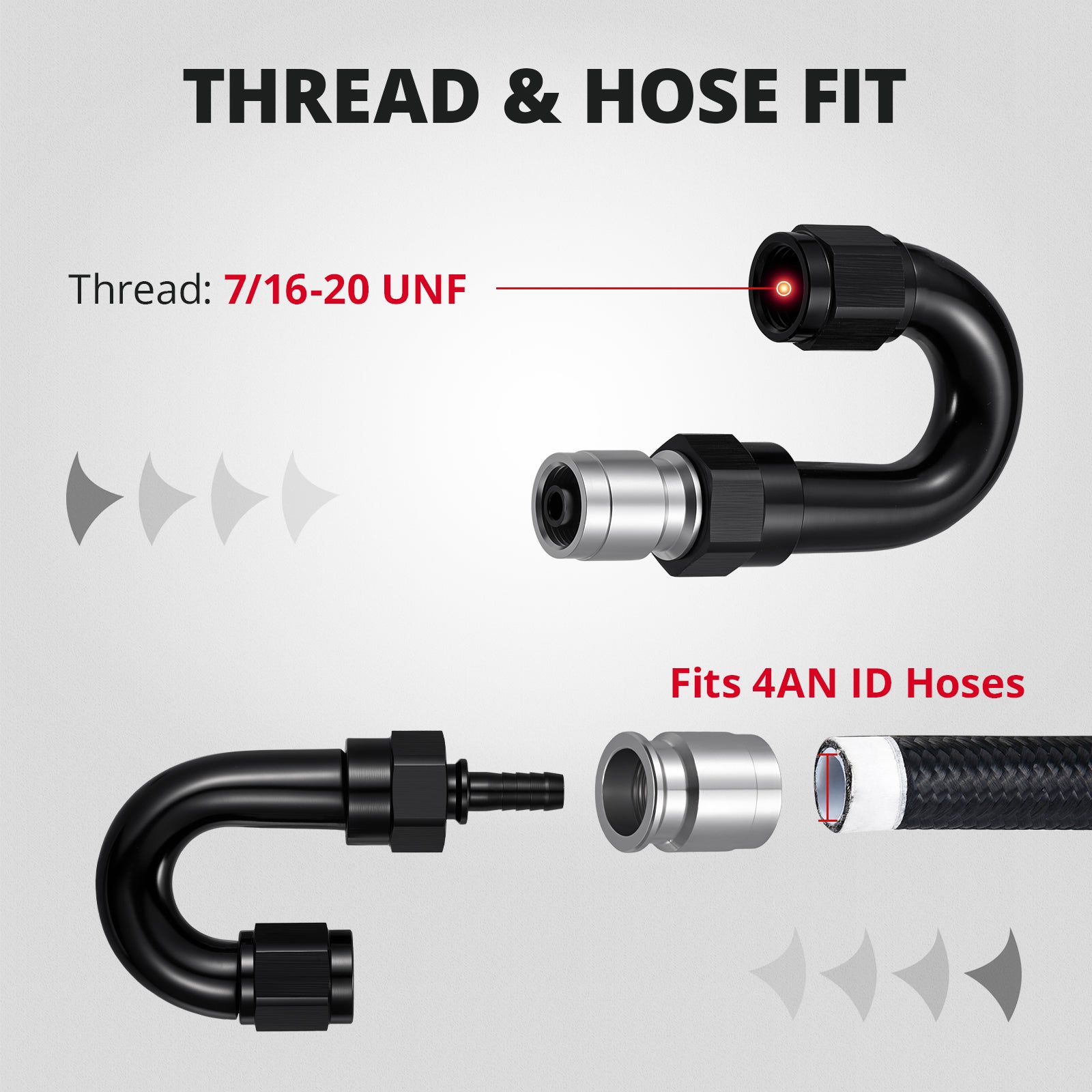

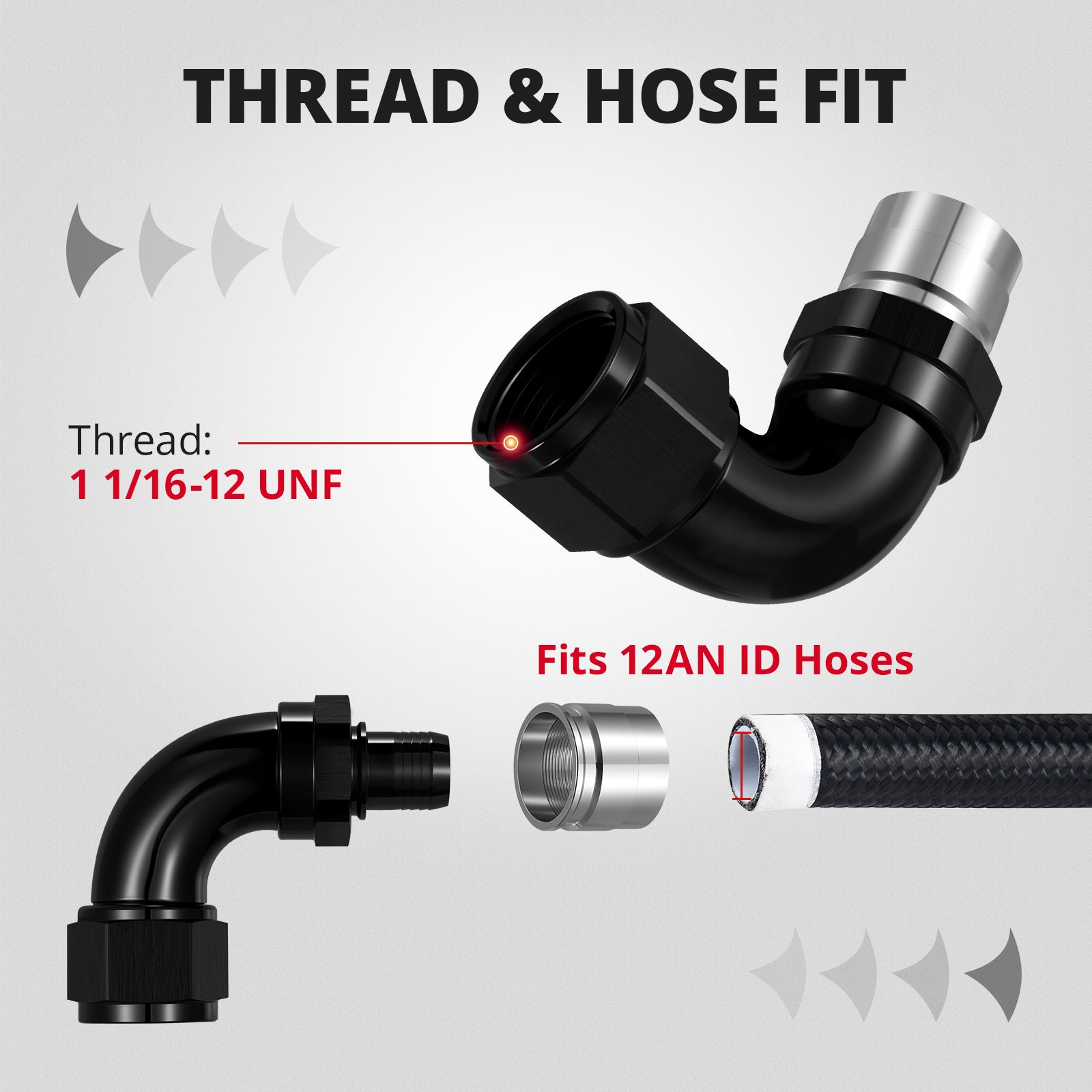

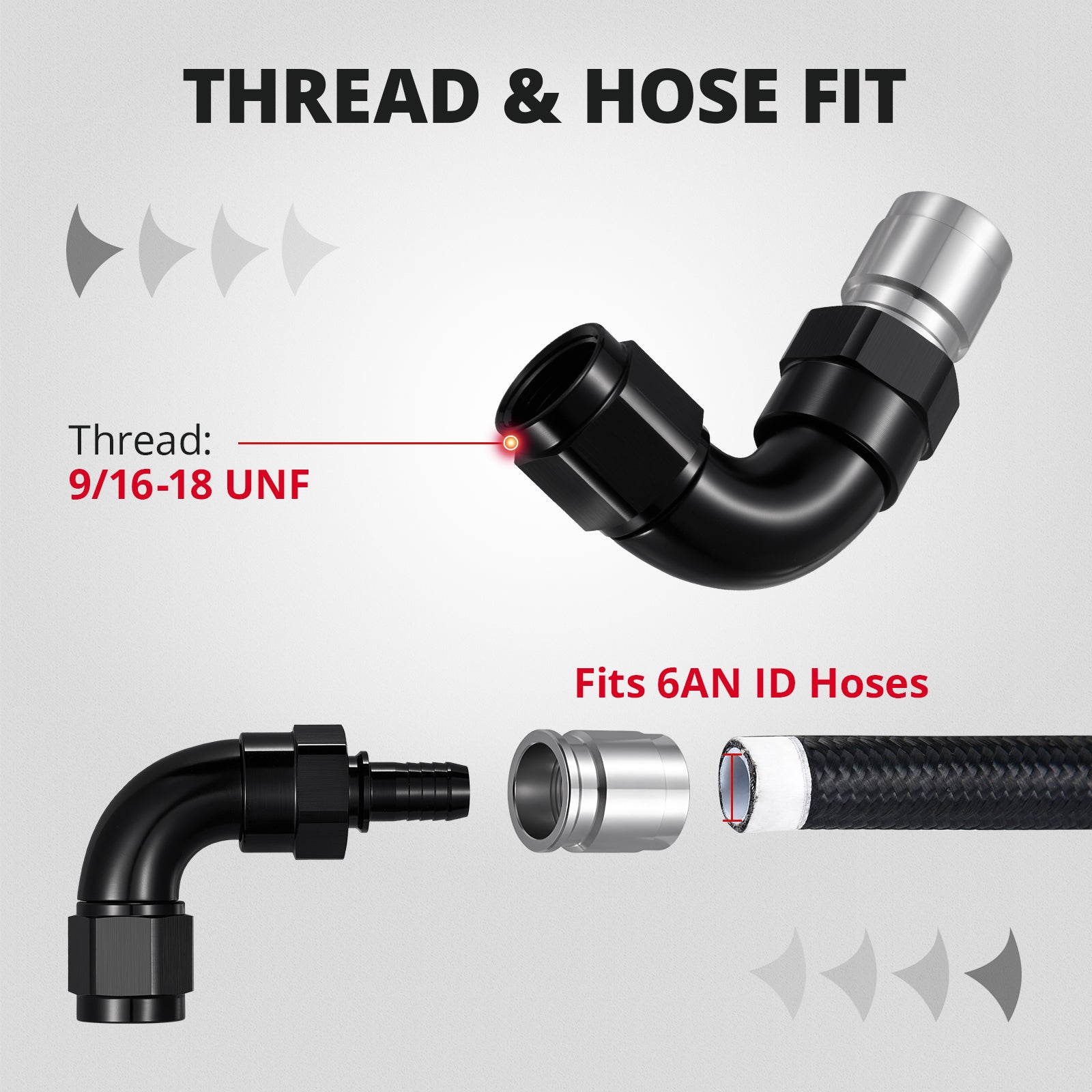

Thread Size 4AN 7/16-20 UNF, 6AN 9/16-18 UNF, 8AN 3/4-16 UNF, 10AN 7/8-14 UNF, 12AN 1-1/16-12 UNF, 16AN 1-5/16-12 UNF
Angle Options
Straight (0°), 45°, 90°, 180°
Max Working Pressure 1500 PSI
Working Temperature -65°F to 252°F
Seal Type 37 Degree AN Flare
Compatibility

PTFE Stainless Braided Hoses and PTFE Nylon Braided Hoses
Not Compatible CPE Hose and Rubber Hose
Installation
Permanent Crimp-On (crimping machine and dies required, sold separately)

DESCRIPTION

Built for High-Pressure PTFE Plumbing

The EVIL ENERGY AN Crimp PTFE Hose End Fitting is engineered for builders who need a permanent, vibration-proof connection on E85 fuel systems, dry-sump oil lines, power steering, transmission cooling, and turbo oil feed/return runs. Once crimped, the fitting becomes part of the hose assembly, eliminating the loosening risk that reusable-style fittings can develop on high-vibration platforms.

Choose the Right Angle for a Clean Routing

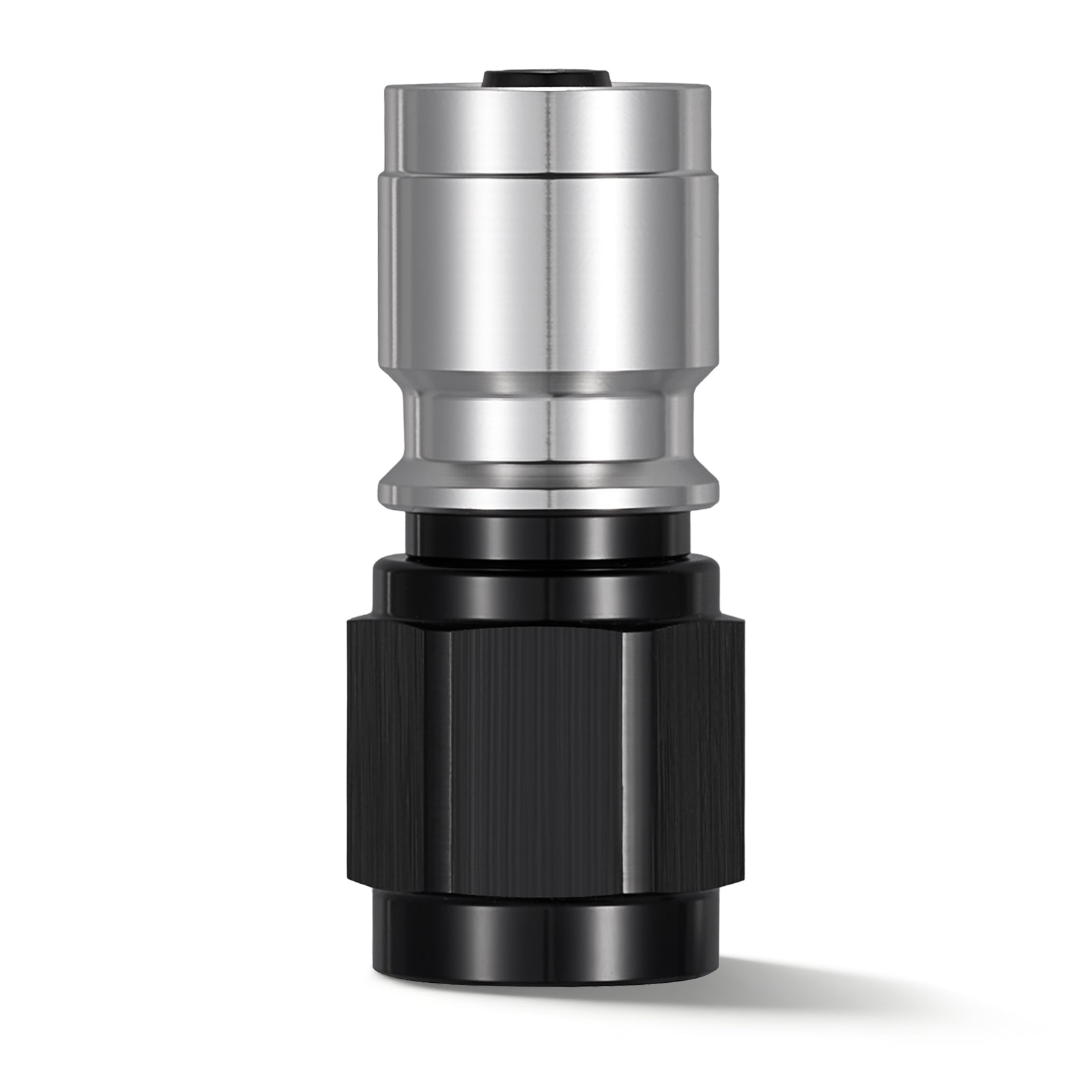

  • Straight (0°) — long runs, bulkhead pass-throughs, radiator to reservoir
  • 45° — moderate bends around headers or intake plenums

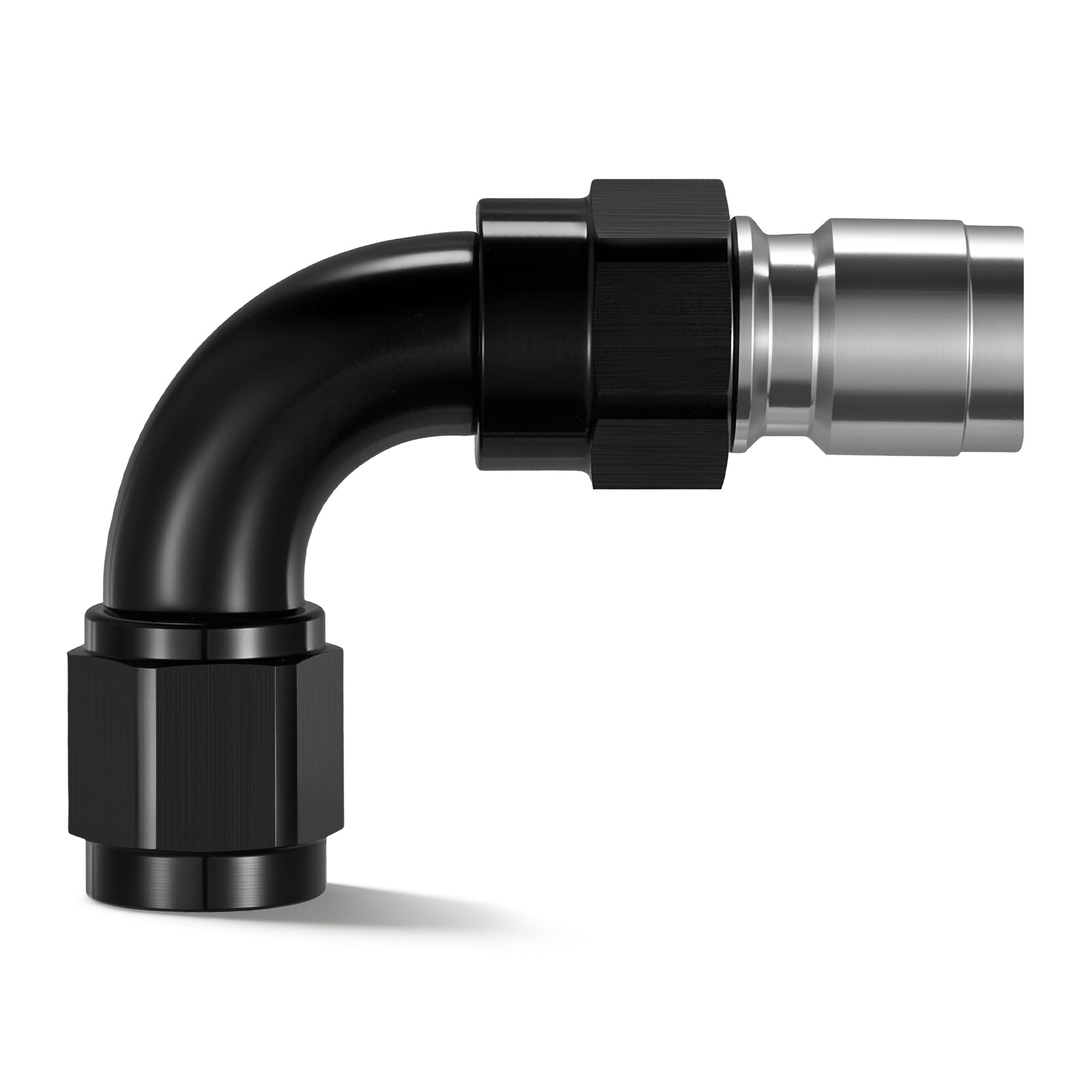

  • 90° — tight turns off fuel rails, oil coolers, and catch cans
  • 180° — U-turn returns from fuel pressure regulators and surge tanks

All angles share a 360° swivel female nut, so the hose can be positioned without pre-loading a twist in the PTFE liner — a common cause of premature hose failure.

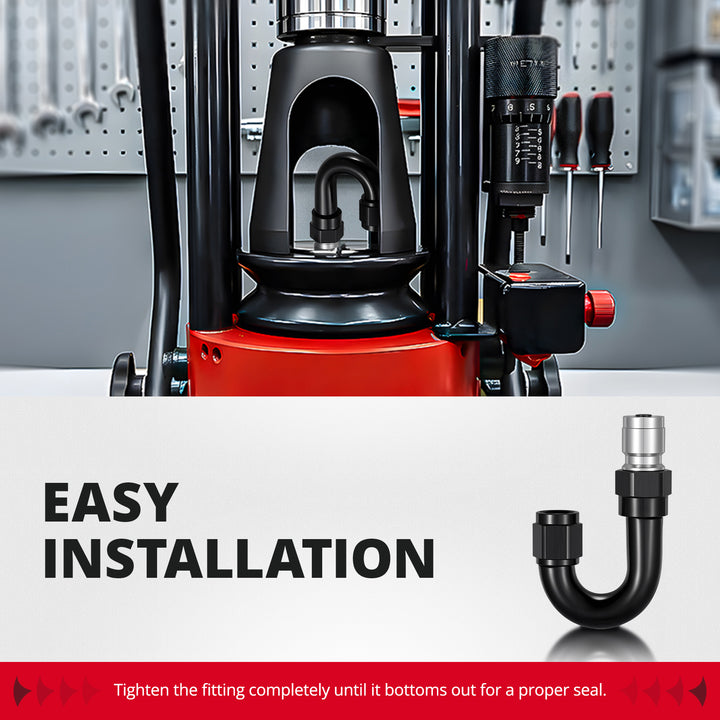

Crimp-On Installation

Installation is permanent and requires a hydraulic or bench-style AN crimping machine with the correct die for the AN size. See our AN Hose Crimper Tool & Die Set for compatible tooling. Crimp diameter specs are printed on each die — do not exceed manufacturer values.

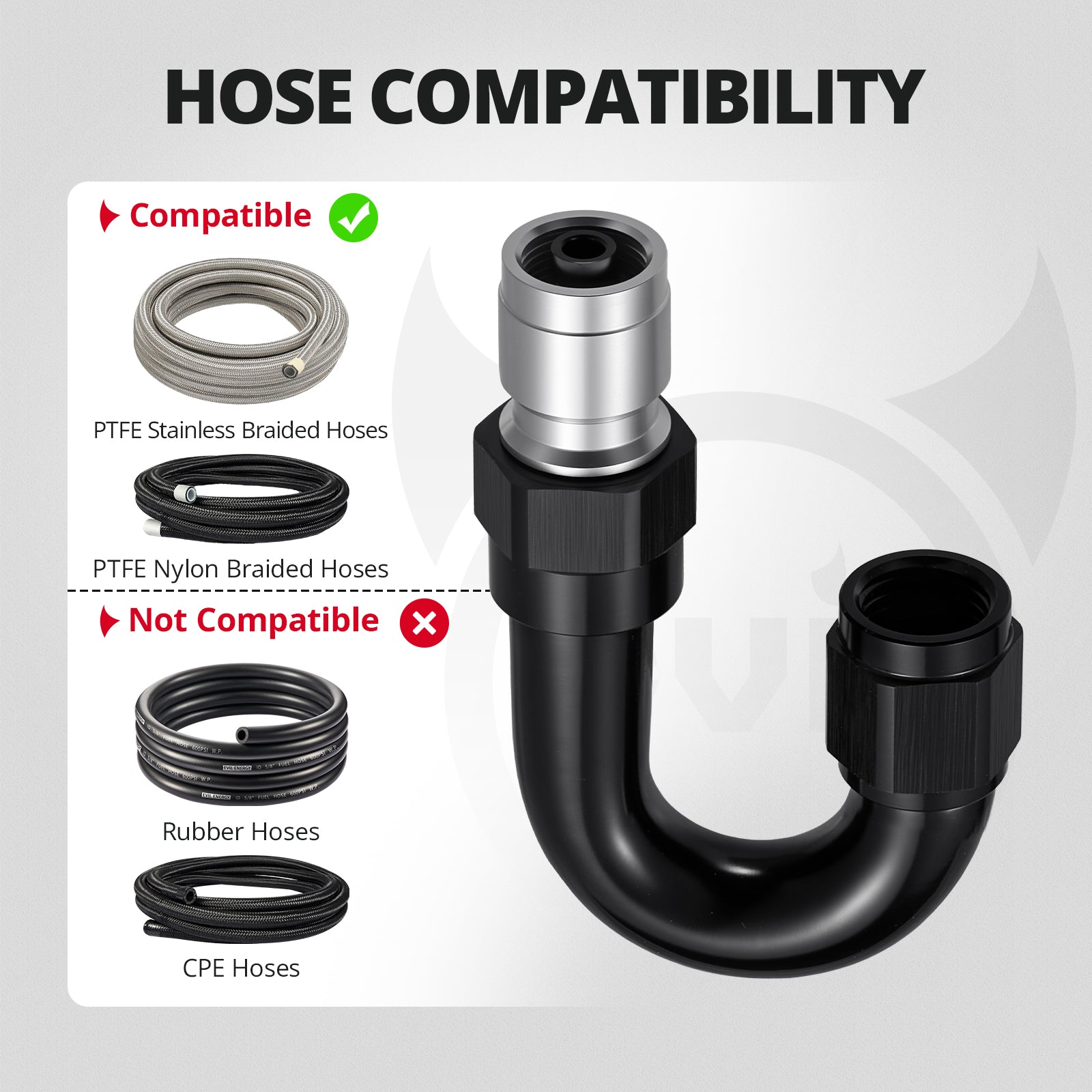

Hose compatibility chart showing PTFE stainless braided and PTFE nylon braided hose as compatible, and CPE braided hose as not compatible with AN crimp fittings
Hose compatibility chart showing PTFE stainless braided and PTFE nylon braided hose as compatible, and CPE braided hose as not compatible with AN crimp fittings

PTFE Hose Only — Why It Matters

Crimp fittings are dimensionally matched to the wall thickness of PTFE stainless braided and PTFE nylon braided hose. Using them on CPE, standard rubber, or push-lock rubber hose creates an incomplete seal and voids the 1500 PSI rating. If you're running rubber, use our Push-On Hose End Fittings instead. For a complete PTFE build, pair with our PTFE Braided Hose and AN Adapter Fittings.

360 degree swivel female nut on EVIL ENERGY AN crimp hose end fitting, allowing rotation for hose alignment

Rotate the female nut freely to align the hose without pre-loading a twist in the PTFE liner.

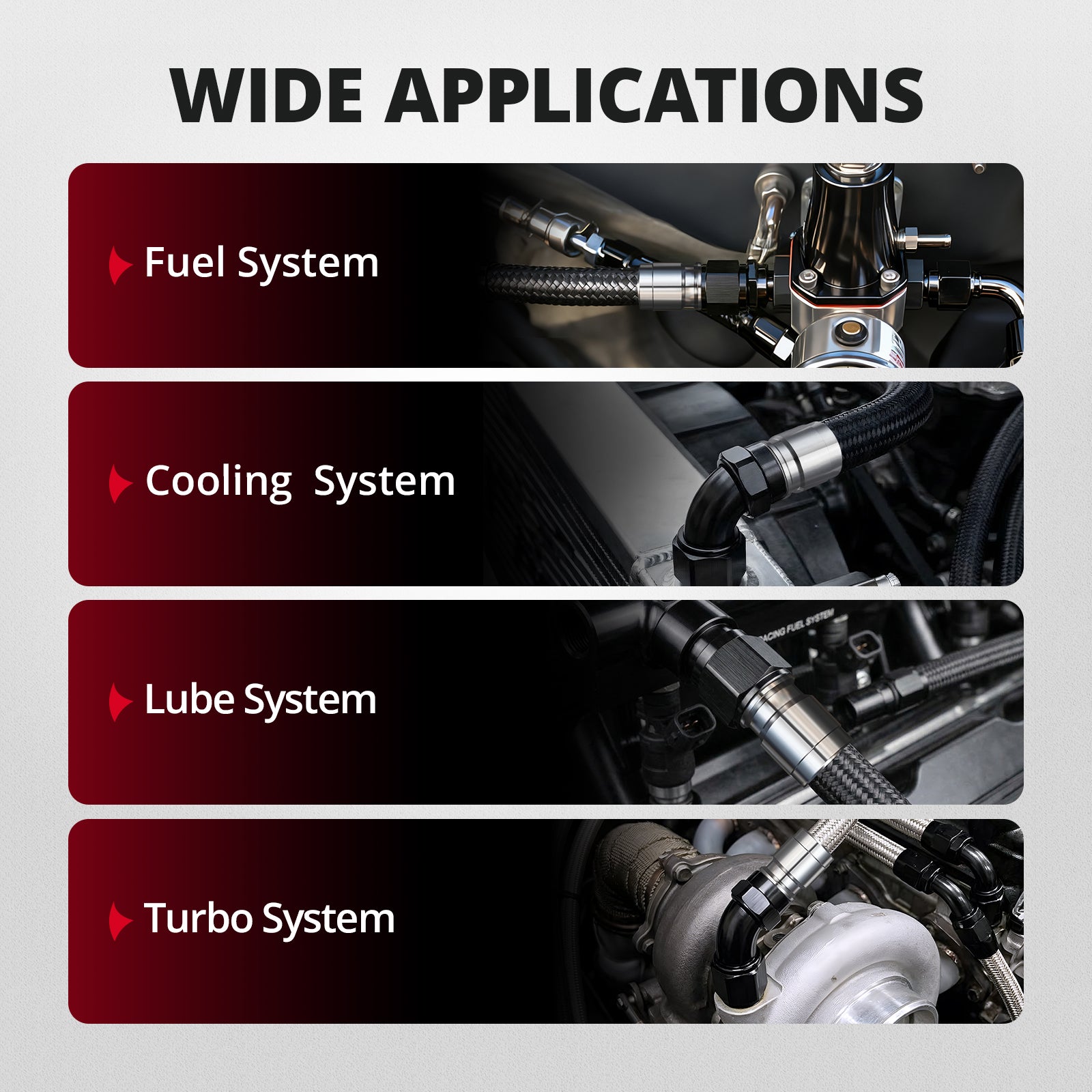

Multi-System Fitment.

This fitting is used across the full range of high-pressure fluid systems in modern performance builds:

  • Fuel systems: E85, methanol, and pump gas feed/return lines on fuel rails and regulators
  • Engine oil: dry-sump lines, oil cooler feeds, and turbocharger oil feed/return
  • Cooling systems — coolant reservoir, heater core, and radiator remote plumbing
  • Transmission & power steering: cooler lines and pressure return circuits

Straight, 45°, 90°, and 180° angles are available so each line can be routed cleanly without kinking the PTFE hose.

SHIPPING & RETURN

Brand Summary

Policy Details
Cancellation Policy Orders can be canceled within 48 hours of placement. Refund processed in 3-5 business days.
Returns Policy Returns accepted within 180 days. Full refund within 90 days; 15% fee for 90-180 days.
Non-Returnable Items Only regular-priced items are eligible for refunds; sale items are non-refundable.
Refund Processing If no refund received, check your bank/credit card. For ongoing issues, contact support@ievilenergy.com.

Return Reasons

  1. Quality Issues: Provide photos/videos; we cover return shipping.
  2. Wrong Item Ordered: Buyer covers return shipping; email within 30 days.
  3. Change of Mind: Buyer covers return shipping; email within 30 days.
  4. Shipping Damage: Inspect packages; do not sign for damaged items.
  5. Incorrect Item Shipped: Contact within 7 days.

Price Protection Policy

Effective from August 25, 2024. Price drops within 7 days of purchase can be claimed.

Disclaimer

EVIL ENERGY reserves the right to interpret, modify, or terminate this policy in accordance with applicable laws and regulations.

If you need further information or assistance, feel free to ask!

FAQS

Q: Which hose works with this crimp fitting?

A: Only PTFE stainless braided and PTFE nylon braided hose in the matching AN size. CPE, standard rubber, and push-lock rubber hose are not compatible — the crimp diameter is dimensioned for PTFE wall thickness.

Q: What thread standard does this use?

A: The AN (female) side uses 37° JIC flare — the SAE AS4395 standard. It seals metal-to-metal on the flare, not on the threads, so no thread sealant is needed.

Thread sizes: 4AN 7/16"-20, 6AN 9/16"-18, 8AN 3/4"-16, 10AN 7/8"-14, 12AN 1-1/16"-12, 16AN 1-5/16"-12.

Q: Can I install this without a crimping machine?

A: No. Crimp fittings require a hydraulic or bench AN crimper with the correct die for the AN size. If you don't have access to a crimper, use our reusable AN Hose End Fittings instead — those install with two wrenches.

Q: Are the crimp diameter specs published?

A: Yes — printed on each die in our AN Crimper Die Set. Crimping outside the specified range can cause leaks or damage the PTFE liner. (Confirm exact dimensions with brand team before publishing values on-page.)

Q: Is this fitting reusable if I cut the hose?

A: No. Crimp-on fittings are permanent, single-use. Once crimped, the sleeve deforms into the hose and cannot be re-crimped safely. For rebuildable installations, use reusable hose ends.

Q: What systems can I use this on?

A: Rated 1500 PSI and -65°F to 252°F — suitable for fuel (including E85 and methanol), engine oil, transmission cooler, power steering, coolant, and turbo oil feed/return lines. Not rated for brake systems (use DOT-approved brake line hardware).

Additional Tip: Rotate the female nut freely to align the hose without pre-loading a twist in the PTFE liner.
