EVIL ENERGY 8mm Spark Plug Wire Set Compatible with GM LS3 LS4 LS7 Engines, Ceramic-Style Heat Protection Boot Reference, 8pcs Ignition Wire Set

Q：I have a 2007 Silverado 1500, how do I know if I need the Classic body or the new body spark plug wires?

A：This is the most common ordering mistake for 2007 GM truck owners. In 2007, GM sold both the old GMT800 body as the Silverado 1500 Classic and Sierra 1500 Classic alongside the new GMT900 body. They use different coil to plug wire routing. Look at your truck: if the dashboard is the older style with a horizontal radio opening and the hood has a wider, flatter profile, you have the Classic. If the interior has the sweeping center stack and the hood has a raised power dome, you have the new body. This EVIL ENERGY spark plug wire set fits the Classic body 2007 Silverado 1500 and Sierra 1500 only. The fitment data covers 62 rows of Silverado 1500 Classic and Sierra 1500 Classic with the 4.8L, 5.3L, and 6.0L V8. If your 2007 is the new body style, check EVBWA0002011 instead.

Q：Will these fit my Impala SS or Grand Prix GXP with the LS4 5.3L V8?

A：Yes. This is one of the only EVIL ENERGY spark plug wire sets that covers the LS4 engine. The LS4 is a 5.3L V8 built for transverse front wheel drive platforms, completely different from the RWD truck 5.3L. The fitment includes 2006 to 2008 Chevrolet Impala SS, 2006 to 2007 Chevrolet Monte Carlo SS, 2005 to 2008 Pontiac Grand Prix GXP, and 2008 Buick LaCrosse Super, all using the LS4. The 135 degree boot angle is critical here because the LS4 sits sideways in the engine bay and the rear bank plugs are buried under the cowl. A straight boot or 45 degree boot cannot reach those plugs without kinking the wire. Most aftermarket ls spark plug wires are designed for RWD LS engines and will not fit the LS4 without modification.

Q：My Corvette Z06 LS7 keeps melting plug boots, will the ceramic style actually help?

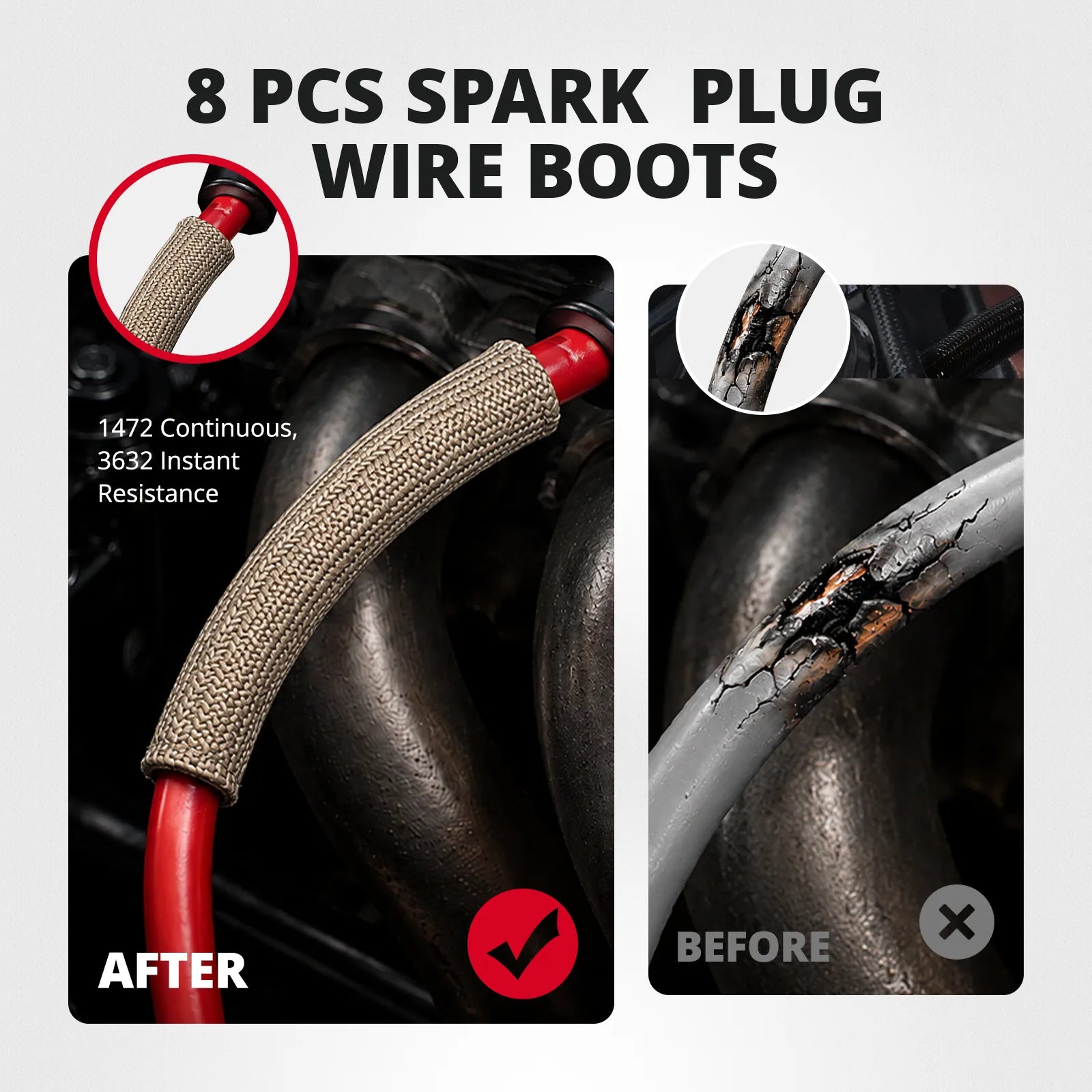

A：The LS7 in the 2006 to 2008 Corvette Z06 produces 505 horsepower at 6300 RPM and generates more exhaust header heat than any naturally aspirated LS engine in the fitment range. The ceramic spark plug wires on this set use a 9070C ceramic boot reference design where the plug end boot incorporates ceramic material that handles higher sustained contact temperatures than pure silicone. The fitment covers 8 rows of Corvette Z06 including the 2008 427 Limited Edition Z06. In addition to the ceramic boot, each set includes 8 basalt spark plug wire heat sleeves rated for 800 degrees Celsius continuous heat resistance. Install the sleeves on the plug ends closest to the primary header tubes, which on the LS7 are cylinders 1, 7, 6, and 4. These are among the best spark plug wires for C6 Z06 owners who track their cars and experience repeated boot hardening.

Q：Why does this set use a 135 degree boot angle instead of 45 degrees or straight?

A：The 135 degree spark plug wire boots are specified because the primary vehicles in this fitment range have coil to plug geometry that requires a steep angle. On the C6 Corvette from 2005 to 2008, the coil pack sits on the valve cover and the plug enters the cylinder head at an angle that points the boot toward the header primary tube. A 45 degree boot would force the wire to bend sharply against the header, creating a contact point that melts through within weeks. The 135 degree boot clocks the wire away from the header and follows the natural curve of the valvetrain. The same geometry applies to the 2005 to 2006 Chevrolet SSR and the 2006 to 2007 Cadillac CTS V with the LS2 6.0L. The spark plug wire set is designed around these performance car platforms, not trucks, which is why the boot angle differs from EVBWA0002016 and other truck focused SKUs.

Q：I own a 2006 Chevrolet SSR, are these spark plug wires compatible?

A：Yes. The fitment data includes the 2005 and 2006 Chevrolet SSR with the 6.0L V8 LS2. The SSR uses the same Gen IV LS2 coil near plug architecture as the C6 Corvette Base and the GTO, so the spark plug wire set with 135 degree boots drops directly into the SSR engine bay. SSR owners often struggle to find ls spark plug wires at local parts stores because only approximately 24,000 SSRs were built across all years. Online ordering with confirmed fitment data is the most reliable path. The 8mm high performance spark plug wires match the SSR factory resistance spec of 293 to 439 ohms per foot and the included basalt sleeves protect the plug ends from the tight exhaust routing in the SSR engine compartment.

Q：Is 8mm thick enough for a 505 horsepower LS7 or should I go with 10.5mm?

A：8mm spark plug wires are sufficient for the LS7 at factory power levels. The wire diameter determines insulation thickness, not spark energy delivery. Spark energy is governed by the coil output and the conductor resistance, which is 293 to 439 ohms per foot on this set regardless of diameter. The reason this set uses 8mm instead of 10.5mm is routing clearance in the C6 Corvette engine bay. The LS7 valve cover to header clearance is less than 15mm in some areas, and a 10.5mm wire physically will not fit through the factory wire looms without forcing them open. The ceramic spark plug wires at 8mm route cleanly through the factory loom locations while the ceramic boot and basalt spark plug wire heat sleeves handle the thermal load that the thinner jacket alone could not sustain. Choose 10.5mm only if you have an aftermarket valve cover with enlarged loom slots.

Q：Does this spark plug wire set work on the 2007 Silverado 1500 Classic Hybrid?

A：Yes. The fitment includes 2 rows for the 2007 Chevrolet Silverado 1500 Classic and 2007 GMC Sierra 1500 Classic with the 5.3L V8 Full Hybrid EV Gas system. The hybrid system on these trucks is a belt alternator starter unit that sits on the accessory drive and does not change the coil to plug ignition architecture. The spark plugs, coil packs, and spark plug wires are identical to the non hybrid 5.3L V8 Silverado 1500 Classic. The 42 volt hybrid battery system is completely separate from the 12 volt ignition circuit. No special precautions are needed for the spark plug wires replacement beyond the standard procedure of disconnecting the 12 volt battery before working on the ignition system.

Q：What does the 9070C ceramic boot reference mean and is it just marketing jargon?

A：The 9070C is a competitor reference number used in the aftermarket spark plug wire industry to describe a specific ceramic boot form factor. The ceramic material in the boot is not decorative. Pure silicone boots degrade at sustained contact temperatures above 250 degrees Celsius, which is the exact temperature the plug end reaches on an LS7 Corvette Z06 or an LS2 SSR after a hard drive. Ceramic material has a thermal conductivity roughly 10 times higher than silicone, which means it pulls heat away from the plug terminal and distributes it across the boot body instead of concentrating it at the contact point. This delays the boot hardening and bonding that makes old spark plug wire boots impossible to remove. The ceramic spark plug wires on this set pair the ceramic boot with a basalt spark plug wire heat shield sleeve for a dual layer heat strategy that pure silicone sets do not offer.

Q：The boots are seized onto my C6 Corvette spark plugs, how do I get them off without cracking the ceramic?

A：C6 Corvette boots seize harder than truck boots because the LS2 and LS7 engines run hotter and the plug end boots sit directly above the primary header tubes. Never grab the wire and pull. The conductor will separate from the terminal inside the boot and you will not know it until the misfire code appears. Use a curved jaw boot plier that grips only the rubber boot, not the wire. Twist the boot left and right 15 degrees to break the heat bond, then pull straight up. If the boot still holds, spray silicone lubricant between the boot and the plug ceramic, wait 10 minutes, and retry. Do not use a screwdriver to pry because the C6 spark plug ceramic is exposed and will crack under lever pressure. Once removed, apply dielectric grease inside the new spark plug wire boots before installation. The ceramic spark plug wires on this set resist bonding better than pure silicone, making the next spark plug wires replacement easier.

Q：What are the symptoms of bad spark plug wires on a 2005 to 2008 GM LS engine?

A：On the 2005 to 2008 LS platforms in this fitment range, the most common symptoms of bad spark plug wires appear in a specific sequence. First, you notice a rough idle that smooths out above 1500 RPM. This happens because the degraded wire arcs at low coil dwell time but recovers at higher RPM when the coil charges faster. Second, the check engine light sets P0300 or a cylinder specific code from P0301 to P0308. Third, fuel economy drops 2 to 4 mpg because the ECU enriches the mixture to protect the catalytic converter from unburned oxygen. Fourth, you may smell unburned fuel at the tailpipe on cold start. On the LS4 Impala SS and Grand Prix GXP, a failed wire on the rear bank can cause a torque steer pull under acceleration because the transverse mounting makes one bank dominant. Test spark plug wire resistance with an ohmmeter: this set reads 293 to 439 ohms per foot, so readings above 2000 ohms on any wire confirm internal failure.
