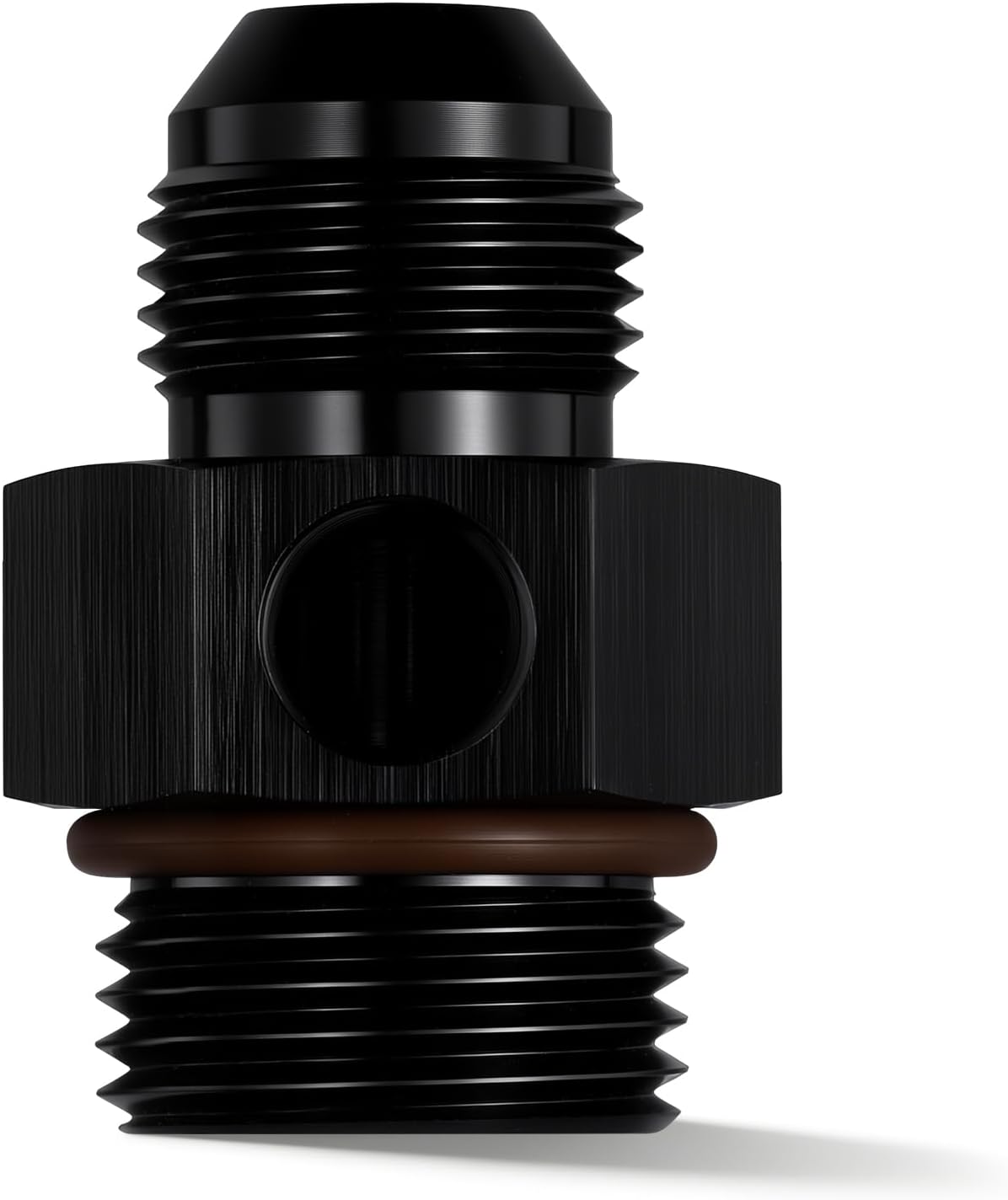

EVIL ENERGY 6/8/10AN Male Flare to -6/8/10AN ORB Male with 1/8" NPT Gauge Port Fuel Pressure Take off Fitting Adapter Aluminum

Q: What is the difference between an AN flare fitting and an ORB fitting?

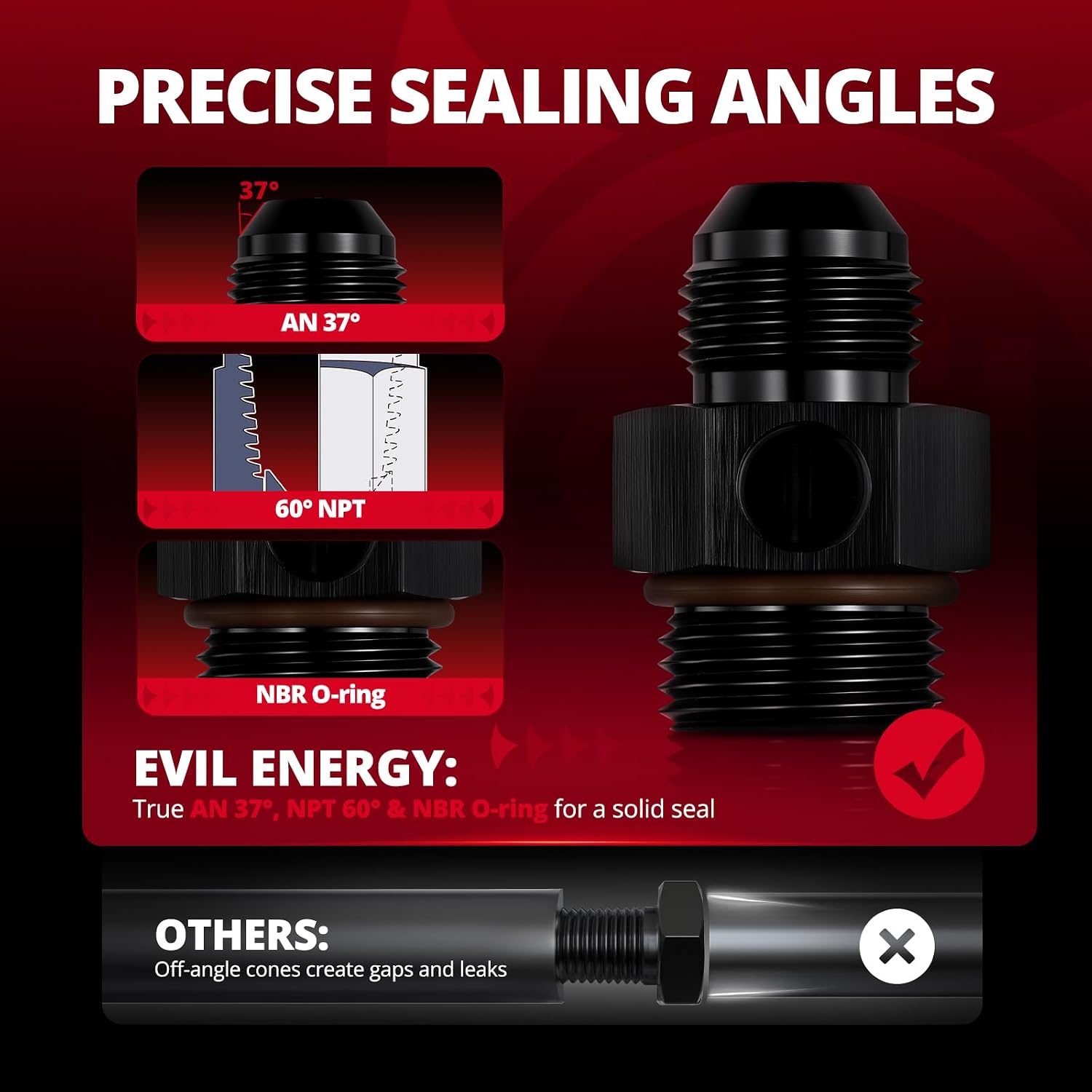

A: An AN flare seals on a 37° metal cone at the tip of the fitting; an ORB seals on a rubber O-ring against a flat seat at the base of the port. The threads on both are straight — they only provide clamping force, not sealing.

That difference has real consequences. AN 37° flare joints are for connecting hose to fitting and can be assembled and disassembled repeatedly with no consumables. ORB (O-Ring Boss, SAE J1926) joints are for threading into a component port — a fuel rail, regulator, filter head, or fuel cell bung. Because the O-ring does the work, an ORB port survives dozens of installs where a tapered NPT port would slowly deform.

Both differ from NPT, which is a tapered thread that seals by metal deforming against metal as it wedges deeper.

Q: Do I need Teflon tape or thread sealant on an ORB fitting?

A: No. Never use PTFE tape or thread sealant on the ORB threads or the AN flare threads. The only thread on this adapter that takes sealant is the 1/8" NPT gauge port.

Tape on an ORB fitting actively causes leaks: it builds up under the shoulder and stops the O-ring from fully compressing against its seat. It also breaks apart under fuel and pressure, and those shreds travel downstream into your filter, pump, or injectors.

For the NPT gauge port, a fuel-rated anaerobic liquid thread sealant is the better choice over tape for the same debris reason. If you do use tape, wrap 2–3 turns clockwise and start one full thread back from the leading edge so nothing can shear off into the fuel stream.

Q: How tight should an ORB fitting be torqued into an aluminum port?

A: Hand-tighten until the O-ring contacts the seat, then turn 1/8 to 1/4 turn with a wrench. This "feel" method is more reliable than a torque wrench on aluminum, because most published torque figures assume a steel port.

If you prefer a number, typical straight-thread O-ring boss guidance runs roughly 18–20 ft-lb for -6, 25–28 ft-lb for -8, and 32–36 ft-lb for -10 — but stay at the bottom of those ranges when threading aluminum into aluminum, and always defer to the torque spec published by whoever made the component you're threading into.

On the AN 37° flare side, figure roughly 10–12 ft-lb for -6AN, 13–15 ft-lb for -8AN and 18–20 ft-lb for -10AN. Aluminum flare seats need far less force than people expect; over-torquing crushes the cone and the joint will never seal properly again.

Q: Can I choose which way the gauge port faces?

A: Not with a fixed male ORB — the port ends up wherever the fitting stops when it's correctly torqued. In practice you get whatever clocking the thread gives you, typically within about 90° of where you wanted it.

If gauge orientation is critical — for example a mechanical gauge that must read upright, or a sensor whose connector has to clear a hood — you have three workable options:

1. Mount a short piece of hose off the NPT port and locate the gauge remotely.
2. Use a 1/8" NPT 90° street elbow at the gauge port to buy back a plane of adjustment.
3. Select an ORB fitting with a jam nut and washer, which can be indexed to any angle and locked.

Do not back the fitting off to line up the port. Loosening an ORB adapter past its seated position unloads the O-ring and it will weep.

Q: What fuel pressure gauge or sensor fits the 1/8" NPT port?

A: Any gauge or sender with 1/8"-27 NPT male threads — the automotive industry standard for fuel pressure gauge ports. That covers the large majority of mechanical liquid-filled fuel pressure gauges and most aftermarket electronic pressure senders.

Two things to check before ordering:

• Metric senders are common. Many OEM-style and some ECU-matched sensors use M10x1.0 or 1/8" BSPT rather than NPT. BSPT looks nearly identical but has a 55° thread angle instead of 60° and will not seal — it will feel like it's threading in, then leak.
• Full-scale range. Pick a gauge whose normal reading lands in the middle third of the dial. A 0–100 PSI gauge is right for most EFI; a 0–15 PSI gauge suits carbureted setups. Oversized ranges bury the useful reading in the first quarter of the sweep.

Q: Is an NBR O-ring safe with E85, ethanol, or methanol?

A: NBR (Buna-N) is compatible with gasoline and short-term ethanol exposure, but FKM/Viton is the better long-term choice for E85 and dedicated ethanol builds. Ethanol gradually swells and hardens nitrile, which shows up as a slow weep months after a leak-free install.

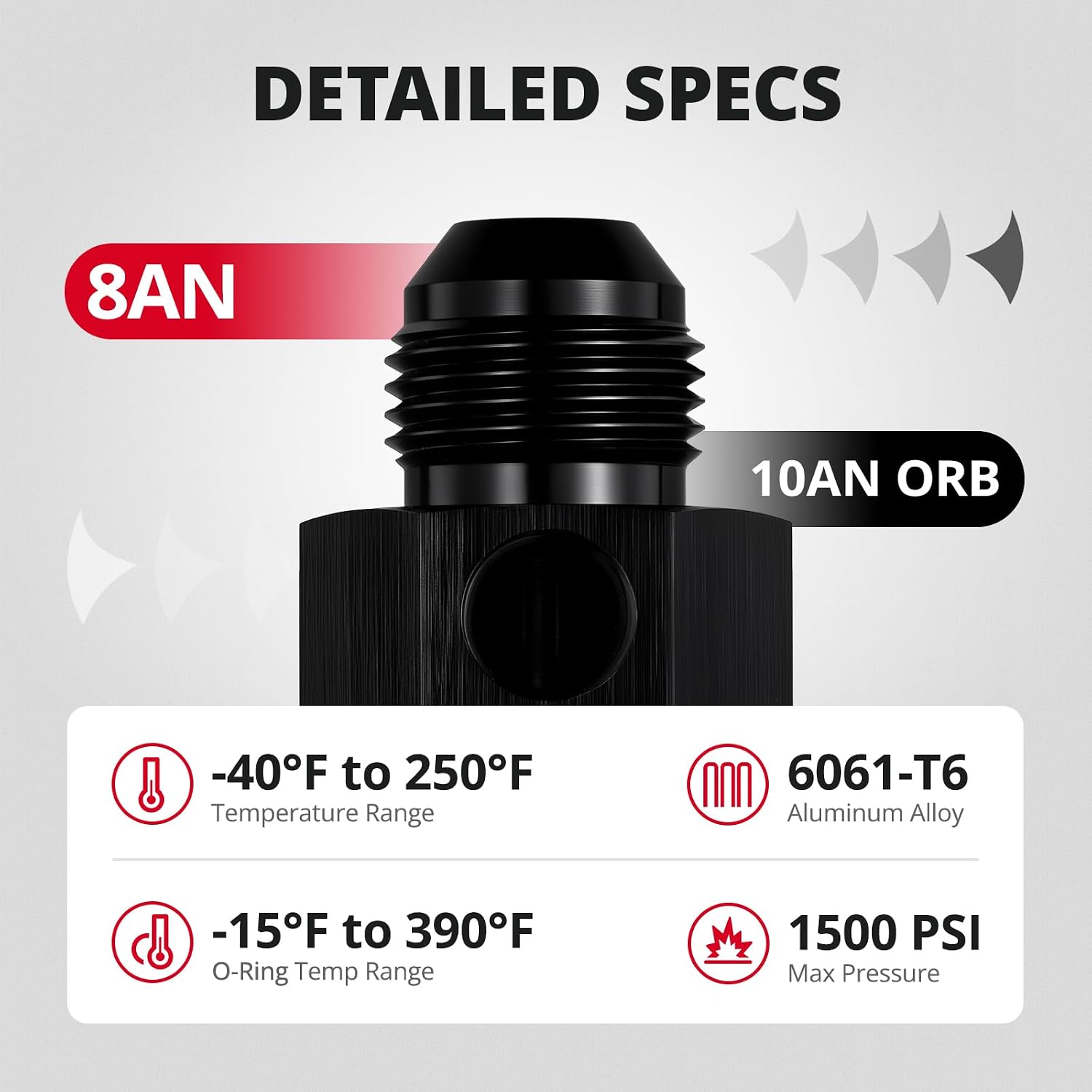

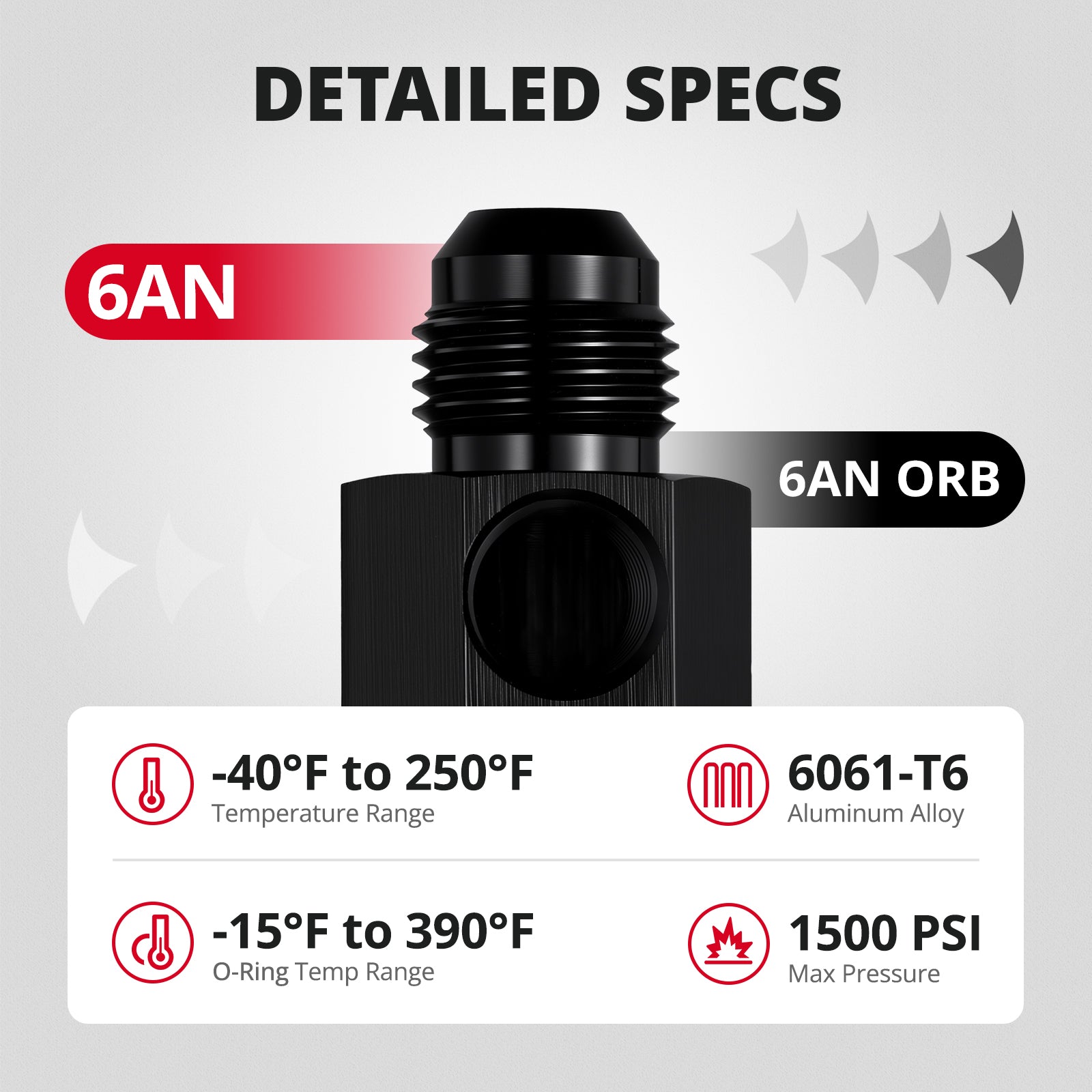

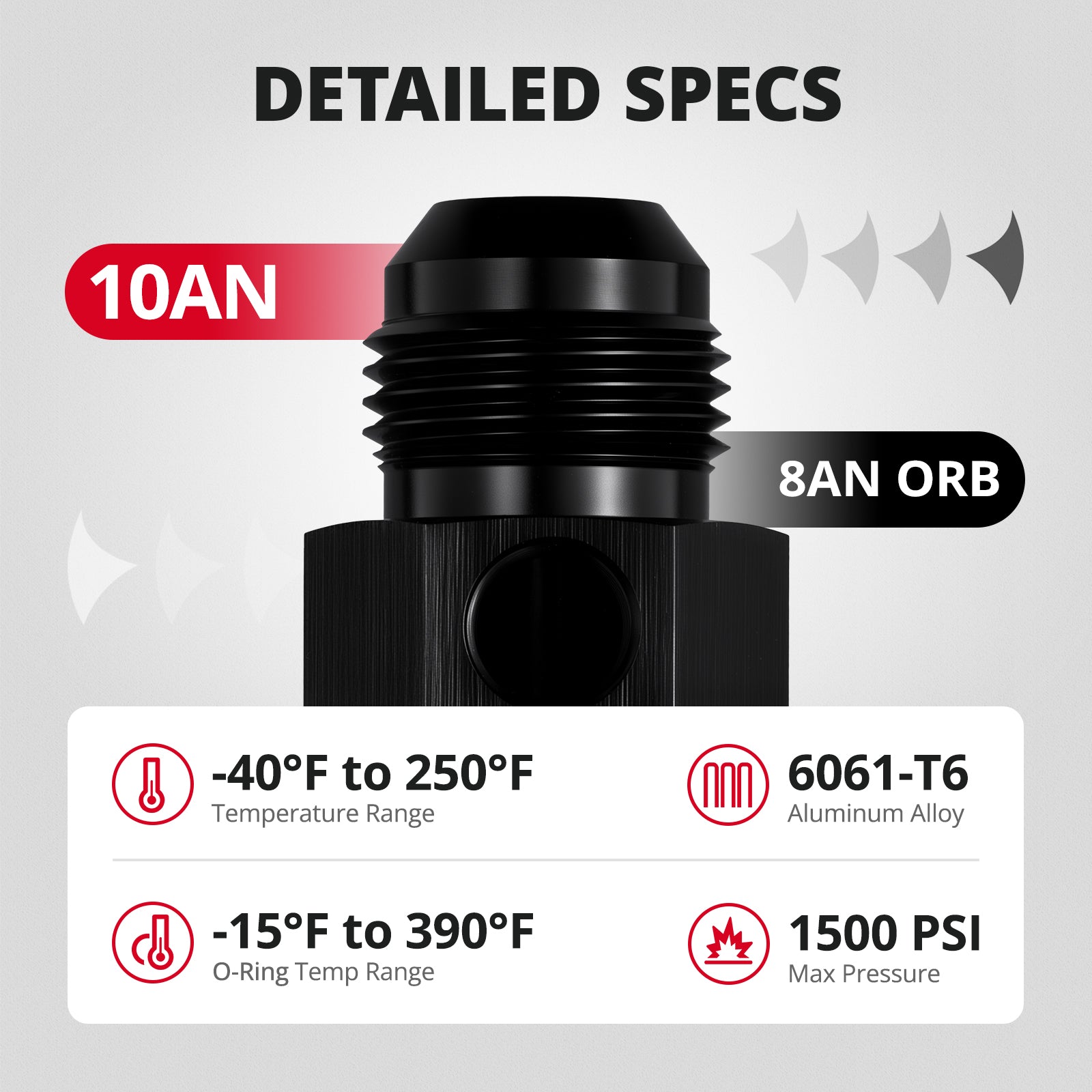

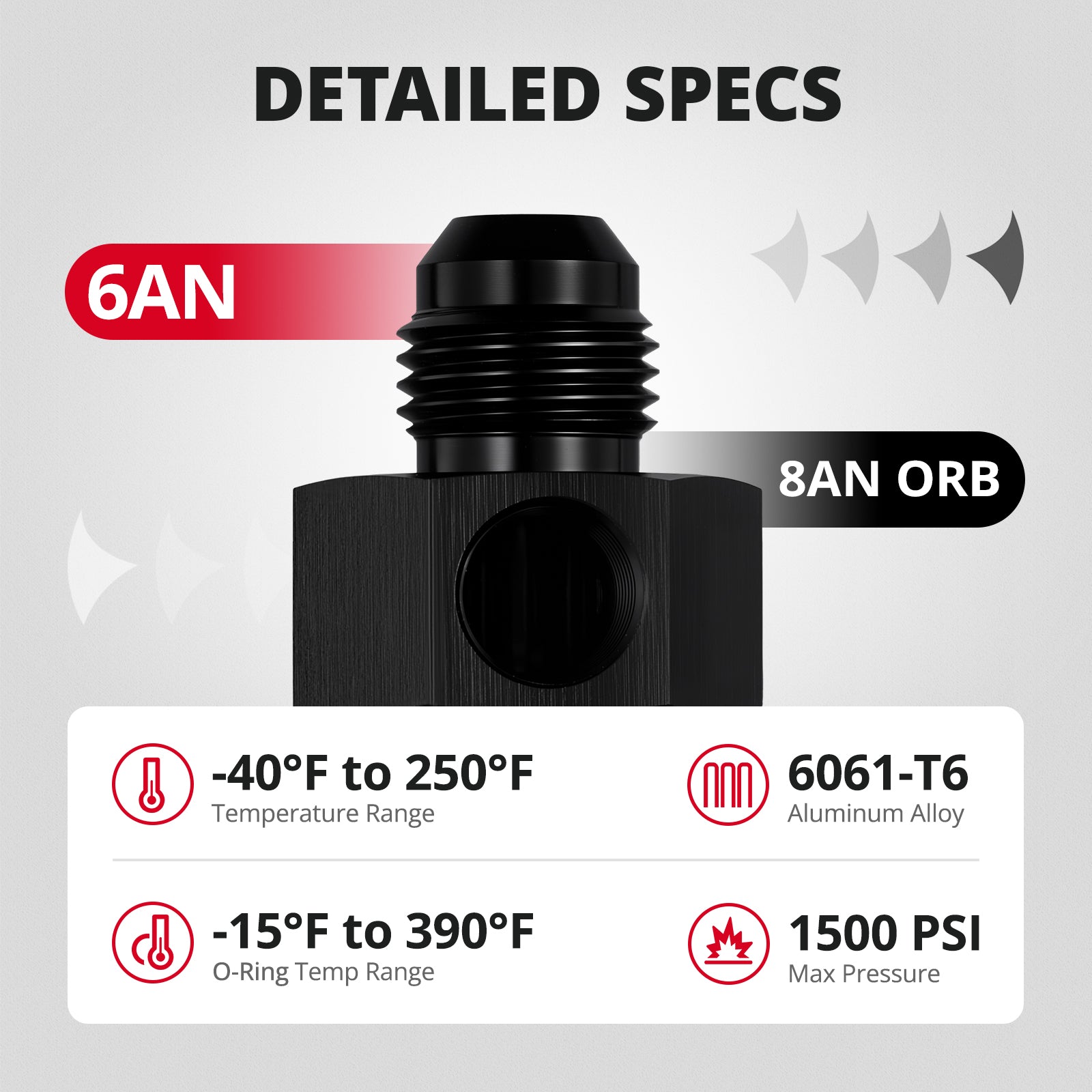

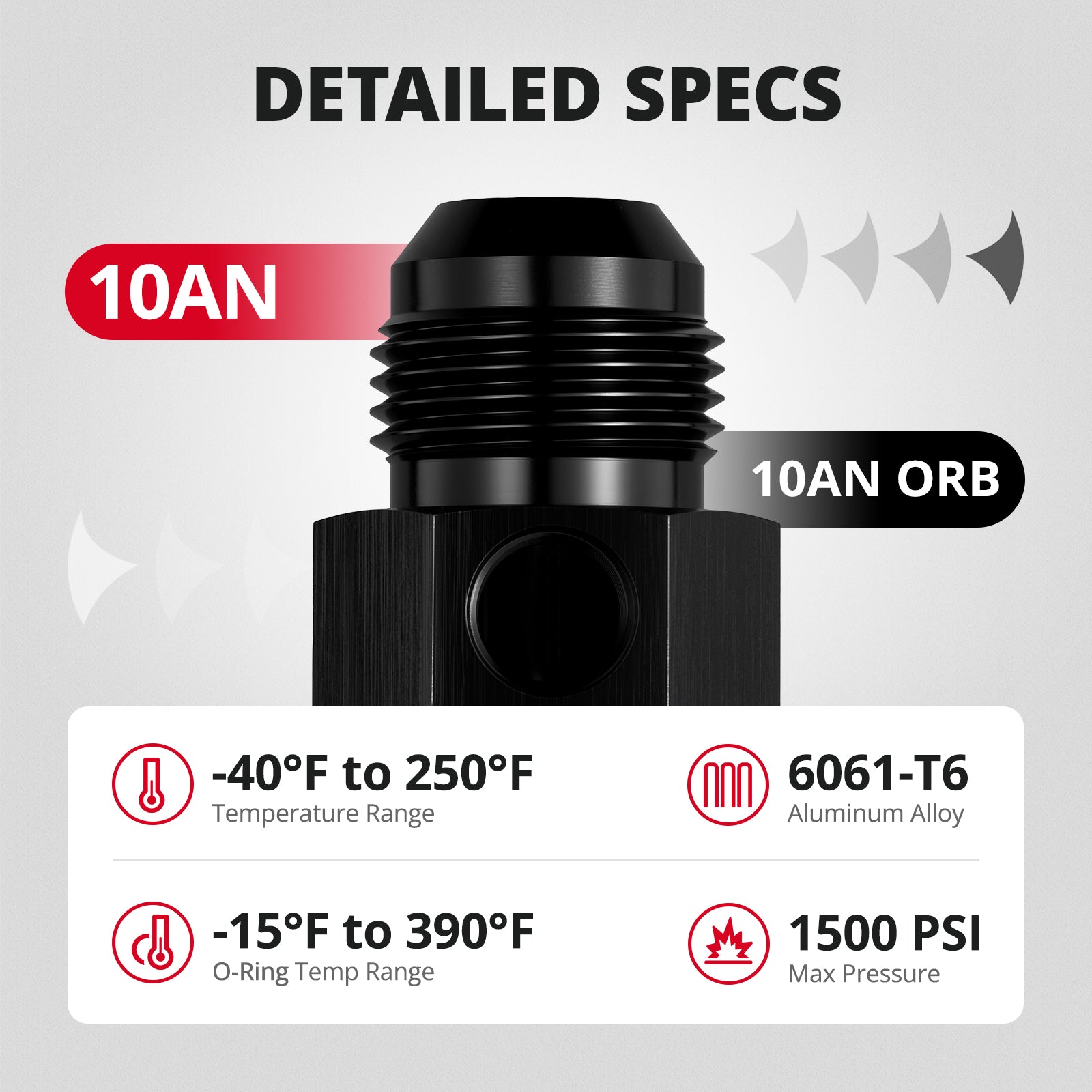

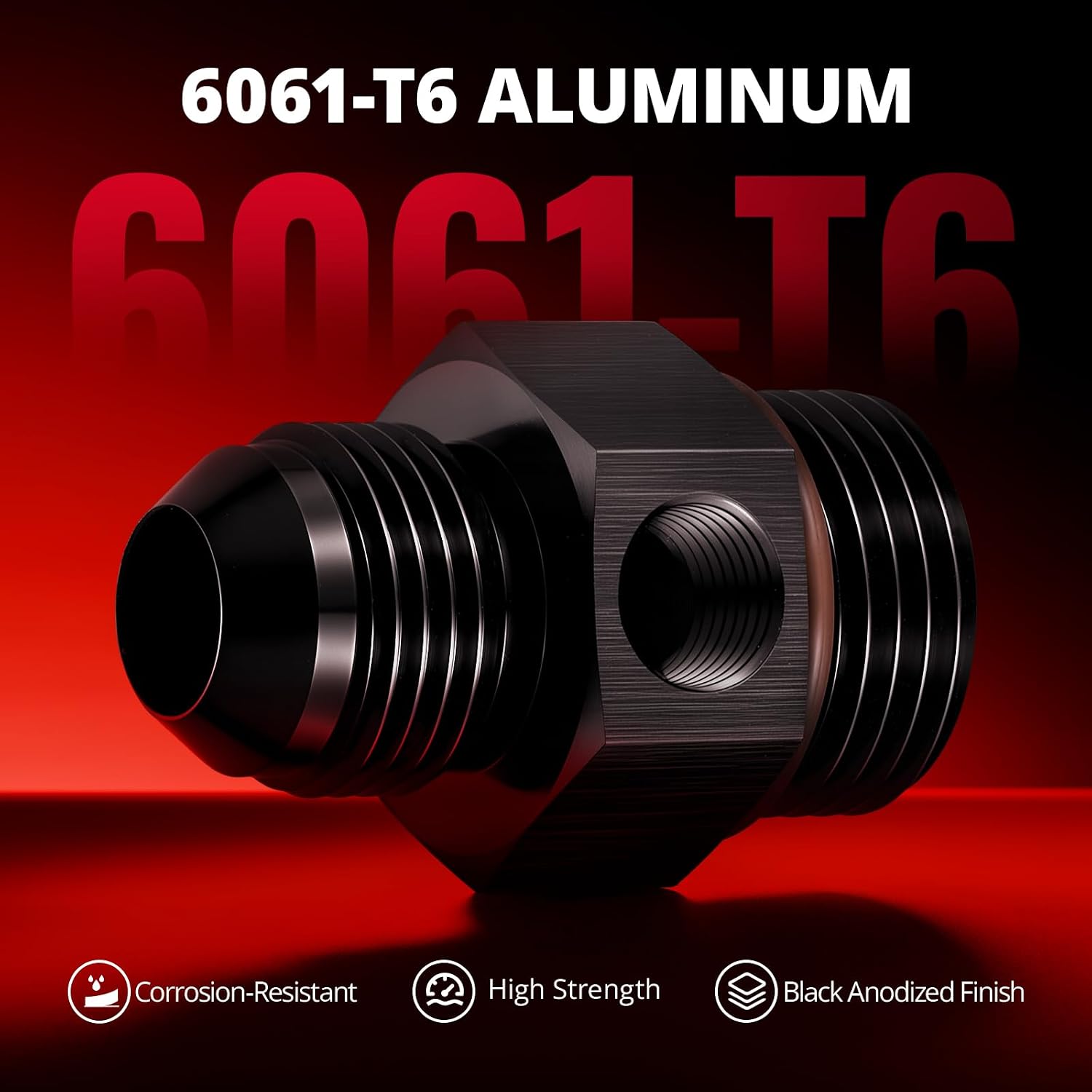

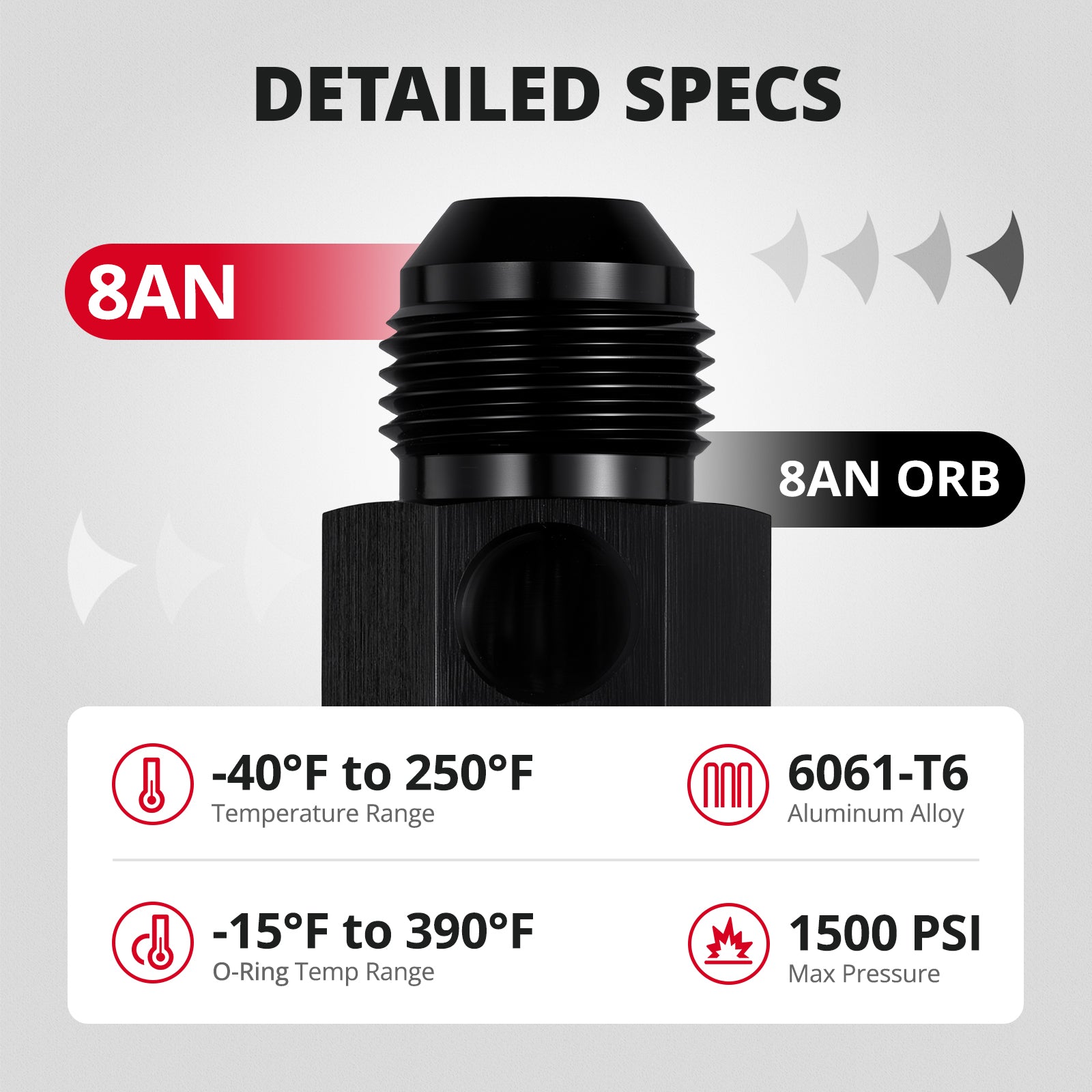

The 6061-T6 aluminum body itself is fine with gasoline, diesel and ethanol blends. Methanol is a different case — it's aggressive toward aluminum over extended exposure and is generally a stainless-fitting application.

The practical fix is cheap: this adapter's O-ring is a standard size, so E85 and flex-fuel builders often swap in an FKM/Viton O-ring at install and keep the aluminum body. Whichever you run, inspect it at every fuel filter service.

Q: Where in the fuel system should I put the pressure test port?

A: As close to the fuel rail inlet as you can get it — that's the only location that shows what your injectors actually see. Pressure read at the pump outlet or before the filter will always read higher than rail pressure and hides the exact problems you're trying to find.

That single placement rule turns the gauge into a real diagnostic tool:

• Rail pressure normal at idle, drops under load → the pump or the filter can't keep up with demand.
• Rail pressure high and unresponsive → restricted return line or a stuck fuel pressure regulator.
• Pressure bleeds off within minutes of shutdown → leaking check valve, injector, or regulator diaphragm.

If you want pressure data on both sides of the filter, install two of these adapters and compare — a spread that widens over time is a clogging filter, measured rather than guessed.

Q: Can I run a mechanical fuel pressure gauge inside the cabin?

A: No — never route pressurized fuel into the passenger compartment. A mechanical gauge works by carrying live fuel up to the dial, and a failed line or fitting behind the dash puts atomized fuel into the cabin with the occupants.

The correct approach for in-car monitoring is an electronic fuel pressure sensor threaded into this adapter's 1/8" NPT port, wired to a gauge or logged by the ECU. Only the wiring passes through the firewall.

If the build absolutely requires a mechanical gauge on the dash, an isolator with a diaphragm and non-flammable transfer fluid is the only accepted method — and it still keeps the fuel itself in the engine bay. For under-hood-only tuning, mounting the mechanical gauge directly to the adapter is fine.

Q: Why does my fuel pressure gauge needle flutter or bounce?

A: Some flutter is normal — it's the fuel pump's pulsation, not a fault. A needle moving 2–4 PSI at a steady idle is the pump's pressure wave reaching the gauge and is nothing to chase.

Rule out the real problems in this order:

1. Pulsation only — the needle oscillates evenly around a steady average. Fit a gauge snubber or a liquid-filled gauge and it goes away.
2. Rising then collapsing — pressure builds, then falls off and recovers. That's a starving pump: restricted filter, undersized supply line, or a failing pump.
3. Erratic and unrelated to RPM — a sticking fuel pressure regulator diaphragm or air trapped in the gauge line.

Note that on a vacuum-referenced return-style regulator, pressure is supposed to rise under boost and fall under vacuum. That's the regulator maintaining constant pressure across the injector, not a fault. Browse regulators and accessories if you're diagnosing a suspect unit.

Q: Do the AN flare size and the ORB size have to match?

A: No. They're specified independently, which is exactly why this adapter exists in six combinations. You choose the ORB size to match the port you're threading into, and the AN flare size to match the hose you're running.

Measure both before ordering, because you cannot judge these by eye:

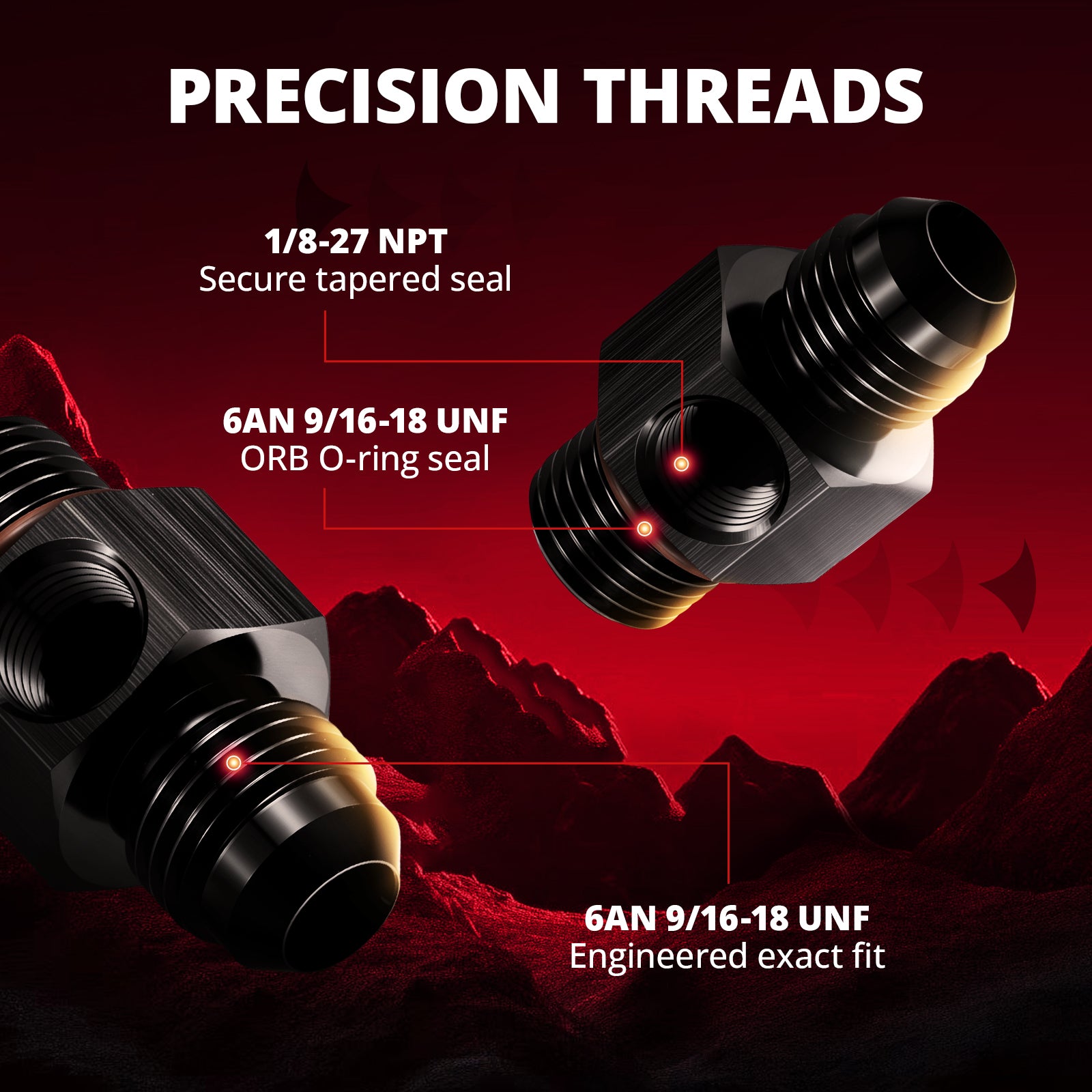

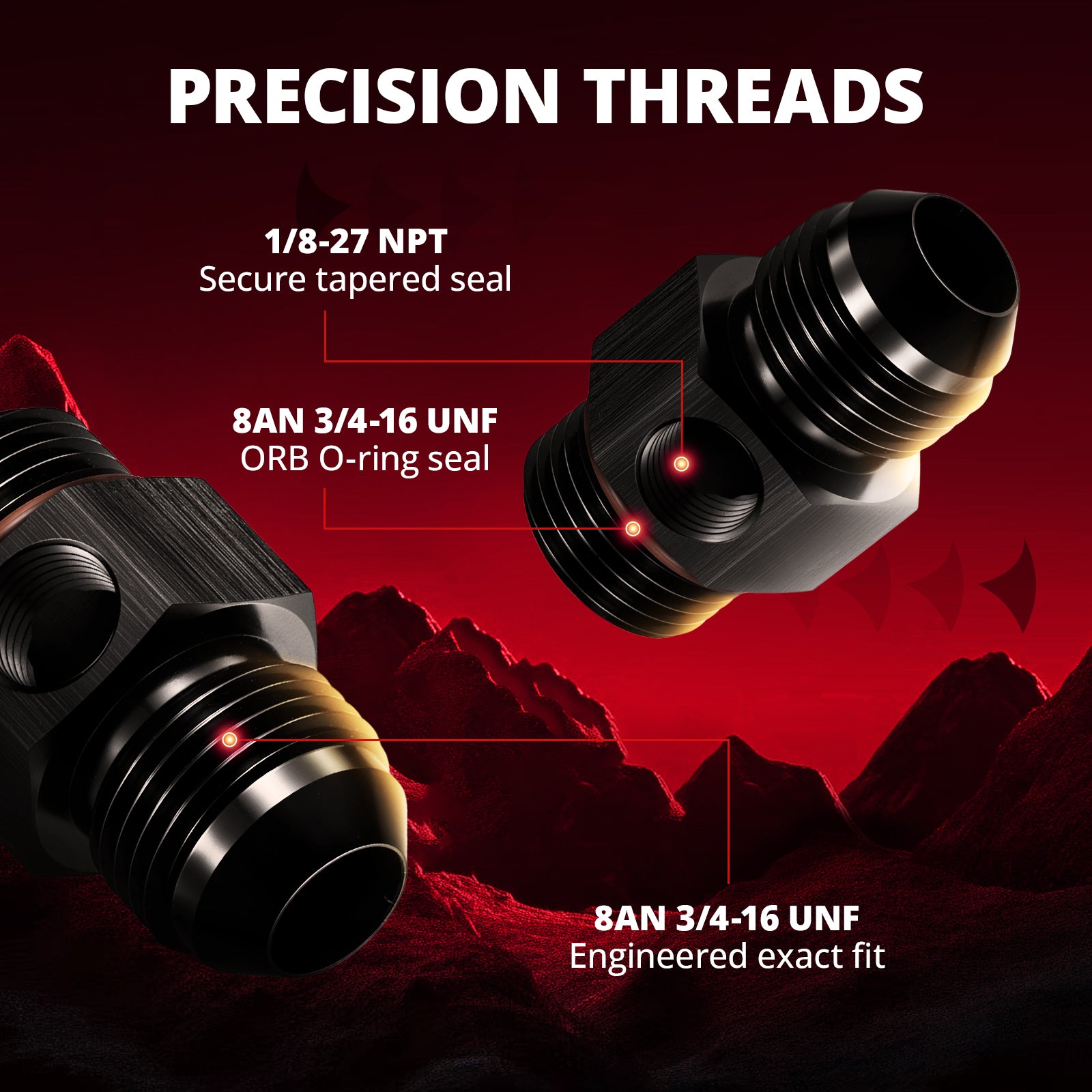

• 6AN / -6 ORB = 9/16"-18 UNF

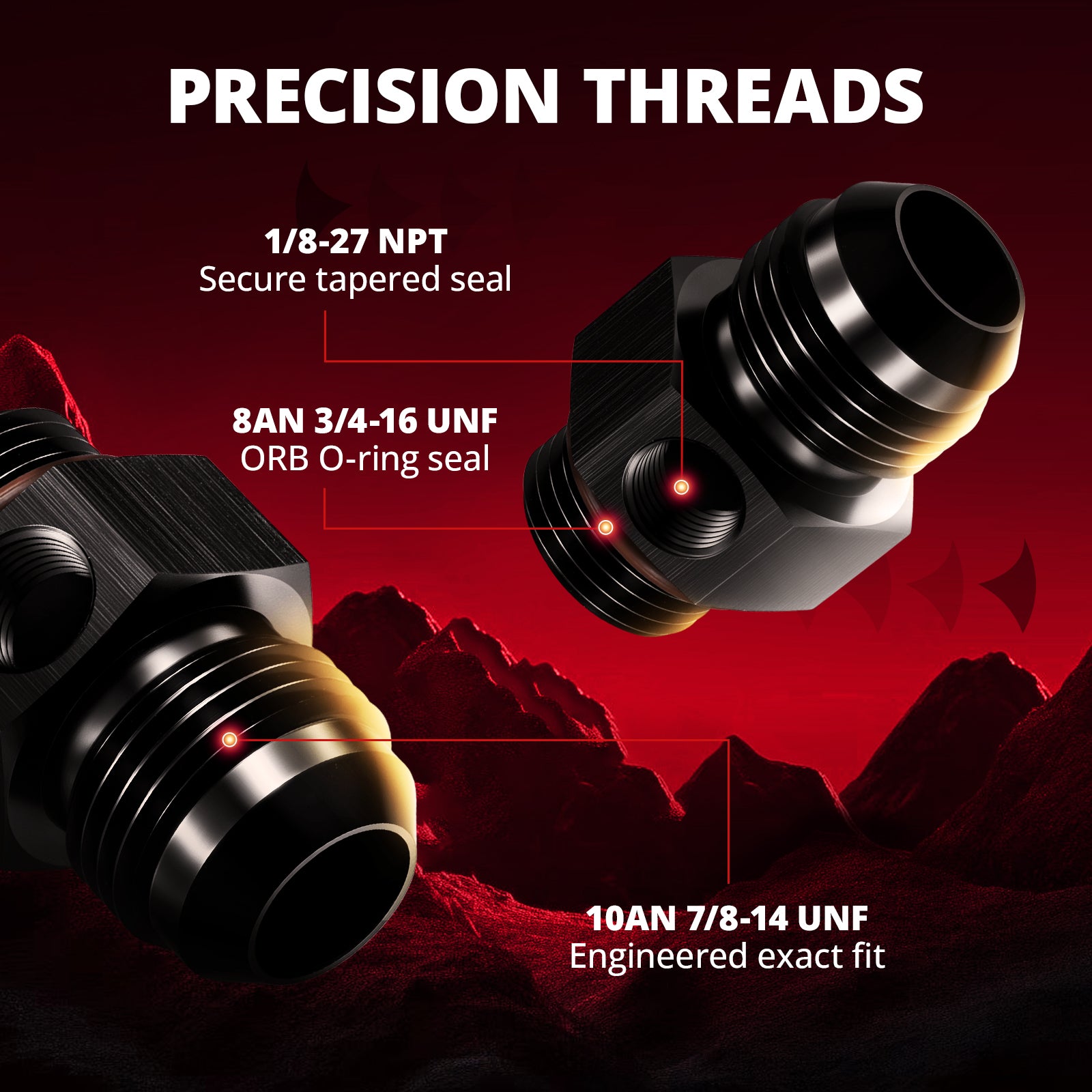

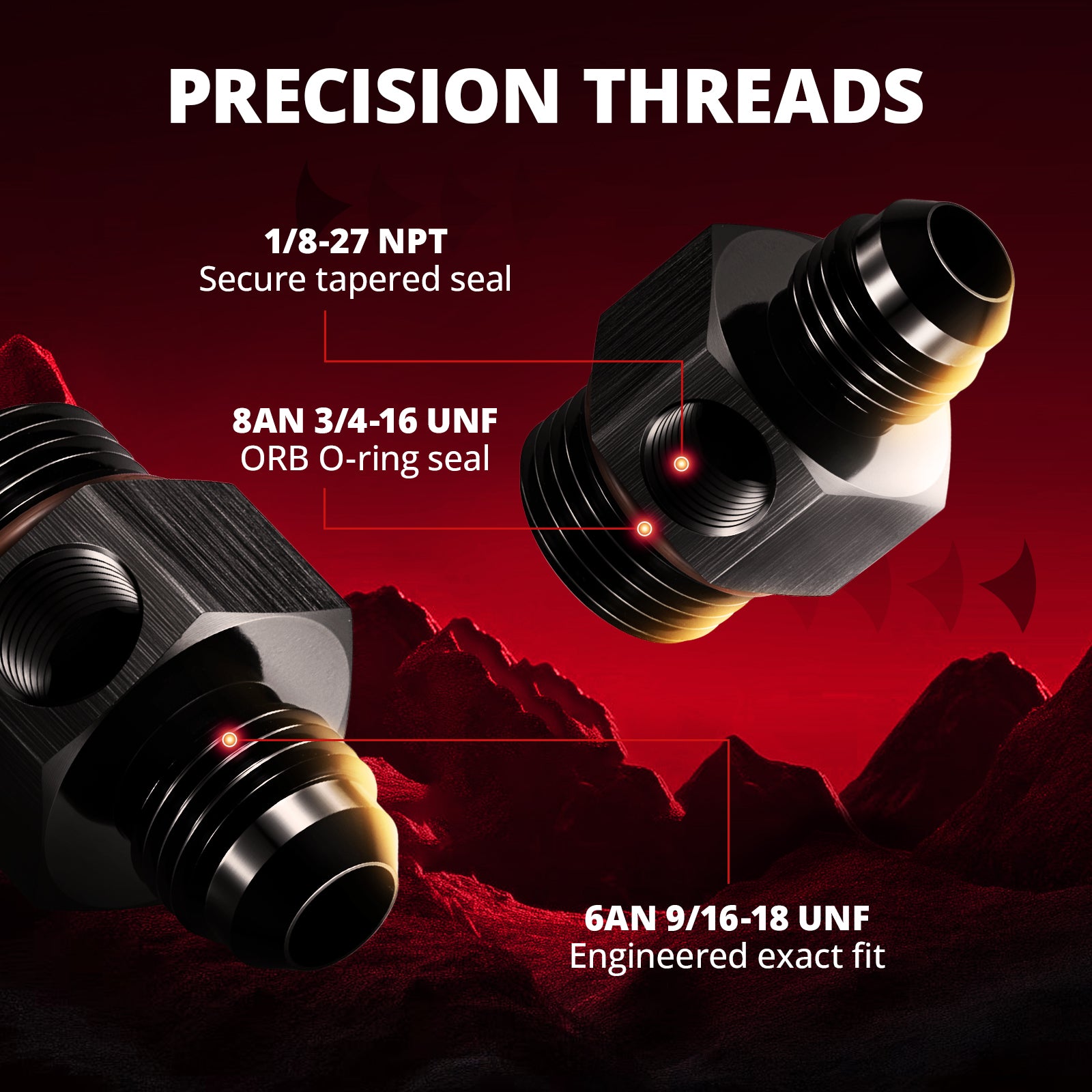

• 8AN / -8 ORB = 3/4"-16 UNF

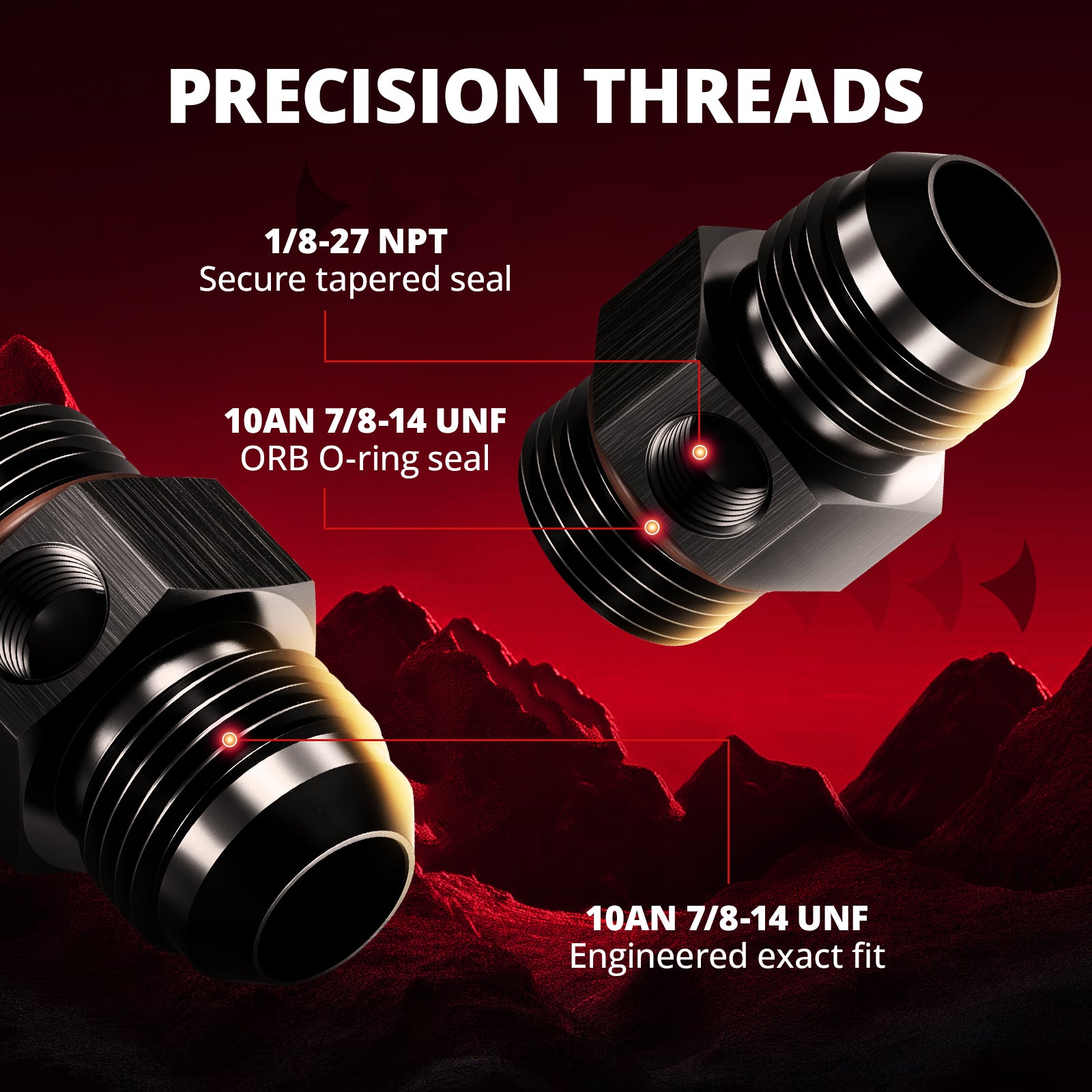

• 10AN / -10 ORB = 7/8"-14 UNF

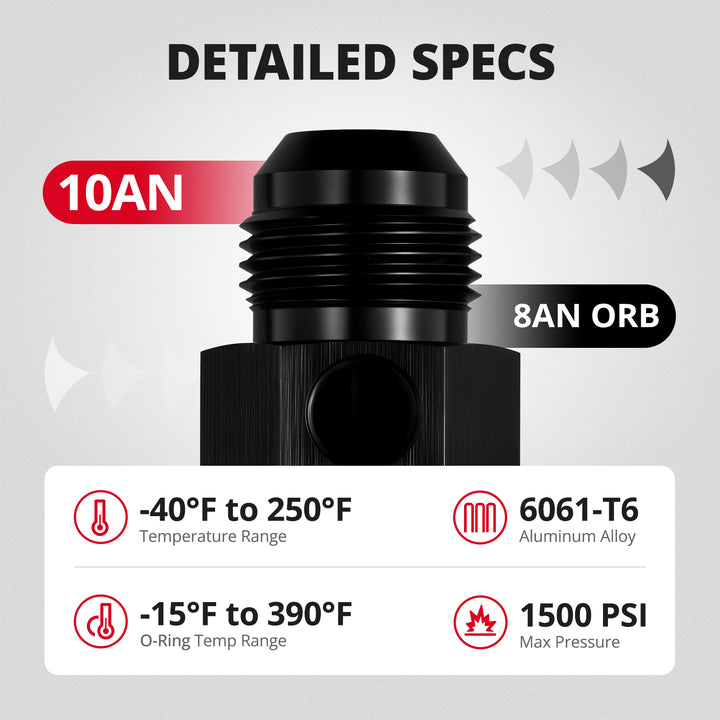

A common combination is a larger ORB into a factory-tapped rail with a smaller AN hose out — perfectly valid, since flow is limited by the smallest cross-section anyway, and stepping down to a size your system doesn't need costs nothing in performance.

If you're still specifying the rest of the plumbing, the complete AN fittings catalogue and the full fittings range cover unions, couplers and hose ends from 3AN to 16AN.
