EVILENERGY EVIL ENERGY 6/8/10AN Fuel Shut Off Valve, Male to Male Inline Fuel Cut Off Valve with Cable Lever, Aluminum Black

[6AN]EVILENERGY EVIL ENERGY 6/8/10AN Fuel Shut Off Valve, Male to Male Inline Fuel Cut Off Valve with Cable Lever, Aluminum Black

EVIL ENERGY 6/8/10AN Fuel Shutoff Valve, Male to Male Inline Fuel Cut Off Valve with Cable Lever, Aluminum Black

Q: Is this an auto shut off valve or a manual fuel shutoff valve?

This is a manual fuel shutoff valve with a cable-ready lever. It does not contain an electrical solenoid and will not operate automatically from a vehicle switch, sensor, or engine-control module.

$32.99; $32.99; ~~$32.99~~
Unit price: per

size: 8AN 6AN 8AN 10AN

Product variants

Quantity:

Add To Wish List

SKU: EVBVS0001003

Product Type: Fuel shutoff valve

Product Brief

Manually isolate an AN fuel or fluid line for service, storage, or system changes. This inline fuel shutoff valve is offered in 6AN, 8AN, and 10AN male-to-male versions with 37° flare connections, a cable-ready lever, and a black-anodized 6061-T6 aluminum body. Match the selected valve size to both female AN hose ends. Hose ends, adapters, and an actuation cable are not included.

EVIL ENERGY checkout payment icons and shopping service

EVIL ENERGY 6/8/10AN Fuel Shutoff Valve, Male to Male Inline Fuel Cut Off Valve with Cable Lever, Aluminum Black

$32.99

Choose Options

$32.99

Quantity:

EVIL ENERGY 6/8/10AN Fuel Shutoff Valve, Male to Male Inline Fuel Cut Off Valve with Cable Lever, Aluminum Black

EVIL ENERGY 6/8/10AN Fuel Shutoff Valve, Male to Male Inline Fuel Cut Off Valve with Cable Lever, Aluminum Black

$32.99

size: 8AN 6AN 8AN 10AN

Product variants

SPECIFICATIONS
DESCRIPTION
SHIPPING & RETURN
FAQS
REVIEWS

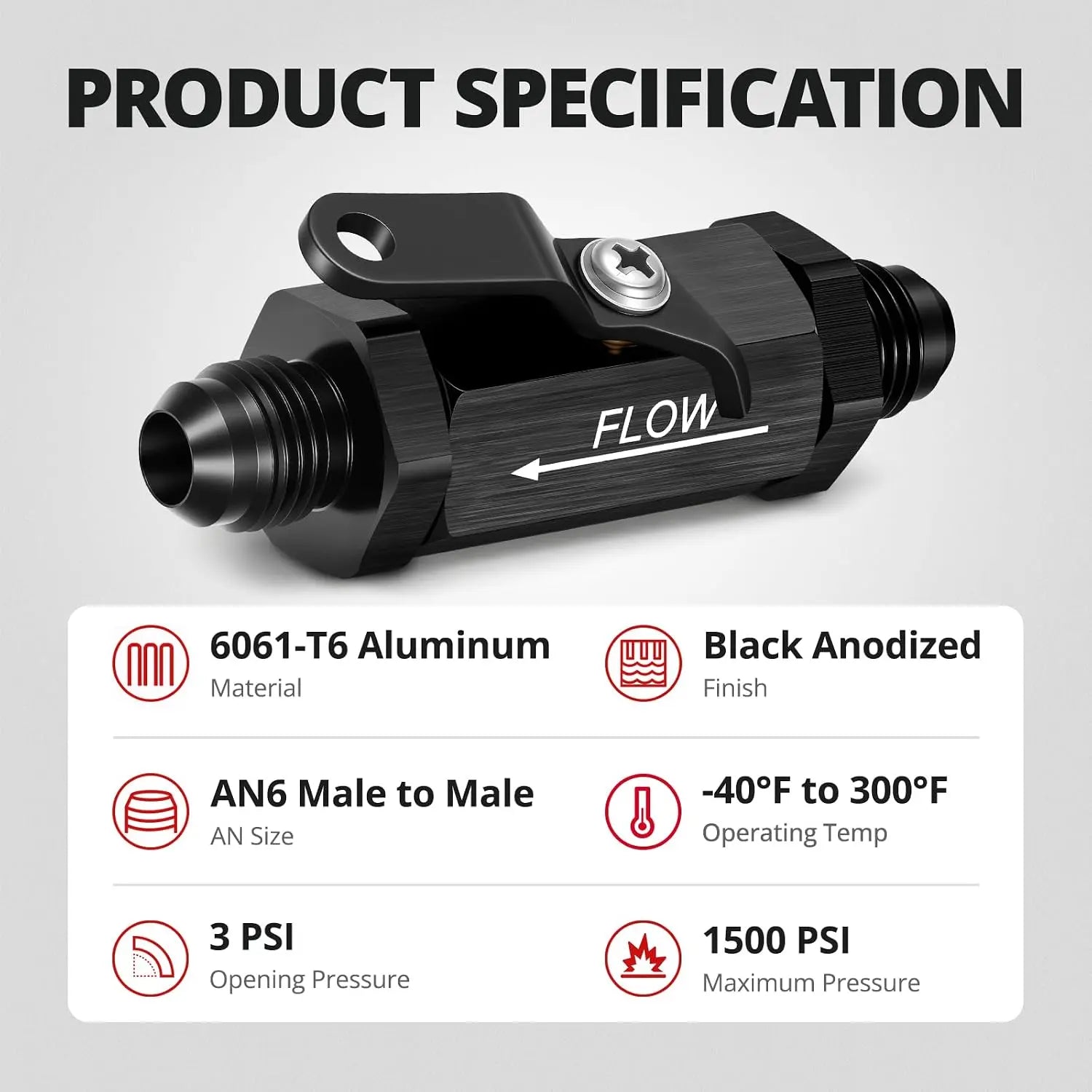

SPECIFICATIONS

Brand	EVIL ENERGY
Valve Type	Shut Off Valve (Inline), manually operated
Valve Material	6061-T6 Aluminum
Valve Finish	Black Anodized
Color	Black
Valve Thread Size	• 6AN Fuel Shutoff Valve (9/16-18 UNF) • 8AN Shutoff Valve (3/4-16 UNF) • 10AN Shutoff Valve (7/8-14 UNF)
Valve Thread Type	AN (37° Flare)
Valve Inlet Connection	AN6/8/10 Male (37° Flare)
Valve Outlet Connection	AN6/8/10 Male (37° Flare)
Port Sealing Method	37° Flare (metal-to-metal), FKM O-rings at the ports

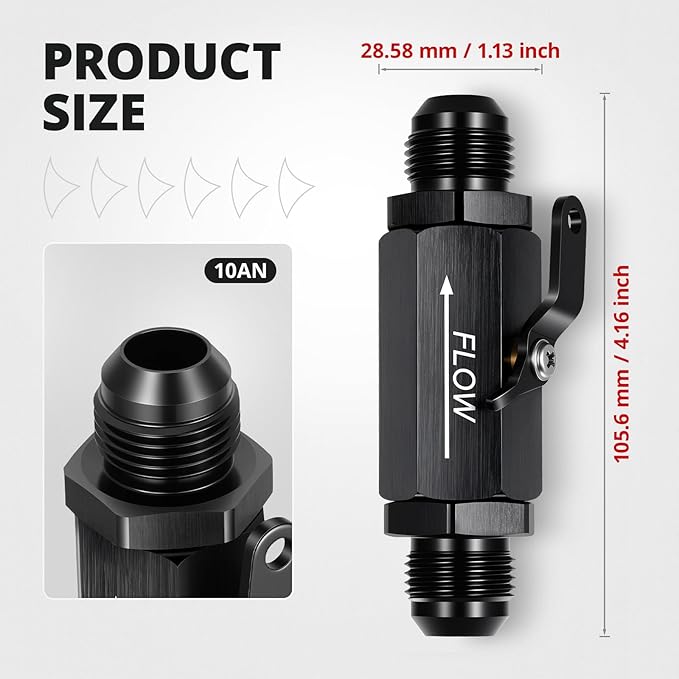

Valve Dimensions (W × L)	• 6AN: 22.2 mm × 79.31 mm (0.87" × 3.12") • 8AN: 27 mm × 101.07 mm (1.06" × 3.98") • 10AN: 28.58 mm × 105.6 mm (1.13" × 4.16")
Valve Working Pressure	1500 PSI
Valve Temperature Range	-63°F to 252°F (-53°C to 122°C)
Valve Handle Type	Lever / Cable Lever
Flow Direction	Marked FLOW arrow on the valve body

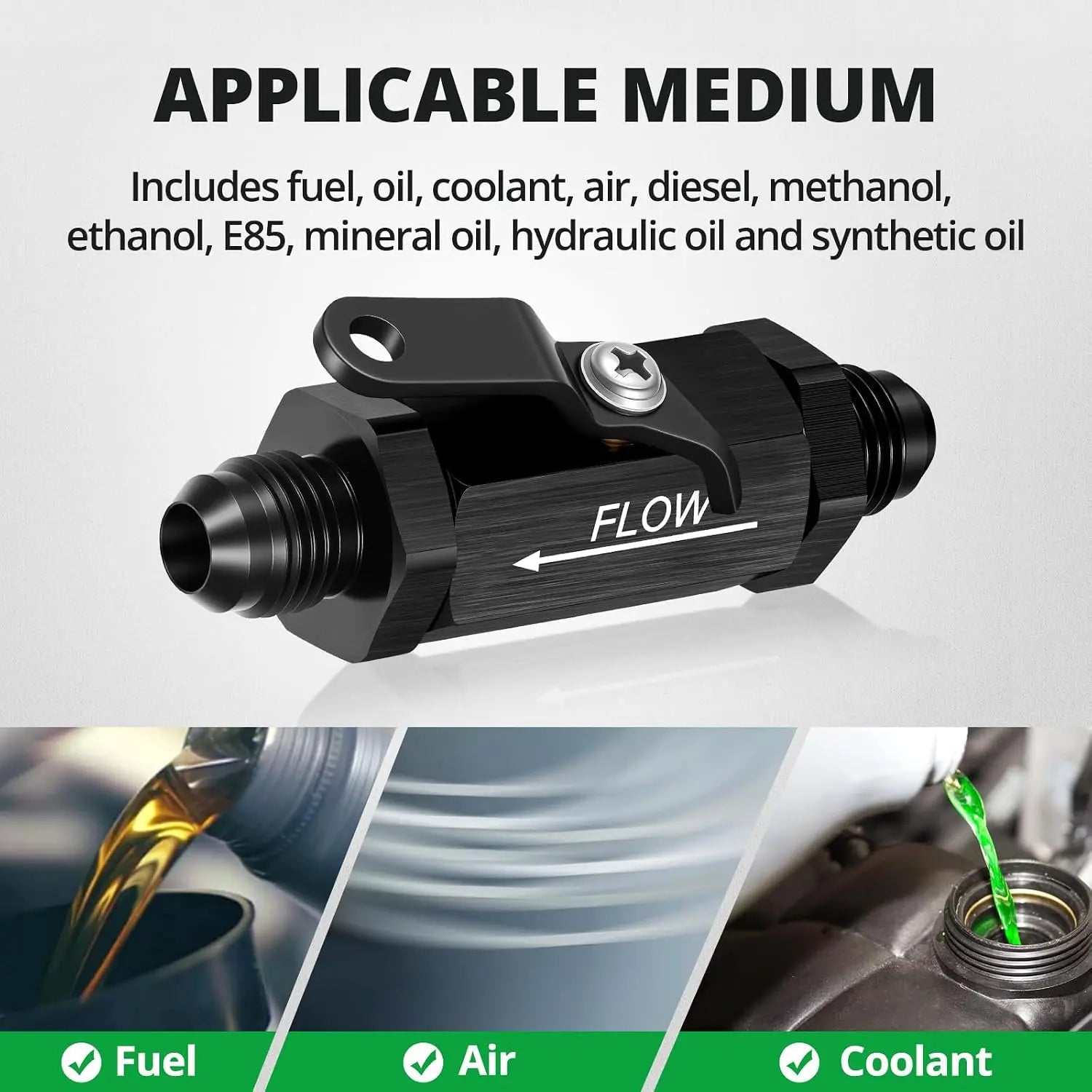

Valve Compatible Media	Fuel, Gasoline, Diesel, E85, Methanol, Ethanol, Coolant, Air, Mineral Oil, Hydraulic Oil, Synthetic Oil
Valve Compatible Vehicles	Universal (AN fuel line systems)
Valve Application	Fuel systems, oil cooler systems, racing fuel cells, fluid control
Package	1 x Fuel Shutoff Valve in the Selected AN Size; female AN hose ends sold separately

DESCRIPTION

AN Fuel Shutoff Valve

Manual Fuel Shutoff Valve for 6AN, 8AN and 10AN Lines

Add a dedicated shutoff point to a custom fuel or fluid line without converting between AN and pipe threads. This EVIL ENERGY fuel shutoff valve uses matching male AN connections on both ends in 6AN, 8AN and 10AN sizes, and its cable-ready lever gives manual on/off control for service, storage, draining or line isolation. Choose the size that matches the female swivel hose ends already in your system, or pair it with a PTFE fuel line kit for a new installation.

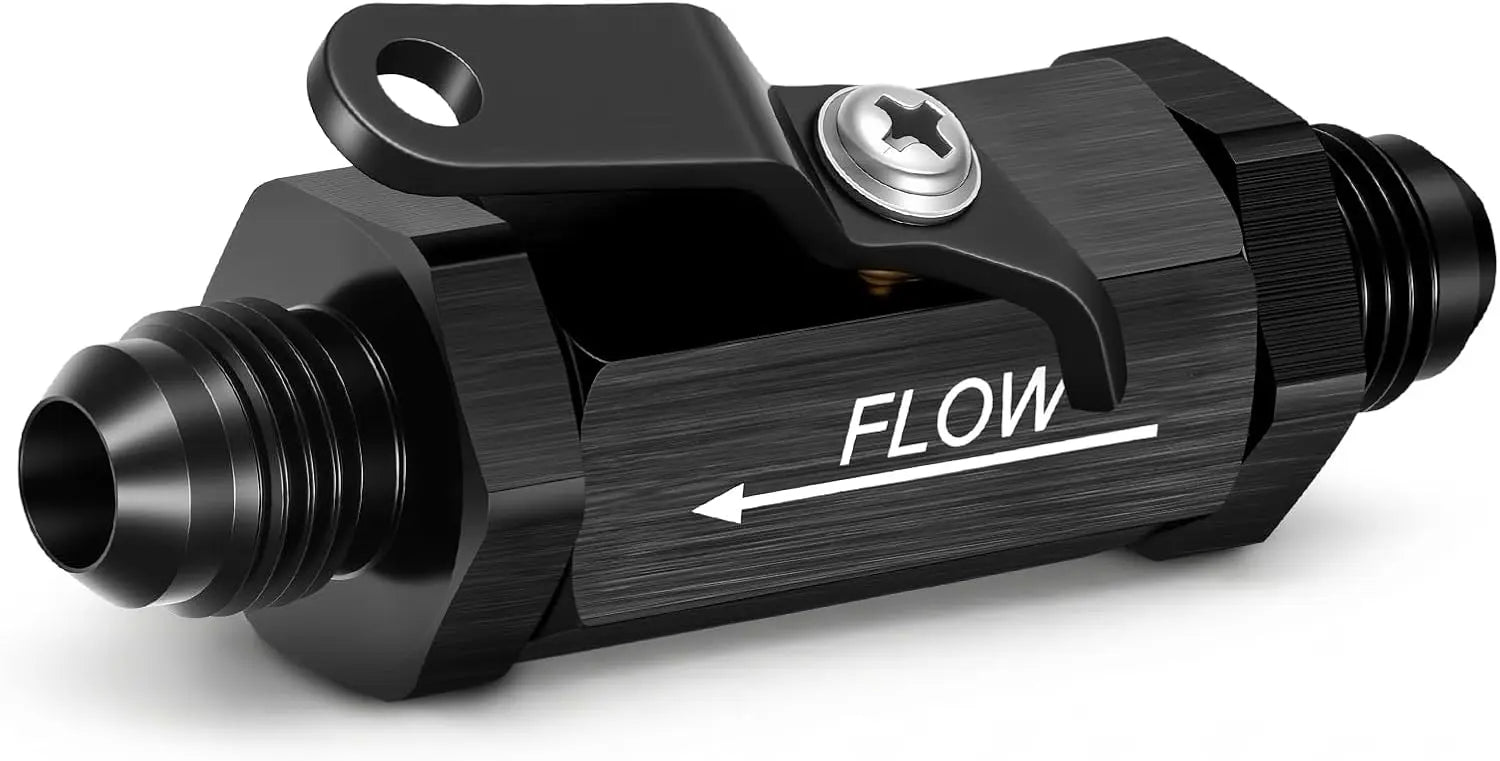

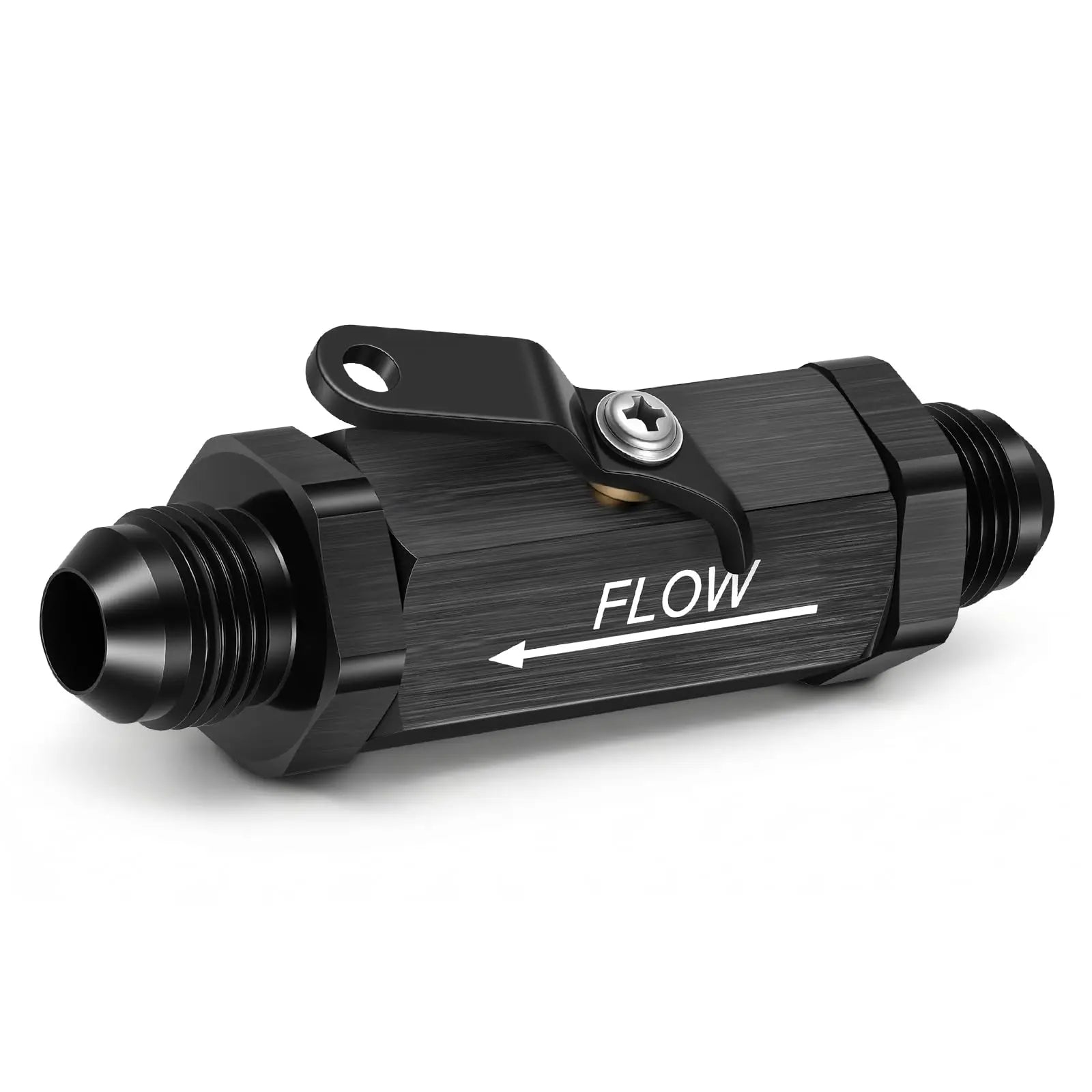

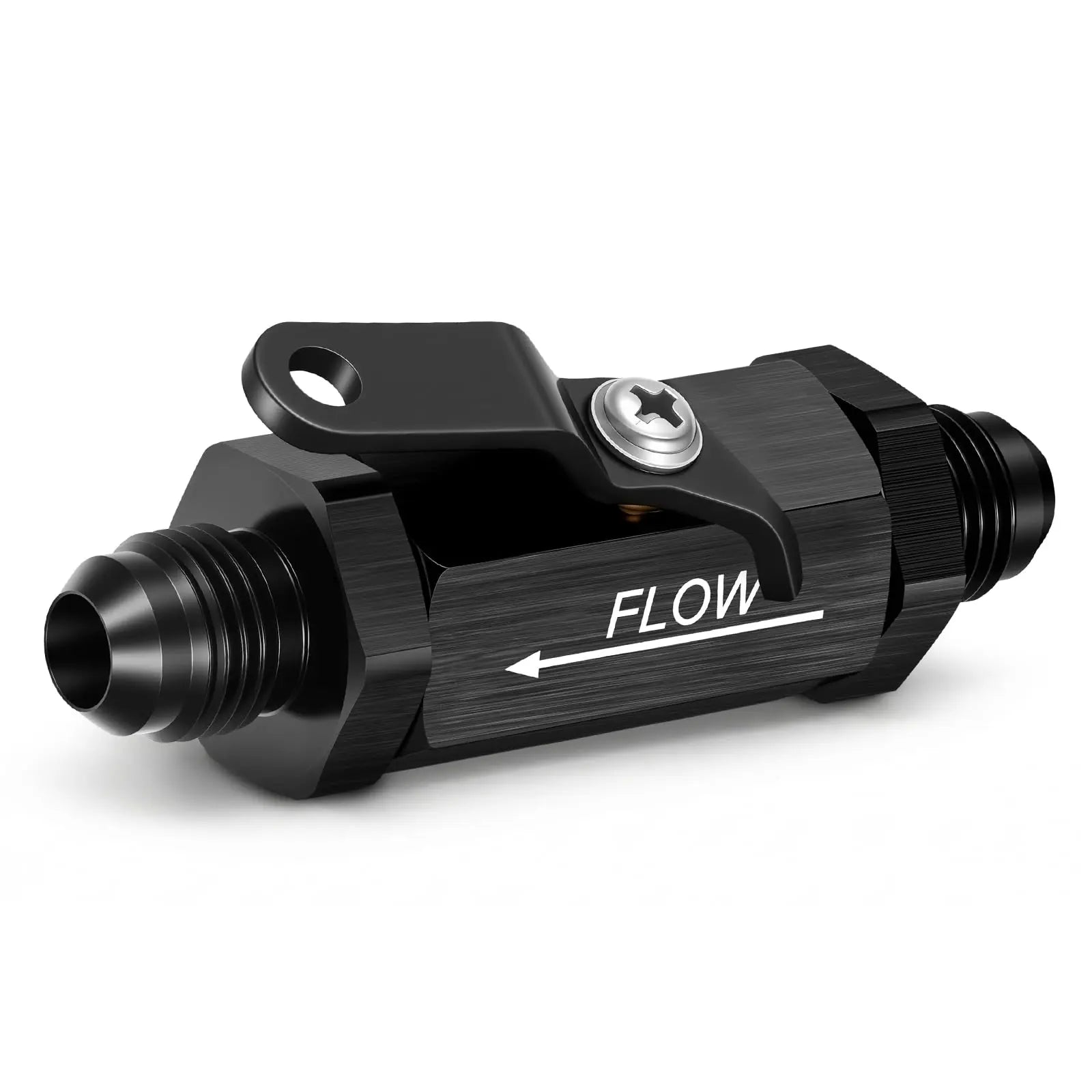

EVIL ENERGY black AN fuel shut off valve with cable lever

1500 PSI

Working pressure

6/8/10AN

Male flare both ends

Cable lever

Remote on/off

E85 safe

Fuel, oil, coolant

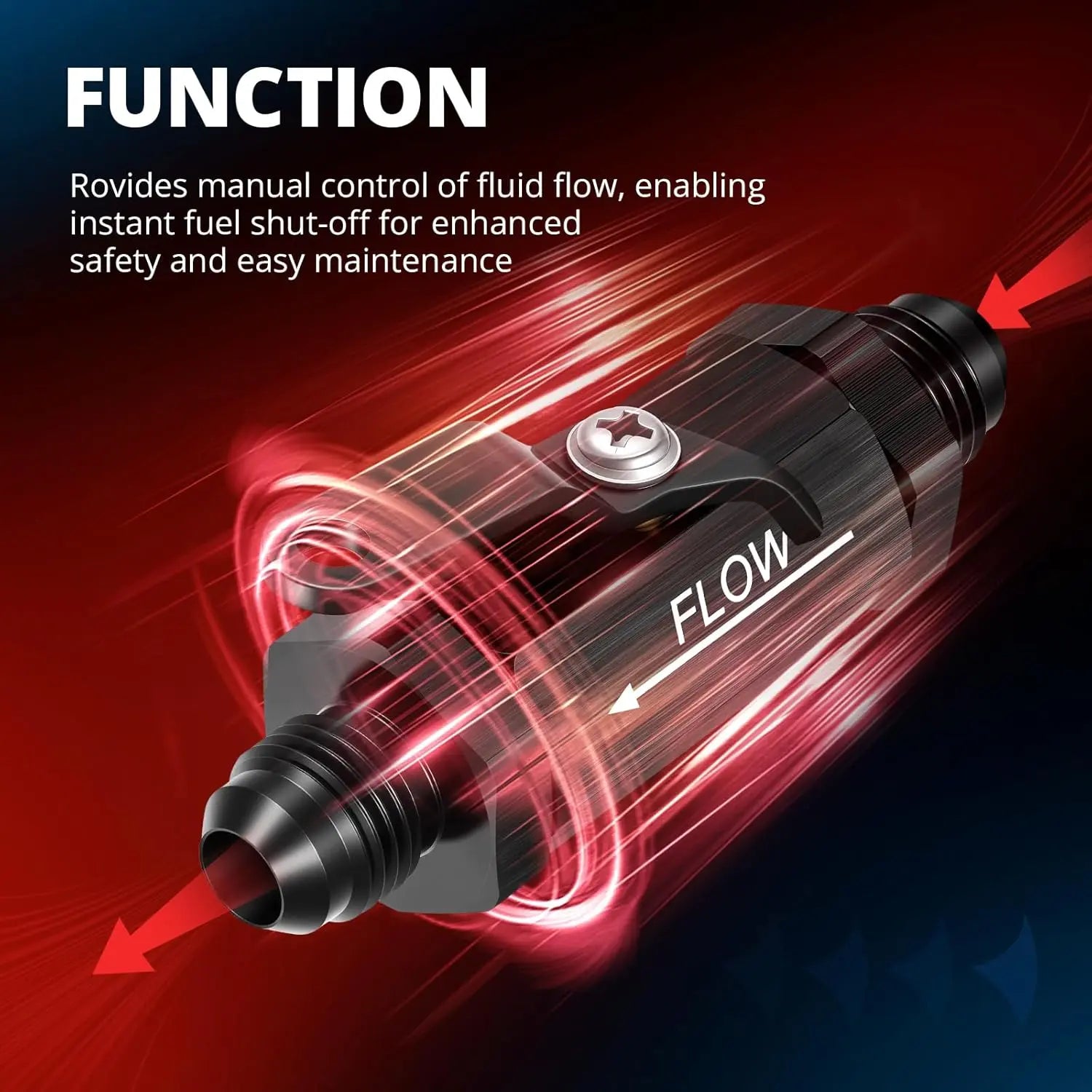

Fuel shut off valve open and closed positions controlled by the cable lever

Operation

How the Cable Lever Opens and Closes the Valve

Pulling the cable lever moves the internal mechanism and opens the valve, letting fluid flow in the direction of the FLOW arrow. Releasing or pushing the lever back closes the valve and stops flow.

This is a manually operated shutoff valve, not an automatic check valve. If you need fuel to stop flowing backward on its own, use an AN one-way check valve instead. Run the shutoff valve fully open or fully closed rather than part-way.

Applications

Where to Use an AN Fuel Shutoff Valve

Close the valve to stop flow during maintenance, storage, draining or component replacement.

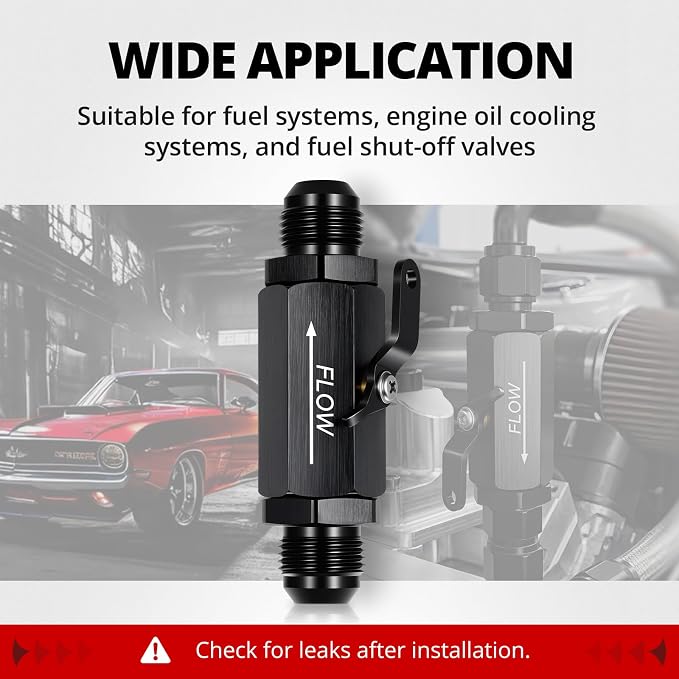

AN fuel shut off valve used in fuel, coolant and hydraulic lines

Race car fuel cutoff

Racing rules often require a quick-action fuel shutoff within the driver's reach in the main line between the tank and the engine. NHRA, for example, requires one on carbureted and non-electronic fuel systems and with non-OEM mechanical fuel pumps. The cable lever lets you mount the valve near the tank and operate it from the seat.

Fuel cell and pump service

Close the line at the racing fuel cell before changing a pump, filter or regulator, so you are not draining the whole tank.

Project car storage

Shut the fuel off before long-term storage and run the carburetor or rail dry, so old fuel does not sit in the float bowl or injectors.

Oil cooler isolation

Isolate a remote oil cooler kit or other AN fluid line for service without draining the full system.

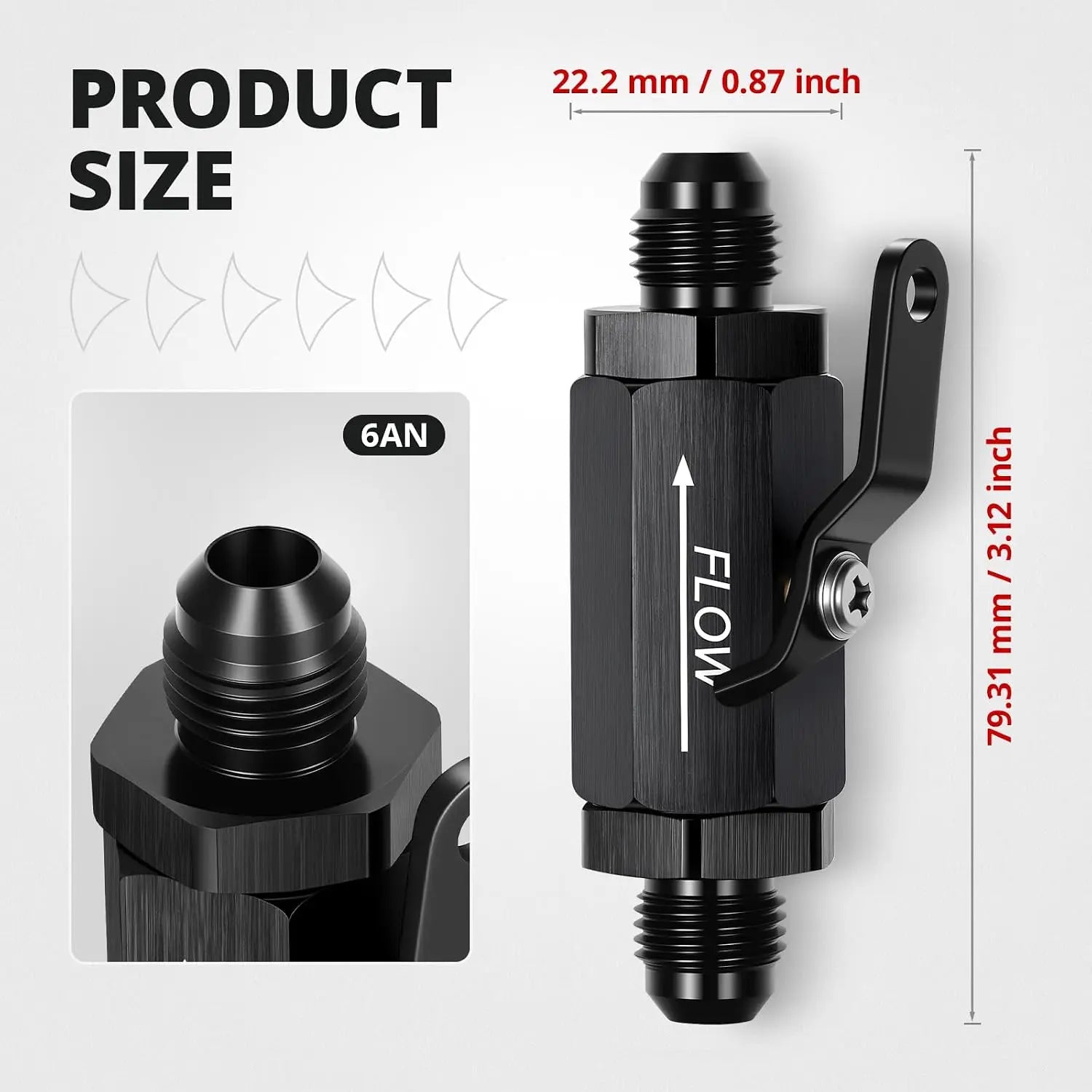

6AN fuel shut off valve dimensions 22.2 mm wide and 79.31 mm long

Sizing

Which Shutoff Valve Size Matches Your Fuel Line?

Pick the size that matches the female AN hose ends on both sides of the line. Check the overall length against the space where the valve and lever will sit.

6AN

9/16"-18 UNF

22.2 × 79.31 mm

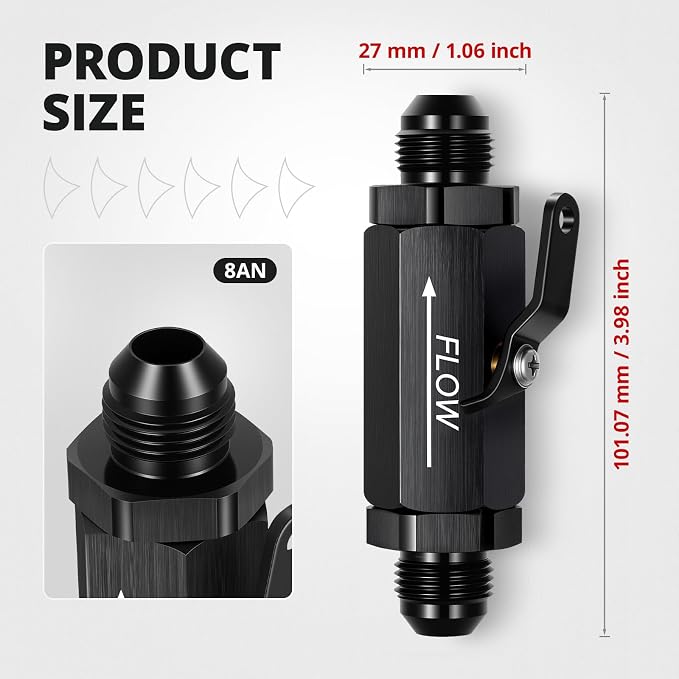

8AN

3/4"-16 UNF

27 × 101.07 mm

10AN

7/8"-14 UNF

28.58 × 105.6 mm

Construction

What the AN Shutoff Valve Is Made Of

The body is CNC machined from 6061-T6 aluminum with a black anodized finish that resists corrosion, wear and chemical exposure. Each AN port seals to the body with an FKM O-ring.

It is rated for 1500 PSI working pressure and -63°F to 252°F, and is safe for gasoline, diesel, E85, methanol, ethanol, coolant, air, mineral oil, hydraulic oil and synthetic oil.

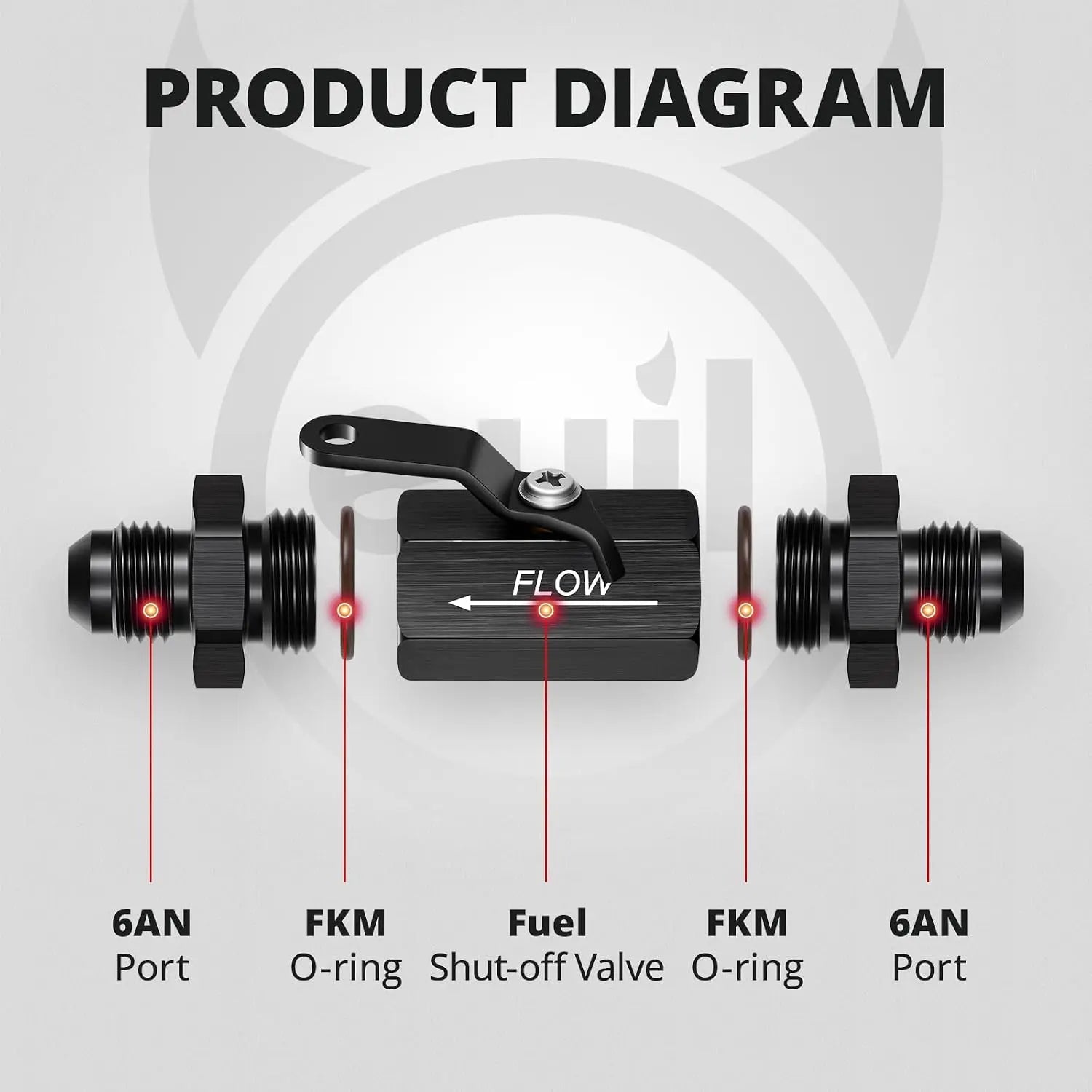

Exploded view of the 6AN fuel shut off valve with AN ports and FKM O-rings

Connecting the fuel shut off valve to female AN swivel hose ends

Installation

How to Install the AN Fuel Shutoff Valve

Both ports are male AN threads with a 37° flare. The flare faces create the seal against matching female AN swivel fittings, and the threads simply draw the surfaces together. Do not use NPT fittings or pipe-thread tape on the flare. To reach an NPT port, add the correct AN-to-NPT adapter.

Allow room for the lever and cable to travel through their full range without touching hoses, brackets or wiring, and support the valve and lines so the fittings are not side-loaded. Identify the fully open and fully closed lever positions and the FLOW direction before pressurizing, then bring pressure up gradually and check every joint for leaks.

SHIPPING & RETURN

Brand Summary

Policy	Details
Cancellation Policy	Orders can be canceled within 48 hours of placement. Refund processed in 3-5 business days.
Returns Policy	Returns accepted within 180 days. Full refund within 90 days; 15% fee for 90-180 days.
Non-Returnable Items	Only regular-priced items are eligible for refunds; sale items are non-refundable.
Refund Processing	If no refund received, check your bank/credit card. For ongoing issues, contact support@ievilenergy.com.

Return Reasons

Quality Issues: Provide photos/videos; we cover return shipping.
Wrong Item Ordered: Buyer covers return shipping; email within 30 days.
Change of Mind: Buyer covers return shipping; email within 30 days.
Shipping Damage: Inspect packages; do not sign for damaged items.
Incorrect Item Shipped: Contact within 7 days.

Price Protection Policy

Effective from August 25, 2024. Price drops within 7 days of purchase can be claimed.

Disclaimer

EVIL ENERGY reserves the right to interpret, modify, or terminate this policy in accordance with applicable laws and regulations.

If you need further information or assistance, feel free to ask!

FAQS

Q: Is this an auto shut off valve or a manual fuel shutoff valve?

A: This is a manual fuel shutoff valve with a cable-ready lever. It does not contain an electrical solenoid and will not operate automatically from a vehicle switch, sensor, or engine-control module.

Q: How do I choose between the 6AN, 8AN, and 10AN fuel shutoff valve sizes?

A: Select the same AN size used by the female hose ends on both sides of the installation point. The 6AN shutoff valve uses 9/16-18 UNF threads, the 8AN valve uses 3/4-16 UNF threads, and the 10AN shutoff valve uses 7/8-14 UNF threads. Thread size alone does not confirm adequate flow, so also compare the valve's internal bore with your system requirements.

Q: Does the inline fuel shutoff valve connect directly to braided fuel hose?

A: No. Both ends of the valve are male AN flare connections. Matching female swivel hose ends or female AN adapters are required to connect the valve to a braided fuel line. Hose ends and adapters are not included.

Q: Can this AN fuel shutoff valve be connected to an NPT fitting?

A: Not directly. AN connections use a 37° flare sealing surface, while NPT connections use tapered pipe threads. Use the correct adapter when connecting an AN component to an NPT port, and do not force the two thread types together.

Q: Is a control cable included with the fuel cut off valve?

A: No. The package contains one valve in the selected AN size. The lever has an attachment point for a compatible control cable, but the cable, hose, hose ends, adapters, and mounting hardware are not included.

Q: Where should an inline fuel shutoff valve be installed in a fuel system?

A: Install it in an accessible section of the line where flow can be isolated safely for maintenance or component replacement. In some external-pump systems, a shutoff valve is placed between the fuel tank or fuel cell outlet and the pump. Always follow the fuel-pump and system manufacturer's installation requirements.

Q: Can the fuel shutoff valve be used to regulate fuel pressure or flow rate?

A: Use the shutoff valve as a fully open or fully closed isolation device unless EVIL ENERGY specifically confirms a throttling function. It is not a substitute for a fuel-pressure regulator, and leaving a shutoff valve partially open may restrict system flow.

Q: Is this inline fuel shutoff valve the same as a fuel check valve?

A: No. A manual shutoff valve stops line flow when the lever is moved to the closed position. A fuel check valve operates automatically to limit reverse flow. This product should not be described as an automatic backflow-prevention valve.

Q: How should I check the fuel shutoff valve after installation?

A: Confirm that the fittings are aligned correctly, the lever moves through its complete open and closed positions, and the line is supported without placing side load on the valve. Pressurize the system according to the pump or vehicle manufacturer's procedure and inspect every connection before operating the vehicle.
